DALCNET Adeo Control SGDD-C4-4 User manual

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
1/ 36
ADEO CONTROL SGDD-C4-4
SERVER GATEWAY DMX &DALI
for Control4 integrations
INSTALLATION AND USER MANUAL
V1.6
July 2022

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
2/ 36
Summary
1. Application...................................................................................................................................... 4
2. Technical Notes................................................................................................................................ 5
3. Characteristics ................................................................................................................................. 6
4. Reference Standards.......................................................................................................................... 6
5. Connections .................................................................................................................................... 7
6. Status LED ..................................................................................................................................... 8
7. Local Button .................................................................................................................................... 8
8. Web Server (Ethernet) ........................................................................................................................ 9
9. Configuration menu...........................................................................................................................10
10. Channells ..................................................................................................................................11
11. Bus Configuration .........................................................................................................................12
12. DALI global settings ......................................................................................................................13
13. DALI config ................................................................................................................................14
14. Addressing.................................................................................................................................14
15. Network ....................................................................................................................................16
16. Login settings..............................................................................................................................16
17. sACN .......................................................................................................................................16
18. Telnet.......................................................................................................................................17
19. ARTNet.....................................................................................................................................17
20. MODUBUS TCP Slave ...................................................................................................................17
21. Firmware update ..........................................................................................................................18
22. Log..........................................................................................................................................19
23. Log configuration..........................................................................................................................19
24. Integration with Control4 .................................................................................................................20
25. DALI and DMX integration example ....................................................................................................21
26. Difference between DALI Type 6 and DALI Type 8...................................................................................21
27. DALI & DMX Comparison ................................................................................................................22
28. Before programming ......................................................................................................................23
29. Driver (OS 3.2.4) ..........................................................................................................................23
30. Adeo Control SGDD-C4-4 Driver (Adeo_Control_SGDD-C4-4_Gateway.c4z) .....................................................24
31. Dimmer Driver with light_v2 Proxy ......................................................................................................27
32. Adeo Control SGDD-C4-4 RGBW DT8 Driver (Adeo_Control_SGDD-C4-4_RGBW-DT8.c4z)...................................28
33. Adeo Control SGDD-C4-4 TW DT8 Driver (Adeo_Control_SGDD-C4-4_TW-DT8.c4z)...........................................30

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
3/ 36
34. Adeo Control SGDD-C4-4 Single Dim-Light Driver (Adeo_Control_SGDD-C4-4_Single_Dimmable_Light.c4z)................32
35. Adeo Control SGDD-C4-4 RGB HSV Driver (Adeo_Control_SGDD-C4_RGB_HSV.c4z) ........................................33
36. Adeo Control SGDD-C4-4 Switch RGB Driver (Adeo_Control_SGDD-C4-4_SW_RGB.c4z) .....................................34
37. Adeo Control SGDD-C4-4 Relay Driver (Adeo_Control_SGDD-C4-4_Relay.c4z) .................................................35
38. Best Practice ..............................................................................................................................36

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
4/ 36
1. Application
The new Adeo Server Gateway SGDD-C4-4 is a multi-output device that operates at the network level and allows data packets to be
routed to fieldbus communication systems such as DMX512A and DALI to provide advanced lighting control. Once the IP address is
assigned on the Composer Pro, the SGDD-C4-4, through specific drivers, is able to manage the individual channel or RGB through
DMX or DALI. Communication is bidirectional, so from the Control4 interface we will always have the updated status of the lights.
Moreover, the MODBUS port can become a second DMX port to be connected, for example, to external light control units.
The SGDD-C4-4 device stores information from the configured receiver buses in a buffer and transmits it to the configured transmitter
buses. In the default configuration, a single buffer, corresponding to a DMX universe, is managed and controlled via the Ethernet
interface. On the DMX bus, all of the 512 channels of the buffer are transmitted; on the DALI bus, the first 64 channels of the buffer
(64 short addresses) are transmitted according to an algorithm that updates the fastest changing channels more frequently. This
default configuration allows a total of 512 levels of light intensity to be managed through any control unit with an Ethernet connection,
and to control different devices without the need to know in detail how the relevant protocols (DMX or DALI) work.
Specifically, DMX/DALI conversion is possible in installations where DMX and DALI are used simultaneously. The supply voltage is
between 12 and 48V DC and is fitted with DALI short-circuit and overload protection.
The SGDD-C4-4 provides, via its incorporated flash memory, a Web Server interface on which a standard application is loaded that
allows real-time data setting or monitoring from a PC, Tablet or SmartPhone. With the SGDD-C4-4, advanced lighting control is
possible at network level, with the advantage of intelligent communication through different communication buses. Indeed, SGDD-C4-
4 manages the data and bus interface in a transparent way, allowing easier system configuration.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
5/ 36
2. Technical Notes
Installation:
•Installation and maintenance must only be carried out by qualified personnel in accordance with the regulations in force.
•The product must be installed inside a surge-protected electrical cabinet.
•The product must be installed in a vertical or horizontal position with the front cover/label upwards or vertically; no other position is
permitted; a bottom-up position (with the front cover/label downwards) is not permitted.
•Keep 230V (LV) and non-SELV circuits separate from safety extra-low voltage (SELV) circuits and all connections of this product. It
is absolutely forbidden to connect, for any reason, directly or indirectly, the 230V mains voltage to the bus or other parts of the circuit.
Power supply:
•Use only SELV-type power supplies with limited current and short-circuit protection and appropriately sized power for the power
supply. In the case of power supply units equipped with earth terminals, it is mandatory to connect ALL protection earth points (PE =
Protection Earth) to a professionally installed and certified earth installation.
•The connecting cables between the extra-low voltage power source and the product must be correctly sized and must be isolated
from any wiring or non-SELV voltage parts. Use double-insulated wires.
Commands:
•The length of the connecting cables between the local controls (Push Button, 0-10V, 1-10V, Potentiometer, or other) and the product
must be less than 10m; the cables must be correctly sized and must be isolated from any wiring or non-SELV voltage parts. Use
double-insulated shielded and twisted cables.
•The length and type of connection cables to the buses (DMX512, Modbus, DALI, Ethernet or other) must comply with the specifications
of the respective protocols and current standards; they must be isolated from any wiring or non-SELV voltage parts. Use double-
insulated shielded and twisted cables.
•All devices and control signals connected to buses (DMX512, Modbus, DALI, Ethernet or other) and local controls (Push Button, 0-
10V, 1-10V, Potentiometer, or other) must be SELV (connected devices must be SELV or in any case provide a SELV signal).
In addition
•The device routes the DALI devices
•It supports DALI DT4, DT6 and DT8 protocols
•The Gateway feeds the communication bus and cannot coexist with other controllers
•The gateway can only receive commands via IP (Control4) and re-route them to the available 512 channels, regardless of the bus
type

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
6/ 36
3. Characteristics
Tensione di alimentazione - Supply Voltage
12 / 24 / 48 Vdc
Corrente assorbita - Input Current
voltage
min
Typ*
max
@ 12Vdc
110mA (1,2W)
320mA (3,84W)
500mA
@ 24Vdc
60mA (1,44W)
160mA (3,84W)
@ 48Vdc
40mA (1,92W)
80mA (3,84W)
*ethernet and all bus at full load
Temperatura di stoccaggio - Storage temperature
min: -40 max: +60 °C
Temperatura di esercizio - Working temperature
min: -40 max: +40 °C
Grado di protezione - Protection Grade
PLASTIC BOX IP10
Peso - Weigth
ALUMINIUM BOX: 230g - PLASTIC BOX 125g
Dimensioni Meccaniche - Mechanical dimensions
ALUMINIUM BOX: 105x70x47 - PLASTIC BOX: DIN RAIL 4mod.
ETHERNET
10/100 Mbit baseT FULL DUPLEX AUTO NEGOTIATION
DMX
Max 512 ch (dipende dal cablaggio) open fail safe - short fail safe
DALI
Max 64 ch, alimentatore min 200mA –max 250mA integrato
Dimensioni meccaniche
72 x 92 x 62 mm
4. Reference Standards
EN 55015
Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
EN 61547
Equipment for general lighting purposes –EMC immunity requirements
EN 61347-1
Lamp controlgear –Part 1: General and safety requirements
IEC 62386-101 ED.2
Digital addressable lighting interface –Part 101: General requirement –System components
IEC 62386-103 ED.2
Digital addressable lighting interface –Part 103: General requirements –Control devices
IEC 62386-205 ED.21
Digital addressable lighting interface –Part 205: Particular requirements for control gear –Supply voltage controller for
incandescent lamps (device type 4)
IEC 62386-207 ED.22
Digital addressable lighting interface –Part 207: Particular requirements for control gear –LED modules (device type 6)
IEC 62386-209 ED.23
Digital addressable lighting interface –Part 209: Particular requirements for control gear –Colour control (device type 8)
ANSI E1.11
Entertainment Technology –USITT DMX512-A Asynchronous Serial Digital Data Transmission Standard for Controlling Lighting
Equipment and Accessories
1
L’SGDD-C4-4 provides commands for the DT4 control gears, compatible with IEC 62386-205
2
L’SGDD-C4-4 provides commands for the DT6 control gears, compatible with IEC 62386-207
3
L’SGDD-C4-4 provides commands for the DT8 control gears, compatible to IEC 62386-208 (colour type Tc, colour type RGBWAF)

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
7/ 36

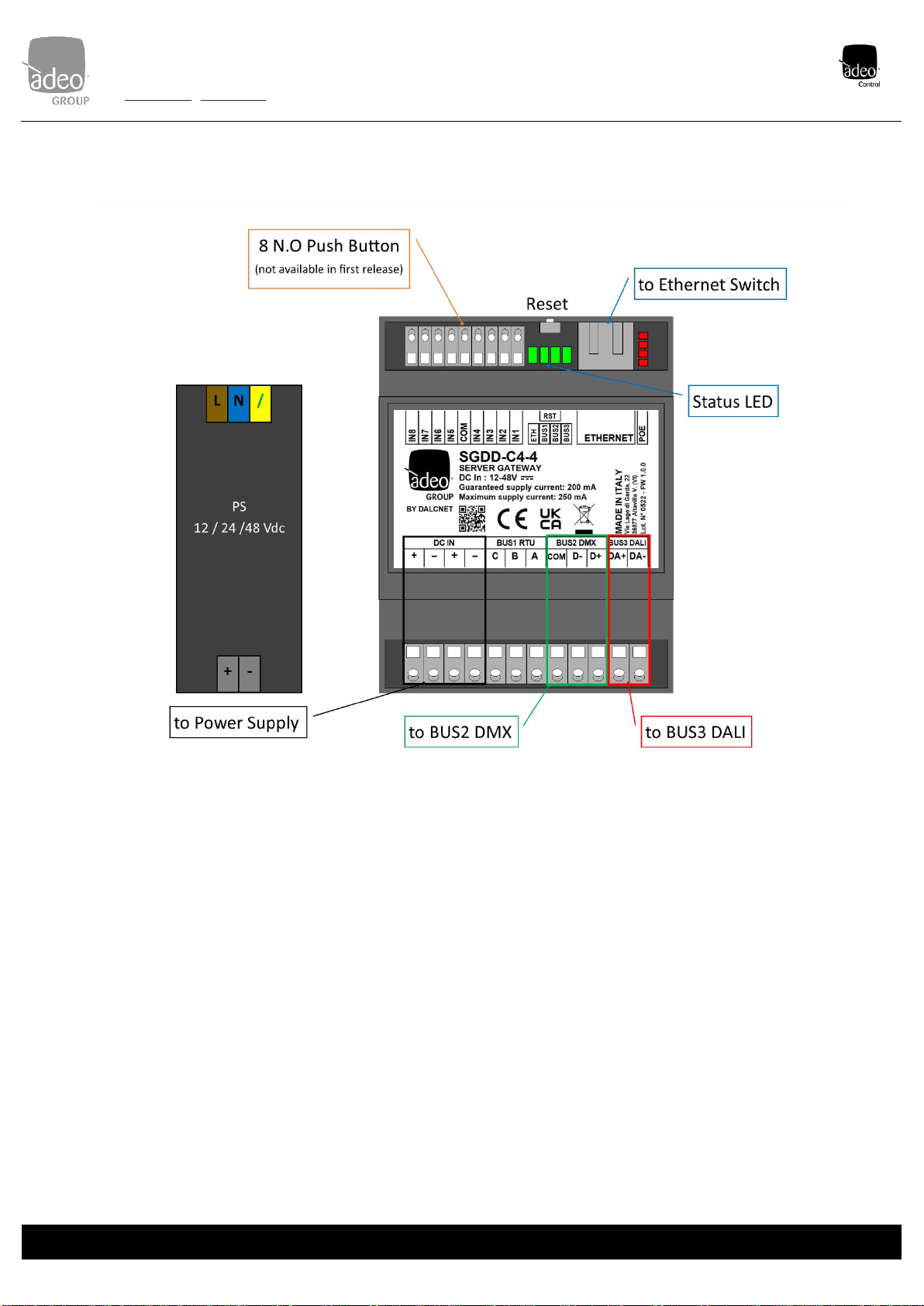

5. Connections
RST BUTTON:
If the reset button is pressed for less than 2 seconds, the device can be restarted, with the status LEDs lighting up, starting with the
first one on the right in a progressive manner.
If the button is pressed for longer than 2 seconds and all four status LEDs light up, the system resets to the factory settings

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
8/ 36
6. Status LED
LED1(left)
LED2
LED3
LED4(right)
Function
Ethernet
BUS1(DMX/RTU)
BUS2(DMX/RTU)
BUS DALI
ON
Connected with Ethernet
communication
Connected with
communication
Connected with
communication
Connected with
communication
Flashing
Ethernet cable connection
Connected without
communication (only
RTU)
Connected without
communication (only
RTU)
Connected without
communication
OFF
Not connected
Not connected
Not connected
Not enabled (without
power supply DALI)
The same status LEDs are also visible at the top right of the web interface, with these statuses:
•GREEN: permanently lit: active;
•FLASHING YELLOW: no communication or not enabled
7. Local Button
The device is equipped with 8 local contacts that cannot be used at present. Future updates are planned.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
9/ 36

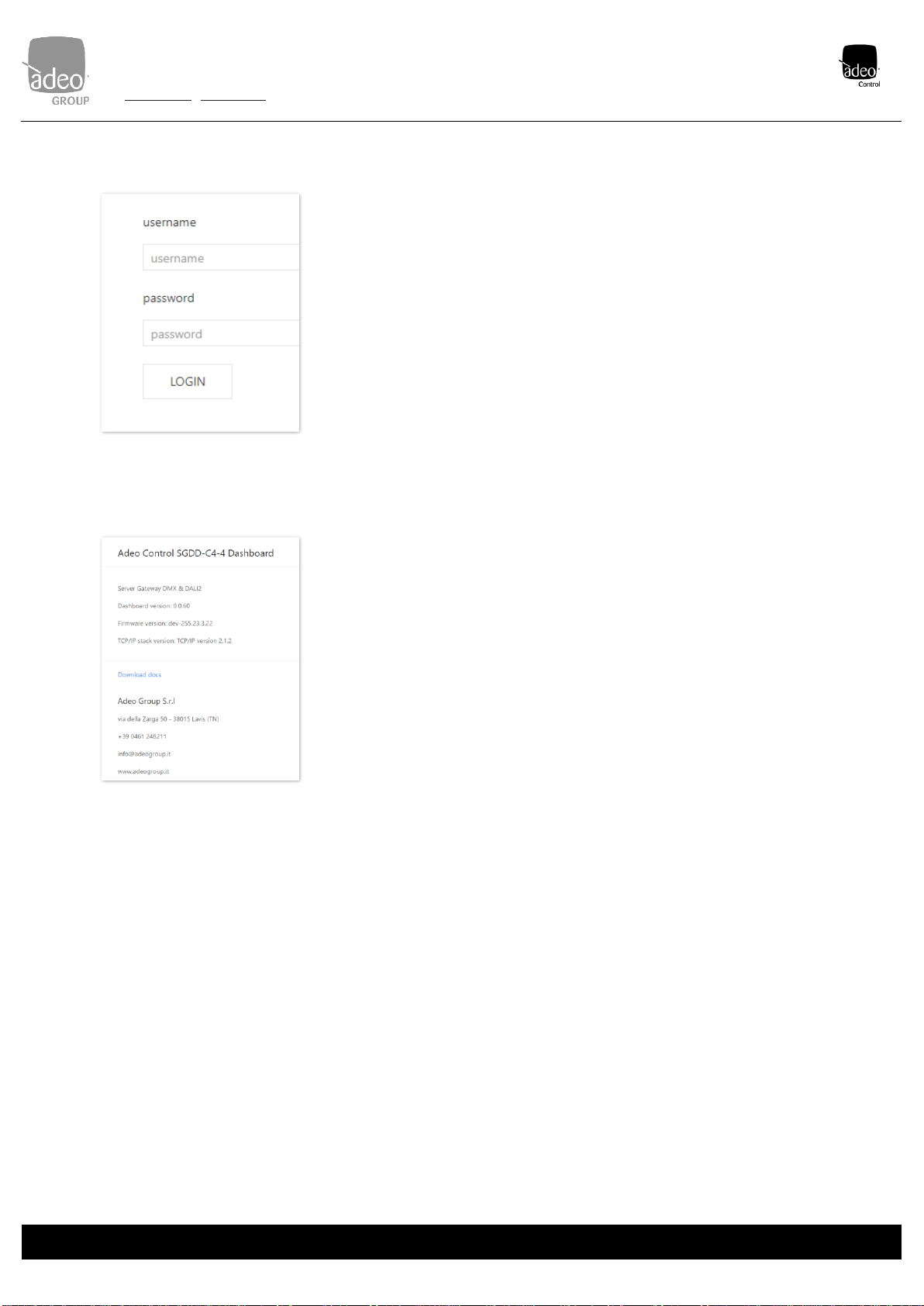

8. Web Server (Ethernet)
Dafault Address 192.168.1.4
1. Access your operating system browser (Google Chrome recommended) and access
the local gateway address after connecting the Ethernet cable to the local network.
2. Enter the credentials in the username and password fields for the two modes present
ADMIN and USER.
a. In ADMIN mode, you have full access to system settings and the default values
are username = admin, password = admin.
b. Instead, USER mode allows only Channels to be displayed and the default
values are username = user, password =user.
3. Press LOGIN.
After logging in, the landing page shows the Device Info (always visible by pressing the
logo at the top left of the interface).
The following functions/sections can be found on this page:
•LOGOUT return to the main LOGIN page by pressing at top right.
•The following are displayed in the centre and in this order:
-Dashboard version, version of the web pages
-Firmware version, version of the fw present in the gateway
-TCP/IP stack version, version of the TCP/IP protocol
-Download docs, you can download all documentation from the Adeo Group
website
Finally, the page shows the data of the developer company. The product is manufactured
by Dalcnet Srl (Italy).

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
10 / 36

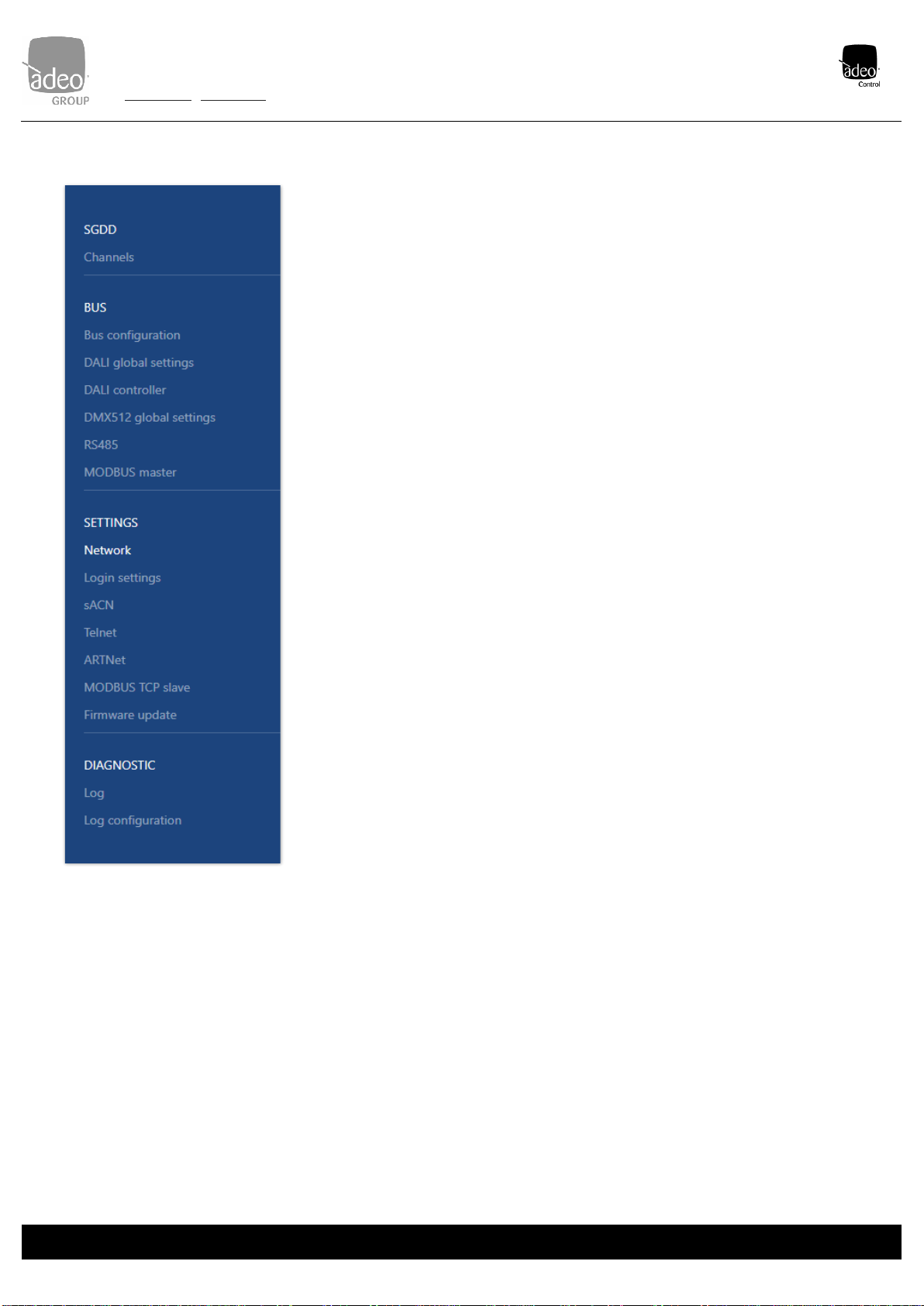

9. Configuration menu
Channels: complete list of channels with relative control (not visible if in DALI CONFIG mode)
Bus Configuration: configurations for every single physical bus present on the gateway
DALI global settings: settings for the DALI bus (only editable if in DALI CONFIG mode)
DALI controller: all addressed DALI devices and relative groups (not visible if in DALI CONFIG mode)
DMX512 global settings: settings for DMX512 timing (not visible if in DALI CONFIG mode or if DMX is not enabled)
RS485: at present not used (not visible if in DALI CONFIG mode or if not enabled)
MODBUS master: at present not used (not visible if in DALI CONFIG mode or if not enabled)
Network: settings to modify and manage IP address, Netmask and MAC Address
Login settings: settings to modify and manage LOGIN USER and PASSWORD
sACN: settings to enable or disable the protocol
Telnet: settings to enable or disable the protocol and sending times
ARTNET: settings to enable or disable the protocol
Modbus TCP Slave: settings to enable or disable the protocol
Firmware Update: update mode of the device Firmware

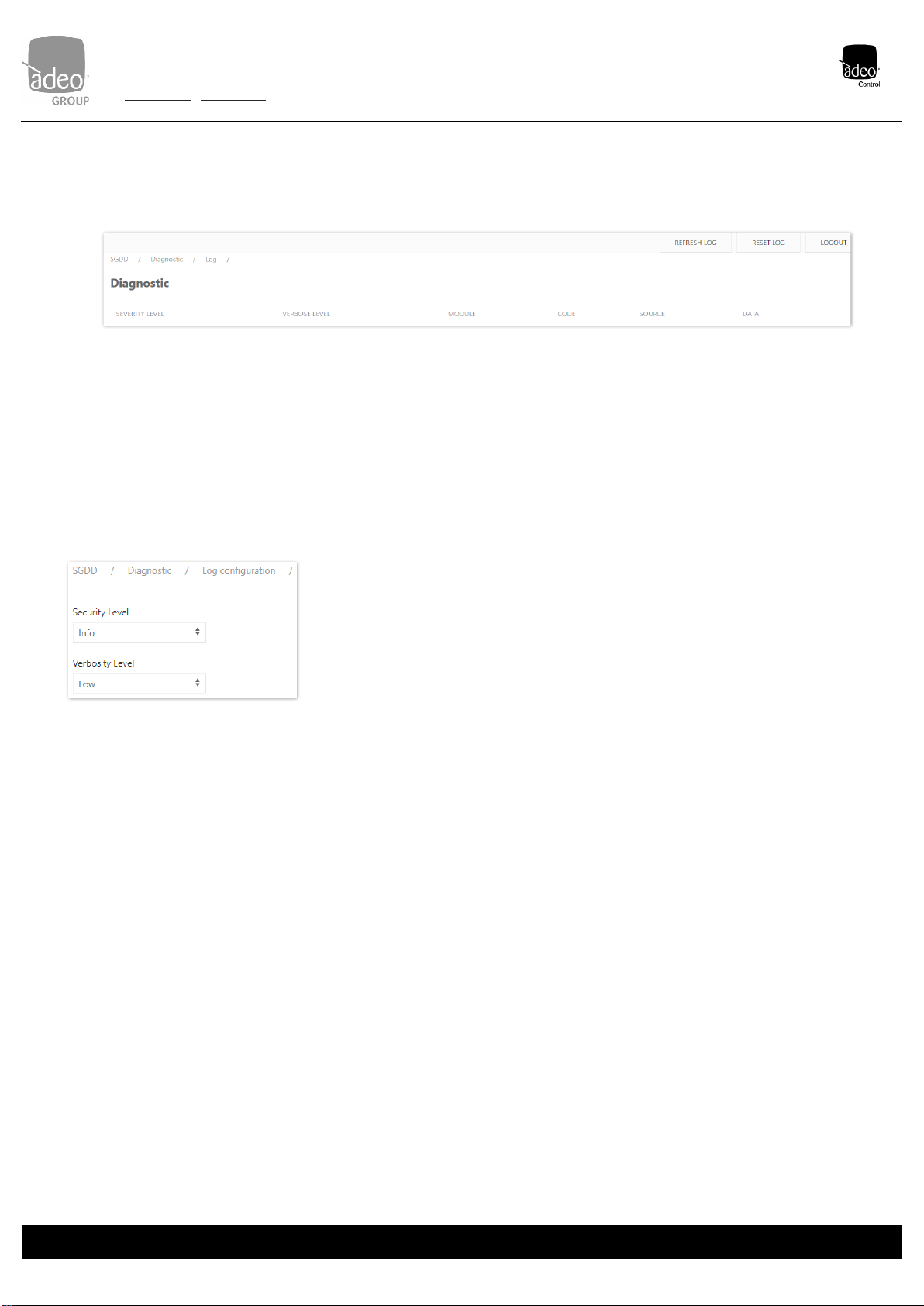

Log: relative logs to receive remote assistance
Log Configuration: settings to manage LOGs

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
11 / 36
BUS
10. Channells
The gateway has a WebApp to supervise and set up all available channels by choosing from the Channels pop-up menu, which can
be used from any recent device with a compatible browser (see below).
A window is displayed with 16 channels visible by default, you can scroll through all other channels with the +/- 8 and +/-1 buttons.
In addition, through Number of Sliders it is possible to choose how many channels to watch together (no more than 200).
Also in the Display mode selection menu, it is possible to set whether the sliders are visible horizontally or vertically.
It is possible to move all channels with the Master channel.
Below each channel there is an indication of whether or not it belongs to one of the three available buses with the relative set offset
and range (see Bus Configuration).
NOTE: To use the available services and applications correctly, it is necessary to use a compatible browser: CSS-3, JS, XHR,
CORS, JSON, ArrayBuffer.
Compatible browsers are: Microsoft Edge v. 16, Google Chrome v. 66, Mozilla Firefox v. 57, Safari v. 12.1, Opera v. 53 or
higher.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
12 / 36
11. Bus Configuration
Bus 1 and 2 are related to the first and second RS-485 ports.
The BUS can be disabled via the "Mute" flag.
Bus type
“Not Set” disable the bus.
The integration with Control4 does not currently require the use of the MODBUS configuration (both
master and slave).
Typically, the DMX512 master type is used.
Offset
In this menu you can assign an "offset" (minimum 1).
Channels Range
Specifies the number of channels used.
Bus 3 is relative to the third port and belongs to the only DALI bus
The BUS can be disabled via the "Mute" flag.
Bus type
“Not Set” disables and removes the power to the bus.
“DALI controller” allows communication between Control4 and the DALI bus
“DALI config” after selecting from the drop-down menu and clicking on Apply (top right) you can direct
the DALI nodes, from the DALI config section
It will also not be possible to see the Channels menu.
Offset
In this menu you can assign an "offset" (minimum 1).
Channels Range
Specifies the number of channels used.
NOTE: When addressing DALI devices in DALI config mode it is recommended to put the range to
64 (maximum value) and only after directing the devices change the range to the desired value
in DALI Controller mode.
After changing the settings, click on the 'APPLY' button at the top right, otherwise the changes will be lost.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
13 / 36

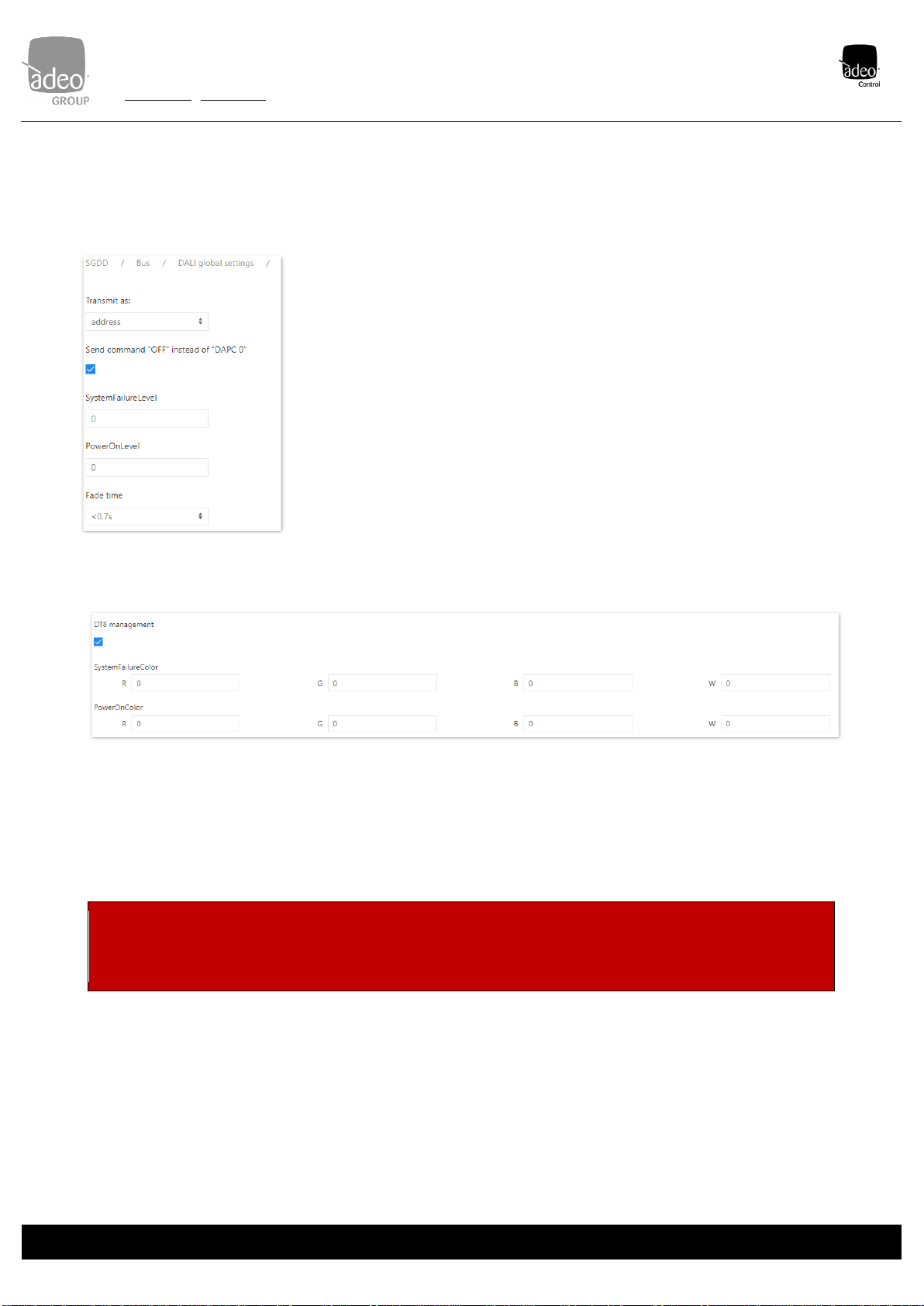

12. DALI global settings
Only in Dali config mode (page 11) is it possible to change the parameters to be sent to the
BUS DALI, which are:
Transmit as
“address” Send address commands
”group” Send group commands
“broadcast” Send broadcast commands
Send command “OFF” instead of”DAPC 0”
Send a DALI command of OFF instead of the DAPC command to 0.
SystemFailureLevel
Send System Failure Level command in broadcast.
PowerOnLevel
Send Power On Level command in broadcast.
Fade time
Send Set fade time command in broadcast
DT8 management Enable management of devices that support DT8.
SystemFailureColor Send System failure Color command for RGBW components.
PowerOnColor Send Power On Color command for RGBW components.
After changing the settings click on the top right button "APPLY" otherwise the changes will be lost.
ATTENTION: Integration with Control4 can currently only function in the 3 distinct modes (address, group or broadcast). There is no
mixed mode (e.g. both address and group). For this reason, it is recommended to carefully consider which mode to use from the
start, depending on the project.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
14 / 36
13. DALI config
After enabling DALI config from the Bus type menu under BUS 3 in Bus configuration (p. 12),
the configuration menu changes appearance, allowing addressing by DALI config , which takes the
place of DALI Controller (required instead for communication with
Control4).
The other menus are also disabled to highlight addressing activity. It is now possible to edit DALI
global settings.
14. Addressing
NOTE: Before addressing and configuring DALI devices, BUS 3 must be set to DALI Config mode. (see Bus Configuration Section
page 12)
By clicking on DALI config on the pop-up menu, we enter the DALI device addressing interface:
In the top right-hand corner there are the following commands:
•SCAN: perform acquisition of previously addressed DALI nodes; this may take a few minutes;
•ADDRESS ALL: performs addressing of all DALI nodes; this may take several minutes;
•REMOVE ALL: removes all addressed DALI nodes.
NOTE: before performing a complete addressing of the system, it is necessary to send a "REMOVE ALL" command and then press
"ADDRESS ALL" to perform a complete addressing of the DALI system.
ATTENTION: The numbering in Composer goes from 1 to 64. It is best to use the AskForType function in Actions (see page 25)
after addressing and before making Connections.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
15 / 36

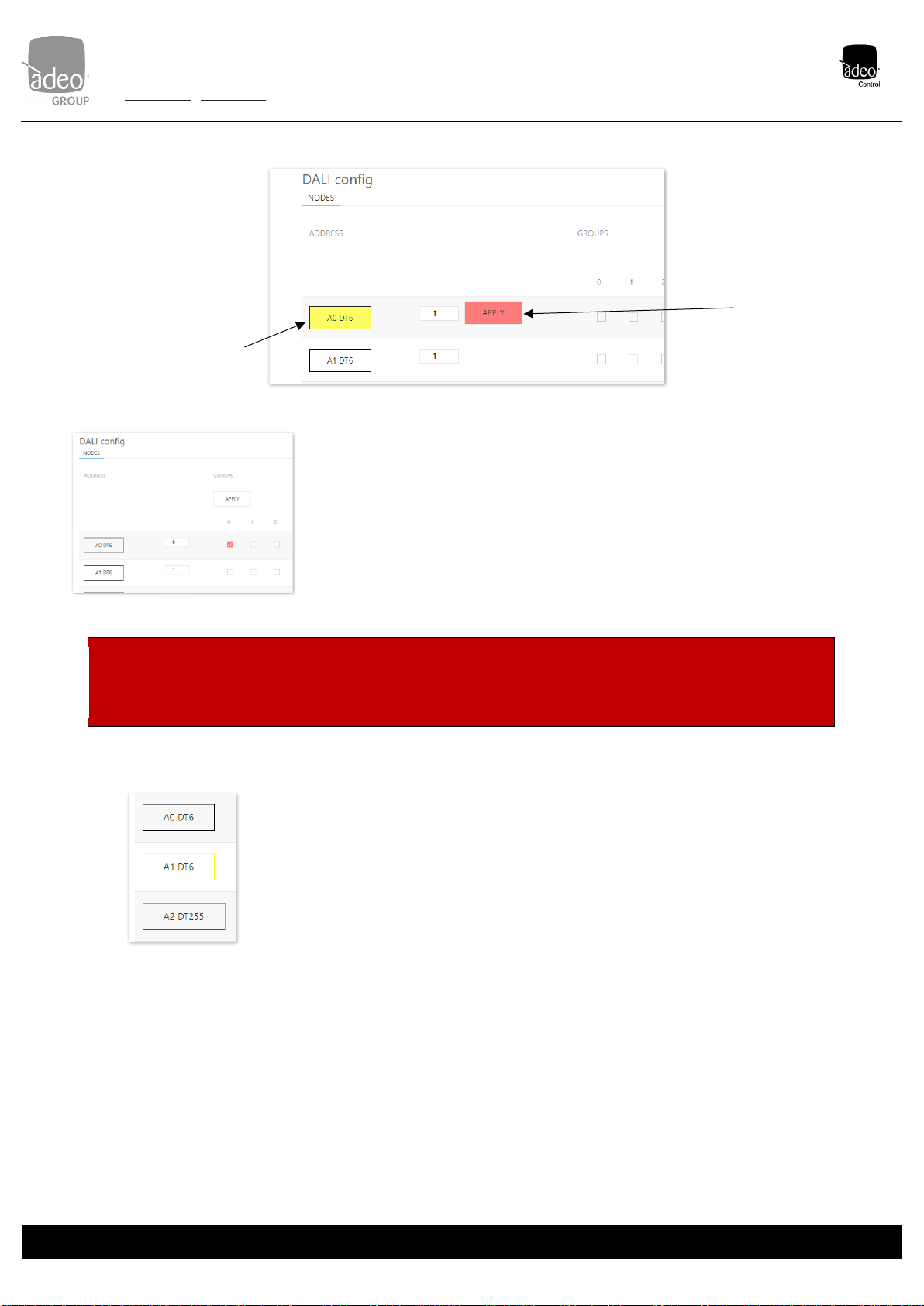

Visual identification of
addressed devices
It is possible to make the
addressed node flash to be
able to visually identify the
associated lighting body.
Just click on the label of
the address'
Change address
Enter the desired node
number (0 to 63) and
click on "APPLY" on the
right. "
DALI groups
By clicking on one of the 16 available groups (0 to 15), it is possible to send the add command to
the relevant group on the boxes to the right of the individual node. Then click on the 'APPLY'
button immediately above. Immediately afterwards, the command is sent to the DALI BUS.
N.B.: the DALI commands are sent only by pressing 'APPLY', and turn blue afterwards.
ATTENTION: Currently only work in 3 modes separate (address, group or broadcast). There is no mixed mode (e.g. both address
and group). See DALI global settings on p. 13. For this reason, it is advisable to assess well, depending on the project, which mode
to use from the outset.
DALI node status
Feedback on the status of the DALI node is possible:
•Black: node present and off
•Yellow: node present and lit
•Orange: node present but not responding correctly (LAMP FAILURE)

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
16 / 36
SETTINGS
15. Network
The gateway uses the Ethernet port via IPv4 protocol.
The default IP address is: 192.168.1.4
The same address must be entered in Composer Pro in the Connections/Network section
After changing the settings, click on the top right button 'APPLY' otherwise the changes will be
lost.
16. Login settings
After logging in as ADMIN, you can change your username and password by clicking on Login
Settings.
After changing the settings, click on the top right button "APPLY" otherwise the changes will be
lost.
17. sACN
The gateway implements the sACN protocol and can be used as a gateway by the main lighting
software and controllers:
•sACN →DMX
•sACN →DALI
The port used is there UDP 5568.
After changing the settings click on the top right button "APPLY" otherwise the changes will be
lost.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
17 / 36

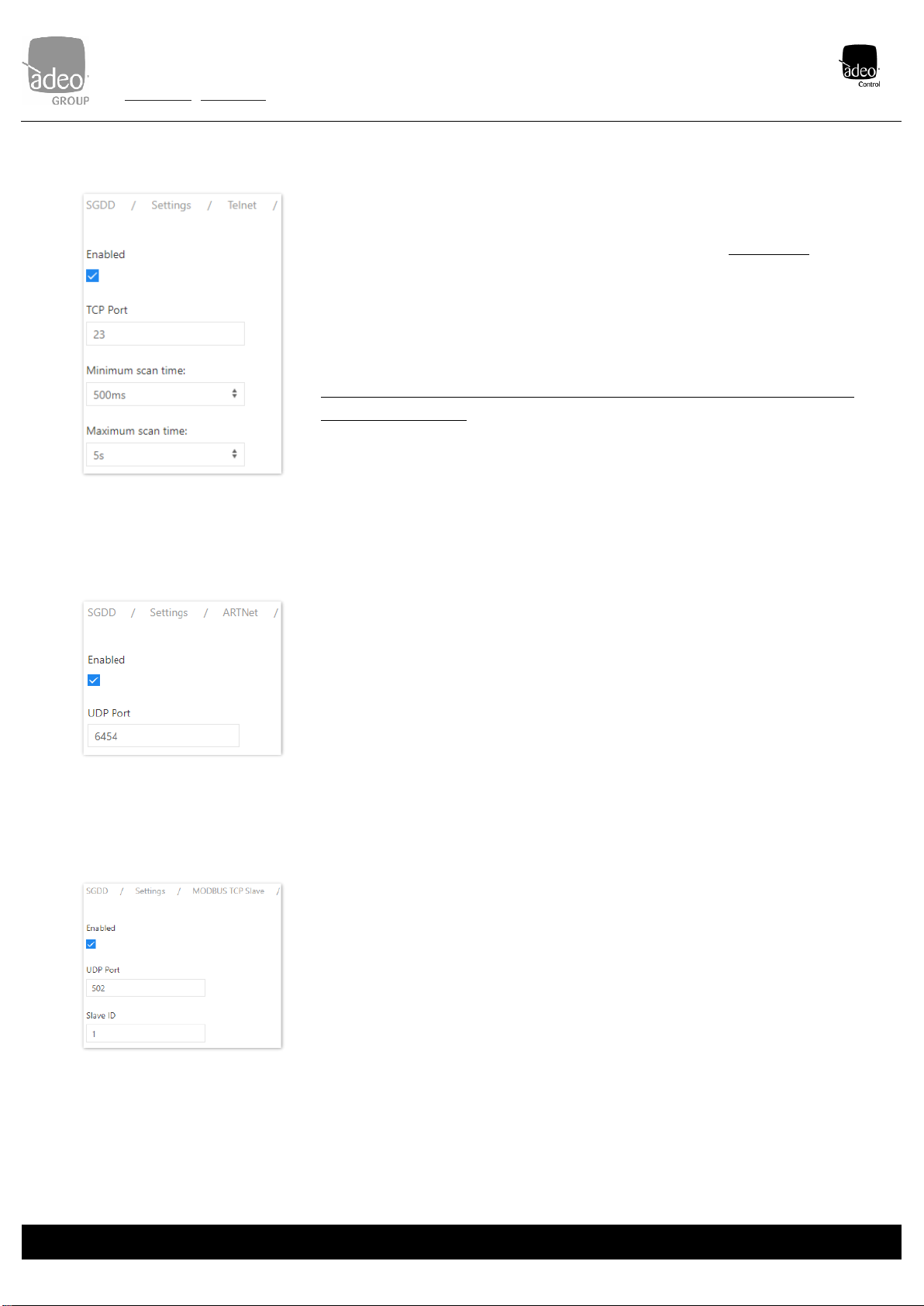

18. Telnet
The gateway has a Telnet server that can receive and/or transmit a DMX512A/DALI/MODBUS
RTU universe from/to other devices via TCP protocol, in our case to the Control4 driver.
Communication takes place by establishing a connection on TCP port 23 (Do not change).
The minimum interval that can be set for sending the response strings is defined as Minimum
scan time.
If no changes are detected, the interval at which the string is periodically sent is defined with the
value set to Maximum scan time. A value of zero disables periodic transmission.
The tests were carried out on the basis of the default settings. The variation may lead to changes
in the integration behavior.
19. ARTNet
The gateway implements the Art-Net 4 protocol and can be used as a gateway by the main
software and lighting control systems:
•Art-Net →DMX
•Art-Net →DALI
The port used is there UDP 6454.
After changing the settings, click on the top right button "APPLY" otherwise the changes will be
lost.
20. MODUBUS TCP Slave
The gateway has a MODBUS TCP/IP server capable of receiving and/or transmitting a DMX512A
universe to one or more Modbus devices on an Ethernet network. 512 registers are available, with
Modbus address from 0 to 511 and value from 0 to 255.
The port used is UDP 502, the Slave ID is not taken into account.
After changing the settings click on the top right button "APPLY" otherwise the changes will be
lost.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
18 / 36

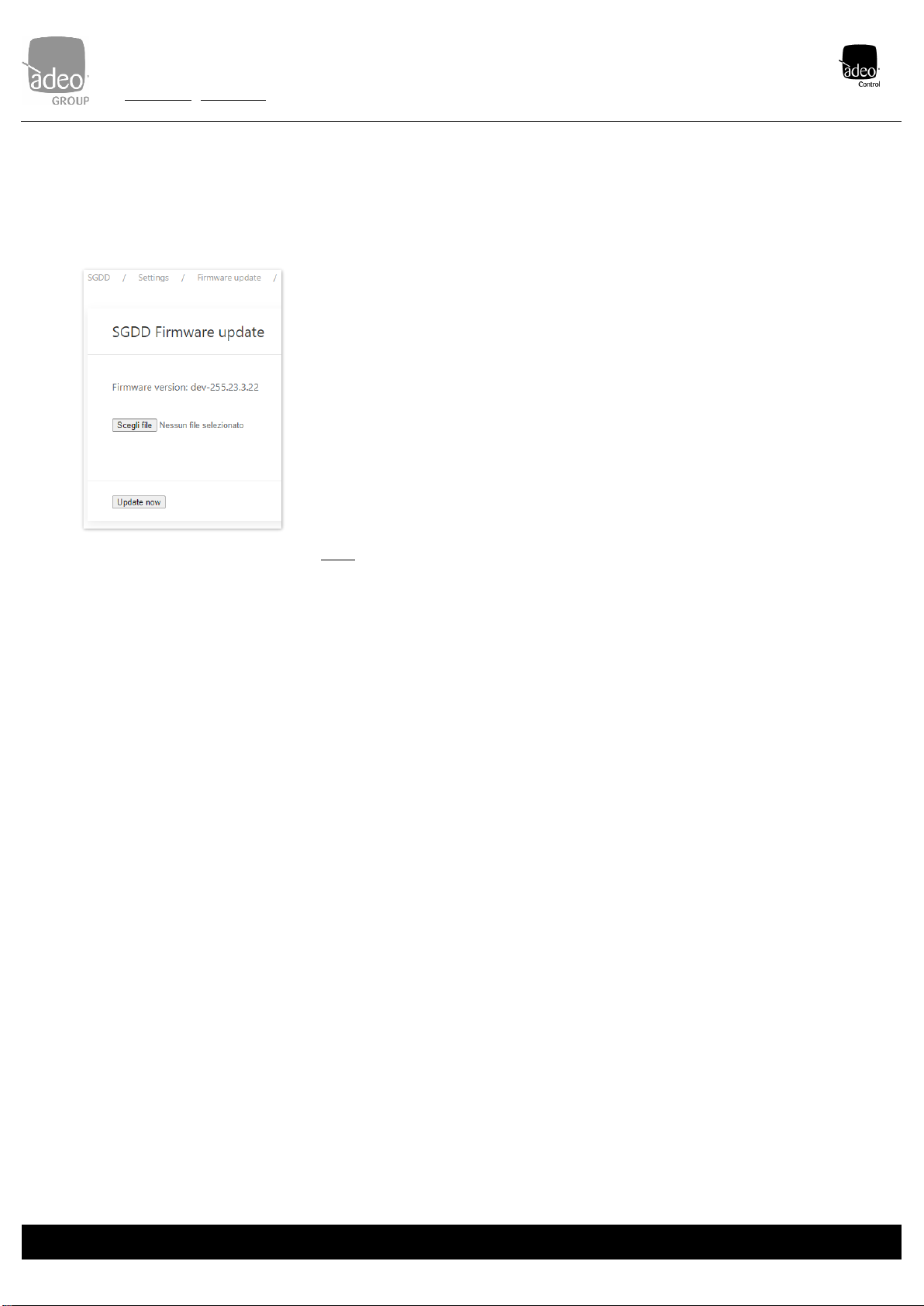

21. Firmware update
The firmware update is not automatic and can only be carried out if you are in possession of the
*.upf file provided through the Adeo Group's channels.
From here, simply click Choose file and indicate the location of the file in your system.
Click on Update now and follow the on-screen prompts. When finished, the Reboot button will
appear.
When restarting, the two side status LEDs LED 1 and LED 4 will start flashing (p. 7).
If the device subsequently returns to flashing in standard mode, the firmware update was not
completed. If the update is valid and after the one already loaded, the right LED (LED 4) will
remain lit and will then change three more times to different LEDs.
After the firmware update, the device flashes again in standard mode and the web page will
display the new version in the information.
NOTE: NEVER SWITCH OFF THE POWER FROM THE GATEWAY UNTIL THE UPDATE IS
COMPLETED

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
19 / 36
DIAGNOSTIC
22. Log
Technical support can be provided remotely through the DIAGNOSTIC web page in the LOG section.
To configure the diagnostics part according to remote assistance requests, select Log Configuration.
23. Log configuration
Security Level
Set the type of information you want to display on the Log:
“Info” information on the system that does not denote any type of problem;
“Warning” information that denotes that the system is functioning correctly but that may affect the
functioning of the system;
“Fault” causing a real impact on the system
Verbosity level
This denotes the level of the information we have above and is:
“Low” low level;
“Medium” medium level;
“High” high level.

Adeo Group s.r.l.
Via della Zarga n. 50 - 38015 LAVIS (TN)
Tel: [phone] - Fax: [phone]
Mail: [e-mail] –www.adeogroup.it
Adeo Control SGDD-C4-4
Manual
Rev. 1.6
A d e o C o n t r o l i s a b r a n d o f A d e o G r o u p s .r . l .
20 / 36
24. Integration with Control4
•The gateway comes with a free driver and only works with the SGDD-C4-4.
•The gateway manages DMX and DALI buses simultaneously, showing 512 channels in Connections.
•The gateway supports RampToLevel directly via hardware.
•The 512 channels are combined with the light/relay drivers in Connections.
•Broadcast commands can be sent directly from the gateway driver.
•The light drivers support the Advanced Lighting.
•The drivers support the OS3 and soon the OS3.3 too.
•Through specific drivers the gateway can control DALI type devices:
oDT4, Control gear for phase dimmers
oDT6, Control gear for LEDs
oDT8, Control gear for colour converters
oDT255
4
, Multi-device types
Updated drivers can be downloaded free of charge from
https://drivercentral.io/platforms/control4-drivers/lighting/adeo-control-server-gateway-DALI-and-dmx-driver-suite/
4
Device Type 255: Multi-device type. They include at least two types of devices, in our case just think that they can be configured in DT6 or DT8 depending on
practical use. The gateway will always find the device as DT255, just know how the DALI driver is configured.
