D&H DH05C User manual
Doehler & Haass
Locomotive decoder
Locomotive function decoder
Locomotive decoder Locomotive function decoder
DH05C PD05A FH05B
DH10C PD06A FH18A
DH12A PD12A FH22A
DH14B PD18A
DH16A PD21A
DH18A
DH21A
DH22A
2Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
2Contents
1 Introduction ............................................................................................................................................ 4
2 Safety instructions ................................................................................................................................. 5
3 Warranty ................................................................................................................................................. 5
4 Support and help.................................................................................................................................... 5
5 Locomotive decoder DH05C / DH10C / DH12A / DH14B / DH16A / DH18A / DH21A / DH22A /
PD05A / PD06A / PD12A / PD18A / PD21A .......................................................................................... 6
5.1 Functions................................................................................................................................................ 30
5.1.1 Limitations of the PD series compared to our DH decoder series......................................................... 31
5.2 Installation of the decoder...................................................................................................................... 32
5.3 Connection of the decoder..................................................................................................................... 33
5.4 Check after installation ........................................................................................................................... 36
6 Locomotive function decoder FH05B / FH18A / FH22A.................................................................... 38
6.1 Functions................................................................................................................................................ 44
6.2 Installation of the Locomotive function decoders .................................................................................. 45
6.3 Connection of the Locomotive function decoders ................................................................................. 45
6.4 Check after installation ........................................................................................................................... 48
7 System format SelecTRIX 1 (SX1) ...................................................................................................... 48
7.1 Functions................................................................................................................................................ 48
7.2 Setting options ....................................................................................................................................... 49
7.3 Operation................................................................................................................................................ 51
7.4 Explication of the brake sections............................................................................................................ 51
3
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 3
Locomotive/Locomotive function decoder from firmware version 3.12 3
Contents
8 System format DCC ........................................................................................................................... 52
8.1 Functions ............................................................................................................................................. 52
8.2 Setting options..................................................................................................................................... 53
8.2.1 List of supported CV ............................................................................................................................ 54
8.3 Operation ............................................................................................................................................. 68
9 System format Märklin-Motorola (MM) .......................................................................................... 68
9.1 Functions ............................................................................................................................................. 68
9.2 Programming with Märklin central unit 6020/6021.............................................................................. 69
10 System format SelecTRIX 2 (SX2).................................................................................................... 72
10.1 Functions ............................................................................................................................................. 72
10.2 Setting options..................................................................................................................................... 72
10.2.1 List of supported parameters............................................................................................................... 73
10.3 Operation ............................................................................................................................................. 85
Supplement 1: Notes to Function Mapping................................................................................................. 86
Supplement 2: Speed characteristics ........................................................................................................... 88
Supplement 3: Unamplified function outputs ............................................................................................. 89
Supplement 4: Electric coupling / Freewheeling diode /
Automatic coupling procedure (“coupling waltz“).............................................................. 90
Supplement 5: Constant braking distance................................................................................................... 95
Supplement 6: Decoder recognition (type and firmware version) ................................................................ 96
Supplement 7: Speed feedback (CV135 and 136) ......................................................................................... 96
4Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
4Locomotive/Locomotive function decoder from firmware version 3.12
1 Introduction
The locomotive decoders supports various data formats and operating modes:
Our decoders can be used for normal direct current motors as well for coreless motors.
The operation on alternating current supplied layouts with switching impulse is not allowed! The switching
impulse destroys the decoder (exception: DH21A, DH22A and FH22A)!
The operation of inductive consumers (decouplers, relays, etc.) requires the connection of freewheeling diodes
(see supplement 4).
Decoder SX1, SX2 DCC MM1, MM2 DC-analog AC-analog
DH05C, DH10C, DH12A, DH14B, DH16A, DH18A X X X X
DH21A, DH22A X X X X X
FH05B, FH18A X X X X
FH22A X X X X X
PD05A X X
PD06A X X X
PD12A, PD18A, PD21A X X
5
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 5
Locomotive/Locomotive function decoder from firmware version 3.12
2 Safety instructions
This product is not suitable for children under 14 years.
It might be swallowed by children under 3 years!
An improper use involves a risk of injury due to sharp edges and points.
3 Warranty
The functioning of every decoder is fully tested before delivery. Should nevertheless a failure occur, please contact the
dealer where you purchased the decoder or directly the producer (Doehler & Haass). The warranty period is two years from
the data of purchase.
4 Support and help
In case you have any problems or questions please contact us by email: technik@doehler-haass.de
Usually you will get an answer within a few days.
6Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
6Locomotive/Locomotive function decoder from firmware version 3.12
5 Locomotive decoder
M1, M2..............Motor connection 1, 2
G1, G2...............Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2.....Additional function 1, 2 (each 300 mA)
VS......................Supply voltage (also for SUSI)
ZCLK..................SUSI clock (or AUX3 unamplified) *)
ZDAT .................SUSI data (or AUX4 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
AUX1 AUX2
M1
M2
G1
G2
LV
LR
VS
ZCLK
ZDAT
GND

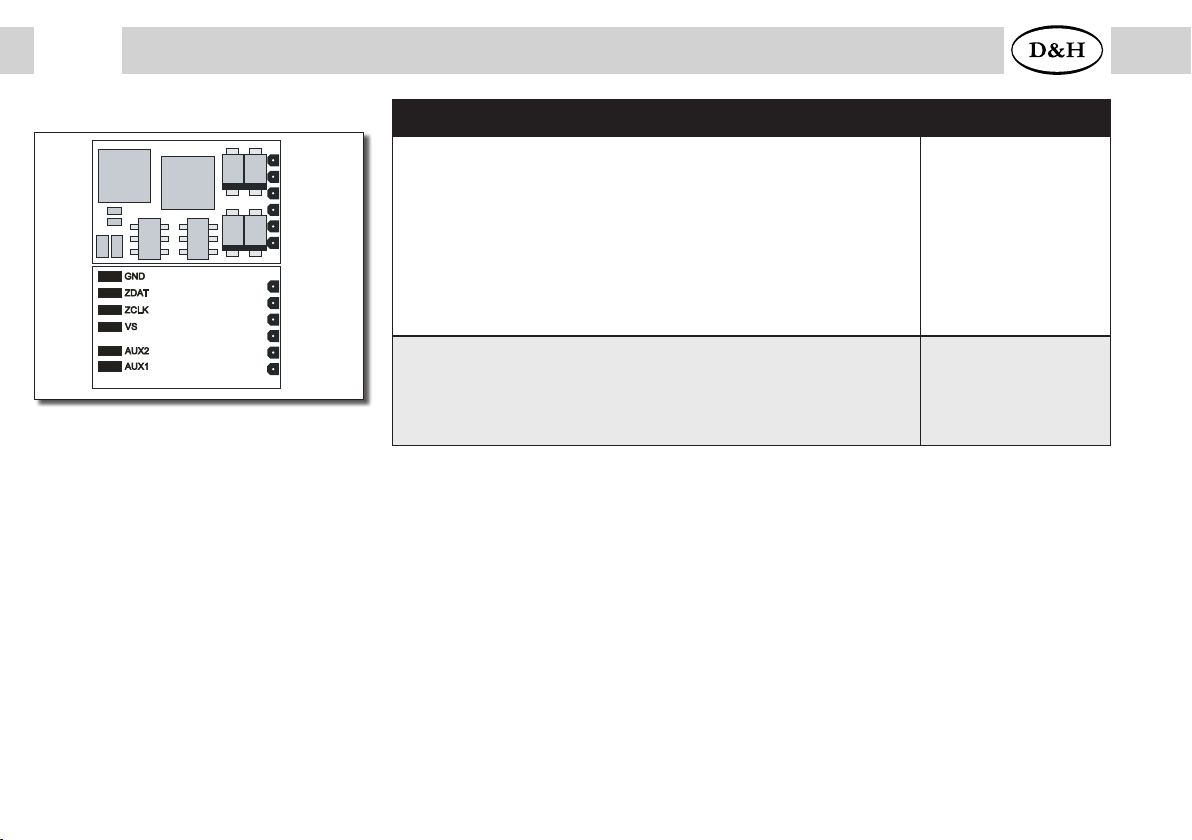

DH05C 1st generation Specifications DH05C
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
With SUSI interface (if AUX3/AUX4 deactivated)
13,2 x 6,8 x 1,4
0,5 A
0,5 A
18 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection wires
DH05C-0
DH05C-1
DH05C-3
*) Unamplified function outputs: See supplement 3.
7
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 7
Locomotive/Locomotive function decoder from firmware version 3.12
M1
M2
G1
G2
LV
LR
DH05C (2nd generation)
M1, M2..............Motor connection 1, 2
G1, G2...............Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2.....Additional function 1, 2 (each 300 mA)
AUX3, AUX4.....Unamplified function 3, 4 *)
VS......................Supply voltage (also for SUSI)
ZCLK/AUX5......SUSI clock (or AUX5 unamplified) *)
ZDAT/AUX6......SUSI data (or AUX6 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
Specifications DH05C
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4, AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
after publication
0,5 A
0,5 A
30 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
Without connection wires
With connection wires
DH05C-0
DH05C-3
*) Unamplified function outputs: See supplement 3.
8Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
8Locomotive/Locomotive function decoder from firmware version 3.12
M1
M2
G1
G2
LV
LR
DH10C (1st generation) Specifications DH10C
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
With SUSI interface (if AUX3/AUX4 deactivated)
14,2 x 9,3 x 1,5
1,0 A
1,0 A
30 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection wires
DH10C-0
DH10C-1
DH10C-3
*) Unamplified function outputs: See supplement 3.
M1, M2..............Motor connection 1, 2
G1, G2...............Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2.....Additional function 1, 2 (each 300 mA)
VS......................Supply voltage (also for SUSI)
ZCLK..................SUSI clock (or AUX3 unamplified) *)
ZDAT .................SUSI data (or AUX4 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
9
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 9
Locomotive/Locomotive function decoder from firmware version 3.12

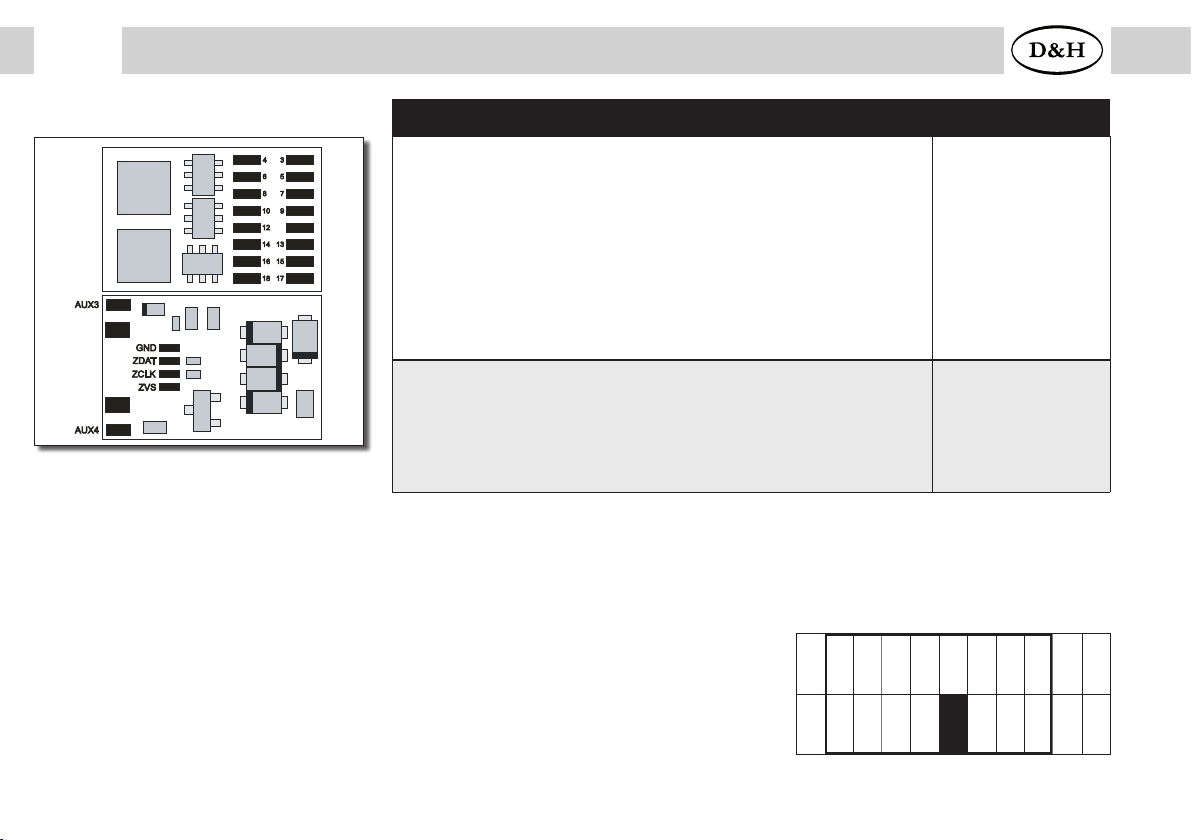

Specifications DH10C
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
12,7 x 8,9 x 1,4
1,5 A
1,5 A
30 V
each 150 mA
each 300 mA
each 1,0 A
unamplified *)
X
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection cable for interface per NEM651
With connection wires
6 pin connector for direct plugging (NEM651)
DH10C-0
DH10C-1
DH10C-2
DH10C-3
DH10C-4
*) Unamplified function outputs: See supplement 3.
M1
M2
G1
G2
LV
LR
DH10C (2nd generation)
M1, M2.............. Motor connection 1, 2
G1, G2............... Track connection 1, 2
LV, LR ................ Front light, rear light (each 150 mA)
AUX1, AUX2..... Additional function 1, 2 (each 300 mA)
AUX3, AUX4..... Unamplified function 3, 4 (each 1,0 A)
VS...................... Supply voltage (also for SUSI)
ZCLK/AUX5...... SUSI clock (or AUX5 unamplified) *)
ZDAT/AUX6...... SUSI data (or AUX6 unamplified) *)
GND .................. Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
10 Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
10 Locomotive/Locomotive function decoder from firmware version 3.12

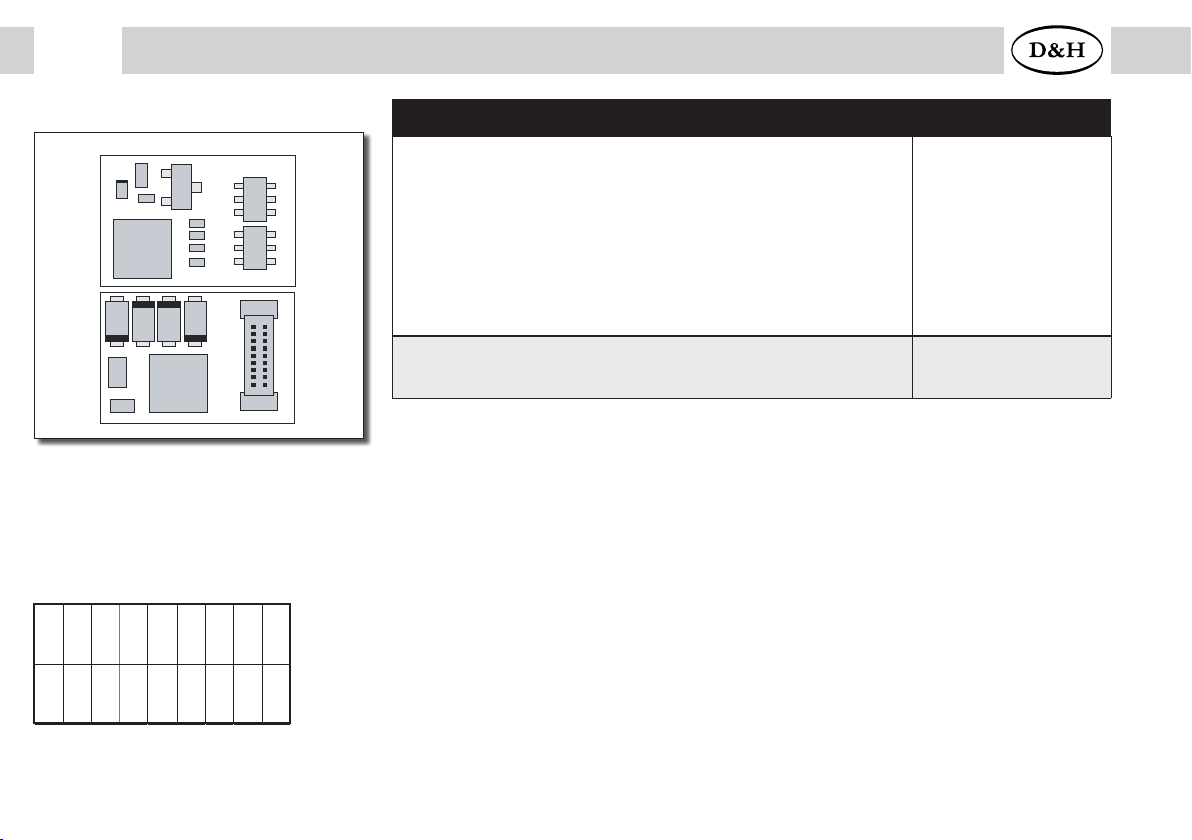

PluX12 interface
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
LV
VS
Index
LR
*) AUX3
*) AUX4
M1
M2
G1
G2
AUX1
AUX2
Specifications DH12A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4, AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
14,5 x 8,0 x 3,0
1,5 A
1,5 A
30 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
12 pin connector for direct plugging (PluX12) DH12A
*) Unamplified function outputs: See supplement 3.
DH12A
M1, M2..............Motor connection 1, 2
G1, G2...............Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2.....Additional function 1, 2 (each 300 mA)
AUX3, AUX4.....Unamplified function 3, 4 *)
VS......................Supply voltage
ZVS ...................SUSI supply voltage
ZCLK/AUX5......SUSI clock (or AUX5 unamplified) *)
ZDAT/AUX6......SUSI data (or AUX6 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to ZVS (+) and GND (-).
11
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 11
Locomotive/Locomotive function decoder from firmware version 3.12
1
14
DH14B Specifications DH14B
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
With SUSI interface (if AUX3/AUX4 deactivated)
18,5 x 9,2 x 1,7
1,0 A
1,0 A
30 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
14 pole foil plug for direct plugging (mTc14) DH14B
*) Unamplified function outputs: See supplement 3.
mTc14 interface
1
2
3
4
5
6
7
8
9
10
11
12
13
14
G2
G2
LV
AUX2
ZDAT
GND
M2
M1
GND
ZCLK
AUX1
LR
G1
G1
M1, M2..............Motor connection 1, 2
G1, G2...............Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2.....Additional function 1, 2 (each 300 mA)
ZCLK..................SUSI clock (or AUX3 unamplified) *)
ZDAT .................SUSI data (or AUX4 unamplified) *)
GND ..................Ground (0 V)
There is no connection possibility (VS) for the common return conductor (blue wire) or a buffer capacitor.
12 Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
12 Locomotive/Locomotive function decoder from firmware version 3.12

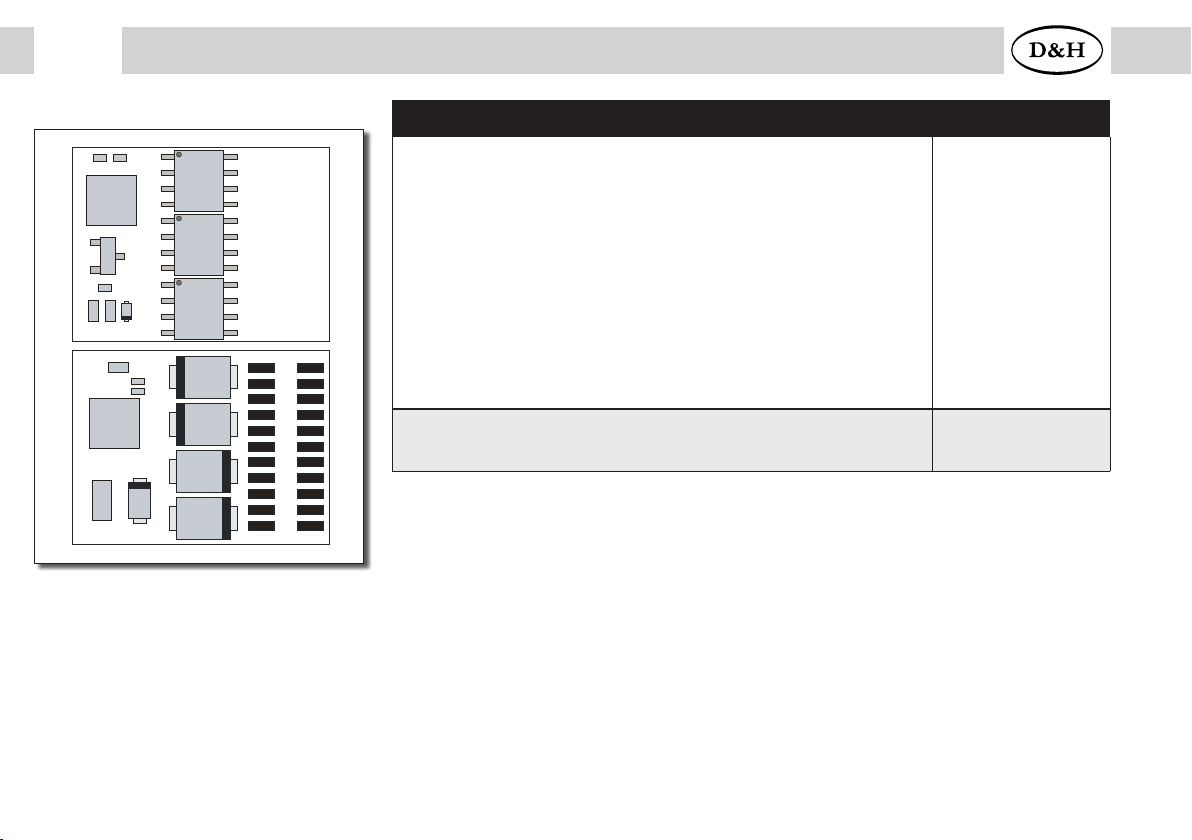

DH16A (1st generation)
PluX16 interface
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
ZCLK
GND
LV
VS
Index
LR
--
--
ZDAT
ZVS
M1
M2
G1
G2
AUX1
AUX2
M1, M2..............Motor connection 1, 2
G1, G2...............Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2.....Additional function 1, 2 (each 300 mA)
AUX3, AUX4.....Additional function 3, 4 (each 1,0 A)
VS......................Supply voltage
ZVS ...................SUSI supply voltage
ZCLK..................SUSI clock (or AUX5 unamplified) *)
ZDAT .................SUSI data (or AUX6 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to ZVS (+) and GND (-).
Specifications DH16A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated
16,7 x 10,9 x 2,8
1,5 A
1,5 A
30 V
each 150 mA
each 300 mA
each 1,0 A
unamplified *)
X
Connecting options
Without connection wires
With connection cable for interface per NEM652
With connection wires
16 pin connector for direct plugging (PluX16)
DH16A-0
DH16A-2
DH16A-3
DH16A-4
*) Unamplified function outputs: See supplement 3.
13
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 13
Locomotive/Locomotive function decoder from firmware version 3.12
DH16A (2nd generation)
PluX16 interface
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
ZCLK
GND
LV
VS
Index
LR
--
--
ZDAT
ZVS
M1
M2
G1
G2
AUX1
AUX2
M1, M2..............Motor connection 1, 2
G1, G2...............Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2.....Additional function 1, 2 (each 300 mA)
AUX3, AUX4.....Additional function 3, 4 (each 1,0 A)
VS......................Supply voltage
ZVS ...................SUSI supply voltage
ZCLK..................SUSI clock (or AUX5 unamplified) *)
ZDAT .................SUSI data (or AUX6 unamplified) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to ZVS (+) and GND (-).
Specifications DH16A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated
after publication
1,5 A
1,5 A
30 V
each 150 mA
each 300 mA
each 1,0 A
unamplified *)
X
Connecting options
Without connection wires
With connection cable for interface per NEM652
With connection wires
16 pin connector for direct plugging (PluX16)
DH16A-0
DH16A-2
DH16A-3
DH16A-4
*) Unamplified function outputs: See supplement 3.
14 Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
14 Locomotive/Locomotive function decoder from firmware version 3.12
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
18
DH18A (1st generation)
Next18 interface
1 18
2 17
3 16
4 15
5 14
6 13
7 12
8 11
9 10
G1
M1
AUX1
ZCLK
GND
VS
*) AUX6
LV
G2
G1
LR
AUX5 *)
VS
GND
ZDAT
AUX2
M2
G2
Specifications DH18A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4, AUX5, AUX6
With SUSI interface (if AUX3/AUX4 deactivated)
13,5 x 9,0 x 2,8
1,0 A
1,0 A
30 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
18 pin connector for direct plugging (Next18) DH18A
*) Unamplified function outputs: See supplement 3.
M1, M2...............Motor connection 1, 2
G1, G2................Track connection 1, 2
LV, LR .................Front light, rear light (each 150 mA)
AUX1, AUX2......Additional function 1, 2 (each 300 mA)
AUX5, AUX6......Unamplified function 5, 6 *)
VS.......................Supply voltage (also for SUSI)
ZCLK...................SUSI clock (or AUX3 unamplified) *)
ZDAT ..................SUSI data (or AUX4 unamplified) *)
GND ...................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
18
15
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 15
Locomotive/Locomotive function decoder from firmware version 3.12
DH18A (2nd generation)
Next18 interface
1 18
2 17
3 16
4 15
5 14
6 13
7 12
8 11
9 10
G1
M1
AUX1
ZCLK
GND
VS
*) AUX6
LV
G2
G1
LR
AUX5 *)
VS
GND
ZDAT
AUX2
M2
G2
Specifications DH18A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4, AUX5, AUX6
With SUSI interface (if AUX3/AUX4 deactivated)
9,7 x 8,9 x 2,8
1,5 A
1,5 A
30 V
each 150 mA
each 300 mA
unamplified *)
X
Connecting options
18 pin connector for direct plugging (Next18) DH18A
*) Unamplified function outputs: See supplement 3.
M1, M2...............Motor connection 1, 2
G1, G2................Track connection 1, 2
LV, LR .................Front light, rear light (each 150 mA)
AUX1, AUX2......Additional function 1, 2 (each 300 mA)
AUX5, AUX6......Unamplified function 5, 6 *)
VS.......................Supply voltage (also for SUSI)
ZCLK...................SUSI clock (or AUX3 unamplified) *)
ZDAT ..................SUSI data (or AUX4 unamplified) *)
GND ...................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
18
16 Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
16 Locomotive/Locomotive function decoder from firmware version 3.12
DH21A (1st generation) Specifications DH21A-4
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
Function outputs for light:
LV, LR (dimmable)
Function outputs:
AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface
(if AUX5/AUX6 deactivated)
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
each 1,0 A
unamplified *)
X
Connecting options
21 pin socket board for direct plugging
(Märklin/TRIX mtc21)
DH21A-4
*) Unamplified function outputs: See supplement 3.
17
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 17
Locomotive/Locomotive function decoder from firmware version 3.12
DH21A (1st generation)
21 pin interface
1 22
2 21
3 20
4 19
5 18
6 17
7 16
8 15
9 14
10 13
11 12
--
--
--
AUX4
ZCLK
ZDAT
LR
LV
--
--
Index
G1
G2
GND
M1
M2
--
VS
AUX1
AUX2
AUX3
VCC
M1, M2.............. Motor connection 1, 2
G1, G2............... Track connection 1, 2
LV, LR ................ Front light, rear light (each 150 mA)
AUX1, AUX2..... Additional function 1, 2 (each 300 mA)
AUX3, AUX4..... Additional function 3, 4
VS...................... Supply voltage
ZVS ................... SUSI supply voltage
ZCLK.................. SUSI clock (or AUX5 unamplified) *)
ZDAT ................. SUSI data (or AUX6 unamplified) *)
GND .................. Ground (0 V)
VCC ................... +5 V / max. 15 mA
*) Unamplified function outputs: See supplement 3.
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
18 Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
18 Locomotive/Locomotive function decoder from firmware version 3.12
GND
ZDAT
ZCLK
ZVS
DH21A (2nd generation) Specifications DH21A-0/2/3/4 DH21A-5
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
Function outputs for light:
LV, LR (dimmable)
Function outputs:
AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface
(if AUX5/AUX6 deactivated)
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
each 1,0 A
unamplified *)
X
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
unamplified *)
unamplified *)
X
Connecting options
Without connection wire
With connection cable for
interface per NEM652
With connection wires
21 pin socket board for direct plugging
(Märklin/TRIX mtc21)
21 pin socket board for direct plugging
(NEM660/RCN-121)
DH21A-0
DH21A-2
DH21A-3
DH21A-4
DH21A-5
*) Unamplified function outputs: See supplement 3.
19
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11 19
Locomotive/Locomotive function decoder from firmware version 3.12
DH21A (2nd generation)
21 pin interface
1 22
2 21
3 20
4 19
5 18
6 17
7 16
8 15
9 14
10 13
11 12
GPIO
--
--
AUX4
ZCLK
ZDAT
LR
LV
--
--
Index
G1
G2
GND
M1
M2
--
VS
AUX1
AUX2
AUX3
VCC
M1, M2.............. Motor connection 1, 2
G1, G2............... Track connection 1, 2
LV, LR ................ Front light, rear light (each 150 mA)
AUX1, AUX2..... Additional function 1, 2 (each 300 mA)
AUX3, AUX4..... Additional function 3, 4 †)
VS...................... Supply voltage
ZVS ................... SUSI supply voltage
ZCLK.................. SUSI clock (or AUX5 unamplified) *)
ZDAT ................. SUSI data (or AUX6 unamplified) *)
GND .................. Ground (0 V)
GPIO.................. General input / output (max. +5 V / max. 3 mA)
VCC ................... +5 V / max. 15 mA
*) Unamplified function outputs: See supplement 3.
†) The DH21A existists in two different hardware variants:
– Function outputs AUX3, AUX4: each 1,0 A (connecting option -0/-2/-3/-4)
– Function outputs AUX3, AUX4: unamplified *) (connecting option -5)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to ZVS (+) and GND (-).
20 Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
20 Locomotive/Locomotive function decoder from firmware version 3.12
DH22A (1st generation) Specifications DH22A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
each 1,0 A
unamplified *)
X
Connecting options
22 pin connector for direct plugging (PluX22) DH22A-4
*) Unamplified function outputs: See supplement 3.
2
4
6
8
10
12
14
16
18
20
22
1
3
5
7
9
12
13
15
17
19
21
Other manuals for DH05C
3
This manual suits for next models
17
Table of contents
Other D&H Media Converter manuals
Popular Media Converter manuals by other brands
ExpertDAQ
ExpertDAQ EX-9512S user manual
Cross Technologies
Cross Technologies 2416 25 Series instruction manual
Renishaw
Renishaw TONiC FS T4 1 Series installation guide
Delta Electronics
Delta Electronics PMC Series instruction manual
MTT
MTT MS3718 user manual
Siko
Siko SGH10L Translation of the original installation instructions
StarTech.com
StarTech.com VGA2VID user guide
ADF Web
ADF Web HD67146-A1 user manual
Transition Networks
Transition Networks SGETF1013-110 user guide
Linear
Linear DC1997A-A Demo Manual
Sabrent
Sabrent TV-PC85 user manual
Core Tec Communications, LLC
Core Tec Communications, LLC VCX-4406-E Installation and operating instructions
