A390.1, ex. a:
M1, M2, M3 = 3-point
© Danfoss | 2018.05
VI.JM.B4.00 | 1
ECL Comfort 310, A390
(code no. 087H3815, 087H3832)
Installation Guide
A390.1, ex. b:
M1, M2, M3 = 3-point
A390.1, ex. c:
M1, M2, M3 = 3-point
Installation Guide, ECL Comfort 310, A390
2 | © Danfoss | 2018.05
VI.JM.B4.00
A390.2, ex. a:
A (M1, M2, M3) = 0 - 10 V
A390.3, ex. a:
M1, M2, M3 = 3-point / 0 - 10 V
Installation Guide, ECL Comfort 310, A390
© Danfoss | 2018.05 | 3
VI.JM.B4.00
A390.3, ex. b:
M1, M2, M3 = 3-point / 0 - 10 V
A390.11, ex. a:
M1, M2, M3 = 3-point / 0 - 10 V
Installation Guide, ECL Comfort 310, A390
4 | © Danfoss | 2018.05
VI.JM.B4.00
A390.11, ex. b:
M1, M2, M3 = 3-point / 0 - 10 V
A390.11, ex. c:
M1, M2, M3 = 3-point / 0 - 10 V
Installation Guide, ECL Comfort 310, A390
© Danfoss | 2018.05 | 5
VI.JM.B4.00
A390.11, ex. d:
M1, M2, M3 = 3-point / 0 - 10 V
A390.11, ex. e:
M1, M2, M3 = 3-point / 0 - 10 V
Installation Guide, ECL Comfort 310, A390
6 | © Danfoss | 2018.05
VI.JM.B4.00
A390.12, ex. a:
S1
S7 S6
S8
M1
P3
P2
Danfoss
87H2139.12
M2
ECL 310
A1
P4
A
B
S4
S2
P5
M3
S3
S5
S10
S9
P1
M1, M2, M3 = 3-point / 0 - 10 V
A390.12, ex. b:
S1
S7
S6
S8
M1
P3
P2
Danfoss
87H2140.12
M2
ECL 310
A1
P4
A
B
P5
S3
S5
M3
S4
S2
S10
S9
P1
M1, M2, M3 = 3-point / 0 - 10 V
Installation Guide, ECL Comfort 310, A390
© Danfoss | 2018.05 | 7
VI.JM.B4.00
A390.13, ex. a:
M1, M2, M3 = 3-point / 0 - 10 V
A390.13, ex. b:
M1, M2, M3 = 3-point / 0 - 10 V
Installation Guide, ECL Comfort 310, A390
8 | © Danfoss | 2018.05
VI.JM.B4.00
ECL Comfort 310:
230 V a.c.
4 (2) A / 230 V a.c.
0,2 A / 230 V a.c.
230 V a.c., A390 (ECL 310)
M1 M2 M3 R1 R2 R3 R4 R5 R6
A390.1 ü ü ü P1 P2 P3 A1
A390.2 P1 P2 P3 A1
A390.3 ü ü ü P1 P2 P3 X4
A390.11 ü ü ü P1 P2 P3 P4 P5 A1
A390.12 ü ü ü P1 P2 P3 P4 P5 A1
A390.13 ü ü ü P1 P2 P3 P4 P5 A1
Installation Guide, ECL Comfort 310, A390
© Danfoss | 2018.05 | 9
VI.JM.B4.00
230 V a.c., A390 (ECL 310) Danfoss ABV
Danfoss type ABV:
M1 M2 M3
A390.1 ü ü ü
A390.2
A390.3 ü ü ü
A390.11 ü ü ü
A390.12 ü ü
A390.13 ü ü

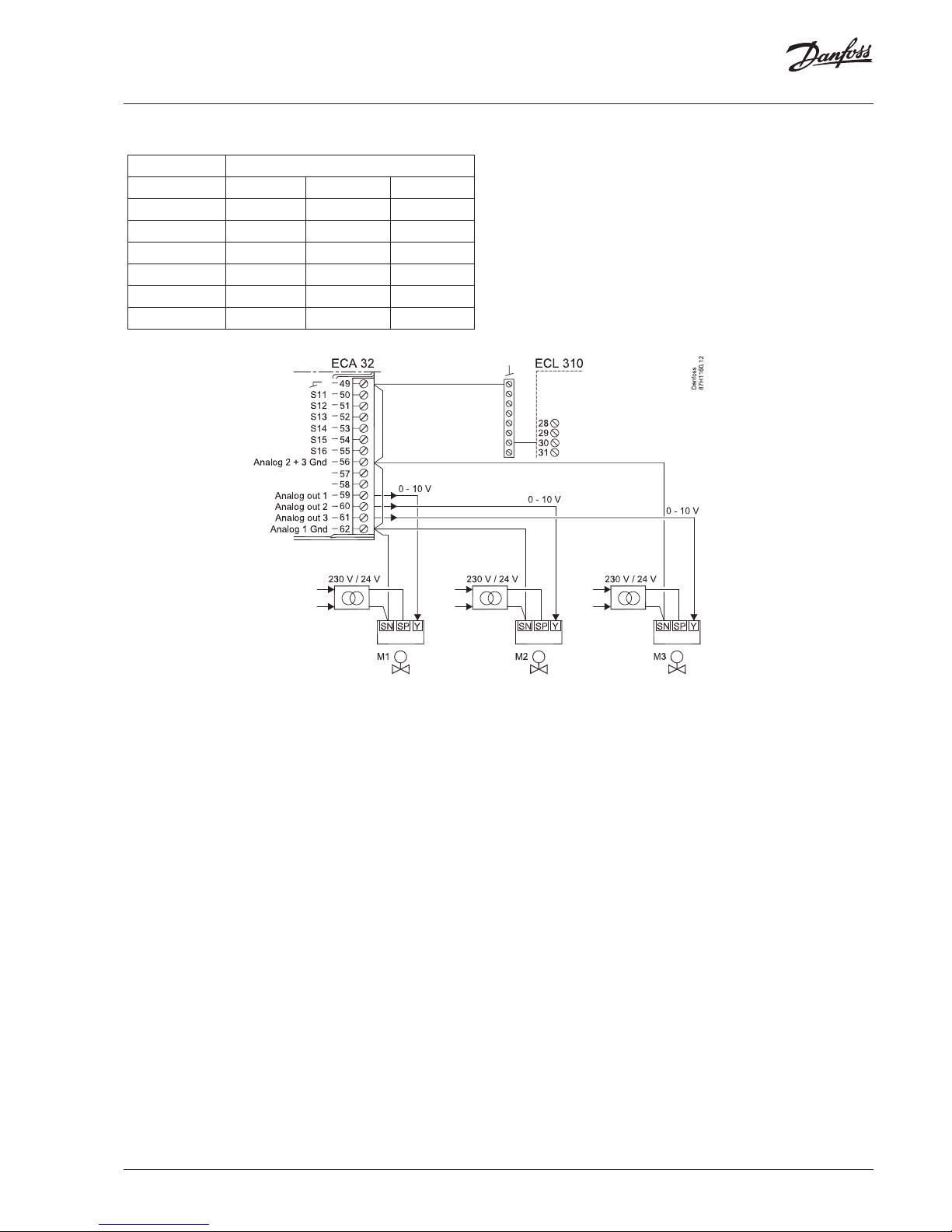

A390, ECA 32
P7
A390.1
A390.2
A390.3
A390.11 ü
A390.12
A390.13
87H2009.10
Danfoss
39
40
41
42
43
44
45
46
47
48
R7
R8
R9
R10
230 V a.c.
L
N
L
N
N
P7
ECA 32
