VLT® HVAC Basic Drive

Contents
1 Quick Guide 1-1
1.1 Safety 1-1
1.1.1 Warnings 1-1
1.1.2 Safety Instructions 1-1
1.2 Introduction 1-2
1.2.1 Available Literature 1-2
1.2.2 Approvals 1-2
1.2.3 IT Line Power 1-2
1.2.4 Avoid Unintended Start 1-2
1.2.5 Disposal Instructions 1-3
1.3 Installation 1-3
1.3.1 Before Starting Repair Work 1-3
1.3.2 Side-by-Side Installation 1-3
1.3.3 Dimensions 1-4
1.3.4 Electrical Installation in General 1-6
1.3.5 Connecting to Line Power and Motor 1-7
1.3.6 Fuses 1-13
1.3.7 EMC-compliant Electrical Installation 1-15
1.3.8 Control Terminals 1-17
1.3.9 Electrical Overview 1-18
1.4 Programming 1-19
1.4.1 Programming with the Local Control Panel (LCP) 1-19
1.4.3 The Start-up Wizard for Open-loop Applications 1-20
1.6 Warnings and Alarms 1-33
1.7 General Specifications 1-35
1.7.1 Line Power Supply 3 x 200–240 V AC 1-35
1.7.2 Line Power Supply 3 x 380–480 V AC 1-36
1.7.3 Line Power Supply 3 x 380–480 V AC 1-38
1.7.4 Line Power Supply 3 x 525–600 V AC 1-40
1.7.5 EMC Test Results 1-41
1.8 Special Conditions 1-45
1.8.1 Derating for Ambient Temperature and Switching Frequency 1-45
1.8.2 Derating for Low Air Pressure 1-45
1.9 Options for VLT HVAC Basic Drive FC101 1-45
Contents VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark

Contents VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark

1 Quick Guide
1.1 Safety
1.1.1 Warnings
WARNING
High Voltage Warning
The voltage of the Adjustable frequency drive is dangerous
whenever it is connected to line power. Incorrect instal-
lation of the motor or Adjustable frequency drive may
cause damage to the equipment, serious injury or death.
Consequently, it is essential to comply with the
instructions in this manual as well as local and national
rules and safety regulations.
WARNING
Electrical Hazard
Touching the electrical parts may be fatal - even after the
equipment has been disconnected from line power. Also
make sure that other voltage inputs have been discon-
nected (linkage of DC intermediate circuit). Be aware that
there may be high voltage on the DC link even when the
LEDs are turned off. Before touching any potentially live
parts of the Adjustable frequency drive, wait at least as
stated in the table below:
Voltage (V) Power range (HP/kW) Min. waiting time
(minutes)
3 x 200 0.34–5 [0.25–3.7] 4
3 x 200 7.5–15 [5.5–11] 15
3 x 400 0.5–10 [0.37–7.5] 4
3 x 400 15–125 [11–90] 15
3 x 600 3–10 [2.2–7.5] 4
3 x 600 15–125 [11–90] 15
Table 1.1
CAUTION
Leakage Current:
The ground leakage current from the Adjustable frequency
drive exceeds 3.5 mA. According to IEC 61800-5-1, a
reinforced protective ground connection must be ensured
by means of a min. 0.016 in² [10 mm²] Cu or an additional
PE wire - with the same cable cross-section as the line
power wiring - must be terminated separately.
Residual Current Device:
This product can cause a DC current in the protective
conductor. Where a residual current device (RCD) is used
for extra protection, only an RCD of Type B (time delayed)
shall be used on the supply side of this product. See also
Danfoss Application Note on RCD, MN90GXYY.
Protective grounding of the Adjustable frequency drive
and the use of RCDs must always follow national and local
regulations.
Motor thermal protection:
Motor overload protection is possible by setting Parameter
1-90 Motor thermal protection to the value Electronic
Thermal Relay (ETR) trip.
WARNING
Installation at high altitudes
For altitudes above 6,600 feet [2 km], please contact
Danfoss regarding PELV.
1.1.2 Safety Instructions
•Make sure the Adjustable frequency drive is
properly grounded.
•Do not remove AC line input connections, motor
connections or other power connections while
the Adjustable frequency drive is connected to
power.
•Protect users against supply voltage.
•Protect the motor against overloading according
to national and local regulations.
•The ground leakage current exceeds 3.5 mA.
•The [OFF] key is not a safety switch. It does not
disconnect the Adjustable frequency drive from
line power.
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-1
11

1.2 Introduction
1.2.1 Available Literature
This quick guide contains the basic information necessary
for installing and running the Adjustable frequency drive. If
more information is needed, literature can be found on the
enclosed CD or downloaded from:
http://www.danfoss.com/BusinessAreas/DrivesSolutions/
Documentations/Technical+Documentation.htm

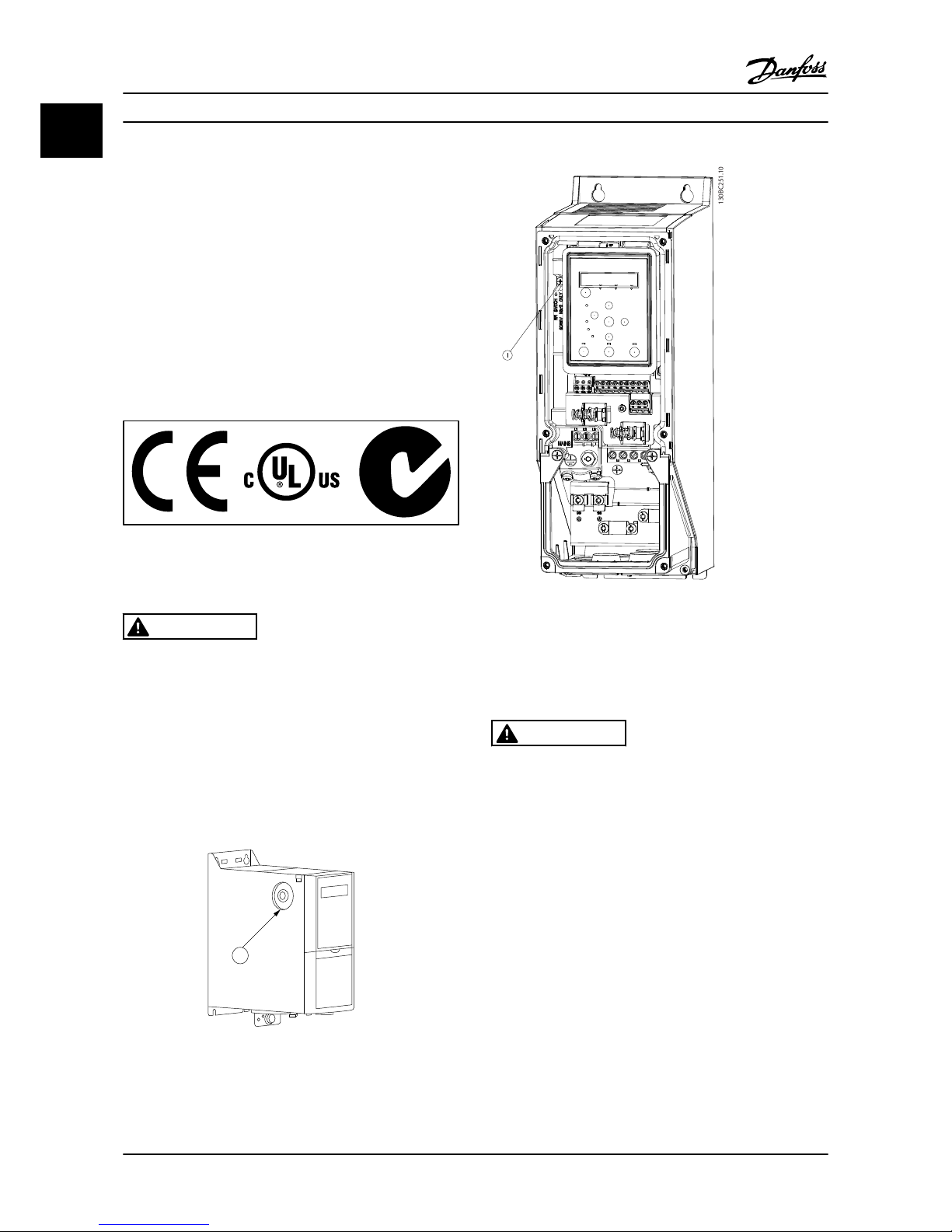

1.2.2 Approvals
Table 1.2
1.2.3 IT Line Power
CAUTION
IT Line Power
Installation on an isolated line power source, i.e., IT line
power.
Max. supply voltage allowed when connected to line
power: 440 V (3 x 380–480 V units).
On IP20 200–240 V 0.34–15 hp [0.25–11 kW] and 380–480
V IP20 0.5–30 hp [0.37–22 kW], open the RFI switch by
removing the screw on the side of the Adjustable
frequency drive when at IT grid.
130BB612.10
1
Figure 1.1 IP20 200–240 V 0.34–15 hp [0.25–11 kW], IP20 0.5–30
hp [0.37–22 kW] 380–480 V.
1: EMC screw
130BC251.10
Figure 1.2 IP54 400 V 1–25 hp [0.75–18.5 kW]
1: EMC screw
On all units, set par. 14-50 RFI filter to OFF when operating
in IT line power.
CAUTION
If reinserted, only use M3 x 12 screw.
1.2.4 Avoid Unintended Start
While the Adjustable frequency drive is connected to line
power, the motor can be started/stopped using digital
commands, bus commands, references or via the LCP.
•Disconnect the Adjustable frequency drive from
line power whenever personal safety consider-
ations make it necessary to avoid unintended
start of any motors.
•To avoid unintended start, always activate the
[OFF] key before changing parameters.
Quick Guide VLT HVAC Basic Drive Quick Guide
1-2 MG18A322 - VLT®is a registered Danfoss trademark
11

1.2.5 Disposal Instructions
Equipment containing electrical components
may not be disposed of together with domestic
waste.
It must be separately collected with electrical
and electronic waste according to local and
currently valid legislation.
Table 1.3
1.3 Installation
1.3.1 Before Starting Repair Work
1. Disconnect FC101 from line power (and external
DC supply, if present.)
2. Wait as long as indicated in the table below for
the DC link to discharge:
Voltage (V) Power range (HP/kW) Min. waiting time
(minutes)
3 x 200 0.34–5 [0.25–3.7] 4
3 x 200 7.5–60 [5.5–45] 15
3 x 400 0.5–10 [0.37–7.5] 4
3 x 400 15–125 [11–90] 15
3 x 600 3–10 [2.2–7.5] 4
3 x 600 15–125 [11–90] 15
Table 1.4
3. Remove motor cable
1.3.2 Side-by-Side Installation
The Adjustable frequency drive can be mounted side-by-side and requires the clearance above and below for cooling.
Power Clearance above/
below (mm/inch)
Frame IP class 3 x 200–240 V 3 x 380–480 V 3 x 525–600 V
H1 IP20 0.25–1.5 kW/0.33–2 HP 0.37–1.5 kW/0.5–2 HP 100/4
H2 IP20 2.2 kW/3 HP 2.2–4 kW/3–5.4 HP 100/4
H3 IP20 3.7 kW/5 HP 5.5–7.5 kW/7.5–10 HP 100/4
H4 IP20 5.5–7.5 kW/7.5–10 HP 11–15 kW/15–20 HP 100/4
H5 IP20 11 kW/15 HP 18.5–22 kW/25–30 HP 100/4
H6 IP20 15–18.5 Kw/20–25 HP 30–45 kW/40–60 HP 22–30 kW/30–40 HP 200/7.9
H7 IP20 22–30 kW/30–40 HP 55–75 kW/100–120 HP 45–55 kW/60–100 HP 200/7.9
H8 IP20 37–45 kW/50–60 HP 90 kW/125 HP 75–90 kW/120–125 HP 225/8.9
H9 IP20 2.2–7.5 kW/3–10 HP 100/4
H10 IP20 11–15 kW/15–20 HP 200/7.9
Table 1.5
NOTE!
With IP21/Nema Type1 option kit mounted, a distance of 2 in [50 mm] between the units is required.
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-3
11

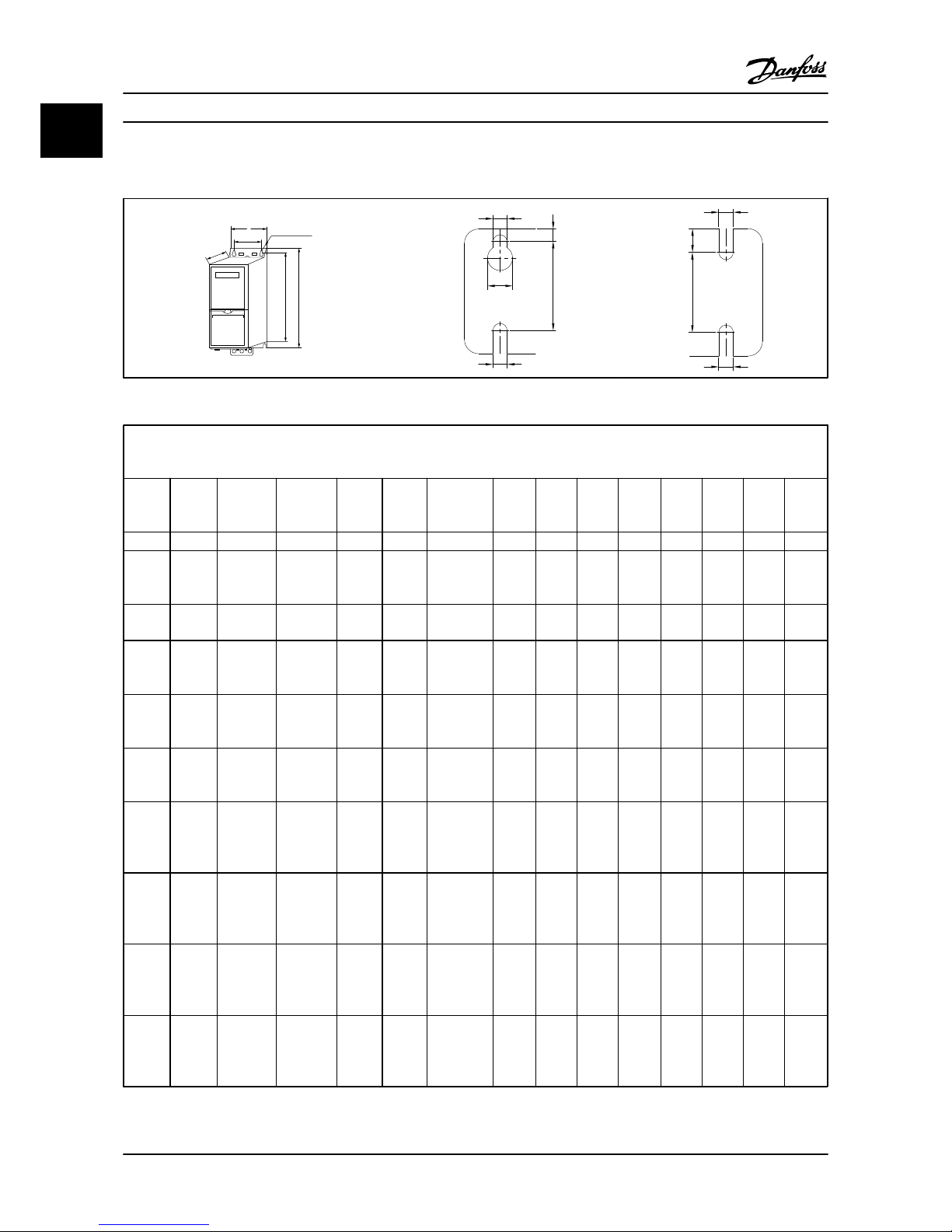

1.3.3 Dimensions
A
a
b
B
C
D
130BB614.10
e
f
a
d
e
130BC205.10
e
f
a
e
130BC246.10
Table 1.6
Enclosure Power (hp [kW]) Height (in [mm]) Width (in
[mm])
Depth
(in
[mm])
Mounting hole (in
[mm])
Max.
Weigh
t
Frame IP Class 3 x 200–
240 V
3 x 380–
480 V
3 x
525–
600 V
A "A incl
Decoupling
Plate"
a B b C d e f lbs
[kg]
H1 IP20 0.34–2 hp
[0.25–1.5
kW]
0.5–2 hp
[0.37–1.5
kW]
17.68
[195]
10.75 [273] 7.21
[183]
2.95
[75]
2.21
[56]
6.61
[168]
9 0.18
[4.5]
0.21
[5.3]
4.63
[2.1]
H2 IP20 3 hp [2.2
kW]
3-5 hp
[2.2-4 kW]
8.94
[227]
11.93 [303] 8.35
[212]
3.54
[90]
2.56
[65]
7.48
[190]
0.43
[11]
0.22
[5.5]
0.29
[7.4]
7.5
[3.4]
H3 IP20 4 hp [3.7
kW]
7.5–10 hp
[5.5-7.5
kW]
10.04
[255]
12.95 [329] 9.45
[240]
3.94
[100]
2.91
[74]
8.11
[206]
0.43
[11]
0.22
[5.5]
0.32
[8.1]
9.92
[4.5]
H4 IP20 7.5–10 hp
[5.5-7.5
kW]
15–20 hp
[11–15
kW]
11.65
[296]
14.13 [359] 10.83
[275]
5.32
[135]
4.13
[105]
9.49
[241]
0.5
[12.6]
0.28
[7]
0.33
[8.4]
17.42
[7.9]
H5 IP20 15 hp [11
kW]
25–30 hp
[18.5–22
kW]
11.15
[334]
15.83 [402] 12.36
[314]
5.91
[150]
4.72
[120]
10.04
[255]
0.5
[12.6]
0.28
[7]
0.34
[8.5]
20.94
[9.5]
H6 IP20 20–25 hp
[15–18.5
kW]
40–60 hp
[30–45
kW]
30-40
hp
[22-30
kW]
20.4
[518]
23.43/25
[595/635]
(60 hp [45
kW])
19.49
[495]
9.41
[239]
7.87
[200]
9.53
[242]
- 0.34
[8.5]
0.59
[15]
54
[24.5]
H7 IP20 30–40 hp
[22–30
kW]
75–100 hp
[55–75
kW]
60–75
hp [45–
55 kW]
21.65
[550]
24.8/27.17
[630/690]
(100 hp [75
kW])
20.51
[521]
12.32
[313]
10.63
[270]
13.19
[335]
- 0.34
[8.5]
0.67
[17]
79.37
[36]
H8 IP20 50–60 hp
[37–45
kW]
125 hp
[90 kW]
100–
125 hp
[75–90
kW]
26
[660]
31.5 [800] 24.84
[631]
14.76
[375]
13
[330]
13.19
[335]
- 8.5 17 112.44
[51]
H9 IP20 3–10
hp
[2.2–7.5
kW]
10.59
[269]
14.72 [374] 10.19
[257]
5.19
[130]
4.33
[110]
8.07
[205]
0.43
[11]
0.22
[5.5]
9 14.6
[6.6]
Quick Guide VLT HVAC Basic Drive Quick Guide
1-4 MG18A322 - VLT®is a registered Danfoss trademark
11

Enclosure Power (hp [kW]) Height (in [mm]) Width (in
[mm])
Depth
(in
[mm])
Mounting hole (in
[mm])
Max.
Weigh
t
H10 IP20 15–20
hp [11–
15 kW]
15.71
[399]
16.5 [419] 14.96
[380]
6.5
[165]
5.51
[140]
9.76
[248]
0.47
[12]
0.27
[6.8]
0.3
[7.5]
26.5
[12]
I2 IP54 1–5 hp
[0.75–4.0
kW]
13.07
[332]
- 12.54
[318.5]
4.53
[115]
2.91
[74]
8.82
[225]
0.43
[11]
0.22
[5.5]
0.35
[9]
11.69
[5.3]
I3 IP54 7.5–10 hp
[5.5-7.5
kW]
14.49
[368]
- 13.94
[354]
5.32
[135]
3.5
[89]
9.33
[237]
0.47
[12]
0.26
[6.5]
0.37
[9.5]
15.87
[7.2]
I5 IP54 15–25 hp
[11–18.5
kW]
19
[480]
- 17.87
[454]
9.53
[242]
8.27
[210]
10.24
[260]
0.75
[19]
0.35
[9]
0.35
[9]
50.71
[23]
I6 IP54 30–50 hp
[22–37
kW]
25.59
[650]
- 24.57
[624]
9.53
[242]
8.27
[210]
10.24
[260]
0.75
[19]
0.35
[9]
0.35
[9]
59.53
[27]
I7 IP54 60–75 hp
[45–55
kW]
26.77
[680]
- 25.51
[648]
12.13
[308]
10.71
[272]
12.21
[310]
0.75
[19]
0.35
[9]
0.39
[9.8]
99.21
[45]
I8 IP54 100–125
hp [75–90
kW]
30.32
[770]
- 29.1
[739]
14.57
[370]
11.15
[334]
13.19
[335]
0.75
[19]
0.35
[9]
0.39
[9.8]
143.3
[65]
Table 1.7
The dimensions are only for the physical units, but when installing in an application it is necessary to add space for free air
passage both above and below the units. The amount of space for free air passage is listed in Table 1.8:
Enclosure Clearance needed for free air passage (in [mm])
Frame IP class Above unit Below unit
H1 0.8 [20] 3.94 [100] 3.94 [100]
H2 0.8 [20] 3.94 [100] 3.94 [100]
H3 0.8 [20] 3.94 [100] 3.94 [100]
H4 0.8 [20] 3.94 [100] 3.94 [100]
H5 0.8 [20] 3.94 [100] 3.94 [100]
H6 0.8 [20] 7.87 [200] 7.87 [200]
H7 0.8 [20] 7.87 [200] 7.87 [200]
H8 0.8 [20] 8.82 [225] 8.82 [225]
H9 0.8 [20] 3.94 [100] 3.94 [100]
H10 0.8 [20] 7.87 [200] 7.87 [200]
I2 2.13 [54] 3.94 [100] 3.94 [100]
I3 2.13 [54] 3.94 [100] 3.94 [100]
I5 2.13 [54] 7.87 [200] 7.87 [200]
I6 2.13 [54] 7.87 [200] 7.87 [200]
I7 2.13 [54] 7.87 [200] 7.87 [200]
I8 2.13 [54] 8.82 [225] 8.82 [225]
Table 1.8 Clearance needed for free air passage (in [mm])
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-5
11

1.3.4 Electrical Installation in General
All cabling must comply with national and local regulations on cable cross-sections and ambient temperature. Copper
conductors required, (167° F [75°C]) recommended.
Power (HP [kW]) Torque (Nm)
Frame IP class 3 x 200–240 V 3 x 380–480 V Line Motor DC
connection
Control
terminals
Ground Relay
H1 IP20 0.34–2 [0.25–
1.5]
0.5–2 [0.37–1.5] 1.4 0.8 0.8 0.5 0.8 0.5
H2 IP20 3 [2.2] 3–5 [2.2–4] 1.4 0.8 0.8 0.5 0.8 0.5
H3 IP20 5 [3.7] 7.5–10 [5.5–7.5] 1.4 0.8 0.8 0.5 0.8 0.5
H4 IP20 7.5–10 [5.5–7.5] 15–20 [11–15] 1.2 1.2 1.2 0.5 0.8 0.5
H5 IP20 15 [11] 15–30 [18.5–22] 1.2 1.2 1.2 0.5 0.8 0.5
H6 IP20 20–25 [15–18] 40–60 [30–45] 4.5 4.5 - 0.5 3 0.5
H7 IP20 30–40 [22–30] 75 [55] 10 10 - 0.5 3 0.5
H7 IP20 - 100 [75] 14 14 - 0.5 3 0.5
H8 IP20 50–60 [37–45] 90 242242- 0.5 3 0.5
Table 1.9
Power (HP [kW]) Torque (Nm)
Frame IP class 3 x 380–480 V Line Motor DC connection Control
terminals
Ground Relay
I2 IP54 1–5 [0.75–4.0] 1.4 0.8 0.8 0.5 0.8 0.5
I3 IP54 7.5–10 [5.5–7.5] 1.4 0.8 0.8 0.5 0.8 0.5
I5 IP54 15–25 [11–18.5] 1.8 1.8 - 0.5 3 0.6
I6 IP54 30–50 [22–37] 4.5 4.5 - 0.5 3 0.6
I7 IP54 60–75 [45–55] 10 10 - 0.5 3 0.6
I8 IP54 100–125 [75–90] 14/24114/241- 0.5 3 0.6
Table 1.10
Power (HP [kW]) Torque (Nm)
Frame IP class 3 x 525–600 V Line Motor DC connection Control
terminals
Ground Relay
H9 IP20 3–10 [2.2–7.5] 1.8 1.8 not
recommended
0.5 3 0.6
H10 IP20 15–20 [11–15] 1.8 1.8 not
recommended
0.5 3 0.6
H6 IP20 30–40 [22–30] 4.5 4.5 - 0.5 3 0.5
H7 IP20 60–75 [45–55] 10 10 - 0.5 3 0.5
H8 IP20 100–125 [75–90] 14/24114/241- 0.5 3 0.5
Table 1.11 Details of Tightening Torques
1Cable dimensions
≤ 0.1472[95 mm2]
2Cable dimensions > 0.1472 [95 mm2]
Quick Guide VLT HVAC Basic Drive Quick Guide
1-6 MG18A322 - VLT®is a registered Danfoss trademark
11

1.3.5 Connecting to Line Power and Motor
The Adjustable frequency drive is designed to operate all
standard three-phased asynchronous motors. For
maximum cross-section on wires, please see section
1.6 General Specifications.
•Use a shielded/armored motor cable to comply
with EMC emission specifications, and connect
this cable to both the decoupling plate and the
motor metal.
•Keep motor cable as short as possible to reduce
the noise level and leakage currents.
•For further details on mounting of the
decoupling plate, please see instruction
MI02QXYY
•Also see EMC-Correct Installation in the Design
Guide, MG18CXYY.
1. Mount the ground wires to the ground terminal.
2. Connect the motor to terminals U, V and W.
3. Mount line power supply to terminals L1, L2 and
L3 and tighten.
H1-H5 Frame
IP20 200–240 V 0.34–15 hp [0.25–11 kW] and IP20 380–480
V 0.5–30 hp [0.37–22 kW].
130BB634.10
1
2
2
3
4
Motor
UVW-DC+DC
MAINS

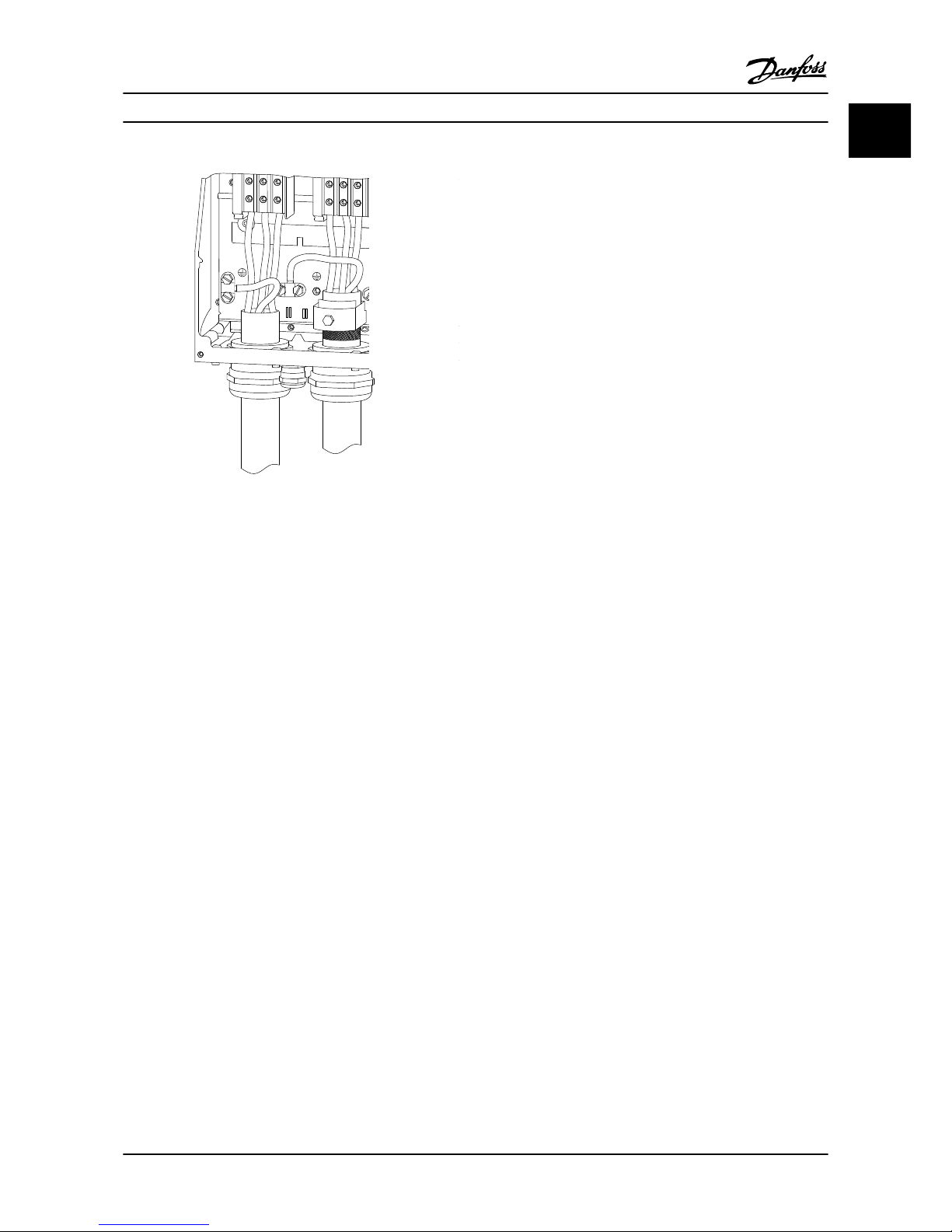

Figure 1.3
1Line
2 Ground
3 Motor
4 Relays
Table 1.12
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-7
11

H6 Frame
IP20 380–480 V 40–60 hp [30–45 kW]
IP20 200–240 V 20–25 hp [15–18.5 kW]
IP20 525–600 V 30–40 hp [22–30 kW|
1
95
99
L1 91 / L2 92 / L3 93
U 96 / V 97 / W 98
03 02 01
06 05 04
234
130BB762.10
Figure 1.4
1 Line
2 Motor
3 Ground
4 Relays
Table 1.13
H7 Frame
IP20 380–480 V 75–100 hp [55–75 kW]
IP20 200–240 V 30–40 hp [22–30 kW]
IP20 525–600 V 60–75 hp [45–55 kW]
12
3
4
130BB763.10
Figure 1.5
1 Line
2 Relays
3 Ground
4 Motor
Table 1.14
Quick Guide VLT HVAC Basic Drive Quick Guide
1-8 MG18A322 - VLT®is a registered Danfoss trademark
11

H8 Frame
IP20 380-480 V 125 hp [90 kW]
IP20 200–240 V 50–60 hp [37–45 kW]
IP20 525–600 V 100–125 hp [75–90 kW]
130BB764.10
1
2
3
4
98
97
96
99
95
93
92
91
L1 L1 L1 UVw
Figure 1.6
1 Line
2 Relays
3 Ground
4 Motor
Table 1.15
H9 Frame
IP20 600 V 3–10 hp [2.2–7.5 kW]
-DC+DC
BR- BR+ U V W
99
M A I N S
95
RELAY 1 RELAY 2
- LC +
130BA261.10
Figure 1.7
130BA262.10
M
I N S
+DC
BR- BR+ UVW
RELAY 1 RELAY 2
95
Figure 1.8
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-9
11

130BA263.10
95
MAINS
+DC
BR- BR+ UVW
91 92 93
L1 L2 L3
RELAY 1 RELAY 2
Figure 1.9
+DC
BR- BR+ UVW
MAINS
L1 L2 L3
91 92 93
RELAY 1 RELAY 2
99
- LC -
130BA264.10
Figure 1.10
MOTOR
MOTOR
U V W
99
130BT302.12
Figure 1.11
H10 Frame
IP20 600 V 15–20 hp [11–15 kW]
130BA725.10
Figure 1.12
Quick Guide VLT HVAC Basic Drive Quick Guide
1-10 MG18A322 - VLT®is a registered Danfoss trademark
11

I2 Frame
IP54 380–480 V 1–5 hp [0.75–4.0 kW]
130BC299.10
7
3
2
5
1
8
4
6
Figure 1.13
1RS 485
2 Line in
3 Ground
4 Wire clamps
5 Motor
6 UDC
7 Relays
8 I/O
Table 1.16
I3 Frame
IP54 380–480 V 75–100 hp [5.5–7.5 kW]
130BC201.10
Figure 1.14
1RS 485
2 Line in
3 Ground
4 Wire clamps
5 Motor
6 UDC
7 Relays
8 I/O
Table 1.17
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-11
11

IP54 I2-I3 frame
130BC203.10
Figure 1.15
I6 Frame
IP54 380-480 V 30–50 hp [22–37 kW]
130BT326.10
Figure 1.16
130BT325.10
Figure 1.17
311
130BA215.10
RELAY 1
RELAY 2
9
9
6
03 02 01
90 05 04
Figure 1.18
I7, I8 Frame
IP54 380–480 V 60–75 hp [45–55 kW]
IP54 380–480 V 100–125 hp [75–90 kW]
Quick Guide VLT HVAC Basic Drive Quick Guide
1-12 MG18A322 - VLT®is a registered Danfoss trademark
11

91
L1
92
L2
93
L3
96
U
97
V
98
W
88
DC-
89
DC+
81
R-
8
R+
99
95
130BA248.10
Figure 1.19
1.3.6 Fuses
Branch circuit protection
In order to protect the installation from electrical and fire
hazards, all branch circuits in an installation, switch gears,
machines etc., must be protected from short-circuits and
overcurrents according to national/international
regulations.
Short circuit protection
Danfoss recommends using the fuses mentioned in the
following tables to protect service personnel or other
equipment in case of an internal failure in the unit or
short-circuit on DC link. The Adjustable frequency drive
provides full short circuit protection in case of a short-
circuit on the motor.
Overcurrent protection
Provide overload protection to avoid overheating of the
cables in the installation. Overcurrent protection must
always be carried out according to national regulations.
Fuses must be designed for protection in a circuit capable
of supplying a maximum of 100,000 Arms (symmetrical),
480 V maximum.
Non UL compliance
If UL/cUL is not to be complied with, Danfoss recommends
using the fuses mentioned in Table 1.18, which will ensure
compliance with IEC 61800-5-1:
In case of malfunction, not following the fuse recommen-
dation may result in damage to the Adjustable frequency
drive.
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-13
11

Circuit Breaker
Fuse
UL Non-UL UL Non-UL
Bussman
n
Bussman
n
Bussman
n
Bussman
nMax fuse
Power HP [kW] Type RK5 Type RK1 Type J Type T Type G
3 x 200–240 V
IP20
0.34 [0.25] FRS-R-10 KTN-R10 JKS-10 JIN-10 10
0.5 [0.37] FRS-R-10 KTN-R10 JKS-10 JIN-10 10
1 [0.75] FRS-R-10 KTN-R10 JKS-10 JIN-10 10
2 [1.5] FRS-R-10 KTN-R10 JKS-10 JIN-10 10
3 [2.2] FRS-R-15 KTN-R15 JKS-15 JIN-15 16
5 [3.7] FRS-R-25 KTN-R25 JKS-25 JIN-25 25
7.5 [5.5] FRS-R-50 KTN-R50 JKS-50 JIN-50 50
10 [7.5] FRS-R-50 KTN-R50 JKS-50 JIN-50 50
15 [11] FRS-R-80 KTN-R80 JKS-80 JIN-80 65
20 [15] Cutler-Hammer
EGE3100FFG Moeller NZMB1-A125 FRS-R-100 KTN-R100
125
25 [18.5] FRS-R-100 KTN-R100 125
30 [22] Cutler-Hammer
JGE3150FFG Moeller NZMB1-A160 FRS-R-150 KTN-R150 160
40 [30] FRS-R-150 KTN-R150 160
50 [37] Cutler-Hammer
JGE3200FFG Moeller NZMB1-A200 FRS-R-200 KTN-R200 200
60 [45] FRS-R-200 KTN-R200 200
3 x 380–480 V
IP20
0.5 [0.37] FRS-R-10 KTS-R10 JKS-10 JJS-10 10
1 [0.75] FRS-R-10 KTS-R10 JKS-10 JJS-10 10
2 [1.5] FRS-R-10 KTS-R10 JKS-10 JJS-10 10
3 [2.2] FRS-R-15 KTS-R15 JKS-15 JJS-15 16
4 [3] FRS-R-15 KTS-R15 JKS-15 JJS-15 16
5.4 [4] FRS-R-15 KTS-R15 JKS-15 JJS-15 16
7.5 [5.5] FRS-R-25 KTS-R25 JKS-25 JJS-25 25
10 [7.5] FRS-R-25 KTS-R25 JKS-25 JJS-25 25
15 [11] FRS-R-50 KTS-R50 JKS-50 JJS-50 50
20 [15] FRS-R-50 KTS-R50 JKS-50 JJS-50 50
25 [18.5] FRS-R-80 KTS-R80 JKS-80 JJS-80 65
30 [22] FRS-R-80 KTS-R80 JKS-80 JJS-80 65
40 [30] Cutler-Hammer
EGE3125FFG Moeller NZMB1-A125
FRS-R-80 KTS-R80 JKS-R80 JJS-R80 80
50 [37] FRS-R-100 KTS-R100 JKS-R100 JJS-R100 100
60 [45] FRS-R-125 KTS-R125 JKS-R125 JJS-R125 125
75 [55] Cutler-Hammer
JGE3200FFG Moeller NZMB1-A200 FRS-R-150 KTS-R150 JKS-R150 JJS-R150 150
100 [75] FRS-R-200 KTS-R200 JKS-R200 JJS-R200 200
125 [90] Cutler-Hammer
JGE3250FFG Moeller NZMB2-A250 FRS-R-250 KTS-R250 JKS-R250 JJS-R250 250
Table 1.18
Quick Guide VLT HVAC Basic Drive Quick Guide
1-14 MG18A322 - VLT®is a registered Danfoss trademark
11

Circuit Breaker
Fuse
UL Non-UL UL Non-UL
Bussman
n
Bussman
n
Bussman
n
Bussman
nMax fuse
Power HP [kW] Type RK5 Type RK1 Type J Type T Type G
3 x 525–600 V
IP20
2.2 KTS-R20 20
4 [3] KTS-R20 20
5.5 KTS-R20 20
10 [7.5] KTS-R20 30
11 KTS-R30 35
20 [15] KTS-R30 35
30 [22] Cutler-Hammer
EGE3080FFG
Cutler-Hammer
EGE3080FFG
FRS-R-80 KTN-R80 80
40 [30] FRS-R-80 KTN-R80 80
60 [45] Cutler-Hammer
JGE3125FFG
Cutler-Hammer
JGE3125FFG
FRS-R-125 KTN-R125 125
75 [55] FRS-R-125 KTN-R125 125
100 [75] Cutler-Hammer
JGE3200FAG
Cutler-Hammer
JGE3200FAG
FRS-R-200 KTN-R200 200
125 [90] FRS-R-200 KTN-R200 200
3 x 380–480 V
IP54
0.75
1.5
2.2
3
4
5.5
7.5
11
15
18.5
22
Moeller NZMB1-A125
125
30 125
37 125
45 Moeller NZMB2-A160 160
55 160
75 Moeller NZMB2-A250 200
90 200
Table 1.19 Fuses
1.3.7 EMC-compliant Electrical Installation
General points to be observed to ensure EMC-compliant
electrical installation.
•Use only shielded/armored motor cables and
shielded/armored control cables.
•Connect the shield to ground at both ends.
•Avoid installation with twisted shield ends
(pigtails), since this ruins the shielding effect at
high frequencies. Use the cable clamps provided
instead.
•It is important to ensure good electrical contact
from the installation plate through the installation
screws to the metal cabinet of the Adjustable
frequency drive.
•Use star-washers and galvanically grounding
plates.
•Do not use shielded/armored motor cables in the
installation cabinets.
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-15
11

L1
L2
L3
PE
Min. 0.0248 in2[16 mm2]
Equalizing cable
Control cables
All cable entries in
one side of panel
Grounding rail
Cable insula-
tion stripped
Output con-
tactor, etc.
Motor cable
Motor, 3 phases and
PLC etc. Panel
Line power supply
Min. 7.9 in [200 mm]
between control
cable, line cable
and between line power
motor cable
PLC
Protective ground
Reinforced protective ground
130BB761.10

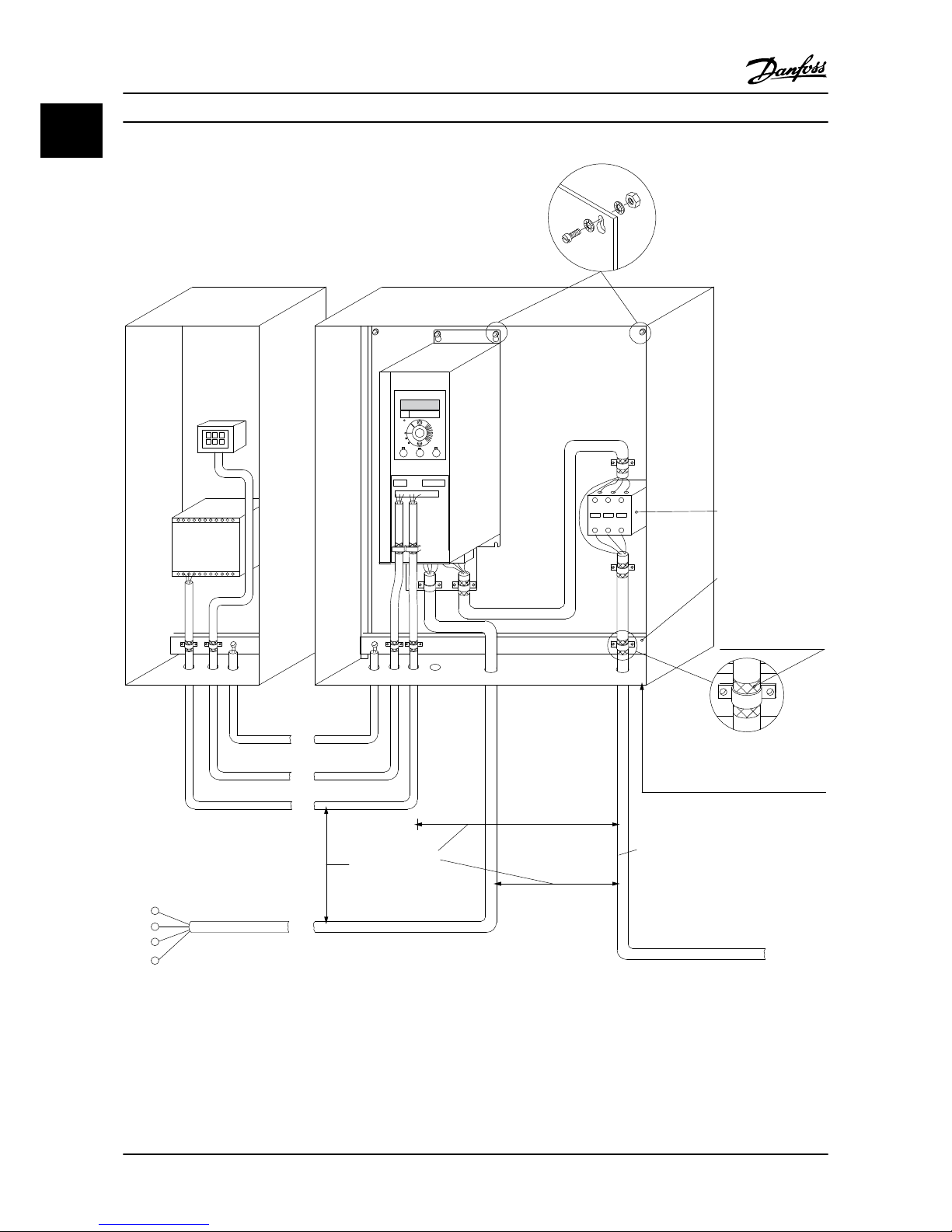

Figure 1.20 EMC-compliant Electrical Installation
For North America, use metal conduits instead of shielded cables.
Quick Guide VLT HVAC Basic Drive Quick Guide
1-16 MG18A322 - VLT®is a registered Danfoss trademark
11

1.3.8 Control Terminals
IP20 200–240 V 0.34–15 hp [0.25–11 kW] and IP20 380–480
V 0.5–30 hp [0.37–22 kW]:
130BB622.10
Figure 1.21 Location of Control Terminals
1. Place a screwdriver behind the terminal cover to
activate snap.
2. Tilt the screwdriver outwards to open the cover.
IP20 380–480V 40–125 hp [30–90kW].
130BB624.10
Figure 1.22
1. Place a screwdriver behind the terminal cover to
activate snap.
2. Tilt the screwdriver outwards to open the cover.
Digital input 18, 19 and 27 mode is set in 5-00 Digital Input
Mode (PNP is default value) and digital input 29 mode is
set in 5-03 Digital Input 29 Mode (PNP is default value).
IP54 400 V 1–10 hp [0.75–7.5 kW]
130BC249.10
Figure 1.23
1. Remove the front cover.
Control terminals:
Figure 1.24 shows all control terminals of the Adjustable
frequency drive. Applying Start (term. 18), connection
between terminal 12-27 and an analog reference (term. 53
or 54 and 55) make the Adjustable frequency drive run.
18 19
12 20 55
27 29 42 45 50 53 54
DIGI IN DIGI IN DIGI IN DIGI IN
61 68 69
N P COMM. GND
+24V
0/4-20mA A OUT / DIG OUT 0/4-20mA A OUT / DIG OUT
GND
GND
10V/20mA IN 10V/20mA IN 10V OUT
130BB625.10
BUS TER.
OFF ON
Figure 1.24 Control Terminals
Quick Guide VLT HVAC Basic Drive Quick Guide
MG18A322 - VLT®is a registered Danfoss trademark 1-17
11
