Danfoss VLT HVAC Basic Drive FC 101 User manual

MAKING MODERN LIVING POSSIBLE
Quick Guide
VLT®HVAC Basic Drive FC 101
www.danfoss.com/drives

Contents
1 Quick Guide 2
1.1 Safety 2
1.1.1 Warnings 2
1.1.2 Safety Instructions 2
1.2 Introduction 3
1.2.1 Available Literature 3
1.2.2 Approvals 3
1.2.3 IT Mains 3
1.2.4 Avoid Unintended Start 4
1.2.5 Disposal Instruction 4
1.3 Installation 4
1.3.1 Before Starting Repair Work 4
1.3.2 Side-by-Side Installation 4
1.3.3 Dimensions 5
1.3.4 Electrical Installation in General 6
1.3.5 Connecting to Mains and Motor 8
1.3.6 Fuses and Circuit Breakers 15
1.3.7 EMC-Correct Electrical Installation 17
1.3.8 Control Terminals 18
1.3.9 Electrical Overview 19
1.4 Programming 20
1.4.1 Programming with the Local Control Panel (LCP) 20
1.4.2 Local Control Panel (LCP) 20
1.4.3 The Start-up Wizard for Open Loop Applications 21
1.4.4 Main Menu Structure 31
1.5 Acoustic Noise or Vibration 33
1.6 Warnings and Alarms 33
1.7 General Specifications 35
1.7.1 Mains Supply 3x200-240 V AC 35
1.7.2 Mains Supply 3x380-480 V AC 36
1.7.3 Mains Supply 3x525-600 V AC 40
1.8 Special Conditions 45
1.8.1 Derating for Ambient Temperature and Switching Frequency 45
1.8.2 Derating for Low Air Pressure 45
1.9 Options for VLT®HVAC Basic Drive FC 101 45
1.10 MCT 10 Support 45
Contents VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 1

1 Quick Guide
1.1 Safety
1.1.1 Warnings
WARNING
High Voltage Warning
The voltage of the frequency converter is dangerous
whenever it is connected to mains. Incorrect installation
of the motor or frequency converter may cause damage
to the equipment, serious injury or death. Consequently,
it is essential to comply with the instructions in this
manual as well as local and national rules and safety
regulations.
WARNING
DISCHARGE TIME!
Frequency converters contain DC-link capacitors that can
remain charged even when the frequency converter is
not powered. To avoid electrical hazards, disconnect AC
mains, any permanent magnet type motors, and any
remote DC-link power supplies, including battery
backups, UPS and DC-link connections to other
frequency converters. Wait for the capacitors to fully
discharge before performing any service or repair work.
The amount of wait time is listed in the Discharge Time
table. Failure to wait the specified time after power has
been removed before doing service or repair could result
in death or serious injury.
Voltage [V] Power range [kW] Minimum waiting time
[min]
3x200 0.25–3.7 4
3x200 5.5–11 15
3x400 0.37–7.5 4
3x400 11–90 15
3x600 2.2–7.5 4
3x600 11–90 15
Table 1.1 Discharge Time
CAUTION
Leakage Current:
The earth leakage current from the frequency converter
exceeds 3.5 mA. According to IEC 61800-5-1 a reinforced
Protective Earth connection must be ensured with a min.
10 mm2Cu or an additional PE wire - with the same
cable cross section as the Mains wiring - must be
terminated separately.
Residual Current Device:
This product can cause a DC current in the protective
conductor. Where a residual current device (RCD) is used
for extra protection, only an RCD of Type B (time
delayed) shall be used on the supply side of this
product. See also Danfoss Application Note on RCD,
MN90G.
Protective earthing of the frequency converter and the
use of RCDs must always follow national and local
regulations.
Motor thermal protection
Motor overload protection is possible by setting 1-90 Motor
Thermal Protection to [4] ETR trip.
WARNING
Installation at high altitudes
For altitudes above 2 km, contact
Danfossregarding PELV.
1.1.2 Safety Instructions
•Make sure the frequency converter is properly
connected to earth.
•Do not remove mains connections, motor
connections or other power connections while
the frequency converter is connected to power.
•Protect users against supply voltage.
•Protect the motor against overloading according
to national and local regulations.
•The earth leakage current exceeds 3.5 mA.
•The [Off/Reset] key is not a safety switch. It does
not disconnect the frequency converter from
mains.
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
2 MG18A502 - Rev. 2013-08-09
1
1

1.2 Introduction
1.2.1 Available Literature
This Quick Guide contains basic information necessary for
installing and running the frequency converter. If more
information is needed, literature can be found on the
enclosed cd.
1.2.2 Approvals
Certification IP20 IP54
EC Declaration of
Conformity ✓ ✓
UL Listed ✓ －
C-tick ✓ ✓
Table 1.2 Approvals
The frequency converter complies with UL508C thermal
memory retention requirements. For more information,
refer to the section Motor Thermal Protection in the Design
Guide.
1.2.3 IT Mains
CAUTION
IT Mains
Installation on isolated mains source, that is, IT
mains.
Max. supply voltage allowed when connected to
mains: 440 V (3x380-480 V units).
On IP20 200-240 V 0.25-11 kW and 380-480 V IP20 0.37-22
kW, open the RFI switch by removing the screw on the
side of the frequency converter when at IT grid.
130BB612.10
1
Illustration 1.1 IP20 200-240 V 0.25-11 kW, IP20 0.37-22 kW
380-480 V
1 EMC screw
Table 1.3 Legend to Illustration 1.1
130BC251.10
Illustration 1.2 IP54 400 V 0.75-18.5 kW
1EMC screw
Table 1.4 Legend to Illustration 1.2
On all units, set 14-50 RFI Filter to [0] Off when operating in
IT mains.
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 3
11

CAUTION
If reinserted, only use M3x12 screw.
1.2.4 Avoid Unintended Start
While the frequency converter is connected to mains, the
motor can be started/stopped using digital commands, bus
commands, references or via the LCP or LOP.
•Disconnect the frequency converter from mains
whenever personal safety considerations make it
necessary to avoid unintended start of any
motors.
•To avoid unintended start, always press [Off/
Reset] before changing parameters.
1.2.5 Disposal Instruction
Equipment containing electrical components
must not be disposed of together with domestic
waste.
It must be separately collected with electrical
and electronic waste according to local and
currently valid legislation.
1.3 Installation
1.3.1 Before Starting Repair Work
1. Disconnect from mains (and external DC supply, if
present).
2. Wait as stated in Table 1.1 for discharge of the
DC-link.
3. Remove motor cable.
1.3.2 Side-by-Side Installation
The frequency converter can be mounted side-by-side and requires the clearance above and below for cooling.
Power [kW] Clearance above/below [mm/inch]
Frame IP class 3x200-240 V 3x380-480 V 3x525-600 V
H1 IP20 0.25-1.5 0.37-1.5 100/4
H2 IP20 2.2 2.2-4 100/4
H3 IP20 3.7 5.5-7.5 100/4
H4 IP20 5.5-7.5 11-15 100/4
H5 IP20 11 18.5-22 100/4
H6 IP20 15-18.5 30-45 18.5-30 200/7.9
H7 IP20 22-30 55-75 37-55 200/7.9
H8 IP20 37-45 90 75-90 225/8.9
H9 IP20 2.2-7.5 100/4
H10 IP20 11-15 200/7.9
Table 1.5 Clearance
NOTICE
With IP21/Nema Type1 option kit mounted, a distance of 50 mm between the units is required.
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
4 MG18A502 - Rev. 2013-08-09
1
1

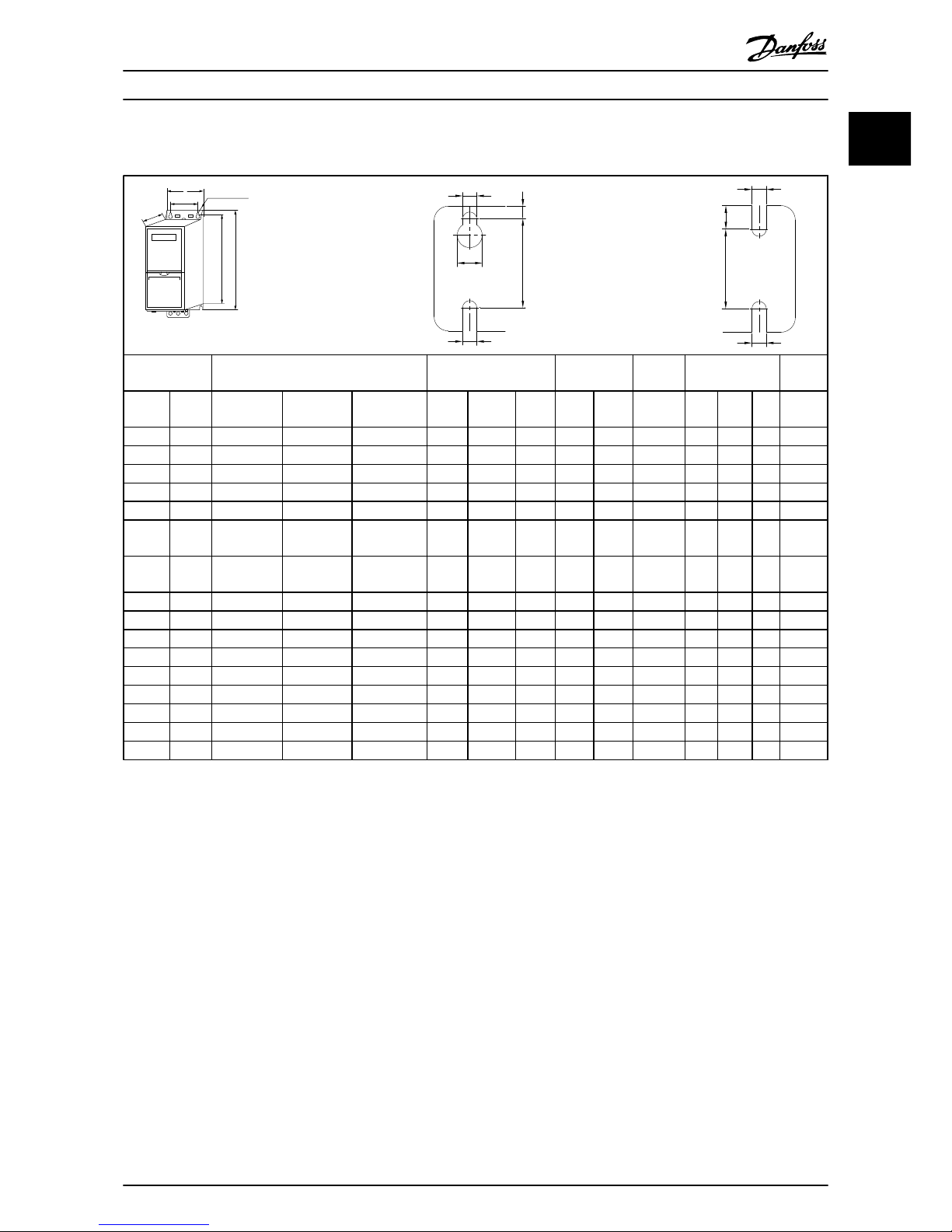

1.3.3 Dimensions
A
a
b
B
C
D
130BB614.10
e
f
a
d
e
130BC205.10
e
f
a
e
130BC246.10
Enclosure Power [kW] Height [mm] Width [mm] Depth
[mm]
Mounting hole
[mm]
Max.
Weight
Frame IP
Class
3x200-240
V
3x380-480
V
3x525-600 V A A1a B b C d e f kg
H1 IP20 0.25-1.5 0.37-1.5 195 273 183 75 56 168 9 4.5 5.3 2.1
H2 IP20 2.2 2.2-4.0 227 303 212 90 65 190 11 5.5 7.4 3.4
H3 IP20 3.7 5.5-7.5 255 329 240 100 74 206 11 5.5 8.1 4.5
H4 IP20 5.5-7.5 11-15 296 359 275 135 105 241 12.6 7 8.4 7.9
H5 IP20 11 18.5-22 334 402 314 150 120 255 12.6 7 8.5 9.5
H6 IP20 15-18.5 30-45 18.5-30 518 595/635
(45 kW)
495 239 200 242 - 8.5 15 24.5
H7 IP20 22-30 55-75 37-55 550 630/690
(75 kW)
521 313 270 335 - 8.5 17 36
H8 IP20 37-45 90 75-90 660 800 631 375 330 335 - 8.5 17 51
H9 IP20 2.2-7.5 269 374 257 130 110 205 11 5.5 9 6.6
H10 IP20 11-15 399 419 380 165 140 248 12 6.8 7.5 12
I2 IP54 0.75-4.0 332 - 318.5 115 74 225 11 5.5 9 5.3
I3 IP54 5.5-7.5 368 - 354 135 89 237 12 6.5 9.5 7.2
I4 IP54 11-18.5 476 - 460 180 133 290 12 6.5 9.5 13.8
I6 IP54 22-37 650 - 624 242 210 260 19 9 9 27
I7 IP54 45-55 680 - 648 308 272 310 19 9 9.8 45
I8 IP54 75-90 770 - 739 370 334 335 19 9 9.8 65
Table 1.6 Dimensions
1Including decoupling plate
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 5
11

The dimensions are only for the physical units, but when
installing in an application it is necessary to add space for
free air passage both above and below the units. The
amount of space for free air passage is listed in Table 1.8:
Enclosure Clearance [mm]
Frame IP class Above unit Below unit
H1 20 100 100
H2 20 100 100
H3 20 100 100
H4 20 100 100
H5 20 100 100
H6 20 200 200
H7 20 200 200
H8 20 225 225
H9 20 100 100
H10 20 200 200
I2 54 100 100
I3 54 100 100
I4 54 100 100
I6 54 200 200
I7 54 200 200
I8 54 225 225
Table 1.7 Clearance Needed for Free Air Passage
1.3.4 Electrical Installation in General
All cabling must comply with national and local regulations on cable cross-sections and ambient temperature. Copper
conductors required, (75 °C) recommended.
Power [kW] Torque [Nm]
Frame IP class 3x200-240 V 3x380-480 V Line Motor DC
connection
Control
terminals
Earth Relay
H1 IP20 0.25-1.5 0.37-1.5 1.4 0.8 0.8 0.5 0.8 0.5
H2 IP20 2.2 2.2-4 1.4 0.8 0.8 0.5 0.8 0.5
H3 IP20 3.7 5.5-7.5 1.4 0.8 0.8 0.5 0.8 0.5
H4 IP20 5.5-7.5 11-15 1.2 1.2 1.2 0.5 0.8 0.5
H5 IP20 11 18.5-22 1.2 1.2 1.2 0.5 0.8 0.5
H6 IP20 15-18 30-45 4.5 4.5 - 0.5 3 0.5
H7 IP20 22-30 55 10 10 - 0.5 3 0.5
H7 IP20 - 75 14 14 - 0.5 3 0.5
H8 IP20 37-45 90 242242- 0.5 3 0.5
Table 1.8 Enclosure H1-H8
Power [kW] Torque [Nm]
Frame IP class 3x380-480 V Line Motor DC
connection
Control
terminals
Earth Relay
I2 IP54 0.75-4.0 1.4 0.8 0.8 0.5 0.8 0.5
I3 IP54 5.5-7.5 1.4 0.8 0.8 0.5 0.8 0.5
I4 IP54 11-18.5 1.4 0.8 0.8 0.5 0.8 0.5
I6 IP54 22-37 4.5 4.5 - 0.5 3 0.6
I7 IP54 45-55 10 10 - 0.5 3 0.6
I8 IP54 75-90 14/24114/241- 0.5 3 0.6
Table 1.9 Enclosure I1-I8
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
6 MG18A502 - Rev. 2013-08-09
1
1

Power [kW] Torque [Nm]
Frame IP class 3x525-600 V Line Motor DC
connection
Control
terminals
Earth Relay
H9 IP20 2.2-7.5 1.8 1.8 not
recommended
0.5 3 0.6
H10 IP20 11-15 1.8 1.8 not
recommended
0.5 3 0.6
H6 IP20 18.5-30 4.5 4.5 - 0.5 3 0.5
H7 IP20 37-55 10 10 - 0.5 3 0.5
H8 IP20 75-90 14/24114/241- 0.5 3 0.5
Table 1.10 Details of Tightening Torques
1Cable dimensions
≤ 95 mm2
2Cable dimensions >95 mm2
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 7
11

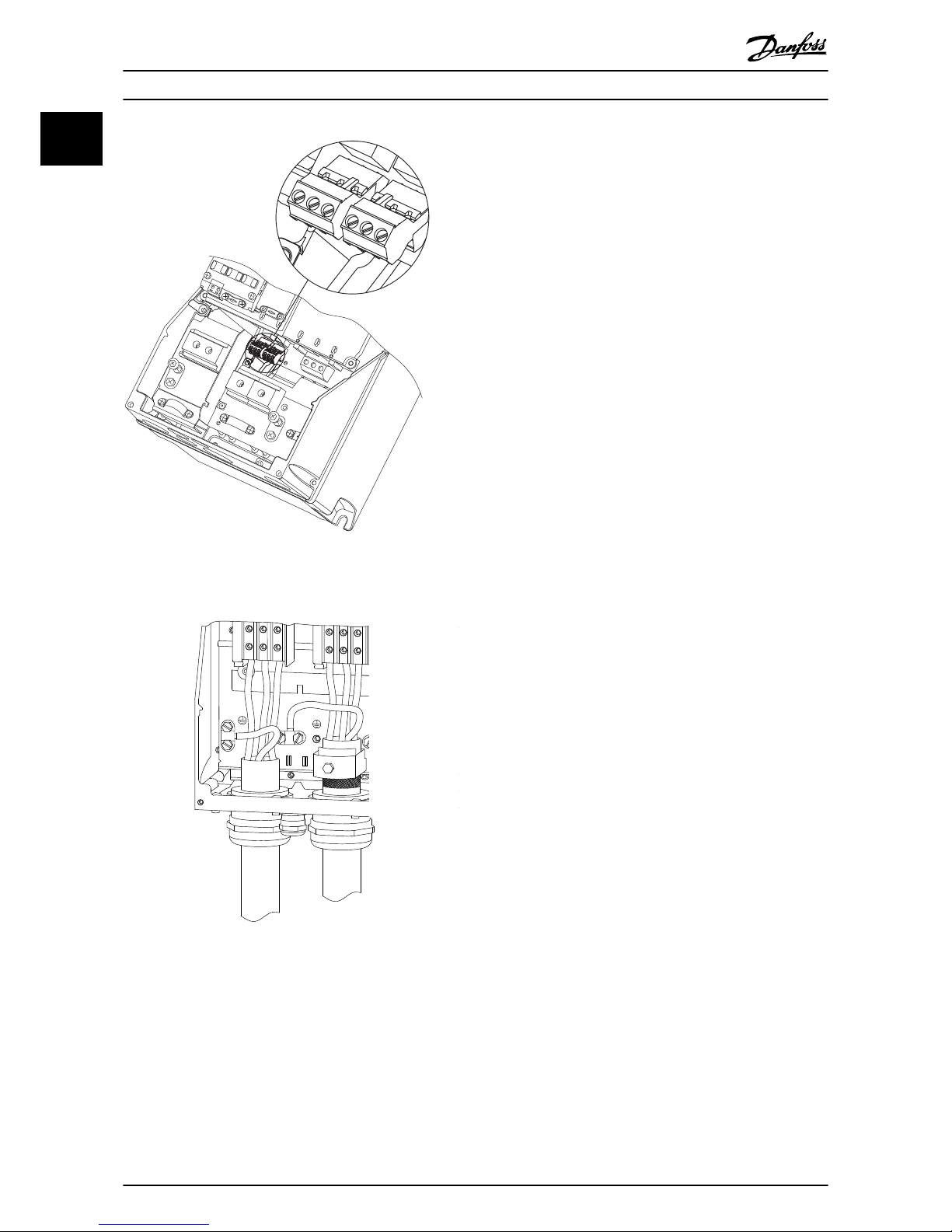

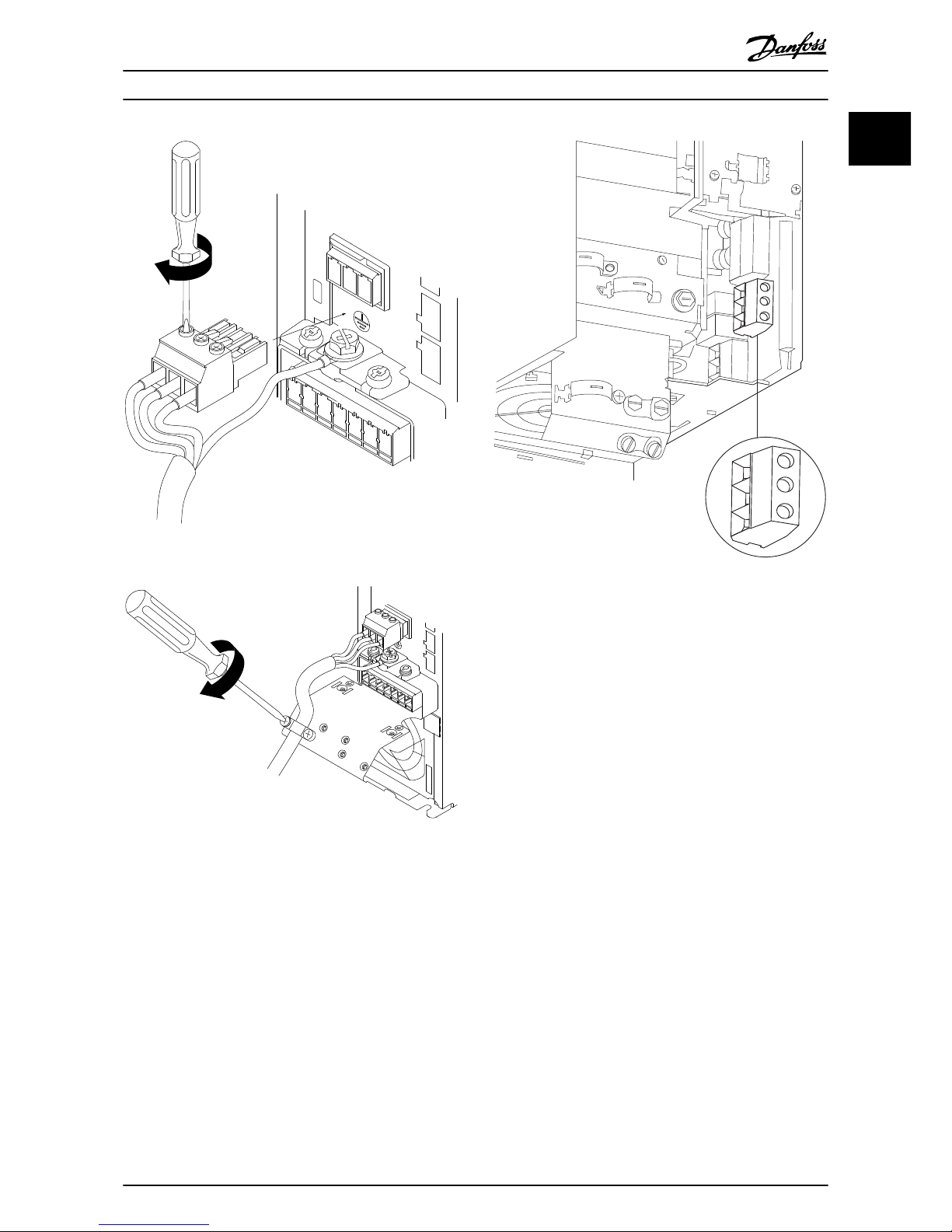

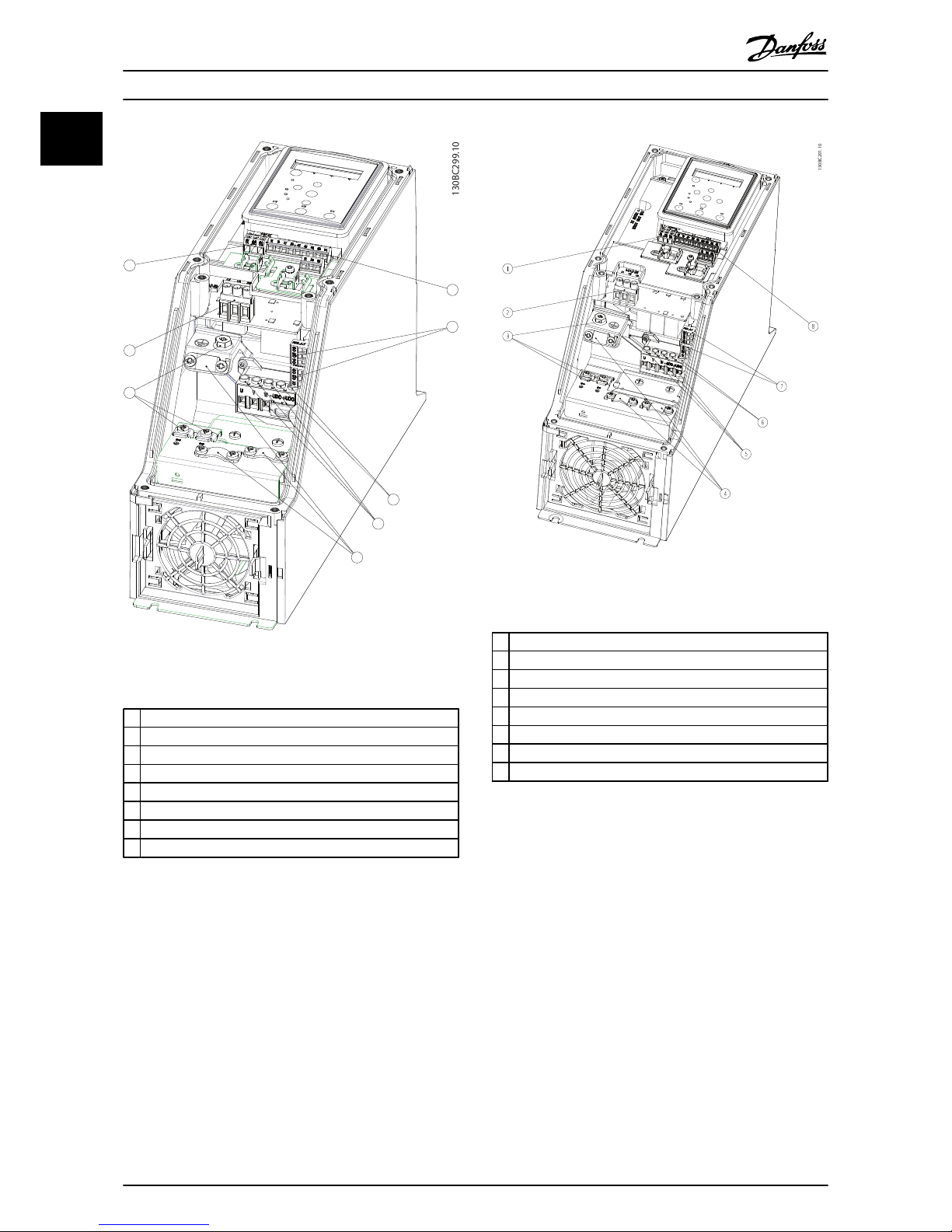

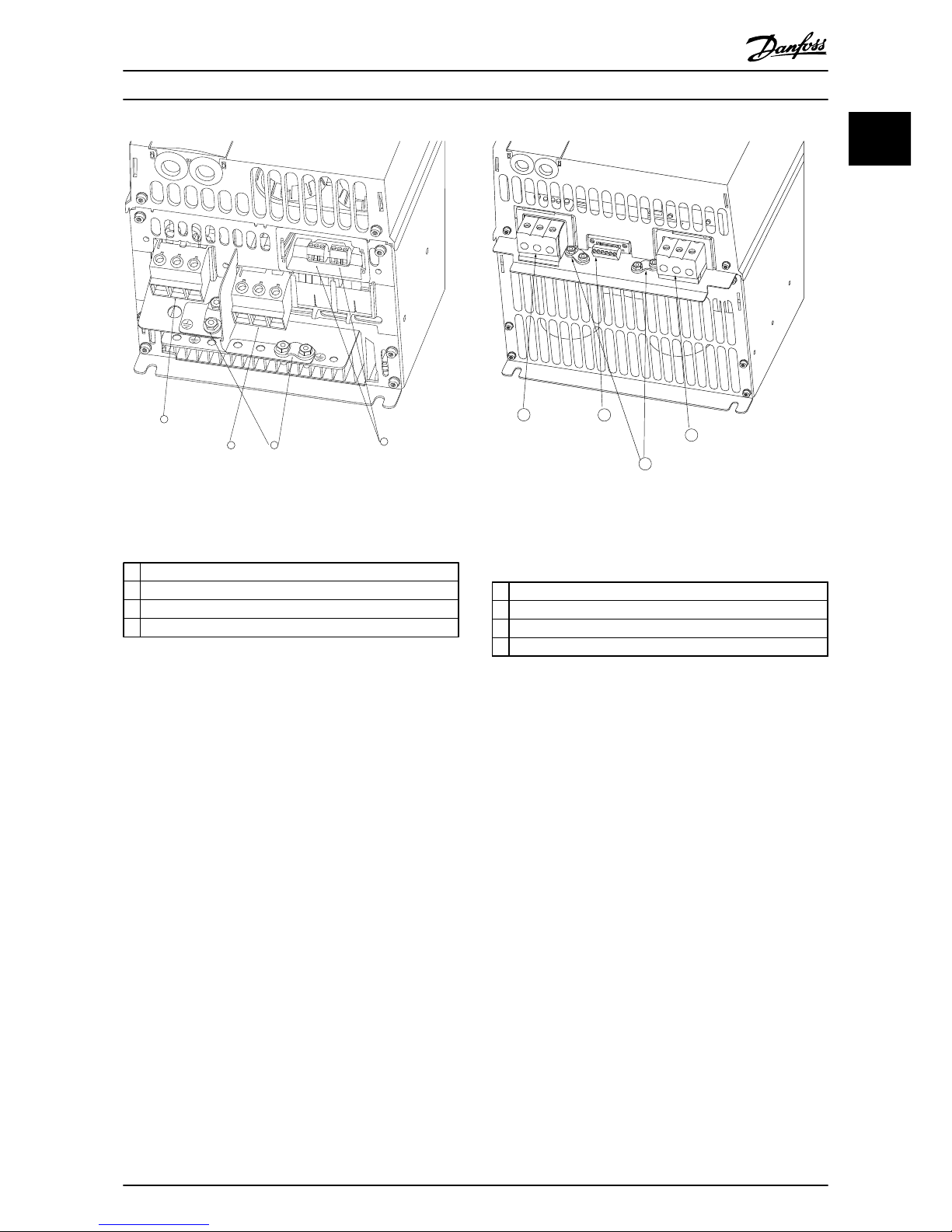

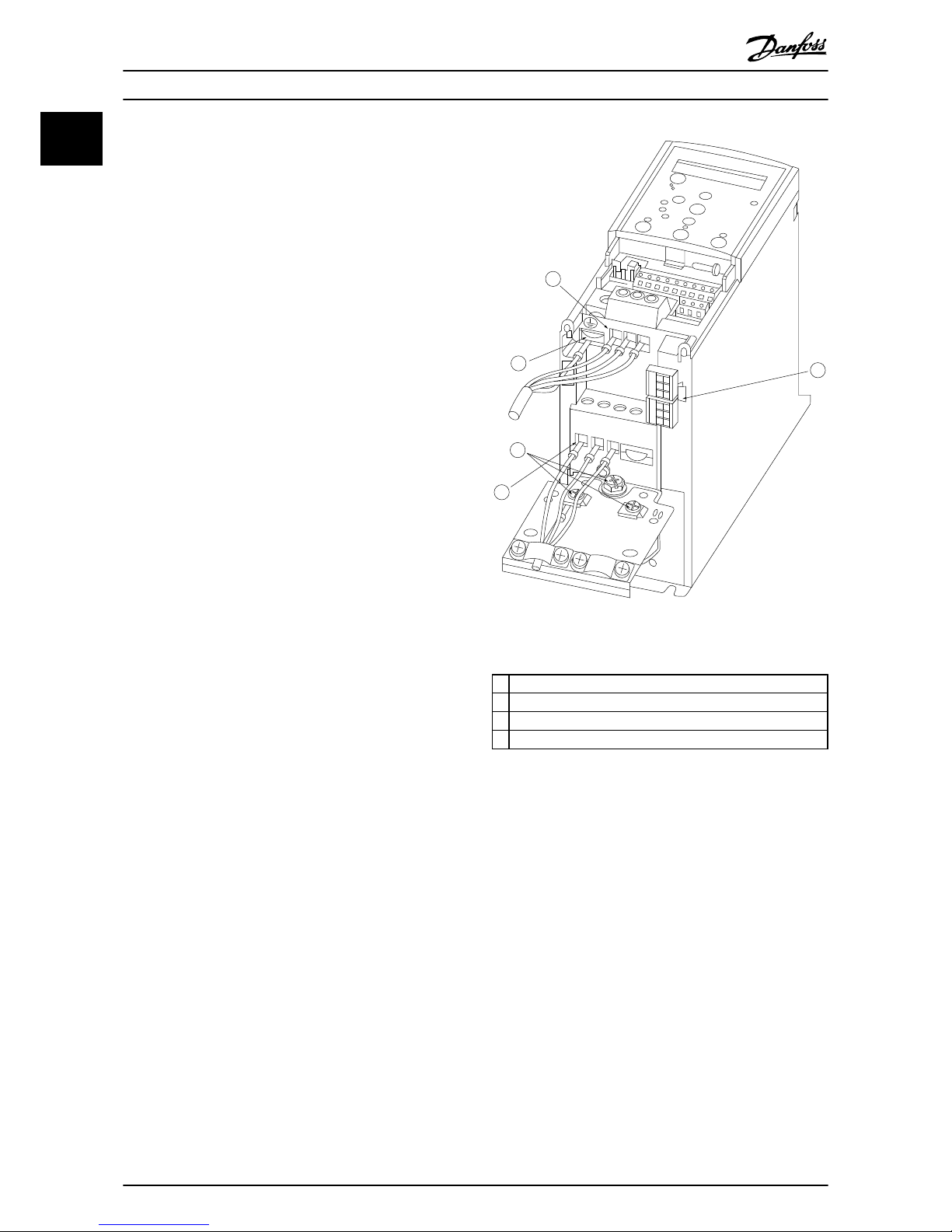

1.3.5 Connecting to Mains and Motor
The frequency converter is designed to operate all
standard three-phased asynchronous motors. For
maximum cross-section on wires see 1.7 General Specifi-
cations.
•Use a shielded/armored motor cable to comply
with EMC emission specifications, and connect
this cable to both the decoupling plate and the
motor metal.
•Keep motor cable as short as possible to reduce
the noise level and leakage currents.
•For further details on mounting of the
decoupling plate, see FC 101 De-coupling Plate
Mounting Instruction.
•Also see EMC-Correct Installation in the VLT
®
HVAC
Basic Design Guide.
1. Mount the earth wires to earth terminal.
2. Connect motor to terminals U, V and W.
3. Mount mains supply to terminals L1, L2 and L3
and tighten.
130BB634.10
1
2
2
3
4
Motor
UVW-DC+DC
MAINS
Illustration 1.3 H1-H5 Frame
IP20 200-240 V 0.25-11 kW and IP20 380-480 V 0.37-22 kW
1Line
2 Earth
3 Motor
4 Relays
Table 1.11 Legend to Illustration 1.3
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
8 MG18A502 - Rev. 2013-08-09
1
1

1
95
99
L1 91 / L2 92 / L3 93
U 96 / V 97 / W 98
03 02 01
06 05 04
234
130BB762.10
Illustration 1.4 H6 Frame
IP20 380-480 V 30-45 kW
IP20 200-240 V 15-18.5 kW
IP20 525-600 V 22-30 kW
1 Line
2 Motor
3 Earth
4 Relays
Table 1.12 Legend to Illustration 1.4
12
3
4
130BB763.10
Illustration 1.5 H7 Frame
IP20 380-480 V 55-75 kW
IP20 200-240 V 22- 30 kW
IP20 525-600 V 45-55 kW
1Line
2 Relays
3 Earth
4 Motor
Table 1.13 Legend to Illustration 1.5
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 9
11

130BB764.10
1
2
3
4
98
97
96
99
95
93
92
91
L1 L1 L1 UVw
Illustration 1.6 H8 Frame
IP20 380-480 V 90 kW
IP20 200-240 V 37-45 kW
IP20 525-600 V 75-90 kW
1 Line
2 Relays
3 Earth
4 Motor
Table 1.14 Legend to
MOTOR
MOTOR
U V W
99
130BT302.12
Illustration 1.7 H9 Frame
IP20 600 V 2.2-7.5 kW
-DC+DC
BR- BR+ U V W
99
M A I N S
95
RELAY 1 RELAY 2
- LC +
130BA261.10
Illustration 1.8 Mount the two screws in the mounting plate,
slide it into place and tighten fully
130BA262.10
M
I N S
+DC
BR- BR+ UVW
RELAY 1 RELAY 2
95
Illustration 1.9 When mounting cables, first mount and tighten
earth cable
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
10 MG18A502 - Rev. 2013-08-09
1
1

130BA263.10
95
MAINS
+DC
BR- BR+ UVW
91 92 93
L1 L2 L3
RELAY 1 RELAY 2
Illustration 1.10 Then mount mains plug and tighten wires
+DC
BR- BR+ UVW
MAINS
L1 L2 L3
91 92 93
RELAY 1 RELAY 2
99
- LC -
130BA264.10
Illustration 1.11 Tighten support bracket on mains wires
130BA725.10
Illustration 1.12 H10 Frame
IP20 600 V 11-15 kW
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 11
11

130BC299.10
7
3
2
5
1
8
4
6
Illustration 1.13 I2 Frame
IP54 380-480 V 0.75-4.0 kW
1RS-485
2 Line in
3 Earth
4 Wire clamps
5 Motor
6 UDC
7 Relays
8 I/O
Table 1.15 Legend to Illustration 1.13
130BC201.10
Illustration 1.14 I3 Frame
IP54 380-480 V 5.5-7.5 kW
1RS-485
2 Line in
3 Earth
4 Wire clamps
5 Motor
6 UDC
7 Relays
8 I/O
Table 1.16 Legend to Illustration 1.14
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
12 MG18A502 - Rev. 2013-08-09
1
1

130BD011.10
Illustration 1.15 I4 Frame
IP54 380-480 V 0.75-4.0 kW
1RS-485
2 Line in
3 Earth
4 Wire clamps
5 Motor
6 UDC
7 Relays
8 I/O
Table 1.17 Legend to Illustration 1.15
130BC203.10
Illustration 1.16 IP54 I2-I3-I4 frame
130BT326.10
Illustration 1.17 I6 Frame
IP54 380-480 V 22-37 kW
130BT325.10
Illustration 1.18 I6 Frame
IP54 380-480 V 22-37 kW
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 13
11

311
130BA215.10
RELAY 1
RELAY 2
9
9
6
03 02 01
90 05 04
Illustration 1.19 I6 Frame
IP54 380-480 V 22-37 kW
91
L1
92
L2
93
L3
96
U
97
V
98
W
88
DC-
89
DC+
81
R-
8
R+
99
95
130BA248.10
Illustration 1.20 I7, I8 Frame
IP54 380-480 V 45-55 kW
IP54 380-480 V 75-90 kW
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
14 MG18A502 - Rev. 2013-08-09
1
1

1.3.6 Fuses and Circuit Breakers
Branch circuit protection
In order to protect the installation against electrical and fire hazard, all branch circuits in an installation, switch gear,
machines etc., must be short-circuit and overcurrent protected according to national and local regulations.
Short circuit protection
Danfoss recommends using the fuses and circuit breakers listed in Table 1.19 and to protect service personnel or other
equipment in case of an internal failure in the unit or short-circuit on DC-link. The frequency converter provides full short
circuit protection in case of a short-circuit on the motor.
Overcurrent protection
Provide overload protection to avoid overheating of the cables in the installation. Overcurrent protection must always be
carried out according to local and national regulations. Circuit breakers and fuses must be designed for protection in a
circuit capable of supplying a maximum of 100,000 Arms (symmetrical), 480 V maximum.
UL/Non UL compliance
Use the circuit breakers or fuses listed in Table 1.19, to ensure compliance with UL or IEC 61800-5-1.
Circuit breakers must be designed for protection in a circuit capable of supplying a maximum of 10,000 Arms (symmetrical),
480 V maximum.
In the event of malfunction, failure to follow the protection recommendation may result in damage to the frequency
converter.
Circuit Breaker Fuse
UL Non UL UL Non UL
Bussmann Bussmann Bussmann Bussmann Max fuse
Power [kW] Type RK5 Type RK1 Type J Type T Type G
3x200-240 V IP20
0.25 FRS-R-10 KTN-R10 JKS-10 JJN-10 10
0.37 FRS-R-10 KTN-R10 JKS-10 JJN-10 10
0.75 FRS-R-10 KTN-R10 JKS-10 JJN-10 10
1.5 FRS-R-10 KTN-R10 JKS-10 JJN-10 10
2.2 FRS-R-15 KTN-R15 JKS-15 JJN-15 16
3.7 FRS-R-25 KTN-R25 JKS-25 JJN-25 25
5.5 FRS-R-50 KTN-R50 JKS-50 JJN-50 50
7.5 FRS-R-50 KTN-R50 JKS-50 JJN-50 50
11 FRS-R-80 KTN-R80 JKS-80 JJN-80 65
15 Cutler-Hammer
EGE3100FFG
Moeller NZMB1-
A125
FRS-R-100 KTN-R100 JKS-100 JJN-100 125
18.5 FRS-R-100 KTN-R100 JKS-100 JJN-100 125
22 Cutler-Hammer
JGE3150FFG
Moeller NZMB1-
A160
FRS-R-150 KTN-R150 JKS-150 JJN-150 160
30 FRS-R-150 KTN-R150 JKS-150 JJN-150 160
37 Cutler-Hammer
JGE3200FFG
Moeller NZMB1-
A200
FRS-R-200 KTN-R200 JKS-200 JJN-200 200
45 FRS-R-200 KTN-R200 JKS-200 JJN-200 200
3x380-480 V IP20
0.37 FRS-R-10 KTS-R10 JKS-10 JJS-10 10
0.75 FRS-R-10 KTS-R10 JKS-10 JJS-10 10
1.5 FRS-R-10 KTS-R10 JKS-10 JJS-10 10
2.2 FRS-R-15 KTS-R15 JKS-15 JJS-15 16
3 FRS-R-15 KTS-R15 JKS-15 JJS-15 16
4 FRS-R-15 KTS-R15 JKS-15 JJS-15 16
5.5 FRS-R-25 KTS-R25 JKS-25 JJS-25 25
7.5 FRS-R-25 KTS-R25 JKS-25 JJS-25 25
11 FRS-R-50 KTS-R50 JKS-50 JJS-50 50
15 FRS-R-50 KTS-R50 JKS-50 JJS-50 50
18.5 FRS-R-80 KTS-R80 JKS-80 JJS-80 65
22 FRS-R-80 KTS-R80 JKS-80 JJS-80 65
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 15
11

Circuit Breaker Fuse
UL Non UL UL Non UL
Bussmann Bussmann Bussmann Bussmann Max fuse
Power [kW] Type RK5 Type RK1 Type J Type T Type G
30 Cutler-Hammer
EGE3125FFG
Moeller NZMB1-
A125
FRS-R-125 KTS-R125 JKS-R125 JJS-R125 80
37 FRS-R-125 KTS-R125 JKS-R125 JJS-R125 100
45 FRS-R-125 KTS-R125 JKS-R125 JJS-R125 125
55 Cutler-Hammer
JGE3200FFG
Moeller NZMB1-
A200
FRS-R-200 KTS-R200 JKS-R200 JJS-R200 150
75 FRS-R-200 KTS-R200 JKS-R200 JJS-R200 200
90 Cutler-Hammer
JGE3250FFG
Moeller NZMB2-
A250 FRS-R-250 KTS-R250 JKS-R250 JJS-R250 250
3x525-600 V IP20
2.2 FRS-R-20 KTS-R20 JKS-20 JJS-20 20
3 FRS-R-20 KTS-R20 JKS-20 JJS-20 20
3.7 FRS-R-20 KTS-R20 JKS-20 JJS-20 20
5.5 FRS-R-20 KTS-R20 JKS-20 JJS-20 20
7.5 FRS-R-20 KTS-R20 JKS-20 JJS-20 30
11 FRS-R-30 KTS-R30 JKS-30 JJS-30 35
15 FRS-R-30 KTS-R30 JKS-30 JJS-30 35
18.5 Cutler-Hammer
EGE3080FFG
Cutler-Hammer
EGE3080FFG
FRS-R-80 KTN-R80 JKS-80 JJS-80 80
22 FRS-R-80 KTN-R80 JKS-80 JJS-80 80
30 FRS-R-80 KTN-R80 JKS-80 JJS-80 80
37 Cutler-Hammer
JGE3125FFG
Cutler-Hammer
JGE3125FFG
FRS-R-125 KTN-R125 JKS-125 JJS-125 125
45 FRS-R-125 KTN-R125 JKS-125 JJS-125 125
55 FRS-R-125 KTN-R125 JKS-125 JJS-125 125
75 Cutler-Hammer
JGE3200FAG
Cutler-Hammer
JGE3200FAG FRS-R-200 KTN-R200 JKS-200 JJS-200 200
90 FRS-R-200 KTN-R200 JKS-200 JJS-200 200
3x380-480 V IP54
0.75 PKZM0-16 FRS-R-10 KTS-R-10 JKS-10 JJS-10 16
1.5 PKZM0-16 FRS-R-10 KTS-R-10 JKS-10 JJS-10 16
2.2 PKZM0-16 FRS-R-15 KTS-R-15 JKS-15 JJS-15 16
3 PKZM0-16 FRS-R-15 KTS-R-15 JKS-15 JJS-15 16
4 PKZM0-16 FRS-R-15 KTS-R-15 JKS-15 JJS-15 16
5.5 PKZM0-25 FRS-R-25 KTS-R-25 JKS-25 JJS-25 25
7.5 PKZM0-25 FRS-R-25 KTS-R-25 JKS-25 JJS-25 25
11 PKZM4-63 FRS-R-50 KTS-R-50 JKS-50 JJS-50 63
15 PKZM4-63 FRS-R-50 KTS-R-50 JKS-50 JJS-50 63
18.5 PKZM4-63 FRS-R-80 KTS-R-80 JKS-80 JJS-80 63
22
Moeller NZMB1-A125
FRS-R-80 KTS-R-80 JKS-80 JJS-80 125
30 FRS-R-125 KTS-R-125 JKS-125 JJS-125 125
37 FRS-R-125 KTS-R-125 JKS-125 JJS-125 125
45 Moeller NZMB2-A160 FRS-R-125 KTS-R-125 JKS-125 JJS-125 160
55 FRS-R-200 KTS-R-200 JKS-200 JJS-200 160
75 Moeller NZMB2-A250 FRS-R-200 KTS-R-200 JKS-200 JJS-200 200
90 FRS-R-250 KTS-R-250 JKS-200 JJS-200 200
Table 1.18 Circuit Breaker and Fuses
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
16 MG18A502 - Rev. 2013-08-09
1
1

1.3.7 EMC-Correct Electrical Installation
General points to be observed to ensure EMC-correct electrical installation.
•Use only screened/armoured motor cables and screened/armoured control cables.
•Connect the screen to earth at both ends.
•Avoid installation with twisted screen ends (pigtails), since this ruins the screening effect at high frequencies. Use
the cable clamps provided instead.
•Ensure the same potential between drive and ground potential of PLC.
•Use starwashers and galvanically conductive installation plates.
B
a
c
k
OK
Com.
On
Warn.
Alarm
Hand
On
O
Reset Auto On
Menu Status Quick
Menu Main
Menu
L1
L2
L3
PE
Min. 16 mm2
Equalizing cable
Control cables
All cable entries in
one side of panel
Earthing rail
Cable insula-
tion stripped
Output con-
tactor etc.
Motor cable
Motor, 3 phases and
PLC etc. Panel
Mains-supply
Min. 200mm
between control
cable, mains cable
and between mains
motor cable
PLC
Protective earth
Reinforced protective earth
130BB761.11

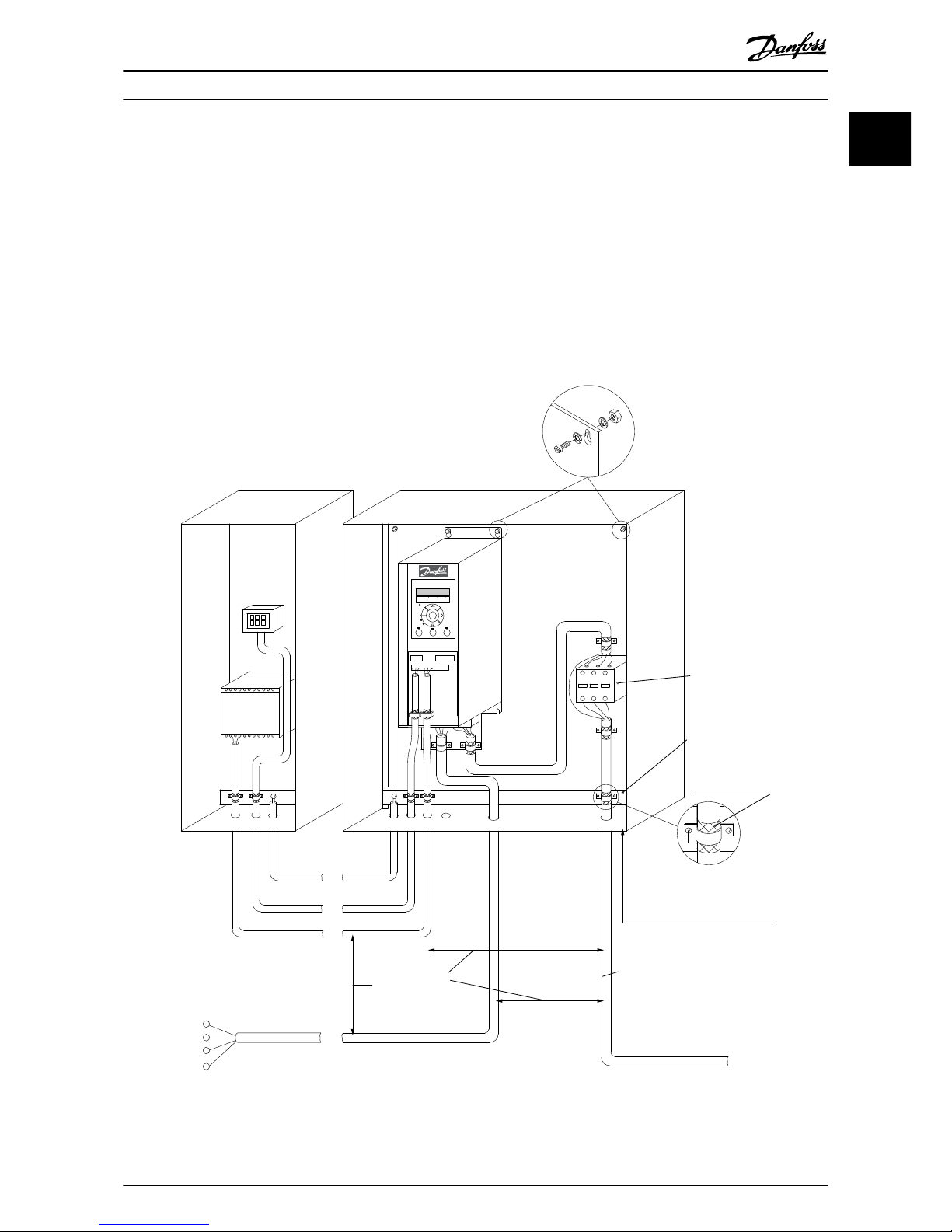

Illustration 1.21 EMC-correct Electrical Installation
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
MG18A502 - Rev. 2013-08-09 17
11

1.3.8 Control Terminals
IP20 200-240 V 0.25-11 kW and IP20 380-480 V 0.37-22 kW:
130BB622.10
Illustration 1.22 Location of Control Terminals
1. Place a screwdriver behind the terminal cover to
activate snap.
2. Tilt the screwdriver outwards to open the cover.
130BB624.10
Illustration 1.23 IP20 380-480 V 30-90 kW
1. Place a screwdriver behind the terminal cover to
activate snap.
2. Tilt the screwdriver outwards to open the cover.
Digital input 18, 19 and 27 mode is set in 5-00 Digital Input
Mode (PNP is default value) and digital input 29 mode is
set in 5-03 Digital Input 29 Mode (PNP is default value).
130BC249.10
Illustration 1.24 IP54 400 V 0.75-7.5 kW
1. Remove the front cover.
Control terminals
Illustration 1.25 shows all control terminals of the frequency
converter. Applying Start (term. 18), connection between
terminal 12-27 and an analog reference (term. 53 or 54
and 55) make the frequency converter run.
18 19
12 20 55
27 29 42 45 50 53 54
DIGI IN DIGI IN DIGI IN DIGI IN
61 68 69
N P COMM. GND
+24V
0/4-20mA A OUT / DIG OUT 0/4-20mA A OUT / DIG OUT
GND
GND
10V/20mA IN 10V/20mA IN 10V OUT
130BB625.10
BUS TER.
OFF ON
Illustration 1.25 Control Terminals
Quick Guide VLT®HVAC Basic Drive FC 101 Quick Guide
18 MG18A502 - Rev. 2013-08-09
1
1
