DAPAudio IEM-100 Beltpack User manual

IEM-100 Beltpack
ORDERCODE D147173
D147182

Congratulations!
You have bought a great, innovative product from DAP Audio.
The DAP Audio IEM-100 brings excitement to any venue.
You can rely on DAP Audio, for more excellent audio products.
We design and manufacture professional audio equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [e-mail]
You can get some of the best quality, best priced products on the market from DAP Audio.
So next time, turn to DAP Audio for more great audio equipment.
Always get the best -- with DAP Audio !
Thank you!

1
2
2
2
3
3
3
4
4
4
5
5
5
8
8
9
10
12
13
13
14
DAP Audio
DAP Audio IEM-100™ Product Guide
Warning.........................................................................................................................................................................
Unpacking Instructions...........................................................................................................................................
Safety-instructions...................................................................................................................................................
Operating Determinations.....................................................................................................................................
Return Procedure....................................................................................................................................................
Claims.......................................................................................................................................................................
Description....................................................................................................................................................................
Features....................................................................................................................................................................
Overview..................................................................................................................................................................
Set Up and Operation..................................................................................................................................................
Battery installation...................................................................................................................................................
Receiver Control....................................................................................................................................................
Adjusting the squelch threshold............................................................................................................................
Tips for achieving maximum performance..........................................................................................................
Approval.......................................................................................................................................................................
Declaration of conformity..........................................................................................................................................

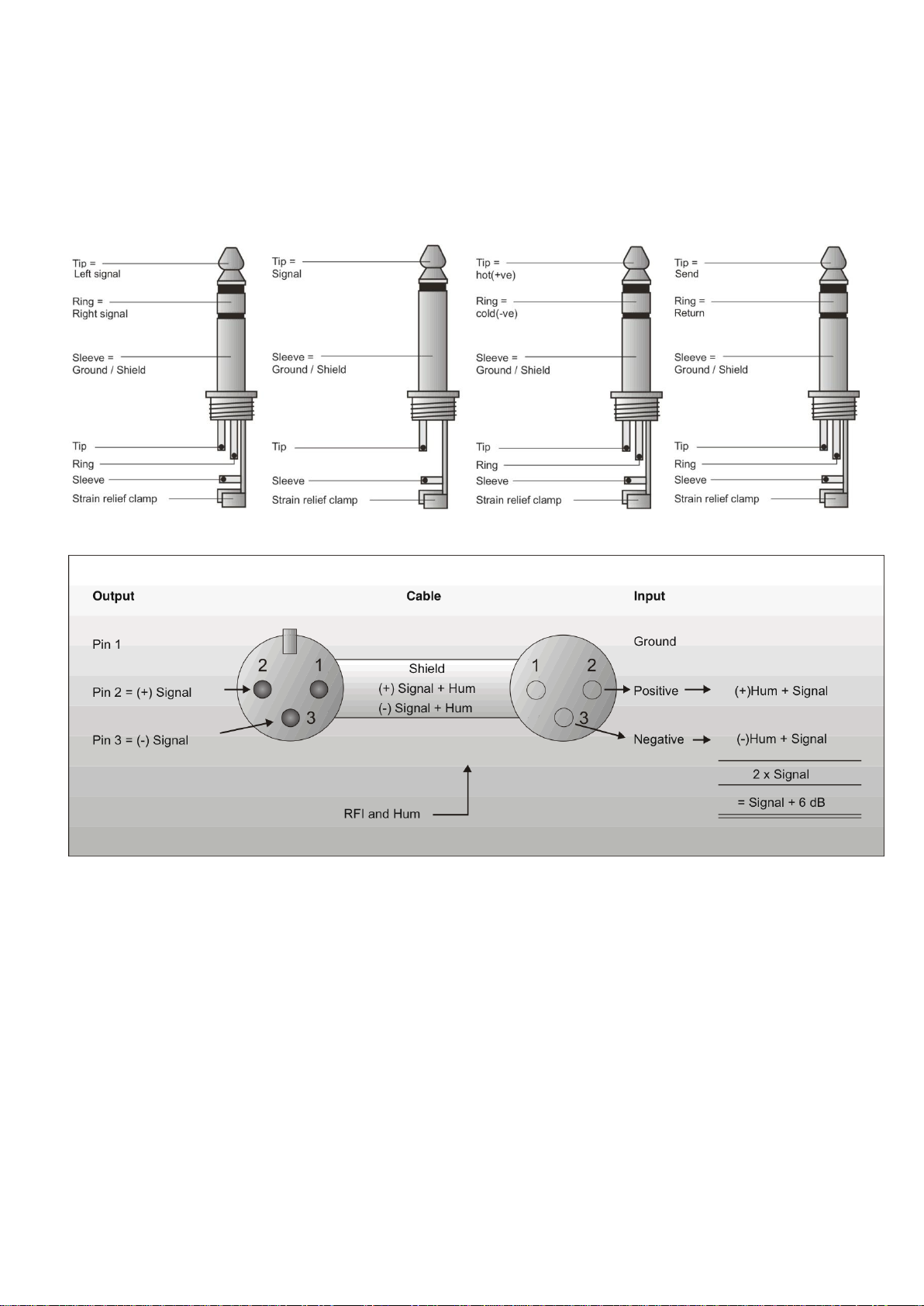

Connection Cables..............................….......................................………..………….…….………….….....................
Maintenance………..............................….......................................………..………….…….………….…....................
Troubleshooting………..............................…................................………..………….…….………….….......................
Product Specifications.................................................................……………….…….………………….......................

2
WARNING
UNPACKING INSTRUCTIONS
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
• Receiver
• Manual
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this system has to:
-be qualified
-follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the device.
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Do not connect this system to a dimmerpack.
Do not switch the system on and off in short intervals, as this would reduce the system’s life.
Do not open this device.
Avoid contact with water or other liquids.
Avoid flames and do not put close to flammable liquids or gases.
Do not drive the inputs with a signal level bigger, than required to drive the equipment to full
output.
CAUTION!
Keep this system away from rain and moisture!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!

3
If system is dropped or struck, switch of the unit immediately. Have a qualified engineer inspect for
safety before operating.
If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your system. Leave
the system switched off until it has reached room temperature.
Repairs, servicing and electric connection must be carried out by a qualified technician.
OPERATING DETERMINATIONS
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
1) Your name
2) Your address
3) Your phone number
4) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

4
Description of the device
Features
The IEM-100 Beltpack is a Wireless In Ear Monitor Receiver from Dap Audio.
• UHF-band PLL Synthesized design.
• Frequency agility over a 25MHz bandwith, with 48 pre-programmed frequencies avaiable.
• Built-in limiter circuitry eliminates distortion under excessive input levels.
• Dual-antenna true diversity receiver, eliminating signal dropout and enhancing RF stability.
Overview
Fig. 1
1. Left Antenna/ Squelch indicator
2. Display
3. Antenna’s
4. Power on/off and volume control
5. Balance control
6. Right Antenna/ Squelch indicator
7. Set button
8. Up button
9. Down button
10. Belt clip
11. Headphone jack

5
Set Up and Operation
Before opating the unit make sure the batteries are inserted.

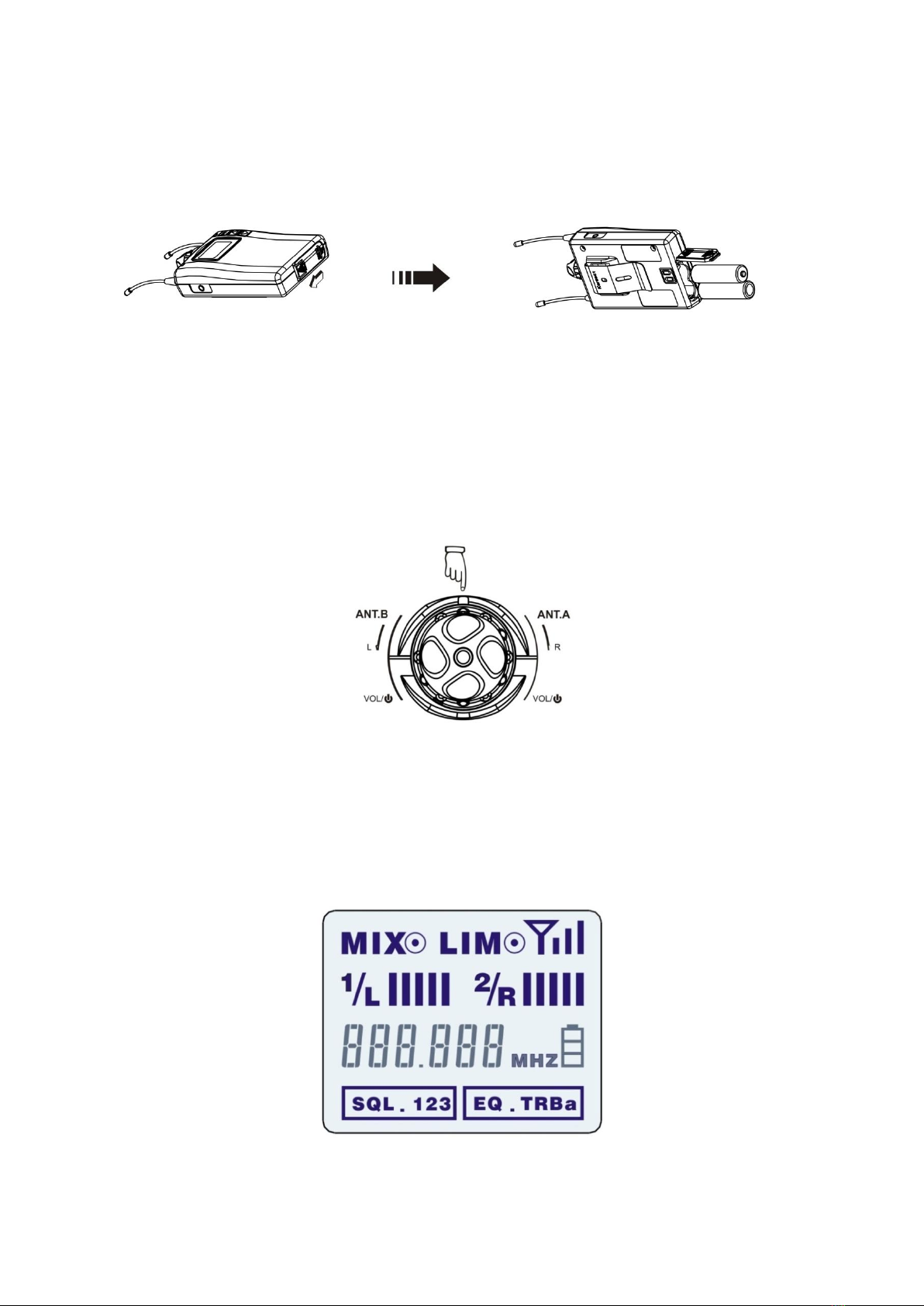

Receiver Battery Installation
Fig. 2
Press the battery compartment door Install the batteries.
And slide the cover in the direction
As shown in Figure 2.
Receiver control
Audio Left/ Right Control.
Rotate the Audio Control knob for adjusting the balance between Audio Left/ Right or Channel
1/2. In Mid position the Audio Left and Right are set to the same volume level.
Fig. 3
On/Off/Volume Control.
Rotate the On/Off/Volume knob to adjust the volume.
Frequency/ Channel Setting.
Press the up or down button until the Frequency/ Channel starts flashing, you’re now in the setting
state.
a.Press the SET button to switch between Frequency and Channel.
b.Use the up/down buttons to set the desired Frequency/ Channel.
Fig. 4

6
Receiver Setting
Press the SET button to switch between MIX, LIM, SQL and EQ.
MIX/ Stereo Output Setting: Use the SET button until MIX is flashing( see Figure 9). Use the Up or
Down button to switch the MIX function on or off.
Means MIX mode is selected.
Means STEREO Mode is selected.
Fig. 5
Volume Limiter Setting: Press the SET button until LIM is flashing (Figure 10).
Means LIM mode is switched in.
Means LIM Mode is switched off.
Fig. 6
Squelch Setting: Press the SET button until SQL is flashing (Figure 11). Use the up/down button to
adjust the squelch setting.
Fig. 7

7
Equalizer Setting:
Press the SET button until EQ is flashing (Figure 12). Use the Up or Down button to adjust the Audio
Balance.
Fig. 8
Note: If no button is pressed for 3 seconds, the system will automaticly exit the setting state and
save the current setting.
Receiver Functions
1. Limiter function;
If the limiter is switched on, the volume will corrected automatically if the value rises above the set
threshold. This in order to avoid distortion and protect your ears.
2. Equalizer setting:
Treble boost 6dB
Bass boost 6dB
Bass + treble boost 6dB
Flat
Fig. 9
3. Squelch setting:
If the RF signal is less then the squelch setting. The signal indicator will dim and the audio output
will be muted.
Mix Mode/ Stereo Control
The receiver receives two signals (1/L and 2/R) from the transmitter and then processes these signals in
either mix or stero mode.
Stereo Mode
In stereo mode the signals remain separate so that 1/L is heard through the left headphone and 2/R is
heard through the right headphone. The balance knob on the receiver can be used to adjust the
balance between the left and right headphones. See Figure 14.
Fig. 10

8
Mix Mode
In Mix mode the 1/L and 2/R signals are mixed into a mono signal using the balance knob. The mono
signal is sent to headphone L and headphone R. See Figure 15.
Fig. 11
Mono Mode
Used when only one (mono) monitor mix is available.
Adjusting the squelch threshold
Interference due to other transmission links can be eliminated as follows:
Switch off the transmitter. The receiver should no longer receive a signal.
If the receiver still receives a signal, increase the squelch threshold so that the signal will no longer
be received. If the signal cannot be eliminated in this way, set the transmitter and the receiver to
a different channel.
Switch on the transmitter again and check if the receiver receives the transmitter signal.
Note:
If the squelch threshold is adjusted to high, the transmission range will be reduced. Therefore
always adjust the squelch control to the lowest possible setting.
Tips for achieving maximum performance
Make sure you can always see a receiver antenna from the transmitter position.
Keep the distance from transmitter to receiver antenna as short as possible.
Point the receiver antennas away from each other at 45 degrees angle from vertical position.
Avoid placing the receiver antennas near metal surfaces and obstructions.
Replace battery as soon as low battery LED lights.
If stacking or rack mounting receivers in a multiple system setup. Do not allow antennas to cross.
Perform a walk-through before performance or presentation. If dead spots are found, adjust the
location of the receiver. If dead spots remain, mark the dead spots and avoid them.

9
Approval
The DAP D147179 and 147182 are Class II wireless devices.
D147179: 790-811 MHz for use in: Belgium, Czech Republic, Denmark, France, Germany, Greece,
Hungary, Italy, Luxemburg, Norway, Poland, Portugal, Romania,
Slovakia, Sweden, Switzerland, Turkey, United Kingdom.
D147182: 822-846 Mhz for use in: Czech Republic, Denmark, France, Germany, Greece, Hungary,
Italy, Luxemburg, Netherlands, Poland, Portugal, Romania,
Slovakia, Sweden, Switzerland, United Kingdom.
Exclusion of liability
The frequency tables in this publication are made according to national laws and regulations. The
frequencies are checked on a regular basis. We don’t take any responsibility for eventual discrepancies
between our listed frequencies and the frequencies actually approved in a given country. We strongly
suggest you to inform in your own country or region for any changes or adaptions regarding the allowed
frequencies.
Please refer to your authority as listed below:
Telecoms & Postal Regulatory Authorities in Europe
Austria Rundfunk und Telekom Regulierungs-GmbH www.rtr.at
Belgium Belgian Institute of postal services and telecommunications (BIPT) www.bipt.be
Czech Republic Czech Telecommunication Office www.ctu.cz
Denmark National Telecom Agency www.tst.dk
Finnland Finnish Communications Regulatory Authority (FICORA) www.ficora.fi
France Autorité de Régulation des Télécommunications (ART) www.art-telecom.fr
Germany Die Bundesnetzagenturie B www.regtp.de
Greece National Telecommunications Commission (EET) www.eett.gr
Hungary Communication Authority (HIF) www.hif.hu
Iceland Post and Telecom Administration (PTA) www.pta.is
Ireland Commission for Communications Regulation (ComReg) www.comreg.ie
Italy Italian Communications Authority (AGC) www.agcom.it
Latvia Telecommunication State Inspection www.vei.lv
Liechtenstein Office for Communications (AK) www.ak.li
Lithuania Radio Administration www.rrt.lt
Luxembourg Institut Luxembourgeois des Télécommunications (ILT) www.etat.lu/ILT
Netherlands Onafhankelijke Post en Telecommunicatie Autoriteit (OPTA) www.opta.nl
Agentschap Telecom www.agentschap-telecom.nl
Ministry of Economic Affairs www.ez.nl
Norway Norwegian Post and Telecommunications Authority (NPT) www.npt.no
Poland Urzad Regulacji Telekomunikacji (URT) www.urt.gov.pl
Portugal Autoridad Nacional De Comunicaçòes (ICP-Anacom) www.anacom.pt
Slovenia Agencija za telekomunikacije, radiodifuzijo in pošto www.atrp.si
Please check: DAP Audio Wireless Systems Frequency Table for more details.

This certifies that the following designated product:
Name: Belt pack In Ear Monitoring UHF PLL 790-814MHz
Model No.: D147179
Brand Name: DAP AUDIO
Authorized by the European Union to act as Conformity Assessment
Body in accordance with the R&TTE Directive 1999/5/EC
EMC : EN 301 489-1/-9
Radio : EN 300 422-1/-2
Safety : EN 60065+A1
Health: EN 50371
The device shall be marked as follows:
This statement of opinion has 1 ANNEX.
0678
This certificate is issued by: Highlite International B.V.
(Name/Address) Vestastraat 2, 6468 EX Kerkrade
The Netherlands
This is the result of tests carried out on those 02-Mei-2008
samples of the product referred to above which
were submitted for testing, in accordance with (Date)
the specification for the respective standards.
The certificate holder has the right to fix the mark
which shows the segment onto each individual
product in the series to which the inspection sample Mr. H. de la Haye, general manager
belongs, provided that the product is manufactured
in accordance with the test report. Instructions (Name / Signature)
available on demand.
(Product Identification)
CERTIFICATE
OF CONFORMITY

This certifies that the following designated product:
Name: Belt pack In Ear Monitoring UHF PLL 822-846MHz
Model No.: D147182
Brand Name: DAP AUDIO
Authorized by the European Union to act as Conformity Assessment
Body in accordance with the R&TTE Directive 1999/5/EC
EMC : EN 301 489-1/-9
Radio : EN 300 422-1/-2
Safety : EN 60065+A1
Health: EN 50371
The device shall be marked as follows:
This statement of opinion has 1 ANNEX.
0678
This certificate is issued by: Highlite International B.V.
(Name/Address) Vestastraat 2, 6468 EX Kerkrade
The Netherlands
This is the result of tests carried out on those 02-Mei-2008
samples of the product referred to above which
were submitted for testing, in accordance with (Date)
the specification for the respective standards.
The certificate holder has the right to fix the mark
which shows the segment onto each individual
product in the series to which the inspection sample Mr. H. de la Haye, general manager
belongs, provided that the product is manufactured
in accordance with the test report. Instructions (Name / Signature)
available on demand.
(Product Identification)
CERTIFICATE
OF CONFORMITY

12
Connection Cables
Take care of your cables, always holding them by the connectors and avoiding knots and twists when
coiling them: This gives the advantage of increasing their life and reliability.
Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges,
etc.) are caused entirely by using unsuitable or faulty cables.
Headphones Unbalanced mono Balanced mono Insert
Compensation of interference with balanced connections

13
Maintenance
The DAP Audio IEM-100 beltpack requires almost no maintenance. However, you should keep the unit
clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse
in liquid. Do not use alcohol or solvents.
Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp
cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Troubleshooting
DAP Audio IEM-100 beltpack.
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
1. If the device does not operate properly, unplug the device.
2. Check power from the wall, all cables, connections, etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If nothing happens after 30 seconds, unplug the device.
5. Return the device to your DAP Audio dealer.

14
Product Specification
Model: DAP Audio IEM-100
Receiver
Frequency range: 710 –846 MHz
Bandwidth: 25MHz
Max. deviation range: 68kHz
S/N Ratio: 94dB
Sensitivity: -107dBM
T.H.D.: <1%
Headphone impedance: 16Ω
Headphone output level: 2 x 50mW
Frequency response: 80-15.000Hz
Stereo separation: 35dB
Output Jack: 3.5mm stereo jack
Power supply: 2AA batteries
Current consumption: 150mA
Dimensions: 123 x 65 x 27mm (LxWxH)
Design and product specifications are subject to change without prior notice.
Website: www.Dap-audio.info
Email: [e-mail]

2010 Dap Audio.
