PREFACE
This guide is the primary source of information for setting up and installing BlueCash-50.
Audience
This guide provides simple descriptions of BlueCash-50 features, as well as basic
information for anyone installing and configuring BlueCash-50.
Organization
This guide is organized as follows:
Chapter 1, Overview. Provides an overview of the BlueCash-50.
Chapter 2, Specifications. Discusses power requirements and dimensions of BlueCash-
50, etc.
Chapter 3, Setup. Explains setup and installation of BlueCash-50.
This chapter tells how to establish connections with other devices.
Chapter 4, Maintenance and Cleaning. Explains maintenance of BlueCash-50.
Chapter 5, Service and Support. Provides information on contacting your
Datecs representative or service provider and information on how to order
accessories or documentation from Datecs.
Chapter 6, Troubleshooting Guidelines. Provides troubleshooting guidelines
should you encounter a problem in terminal installation and configuration.

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 9 of 28
UM 07.01.24/v1.3.0
Related Documentation
To learn more BlueCash-50, refer to the following set of documents:
• BlueCash-50 Physical Security Features
• BlueCash-50 Firmware API Specifications
• BlueCash-50 Software Design Specifications
CONVENTIONS
Various conventions are used to help you quickly identify special formatting.
Table 1 describes these conventions and provides examples of their use.
Table 1 Document Conventions
Convention
Meaning
Example
Blue
Text in blue indicates terms thatare cross
references.
See Guide Conventions
Italics
Italic typeface indicates book titles or
emphasis.
You must not use this unit
underwater.
The Information icon is used to highlight
important information.
BlueCash-50 is using USB
communication
The caution symbol indicates hardware
or Software failure, or loss of data.
The unit is not waterproof or
dustproof, and is intended
for indoor use only.
The warning symbol is used as a warning
when bodily injury might occur.
Due to risk of shock do not
use the terminal near water.
Convention Meaning Example

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 10 of 28
UM 07.01.24/v1.3.0
Overview
This chapter provides a brief description of Datecs’s BlueCash-50 device.
BlueCash-50
The BlueCash-50 is a wireless POS terminal with 5.45” inch colorful display, with capacitive touch screen
and secondary OEL display. The BlueCash-50 offer an integrated smart, magnetic stripe, contactless card
reader and printer. Offering advanced security and payment processing capabilities to handle credit and
PIN-based debit card transactions in an attended environment.
BlueCash-50 supports both symmetric encryption algorithms (DES, 3DES, and AES) and asymmetric
encryption (RSA). This device internally manages simultaneous multiple keys through either Master
Session- or DUKPT-based processes, and offers high performance smart card processing, as well as
support for the new generation of 3-volt cards.
The BlueCash-50’ sleek and stylish ergonomic design offers power and performance in a smart card and
MSR-integrated PIN pad device.
Datecs ships variants of BLUECASH-50 unit for different markets. Your unit may have a different
configuration. However, the basic processes described in this guide remain the same, regardless of
configuration.

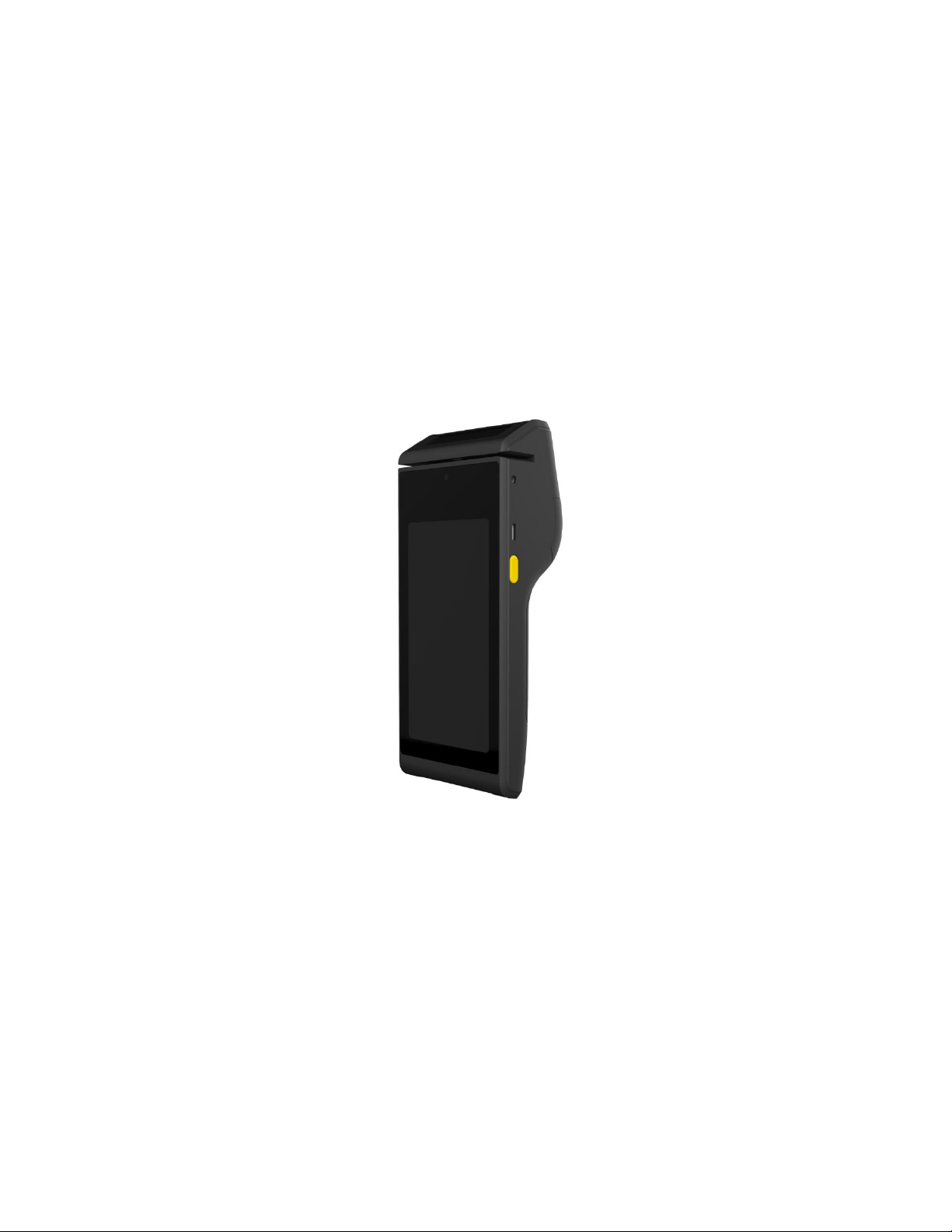

Figure 1
Features At a Glance
• Delivers power and usability in a small
convenient hand-held design.
• Security architecture meets specifications for
PIN-entry devices (PED) and sophisticated file
authentication.
The BlueCash-50 provides the right combination of
features and functions in a small stylish device that
fits in your hand. This includes a magnetic stripe card
reader, smart card reader, an integrated PIN pad, and
an Bluetooth module, WiFi and 4G wireless mobile.

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 11 of 28
UM 07.01.24/v1.3.0
Features and Benefits
Exceptional Ease of Use
• Ergonomic design is sleek, stylish, and lightweight for conveniently handing the unit to the consumer
for PIN entry.
• Intuitive interface
• Highly readable display handles multiple languages.
Critical Security Protection
• Incorporates tamper-detection circuitry to resist unauthorized intrusion and supports a broad
spectrum of hardware and software-based security features.
• Integrated security modules simultaneously support sophisticated encryption (AES, DES, 3DES, RSA)
and key management schemes.
Strong Feature Set
• Primary smart card reader support for synchronous and asynchronous smart cards.
• BlueCash-50 has received PCI PTS 5.1 SRED Security Certification.

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 12 of 28
UM 07.01.24/v1.3.0
Device Specifications
Processor for payment and
security functions
ARM Cortex® M3 Security Microcontroller
Memory
• 64KB Internal ROM
• 256KB Internal RAM
• 1MB Internal Flash
Application Memory
4MB Serial Flash
Processor for Android OS
Quad-Core ARM Cortex-A53
Memory
• 8GB Flash
• 1GB LPDDR3 RAM
• Micro SD card
Fiscal Module (Option)
• ARM Cortex-M3 microcontroller
• 512KB Internal Flash
• 64KB Internal RAM
• 2MB External RAM
• 4MB External Flash
• Fiscal Memory
• Micro SD card
Main Display
• Type -IPS
• Colors – 16.7M
• Size 5.45 inch, HD+ 18:9
• Resolution – 720 x 1440
• Backlight
• Capacitive touchscreen
Secondary Display
• Type – OEL
• Resolution – 128 x 30
• Color – Monochrome (White)
Magnetic Card Reader
• 3-track bi-directional reading
Smart Card Reader
ISO7816, EMV L1 certified
Contactless Card Reader
for payment applications
• AMEX ExpressPay
• Discover D-PAS
• MasterCard Contactless
• VISA PayWave
• China Union Pay
• JCB
Contactless Card Reader
• NFC-A/ISO 14443 Type-A
• NFC-B/ISO 14443 Type-B
• NFC-F/Felica
• NFC-V/ISO 15693
Barcode Reader (option)
• Zebra SE4710* – Image Sensor 1280 x 800 pixels, High Performance 2D Imager Scan Engine
• E3 – Image Sensor 1280 x 800 pixels, High Performance 2D Imager Scan Engine
Supported Barcode Types*
• 1D Barcode Scanner Supported Symbologies:
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1
DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code,
Telepen, Tri-Optic, UK/ Plessey
POSTAL CODE: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)
• 2D Imager Supported Symbologies:
PDF417, MicroPDF417, Datamatrix, QR Code, Micro QR Code, Aztec, RSS, Composite, TLC-39, MaxiCode

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 13 of 28
UM 07.01.24/v1.3.0
Camera
• Main - 5 MP
• Secondary - 0.3 MP
Battery
Rechargeable lithium-ion battery 7.2V, 2600 mAh
Printing Mechanism
Direct line thermal printer
Printing Width
48 mm, 384 dots per line
Printing Resolution
8 x 8 dots/mm
Printing Speed
Max 90 mm/s
Paper specifications
• Width 58 mm
• Roll Max Diameter 40 mm
Connectivity
• USB
- Device
- OTG
• USB pass-through Docking station
• WLAN
- 2.4G/5G, 802.11 a/b/g/n/ac
• Wireless mobile Data for A1 version*:
- LTE FDD Band 1, 3, 5, 7, 8, 19, 20, 26
- LTE TDD Band 38, 40, 41
- WCDMA Band 1, 5, 8
- GSM/EDGE PCS 1900, DSC 1800, GSM 850, E-GSM 900
• Wireless mobile Data for B1 version*:
- LTE FDD Band 1, 2, 3, 4, 5, 7, 12, 17, 19, 25, 26, 28A, 28B, 66
- LTE TDD Band 38, 41
- WCDMA Band 1, 2, 4, 5, 8
- GSM/EDGE PCS 1900, DSC 1800, GSM 850, E-GSM 900
- 2 x Slots for Nano SIM
• GNSS; GPS, Galileo, Glonass and Beidou
Audio features
• Electro-Magnetic Buzzer
• Rear Speaker
• 3.5mm Audio Jack
• Microphone
Buttons
• ON / OFF key
• 2 keys for barcode scanner
• Volume Up and Down keys
LED indication
• Device charging status LED
• Fiscal Module status LED
OS
Android 10
Reliability
• 300 000 chip card cycles
• 400 000 magnetic card swipes
Certifications
PCI PTS 5.1
Dimensions (LxWxH), mm
205.5 x 81.86 x 60.94
Weight, g
496
Environmental
Operating: -20°C to +50°C / 5 to 90% RH
Storage: -40°C to +70°C / 5 to 90% RH
Power Supply
• 5V through USB-C
• 5V through Rear pads
*A1 version – EU version
*B1 version – Latin America version

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 14 of 28
UM 07.01.24/v1.3.0

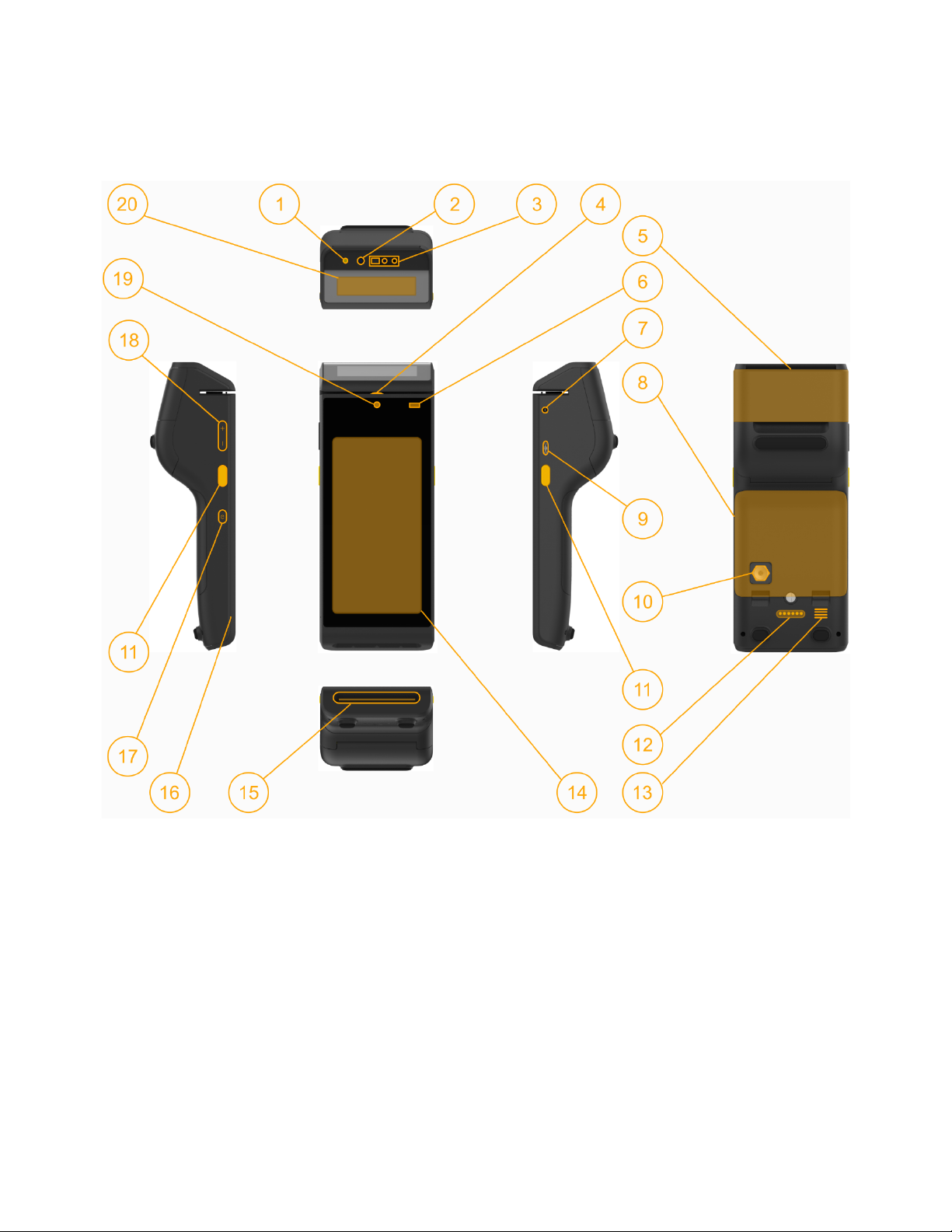

Device Operation
Figure 2
1. LED Flashlight
11. Scan buttons
2. Back camera
12. PADs for docking station
3. Barcode scanner
13. Speaker
4. Magnetic card reader
14. Main display and touch
5. Paper cover
15. Chip chard reader
6. LED indication
16. Microphone
7.3.5mm Audio jack
17. Sleep/Wake button
8. Battery cover
18. Volume buttons
9. USB type C port
19. Front camera
10. Hexagonal seal
20. Secondary display

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 15 of 28
UM 07.01.24/v1.3.0
GETTING STARTED

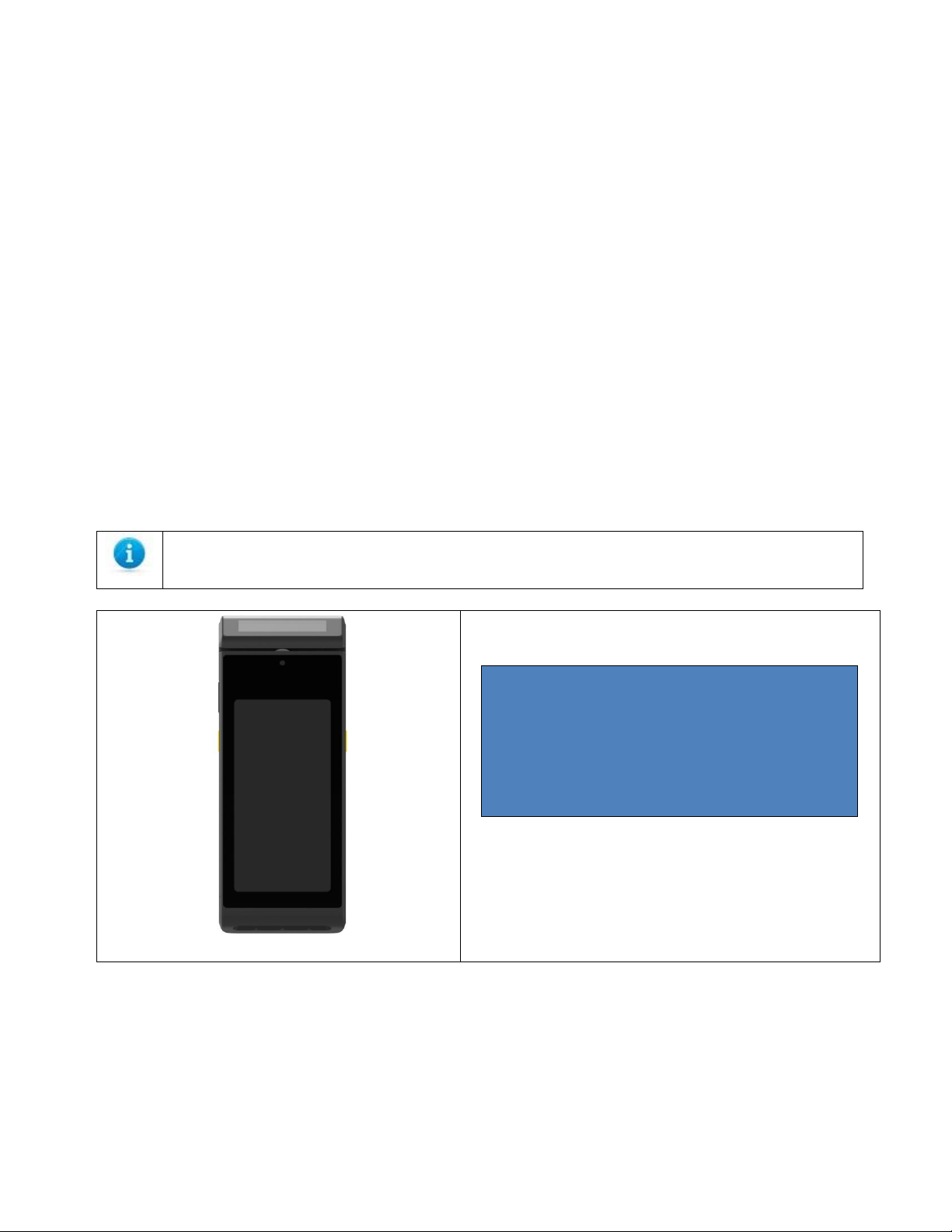

BlueCash-50 has rechargeable Lithium-Ion battery. The battery can be charged from USB power adapter
connected to USB port or when is attached to Docking station.
Figure 3
Battery of BlueCash-50 is removable, for replacing please see “Main battery replacement”.
Before first use, battery must be fully charged.

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 16 of 28
UM 07.01.24/v1.3.0
Setup
Supported USB communication modes from BlueCash-50:
- “File Transfer”
- “USB tethering”
- “Used device as MIDI”
- “PTP”
- “No data transfer”
COMMUNICATION PARAMETERS with Secure processor (Service Functions)
For communication with secure processor, please locate the service connector J2602 (under battery
cover) and connect special service cable.
The default USB VC serial port communication parameters are the following:
- 115200bps
- 2 stop bit
- no parity
APPLICATION DOWNLOAD MODE
To to enter application download mode on the BlueCash-50, USB cable must be plug and button on
special cable has to be maintained pressed. A characteristic sound (one beep) is played and then must
be release the button. When device is in “Application download mode”will be played characteristic
sound.
SYSTEM MODE
To to enter application download mode on the BlueCash-50, USB cable must be plug and button on
special cable has to be maintained pressed. A characteristic sound (second beep) is played and then
must be release the button. When device is in “System mode”will be played characteristic sound.
UPDATING SECURE PROCESSOR FIRMWARE/APPLICATION
Secure processor firmware and application can be updated via Android application.

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 17 of 28
UM 07.01.24/v1.3.0
SOFTWARE VERSIONS
The product software versions can be retrieved using via Android Settings Menu through “About
phone”->”Android version”:
Figure 4
Android version
Android security patch level
Baseband version
Kernel version
Build number

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 18 of 28
UM 07.01.24/v1.3.0

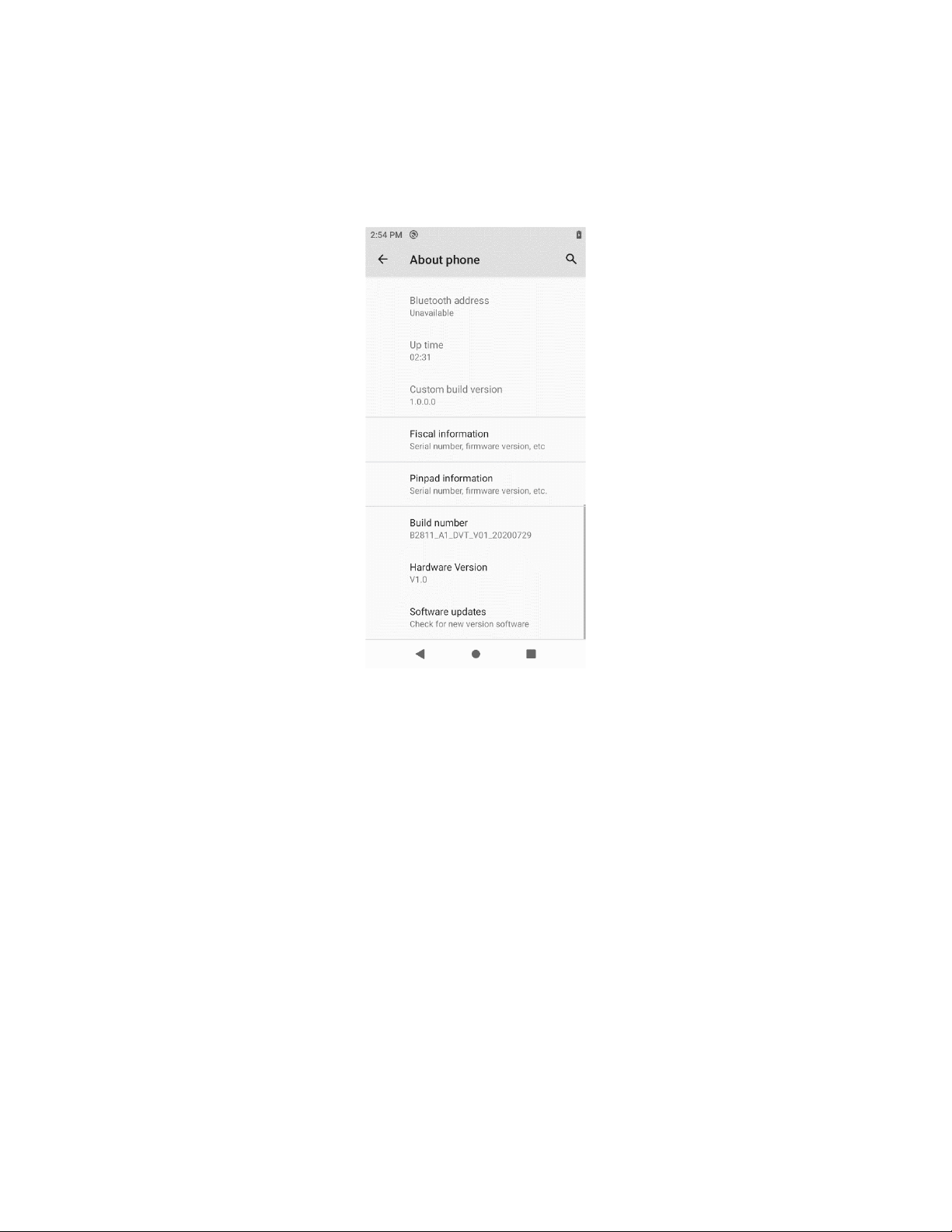

The product software version of “Application processor” can be retrieved using via Android Settings
Menu through “About phone”:
Figure 5
Custom build version of the Application processor firmware

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 19 of 28
UM 07.01.24/v1.3.0

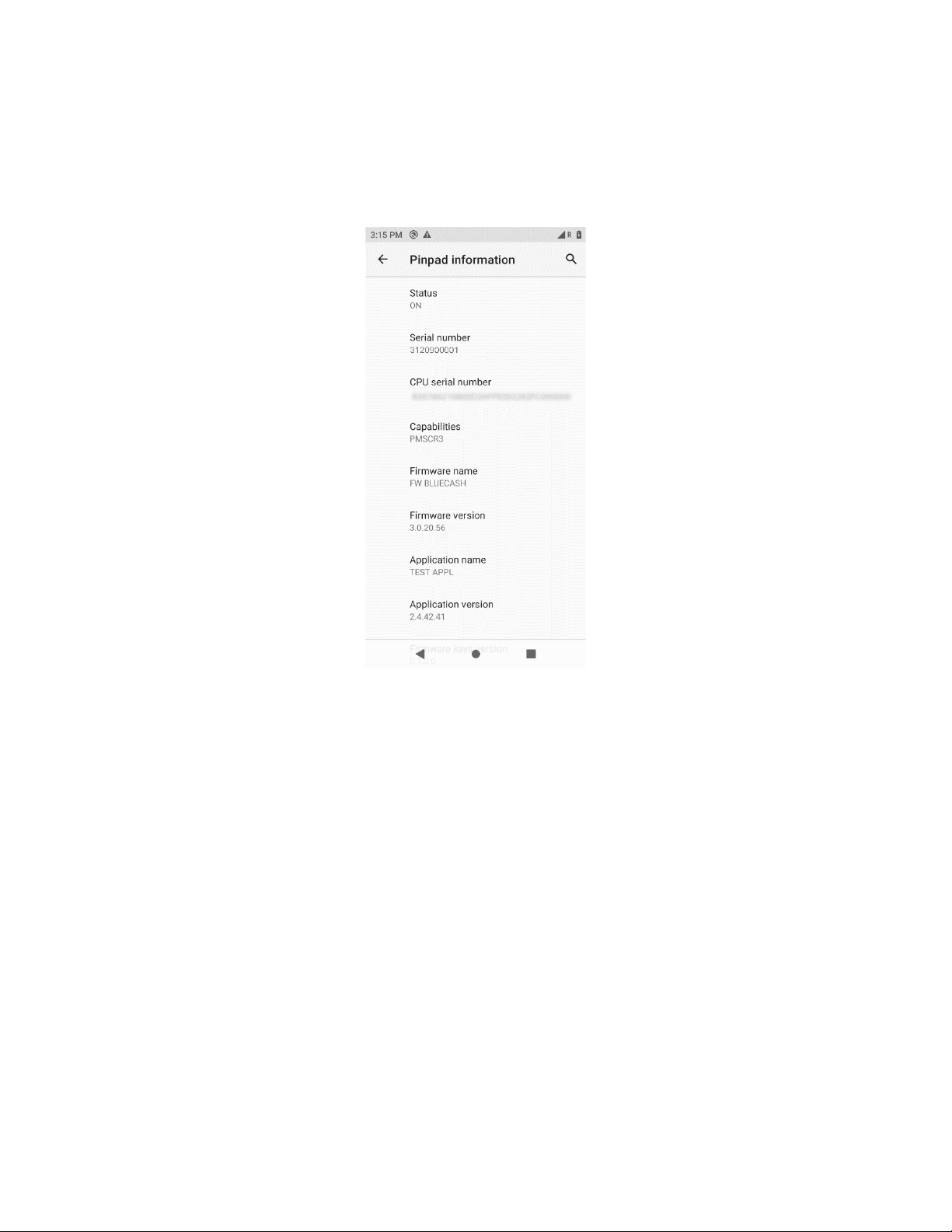

The product software version of “Secure processor” can be retrieved using via Android Settings Menu
through “About phone”->”Pindpad information”:
Figure 6
Status of the Secure processor On/Off
Serial Number of the device
CPU serial number – USIP serial number
Capabilities of the device
Firmware name of the loaded FW
Firmware version of the loaded FW
Application name of the loaded AP
Application version of the loaded AP
Firmware key version
Application key version
Loader key version

1 DATECS
BlueCash-50 USER GUIDE 1 DATECS Page 20 of 28
UM 07.01.24/v1.3.0
How to insert/remove SIM/SD cards
To be located SIM/SD holder, need to be removed battery cover, after that to be detached battery.
Location of the SIM/SD holder is show on Figure 7 and Figure 8.
Figure 7
Figure 8
The BlueCash-50 support only Nano SIM cards.
The BlueCash-50 support only MicroSD cards.
