Instruction Manual
CASCADE
900x900 (6mm)
1000x1000 (6mm)
1200x900 (6mm)
1
With Decina's Exclusive EZI Clean Coating

2
Silicone Sealant Drill Level Rubber Mallet
Pencil Phillips Screwdriver Tape Measure
Utility Knife
Important Pre-Installation Information
- Please read this entire instruction book before commencing installation.
- A licenced tradesman must be used for the installation.
- Ensure there is a gasket between all glass and metal components.
- Leave the plastic protectors on the glass corners until the last possible moment
and handle with care.
- Instructions to install the shower tray are included with the shower tray.
- In cold climates, warming the gaskets and seals with hot water or a hairdryer will
assist installation.
- On symmetrical pieces of glass, the EZI Clean coating is only on one face. This
face will have a sticker on it to identify it. This side must be installed on the wet
side of the shower.
Cutting Pliers
6mm (1/4") and
3mm (1/8") Drill Bits
* Use the correct type of drill bit for the material being drilled, with 6mm required for anchor fixing and 3mm used for
screwing directly into the wall studs.
Safety Goggles Gloves
** As with all toughened glass, take care while handling and wear safety goggles and gloves for personal protection.
Maintenance
- The use of harsh or abrasive cleaners will cause deterioration of the EZI Clean
coating. If water alone is not enough to clean the glass, Decina recommends the
use of mild detergent solutions only.

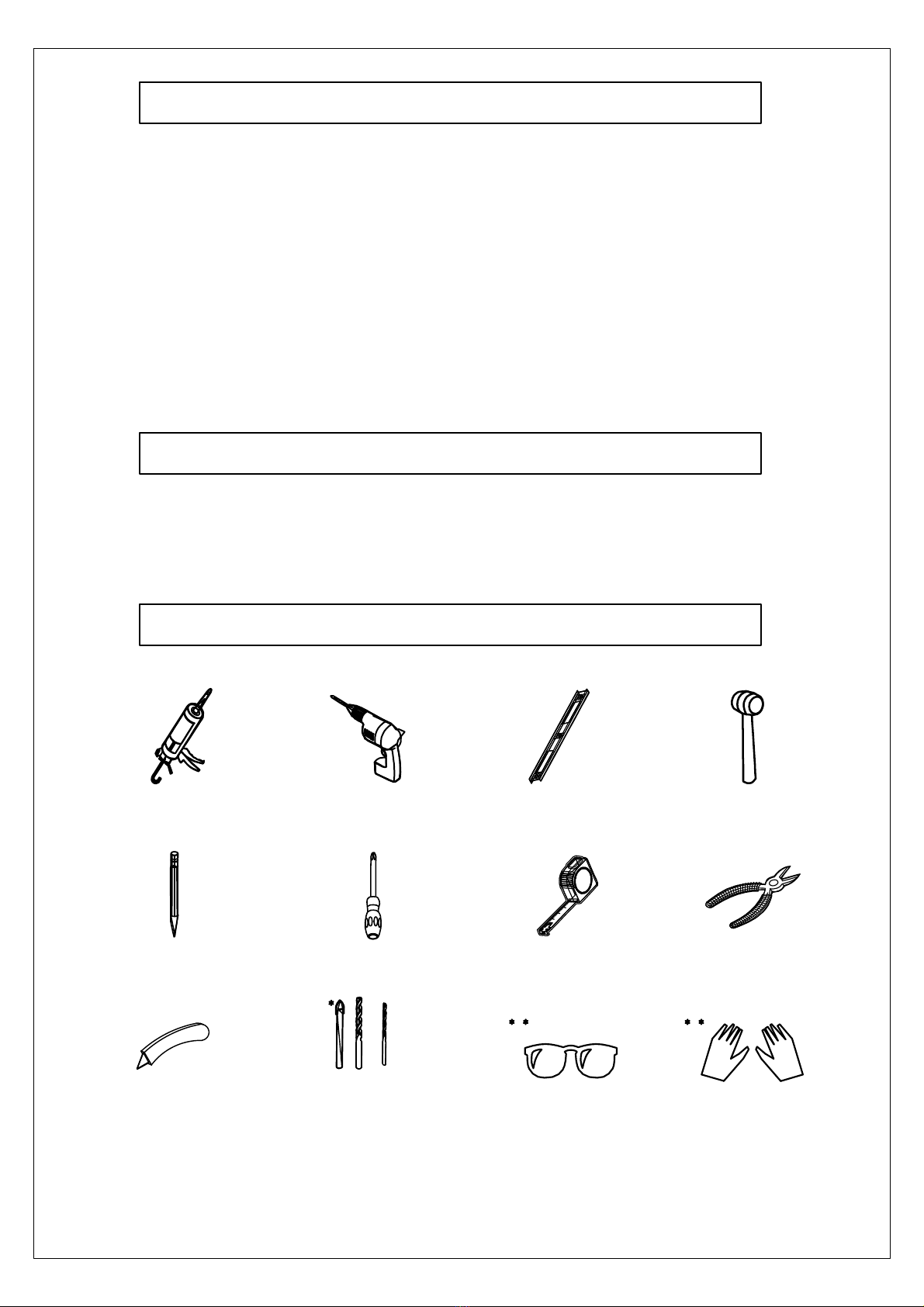

Tools Required

1. Wall Channel Gasket
3
2. Channel Cap
3. Wall Channel
4. Wall Anchor
5. Phillips Head Screw ST4x40
6. Front Panel Glass
7. Hinge Side Door Gasket
8. Short Drip Strip
9. Hinge Back Cover
10. Hinge Assembly
11. Allen Head Screw M6x10
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
12. Brace
13. Allen Head Screw Cover
14. Countersunk Allen Head Screw
15. Clamping Washer
16. Plastic Washer
17. Long Drip Strip
18. Side Panel Glass
19. Magnetic Door Seal
20. Handle
21. Door Glass
22. Gasket Insertion Tool
21
2 pcs
2 pcs
2 pcs
10 pcs
10 pcs
1 pcs
1 pcs
1 pcs
4 pcs
2 pcs
6 pcs
2 pcs
6 pcs
4 pcs
4 pcs
8 pcs
1 pcs
1 pcs
2 pcs
1 pcs
1 pcs
1 pcs
22
Parts List

Size
900 x 900
1000 x 1000
X
(Wall to outside of wall channel)
Y
(Wall to outside of wall channel)
Screen X
(mm)
4
1200 x 900
Y
(mm)
When commencing step 1 on the following page, please refer to this drawing and the tabulated
dimensions for your size of system to assist in the correct location of the wall channels.
SHOWER
WALL
FRONT OF
SHOWER
SHOWER
DOOR
SIDE OF
SHOWER
OPTIONAL
SHOWER
BASE
- Locate the size of your shower screen in column 1 and use the value for X and Y on the same line
to find the distance from the shower wall to the outside edge of the wall channels. If a shower base is
fitted, do not measure from the edge of the shower base to determine the position of the wall channel.
- If your wall and shower base are not at right angles the glass will not push fully into the wall channel
at the top or bottom. This misalignment is acceptable if not exceeding 15mm, however the overall
shower size will then increase by the amount of this misalignment.
- If the screen footprint does not turn out square while the aluminium braces are being installed (step
3), the glass can be pulled out from the full depth of the channel by up to 15mm to assist in squaring.
842-857
942-957
1142-1157
Determining Wall Channel Location
842-857
942-957
842-857

5
31B
3
5
4
1A
1D
1C
4
2A
1
2B
2C
3
3
3
1
2
Note Hole Locations
Note Hole Locations
2D
Start at the bottom and
work up with the
supplied roller tool.
Important: Seal must
be fully inserted.
Maximum
Important - See page 4 for the dimensions
16mm
and notes
Install the wall channel.
Install the fixed panel glass. There is a sticker to indicate
which side has the EZI Clean coating. This side must go
on the inside of the shower.
Important: Leave the corner glass protectors on until the
last possible moment.

6
3
4
15
12
14
18
16 3A1 3A2
12
16
15
14
6
3B1
13
3B2
13
2
3
9
13
20
21
4E 4F
3C 3D
4B
4A 10
21
4C 4D
11
For white screens, run the screw in and out of the threaded holes in the brace before fitting.
Fit cap to the wall channels.
Install the bottom door
hinge on the brace.
Install the top hinge to
the door.
Attach the top hinge to
the top brace.
Install the door onto
the bottom hinge.
Important: Leave the corner glass protectors
on until the last possible moment.
Like the side panels, there is a sticker on the
door to indicate which side has the EZI Clean
coating.

7
5
6
5A
12
18
21
19
5B 10
7
21
5C 5D
21
17
21
8
10
SILICONE
Note steps 5B to 5D show the seals being installed
on the door with the frame removed for clarity.
Install the vertical door seals along the whole height
of the door, and fit the bottom drip strips in between.
Cut the seals to the correct length before fitting.
Silicone inside and outside of
the shower (silicone not
supplied).
24 h
