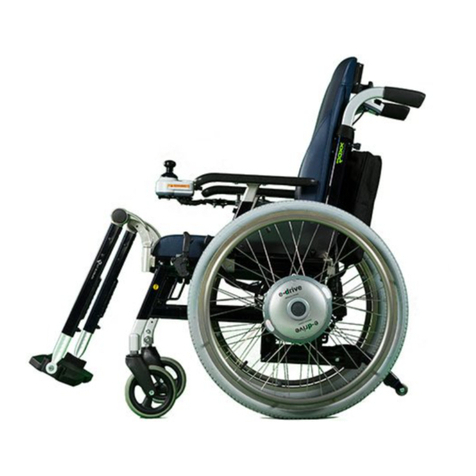

Decon wheel MEM6401P User manual

2020-10-05
Assembly instructions for Tekna Tilt 2
MEM6401P and MEM6402P
1. Remove wheels and sleeves on both sides.
2. Check the correct placement for the eMove with axle Ø12,7 x 46 with
Part number: XOE-2530E-00 and Stop pins is assembled with
Part Number: 320003.

2020-10-05
3. Assembly of the plate (right side) according to pictures.
Parts for one side mounting:
Item No. Part Number Qty Description
1 100 400 001 1 Spacer
2 100 400 003 1 Spacer
3 100 400 004 1 Spacer
4 100 400 007 1 Spacer
5 100 400 017 1 Spacer
6 HW069 1 Sleeve M16x1/12,7
7 XSM16M 1 Nut M16X1 Low
8 405239 1 Nordlock Washer M16
9 XSM8X35 1 Screw Round M8 x 35
10 XSM8ML 1 Nut Self-Locking M8
11 310031 1 Bracket
4. Assemble the back placed battery bag.

2020-10-05
Brakes adjustment
Parts for one side mounting:
Item No. Part Number Qty Description
1 100 400 044 2 Spacer
2 XSM6X40 2 Screw Round M6 x 40

2020-10-05
Åtdragningsmoment / Tightening torque
Metriska grovgängor, stål.
Metric coarse threads, steel.
Gänga / Thread
Åtdragningsmoment / Tightening torque
M3
1,2 Nm
M4
3 Nm
M5
6 Nm
M6
10 Nm
M8
25 Nm
M10
50 Nm
M12
85 Nm
Navhylsor.
Sleeves.
Gänga / Thread
Åtdragningsmoment / Tightening torque
M16x1
30 Nm
M18x1
40 Nm
