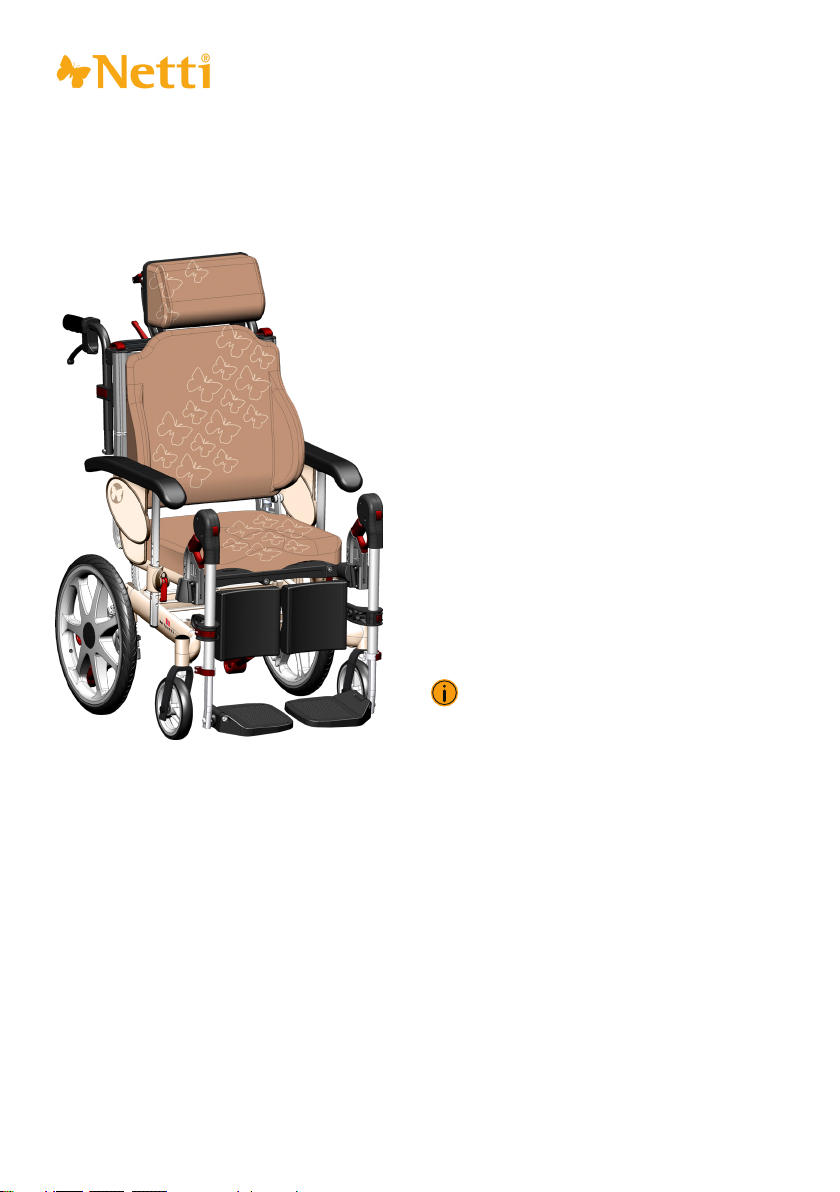

1. INTRODUCTION
Netti Vision is a comfort wheelchair meant for
both indoor and outdoor use.
In Alu Rehab we believe that wheelchairs should be
chosen based on a thorough assessment focusing
on the needs of the user and demands from the
environment.
Therefore it is important to know about the
possibilities and restrictions of the wheelchair.
Netti Vision is a wheelchair designed for users with
the need for comfort and relief. The combination
between the seating system and the ergonomically
solutions in the frame construction, oers many
possibilities for adaptation and adjustments for
long time seating.
The wheelchair is constructed for indoor and
outdoor use, and oers the possibility to vary
the sitting position from activity to rest using
tilt and recline functions.
Max user weight: 100 kg.
Specications varies between countries.
User Manual on web
For enhanced readability
(advantageous for users with visibility challenges)
please nd this user manual on our webpage:
www.my-netti.com
– downloads – manuals – user manual Netti Vision.
Latest user manual updates, product safety notes
and other product informations like recalls etc. will
be published
on our webpage:
www.My-Netti.com

5
Model: Netti Vision
Language: English Version: 2021-06 My-Netti.com
1.1 AREAS OF USE /
INDICATIONS FOR
NETTI VISION
Netti Vision is a foldable multi-function wheelchair
created for only attendant handling, for partially
or fully immobile youth and grown up persons
with physical and / or mental disabilities. These
disabilities may have multiple causes.
Netti Vision has an adjustable seat and back angle,
thus facilitating for the user change of position,
mobilization or posture correction (stabilization),
wherever the following functional impediments
with their multiple possible causes are present:
• limited or lacking mobility
• limited or lacking muscle power
• limited movement range
• lacking or limited trunk and body stability
• hemiplegia
• rheumatic-type disorders
• craniocerebral injuries
• amputations
• other neurological or geriatric disorders.
1.2 CONTRAINDICATIONS
Netti Vision is not suited for persons with a strongly
enhanced muscular spasticity. In this case we
recommend the Netti Dynamic System, which oers
a frame construction that follows the movement
pattern of the user. Ignoring this advice could in
unfavorable circumstances lead to the deformation
or fracture of metal parts in the area of the back
tube, the legrests or the armrests.
1.3 QUALITY AND DURABILITY
Netti Vision has been tested at TÜV SÜD Product
Service GmbH in Germany following the European
Standard EN 12183:2014.
As manufacturer, Alu Rehab A.S evaluates the test
to be equal to 5 – 6 years of normal use of the chair.
The disability of the user as well as the level of
maintenance done foremost decides the durability
of the wheelchair. Thus, the durability will vary
depending on these two factors.
In normal use Alu Rehab A.S. expects the service
life to be 5 – 6 years. In practice the service life
will depend strongly on external factors including
disability of the user, environment and wether
regular maintenance has been carried out.

6 My-Netti.com
Model: Netti Vision
Language: English Version: 2021-06
1.4 THE ENVIRONMENT
AND WASTE DISPOSAL
Alu Rehab and its suppliers wish to protect the
environment.
This means:
• That we avoid using environmentally harmful
substances and processes to the greatest extent
possible.
• That Alu Rehab’s products are ensured a long
service life and a high degree of exibility –
to benet the environment and economy.
• That all packaging can be recycled.
• That the wheelchair was designed to be
separated into its component materials –
to make recycling easier.
Contact your local recycling agent
to get correct information
how to handle in your area.
1.5 INFORMATION FOR REUSE
All products from Alu Rehab are designed to require
low maintenance and easy service. All products can
be adapted for re-use by an authorised dealer.
In order to guarantee performance and safety,
Alu Rehab recommends the following tests prior
to any re-use.
Please examine the following components for
function, integrity etc. and replace parts as
necessary:
• Wheels (tyre tread)
• Wheelchair frame
• Cushions
• Hubs
• Brake function
• Directional stability of wheels
• Bearings
• Folding mechanisms
• Leg supports
• Arm supports
• Head support
• Recline / tilt function
• Push bar
• Anti-tip
Please also note the content of chapter 9.2
Cleaning and washing.
RECYCLING
All wheelchair components can be split into separate
one material pieces for easy recycling; exception is
the armrest with metal frame integrated in PUR foam
which has to be cut.

7
Model: Netti Vision
Language: English Version: 2021-06 My-Netti.com
1.6 ABOUT THIS MANUAL
In order to avoid damages while using the
Netti Vision wheelchair, please read this manual
carefully before starting to use the chair.
Please note: Date for publishing this manual is
noted on the bottom of each page.
For visually impaired people,
manuals and catalogues
can be downloaded at
www.alurehab.com

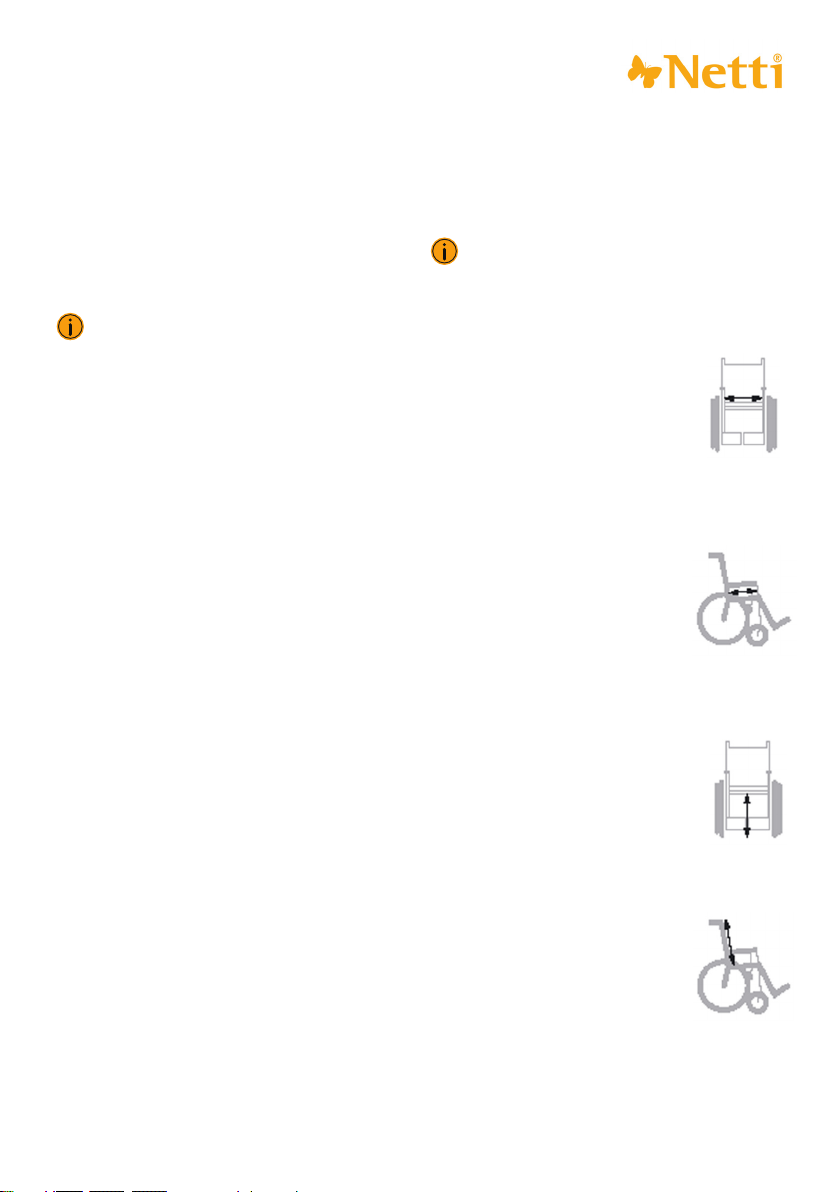

1.7 VITAL MEASURES
Netti Vision is a comfort wheelchair designed
for both outdoor and indoor use.
Specications varies between countries.
TOTAL WEIGHT: 27 KG
(400 mm seat width chair)
SEAT WIDTH:
400 mm*
* Assortment varies between markets.
SEAT DEPTH:
(From backrest cushion
to front of seat plate)
350, 375, 400, 425 mm
SEAT HEIGHT:
(From oor to top seat plate)
385 mm*
* 16”drum brake wheels.
BACKREST HEIGHT:
450 mm

8 My-Netti.com
Model: Netti Vision
Language: English Version: 2021-06
Specication min. max.
Overall length with leg support (WB 399) 865 mm 865 mm
Overall length without leg support 700 mm 700 mm
Height without headrest 765 mm 980 mm
Overall width 550 mm –
Reversing width 628 mm –
Folded length 658 mm –
Folded width 283 mm –
Folded height 840 mm –
Total mass with cushions 27,0 kg 27,0 kg
Mass heaviest part 17,0 kg –
Static stability uphill slope without anti-tip 3° * 19°
Static stability uphill slope with anti-tip 19° 19°
Static stability downhill slope 11° 19°
Static stability sideway slope 12° 15°
Seat plane angle –2° 30°
Eective seat depth 350 mm 425 mm
Eective seat width 350 mm 450 mm
Seat surface height at front 380 mm –
Backrest angle 90º 110º
Backrest height 453 mm 400 mm
Foot plate to seat distance 222 mm 400 mm
Leg to seat surface angle 90º 210º
Arm support to seat distance 39 mm 340 mm
Front location of arm support structure 338 mm –
Horizontal axle location 0 mm 0 mm
Minimum turning radius 638 mm –
Measured with std. 16”& 6” wheels.

9
Model: Netti Vision
Language: English Version: 2021-06 My-Netti.com
Surface temperature of metal parts in frame
structure might increase when exposed to
direct sunlight.
Salt water can increase risk of corrosion
further precautions related to environmental
conditions not needed.
The anti-tips should always be used for the
safety of the user.
When the chair is tilted rearwards, the
anti-tips and brakes must always be in use.
Be sure to lock all handles properly.
Watch out for pinching danger when folding
and unfolding, tilting, reclining and all other
adjustment movements.
Never stand on the foot plates due to risk of
tipping forwards.
Never lift the wheelchair by the leg supports,
arm supports or head support.
Product conguration may vary between
dierent countries.
Illustrations may dier from the
delivered product.
If in doubt – contact your dealer!
2. QUICK REFERENCE
The content of this page is a summary of the whole
manual. It gives you a brief introduction to the use
and care of the Netti Vision wheelchair.
The quick reference is not a replacement
for the manual, only reminder / check list.
• Unpack the wheelchair (Chapter 6.1)
• Fold out the seat plate and mount the pushbar.
• Mount the seat cushion (Chapter 6.8)
• Mount the backrest cushion (Chapter 6.5)
• Mount the leg supports (Chapter 6.9)
• Mount the head support (Chapter 6.10)
• Adjust the wheelchair to the user.
• Mount accessory. (See chapter 5 for more
information. Mounting descriptions will
accompany the accessory.)
For troubleshooting, see chapter 10. For
mounting and adjustments see chapter 6.
ANTITIP
Correctly tted, the anti-tip will secure the chair
from tipping backwards. We strongly recommend
use of the anti-tips at all times.
Drive carefully!
Be aware that friction against pushrims
can create a warm surface.

10 My-Netti.com
Model: Netti Vision
Language: English Version: 2021-06

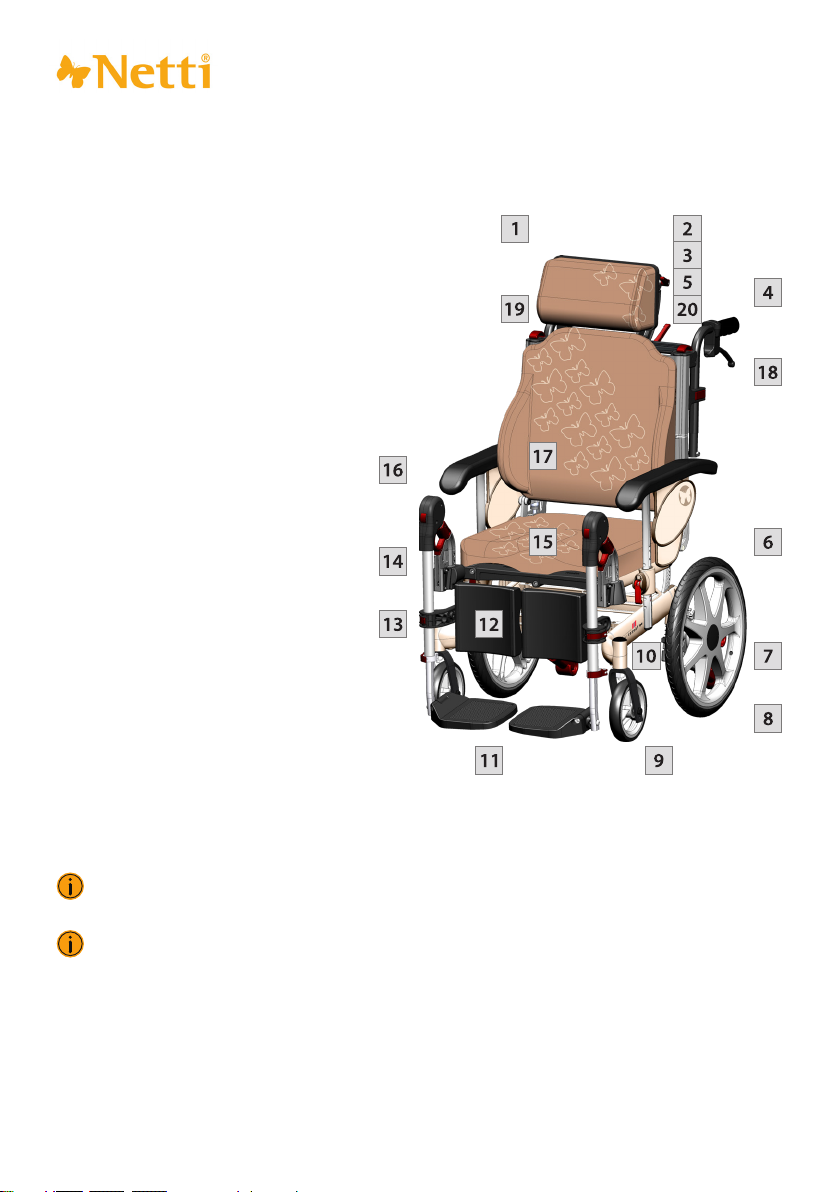

3. DESCRIPTION
Standard version*
1. Head support
2. Angle and depth adjustment
for head support
3. Head support bracket
4. Push handle
5. Release handle
6. Main wheel
7. Anti-tip
8. Brakes
9. Front castors
10. Front fork
11. Foot plate
12. Calf support
13. Calf support bracket
14. Angle adjustable foot support
15. Seat cushion
16. Arm support with pad
17. Back cushion
18. Push bow shaped tube
19. Release handle Tilt
20. Release handle Back
If any of these parts are missing,
please contact your dealer.
Product conguration may vary
between dierent countries.

11
Model: Netti Vision
Language: English Version: 2021-06 My-Netti.com
4. FEATURES OF NETTI VISION
STANDARD
SEAT
• Pressure distributive cushion
• Tilt –2° to +30°
• Adjustable depth of 75 mm
WHEELS
• 16” puncture proof main wheels
with xed axle
• 6” puncture proof front castors
with quick release axle
* Standard main wheels may vary
between countries.
BACKREST
• Angle: 90° to 110°
• Height: 455 mm
• Netti Nordic Back
• Push bar
• Push handles
FOOT SUPPORT
• Angle adjustable foot support
• Height and angle adjustable foot plates
• Height and depth adjustable calf supports
• Removable
ARM SUPPORT
• Height adjustable
• Removable
HEAD SUPPORT
• Height, depth and angle adjustable
• Removable
ACCESSORIES
SEAT
• Pressure distributive cushions
HIP BELTS
• 2 types of hip belts
BACKREST
• Dierent backrest cushions
HEAD SUPPORT
• Dierent head support models

12 My-Netti.com
Model: Netti Vision
Language: English Version: 2021-06

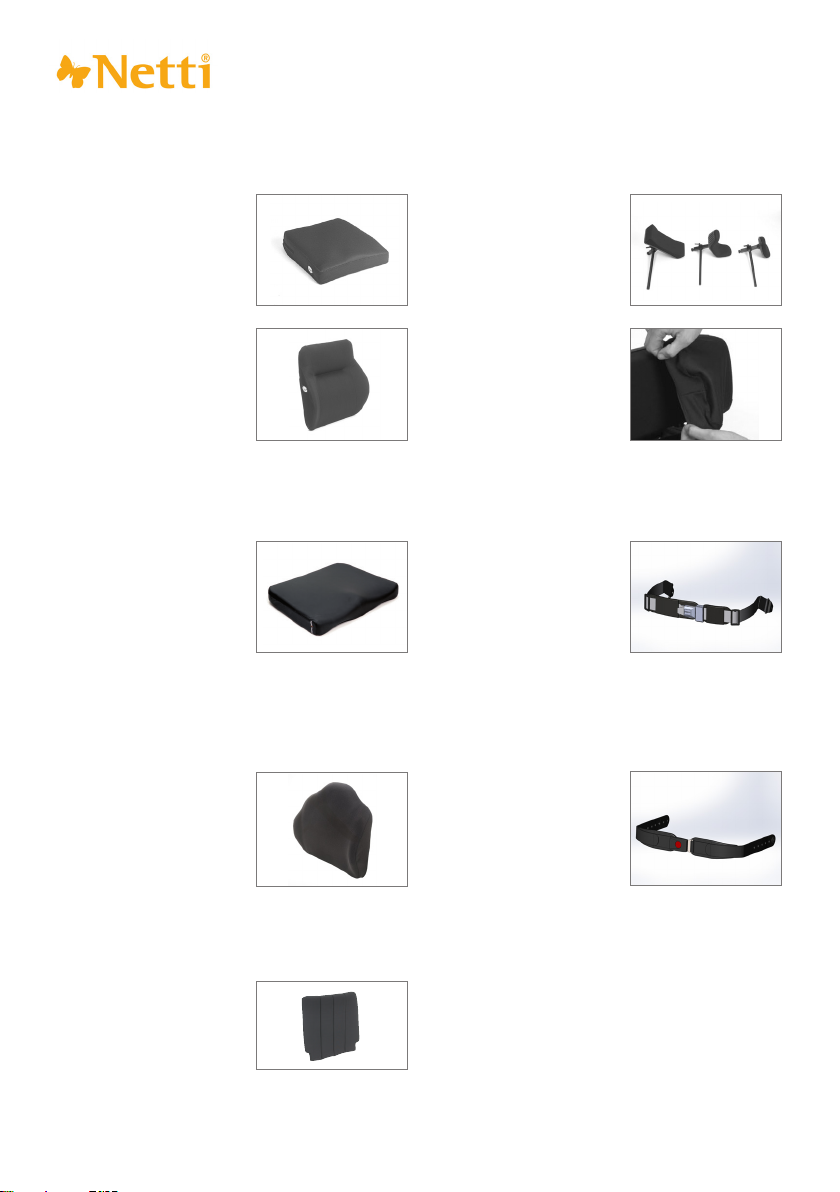

HEAD SUPPORT
Support D Medium
Support C Large
Support A Side support
Support B Small
HYGIENE COVER
Protects the core of the
head support.
HIP BELT
With car lock.
BP EVOFLEX BELT
5. ACCESSORIES
SEAT CUSHIONS
Many to choose from.
Please contact your dealer.
BACKREST CUSHIONS
Many to choose from.
Please contact your dealer.
RECOMMENDED SEAT CUSHION
NETTI CONTOUR
Anatomic shaped
seat cushion with
high pressure
distribution properties
and low seat height.
RECOMMENDED BACKREST CUSHION
NETTI NORDIC
Pressure distribution
and side support
properties with visual
design elements to
make positioning easy.
Multilayer back specially
tted to be used together
with Netti Vision.
NETTI FLIP
Simple back padding.
Provides room for
movement.

13
Model: Netti Vision
Language: English Version: 2021-06 My-Netti.com
6.2 UNFOLDING / FOLDING
THE CHAIR
The chair comes folded
with wheels backrest
and arm supports
pre-mounted.
Pull side frames apart.
Grab red handle, and push seat plate down
until it clicks into position.
6.1 UNPACKING
1. Unpack all the parts, and check that
everything is there according to the
packing list.
2. Unfold the chair (Chapter 6.2).
3. Check and adjust the seat depth (Chap. 6.6).
4. Mount the backrest cushion(Chapter 6.5).
5. Mount the seat cushion (Chapter 6.8).
6. Mount the leg supports (Chapter 6.9).
7. Mount the head support (Chapter 6.10).
8. Mount any accessories (Chapter 5).
Weight of components:
Main wheels: 2,0 kg each
Anti-tip: 0,4 kg each
Front castors: 0,6 kg each
Foot support angle adj.: 2,3 kg each
Seat cushion: 0,7 kg
Head support A: 1,0 kg
Head support C: 1,0 kg
Head support D: 0,9 kg
Mass heaviest part when transporting:
Frame with wheels as shown
on the picture right side: 19,1kg.
6. ASSEMBLING AND ADJUSTMENT

14 My-Netti.com
Model: Netti Vision
Language: English Version: 2021-06

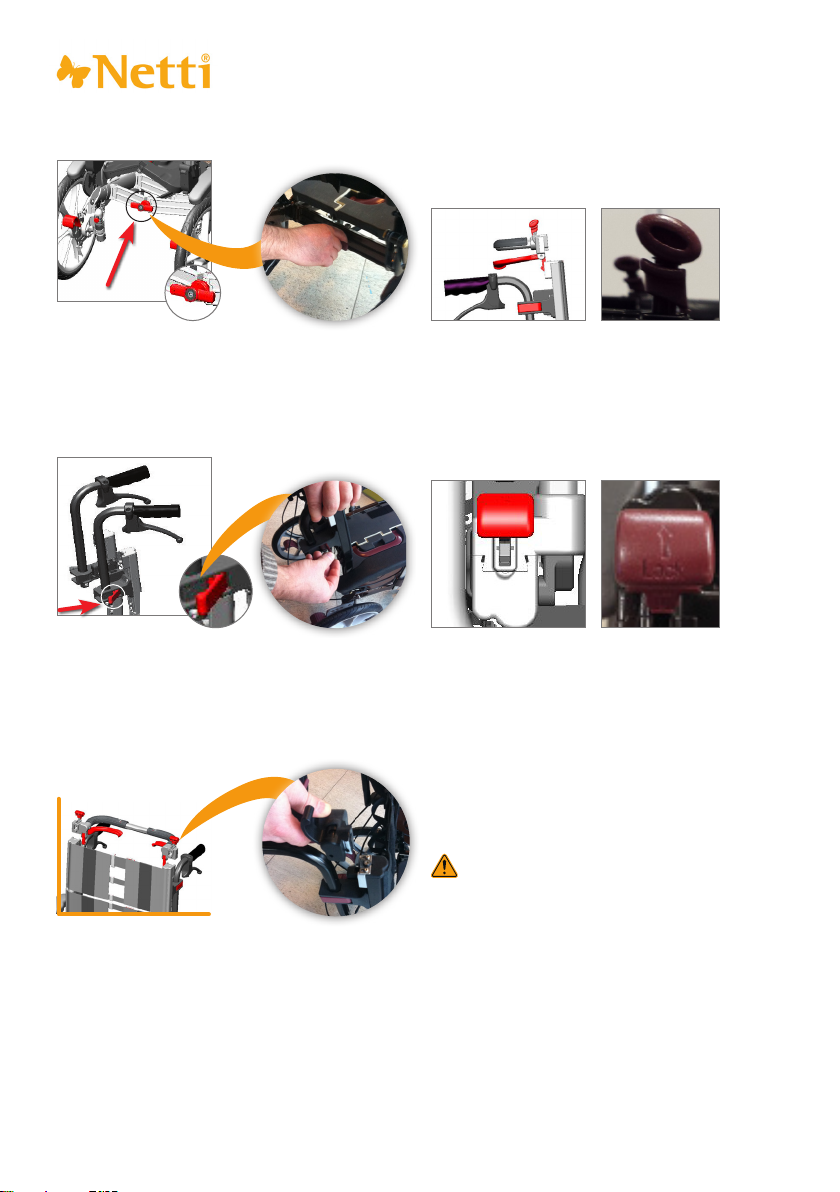

To attach the cross bar to the wheelchair be aware
that the red lockers are adjusted in the rearwards
position.
Slide the triangular part of the cross bar into the
triangular shank of the back on both sides.
After move the lockers frontwards back to the “Lock”
position. If you hear the“click” sound on both sides
the crossbar is locked. The head rest can now be
mounted.
Work carefully to avoid getting pinched
when parts are slid into one another and
when handles are opened and locked.
Push red knob until cross bar clicks into position.
Unlock push handles by opening red clamp, and
turn rearwards into position.
Slide push bar with head support and release
handles into slot on top of backrest tubes on both
sides.

15
Model: Netti Vision
Language: English Version: 2021-06 My-Netti.com
Place foot support pin into lock in front of seat
frame, and swing into position.
Grab anti tip and swing into position
(pointing rearwards).
Swing head support
up into position.
Place backrest
onto velcro.
Fold bottom ap up
then top ap down,
to x backrest.
Follow instructions
under cushion to
place it correctly.

16 My-Netti.com
Model: Netti Vision
Language: English Version: 2021-06
6.3 MAIN WHEEL
The main wheel comes pre-mounted
and xed to the frame with a bolt.
Sand and sea water (salt used for gritting in
the winter) can damage the bearings of the
main wheels and front castors. Clean the
wheelchair thoroughly after exposure.
Dismounting the cross bar
When folding the chair, dismount the cross bar
like this:
Before you take the cross bar o make sure the tilt
and recline functions are in their neutral positions:
(0 degrees recline, and –2 degrees tilt).
As a rst step the head rest should be removed.
After you must lift on both sides the lower part
of the red locker with two ngers and
pull the locker backwards.
When both lockers are in the unlocked position the
triangular upper part of the crossbar is now free to
lift out of the shank of the back. With smooth forces
you can lift the crossbar with two hands upwards
until you have separated it.

17
Model: Netti Vision
Language: English Version: 2021-06 My-Netti.com
6.5 BACKREST CUSHIONS
Backrest cushions are xed onto the wheelchair
using velcro.
The backrest comes with 6 adjustable straps
for optimal individual tting.
It is imperative to correctly set-up
the cushion in order to ensure
good seating comfort
The cushion covers are washable
and thereby reusable.
Follow the instruction on the back
of the cushion for correct maintenance
and washing of the cushion.
6.4 FRONT CASTORS
Removing:
• Press the release button on the top of
the front fork, and pull down.
Mounting:
• Lead the quick release axle into the bearing
house. Pull the fork slightly to ensure that
the fork is fully locked.

18 My-Netti.com
Model: Netti Vision
Language: English Version: 2021-06
6.7 ANTITIP
Netti Vision is on both sides equipped with an anti-
tip. These have a swing away mechanism which is
easy to operate. Pull the red knob with one hand
outwards and swing the anti-tip with the other
hand frontwards. The ending and locked position is
indicated by a“click”sound.
Adjusting the height of the anti-tip
The anti-tip can be adjusted in height by loosening
the screw close to the hinge point.
• Unx the screw and pull or push
to required position.
4 and 6 mm Allen-keys.
The anti-tip should always be used
for the safety of the user.
6.6 SEAT DEPTH ADJUSTMENT
• Seat depth is adjusted at the front by
loosening the screws on each side.
• Pull out extension pieces attached to the
seat plate on each side to required position.
Seat plate follows adjustment.
Make sure to lock bolt on both sides.
5 mm Allen-key.

19
Model: Netti Vision
Language: English Version: 2021-06 My-Netti.com
6.9 LEG SUPPORTS
The elevating leg support is angle adjustable,
swingable and removable.
It comes with height and depth adjustable calf
support. The foot plates are hinged, and can be
angled in xed positions. As a standard the foot
plates come with a locking bolt which makes the
plates stronger.
Legrest elevating adjustment instructions
The legrest of Netti Vision is designed for easy
operating and avoids potential squeeze hazard.
There are 2 red knobs to operate when elevating
the legrest.
Knob 1 is the square one at the front area of the
upper legrest and knob 2 is a round one at the side.
In the standard position
the legrest is locked at
97°. From here you can
elevate furthermore up
to 210° in addition with
knob 1.
To elevate below the
standard lock position
down to 90° you need
to use knob 2.
You can operate knob 1 with one hand if you
want to elevate the leg rest front wards in height.
Therefore you have to push the knob inwards with
your thump while you lift (with the other ngers)
the legrest frontwards and highwards.
6.8 SEAT CUSHION
The seat cushion is xed on the wheelchair
with Velcro.
It is very important to place the cushion
in the wheelchair before use.
The cushion cover is washable and reusable.
Follow the instruction on the back of the
cushion for correct maintenance and
washing of the cushion.

20 My-Netti.com
Model: Netti Vision
Language: English Version: 2021-06
To release the foot plate pull the plastic lock
frontwards and lift the right foot plate up.
While making the adjustment there
must be no load on the foot plates.
For outdoor use, there should be
a clearance of 4 – 5 cm between
the foot plate and the ground.
Never stand on the foot plates
due to the risk of tipping forward.
Foot plate – angle adjustment
Unx the screw as shown by using a 5 mm Allen-key.
Adjust the foot plate to the required angle and
tighten the screw.
5 mm Allen-key.
To elevate the leg est beneath the standard
locking position you need to press the round
knop (knob 2) with one nger inwards and
with the other hand you have to push the
square knob (knob 2) to unlock the legrest
and get it down.

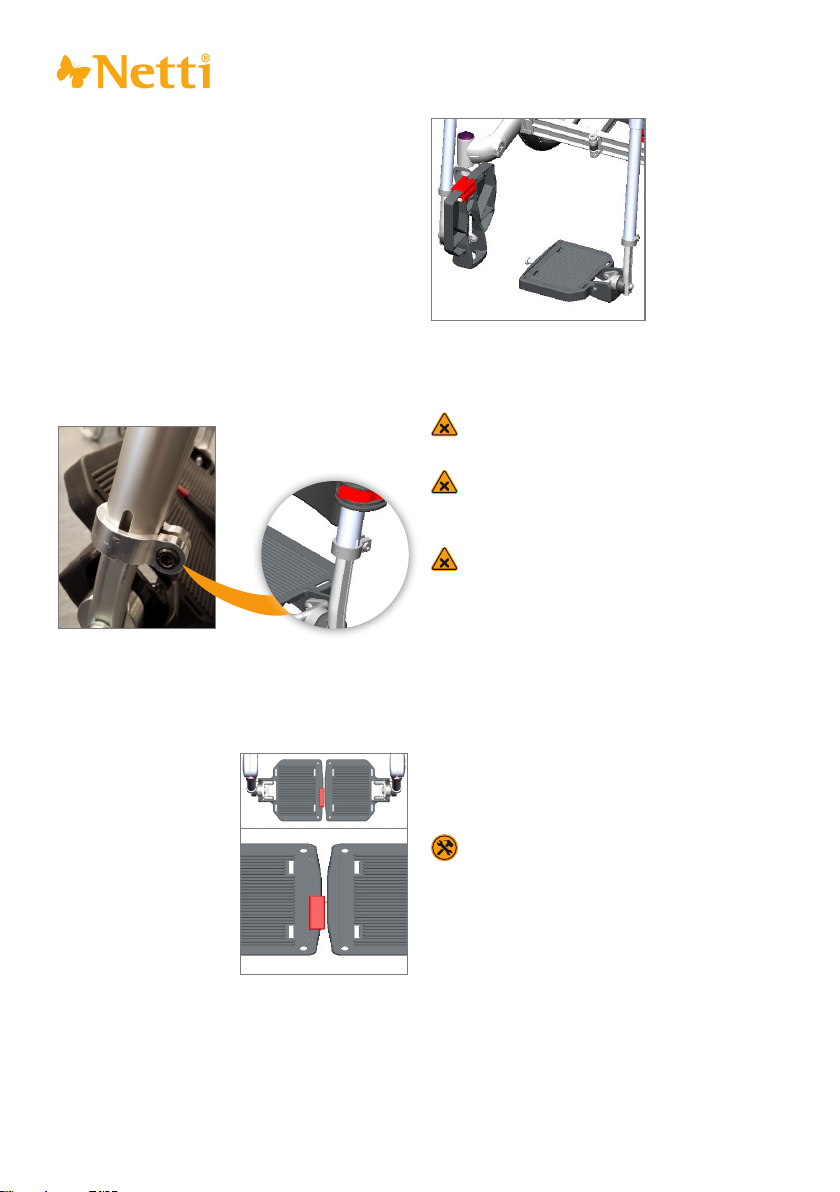

Foot plate height adjustment –
operating instructions
The foot plates are step less height adjustable.
Unx the adjustment screw so that the adjustment
bar moves freely. Adjust the foot plate to required
height, then tighten the screw.
Foot plates with red lock –
operating instructions
The foot plates come
with a locking bolt in
red meant to oer a
higher stability to the
foot plates.
To lock the foot plates
pull the plastic lock
on the right foot plate
and place the lock
over the bolt on the
left foot plate.
