1 / NOTICES TO THE USER
• Safety recommendations _________________________________ 20
• Environmentalprotection ____________________________________ 21
• ForAustralia only(Legalinstruction) ___________________________ 21
• Descriptionofyourappliance_________________________________ 22
2 / INSTALLING YOUR APPLIANCE
• Using the evacuation mode _______________________________ 23
• Using the recycling mode _________________________________ 23
• Electrical connections ____________________________________ 24
• Assembling the hood ____________________________________ 25
• Ducting mode ___________________________________ 26
• Filtering mode __________________________________ 27
3/USINGYOURAPPLIANCE
• Description of the control panel ____________________________ 28
4/CARINGFORANDCLEANINGYOURAPPLIANCE
• Cleaning the grease filter _________________________________ 29
• Changing the charcoal filter _______________________________ 29
• Cleaning and caring of the casing __________________________ 30
• Changing the light bulb __________________________________ 30
• Maintaining your appliance _______________________________ 31
5 / TROUBLESHOOTING _______________________________________ 32
6 / AFTER SALES SERVICE ____________________________________ 32
TABLE OF CONTENTS EN

20 b_255
Attention
Keep this user guide with your appliance. If
the appliance is ever sold or transferred to
another person, ensure that the new owner
receives the user guide. Please become
familiar with these recommendations before
installing and using your oven. They were
written for your safety and the safety of
others.
•SAFETY RECOMMENDATIONS
- This oven was designed for use by private
personsintheir homes.
- This appliance is to be used by adults.
Make sure that children do not touch and that
they do not treat it as a toy. Make sure that they
donottouchtheappliance'scontrolpanel.
- Whenyoureceivetheappliance,unpack orhave
itunpackedimmediately.Giveitanover-allgeneral
inspection. Make note of any concerns or
reservations on the delivery slip and make sure
to keep a copy of this form.
- Yourapplianceisintendedforstandardhousehold
use. Do not use it for commercial or industrial
purposes or for any other purpose than that for
whichitwasdesigned.
- Do not modify or attempt to modify any of the
characteristics of this appliance. This would be
dangeroustoyour safety.
- Repairsmustonly be carriedoutbyanapproved
specialist.
- Always unplug the hood before cleaning it or
performingothermaintenanceacts.
- Provide adequate ventilation for the room in the
case of simultaneous use of the hood and other
appliances powered by an energy source other
than electricity. This will prevent the hood from
aspiratingthecombustiongases.
- Youshouldnever"flambé"dishesunderthehood
or operate gas rings under the hood without
placing cookware on them (the flames sucked
upintothehoodcandamagethe appliance).
- Whenfryingfoodundertheappliance,youmust
carefullymonitorthepreparationatalltimes.
Oils and grease brought to very high
temperatures can catch fire.
- Respect the recommended frequency of
cleanings and filter replacements. The
accumulation of grease deposits may cause a
fire.
- The hood should never be used over a
1 / NOTICES TO THE USER
EN
combustiblefuel burningstove(wood,coal,etc.).
- Never use steam or high-pressure devices to
clean your appliance (requirement imposed by
electricalsafety).
- Witha viewtoconstantlyimprovingourproducts,
we reserve the right to modify their technical,
functionaloraestheticcharacteristics,makingany
changestotheirfeaturesconsidered necessary
ordesirable in view of technical progress.
- Inorder toeasilylocatethereferenceinformation
foryourappliance,we recommend that younote
thesedataonthe"After-SalesServiceDepartment
andCustomerRelations"page.
(Thispagealso explains to youwheretofindthis
informationonyourappliance.)
Warning
In the case of a kitchen heated by a
device connected to a chimney (a stove, for
example) the "filtering" version of the hood
should be installed. Do not use the hood
without grease filters.
Suitable ventilation should be provided in
the room when the hood is used at the same
time as appliances operated by gas or another
combustible fuel.

21
b_255
•ENVIRONMENTAL PROTECTION
- Thisappliance’spackagingmaterialisrecyclable.Helprecycleitandprotecttheenvironmentbydropping
itoffin the municipal receptacles provided for this purpose.
- Yourappliancealsocontainsagreatamountofrecyclablematerial.Itismarkedwiththislabeltoindicate
theusedappliancesthat should not be mixed with other waste.
Thisway,theappliancerecyclingorganisedbyyourmanufacturerwillbedoneunderthebest
possibleconditions,incompliancewithEuropeanDirective2002/96/EConWasteElectrical
and Electronic Equipment. Contact your town hall or your retailer for the used appliance
collectionpointsclosesttoyourhome.
- We thank you doing your part to protect the environment.
Warning
Installation should only be performed by installers and qualified technicians
Warning
Remove the protective film from the grease filter before use.
1 / NOTICES TO THE USER EN
• FOR AUSTRALIA ONLY (Legal instruction)
Young children should be supervised to ensure that they do not play with the appliance.
The appliance is not intended for use by young children or infirm person without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid hazard.
WARNING : Ensure the appliance is switched off before replacing the lamp to avoid the possibility of
electric shock.
For service issues, telephone number: 1300
Do not install the product if you see any damage on it.

22 b_255

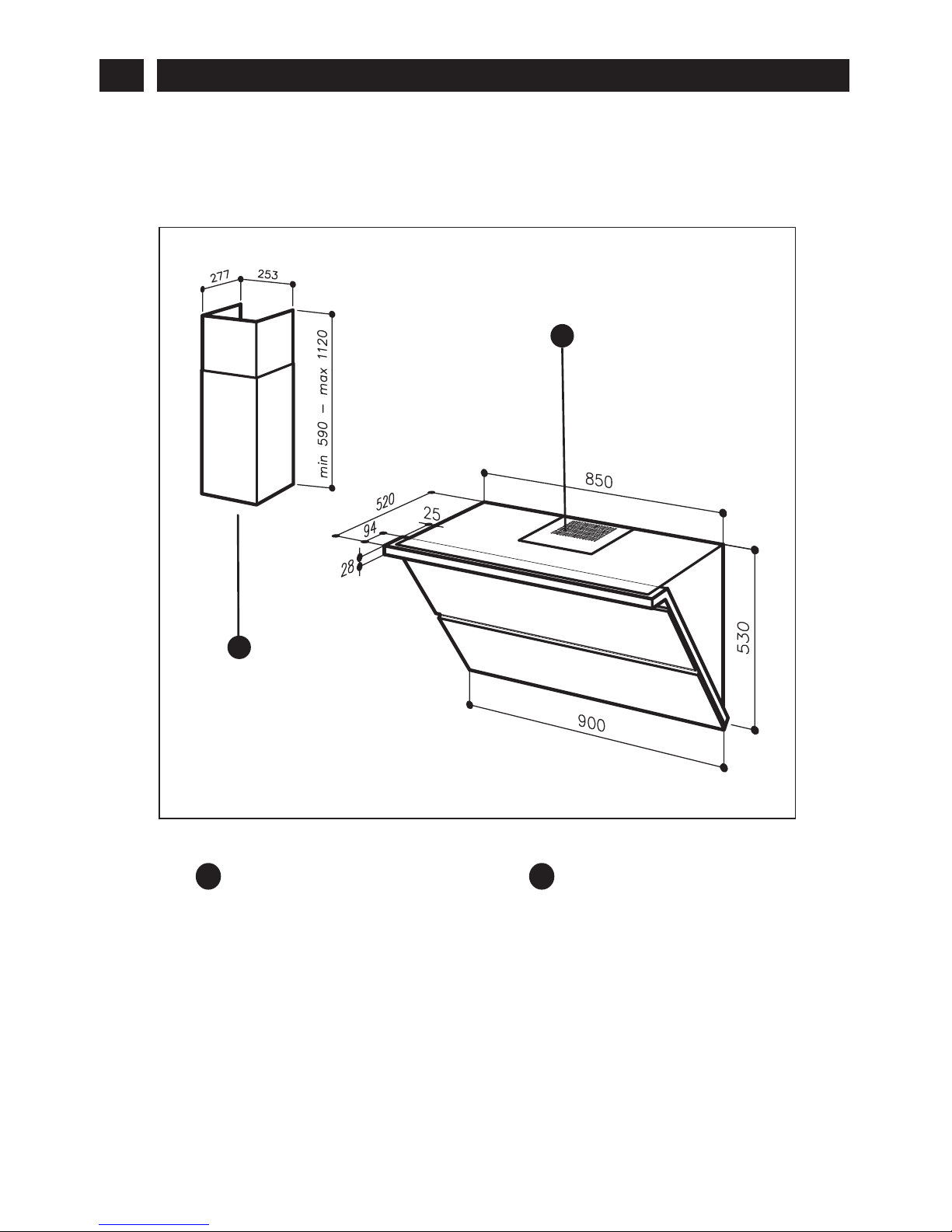

•DESCRIPTIONOF YOUR APPLIANCE
1 / NOTICES TO THE USEREN
Telescopic Tubes
(accessory)
AMetallic Grill B
A
B

23
b_255
- Theappliancemust be unplugged during installation or when anyrepairsor maintenance work is being
performed.
- Ensure that the network voltage corresponds to the voltage noted on the identification plate located
insidethe hood.
- If the electrical installation at your residence requires any changes in order to hook up your Appliance,
call upon a professional electrician.
- Ifthehoodisbeingused in evacuation mode, do not connecttheappliancetoacombustiongasexhaust
duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.
- Under no circumstances should the exhaust duct empty into the attic.
- Install the hood at safe distance of at least 35 cm from an cooking hob.
This appliance can be installed in either duction version or filtering version.
The appliance is supplied in the filtering version, the charcoal filters are installed (Ref.AH4010E1).

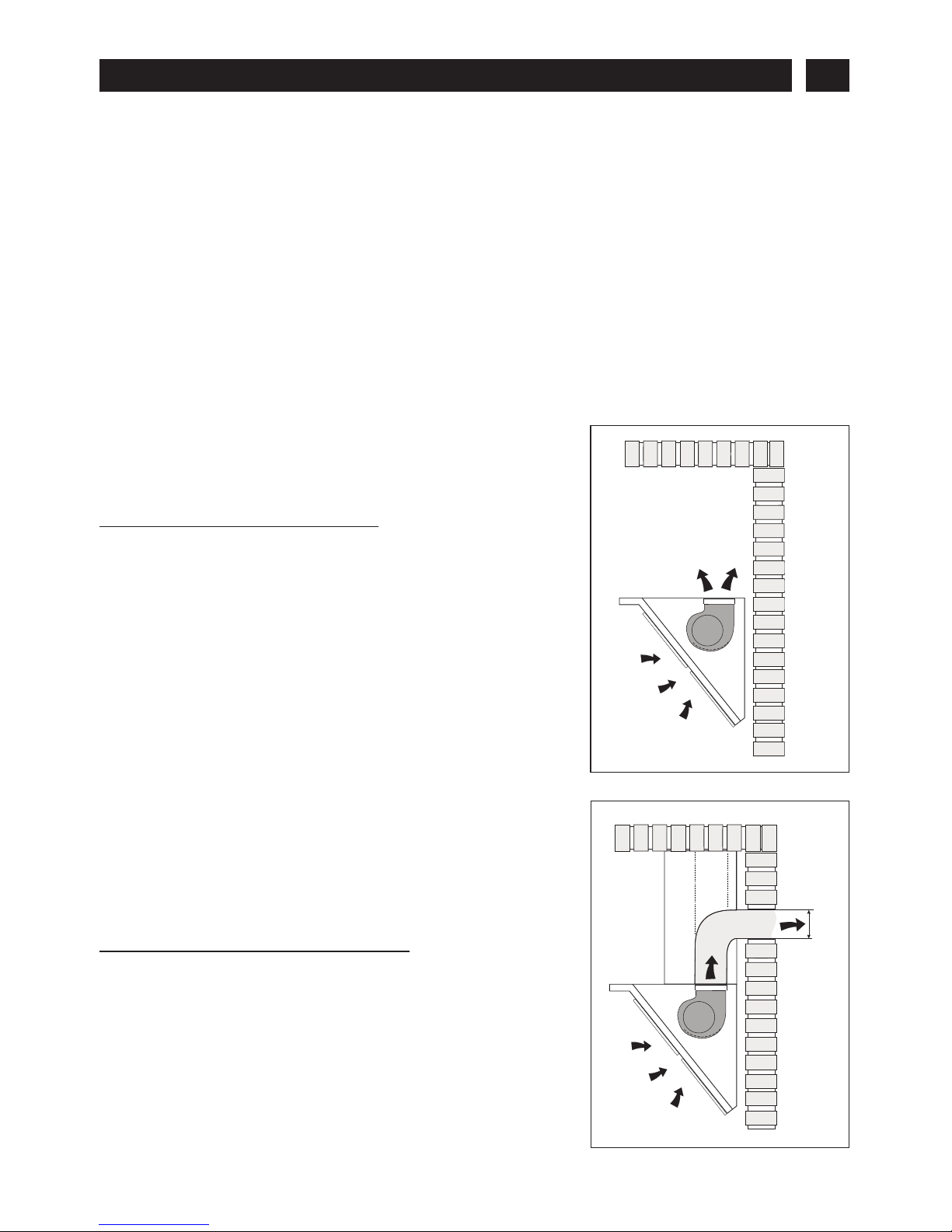

• USING THE DUCTING MODE
If you posses an outlet to the exterior
(fig. 1)
Your hood can be connected to this outlet using a flue (minimum
Ø 125mm that is enamelled, in aluminium, flexible or made of
inflammable material).
To cover the evacuation tube, a decorative telescopic tube
is available (ask your retailer)
REF.n°:
RHD91X (inox)
RHD91Z (aluminium colour).
Your cooker hood is a filtering version. All you need to do is to
remove the charcoal filter first.
• USING THE FILTERING MODE
If you do not posses an oulet to the exterior
(fig. 2)
Allofourappliances can be usedinrecyclingmode.
The air and steam taken up by the unit are purified with charcoal
filter and returned to the environment.
2 / INSTALLING YOUR APPLIANCE EN
Ø 150
Ø 125
fig.1
fig.2

24 b_255
• ELECTRICAL CONNECTIONS
During installation and maintenance operations,
the appliance must be unplugged from the
electrical grid; fuses must be cut off or removed.
The electrical connections are made before the
appliance is installed in its housing.
Ensure that
- the electrical installation has sufficient voltage,
- the electrical wires are in good condition,
- the diameter of the wires complies with the
installationrequirements.
Warning
This appliance must be grounded.
We cannot be held responsible for any
accident resulting from an inexistent,
defective or incorrect ground lead.
In case your appliance is not furnished with a non
separating flexible cable and has no plug, or has
not got any other device ensuring omnipolar
disconnection from the electricity main, with a
contact opening distance of at least 3mm, such
separating device ensuring disconnection from
the main must be included in the fixed installation.
This appliance is delivered with a H05VVF power
cord that has three-0.75mm2 conductors (neutral,
phase and ground). It must be connected to the
main power supply (which should be a 230-240V
single phase current) via a CEI60083
standardised socket that should remain
accessible after installation, in keeping with
installation guidelines.
If the power cable is damaged, call the after-sales
service department in order to avoid danger.
Warning
If the electrical installation at your
residence requires any changes in order to
hook up your appliance, call upon a
professional electrician.
Warning
If the hood displays any malfunctions,
unplug the appliance or remove the fuse
corresponding to the electrical socket where
your appliance is plugged in.
2 / INSTALLING YOUR APPLIANCE
EN

25
b_255
• ASSEMBLING THE HOOD
Warning
The hood must be installed in
compliance with all applicable regulations
concerning the ventilation of premises. In
France these regulations are described in
DTU 61.1 from the CSTB. In particular, the
evacuated air should never be conveyed to
a duct used to evacuate smoke from
appliances that use gas or other
combustible fuels. Unused ducts may only
be used after approval from a competent
specialist.
Thedistancebetweenthesupportingsurfaceforthe
cookingvesselsonthehobandthelowerpartofthe
hood must be at least 35 cm. If the instructions for
installationforthehobspecifyagreaterdistance,this
has to be taken into account.
2 / INSTALLING YOUR APPLIANCE EN
- Opening the back panels:
when installing, it will be necessary to open the
back panels:
to open them, grip them by the lower part and
turn them outwards as far as they can go (Fig.3);
release gently until they lock.
- Fixing to the wall: Draw a line on the wall in
vertical line with your hob. Mark the first 4 holes to
be drilled in the wall, respecting the distances
indicatedinFig.4.Drillthe4holesandfitthescrew
anchors provided. Fix the metal brackets (A) to
the wall using the holes just drilled (Fig. 5); the
screws for fixing the bracket are provided.
Hang the hood on the brackets (Fig. 6). Adjust the
horizontalpositionmovingthehoodtotherightorleft
sothatitisalignedwiththewallunits.Whenadjustment
has been completed, without removing the hood,
mark the other 2 holes to be drilled (C) in the wall.
Removethehoodanddrilltheholesmarked(8mm
diameter).Thenusethe2screwanchorsandthe2
screwsprovidedforfinalfixing.
A
fig.5
fig.3
fig.6
ø8
695
55
min 870
fig.4

26 b_255
Warning
This is the filtering version of your
cooker hood; you must first remove the
charcoal filter.
2 / INSTALLING YOUR APPLIANCE
EN
Tip
For optimal use of your appliance, we
recommend that you connect the hood to a
150 mm-diameter flue (not delivered with the
appliance). Minimise the number of angles
and bends and the lengths of the flue. In
the event that the hood will be operated
using out-door evacuation, you should
ensure a sufficient inflow of fresh air to
avoid a pressure deficiency in the room.
• Ducting mode

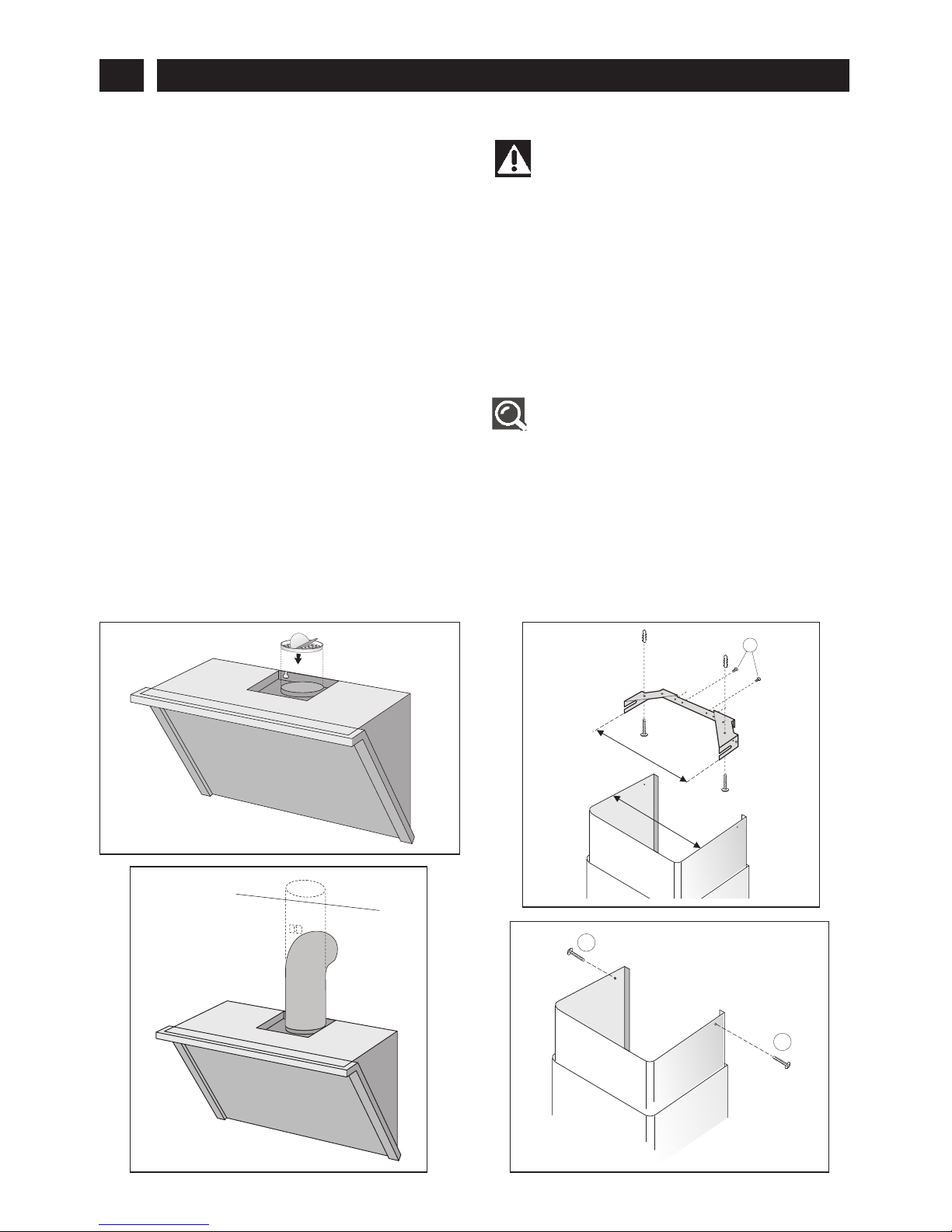

- Assemblyoftheflange: installtheflangeinthe
device air outlet and press slightly (Fig.7).
- Fixing of the telescopic decorative flue (on
request)
- Adjustthewidthofthesupportbracket(D)ofthe
telescopic flue by means of the screws (E) as
showninFig.8;then,bymeansofthescrewanchors
and screws (F) provided, fix the bracket to the
ceilinginsuchawaythatitispositionedalongthe
axis with your hood.
- Connect the air outlet pipe to the air vent of the
hood.Useaflexiblepipeandlockittotheairvent
ofthehoodwithametalhoseclamp-Fig.13(pipe
andclamparenotprovided).
- Carry out the electrical connection of the hood
usingthepowersupply cable.
- Insert the extension flues setting them on the
hood; extend the upper flue to the ceiling and
secure with the 2 screws (H) - Fig.10.
fig.8
fig.7
E
D
F
F
=
=
fig.9
H
H
fig.10

27
b_255
• Filtering mode
- Mount the metallic grill, fixing it with 2 screws
withinthe hood (fig. 11).
- Make the electrical connection of the hood by
meansofthepowersupply cable.
fig.11
2 / INSTALLING YOUR APPLIANCE EN

28 b_255
• DESCRIPTION OF CONTROL PANEL
Tip
This guide to installation and use is valid for several models. Minor differences in details
and fittings may emerge between your appliance and the descriptions provided.
3 / USING YOUR APPLIANCE
EN
fig.12
A) LIGHTSon/offswitch.
1) Activates the motor at the first
speed (the icon lights-up). By
pressingon theiconfor about2
secondsthemotorwillstop.
2) Activatesthemotoratthesecond
speed(theicon lights-up).Allof
the other icons relative to the
speedremainswitchedoff.
3) Activates the motor at the third
speed(theicon lights-up).Allof
the other icons relative to the
speedremainswitchedoff.
4) Activatesthemotoratthefourthspeed(theiconlights-up).Alloftheothericonsrelativetothespeedremainswitched
off.
B) ActivatestheTIMER(theiconlights-up).ByactivatingtheTimer(5minutes),themotorwillstopautomaticallyafter
5minutes.
C) FILTERALARM.After30workinghours,theiconlightsuptoindicatethatthegreasefilter/smustbecleaned.
After120workinghours,theiconflashestoindicatethatthegreasefilter/smustbecleanedandthecharcoalfilters
replaced.
Tore-startthe hour -counter,resetbypressing ontheiconwhileit is lit(orwhileit flashes).

29
b_255
Warning
Always unplug the hood before cleaning it or performing other maintenance acts.
Regular maintenance of your appliance is a guarantee of proper functioning, good perfor-
mance and durability.
Warning
Failure to respect the guidelines for cleaning the appliance and filters may cause fires.
Please carefully adhere to the maintenance recommendations.
4 / CARING FOR AND CLEANING YOUR APPLIANCE EN
fig.13
• CLEANING THE GREASE FILTER
Payspecial attention to the grease filter,thatmust
becleaned at regular intervals.
Filter cleaning frequency:
The grease filter must be cleaned about every
30 hours of operation (when the “C” icon on the
control panel lights up or flashes) Once the clean
filter has been fitted, press the “C” icon while it is
lit (or while it flashes) to restart the hour counter.
Wash the filters with a commercial household
cleanser, then rinse fully and dry. They may be
cleanedina dishwasher making sure that the filter
does not come into contact with dirty dishes or
silver tableware.
• Removing the grease filter (fig.13)
Openthefrontpanel,grippingitbythelowerpartand
turn it outwards to the end of its travel then gently
releaseituntilitlocks.Removethegreasefilterby
pushingthecatchandturningit outwards.
•CHANGINGTHECHARCOAL FILTER
Ifthehood isusedinthefilteringversion,thecharcoal
filterwillperiodicallyhaveto be replaced.
Frequencyoffilterreplacement:
The charcoal filter must be replaced about every
120 hours of operation (when the “C” icon on the
controlpanelflashes)Oncethe new filter has been
fitted, press the “C” icon while it flashes to restart
the hour counter.

30 b_255
4 / CARING FOR AND CLEANING YOUR APPLIANCE
EN
• Replacing the charcoal filter (Fig.14)
Openthefrontpanel,grippingitbythelowerpartand
turn it outwards to the end of its trave then gently
releaseit untilitlocks.
Removethegreasefilterbypushing thecatchand
turningitoutwards(Fig.13).
Remove the charcoal filters with a rotating
movement, in a clockwise direction (fig. 14).
Charcoal filter ref. no. AH4010E1
• CLEANING AND CARING OF THE
CASING
Avoidproducts containingabrasiveswhen cleaning
thecasing.
Condensate can appear on inox panel covering
greasefilter.Pleasecleanregularly
• CHANGING THE LIGHT BULB
Warning
Before carrying out any work, the power
supply to the hood must be turned off,
either by unplugging it or by using the
circuit breaker switch.
Tochangethehalogenbulbsopenthecoverlevering
fromthe properslots (Fig.15). Replacewithbulbs
of the same type.
CAUTION: Do not handle glass bulb with bare
hands.
fig.14
fig.15

31
b_255
Warning
Before carrying out any work, the power supply to the hood must be turned off, either by
unplugging it or by using the circuit breaker switch.
•MAINTAINING YOUR APPLIANCE
Top surface and
accessoires
Grease filter
Charcoal filter
MAINTENANCE... WHAT TO DO ? PRODUCTS/ACCESSORIES
TO USE
Never use metal scouring pads,
abrasiveproducts orexcessively
stiff brushes.
To clean the body and the lighting
port, you should use only
commercial household cleaning
products diluted in water and
then rinse using clean water,
drying with a soft cloth.
This filter traps fatty vapours and
dust. This component plays an
important role in ensuring the
effectiveness of your hood. In the
event of tough stains, use a non-
abrasive cream, then rinse with
clean water.
Use a commercial household
cleaning product then rinse
abundantly and dry. These filters
can be cleaned in a vertical
position in your dishwasher. (Do
not alow them touch dirty
dishes or silverware).
This filter traps odours and must
be changed at least once every
6 months depending on your level
of use. You should order these
filters from your dealer (quoting
the reference shown on the
identification plate located inside
the hood) and note the date the
filter was changed.
Tokeepyourapplianceingoodworkingorder,werecommendthatyouuseClearithouseholdproducts.
Professionalexpertisefor
the general public
Clearitoffersyouprofessionalproductsandadaptedsolutionsforthedailyupkeepofyourhouseholdand
kitchenappliances.
You may find them in conventional retail outlets, along with a complete line of by-products and
consumables.
4 / CARING FOR AND CLEANING YOUR APPLIANCE EN

32 b_255
The hood is not
working...
The hood is not
operating effectively...
The hood stopped
working
SYMPTOMS SOLUTIONS
Ensurethat:
• The power is not cut off.
• A speed has been selected.
Ensurethat:
• The selected motor speed is sufficient for the
quantity of smoke and vapours to be cleared.
• The kitchen is sufficiently ventilated to allow une
for fresh air intake.
• The charcoal filter is not worn (hood operating in
filteringmode).
Ensurethat:
• The power is not cut off.
• The single-pole cut-off device was not activated.
5 / TROUBLESHOOTING
EN
6 / AFTER SALES SERVICE
EN
Anymaintenanceonyourequipmentshouldbeundertakenby:
- either your dealer,
- or another qualified mechanic who is an authorized agent for the brand appliances.
When making an appointment, state the full reference of your equipment (model, type and
serial number). This information appears on the manufacturer’s nameplate attached to your
equipment.
