DeDietrich SR 130 User manual

SR 130
Domestic hot water tanks English
29/05/06
Installation
instructions
Instructions for use
Technical
instructions

2SR 130 29/05/06 - 300009755-001-H
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Important recommendations. . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1 Main dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Technical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3 Package list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1 Connecting the DHW tank to the boiler (primary circuit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Connecting the tank to the domestic water circuit (secondary circuit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

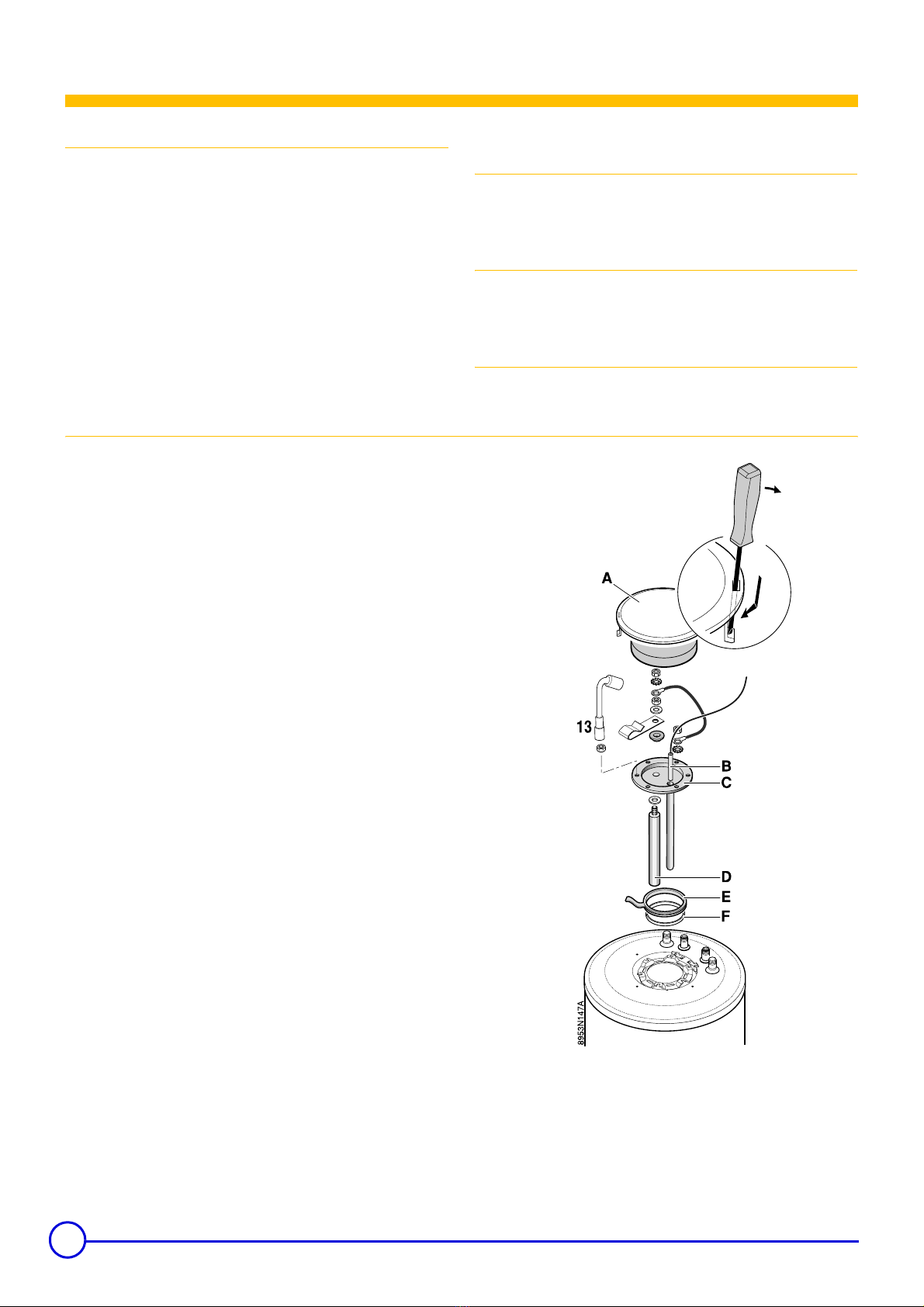

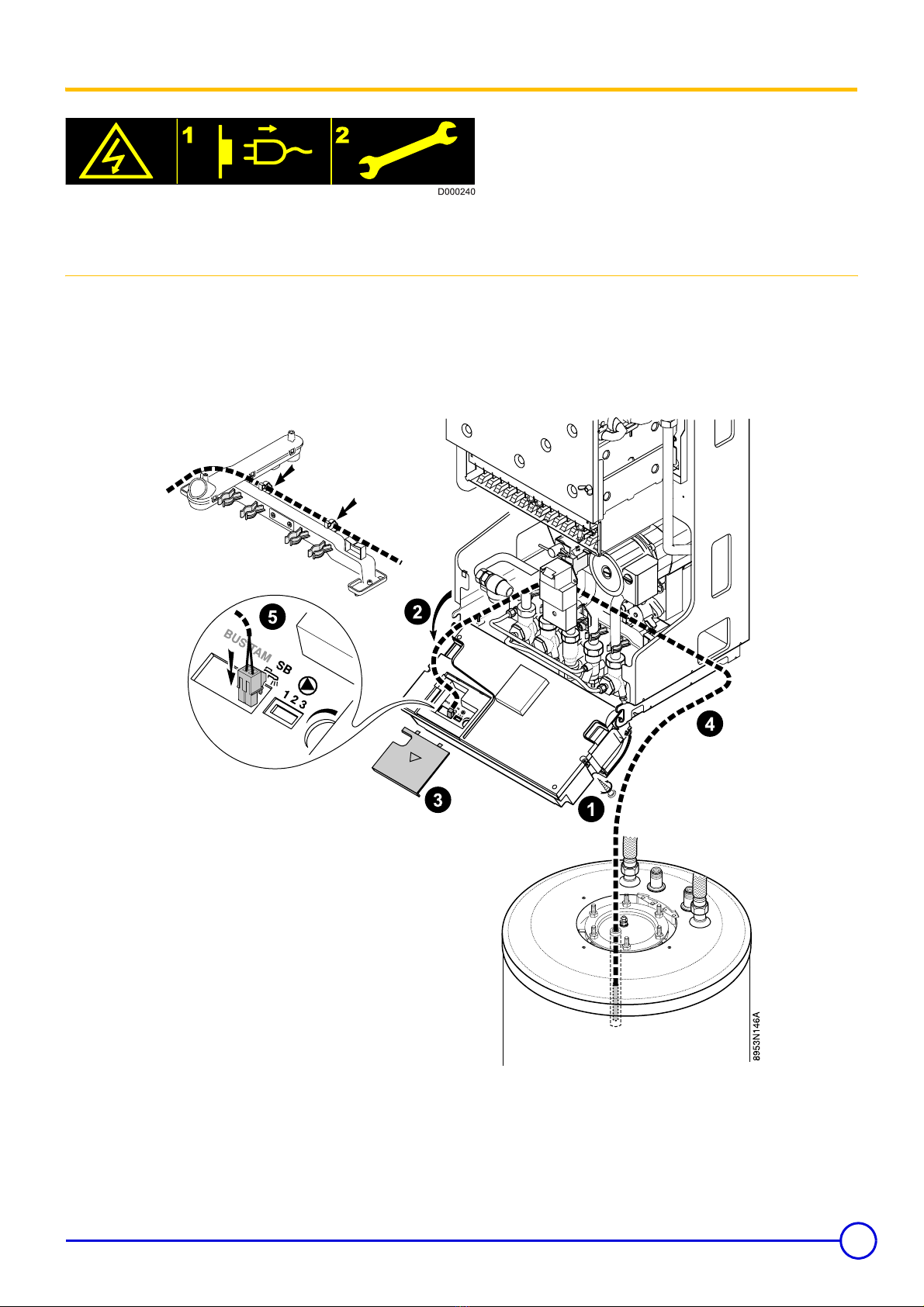

3 Assembly and connection of the domestic hot water sensor . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Commissionning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Maintenance and periodic checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

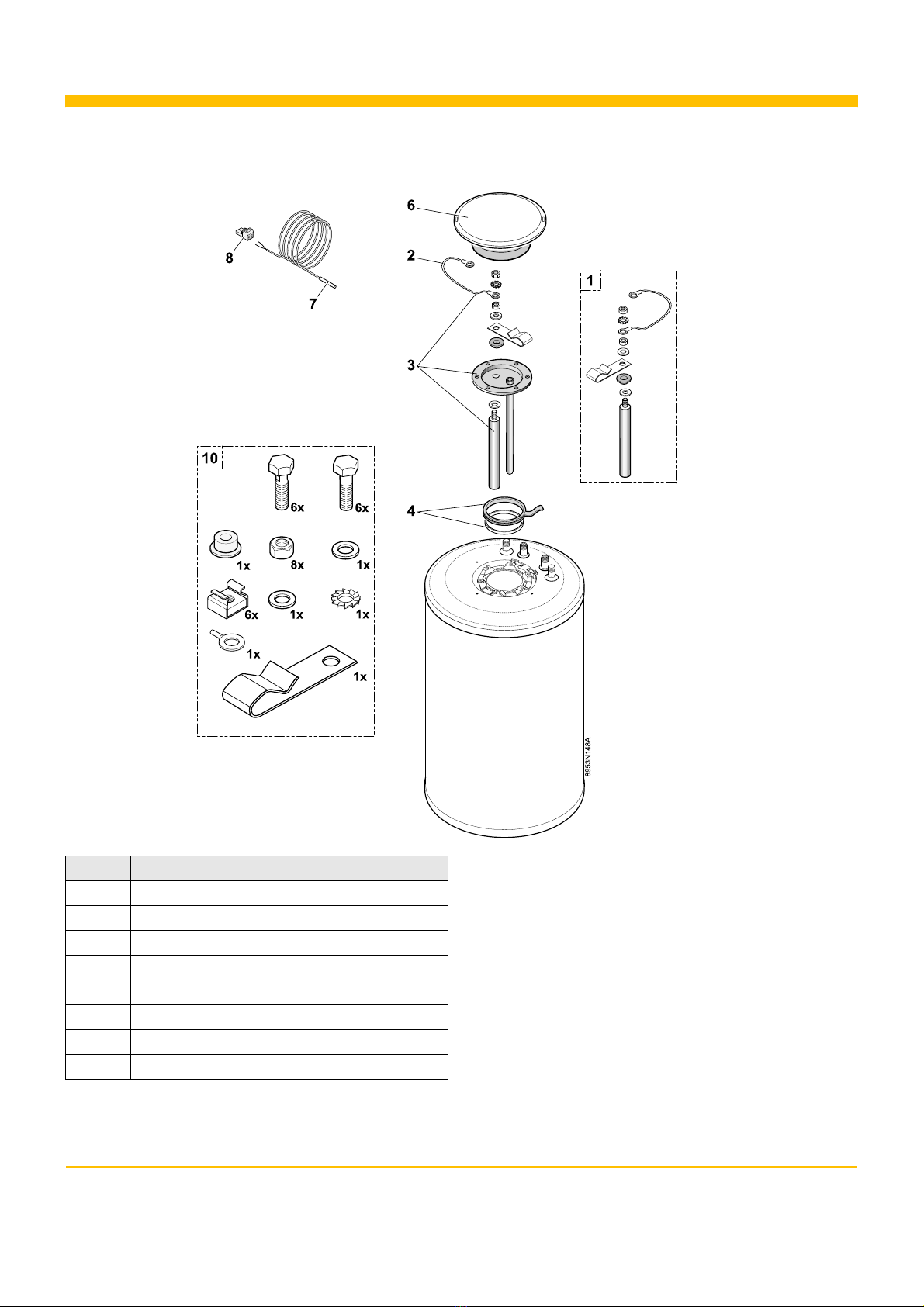

Spare parts - SR 130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Symbols used
Caution danger Risk of injury and damage to equipment.
Attention must be paid to the warnings on safety of persons and equipment.
Specific information Information must be kept in mind to maintain comfort.
ZReference Refer to another manual or other pages in this instruction manual.

3
29/05/06 - 300009755-001-H SR 130
Introduction
SR 130 domestic hot water calorifiers are connected to gas-fired
wall-hungboilersfromtheCity 1.24-1.24FF-3.24and3.24FFrange
and to gas-fired wall-hung condensation boilers from the
DPSM3 15 LP - DPSM3 25 LP - MC 15 LP and MC 25 LP - MCR 24
range.
For a proper operating of the boiler, follow carefully the
instructions.
1 Compliance
Compliance of design and manufacture
This product complies with the requirements of European Directive
97 / 23 / EC, Article 3, Paragraph 3, on pressure equipment.
Electrical compliance / Marking 1
ThisproductcompliestotherequirementstotheEuropeanDirectives
and following standards:
• 73/23/EEC Low VoltageDirective
Reference Standard : EN 60.335.1.
• 89/336/EEC Electromagnetic Compatibility Directive
Reference Standards : EN 50.081.1 / EN 50.082.1 / EN 55.014.
2 Important recommendations
Positioning the appliance:
- in a frost-free room.
- on a base to facilitate cleaning the room.
- ascloseaspossibletodraw-offpointsinordertominimiseenergy
losses through the pipes.
Insulating the pipes.
Heating water and domestic water must not come into
contact with each other. Domestic water must not circulate
via the exchanger.
Service the appliance regularly to ensure that it operates correctly.
Any operation on the installation must be performed by a
qualified technician respecting professional regulations
and in accordance with this document.
Keep this document close to the place where the tank is installed.
No modifications must be made to the domestic hot water tank if the
guarantee is to remain valid.
Description
The high quality steel tank is lined with food standard quality vitrified
enamel, which protects it from corrosion and preserves all the
qualities of the domestic water.
Thetankisprotectedagainstcorrosionbyamagnesiumanodewhich
should be checked every 2 years and replaced if need be.
The thermal exchanger welded into the tank is made of smooth
piping, the inside of which, which is in contact with the domestic
water, is enamelled.
The calorifier is efficiently insulated with CFC-free polyurethane
foam, which reduces thermal loss to a minimum.
The insulating material can be easily detached from the tank. A
polyethylene film prevents the foam sticking to the tank. This
measure facilitates the recycling of materials.
The outside casing is made of painted steel sheeting.

4SR 130 29/05/06 - 300009755-001-H
1 Main dimensions
Tank
Boiler
(1) wall
R: Conical thread
G: Exterior cylinder thread, sealed by flat joint
8953N150C
1
2
Boiler type DPSM3,MC CITY MCR
G 216 ~ 200 446
APrimary input G 3/4
BPrimary outlet G 3/4
CDomestic hot water outlet R 3/4 - Red marking
DDomestic cold water temperature R 3/4 - Blue marking
EMagnesium anode
FSensor tube

5
29/05/06 - 300009755-001-H SR 130
2 Technical characteristics
(1) Heat exchanger inlet temperature: 80 °C (85 °C for CITY) - Domestic hot water temperature: 45 °C
(2) DHW setting: 60 °C - Average domestic hot water temperature: 40 °C - Boiler setting: 80 °C (85 °C for CITY)
(3) Cold water temperature: 10 °C - Pump in position 3
(4) Swiss Directives
*Specific flow: Minimum average rise in temperature of 30K that the appliance can provide in the course of two successive draw-offs of 10 minutes
separated by a stop of 20 minutes.
** Draw-off capacity: Hot water flow at which water can be drawn off for a duration of 10 minutes with an average temperature elevation of 30 K.
3 Package list
Primary circuit - heating water
Maximum operating temperature °C 90
Maximum operating pressure bar 10
Maximum operating pressure in accordance
with W/TPW (4) bar 6
Coil water capacity l6
Coil exchange surface m20.9
Secondary circuit - domestic water
Maximum operating temperature °C 90
Maximum operating pressure bar 10
Maximum operating pressure in accordance
with W/TPW (4) bar 6
Water capacity l130
Weigh
Empty kg 65.5
With water kg 201.5
For shipping kg 68.5
Performance
Boiler type CITY DPSM3 or
MC 15 LP/BS 130
DPSM3 or
MC 25 LP/BS 130 MCR 24
Useful boiler output kW 24 14 23.6 24
Power exchanged (1)(3) kW 24 14 23.6 22.6
Continuous flow (1)(3) l/h 590 345 580 555
Specific flow* (2)(3) l/min 20 18.5 20 16.5
Draw-off capacity**(2)(3) l/10 mm 200 200 200 165
DHW tank package
Calorifier with sensors package EE 22
Calorifier without sensors package
For Germany only
EE 30
Linking kit:
-BoilerCITY
- DPSM or MC boiler
-BoilerMCR24
EE 26
HC 13
HG 30
Sensor:
-BoilerCITY
- DPSM or MC boiler
-BoilerMCR24
AD 138
AD 212
AD 226

6SR 130 29/05/06 - 300009755-001-H
Installation
Installation must be carried out in accordance with the
prevailing regulations, the codes of practice and the
recommendations in these instructions.
SR 130 calorifiers are designed to be placed under the wall-hung
boiler.
1 Connecting the DHW tank to the boiler (primary circuit)
Prior connecting the heating circuit hydraulic connections,
it is vital that the heating circuits are rinsed to prevent
articles that may damage certain parts from being
introduced (safety valves, pumps, non return valve...).
When making the connections, it is imperative that the
standards and corresponding local directives are
respected.
Thesedomestichotwatertankscanoperateatamaximumoperating
pressure of 10 bars. As a general rule, the tanks operate at 7 bars.
1.1 Connecting the calorifier to a CITY boiler
Primary input
Domestic hot water outlet
Domestic cold water inlet
Primary outlet

7
29/05/06 - 300009755-001-H SR 130

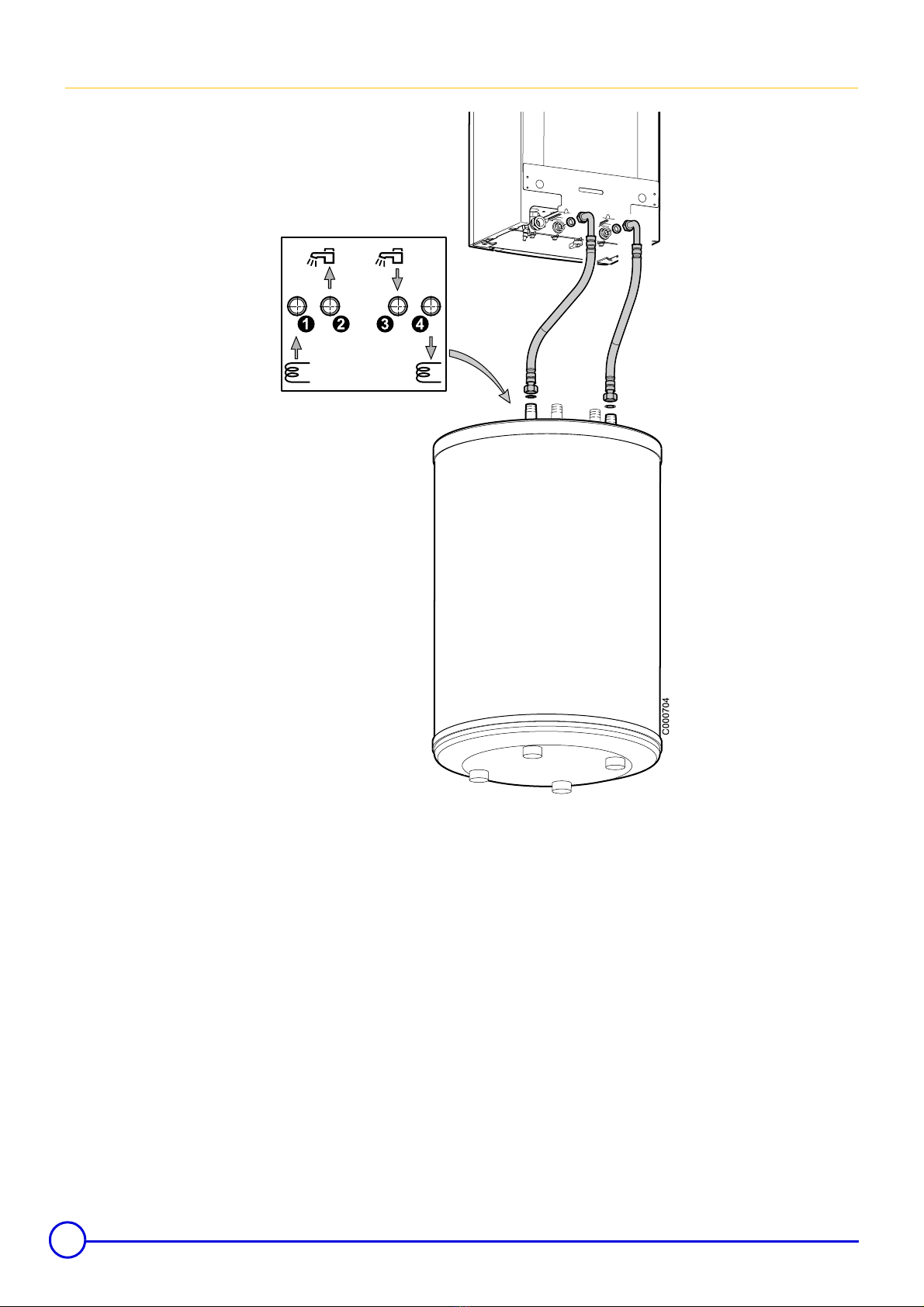

1.2 Connecting the calorifier to a DPSM3 or MC boiler
Primary input
Domestic hot water outlet
Domestic cold water inlet
Primary outlet

8SR 130 29/05/06 - 300009755-001-H
1.3 Connecting the calorifier to a MCR 24 boiler
Primary input
Domestic hot water outlet
Domestic cold water inlet
Primary outlet

9
29/05/06 - 300009755-001-H SR 130
2 Connecting the tank to the domestic water circuit (secondary circuit)
2.1 Specific precautions
Before making the connection, rinse the domestic water inlet
pipes to prevent the introduction of metal or other particles into the
DHW tank.
2.2 Provision for Switzerland
Make the connections according to the instructions of the Société
Suisse de l'Industrie du Gaz et des Eaux. Comply with local
instructions from water distribution plants.
2.3 Isolation valves
Hydraulically isolate the primary and secondary circuits using stop
valves to facilitate maintenance operations on the calorifier. The
valves make it possible to carry out maintenance on the tank and its
components without draining the entire installation.
These valves are also used to isolate the calorifier when conducting
apressurisedcheckon the leak tightnessoftheinstallationifthetest
pressure for the calorifier is greater than the admissible operating
pressure.
If the mains pipes are made of copper, fit a sleeve made of
steel, cast iron or any other insulating material between the
tank's hot water outlet and the pipes to prevent corrosion
to the connection
2.4 Connecting the domestic cold water
To carry out connection with cold water (See next page). Install a
water drain in the boiler room and a "funnel-siphon" for the safety
unit.
The components used for the connection to the cold water supply
must comply with the prevailing standards and regulations in the
country concerned. Fit a non-return valve to the domestic cold water
circuit.
2.5 Safety valve
In compliance with the safety rules, fit a sealed safety valve
to the tank's domestic cold water inlet.
Calibration of the safety valve : output 10 bar.
For France, we recommend hydraulic safety units fitted with a
membrane with the NF marking.
- Integrate the safety valve in the cold water circuit.
- Install the safety valve close to the calorifier in a place which is
easy to access.
Dimensions
ThesafetyunitanditsconnectiontotheDHWtankmustbeofatleast
the same diameter as the cold water supply pipe in the tank's
domestic circuit.
No isolating devices should be located between the safety valve or
unit and the tank.
Thesafetyunitoutletpipemusthaveauniformandsufficientgradient
and its diameter must be at least equal to that of the outlet opening
in the safety unit (to prevent the flow of water being hindered if the
pressure is too high).
The outlet pipe in the valve or safety unit must not be blocked.
France
The level of the safety unit must be lower than that of the cold water
inlet to enable draining. Otherwise, fit a drainage pipe to the lowest
point of the tank.
Germany
Definethedimensionsofthesafety valve in accordance with the DIN
1988 standard :
Fit the safety valve above the calorifier to obviate having to drain the
tank during servicing
Install the drainage valve at the lowest point on the calorifier.
Capacity
litres
Dimension of the valve
Min. dimension of the inlet
connection
Heating output
kW
max
< 200 R or Rp 1/2 75
200 J1000 R or Rp 3/4 150

10 SR 130 29/05/06 - 300009755-001-H
2.6 Pressure reducer
Ifthesupplypressureexceeds 80% of thevalveorsafetyunitsetting
(e.g.5.5barsfor a safety unitsetat7bars),a pressure reducer must
be installed upstream of the DHW tank. Install the pressure reducer
downstream of the water meter in such a way as to ensure the same
pressure in all of the pipes in the installation.
2.7 Bleed circuit
During the heating process, water can flow through the
bleed circuit to guarantee the safety of the installation. Do
not block!
2.8 Measures to take to prevent hot water blow back
Fit a non-return valve to the domestic cold water circuit. If using a closed calorifier, the non-return valve must be easily
accessible

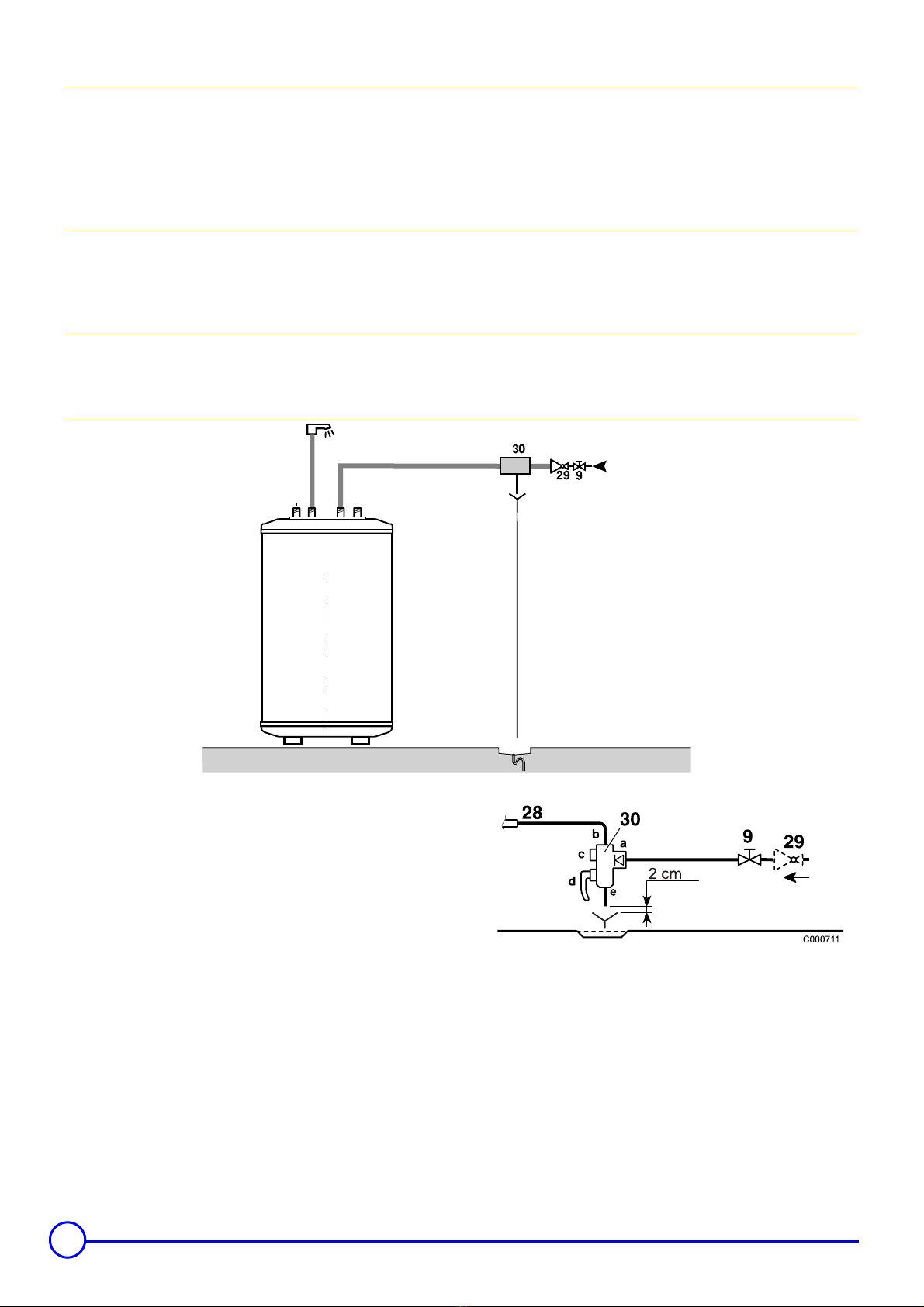

2.9 Hydraulic connections
9. Isolation valve
28. Domestic cold water inlet
29. Pressurereducer-Ifthe supply pressureexceeds80% ofthevalve
or safety unit setting (e.g. 5.5 bars for a safety unit set at 7 bars), a
pressure reducer must be installed upstream of the DHW tank
30. France: Safety unit
a. Cold water inlet with an integrated non-return valve
b. Connection to the DHW tank cold water inlet
c. Stop cock
d. safety unit 7 bar
e. Drain opening
Germany: 10-bar safety valve
57. Domestic hot water outlet
57 28
8953N155

11
29/05/06 - 300009755-001-H SR 130
3 Assembly and connection of the domestic hot water sensor
The sensor must be connected before switching on the
boiler. Make sure the temperature sensor is pushed all the way into the sensor socket.
3.1 Connecting the DHW sensor to a CITY boiler
The connection for the domestic hot water sensor can be found on
the back of the boiler control panel under the little flap.
Cut the power supply to the boiler.

12 SR 130 29/05/06 - 300009755-001-H
3.2 Connecting the DHW sensor to a DPSM3 or MC boiler
Cut the power supply to the boiler.

13
29/05/06 - 300009755-001-H SR 130
3.3 Connecting the DHW sensor to a MCR 24 boiler
Cut the power supply to the boiler.
3.4 Resistance values of the sensor in ohms according to temperature
Commissionning
1. Fill the calorifier via the cold water input pipe.
2. Carefully degas the DHW tank and the distribution network in
order to eliminate noises and hammering caused by trapped air
moving in the pipes during draw-off.
To do so:
- Fill it completely with water, leaving a hot water tap open.
- Only reclose this valve when the flow is regular and there are no
noises or hammering in the pipes.
- Then successively degas all the hot water pipes by opening the
corresponding valves.
3. Check the safety devices (particularly the valve or safety unit),
referring to the instructions provided with these components.
During the heating process, a certain amount of water may
flow through the valve or safety unit; this is caused by
water expansion. This phenomenon is completely normal
and must in no event be hindered.
Temperature in °C 10 20 25 30 40 50 60 70 80
Resistance in ohm 19 691 12 474 10 000 8 080 5 372 3 661 2 536 1 794 1 290

14 SR 130 29/05/06 - 300009755-001-H
Maintenance and periodic checks
Magnesium anode
The magnesium anodes must be checked at least every 2, years.
After the first check, determinethe frequency of future checks onthe
basis of anode wear.
The anodes can be checked by two methods:
Inspection:
- the anode must be replaced if its diameter is less than 15 mm
(original diameter = 33 mm).
Function test:
- disconnect the earth wire from the anode.
- measure the strength of the current between the tank and the
anode ; if the current measured is less than 0.1 mA, the anode
should be replaced.
If the anodes must be replaced, proceed as described below.
Valve or safety unit
The valve or safety unit must be operated at least once a month in
order to ensure that it is operating correctly and to be forewarned of
any overpressure which would damage the DHW tank.
Exchanger
In hard water regions, it is advisable to ask the fitter to descale the
DHW tank exchanger once a year in order to maintain its level of
performance.
Cladding
The cladding of the DHW tank can be cleaned with soapy water.
Procedures to follow for descaling, or checking or replacing the magnesium anodes
Use a new leak tight seal on the inspection trap.
1. Turn off the domestic cold water inlet.
2. Open a hot water tap.
3. Open the valve on the safety unit.
4. Remove the hood Ausing a broad-bladed screwdriver (see
detail) and then remove the insulation.
5. RemovethesensorBfromthethimbletubeintheinspectiontrap
C.
6. Remove the cover (13 mm spanner).
7. Drain the calorifier.
8. Check and remplace the anode Dif necessary (13 spanner).
9. Check the exchanger:
Descale the exchanger in order to maintain its performance
levels.
- Remove limescale deposits in the form of sludge or strips in the
bottom of the tank.
- Onthe other hand,donottouchlimescaleadhering to thewallsof
the tank as it provides effective protection against corrosion and
improves the insulation of the DHW tank.
10. Reassemble the parts. Replace the leakproof seal E on the
hatch. Put it in place with the retainer ring Ftaking care to place
the positioning lug on the gasket pointing to the outside of the
calorifier.
11. Make sure the temperature sensor is pushed all the wayinto the
sensor socket.
12. Check for leak tightness after assembly.
The screws retaining the visit trap must be tightened to
6 Nm +1/-0. Use a dynamometric spanner. Approximately
6 Nm is obtained by holding the box spanner by the small
lever.
13. Switch on.
14. Re-assemble the cover A.

15
29/05/06 - 300009755-001-H SR 130
Maintenance form
No. Date Checks made Comments By Signature
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

DEDIETRICH THERMIQUES.A.S.-Sparepartscentre
4rue d’Oberbronn-F-67110REICHSHOFFEN- *[phone]- ++33(0)3888026 98
cprdedietrichthermique.com
Spare parts - SR 130
29/05/06 - 8953-4129B
to order a spare part, it is imperative to give the code number shown on the list, against the number of the part required.
Rep Reference Description
18953-8579 Complete Anode
28375-4945 Earth wire
38953-5528 Complete buffer tank
48970-5511 Seal kit 7 mm mm + retainer ring
68953-8593 Top cover
79536-2445 NTC DHW sensor 5 m
88199-4919 2-pin connector for DHW sensor
10 8953-5529 Accessories bag

17
29/05/06 - 300009755-001-H SR 130
Warranty
You have just purchased one of our appliances and we thank you
for the trust you have placed in our products.
Please note that your appliance will provide good service for a
longer period of time if it is regularly checked and maintained.
Your fitter and our customer support network are at your disposal
at all times.
Warranty terms
Starting from the purchase date shown on the original fitter's
invoice, your appliance has a contractual guarantee against any
manufacturing defect.
The length of the guarantee is mentioned in the price catalogue.
The manufacturer is not liable for any improper use of the
appliance or failure to maintain or install the unit correctly (the
user shall take care to ensure that the system is installed by a
qualified fitter).
In particular, the manufacturer shall not be held responsible for
any damage, loss or injury caused by installations which do not
comply with the following:
- applicable local laws and regulations
- specific requirements relating to the installation, such as
national and/or local regulations
- the manufacturer's instructions, in particular those relating to
the regular maintenance of the unit
- the rules of the profession
The warranty is limited to the exchange or repair of such parts as
have been recognised to be faulty by our technical department
and does not cover labour, travel and carriage costs.
The warranty shall not apply to the replacement or repair of parts
damaged by normal wear and tear, negligence, repairs by
unqualified parties, faulty or insufficient monitoring and
maintenance, faulty power supply or the use of unsuitable fuel.
Sub-assemblies such as motors, pumps, electric valves etc. are
guaranteed only if they have never been dismantled.
France
The preceding dispositions are not exclusive of benefits for the
purchaser of the legal guarantee as stated in Civil Code articles
1641 to 1648.
Belgium
The preceding dispositions about the contractual guarantee are
not exclusive of profit if the need arises for the purchaser in
Belgium of the applicable legal dispositions on hidden defects.
Switzerland
The application of the warranty is subject to the terms and
conditions of sale, delivery and warranty of the company
marketing our products.
Other countries
The above provisions do not restrict the benefit of the legal laws
regarding hidden defects applicable in the buyer's country.

18 SR 130 29/05/06 - 300009755-001-H
Warranty certificate
Date of purchase: .............................................................................
Name and address of the purchaser: ...............................................
..........................................................................................................
..........................................................................................................
..........................................................................................................
..........................................................................................................
..........................................................................................................
Tel.:...................................................................................................
Information on the appliance (to be found on the rating plate):
Model:...............................................................................................
Serial number: ..................................................................................
Retailer's stamp:

19
29/05/06 - 300009755-001-H SR 130

DE DIETRICH THERMIQUE S.A.S.
www.dedietrich.com
DE DIETRICH HEIZTECHNIK
www.dedietrich.com
VAN MARCKE
www.vanmarcke.be
VESCAL S.A.
www.chauffer.ch / www.heizen.ch
DE DIETRICH THERMIQUE
57, rue de la Gare F- 67580 MERTZWILLER - BP 30
www.dedietrich.com
AD001Z • 02.2006
DE
BE
CH
NEUBERG S.A.
www.dedietrich.com
LU
FR
DE DIETRICH
www.dedietrich.com
DE DIETRICH
www.dedietrich.com
RU
DE DIETRICH HEIZTECHNIK
www.dedietrich.com
AT
CN
Direction des Ventes France
57, rue de la Gare
F- 67580 MERTZWILLER
[phone]
[phone]
Rheiner Strasse 151
D- 48282 EMSDETTEN
+49 (0)25 72 / 23-5
+49 (0)25 72 / 23-102
[email protected]
Weggevoerdenlaan 5
B- 8500 KORTRIJK
+32 (0)56/23 75 11
Z.I de la Veyre, St-Légier
1800 VEVEY 1
[phone]
[phone]
39 rue Jacques Stas
L- 2010 LUXEMBOURG
[phone]
8 Gilyarovskogo Str. 7
R- 129090 MOSCOW
+7 495.974.16.03
+7 495.974.66.08
[email protected]
Room 512, Tower A, Kelun Building
12A Guanghua Rd, Chaoyang District
C-100020 BEIJING
+86 (0)106.581.4017
+86 (0)106.581.4018
+86 (0)106.581.7056
+86 (0)106.581.4019
contact
BJ @dedietrich.com.cn
Am Concorde Park 1 - B 4 / 28
A-2320 SCHWECHAT / WIEN
+43 (0)1 / 706 40 60-0
+43 (0)1 / 706 40 60-99
[email protected]
Intheinterestof customers,De Dietrich ThermiqueSAS arecontinuouslyendeavouringto make improvements inproduct quality. Allthespecificationsstatedinthis document are thereforesubjecttochangewithoutnotice
