DeDietrich DHW 160 SL Troubleshooting guide

EN
Domestic hot water tank
160 SL
Installation, User
and Service
Manual
300026901-001-C

Contents
1 Introduction ................................................................................................4
1.1 Symbols used .......................................................4
1.2 Abbreviations ........................................................4
1.3 General ..................................................................4
1.3.1 Manufacturer's liability .............................................4
1.3.2 Installer's liability .....................................................5
1.3.3 User's liability ..........................................................5
1.4 Homologations ......................................................6
1.4.1 Certifications ...........................................................6
1.4.2 Directive 97/23/EC ..................................................6
1.4.3 Factory test .............................................................6
2Safety instructions and recommendations ..............................................7
2.1 Safety instructions ...............................................7
2.2 Recommendations ................................................7
3Technical description ................................................................................8
3.1 General description ..............................................8
3.2 Technical specifications ......................................8
3.2.1 Characteristics of the DHW calorifier ......................8
3.2.2 Specifications of the DHW sensor ...........................9
4 Installation ................................................................................................10
4.1 Regulations governing installation ...................10
4.2 Package list .........................................................10
4.2.1 Standard delivery ..................................................10
4.3 Choice of the location ........................................11
4.3.1 Data plate ..............................................................11
4.3.2 Location of the appliance ......................................11
4.3.3 Main dimensions ...................................................12
4.4 Positioning the appliance ..................................13
4.5 Fitting the DHW sensor ......................................15
4.6 Hydraulic connections .......................................15
4.6.1 Connecting the primary boiler circuit .....................15
4.6.2 Hydraulic connection of the secondary drinking water
circuit .....................................................................15
115/03/2012 - 300026901-001-C

4.7 Electrical connections ........................................18
4.7.1 Recommendations ................................................18
4.7.2 Connecting the domestic hot water sensor ...........18
4.7.3 Connecting the impressed current anode .............19
4.7.4 Description of the boiler's terminal block ...............19
4.8 Filling the system ...............................................20
4.8.1 Filling the secondary DHW circuit .........................20
4.8.2 Filling the primary boiler circuit ..............................21
5 Commissioning ........................................................................................22
5.1 Check points before commissioning ................22
5.1.1 Hydraulic circuits ...................................................22
5.1.2 Electrical connection .............................................22
5.2 Putting the appliance into operation ................22
6 Checking and maintenance .....................................................................23
6.1 General instructions ...........................................23
6.2 Impressed current anode ...................................23
6.3 Safety valve or safety unit .................................23
6.4 Draining the installation .....................................24
6.5 Specific maintenance operations ......................24
6.6 Cleaning the casing material .............................25
6.7 Maintenance form ...............................................26
7 Spare parts ................................................................................................27
7.1 General ................................................................27
7.2 Spare parts ..........................................................27
8 Warranty ....................................................................................................30
8.1 General ................................................................30
8.2 Warranty terms ...................................................30
Contents
215/03/2012 - 300026901-001-C

315/03/2012 - 300026901-001-C

1 Introduction
1.1 Symbols used
In these instructions, various danger levels are employed to draw the
user's attention to particular information. In so doing, we wish to
safeguard the user's safety, obviate hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼ Signals a referral to other instructions or other pages in the
instructions.
1.2 Abbreviations
4CFC: Chlorofluorocarbon
4DHW: Domestic hot water
4ICA: Impressed current anode
1.3 General
1.3.1. Manufacturer's liability
Our products are manufactured in compliance with the requirements
of the various applicable European Directives. They are therefore
delivered with [ marking and all relevant documentation.
160 SL 1. Introduction
15/03/2012 - 300026901-001-C 4

In the interest of customers, we are continuously endeavouring to
make improvements in product quality. All the specifications stated in
this document are therefore subject to change without notice.
Our liability as the manufacturer may not be invoked in the following
cases:
4Failure to abide by the instructions on using the appliance.
4Faulty or insufficient maintenance of the appliance.
4Failure to abide by the instructions on installing the appliance.
1.3.2. Installer's liability
The installer is responsible for the installation and inital start up of the
appliance. The installer must respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Carry out installation in compliance with the prevailing legislation
and standards.
4Perform the initial start up and carry out any checks necessary.
4Explain the installation to the user.
4If a maintenance is necessary, warn the user of the obligation to
check the appliance and maintain it in good working order.
4Give all the instruction manuals to the user.
1.3.3. User's liability
To guarantee optimum operation of the appliance, the user must
respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Call on qualified professionals to carry out installation and initial
start up.
4Get your installer to explain your installation to you.
4To carry out inspections and maintenance required by a qualified
professional.
4Keep the instruction manuals in good condition close to the
appliance.
This appliance is not intended to be used by persons (including
children) whose physcial, sensory or mental capacity is impaired or
persons with no experience or knowledge, unless they have the
benefit, through the intermediary of a person responsible for their
safety, of supervision or prior instructions regarding use of the
appliance. Care should be taken to ensure that children do not play
with the appliance.
1. Introduction 160 SL
515/03/2012 - 300026901-001-C

1.4 Homologations
1.4.1. Certifications
This product complies to the requirements to the european directives
and following standards:
42006/95/EC Low Voltage Directive.
Reference Standard: EN 60.335.1.
42004/108/EC Electromagnetic Compatibility Directive.
Reference Standards: EN 50.081.1, EN 50.082.1, EN 55.014
1.4.2. Directive 97/23/EC
This product conforms to the requirements of european directive 97 /
23 / EC, article 3, paragraph 3, on pressure equipment.
1.4.3. Factory test
Before leaving the factory, each appliance is tested for the following:
4Water tightness
4Air tightness
160 SL 1. Introduction
15/03/2012 - 300026901-001-C 6

2 Safety instructions and
recommendations
2.1 Safety instructions
CAUTION
Before any work, switch off the mains supply to the
appliance.
CAUTION
In order to limit the risk of being scalded, the installation of
a thermostatic mixing valve on the domestic hot water flow
piping is compulsory.
2.2 Recommendations
CAUTION
Do not neglect to service the appliance. Service the
appliance regularly to ensure that it operates correctly.
WARNING
Only qualified professionals are authorised to work on the
appliance and the installation.
WARNING
Heating water and domestic water must not come into
contact with each other. Domestic water must not circulate
via the exchanger.
4To take advantage of the guarantee, no modifications must be
made to the appliance.
4To reduce heat losses as much as possible, insulate the pipes.
Casing components
Only remove the casing for maintenance and repair operations. Put
the casing back in place after maintenance and repair operations.
Instructions stickers
The instructions and warnings affixed to the appliance must never be
removed or covered and must remain legible during the entire lifespan
of the appliance. Immediately replace damaged or illegible
instructions and warning stickers.
2. Safety instructions and recommendations 160 SL
715/03/2012 - 300026901-001-C

3 Technical description
3.1 General description
The domestic hot water tank is delivered ready for connection
to a boiler:
4AGC 10/15 - AGC 15 - AGC 25 - AGC 35
4GSCR 15 - GSCR 25 - GSCR 35
4CALORA TOWER GAS 15S DE- CALORA TOWER GAS 25S DE-
CALORA TOWER GAS 35S DE
4CALORA TOWER OIL 18 - CALORA TOWER OIL 24 - CALORA
TOWER OIL 30 - CALORA TOWER OIL 18LS - CALORA TOWER
OIL 24LS - CALORA TOWER OIL 30LS
Main parts:
4The tank is made of high quality steel and is lined with food safety
quality enamel vitrified at 850°C, which protects the tank from
corrosion.
4The tank is protected against corrosion by an impressed current
titanium anode (Titan Active System ®).
4The coil-shaped heat exchanger welded into the tank is made of
smooth piping, its external surface, which comes into contact with
drinking water, being enamelled.
4The appliance is insulated by CFC-free polyurethane foam, which
reduces heat losses to a minimum.
4The outside casing is made of painted steel sheeting.
3.2 Technical specifications
3.2.1. Characteristics of the DHW calorifier
DHW tank 160SL
Primary circuit (heating water)
Maximum operating temperature °C 95
Maximum operating pressure bar 3
Exchanger capacity l 7.3
Exchange surface m21.1
Secondary circuit (domestic water)
Maximum operating temperature °C 95
Maximum operating pressure bar 10
Water content l 160
Weight
Shipping weight (Foam coated domestic hot water tank) kg 83
160 SL 3. Technical description
15/03/2012 - 300026901-001-C 8

Performances related to the boiler type Gas fired floor-standing condensing boiler (1)
10/15 kW 15 kW 25 kW 35 kW
Power exchanged kW 15 15 28 32
Flow per hour (∆T = 35°C)(2) l/h 370 370 690 790
Draw-off capacity l/10 mm 200 200 240 245
Specific flow (∆T = 30°C)(3) l/min 20 20 24 24.5
Qp : Primary flow rate m3/h 1.1 1.1 1.1 1.5
(1) Depending on the country in which the boiler is installed
(2) Domestic cold water inlet: 10 °C - Domestic hot water outlet: 45 °C - Primary circuit (heating water): 80 °C
(3) Domestic cold water inlet: 10 °C - Domestic hot water outlet: 40 °C - Primary circuit (heating water): 80 °C - Tank temperature: 60 °C
Performances related to the boiler type Floor-standing condensing oil boiler (1)
18 kW 24 kW 30 kW
Power exchanged kW 18 24 30
Flow per hour (∆T = 35°C)(2) l/h 440 590 740
Specific flow (∆T = 30°C)(3) l/min 21 23.5 24
Draw-off capacity(3) l/10 mm 230 235 240
Qp : Primary flow rate m3/h 1.0 1.0 1.1
(1) Depending on the country in which the boiler is installed
(2) Domestic cold water inlet: 10 °C - Domestic hot water outlet: 45 °C - Primary circuit (heating water): 80 °C
(3) Domestic cold water inlet: 10 °C - Domestic hot water outlet: 40 °C - Primary circuit (heating water): 80 °C - Tank temperature: 60 °C
3.2.2. Specifications of the DHW sensor
Temperature in °C 10 20 25 30 40 50 60 70 80
Resistance in ohm 19691 12474 10000 8080 5372 3661 2536 1794 1290
3. Technical description 160 SL
915/03/2012 - 300026901-001-C

4 Installation
4.1 Regulations governing installation
CAUTION
Installation of the appliance must be done by a qualified
engineer in accordance with prevailing local and national
regulations.
CAUTION
The installation must comply in all matters to the standards
and rules which govern the work and interventions in
individual and collective homes, and other constructions.
4.2 Package list
4.2.1. Standard delivery
The delivery includes:
4Complete calorifier
4Domestic hot water sensor
4ICA cable
4DHW tank installation, operating and service manual
160 SL 4. Installation
15/03/2012 - 300026901-001-C 10

4.3 Choice of the location
4.3.1. Data plate
The rating plate must be accessible at all times.
The rating plate identifies the product and provides the following
information:
4DHW calorifier type
4Manufacturing date (Year - Week)
4Serial number.
4.3.2. Location of the appliance
The DHW tank should be installed beside (right or left) or under the
boiler (depending on the installation and the space available).
¼ To ascertain to space to be allowed around the appliance in
order to facilitate access and maintenance, refer to the boiler's
installation and service manual.
The installer must respect the following instructions:
4Install the appliance in frost-free premises.
4Place the appliance on a base frame to facilitate cleaning of the
premises.
4Install the appliance as close as possible to the drawing off points
in order to minimise energy losses through the pipes.
M002342-B
4. Installation 160 SL
11 15/03/2012 - 300026901-001-C

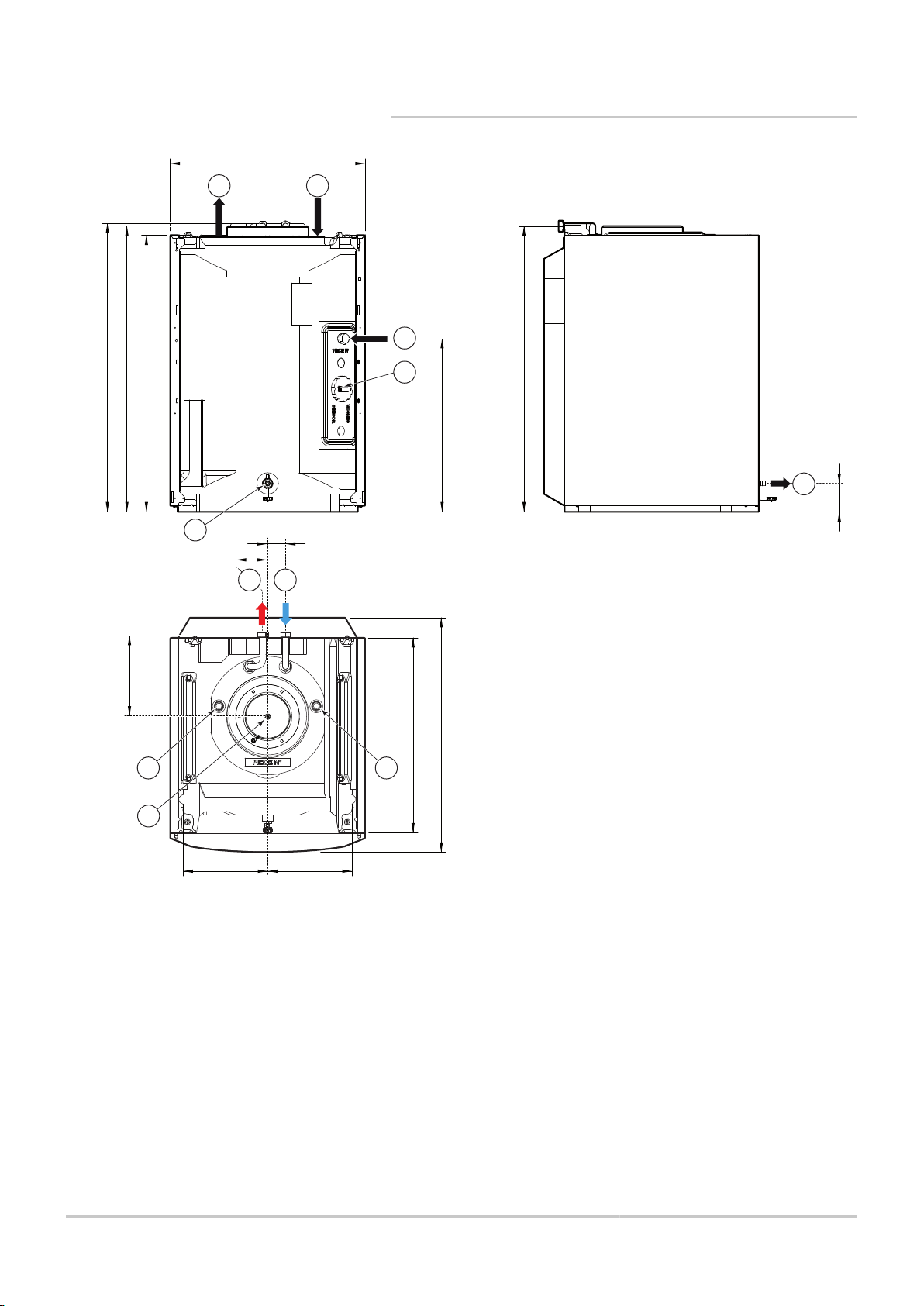

4.3.3. Main dimensions
ADomestic cold water inlet G 3/4"
ZSecondary domestic hot water flow G 3/4"
ELocation for recirculation loop G 3/4" (Option)
RPrimary boiler flow G 3/4"
TPrimary boiler return G 3/4"
YDrain cock 1/2"
ULocation for DHW sensor
IImpressed current anode
M002331-B
88
600
534
880
852
880
890
723
600
260 260
250
6
3
7
45
6
15
55
12
8
5 4
160 SL 4. Installation
15/03/2012 - 300026901-001-C 12

4.4 Positioning the appliance
CAUTION
4Have 2 people on hand.
4Handle the appliance with gloves.

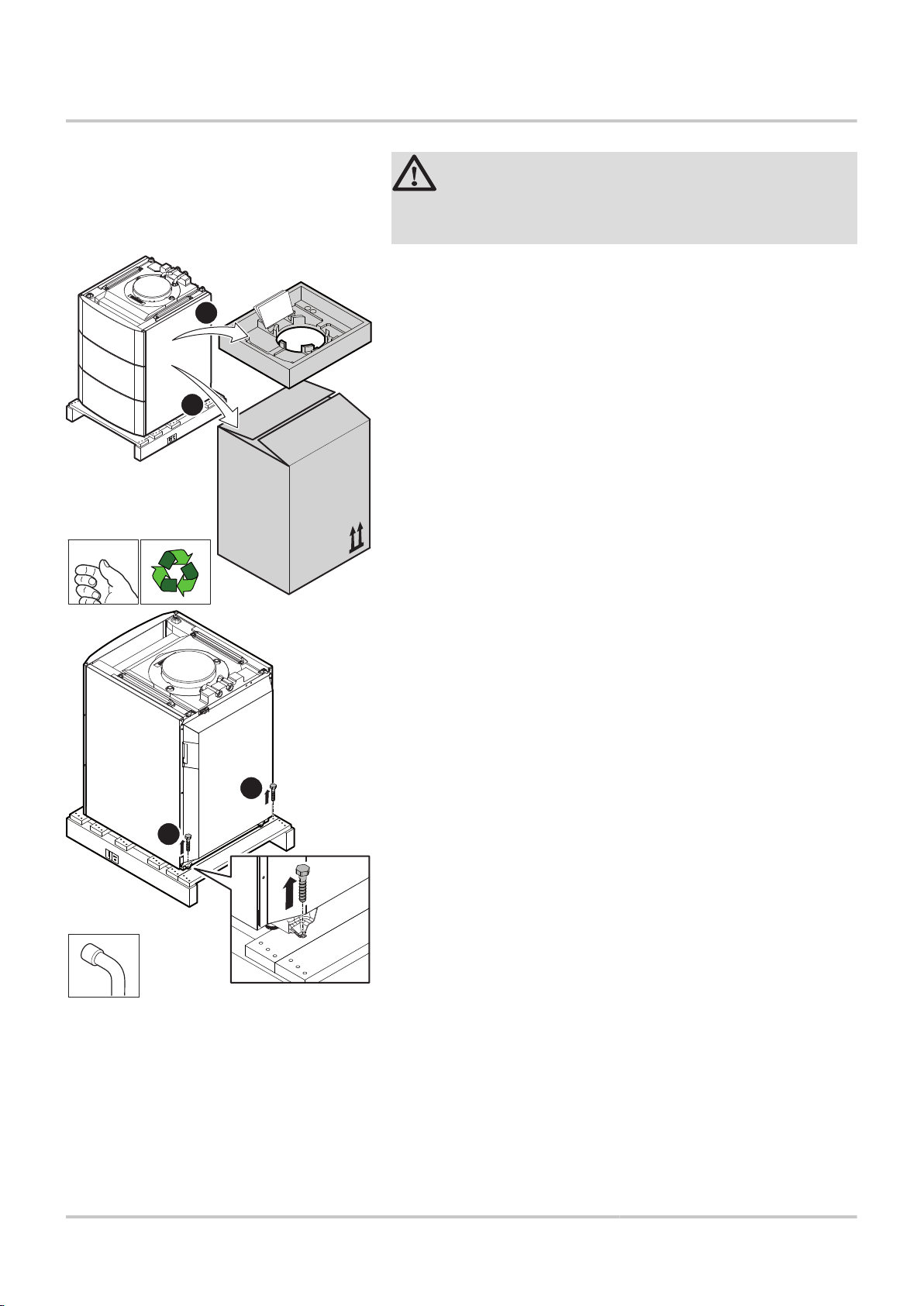

1. Remove the packaging from the DHW tank, leaving the tank on
the pallet used for transport.
2. Remove the protective packaging.
3. Unscrew the 2 screws at the back of the tank (securing the tank
to the pallet).
M002347-B
notice
handleiding
1
2
M002348-C
3
3
4. Installation 160 SL
13 15/03/2012 - 300026901-001-C

4. Open the front panel by pulling forwards until it reaches the safety
catch.
5. Insert a screwdriver to unclip the springs at both ends.
6. Remove the front panel.
7. Lift the DHW tank and place it on the ground.
M002418-A
4
6
5
4
5
M002349-B
7
160 SL 4. Installation
15/03/2012 - 300026901-001-C 14

8. Level the DHW tank using the adjustable feet.
(1) Adjustment range: 0 to 20 mm
4.5 Fitting the DHW sensor
1. Take out the insulation.
2. Put the DHW sensor in place.
3. Put the insulation back in place.
4. Route the cable through the cable feed-through to the back of the
DHW tank.
4.6 Hydraulic connections
4.6.1. Connecting the primary boiler circuit
¼ Refer to the connecting kit manual.
4.6.2. Hydraulic connection of the secondary
drinking water circuit
When making the connections, it is imperative that the standards and
corresponding local directives are respected.
M002350-E
YES
YES
NO
NO
(1)
8
M002359-D
1
2
3
4
4. Installation 160 SL
15 15/03/2012 - 300026901-001-C

These domestic hot water tanks can operate at a maximum operating
pressure of 10 bars. The recommended operating pressure is under
7 bar.
nSpecific precautions
Before making the connection, rinse the drinking water inlet
pipes in order not to introduce metal or other particles into the
appliance's tank.
nProvision for Switzerland
Make the connections according to the instructions of the Société
Suisse de l'Industrie du Gaz et des Eaux. Comply with local
instructions from water distribution plants.
nSafety valve
CAUTION
In compliance with the safety rules, fit a sealed safety
valve to the domestic cold water tank inlet.
France: We recommend NF-marked hydraulic membrance safety
control units.
4Integrate the safety valve in the cold water circuit.
4Install the safety valve close to the tank in a place which is easy
to access.
nSize
The safety device and its connection to the DHW tank must be of at
least the same diameter as the domestic cold water supply pipe of
the tank domestic circuit.
There must be no cut-off element between the valve or the safety unit
and the domestic hot water tank.
The safety device drain pipe must have a uniform and sufficient
gradient and its diameter must be at least equal to that of the outlet
opening of the safety device (to prevent the flow of water being
hindered if the pressure is too high).
The outlet pipe in the valve or safety assembly must not be blocked.
Germany: Define the dimensions of the safety valve in accordance
with the DIN 1988 standard.
Capacity (litres)
Dimension of the valve
Min. dimension of the inlet
connection
Heating output
(kW) (max)
< 200 R or Rp 1/2 75
200 to 1000 R or Rp 3/4 150
Fit the safety valve above the tank to avoid draining the tank during
servicing.
160 SL 4. Installation
15/03/2012 - 300026901-001-C 16

Install a drainage valve at the lowest point on the tank.
nIsolating valves
Hydraulically isolate the primary and secondary circuits using stop
valves to facilitate maintenance operations on the unit. The valves
make it possible to carry out maintenance on the tank and its
components without draining the entire installation.
These valves are also used to isolate the tank unit when conducting
a pressurised check on the leak tightness of the installation if the test
pressure is greater than the admissible operating pressure.
CAUTION
If the mains pipes are made of copper, fit a sleeve made
of steel, cast iron or any other insulating material between
the tank's hot water outlet and the pipes to prevent
corrosion to the connection.
nConnecting the domestic cold water
Make the connection to the cold water supply according to the
hydraulic installation diagram.
¼ Refer to the installation and maintenance instructions of the
boiler
Install a water drain in the boiler room and a funnel-siphon for the
safety unit.
The components used for the connection to the cold water supply
must comply with the prevailing standards and regulations in the
country concerned. Fit a one-way valve to the domestic cold water
circuit.
Make the connection to the cold water supply according to the
hydraulic installation diagram. ¼ Refer to the installation and
maintenance instructions of the boiler
Install a water drain in the boiler room and a funnel-siphon for the
safety unit.
The components used for the connection to the cold water supply
must comply with the prevailing standards and regulations in the
country concerned. Fit a one-way valve to the domestic cold water
circuit.
nPressure reducer
If the mains pressure exceeds 80% of the valve or safety unit setpoint
(e.g.: 5.5 bar for a safety unit set at 7 bar), a pressure reducer must
be fitted upstream of the appliance. Install the pressure reducer
downstream the water meter in such a way as to ensure the same
pressure in all of the installation pipes.
nMeasures to take to prevent hot water flow reversal
Fit a one-way valve to the domestic cold water circuit.
4. Installation 160 SL
17 15/03/2012 - 300026901-001-C

4.7 Electrical connections
4.7.1. Recommendations
WARNING
4Only qualified professionnals may carry out electrical
connections, always with the power off.
4Earth the appliance before making any electrical
connections.
Make the electrical connections of the appliance according to:
4The instructions of the prevailing standards,
4The instructions on the circuit diagrams provided with the
appliance,
4The recommendations in the instructions.
Belgium: The earthing must comply with the RGEI standard.
Germany: The earth connection shall comply with standard
VDE 0190.
France: The earth connection shall comply with standard
NFC 15.100.
Other countries: The earthing shall comply with local standards.
CAUTION
4Separate the sensor cables from the 230/400 V
circuit cables.
4The installation must be fitted with a main switch.
4.7.2. Connecting the domestic hot water sensor
Connect the DHW sensor to the corresponding terminal block on the
boiler (Terminal S.ECS).
¼ See chapter: "Description of the boiler's terminal block", page
19.
160 SL 4. Installation
15/03/2012 - 300026901-001-C 18

4.7.3. Connecting the impressed current anode
1. Remove the inspection trap insulation.
2. Connect the connectors on the titanium anode cable.
3. Put the inspection trap insulation back in place, feeding the cables
into the notches.
4. Route the cable to the back of the tank.
5. Connect the titanium anode cable to the corresponding terminal
block on the boiler (Terminal TA-).
¼ See chapter: "Description of the boiler's terminal block",
page 19
4.7.4. Description of the boiler's terminal block
nGas fired floor-standing condensing boiler
AS.ECS: Connect the DHW sensor.
ZTA-: Connect the DHW tank anode.
3 1
4
M002357-E
22
X20
X4
On/off
OT BL RL S EXT S ECS
1 2
TS + B AB
0-10V
S AMB C
4 3 2 1 2 1 + -
S AMB B
2 1
S AMB A
2 1
S SYST + TA -
S ECS S EXT S DEP C
2 12 12 12 1 2 1
S DEP B
2 1
PCU SCU
C003904-A
4. Installation 160 SL
19 15/03/2012 - 300026901-001-C
