KALIKO EN
Thermodynamic water heater
TWH 200E
TWH 300E
TWH 300EH
C003182-B
Installation and
Service Manual
300026515-001-05

Declaration of conformity
The device complies with the standard type described in
the EG declaration of conformity. It was manufactured and
commissioned in accordance with European directives.
The original declaration of conformity is available from the
manufacturer.

Contents
1 Safety instructions and recommendations ..............................................6
1.1 Safety instructions ...............................................6
1.1.1 Installation ...............................................................6
1.1.2 Hydraulic connections .............................................6
1.1.3 Electrical connections .............................................7
1.1.4 Internet Site .............................................................7
1.1.5 Miscellaneous .........................................................8
1.2 Recommendations ................................................8
1.3 Liabilities ...............................................................9
1.3.1 Manufacturer’s liability .............................................9
1.3.2 Installer’s liability .....................................................9
1.4 Safety data sheet: R-134a refrigerant ...............10
1.4.1 Product identification .............................................10
1.4.2 Hazard identification ..............................................10
1.4.3 Composition / Information on the ingredients ........10
1.4.4 First aid .................................................................10
1.4.5 Fire prevention measures .....................................11
1.4.6 In the event of accidental spillage .........................11
1.4.7 Handling ................................................................11
1.4.8 Personal protection ...............................................12
1.4.9 Considerations on disposal ...................................12
1.4.10 Regulations ...........................................................12
2 About this manual ....................................................................................13
2.1 Symbols used .....................................................13
2.2 Abbreviations ......................................................13
3 Technical specifications ..........................................................................14
3.1 Homologations ....................................................14
3.1.1 Certifications .........................................................14
3.1.2 Directive 97/23/EC ................................................14
3.1.3 Factory test ...........................................................14
3.2 Technical specifications ....................................15
3.2.1 Characteristics of the appliance ............................15
3.2.2 Heating time of the DHW tank depending on the air
temperature ...........................................................15

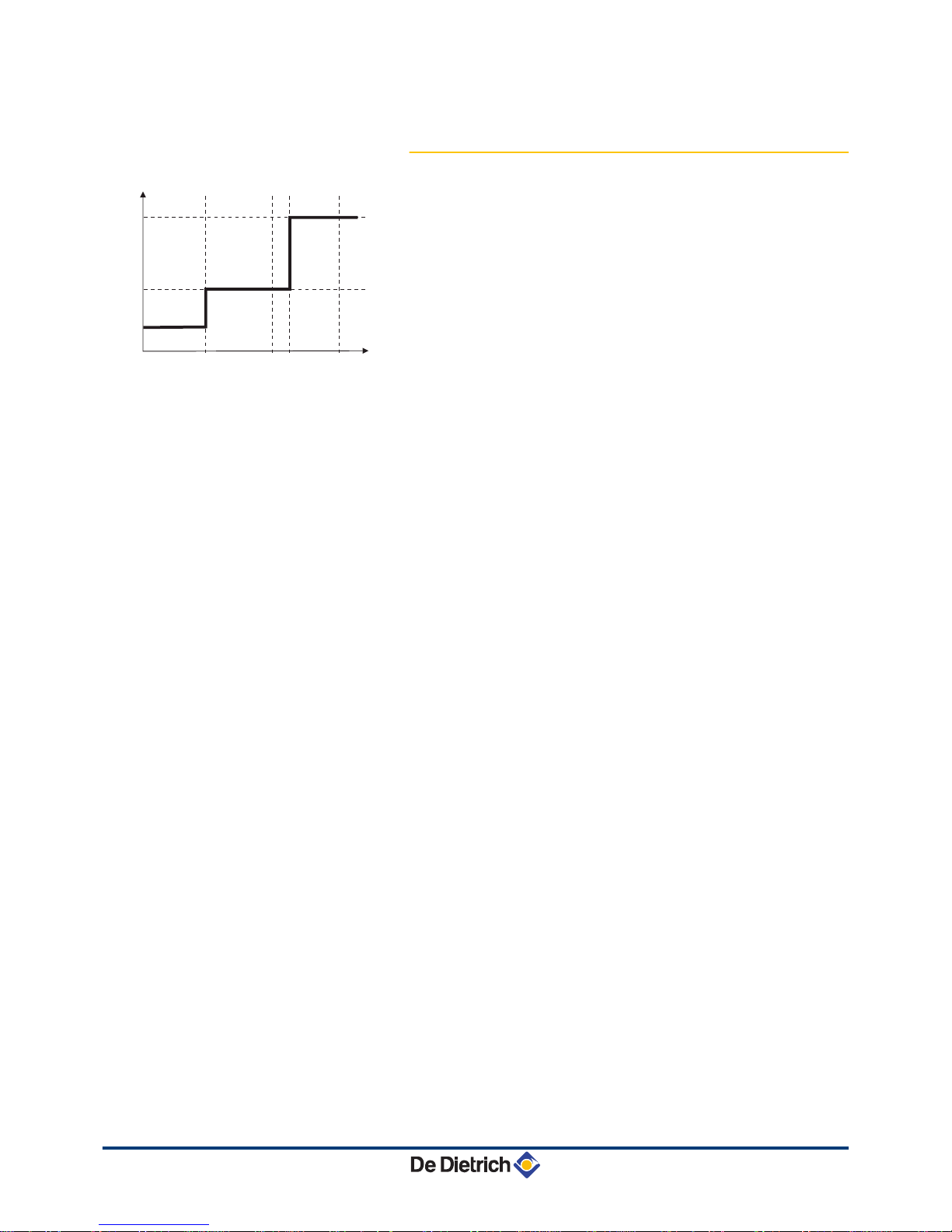

3.2.3 Max domestic hot water set point reached by the heat
pump depending on the air temperature ...............16
19/01/2015 - 300026515-001-05 1

4 Technical description ..............................................................................17
4.1 General description ............................................17
4.2 Main parts ............................................................18
4.3 Operating principle .............................................18
5 Installation ................................................................................................20
5.1 Regulations governing installation ...................20
5.2 Package list .........................................................20
5.2.1 Standard delivery ..................................................20
5.2.2 Accessories ...........................................................20
5.3 Storage and transport ........................................21
5.3.1 Transport ...............................................................21
5.4 Choice of the location ........................................22
5.4.1 Type plate .............................................................22
5.4.2 Positioning of the appliance ..................................22
5.4.3 Main dimensions ...................................................26
5.5 Positioning the appliance ..................................28
5.5.1 Unpacking the appliance .......................................28
5.5.2 Positioning the appliance ......................................28
5.5.3 Levelling ................................................................29
5.6 Hydraulic connections .......................................29
5.6.1 Connecting the calorifer to the domestic water circuit
(secondary circuit) .................................................29
5.6.2 Connection to a boiler (Version EH) ......................31
5.6.3 Connection to solar collectors (Version EH) .........33
5.7 Condensates discharge .....................................35
5.8 Installing the control system in the living
room .....................................................................35
5.8.1 Choose a location .................................................35
5.8.2 Operations to be carried out on the thermodynamic
DHW tank ..............................................................36
5.8.3 Installing the control system in the living
room ......................................................................37
5.9 Electrical connections ........................................38
5.9.1 Recommendations ................................................38
5.9.2 Connecting the hydraulic back-up (Version
EH) ........................................................................38
5.9.3 Access to the connection terminal HP/HC ............39
5.9.4 Connection with HP/HC signal connected ............40
5.9.5 Connection with timer programming .....................42
5.9.6 Connection with timer programming and photovoltaic
signal .....................................................................43
Contents
19/01/2015 - 300026515-001-05 2

5.10 Electrical principle diagram ...............................44
5.11 Filling the thermodynamic DHW tank ...............45
6 Commissioning ........................................................................................46
6.1 Control panel .......................................................46
6.1.1 Description of the keys ..........................................46
6.1.2 Description of the display ......................................46
6.1.3 Browsing in the menus ..........................................48
6.2 Check points before commissioning ................48
6.3 Putting the appliance into operation ................49
6.3.1 Commissioning ......................................................49
6.4 Checks and adjustments after
commissioning ...................................................49
6.5 Choosing the operating mode ...........................49
6.6 Reading out measured values ...........................50
6.6.1 Measurements menu ............................................50
6.6.2 Counters ................................................................50
6.7 Modifying the installer parameters ...................52
6.7.1 Access to parameters ...........................................52
6.7.2 List of the parameters ...........................................53
6.7.3 Control system sequence ......................................54
6.7.4 Return to the factory settings ................................54
7 Switching off the appliance .....................................................................56
7.1 Installation shutdown .........................................56
7.2 Antifreeze protection ..........................................56
8 Checking and maintenance .....................................................................57
8.1 General instructions ...........................................57
8.2 Maintenance operations to be performed ........58
8.2.1 Refrigerant circuit ..................................................58
8.2.2 Hydraulic circuit .....................................................58
8.2.3 Aeraulics ...............................................................58
8.2.4 Impressed current anode ......................................58
8.2.5 Checking the safety valve or unit ..........................58
8.2.6 Descaling ..............................................................59
8.2.7 Cleaning the condensates discharge duct ............59
19/01/2015 - 300026515-001-05 3

8.3 Accessing the bottom inspection trap .............60
8.4 Maintenance form ...............................................61
9 Troubleshooting .......................................................................................62
9.1 Messages (Code type bxx or Exx) .....................62
9.1.1 Messages (type code bXX) ..............................62
9.1.2 Messages (type code EXX) ..............................64
9.2 Message and error history .................................65
9.2.1 Err error display ....................................................66
9.2.2 bL blockage display ...............................................66
9.2.3 Reset error and blockage history ..........................66
10 Spare parts ................................................................................................67
10.1 General ................................................................67
10.2 Spare parts ..........................................................67
10.2.1 Heat pump .............................................................67
10.2.2 DHW tank ..............................................................69
Contents
19/01/2015 - 300026515-001-05 4

19/01/2015 - 300026515-001-05 5

1 Safety instructions and
recommendations
1.1 Safety instructions
DANGER
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
1.1.1. Installation
4Allow the space necessary for the correct installation of
the appliance:
¼See chapter Positioning of the appliance
(Installation and Service Manual).
1.1.2. Hydraulic connections
4The appliance is intended to be connected
permanently to the mains water supply.
4Maximum / minimum water pressure at the inlet:
¼See chapter Technical specifications.
4The pressure limiter device must be started up
regularly in order to remove any limescale deposits and
check that it is not blocked.
4Draining: Turn off the domestic cold water inlet. Open
a hot water tap in the system and then open the safety
unit valve. When the water stops flowing, the appliance
has been drained.
1. Safety instructions and recommendations TWH 200E TWH 300E TWH 300EH
619/01/2015 - 300026515-001-05

4A pressure reducer (not provided) is necessary when
the mains pressure exceeds 80% of the calibration of
the safety valve or unit. It will be installed upstream of
the appliance.
4As water may run out of the discharge pipe on the
pressure limiter device, the discharge pipe must be
kept open to the open air.
4Connect the pressure limiter device to a drainage pipe,
kept in the open air, in a frost-free environment, on a
continuous downward slope.
1.1.3. Electrical connections
4Allowance must be made for a means of disconnection
in the fixed pipes in accordance with the regulations on
installations.
4If the mains power lead is damaged it must be replaced
by the original manufacturer, the manufacturer’s dealer
or another competent person to prevent hazardous
situations.
4This appliance must not be powered via an external
switch such as a timer or be connected to a circuit that
is regularly switched on and off by the electricity
supplier.
4Install the appliance according to national regulations
on electrical installation.
4Wiring diagram: ¼See chapter Electrical principle
diagram (Installation and Service Manual).
4Connecting the appliance to the mains electricity:
¼See chapter Electrical connections (Installation
and Service Manual).
4Fuse type and calibre: ¼See chapter Electrical
connections (Installation and Service Manual).
1.1.4. Internet Site
The user guide and the installation manual can
also be found on our internet site.
TWH 200E TWH 300E TWH 300EH 1. Safety instructions and recommendations
19/01/2015 - 300026515-001-05 7

1.1.5. Miscellaneous
DANGER
If smoke is released or in case of refrigerant leak:
1. Do not use a naked flame, do not smoke, do
not operate electrical contacts or switches
( doorbell, light, motor, lift, etc..).
2. Open the windows.
3. Switch the appliance off.
4. Avoid contact with the refrigerant. Danger of
frost injuries.
5. Trace possible leaks and seal them
immediately.
WARNING
Depending on the settings of the appliance:
4Do not touch the refrigeration connection
pipes with your bare hands while the
appliance is running. Risk of being burnt.
CAUTION
4Do not neglect to service the appliance.
4In order to limit the risk of being scalded, the
installation of a thermostatic mixing valve on
the domestic hot water flow piping is
compulsory.
1.2 Recommendations
WARNING
Only certified professionals having received
adequate training are permitted to work on the
appliance and the installation.
WARNING
Before any work, switch off the mains supply to
the appliance.
1. Safety instructions and recommendations TWH 200E TWH 300E TWH 300EH
819/01/2015 - 300026515-001-05

1.3 Liabilities
1.3.1. Manufacturer’s liability
Our products are manufactured in compliance with the
requirements of the various applicable European
Directives. They are therefore delivered with [ marking
and all relevant documentation.
In the interest of customers, we are continuously
endeavouring to make improvements in product quality.
All the specifications stated in this document are therefore
subject to change without notice.
Our liability as the manufacturer may not be invoked in the
following cases:
4Failure to abide by the instructions on using the
appliance.
4Faulty or insufficient maintenance of the appliance.
4Failure to abide by the instructions on installing the
appliance.
1.3.2. Installer’s liability
The installer is responsible for the installation and
commissioning of the appliance. The installer must
respect the following instructions:
4Read and follow the instructions given in the manuals
provided with the appliance.
4Carry out installation in compliance with the prevailing
legislation and standards.
4Perform the initial start up and carry out any checks
necessary.
4Explain the installation to the user.
4If a maintenance is necessary, warn the user of the
obligation to check the appliance and maintain it in
good working order.
4Give all the instruction manuals to the user.
TWH 200E TWH 300E TWH 300EH 1. Safety instructions and recommendations
19/01/2015 - 300026515-001-05 9

1.4 Safety data sheet: R-134a refrigerant
1.4.1. Product identification
4Refrigerant name: R-134a
1.4.2. Hazard identification
4Effects harmful to health:
-The vapours are heavier than air and may lead to
asphyxia owing to reduced oxygen levels.
-Liquefied gas: Contact with the liquid may cause
serious frost and eye injuries.
4Product classification: This product is not classified as
a "hazardous preparation" according to European
Union regulations.
CAUTION
If refrigerant is mixed with air, it may lead to
pressure surges in the refrigeration pipes and
cause an explosion and other hazards.
1.4.3. Composition / Information on the
ingredients
4Chemical nature: 1,1,1,2-Tetrafluoroethane R-134a.
4Ingredients that may lead to hazardous situations:
Substance name Concentration CAS number CE number Classification GWP
1,1,1,2-Tetrafluoroethane R-134a 100 % 811-97-2 212-377-0 1300
1.4.4. First aid
4If inhaled: Evacuate the subject from the contaminated
area and take him into the open air.
If feeling unwell: Call a doctor.
4In the event of contact with the skin: Treat frost
injuries as burns. Rinse in abundant water, do not
remove clothing (risk of adhesion to the skin).
If skin burns appear, call a doctor immediately.
1. Safety instructions and recommendations TWH 200E TWH 300E TWH 300EH
10 19/01/2015 - 300026515-001-05

4In the event of contact with the eyes: Rinse
immediately in water, holding the eyelids well apart (at
least 15 minutes).
Consult an ophthalmologist immediately.
1.4.5. Fire prevention measures
4Appropriate extinguishing agents: All extinguishing
agents can be used.
4Inappropriate extinguishing agents: None to our
knowledge. In the event of fire nearby, use the
appropriate extinguishing agents.
4Specific hazards:
-Rise in pressure.
In the presence of air, an inflammable mixture may
form under certain temperature and pressure
conditions
-Toxic and corrosive vapours may be released by the
effect of the heat.
4Special intervention methods: Cool the volumes
exposed to heat with water spray.
4Protection of the firemen:
-Full facepiece self-contained breathing apparatus
-Complete body protection.
1.4.6. In the event of accidental spillage
4Individual precautions:
-Avoid contact with the skin and eyes
-Do not intervene without appropriate protective
equipment
-Do not inhale the vapours
-Evacuate the hazardous area
-Stop the leakage
-Eradicate all sources of ignition
-Ventilate the spillage area mechanically (Risk of
asphyxia).
4Cleaning / Decontamination: Allow residual product to
evaporate.
1.4.7. Handling
4Technical measures: Ventilation.
TWH 200E TWH 300E TWH 300EH 1. Safety instructions and recommendations
19/01/2015 - 300026515-001-05 11

4Precautions to be taken:
-No smoking
-Prevent the accumulation of electrostatic charges
-Work in a well ventilated place.
1.4.8. Personal protection
4Respiratory protection:
-If insufficient ventilation: AX type cartridge mask
-In confined spaces: Full facepiece self-contained
breathing apparatus.
4Hand protection: Protective gloves in leather or nitrile
rubber.
4Eye protection: Safety glasses with side protection.
4Skin protection: Clothing made mostly of cotton.
4Industrial hygiene: Do not drink, eat or smoke at the
place of work.
1.4.9. Considerations on disposal
4Product waste: Consult the manufacturer or the
supplier for information on recovery or recycling.
4Soiled packaging: Reuse or recycle after
decontamination. Destroy in authorised installations.
WARNING
Disposal must be done in compliance with
prevailing local and national regulations.
1.4.10. Regulations
4EC Regulation 842/2006: Fluorinated greenhouse
gases under the Kyoto Protocol.
1. Safety instructions and recommendations TWH 200E TWH 300E TWH 300EH
12 19/01/2015 - 300026515-001-05

2 About this manual
2.1 Symbols used
In these instructions, various danger levels are employed to draw the
user’s attention to particular information. In so doing, we wish to
safeguard the user’s safety, highlight hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼Signals a referral to other instructions or other pages in the
instructions.
Before installing and commissioning the device, read
carefully the instruction manuals provided.
2.2 Abbreviations
4HP: Heat pump
4DHW: Domestic hot water
4LP: Low pressure
4HP: High pressure
4CFC: Chlorofluorocarbon
4Qpr: Static losses (Thermal losses from the DHW tank when it is
off for 24 hours)
4COP: Performance coefficient
4HP/HC: Peak hours / Off-peak hours
TWH 200E TWH 300E TWH 300EH 2. About this manual
19/01/2015 - 300026515-001-05 13

3 Technical specifications
3.1 Homologations
3.1.1. Certifications
nElectrical compliance / Marking CE
This product complies to the requirements to the european directives
and following standards:
42006/95/EC Low Voltage Directive
Reference Standard: EN 60.335.1.
42004/108/EC Electromagnetic Compatibility Directive
Reference Standard: EN 50.081.1 / EN 50.082.1 / EN 55.014.
3.1.2. Directive 97/23/EC
This product conforms to the requirements of european directive 97 /
23 / EC, article 3, paragraph 3, on pressure equipment.
3.1.3. Factory test
Before leaving the factory, each appliance is tested for the following:
4Water tightness
4Air tightness
4Electrical safety.
3. Technical specifications TWH 200E TWH 300E TWH 300EH
14 19/01/2015 - 300026515-001-05

3.2 Technical specifications
3.2.1. Characteristics of the appliance
Model TWH 300 E TWH 300 EH TWH 200 E
Capacity litres 270 260 215
Output (HP) -Air temperature = 15°C W 1700 1700 1700
Absorbed electrical power (HP) W 500 500 500
COP (1) 2.94 2.75 2.90
Nominal air flow rate (DP = 25 Pa)(1) m3/h 320 320 320
Electrical resistor output W 2400 2400 2400
Operating pressure bar (MPa) 10 (1,0) 10 (1,0) 10 (1,0)
Power supply voltage V 230 230 230
Circuit breaker A 16 16 16
Exchanger surface m2- 1.00 -
Continuous output DT = 35 K (2) (3) litres per hour - 955.6 -
Flow rate over 10 minutes with DT = 30 K (2) l/10 mm - 420 -
Vmax(1) litres 388 383 281.9
Pes(1) W 34 36 30
Maximum length of the air connection Diameter 160 mm(4) m 26 26 26
R134a refrigerant kg 1.45 1.45 1.45
Weight (empty) kg 105 123 92
(1) Value obtained with an air temperature of 7 and a water inlet at 10 °C, as per EN16147 based on Specification LCIE N°103-15/B:2011
(2) Domestic cold water input at 10°C - Primary inlet temperature at 80°C
(3) Output: 34.1 kW
(4) The installation of suction and backflow conduits on the heat pump lessens its performance
3.2.2. Heating time of the DHW tank depending on
the air temperature
Scenario for complete heating of the DHW tank
AHeating time for a set point of 51°C
BHeating time for a set point of 62°C
YHeating time (Hours)
XAir temperature (°C)
0
2
4
6
8
10
12
14
16
18
20
-5 0 5 10 15 20 25 30 35
Y
X
B
A
C003447-A
TWH 200E TWH 300E TWH 300EH 3. Technical specifications
19/01/2015 - 300026515-001-05 15

3.2.3. Max domestic hot water set point reached
by the heat pump depending on the air
temperature
YMax domestic hot water temperature (°C)
XAir temperature (°C)
C003483-B
51°
-5 0 5 7 10 X
55°
65°
Y
3. Technical specifications TWH 200E TWH 300E TWH 300EH
16 19/01/2015 - 300026515-001-05

4 Technical description
4.1 General description
The DHW tanks in the TWH range have the following characteristics:
4Floor-standing thermodynamic storage DHW tank
4Thermodynamic unit extracting energy from unheated ambient air
or outside air
4Control panel with display of the volume of water heated and
hourly programming
4Heat exchanger for connection to a boiler or a solar circuit (Version
EH)
4Steatite electrical resistor 2.4 kW
4Enamelled tank protected by impressed current anode
4Very thick insulation (0% CFCs)
The thermodynamic water heater is a hot water tank that can be
heated by:
4The Heat Pump (up to 65°C)
4The electric heating resistance (Electrical back-up - AUTO and
Boost mode) (up to 70°C)
4The additional heat exchanger (Version EH)
TWH 200E TWH 300E TWH 300EH 4. Technical description
19/01/2015 - 300026515-001-05 17

4.2 Main parts
1Fan
2Evaporator
3Expansion valve
4Solenoid valve for defrosting
5Regulation
6temperature sensor
7Impressed current anode
8Safety thermostat
9Steatite electrical resistor
10 temperature sensor
11 Air conduits
12 High pressure (HP) pressure switch
13 Low pressure (LP) pressure switch
14 Compressor
15 Pressure measurement point - High pressure (HP)
16 Ventilation grid
17 Domestic hot water outlet
18 Condenser
19 Cold water inlet
4.3 Operating principle
The thermodynamic DHW tank uses unheated ambient air or outside
air to prepare DHW.
The refrigerant circuit is a closed circuit in which the R-134a
refrigerant plays the role of an energy carrier.
The heat from the intake air is transferred to the refrigerant in the
finned heat exchanger at a low evaporation temperature.
The refrigerant is sucked in by a compressor in vapour form, which
raises it to a higher pressure and temperature and sends it to the
condenser. In the condenser, the heat extracted in the evaporator and
some of the energy absorbed by the compressor are released into
the water.
C003185-F
5
6
10
2
1
3
4
15
16
13
12
14
17
11
19
18
8
7
9
4. Technical description TWH 200E TWH 300E TWH 300EH
18 19/01/2015 - 300026515-001-05
