This manual has been designed to help you with
three extremely important issues: Operation, Safety,
and Maintenance. It is strongly recommended that
you read through the entire manual and review it
annually for:
 •yourownpersonalsafety.
 •thesafetyofothers.
 •helpfulandeffectiveoperation
techniques.
 •maintenanceprocedures.
 •preventativemaintenance.
Your authorized Degelman dealer can be
contacted for ordering any replacement parts,
decals, or manuals. Since many of our parts are
specially designed specifically for this dozer blade
we strongly recommend you always replace them
with genuine Degelman parts only.
This manual and its contents were current at the time
of its first printing. To increase product performance
and operation, some part modifications and changes
may occur that are not reflected in this manual.
Note: The description “Right”or“Left” as used in this
manual is determined by the direction the tractor
will travel while in use (unless otherwise stated).
Degelman is proud to welcome you to our rapidly
increasing family of high quality and dependable
product owners. This product was designed and
built specifically for you, the customer. Through our
research and with your input and feedback, we
present to you our PileDriver Blade.
Designed with durability, safety, and performance in
mind, this dozer blade is ready for years of quality
service. In order to help you keep your dozer blade
in top operating condition we have provided you
with this manual.
Your serial number is
found on the serial number plate.
It is important to record the serial and model
number of your dozer for proof of ownership and
for any required service or maintenance assistance.
Serial Number
Owner Name
Model
Purchase Date
Dealer Name
Address
Phone
The PileDriver Blade consists of a dual-wing dozer
blade connected to a pivot/main frame assembly.
Typically, this assembly mounts to side and axle
brackets that are bolted securely onto the frame of
your tractor.
The blade is attachable/detachable with a simple
D-lock mounting system and hydraulic hook-up.
The PileDriver Blade has options for three
hydraulically controlled ranges of motion – lift, wing
angle & tilt.
Lift Wing Angle Tilt
WELCOME PROOF OF OWNERSHIP
ABOUT THIS MANUAL
DESCRIPTION
Introduction
Left
Side
Right
Side
Serial Number Plate

-2-
143558 - PileDriver (26-June-2012)
Safety
Why is SAFETY
important to YOU?
3 BIG Reasons:
•Accidents Can Disable and Kill
 •AccidentsAreCostly
 •AccidentsCanBeAvoided
. . . for your own safety and that of others!
- If you are not familiar with basic agriculture &
industrial safety, you must get training.
- Owners of equipment must give operating
instructions to other operators such as family
members or a hired hand.
- Making any design changes to equipment could
cause a hazard, damage your machine & void
your warranty.
YOU are responsible for the SAFE operation and
maintenance of your Degelman implement. YOU
must ensure that you and anyone else who is going
to operate, maintain, or work around the machine
be familiar with the operating and maintenance
procedures, and related SAFETY information
contained in this manual. This manual will take you
step-by-step through your working day and will
alert you to good safety practices that should be
adhered to while operating this equipment.
Remember, YOU are the key to safety. Good
safety practices not only protect you, but also
the people around you. Make these practices a
working part of your safety program. Be certain
that EVERYONE operating this equipment is familiar
with the recommended operating and maintenance
procedures and follows all the safety precautions.
Most accidents can be prevented. Do not risk injury
or death by ignoring good safety practices.
•Ownersmustgiveoperatinginstructionsto
operators or employees before allowing them to
operate the unit, and at least annually thereafter
per OSHA regulation 1928.57.
•Themostimportantsafetydeviceonthis
equipment is a SAFE operator. It is the operator’s
responsibility to read and understand ALL Safety
and Operating instructions in the manual and to
follow these. All accidents can be avoided!
•ApersonwhohasnotreadandunderstoodALL
operating and safety instructions is not qualified
to operate the machine. An untrained operator
exposes himself and bystanders to possible
serious injury or death.
•Donotmodifytheequipmentinanyway.
Unauthorized modification may impair the
function and/or safety and could affect the life of
the equipment.
DANGER: Indicates an imminently hazardous situation
that, if not avoided, WILL result in death or serious injury
if proper precautions are not taken.
WARNING: Indicates a potentially hazardous situation
that, if not avoided, COULD result in death or serious
injury if proper precautions are not taken.
CAUTION: Indicates a potentially hazardous situation
that, if not avoided, MAY result in minor or moderate
injury if proper practices are not taken, or, serves as a
reminder to follow appropriate safety practices.
Note the use of the Signal Words: DANGER, WARNING,
and CAUTION with the safety messages. The appropriate
Signal Word has been selected using the following
guidelines:
SIGNAL WORDS
The Safety Alert Symbol identifies important safety
messages applied to the dozer blade and in this
manual. When you see this symbol, be alert to the
possibility of injury or death. Follow the
instructions provided on the safety messages.
The Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
SAFETY ALERT SYMBOL
YOU are RESPONSIBLE

-3-
143558 - PileDriver (26-June-2012)
Wear Protective Equipment
Note: Before working on machine, always turn
tractor off, set controls in neutral, and remove
ignition key.
•Wear proper safety equipment such
as safety glasses and shoes, hearing
protection, hard
hats, or any other
appropriate items
to prevent injury.
•Loss of hearing or hearing impairment may result
from prolonged exposure to loud noise. Wear
suitable hearing protective devices such as
earmuffs or earplugs to protect your hearing.
•Safelyoperatingthis equipment requires the full
attention of the operator. Do not wear radio or
music headphones, or talk on your phone while
operating this machine. Never operate while
under the influence of alcohol or drugs or allow
anyone under the influence to operate the tractor.
Doctor
Ambulance
Hospital
Fire Department
Prepare for Emergencies
•Keeparstaid kit and
fire extinguisher handy.
•Keep emergency numbers
for doctor, hospital, ambulance, and
fire department near your phone.
HYDRAULIC
•Keep all parts clean.
•Replace worn or damaged parts.
•Don’t try any makeshift repairs.
•Before operating check that everything is tight and
not broken.
•Wear gloves and eye protection when searching
for leaks. Use a piece of wood or cardboard but
not your hand. High pressure oil will penetrate
your skin. If that happens you risk serious injury.
BLADE
•Lower blade to the ground when not in use.
•Keep clear of blade when tractor is running.
•Keep hands & feet away from under blade.
•Turn engine off when hooking up hydraulics and
engaging D-lock during mounting or dismounting.
TRANSPORTING
•Lift blade up then hold with safety chain.
•Make sure SMV sign & reflectors are clean.
•Use your hazard lights.
GENERAL SAFETY
1. Read and understand the Operator's Manual
and all safety signs before using. Review safety
related items with all operators annually.
2. Lower blade to ground, stop tractor engine,
place all controls in neutral, set park brake and
remove ignition key before servicing, adjusting
or repairing.
3. Keep hands, feet, hair and clothing away from
all moving and/or rotating parts.
4. DO NOT allow riders on the machine or tractor
during operation or transporting.
5. Clear the area of all bystanders, especially
children, before starting.
6. DO NOT operate machine on steep side hills or
slopes.
7. Be careful when working around or maintaining
a high-pressure hydraulic system. Ensure all
components are tight and in good repair before
starting.
8. Clean all reflectors, lights and the SMV sign
before transporting on a highway or public
road. Be sure to check with local highway
authorities and comply with their lighting
requirements.
9. Stay well back from machine when operating.
Keep others away.
10. DO NOT operate the Dozer without an
adequate amount of rear wheel ballast.
Safety

-4-
143558 - PileDriver (26-June-2012)
Operation
TO THE NEW OPERATOR OR OWNER
The Degelman Dozer Blade is a push type tractor
attachment designed primarily for excavating,
levelling and filling of dirt, snow and silage.
It is the owners or operators responsibility to read
this manual carefully to learn how to operate
the machine safely and how to set it to provide
maximum efficiency. Safety is everyone’s business.
By following safe operating practices, a safe
environment is provided for the operator and
bystanders.
The manual will take you step-by-step through
your working day. By following the operating
instructions in conjunction with a good
maintenance program your machine will provide
many years of trouble-free service.
BREAK-IN
Although there are no operational restrictions
on the PileDriver when it is new, there are some
mechanical checks that must be done to ensure
the long term integrity of the unit. When using the
machine for the first time, follow this procedure:
A. Before using:
1. Read Operator's Manual.
2. Lubricate all points shown in the
Maintenance Section.
3. Check all bolt tightness.
B. After operating for 2 hours:
1. Check all hardware.
2. Check all hardware tightness.
3. Check all hydraulic system connections.
Tighten if any are leaking.
C. After operating 10 hours:
1. Repeat Step B.
2. Go to the service schedule as outlined in the
Maintenance Section.
TRACTOR PREPARATION
1. Wheel Spacing
Important: To avoid possible damage from
over stressing tractor axles, use no tire combination
which results in overall width greater than the
width of the angle blade.
Important: Before beginning operation,
turn the wheel fully to the right and left to be sure
there is sufficient clearance. If necessary, move the
wheels to a wider setting to provide clearance. See
your Tractor Operator's Manual.
2. Rear Wheel Weight and Tire Inflation:
Add necessary rear end weights for efficient
operation and safety. Any of the cast-iron weights
recommended for your tractor or liquid in the tires,
may be used for necessary ballast. Be sure the
weight is distributed equally on each rear wheel.
Inflate front and rear tires to proper pressure as
recommended in the Tractor Operator’s Manual for
heavy front-mounted implements.
3. Checking Hydraulic Oil Level:
Check the oil level in the tractor hydraulic system
daily. Refer to your tractor operator's Manual for
Instructions. Keep the oil supply up to the proper
level. Before checking oil supply, fully extend and
retract angle and lift cylinders 3 - 4 times and
return the blade to the ground.
PRINCIPLES OF OPERATION
The PileDriver consists of a blade/cutting edge
unit attached to a pivot-main frame combination
suspended from the tractor by the front and side
mount brackets. By driving the tractor forward
with the blade either straight ahead or angled,
and allowing the cutting edge to run just under the
ground surface - dirt, silage or snow is relocated
as desired.
ATTACHING THE PILEDRIVER
NOTE: Please refer to the assembly section of this
manual - for full instructions for attaching your
specific tractor and blade model.
BLEEDING THE HYDRAULICS
Before beginning operation, bleed the hydraulic
system to remove any air. To do this, cycle the
hydraulics several times by holding the cylinder
fully extended for several seconds. This will cause
any trapped air to be purged from cylinder.
COLD WEATHER OPERATION
To assure smooth operation in cold weather, cycle
the cylinders several times to warm the oil in the
hydraulic system.

-5-
143558 - PileDriver (26-June-2012)
Operation
ANGLING DOZER BLADE
The PileDriver wings can be hydraulically
(optional)or mechanically angled by operating the
proper tractor remote cylinder lever or adjusting
the mechanical link bars. With hydraulic wing
angle, the Pile Driver allows you to operate in
an infinite amount of positions, so you can push
huge amounts of material in a cupped formation.
It allows you to close down on either side of the
blade so the operator can run the tractor tire on
the edge of the bunker walls. And it allows you
to close down both sides at the same time so you
can keep the blade on the tractor when it’s time for
transport.
A dual relief valve is incorporated to protect
the hydraulic angling system when the blade is
overloaded. (This valve will bypass the hydraulic
fluid and diminish the degrees that the blade was
initially angled.)
Important: To avoid damage to tractor or
blade, the hydraulic system must be hooked up
properly including line to hydraulic tank drain.
OPERATOR’S RESPONSIBILITY
Every operator should read this manual and
be instructed in safe operating procedures. An
untrained operator is not qualified to operate this
machine and could place themselves or bystanders
in danger.
OPERATING SPEED
For normal operation, operate the tractor at a
comfortable or manufacturer recommended speed.
When operating over rough terrain or limited to
space, reduce engine speed. The actual forward
speed will be determined by tractor horsepower,
land density and depth of cut.
Experience will teach you the most efficient operating
speed, but as a rule 3-4 MPH (5-7 km/h) is a normal
operating range.
BLADE DEPTH
Gauge the depth of cut to push the most material
possible without losing speed through spinning
the wheels or slowing the tractor engine. Do this
by setting the depth shoes (optional), and by
regulating the depth for the blade height with the
lifting cylinder operating lever.
The distance the material is pushed should be kept
to a minimum. Dig and cut the material downgrade
whenever possible.
PRE-OPERATION CHECKLIST
Efficient and safe operation of the PileDriver
requires that each operator reads and understands
the operating procedures and all related safety
procedures outlined in this manual.
Before Using for the FIRST Time
 •Lubricateallpoints
  •Torqueallhardwaretocorrectsetting
  •Check hardware torque & hydraulics
after the first 2 hrs & again after 10 hrs.
Before Using EVERY Time
Check: •Ifallpointslubricated
  •Allcomponentsattachedsecurely
  •Conditionofcuttingedge
  •Depth/skidshoewear
  •Hydraulics:
- Tractor’s oil reservoir
- Condition of hoses, lines & fittings
DEPTH/SKID SHOES (Optional)
Soft uneven ground
•Skid shoe low
•Blade high
Hard even ground
•Skid shoe high
•Blade low
Skid Shoe
High
Skid Shoe
Low
Blade
Low
Blade
High

-6-
143558 - PileDriver (26-June-2012)
TRANSPORTING
Follow this procedure when preparing to transport:
1. Clear the area of bystanders, especially small
children, before converting into transport
configuration.
2. Operate the lift hydraulics to raise the blade fully
and install a certified safety chain to secure it.
3. Clean the SMV sign, lights and reflectors.
4. Maintain a safe speed. Slow down when
cornering and on rough roads.
5. Slow down and pull off to the side of the road
when meeting other traffic.
6. Use hazard flashers on tractor unless prohibited
by law.
Transport & Storage
TRANSPORT SAFETY
•Read and understand ALL the information in the
Operator's Manual regarding procedures and
SAFETY when operating the machine in the field/
yard or on the road.
•Check with local authorities regarding machine
transport on public roads. Obey all applicable
laws and regulations.
•Always travel at a safe speed. Use caution when
making corners or meeting traffic.
•Make sure the SMV (Slow Moving Vehicle)
emblem and all the lights and reflectors that are
required by the local highway and transport
authorities are in place, are clean and can be
seen clearly by all overtaking and oncoming
traffic.
•Keep to the right and yield the right-of-way to
allow faster traffic to pass. Drive on the shoulder,
if permitted by law.
•Always use hazard warning flashers on tractor
when transporting, unless prohibited by law.
STORAGE
After the season's use, completely inspect all major
systems of the machine. Repair or replace any worn
or damaged components to prevent unnecessary
down time at the beginning of next season.
Since the unit can be used in extremely adverse
conditions during the season, the machine should be
carefully prepared for storage to ensure that all dirt,
mud, debris and moisture has been removed.
Follow this procedure when preparing to store:
1. Wash the entire machine thoroughly using a water
hose or pressure washer to remove all dirt, mud,
debris or residue.
2. Inspect all parts to see if anything has become
entangled in them. Remove the entangled
material.
3. Lubricate all grease fittings to remove any
moisture.
4. Inspect all hydraulic hoses, fittings, lines and
couplers. Tighten any loose fittings. Replace any
hose that is badly cut, nicked or abraded or is
separating from the crimped end of the fitting.
5. Touch up all paint nicks and scratches to prevent
rusting.
6. Oil the exposed rams on the hydraulic cylinder to
prevent rusting.
7. Select an area that is dry, level and free of debris.
STORAGE SAFETY
•Store unit in an area away from human activity.
•Do not permit children to play near the stored unit.

-7-
143558 - PileDriver (26-June-2012)
Troubleshooting
Blade Falls Down in
transport.
Lift cylinder hydraulic circuit not connected
correctly.
Trace your hoses from front to back of tractor, making sure angle
circuit connected to rear relief valve, not lift circuit.
GENERAL TROUBLESHOOTING
SYMPTOM PROBLEM SOLUTION
PileDriver Wings
won’t hold.
Excessive loading of dozer. Reduce amount of material pushing. Equipped with safety angle
relief valve, pressure exceeded.
Excessive impact on dozer. Reduce speed of impact on high load. Equipped with safety
angle relief valve, pressure exceeded.
Cutting Edge Wearing
excessively in Center
of the Blade.
High downward force of dozer in contact
with crown of road.
Adjust skid shoes to prevent cutting edge contact with road
crown.
Change operation of the PileDriver to prevent running on crown
of road.
Cutting Edge Wearing
excessively at Ends of
the Blade.
High downward force on ends of dozer. Run dozer tilt circuit in float to contour to ground.
Change operation to prevent this type of contact.
Adjust skid shoes to prevent contact.
Hydraulic wing angle
circuit Hoses Pop Out
of valve stack.
Relief valve tank drain hose not connected
properly.
Ensure hydraulic tank drain hose goes directly to tank with no
internal pressure.
Cannot Open D-lock
linkage when attached
to tractor.
PileDriver not raised off the ground. Lift PileDriver off ground. (Raising the PileDriver blade off the
ground removes pressure from D-lock.)
Foreign material in linkage. Clean linkage to allow movement.
Difficult or cannot turn
skid shoe jack handle.
Too much pressure on jack. Raise dozer off ground to adjust skid shoe depth.
Breaking cutting
edge bolts.
Cutting edge bolts not properly torqued. Under torqued bolts allows impact to break bolts.
Over torqued bolts can fail from too much tension loading.
Torque 5/8” Gr.8 bolts to 225 lb-ft
Torque 3/4” Gr.8 bolts to 400 lb-ft
PileDriver wings won’t
angle or will not come
back from full angle.
Hoses not properly coupled in valve stack. Remove and re-install hoses into valve stack.
Angle relief valve return to tank line not
properly installed.
Change return to tank line so that no internal pressure, run direct
to tank.
Blade not following
ground contour.
Tilt circuit not allowed to float. Float hydraulic tilt circuit.
D-lock will not stay
in open position, falls
closed.
Clip pin not being used. Use clip pin to hold open.
Cannot align front
bracket roller with
main frame front
quick attach lug.
Heights are not aligned. Use dozer hydraulic lift circuit to adjust main frame front lug
height.
Use jacks on side on main frame to adjust height.

-8-
143558 - PileDriver (26-June-2012)
Maintenance
LUBRICANTS
1. Grease: Use an SAE multi-purpose grease
with extreme pressure (EP) performance. Also
acceptable is an SAE multi-purpose lithium base
grease.
2. Storing Lubricants: Your machine can operate at
top efficiency only if clean lubricants are used.
Use clean containers to handle all lubricants.
Store them in an area protected from dust,
moisture and other contaminants.
GREASING
1. Use only a hand-held grease gun for all
greasing.
2. Wipe grease fitting with a clean cloth before
greasing, to avoid injecting dirt.
3. Replace and repair broken fittings
immediately.
4. If fittings will not take grease, remove and
clean thoroughly. Also clean lubricant
passageway. Replace fitting if necessary.
5. Inject grease until you see grease being
expelled from the pin or bushing areas.
D-lock®Quick-Tach
Components
Main Pivot Pin
(Typical both sides)
(Typical both sides)
Items to Grease Qty.
Lift Cylinder Pins 2 per cylinder
Wing Cylinder Pins 2 per cylinder
Tilt Cylinder Pins 2 per cylinder
Tilt Ring 2 per side
Tilt Plate 2 per side
Tilt Bushing 1 per side
Side Bracket Pins 1 per side
Main Pivot Pins 1 per side
Spray Lubricant Qty.
D-lock®components 2 units - inside
LUBE AFTER EVERY 8 HRS.
MAINTENANCE SAFETY
1. Review the Operator’s Manual and all safety
items before working with, maintaining or
operating the machine.
2. Lower machine to ground, stop the tractor
engine, place all controls in neutral, set
park brake and remove ignition key before
servicing, adjusting or repairing.
3. Clear the area of bystanders, especially
children when carrying out any maintenance
and repairs or making adjustments.
4. Place safety stands or large blocks under
the frame before removing tires or working
beneath the machine.
5. Be careful when working around or
maintaining a high-pressure hydraulic system.
Wear proper eye and hand protection when
searching for a high pressure hydraulic leak.
Use a piece of wood or cardboard as a
backstop when searching for a pin hole leak
in a hose or a fitting.
6. Always relieve pressure before disconnecting
or working on hydraulic system.
Tilt Cylinder Pins
Tilt Bushing
Tilt Ring
Tilt Plate
(Typical
both
sides)
(Typical
both
sides)
(Typical
both
sides)
Wing Cylinder Pins
(Typical both sides)

-9-
143558 - PileDriver (26-June-2012)
Maintenance
Metric Torque Values
(based on “Dry” values)
Size Class 8.8 Class 10.9
lb.ft (N.m) lb.ft (N.m)
M6 8.5 (11) 12 (17)
M8 20 (28) 30 (40)
M10 40 (55) 60 (80)
M12 70 (95) 105 (140)
M14 110 (150) 165 (225)
M16 175 (240) 255 (360)
M18 250 (330) 350 (475)
M20 350 (475) 500 (675)
M22 475 (650) 675 (925)
M24 600 (825) 850 (1150)
M27 875 (1200) 1250 (1700)
M30 1200 (1650) 1700 (2300)
Unified Inch Torque Values
(based on “Dry” values)
Size Grade 5 Grade 8
lb.ft (N.m) lb.ft (N.m)
1/4” 9 (12) 12.5(17)
5/16” 18 (25) 26 (35)
3/8” 33 (44) 46 (63)
7/16” 52 (70) 75 (100)
1/2” 80 (110) 115 (150)
9/16” 115 (155) 160 (225)
5/8” 160 (215) 225 (300)
3/4” 280 (375) 400 (550)
7/8” 450 (625) 650 (875)
1” 675 (925) 975 (1300)
1-1/8” 860 (1150) 1350 (1850)
1-1/4” 1200 (1650) 1960 (2600)
1-3/8” 1550 (2150) 2550 (3400)
HARDWARE/HOSE SPECIFICATIONS
Unless otherwise stated:
•Hardware - Hex, Plated GR5 UNC
(imperial) or P8.8 (metric)
•Hoses-3/8,endscomewith3/4
JIC female swivel.
Important: Check torque on all hardware
periodically. Check after first 2,
10, 40, then every 200 hours.
•Torque values listed are for
general use only. If a different
torque value or tightening
procedure is specified for a
specific application, do not use these values.
•Refer to the “Parts” section for proper grade and
length of bolts for replacement parts.
•Do not replace locknuts with nuts and lock washers.
Replace all parts with original, specified parts only.
•Dry values shown mean the bolt/nut is plain or zinc
plated without any lubrication.
Hydraulic Fitting Torque
Size lb.ft (N.m)
3/4 75 (100)
7/8 90 (122)
HYDRAULIC SAFETY
1. Always place all tractor hydraulic controls in
neutral before dismounting.
2. Make sure that all components in the hydraulic
system are kept in good condition and are clean.
3. Replace any worn, cut, abraded, flattened or
crimped hoses and metal lines.
4. Do not attempt any makeshift repairs to the
hydraulic lines, fittings or hoses by using
tape, clamps or cement. The hydraulic system
operates under extremely high pressure.
Such repairs will fail suddenly and create a
hazardous and unsafe condition.
5. Wear proper hand and eye protection when
searching for a high pressure hydraulic
leak. Use a piece of wood or cardboard as
a backstop instead of hands to isolate and
identify a leak.
6. If injured by a concentrated high-pressure
stream of hydraulic fluid, seek medical attention
immediately. Serious infection or toxic reaction
can develop from hydraulic fluid piercing the
skin surface.
7. Before applying pressure to the system, make
sure all components are tight and that lines,
hoses and couplings are not damaged.
Think SAFETY! Work SAFELY!
CHECK HARDWARE TORQUE
TORQUE
all hardware

-10-
143558 - PileDriver (26-June-2012)
SAFETY DECALS
1. Keep safety decals and signs clean and
legible at all times.
2. Replace safety decals and signs that are
missing or have become illegible.
3. Replaced parts that displayed a safety sign
should also display the current sign.
4. Safety decals or signs are available from your
Dealer Parts Department. Safety decals will
be available upon request.
How to Install Safety Decals:
•Be sure that the installation area is clean
and dry.
•Decide on the exact position before you
remove the backing paper.
•Remove the smallest portion of the split
backing paper.
•Align the decal over the specified area and
carefully press the small portion with the
exposed sticky backing in place.
•Slowly peel back the remaining paper and
carefully smooth the remaining portion of
the decal in place.
REPLACEMENT DECALS
Decals, especially safety and reflective, should be
replaced when they become damaged or worn.
Contact your dealer.
Safety Decals
143038 Mounting Decal 2
142546 Remove Jack Decal 2
142386 Warning Decal, Falling Blade 2
143240 Tow Cable Routing (Optional) 2
Reflective Decals
142556 Red Reflector, 9” lg 4
142557 Amber Reflector, 9” lg 2
Product Decals
143204 Degelman Logo, 48-3/16” lg 1
142009 Degelman Logo, 16-1/4” lg 1
142859 PileDriver Decal 1
Maintenance

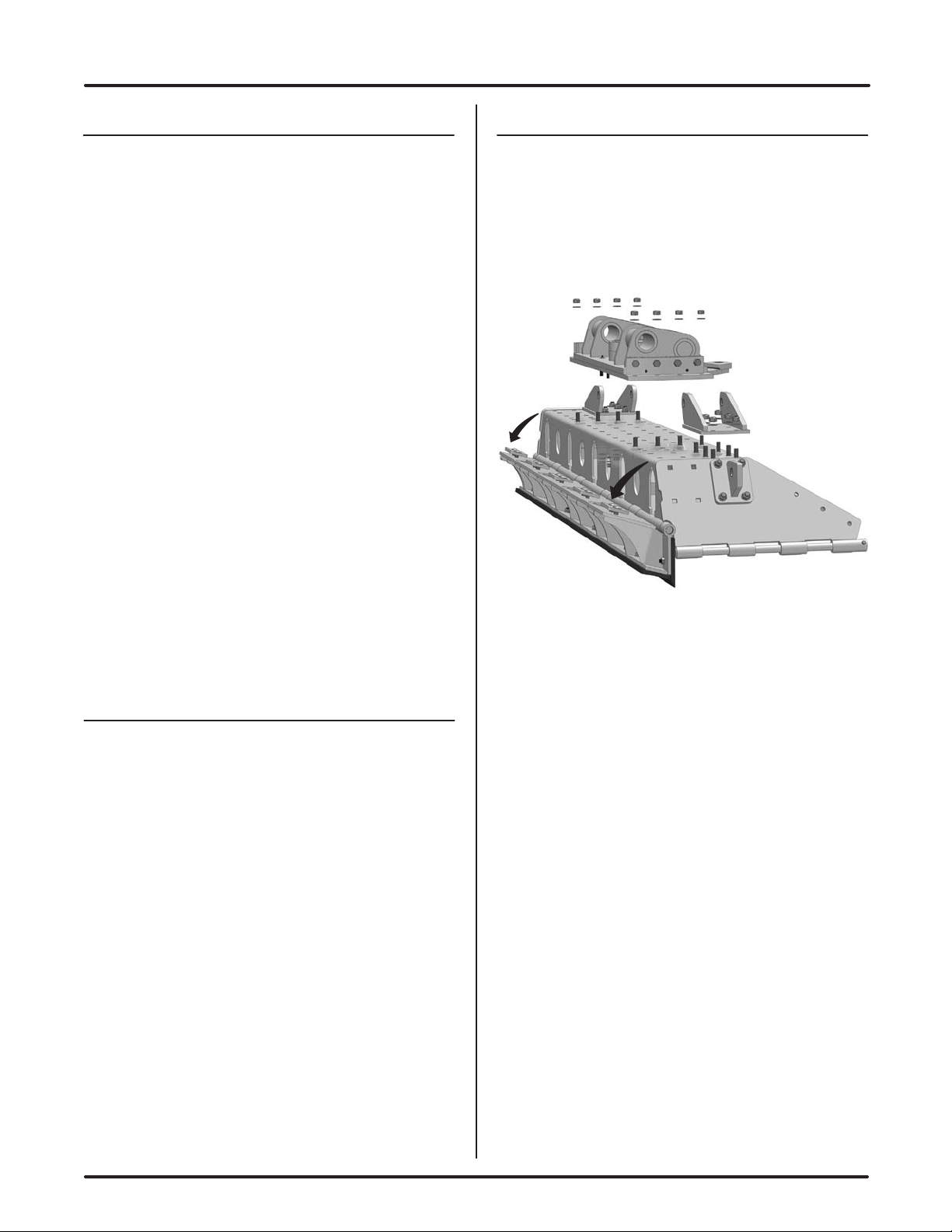

PRE-ASSEMBLY - CENTER SECTION
Important: Before attaching wing assemblies, it is
recommended to fully install all Tilt and Wing Angle
brackets to the back of the Center Section. It should be
noted that access to install center section components
may prove difficult with the cutting edge assembly
installed. The following is a recommend procedure for
installing these brackets:
Recommendation for Installing Center Options:
1. Lay center section down on its face, raised up
about 5” above ground.
2. Unbolt cutting edge assembly and let swing
away to gain better access to hardware.
3. Place wing angle, frame mount and/or tilt
assembly brackets down onto center section.
4. Fasten accordingly.
5. Swing cutting edge assembly back into place
and securely fasten.

-11-
143558 - PileDriver (26-June-2012)
Blade Overview / Options
16’ PileDriver Configuration
8’ Center with 4’ Wings
789105 - Wing Assy, 4 ft. - RH (1)
789100 - Center Section, 8 ft. (1)
789140 - Center Silage Extension, 8 ft. (1) 789155 - Wing Silage
Extension, 4 ft. (1)
789104 - Wing Assy, 4 ft. - LH (1)
789160 - End Plate - RH (1)
789165 - End Plate - LH (1)
18’ PileDriver Configuration
10’ Center with 4’ Wings
789105 - Wing Assy, 4 ft. - RH (1)
789110 - Center Section, 10 ft. (1)
789150 - Center Silage Extension, 10 ft. (1) 789155 - Wing Silage
Extension, 4 ft. (1)
789104 - Wing Assy, 4 ft. - LH (1)
789160 - End Plate - RH (1)
789165 - End Plate - LH (1)
Optional Tilt & Wing Angle Configurations
(No Tilt or Hydraulic Tilt, Manual or Hydraulic Wing Angle)
8’ & 10’ - No Tilt
10’ - Hydraulic
Tilt Option
8’ - Hydraulic
Tilt Option
8’ & 10’ - Manual Wing Angle Option
8’ & 10’- Typical
Wing Angle Linkage
8’ & 10’ - Hydraulic Wing Angle Option
8’ & 10’ - Standard & Hyd. Tilt
Pivot Frame Attachment/Pitch Adjustment Pins
8’ & 10’ - Wing Skid Shoes
(Optional)

-12-
143558 - PileDriver (07-December-2012)
Center Section Components
CENTER FRAME COMPONENTS (10’ or 8’)
118587 - Flat Washer, 1/2 F436 (30 or 24)
118587 - Flat Washer,
1/2 F436 (16)
789147 - Plate, Bolted - LH (1)
789148 - Plate, Bolted - RH (1)
(NOTE: Plate is positioned on INSIDE of
extension’s frame, and outside of center frame)
118009 - Bolt, 1/2 x 1-1/4 (15 or 12)
118292 - Bolt, 1/2 x
1-3/4 (8)
118043 - Bolt, 3/4 x 2 (6) 118405 - Nut, 1/2 (15 or 12)
118405 - Nut, 1/2 (8)
118504 - Lock Washer, 1/2 (15 or 12)
118772 - Lock Washer, 3/4 - GR8 (6)
118504 - Lock Washer, 1/2 (8)
118770 - Nut, 3/4 - GR8 (6)
TOP EXTENSION OPTION
CENTER SECTION ASSEMBLY
10’ Assembly: 789150 - Silage Extension, 10ft (1) - shown
8’ Assembly: 789140 - Silage Extension, 8ft (1)
10’ Assembly: 789110 - Center Section Assembly, 10ft (1) - shown
8’ Assembly: 789100 - Center Section Assembly, 8ft (1)
(8’ Center Top Extension Option)
(8’ Center Section Assembly)
117438 - Bolt, Carriage
3/4 x 2-1/2 GR8 (8)
118005 - Bolt, 3/8 x 1 (18 or 12)
118670 - Bolt, 3/8
x 2-1/2 GR8 (2)
810279 - Retaining Ring,
1-1/4 Internal (2) 788596 - Shaft Pin, 10ft (1) - shown
788602 - Shaft
Pin, Wing (2)
788594 - Shaft Pin, 8ft (1)
788608 - Lug, Stop (2)
788541 - Center Assy, 10ft (1) - shown
789124 - Cap, Plate (9 or 6) 788537 - Center Assy, 8ft (1)
118775 - Flat
Washer, 3/4
F436 (8)
118503 - Lock Washer,
3/8 (18 or 12)
117414 - Lock
Nut, 3/4
unitorque (8)
118417 - Lock Nut,
3/8 (2)
118203 - Bolt, Scraper
5/8 x 2 (12 or 10)
118203 - Bolt, Scraper
5/8 x 2 (13 or 11)
116295 - Cutting Edge, 5/8 x 8 - 10’ (1) - shown
789125 - Cutting Edge
Holder, 10’ (shown) (1)
789115 - Cutting Edge
Holder, 8’ (1)
116292 - Cutting Edge, 3/4 x 5 - 10’ (1) - shown
116294 - Cutting Edge, 5/8 x 8 - 8’ (1)
116291 - Cutting Edge, 3/4 x 5 - 8’ (1)
118772 - Lock Washer,
3/4 - GR8 (10 or 8)
118508 - Lock Washer, 5/8
(13 or 11)
118447 - Lock Nut, 5/8
- unitorque (12 or 10) 118770 - Nut, 3/4
- GR8 (10 or 8)
117438 - Bolt, Carriage 3/4
x 2-1/2 GR8 (10 or 8)
789129 - Bolt Holder
Bar, 1/2 (5 or 4)
118407 - Nut, 5/8 (13 or 11)

-13-
143558 - PileDriver (26-June-2012)

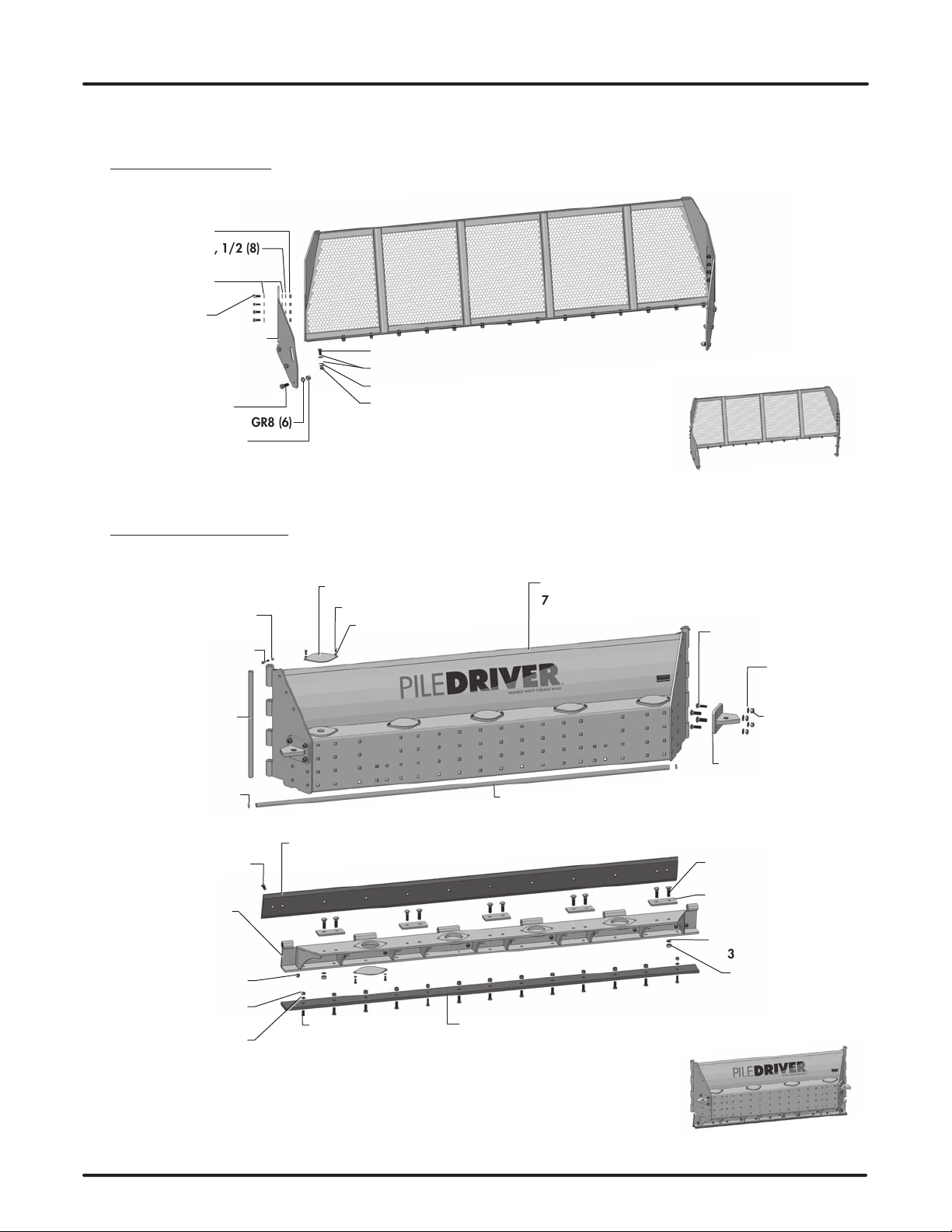

Wing Section Components
WING FRAME COMPONENTS (RH Shown)
TOP EXTENSION OPTION
WING SECTION ASSEMBLY
RH & LH: 789155 - Silage Extension, 4ft (1)
117438 - Bolt, Carriage
3/4 x 2-1/2 GR8 (8)
118051 - Bolt, 3/4
x 3 GR8 (3)
118772 - Lock Washer, 3/4 -
GR8 (11)
118770 - Nut, 3/4 - GR8 (11)
END PLATE ASSEMBLY
RH Assembly: 789160 - End Plate
Assembly (1) - shown
LH Assembly: 789165 - End Plate
Assembly (1)
118587 - Flat Washer,
1/2 F436 (12)
118587 - Flat Washer,
1/2 F436 (16)
789147 - Plate, Bolted - LH (1)
789148 - Plate, Bolted - RH (1)
(NOTE: Plate is positioned on INSIDE of
extension’s frame, and outside of wing frame)
118009 - Bolt, 1/2
x 1-1/4 (6)
118292 - Bolt, 1/2 x
1-3/4 (8)
118043 - Bolt, 3/4 x 2 (6)
118405 - Nut, 1/2 (6)
118405 - Nut, 1/2 (8)
118504 - Lock Washer,
1/2 (6)
118772 - Lock Washer, 3/4 - GR8 (6)
118504 - Lock Washer, 1/2 (8)
118770 - Nut, 3/4 - GR8 (6)
OPTIONAL SKID SHOE
788696 - Skid Shoe
Assembly (1)
(comes with hardware)
Optional Skid
Shoe Assembly
RH Assembly: 789105 - Wing Section Assembly, 4ft (1) - shown
LH Assembly: 789104 - Wing Section Assembly, 4ft (1)
117438 - Bolt, Carriage
3/4 x 2-1/2 GR8 (4)
118005 - Bolt,
3/8 x 1 (6)
810279 - Retaining Ring,
1-1/4 Internal (2)
788590 - Shaft Pin, 4ft (1)
788608 - Lug, Stop (1)
788556 - Wing Assy, RH 4ft (1) - shown
789135 - Cap, Plate
- Jack Bushing (1)
788557 - Wing Assy, LH 4ft (1)
118775 - Flat Washer,
3/4 F436 (4)
118503 - Lock
Washer, 3/8 (6)
117414 - Lock Nut, 3/4
unitorque (4)
118772 - Lock Washer,
3/4 - GR8 (4)
118770 - Nut, 3/4 - GR8 (4)
789130 - Cutting Edge
Holder, 4’ (1)
117438 - Bolt, Carriage 3/4
x 2-1/2 GR8 (4)
789129 - Bolt Bar, 1/2 (2)
118203 - Bolt, Scraper 5/8 x 2 (5)
118203 - Bolt, Scraper
5/8 x 2 (6)
116293 - Cutting Edge, 3/4 x 5 - 4’ (1)
118508 - Lock Washer,
5/8 (5)
118407 - Nut, 5/8 (5)
116296 - Cutting Edge,
5/8 x 8 - 4’ (1)
118447 - Lock Nut, 5/8
- unitorque (6)
789124 - Cap, Plate (2)
(One located under Cutting
Edge Holder - see below)

-14-
143558 - PileDriver (26-June-2012)

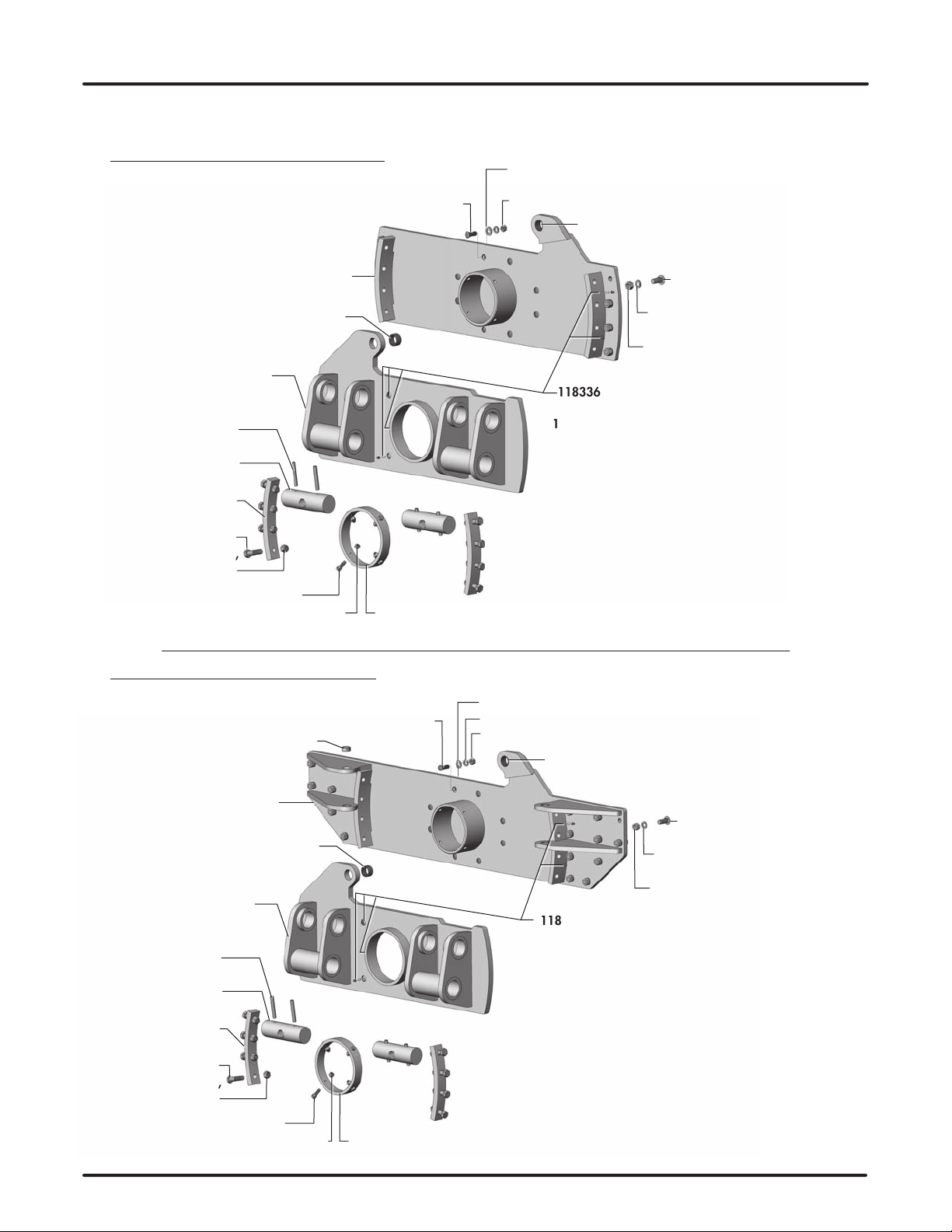

Tilt Frame Components - 8’ & 10’
HYDRAULIC TILT FRAME COMPONENTS
TILT FRAME ASSEMBLY COMPONENTS (10’)
TILT FRAME ASSEMBLY COMPONENTS (8’)
10’ Assembly: 789250 - Tilt Assembly, Hydraulic - 10ft (1)
8’ Assembly: 789170 - Tilt Assembly, Hydraulic - 8ft (1)
117414 - Lock Nut,
3/4 - unitorque (8)
118420 - Lock Nut, 1/2 - unitorque (4)
118292 - Bolt, 1/2 x 1-3/4 (4)
789196 - Tilt Plate,
Inner Ring (2)
789175 - Tilt, Pivot Base
Assembly (1)
789255 - Tilt, Blade Base
Assembly - 10ft (1)
789195 - Bushing, Tilt Ring (1)
117145 - Bushing, 1-7/8 x 1-1/2 (1)
117145 - Bushing, 1-7/8
x 1-1/2 (1)
118051 - Bolt, 3/4
x 3, GR8 (8)
789212 - Threaded
Adjustment Pin (2)
117519 - Roll Pin,
1/2 x 4 (4)
118336 - Grease Fitting,
1/4-28 (10)
118337 - Plastic Cap (10)
118203 - Bolt, Scraper 5/8 x 2 (9)
118508 - Lock Washer, 5/8 (9)
118407 - Nut, 5/8 (9)
118537 - Flat Washer, 5/8 F436 (9)
118770 - Nut, 3/4 - GR8 (6)
118772 - Lock Washer, 3/4
- GR8 (8)
117437 - Bolt, Carriage
3/4 x 2 GR8 (8)
117414 - Lock Nut,
3/4 - unitorque (8)
118420 - Lock Nut, 1/2 - unitorque (4)
118292 - Bolt, 1/2 x 1-3/4 (4)
789196 - Tilt Plate,
Inner Ring (2)
789175 - Tilt, Pivot Base
Assembly (1)
789185 - Tilt, Blade Base
Assembly - 8ft (1)
789195 - Bushing, Tilt Ring (1)
117145 - Bushing, 1-7/8 x 1-1/2 (1)
117145 - Bushing, 1-7/8
x 1-1/2 (1)
117129 - Bushing, 1-1/2 x 3/4 (4)
118051 - Bolt, 3/4
x 3, GR8 (8)
789212 - Threaded
Adjustment Pin (2)
117519 - Roll Pin,
1/2 x 4 (4)
118336 - Grease Fitting,
1/4-28 (10)
118337 - Plastic Cap (10)
118203 - Bolt, Scraper 5/8 x 2 (9) 118508 - Lock Washer, 5/8 (9)
118407 - Nut, 5/8 (9)
118537 - Flat Washer, 5/8 F436 (9)
118770 - Nut, 3/4 - GR8 (20)
118772 - Lock Washer, 3/4 -
GR8 (20)
117437 - Bolt, Carriage
3/4 x 2 GR8 (20)

-15-
143558 - PileDriver (26-June-2012)

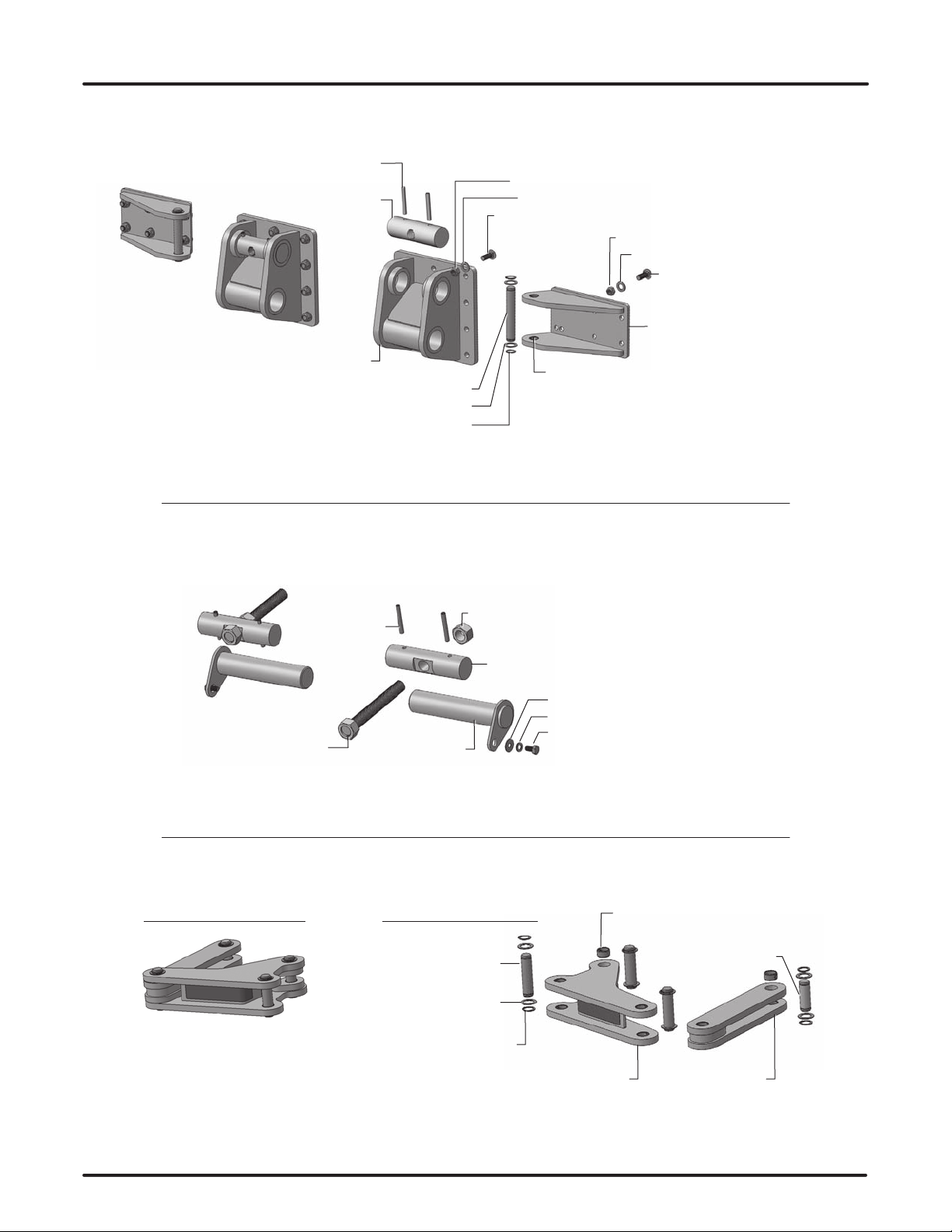

Pivot Frame Mounting/Wing Angle Components - 8’ & 10’
WING ANGLE LINKAGE COMPONENTS (Typical)
PIVOT FRAME PITCH ADJUSTMENT PINS
STANDARD FRAME MOUNT BRACKETS (No Tilt - 8’ & 10’)
LH LINKAGE (Assembled)
810280 - Retaining Ring,
1-1/4 External (16)
788613 - Linkage
Assembly, 3 Hole (2)
788619 - Linkbar
Assembly (2)
117442 - Flat
Washer, 1-1/4 (16)
788599 - Pin,
5-1/8 (6)
788598 - Pin,
3-5/8 (2)
117129 - Bushing, 1-1/2 x 3/4 (typ)
789201 - Pitch Pivot Base
Assembly (2)
788624 - Wing Linkage
Bracket (2)
117129 - Bushing, 1-1/2 x 3/4 (typ)
810280 - Retaining Ring, 1-1/4 External (4)
117442 - Flat Washer, 1-1/4 (4)
788600 - Pin, 8-1/2 (2)
117437 - Bolt, Carriage 3/4 x 2 GR8 (20)
117437 - Bolt, Carriage
3/4 x 2 GR8 (12)
118775 - Flat Washer, 3/4 F436 (20)
118775 - Flat Washer, 3/4 F436 (12)
117414 - Lock Nut, 3/4 unitorque (20)
117414 - Lock Nut, 3/4 - unitorque (12)
789212 - Threaded
Adjustment Pin (2)
117519 - Roll Pin, 1/2 x 4 (4)
789213 - Pitch
Adjustment Pin (2)
789320 - Pitch
Pivot Pin (2)
117519 - Roll
Pin, 1/2 x 4 (4)
789210 - Pitch
Adjustment Threaded
Rod Assembly (2)
118647 - Nut,
1-1/2 (2)
118514 - Flat Washer, 5/8 (2)
118645- Bolt, 5/8 x 1-1/4 (2)
118508 - Lock Washer, 5/8 (2)
RH LINKAGE (exploded)

-16-
143558 - PileDriver (17-September-2013)

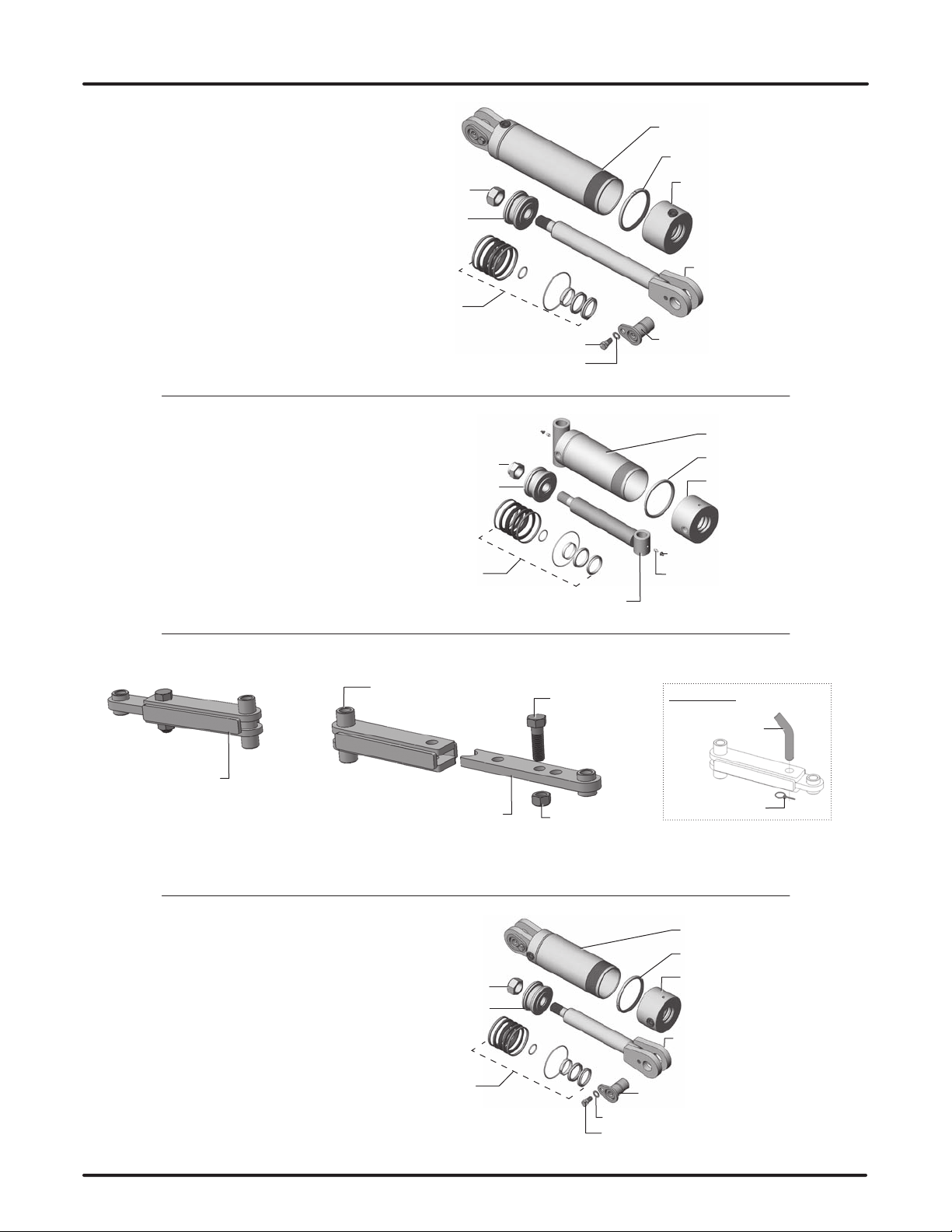

Cylinders
TILT CYLINDER (Optional)
123490 - Cylinder, 4” x 6” x 2” 123492 - Barrel (1)
122783 - Lock Ring (1)
122781 - Open Cap (1)
123495 - Rod & Clevis (1)
122774 - Piston (1)
122670 - Pin, 1-1/2 x 2-3/4 (2)
122785 - Seal Kit (1)
118946 - Lock nut, 1-1/4”
UNF GR5 unitorque (1)
118796 - Shoulder bolt, 1/2” GR8 UNC (2)
118924 - Flat washer, .59” ID x .9” OD (2)
LIFT CYLINDERS
122948 - Cylinder, 4” x 12” x 2”
MECHANICAL WING ANGLE LINKBAR COMPONENTS (Manual Angle)
789216 - Linkbar
Assembly, Mech
Wing Angle (2)
789217 - Outer Assy,
Mech Wing Linkbar (1)
789218 - Inner Assy,
Mech Wing Linkbar (1)
118984- Bolt,
1-1/4 x 4 (1)
118445 - Lock
Nut, 1-1/4 (1)
243771 - Pin,
Bent - 1-1/4 (2)
118901 - Pin,
Lynch - 3/16 (2)
Optional Pin
WING CYLINDERS (Optional)
123503 - Cylinder, 4” x 8” x 2”
1-1/4” Pin Eye
123509 - Barrel (1)
122783 - Lock Ring (1)
122781 - Open Cap (1)
123510 - Rod & Clevis (1)
122774 - Piston (1)
122785 - Seal Kit (1)
118946 - Lock nut, 1-1/4”
UNF GR5 unitorque (1)
118336 - Grease Fitting,
1/4-28 (2)
118337 - Plastic Cap (2)
122950 - Barrel (1)
118796 - Shoulder bolt, 1/2” GR8 UNC (2)
118924 - Flat washer, .59” ID x .9” OD (2)
122774 - Piston (1)
122783 - Lock Ring (1)
122781 - Open Cap (1)
122954 - Rod & Clevis (1)
118946 - Lock nut, 1-1/4”
UNF GR5 unitorque (1)
122670 - Pin, 1-1/2 x 2-3/4 (2)
122785 - Seal Kit (1)
