Short Form Specifications
Exterior Top is constructed of one piece 16-gauge stainless steel,
with integral 2.12” (5.4cm) square nosing on front and 4” (10.2cm)
high by 2” (5.1cm) thick backsplash on rear. Top has opening for use
with 1/6 size pans. Pans and adapter bars supplied by others. Pans
are recessed 3” (7.6cm) or 2” (5.1cm) and rest on adjustable pan sup-
ports. Opening is supplied with removable 20-gauge stainless steel
cover. Temperature in top opening maintains 33°F (1°C) to 41°F
(5°C), with pans recessed 3” (7.6cm), at 86°F ambient room temper-
ature, meeting NSF7 requirements.
Exterior back and bottom of base are constructed of 24-gauge galva-
nized steel. Exterior ends are constructed of 18-gauge stainless steel.
Base interior has a 22-gauge stainless steel back and bottom. Interior
ends and door frames are formed of ABS plastic. Base is insulated with a
minimum of 1.50” (3.8cm) foamed in place high density polyurethane.
Door(s) are constructed with ABS plastic interior liner and 22-
gauge stainless steel exterior front. Door(s) have a black recessed
handle and a snap in magnetic gasket which is easily replaceable.
Base is furnished with a blower coil especially made to fit behind
door mullion. Blower coil housing encloses refrigeration lines,
evaporator coil, expansion valve and fans. Unit is designed to main-
tain 36°F (2°C) to 40°F (4°C) in the base.
Unit is mounted on 6.13” (15.6cm) high adjustable stainless steel legs.
Electrical connections are 115 volt, 60 Hertz, single phase. Unit
must be hard wired.
Refrigeration System Component — HFC-404A. Optional Accessories & Modifications
906A Stainless steel end
505H Stainless steel back
505F Laminate facing (full front)
906E Laminate end
905A Laminate back
1030A Cutting board (Salalite or composite)
109 Condensate evaporator (1 per coil) for base
107F Tray rack
102 Drawers
A-(2) 19” in lieu of one door
B-(2) 27” in lieu of one door
C-(2) 32” in lieu of one door
108 Locks
120F Cold pan drain
213 *220V/50 cycle
*Inclusion of this option will alter the
electrical specifications of the unit
Model F18MR44D
31.5”(80cm)DeepReomteMegaTop Salad Tables
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
PROJECT
ITEM #
QUANTITY DATE
APPROVAL
F18MR
®

31" [78.7cm]
44" [111.8cm] 44" [111.8cm]
52" [132.1cm] 52" [132.1cm] 52" [132.1cm]
31.5"
[80"cm]
21.62" x 26.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (12)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 13.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (6)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 13.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (6)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 26.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (12)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 13.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (6)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 39.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (18)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
31.5"
[80"cm] 31.5"
[80"cm]
31.5"
[80"cm] 31.5"
[80"cm] 31.5"
[80"cm]
PLAN VIEW
F18MR31A
PLAN VIEW
F18MR44A PLAN VIEW F18MR44D
PLAN VIEW
F18MR52A PLAN VIEW F18MR52D PLAN VIEW F18MR52E
F18MR
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
31.5”(80cm)DeepReomteMegaTop Salad Tables

25"
[63.5cm]
CLEARANCE
17"
[43.1cm]
CLEARANCE
END VIEW
ALL MODELS 19" [48.3cm]
DOOR 27" [68.6cm]
DOOR
19" [48.3cm]
REF'G
S/S PANEL
S/S PANEL
6"
[15.2cm]
19" [48.3cm]
REF'G 19" [48.3cm] REF'G
S/S PANEL
19" [48.3cm]
REF'G 27" [68.6cm] REF'G
6"
[15.2cm]
6"
[15.2cm]
6"
[15.2cm]
ELEVATION VIEW
F18MR31A
ELEVATION VIEW
F18MR44A,
F18MR44D
ELEVATION VIEW
F18MR52A,
F18MR52D,
F18MR52E
36"
[91.4cm]
7.62"
[19.4cm] 6.13"
[15.6cm]
14.8"
[37.6cm]
PROBE LINE
16.31"
[41.4cm]
31.5"
[80cm]
PAN COVER WHEN OPEN EXTENDS 16.5" [42cm]
40"
[101.6cm]
F18MR
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
31.5”(80cm)DeepReomteMegaTop Salad Tables

MODEL NUMBER OF NUMBER 0F STORAGE VOLTS/HERTZ/ SHIP WEIGHT BTU DESIGN LOAD EVAP. CAP BTU/°TD
NUMBER DOORS PANS CU. FT. *H.P. PHASE AMPS LBS/KG BASE/RAIL BASE/RAIL
F18MR31A (1) 19” 6 4.11 1/4* 115/60/1 3.0 350/159 280/265 120/12
F18MR44A (2) 19” 6 6.94 1/4* 115/60/1 3.0 390/177 444/265 120/12
F18MR44D (2) 19” 12 6.94 1/4* 115/60/1 3.0 380/172 444/529 120/22
F18MR52A 19” & 27” 6 8.69 1/3* 115/60/1 3.0 440/199 515/265 120/12
F18MR52D 19” & 27” 12 8.69 1/3* 115/60/1 3.0 430/195 515/529 120/22
F18MR52E 19” & 27” 18 8.69 1/3* 115/60/1 3.0 420/190 515/794 120/31
*Recommended horsepower

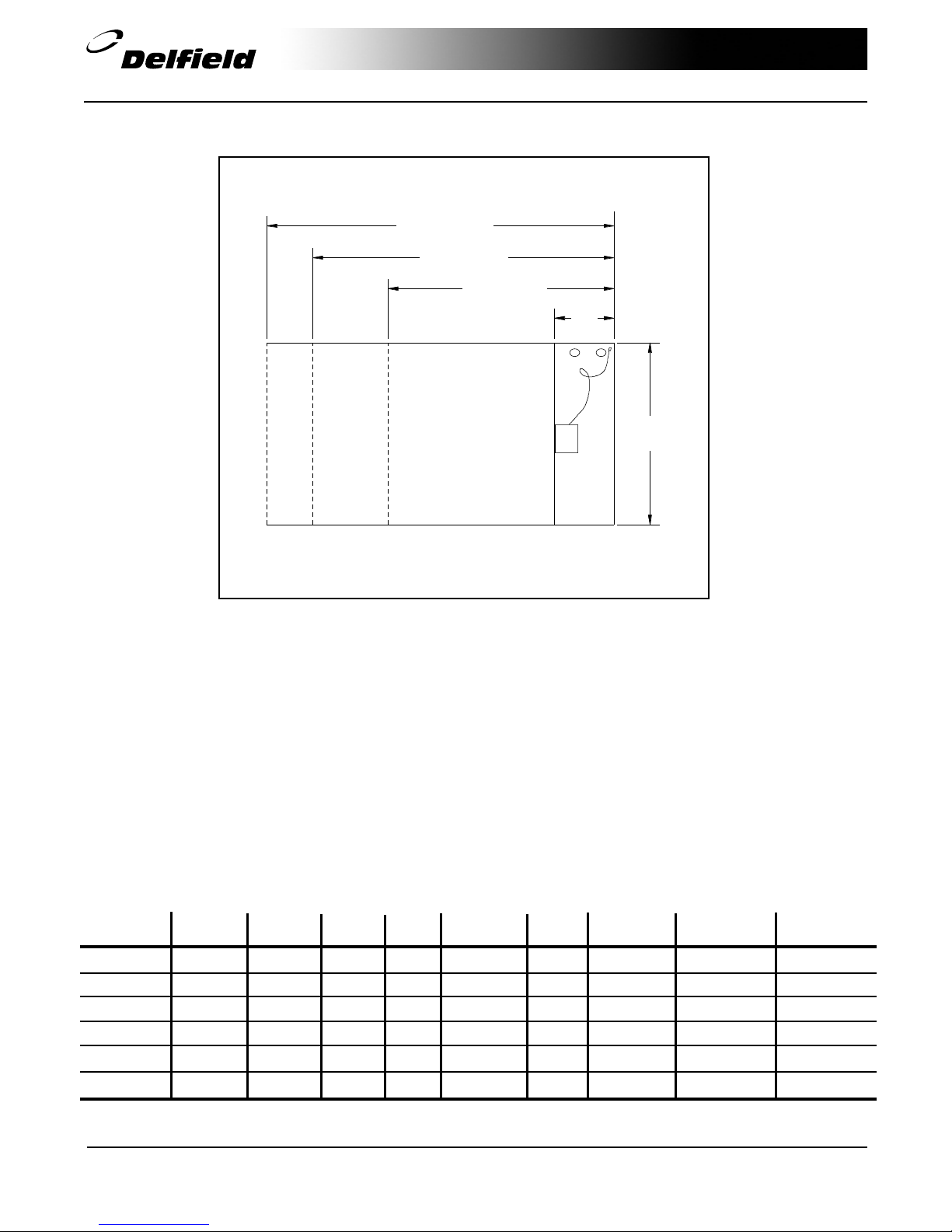

Mechanical Data–Standard Unit
6"
[15.2cm]
31" [78.7cm]
44" [111.8cm]
52" [132.1cm]
31.5"
[80cm]
J = JUNCTION BOX
R = REFRIGERATION LINES, 1/4" LIQUID, 3/8" SUCTION
D = DRAINS 1/2"
J
R D
MECHANICAL DATA
F18MR
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
DS18MR 03/01
31.5”(80cm)DeepReomteMegaTop Salad Tables
