Delfield F18MC39A User manual

Short Form Specifications
Exterior top is constructed of one-piece 16-gauge stainless steel, with inte-
gral 2.12" (5.4cm) high square nosing at the front, and 4" (10.2cm) high by
2" (5.1cm) deep backsplash at the rear. Top has opening for use with 1/6
size pans. Pans and adapter bars supplied by others. Pans are recessed 3”
(7.6cm) or 2” (5.1cm) and rest on adjustable pan supports. Pan opening
has 20-gauge stainless steel removable cover. Temperature in top open-
ing maintains 33°F (1°C) to 41°F (5°C), with pans recessed 3” (7.6cm),
at 86°F ambient room temperature, meeting NSF7 requirements.
Exterior back and bottom are 24-gauge galvanized steel. Exterior ends are
18-gauge galvanized steel.
Base interior has 22-gauge stainless steel back and bottom. Interior ends
and door frames are thermoformed ABS plastic. Base is insulated with 1.5"
(3.8cm) of high-density foamed-in-place polyurethane.
Door(s) have a 22-gauge stainless steel exterior front, with a thermo-
formed ABS plastic interior liner. Door(s) have a black recessed handle and
a snap-in magnetic gasket which is easily replaceable.
Base has a machine compartment, standard on the right, condensing unit
with condensate evaporator and an electrical junction box installed.
Machine compartment has a louver for access to condensing unit. Blower
coil(s) are located behind the door mullions, and refrigerate the cabinet.
Refrigeration system uses HFC-404A refrigerant, and maintains 36°F (2°C)
to 40°F (4°C) interior cabinet temperature in the base.
Unit is mounted on 6.13" (15.6cm) high adjustable stainless steel legs.
Electrical connections are 115 volts, 60 Hertz, single phase. Unit has a
8' (2.4m) long cord and plug.
Optional Accessories & Modifications
906A Stainless steel end
505H Stainless steel back
505F Laminate facing (full front)
906E Laminate end
905A Laminate back
1030F Cutting board (Sanalite or composite)
107A Tray rack
1027A Casters
102 Drawers
A-(2) 19” in lieu of one door
B-(2) 27” in lieu of one door
C-(2) 32” in lieu of one door
108 Locks
120F Cold pan drain
213 *220V/50 cycle
*Inclusion of this option will alter the
electrical specifications of the unit
Model F18MC39D
31.5”(80cm)DeepSelf-ContainedMegaTop Salad Tables
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
PROJECT
ITEM #
QUANTITY DATE
APPROVAL
F18MC
®

39" [99.1cm] 39" [99.1cm] 52" [132.1cm]
21.62" x 13.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (6)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 26.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (12)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 39.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (18)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 39.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (18)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 13.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (6)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
31.5"
[80cm]
31.5"
[80cm] 31.5" [80cm]
52" [132.1cm] 52" [132.1cm]
31.5"
[80cm] 31.5" [80cm]
60" [152.4cm]
31.5"
[80cm]
21.62" x 26.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (12)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 26.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (12)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
21.62" x 13.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (6)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)
60" [152.4cm]
31.5"
[80cm]
60" [152.4cm]
31.5"
[80cm]
60" [152.4cm]
31.5"
[80cm]
21.62" x 52.00" NSF-7 STYLE COLD
PAN SIZED TO ACCOMMODATE (24)
1/6 SIZE PANS 6" DP. WITH HINGED
REMOVABLE COVER. (PANS AND
ADAPTER BARS BY OTHERS)

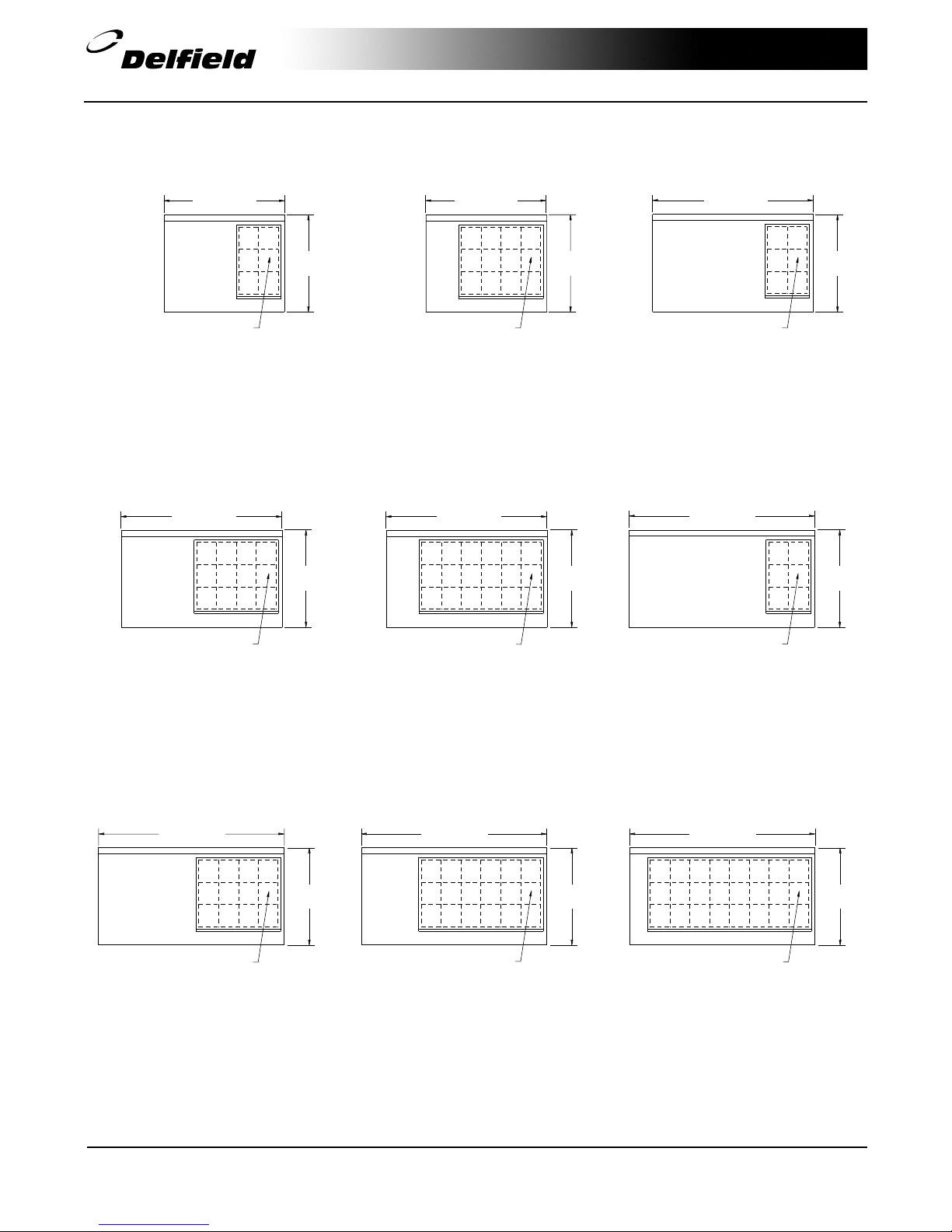

PLAN VIEW
F18MC39A PLAN VIEW F18MC39D PLAN VIEW F18MC52A
PLAN VIEW
F18MC52D PLAN VIEW F18MC52E PLAN VIEW F18MC60A
PLAN VIEW
F18MC60D PLAN VIEW F18MC60E PLAN VIEW F18MC60F
F18MC
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
31.5”(80cm)DeepSelf-ContainedMegaTop Salad Tables

36"
[91.4cm]
7.62"
[19.4cm] 6.13"
[15.6cm]
25"
[63.5cm]
CLEARANCE
17"
[43.1cm]
CLEARANCE
END VIEW
ALL MODELS 19" [48.3cm]
DOOR 27" [68.6cm]
DOOR
19" [48.3cm]
REF'G 27" [68.6cm] REF'G
ELEVATION VIEW
F18MC39A,
F18MC39D
ELEVATION VIEW
F18MC52A,
F18MC52D,
F18MC52E
ELEVATION VIEW
F18MC60A,
F18MC60D,
F18MC60E,
F18MC60F
1/4 HP 115V-60C-1PH
1/4 HP 115V-60C-1PH
1/3 HP 115V-60C-1PH
S/S PANEL
S/S PANEL
S/S PANEL
19" [48.3cm]
REF'G 19" [48.3cm] REF'G
19" [48.3cm]
REF'G
14.8"
[37.6cm]
PROBE LINE
16.31"
[41.4cm]
31.5"
[80cm]
PAN COVER WHEN OPEN EXTENDS 16.5" [42CM]
40"
[101.6cm]
F18MC
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
31.5”(80cm)DeepSelf-ContainedMegaTop Salad Tables

MODEL NUMBER OF NUMBER 0F STORAGE VOLTS/HERTZ/ SHIP WEIGHT BTU DESIGN BTU SYSTEM CAP.
NUMBER DOORS PANS CU. FT. H.P. PHASE AMPS NEMA LBS/KG BASE/RAIL BASE/RAIL
F18MC39A (1) 19” 6 4.11 1/4 115/60/1 10.0 5-15P 410/186 280/265 1903/925
F18MC39D (1) 19” 12 4.11 1/4 115/60/1 10.0 5-15P 400/181 280/529 1903/1156
F18MC52A (2) 19” 6 6.94 1/4 115/60/1 10.0 5-15P 470/213 444/265 1903/925
F18MC52D (2) 19” 12 6.94 1/4 115/60/1 10.0 5-15P 460/208 444/529 1903/1156
F18MC52E (2) 19” 18 6.94 1/4 115/60/1 10.0 5-15P 450/204 444/794 1903/1321
F18MC60A 19” & 27” 6 8.69 1/4 115/60/1 10.0 5-15P 510/231 515/265 2314/864
F18MC60D 19” & 27” 12 8.69 1/4 115/60/1 10.0 5-15P 500/227 515/529 2314/1141
F18MC60E 19” & 27” 18 8.69 1/4 115/60/1 10.0 5-15P 490/222 515/794 2314/1361
F18MC60F 19” & 27” 24 8.69 1/4 115/60/1 10.0 5-15P 480/217 515/1058 2314/1540

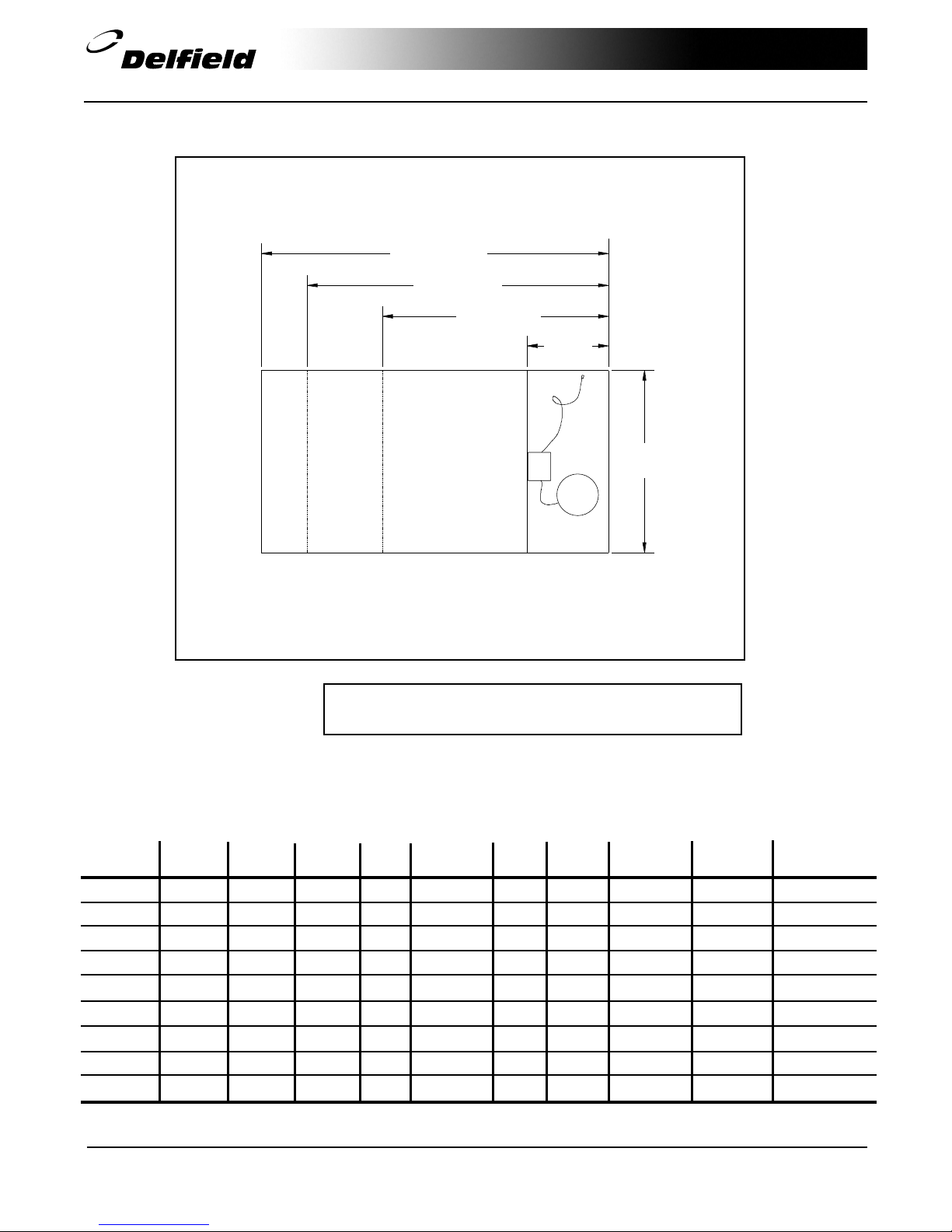

Mechanical Data–Standard Unit
14"
[35.6cm]
39" [99.1cm]
52" [132.1cm]
60" [152.4cm]
31.5"
[80cm]
AND PLUG
J = JUNCTION BOX
C = CONDENSING UNIT W/8FT (2.4M) CORD
J
C
MECHANICAL DATA
NOTE; UNOBSTRUCTED AIRFLOW MUST BE MAINTAINED TO
INSURE UNIT PERFORMANCE AND MAINTAIN WARRANTY.
F18MC
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
DS18MC 03/01
31.5”(80cm)DeepSelf-ContainedMegaTop Salad Tables
