Delfield 18648-PTB User manual

PROJECT
ITEM #
QUANTITY DATE
APPROVAL
Short Form Specifications
Exterior top is constructed of one-piece 18-gauge stainless steel, with
integral 2.12" (5.4cm) high square nosing at the front. Top has a
mechanically cooled refrigerated raised rail at the rear with openings
to accommodate 2000 series pans (provided by others). Pans rest on
a recessed stainless steel bracket. Rail interior is 22-gauge stainless
steel. Raised rail openings have 20-gauge stainless steel removable
lids. Unit is equipped with separate expansion valve and on/off switch
for refrigerated rail. Temperature in top openings maintains 33°F (1°C)
to 41°F (5°C) with pans recessed 2” (5.1cm) at 86°F ambient room
temperature, meeting NSF 7 requirements.
Exterior back and bottom are 24-gauge galvanized steel. Exterior ends
are finished with stainless steel.
Base interior has aluminum back and bottom. Base interior ends and
door frames are thermoformed ABS plastic. Each interior door section
has (1) 25” (63.5cm) deep removable epoxy coated wire shelf adjustable
to (2) positions. Base is insulated with 2” (5.1cm) high density foamed
in place polyurethane. End of base has a machine compartment with
condensing unit installed. Rear machine compartment covered by a
louvered panel.
Self Closing Door(s) have 22-gauge stainless steel exterior front, with
a thermoformed ABS plastic interior liner.
Drawers — (2) high are standard.
Refrigeration system uses HFC-404A refrigerant. Cabinet has a blower
coil assembly with expansion valve (1) on 48”, 60” and 72” models,
(2) on 91”, 99” and 114” models, located behind door mullion. Base is
equipped with independently controlled thermostat, solenoid valve and
condensate evaporator. Refrigerated base maintains temperature of 36°F
(2°C) to 40°F (4°C). Recessed on/off switches for rail and base are
located in front above the louver.
Electrical connections are 115 volts, 60 Hertz, single phase. Unit is
wired with 3-wire, grounded, maximum 8’ (2.4m) cord and plug.
Casters: Equipment is mounted on 5” (12.7cm) diameter casters; overall
height of casters is 6.13” (15.6cm).

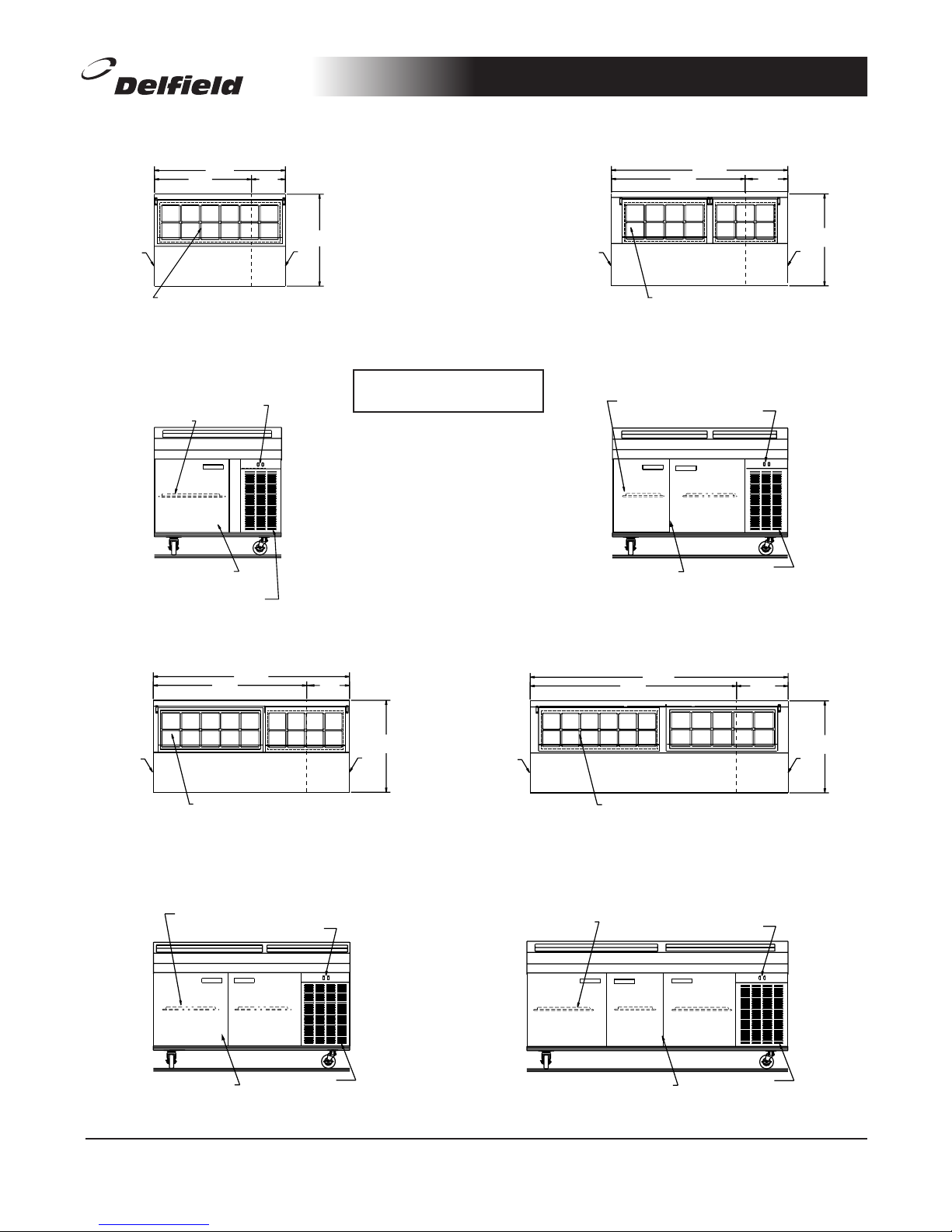

18600PTB
Self-Contained Refrigerated Pizza Tables
Optional Accessories & Modifications
505B Stainless steel back
505F Laminate facing (full front)
906E Laminate end
905A Laminate back
107F Tray racks
1030C Cutting board (.5” x 20”)
1027B Legs, set of four
1027D Legs, set of six
605C1 18” deep single tier stainless steel overshelf
102E 19” wide refrigerated drawers (3) high for 4”
deep pans replacing door
102F 27” wide refrigerated drawers (3) high for 4”
deep pans replacing door
102G 32” wide refrigerated drawers (3) high for 4”
deep pans replacing door
108 Lock
213 *220V/50 cycle electrical system
• Additional shelf (specify door size)
* Inclusion of this option will alter the electrical
specifications of the unit
Model 18660PTB
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.

18600PTB
Self-Contained Refrigerated Pizza Tables
PLAN VIEW
18648PTB
PLAN VIEW
18660PTB
PLAN VIEW
18672PTB
PLAN VIEW
18691PTB
48"
122cm
34"
86.4cm
14"
35.6cm
31.5"
80cm
31.5"
80cm
END
S/S
S/S
END
MECHANICALLY COOLED BLOOMINGTON STYLE
RAISED RAIL WITH (1) 13.62 X 41.87 TOP
OPENING, HINGED REMOVABLE COVER AND
REST ON RECESSED STAINLESS STEEL BRACKET
72"
182.9cm
54"
137.2cm
18"
45.7cm
END
S/S
END
S/S END
S/S
60"
152.4cm
46"
116.8cm
14"
35.6cm
END
S/S
END
MECHANICALLY COOLED BLOOMINGTON STYLE
RAISED RAIL WITH (1) 13.62 X 27.87 AND
(1) 13.62 X 20.87 TOP OPENINGS, HINGED
REMOVABLE COVERS AND REST ON
RECESSED STAINLESS STEEL BRACKET
S/S
31.5"
80cm
91"
231cm
73"
185.4cm
MECHANICALLY COOLED BLOOMINGTON STYLE
RAISED RAIL WITH (1) 13.62 X 41.87 AND
(1) 13.62 X 34.87 TOP OPENINGS, HINGED REMOVABLE
COVERS, AND REST ON RECESSED
STAINLESS STEEL BRACKET
END
S/S
31.5"
80cm
18"
45.9cm
NOTE: PANS AND ADAPTER
BARS ARE NOT INCLUDED
1/4 HP 115V-60C-1PH
(R404A) COND. UNIT ASS'Y
SHELF
ALUMINUM INTERIOR REF'G BASE
AND ABS INTERIOR SUBTOP
19" DOOR
27" DOOR
1/3 HP 115V-60C-1PH
(R404A) COND. UNIT ASS'Y
PANEL ABOVE LOUVER WITH RECESSED
ON/OFF SWITCH FOR RAIL AND BASE
PANEL ABOVE LOUVER WITHRECESSED
ON/OFF SWITCH FOR RAIL AND BASE
SHELF
ALUMINUM INTERIOR REF'G BASE
AND ABS INTERIOR SUBTOP
27" DOOR
ELEVATION VIEW
18648PTB
ELEVATION VIEW
18660PTB
1/2 HP 115V-60C-1PH
(R404A) COND. UNIT ASS'Y
SHELF
ALUMINUM INTERIOR REF'G BASE
AND ABS INTERIOR SUBTOP
27" DOOR 27" DOOR
1/2 HP 115V-60C-1PH
(R404A) COND. UNIT ASS'Y
SHELF
ALUMINUM INTERIOR REF'G BASE
AND ABS INTERIOR SUBTOP
27" DOOR 27" DOOR
PANEL ABOVE LOUVER WITH RECESSED
ON/OFF SWITCH FOR RAIL AND BASE
PANEL ABOVE LOUVER WITH RECESSED
ON/OFF SWITCH FOR RAIL AND BASE
ELEVATION VIEW
18672PTB
ELEVATION VIEW
18691PTB
19" DOOR
MECHANICALLY COOLED BLOOMINGTON STYLE
RAISED RAIL WITH (1) 13.62 X 34.87 AND
(1) 13.62 X 27.87 TOP OPENINGS, HINGED
REMOVABLE COVERS AND REST ON
RECESSED STAINLESS STEEL BRACKET
7" PANEL
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.

18600PTB
Self-Contained Refrigerated Pizza Tables
PLAN VIEW
18699PTB
PLAN VIEW
186114PTB
99"
251.5cm
81"
205.7cm
MECHANICALLY COOLED BLOOMINGTON STYLE
RAISED RAIL WITH (2) 13.62 X 41.87 TOP
OPENINGS, HINGED REMOVABLE COVERS,
AND REST ON RECESSED STAINLESS STEEL BRACKET
MECHANICALLY COOLED BLOOMINGTON STYLE
RAISED RAIL WITH (2) 13.62 X 41.87 TOP
OPENINGS, HINGED REMOVABLE COVERS,
AND REST ON RECESSED STAINLESS STEEL BRACKET
END
S/S
31.5"
80cm
END
S/S
31.5"
80cm
18"
45.9cm
END
S/S
END
S/S
3/4 HP 115V-60C-1PH
(R404A) COND. UNIT ASS'Y
SHELF
ALUMINUM INTERIOR REF'G BASE
AND ABS INTERIOR SUBTOP
ALUMINUM INTERIOR REF'G BASE
AND ABS INTERIOR SUBTOP
27" DOOR 27" DOOR27" DOOR
PANEL ABOVE LOUVER WITH
RECESSED ON/OFF SWITCH FOR RAIL AND BASE
PANEL ABOVE LOUVER WITH
RECESSED ON/OFF SWITCH FOR RAIL AND BASE
ELEVATION VIEW
18699PTB
ELEVATION VIEW
186114PTB
NOTE: PANS AND ADAPTER
BARS ARE NOT INCLUDED
32" DOOR
32" DOOR
32" DOOR
114"
290cm
96"
244cm
18"
45.9cm
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.

18600PTB
Self-Contained Refrigerated Pizza Tables
MODEL PAN NUMBER OF STORAGE SHELF AREA VOLTS/HERTZ/ NEMA SHIP WEIGHT
NUMBER CAPACITY SHELVES CU. FT. SQ. FT. H.P. PHASE AMPS PLUG LBS/KG
18648PTB 12 1 8.39 3.36 1/4 115/60/1 10.0 5-15P 520/235
18660PTB 14 2 14.31 5.63 1/3 115/60/1 12.0 5-15P 580/260
18672PTB 18 2 16.77 7.72 1/2 115/60/1 14.0 5-20P 635/285
18691PTB 22 3 22.82 9.99 1/2 115/60/1 14.0 5-20P 770/350
18699PTB 24 3 25.87 11.58 3/4 115/60/1 16.0 5-20P 805/365
186114PTB 28 3 30.9 14.11 3/4 115/60/1 16.0 5-20P 927/420
Mechanical Data–Standard Unit
36"
91.4cm
21.8"
55.4cm
7.62"
19.3cm
14.36"
36.5cm
RUBBER
BUMPER
42"
106.7cm
MECHANICAL ACCESS
BEHIND LOUVER
C
J
C = CONDENSING UNIT
J = JUNCTION BOX
WITH 8 ft/2.4 m
CORD AND PLUG
Wire grid back
of compressor housing
A
19" DOOR (A= 19.5" or 49.5cm)
27" DOOR (A= 27.5" or 70cm)
32" DOOR (A= 32.5" or 82.5cm)
15.5"
39.4cm
TYPICAL END VIEW
ALL MODELS
MECHANICAL ACCESS
(PLAN VIEW) ALL MODELS
LID HEIGHT DETAIL
ALL MODELS
DOOR CLEARANCE DETAIL
ALL MODELS
26.31"
66.8cm
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
DS18PTB 02/02
