Dell 5000 Series User manual

Dell Edge Gateway
5000 Series
Installation and Operation Manual
Regulatory Model: N01G\N02G
Regulatory Type: N01G001\N02G001

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss
of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
©2016 Dell Inc. All rights reserved. This product is protected by U.S. and international
copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in
the United States and/or other jurisdictions. All other marks and names mentioned herein may
be trademarks of their respective companies.
2016 - 01
Rev. A001

Contents
1 Overview............................................................................................ 5
2 System Features............................................................................... 6
System LEDs......................................................................................8
DIP switches......................................................................................9
3 Setting up your Dell Edge Gateway............................................10
Professional installation instructions..........................................11
Instructions d'installation professionnelles...............................12
Federal Communication Commission Interference
Statement.........................................................................................12
Industry Canada Statement..........................................................13
Powering on the Dell Edge Gateway ........................................16
Mounting the Dell Edge Gateway on the wall................... 16
Mounting the Dell Edge Gateway on a DIN rail.................19
Inserting a micro-SIM card and activating your
mobile broadband................................................................... 22
Removing the micro-SIM card....................................................24
4 Setting up your operating system.............................................. 25
Windows 10 LTSB...........................................................................25
Ubuntu Snappy...............................................................................25
Wind River Linux.............................................................................25
5 Specifications - Gateway..............................................................27
6 I/O Module Overview....................................................................30
Features............................................................................................ 31
Setting up the I/O Module........................................................... 32
Specifications - I/O Module.........................................................37
5000 Series 3

7 Power Module Overview.............................................................. 41
Features............................................................................................42
Setting up the Power Module..................................................... 43
Power module — Connecting a battery..............................47
Specifications - Power Module.................................................. 49
8 Enclosure Overview...................................................................... 52
Features............................................................................................53
Setting up the Enclosure..............................................................54
Specifications - Enclosure............................................................61
9 Setting up the ZigBee Dongle .................................................... 63
10 Contacting Dell............................................................................65
5000 Series 4

Overview
The Dell Edge Gateway 5000/5100 series allows you to connect (wired or wireless)
to network enabled devices and manage them remotely in your existing network
ecosystem. The system can be either mounted on the wall using the Dell approved
wall mount kit or mounted into your existing rack infrastructure using the DIN-rail
mounting bracket. The system is running on Windows 10 Enterprise, Ubuntu
Snappy, and Wind River Linux operating systems. As part of a complete
interoperable building automation system, Edge Gateway provides precise
monitoring and control of connected points. I/O expansion module provide the
Edge Gateway with additional inputs and output module. The power expansion
module provide the Edge Gateway with power redundancy options by allowing you
to connect a 24V AC/DC, a 19.5V DC, and a battery backup simultaneously.
If the Edge Gateway is setup as a web server, it offers the capability for
configuration from a web browser. Configure I/Os, set-up objects, and monitor
present values via a browser.
1
Overview 5

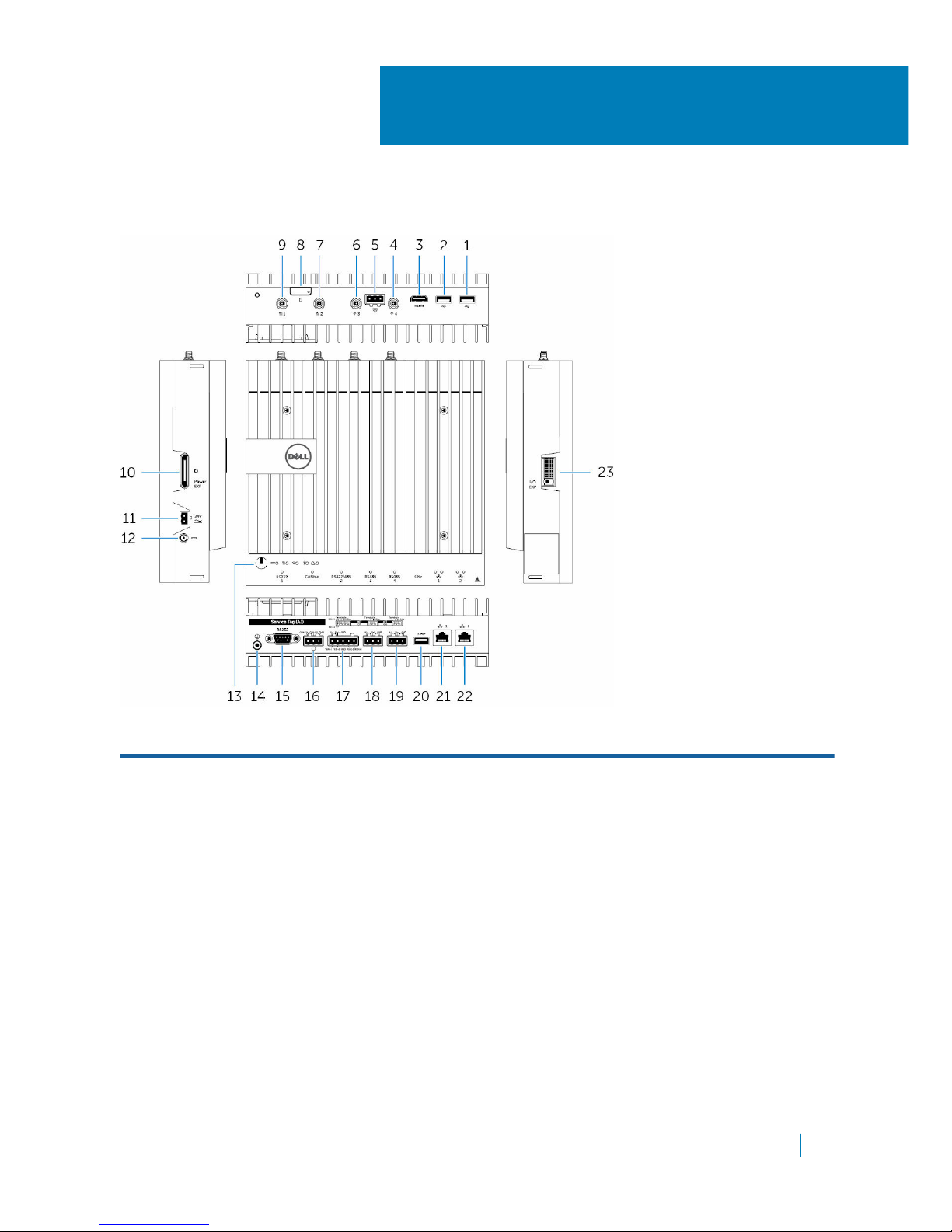

System Features
Feature
1. USB 2.0 port For USB 2.0 devices
2. USB 2.0 port For USB 2.0 devices
3. HDMI port Connect a Monitor or another HDMI‑in
enabled device. Provides video and audio
output.
4. Wi-Fi antenna port (port four) Connect an antenna to increase the range
and strength of the Wi-Fi signals.
5. Intrusion detection connector Connect a TPB based security device to
detect any intrusion into the system.
6. Wireless antenna port (port
three)
Connect an antenna to increase the range
and strength of the Wi-Fi signals.
2
System Features 6

Feature
7. Mobile broadband antenna port
(port two)
Connect an antenna to increase the range
and strength of the mobile broadband
signals.
8. Micro-SIM card slot Insert a micro-SIM card to connect to a
mobile broadband network.
9. Mobile broadband antenna port
(port one)
Connect an antenna to increase the range
and strength of the mobile broadband
signals.
10. Power module expansion port Connect an external power module for
increased power options.
11. +24V AC/DC power Phoenix
connector
Connect a +24V AC/DC power connector
to provide power to your system
12. +19.5 VDC power adapter port Connect a +19.5 VDC power adapter
connector to provide power to your
system
13. Power button Press and hold for 2 seconds to turn on
the system if it is turned off.
14. Earth ground Connect the grounding cable to the
system
15. Serial port Connect to a serial port enabled device
like printers and so on.
16. CANbus port Connect to a CANbus port enabled device
or dongles.
17. RS422/485 port Connect a RS422/485 device.
18. RS485 port Connect a RS422 device.
19. RS485 port Connect a RS485 device.
20. USB 3.0 port For USB 3.0 devices
21. Network port Connect an Ethernet (RJ45) cable from a
router or a broadband modem for network
or internet access.
22. Network port Connect an Ethernet (RJ45) cable from a
router or a broadband modem for network
or internet access.
System Features 7

Feature
23. I/O expansion port Connect an external expansion module for
additional I/O ports.
Topics:
• System LEDs
• DIP switches
System LEDs
Feature
1. Serial port status LED Provide the status of the serial port
connection.
2. CANbus port status LED Provide the status of the CANbus port
connection.
3. RS422/485 port status LED Provide the status of the RS422/485 port
connections.
4. RS485 port status LED Provide the status of the RS485 port
connections.
5. RS485 port status LED Provide the status of the RS485 port
connections.
6. Network status LED Indicates the connectivity status and
network activity.
7. Network status LED Indicates the connectivity status and
network activity.
8. Power status LED Indicates the power‑state of the system.
9. Mobile broadband status LED Indicates the mobile broadband status and
network activity.
System Features 8

Feature
10. Wireless status LED Indicates the wireless connectivity status
and network activity.
11. Bluetooth status LED Indicates the bluetooth status and activity.
12. Cloud connection status LED Indicates the cloud connection status.
DIP switches
Feature
1. RS422/RS485 port toggle switch Toggle between RS422 or RS485 standard
2. RS422/RS485 port resistor
switch
Enable/disable the differential termination
resistor
3. RS422/RS485 port bias resistor
switch
Enable/disable the bias resistor for the
RS422/RS485 port
4. RS422/RS485 port diagnostic
switch
Enable or disable the RS422/RS485 port
5. RS485 port resistor switch Enable/disable the differential termination
resistor for RS485
6. RS485 port bias resistor switch Enable/disable the bias resistor for the
RS485 port
7. RS485 port resistor switch Enable/disable the differential termination
resistor for RS485
8. RS485 port bias resistor switch Enable/disable the bias resistor for the
RS485 port
System Features 9

Setting up your Dell Edge
Gateway
WARNING: Before you begin any of the procedures in this section, read the
safety information that shipped with your system. For additional best
practices information, go to www.dell.com/regulatory_compliance.
WARNING: When installing the Gateway, the responsible party or integrator
shall use the AC Adapter provided with the Dell Edge Gateway, or connect to a
24Vac or 24Vdc power source already present as part of the clients
installation.
WARNING: The Dell AC Adapter (full-wave rectified and have no built-in
isolation transformer) is acceptable for use up to ambient temperature of
40°C and is a limited power source, SELV/Limited Energy Circuit, Class 2
power source. If ambient temperature of the installation exceeds 40 °C then
use the 24Vac or 24Vdc power available as part of the installation.
WARNING: Always make sure that the available power source matches the
required input power of the Dell Edge Gateway, check the input power
markings next to power connector(s) before making connections. The 24 V
power source must be compliant with local Electrical Codes and Regulations.
WARNING: To ensure the protection provided by Dell Edge Gateway is not
impaired, do not use or install the system in any manner other than that which
is specified in this manual.
WARNING: When installing the Gateway use acable appropriate for the load
currents: 3-core cable rated 5 A at 90 °C (194 °F) minimum, which conform to
either IEC 60227 or IEC 60245. The system accepts cables from 0.8 to 2.5 mm
(18 to 14 AWG).
WARNING: The symbol indicates hot surface or adjacent hot surface that
can obtain temperature during normal use that can cause a burn. Allow
equipment to cool off or use protective gloves when handling to reduce risk
of a burn.
WARNING: If a battery is included as part of System/Network, battery must be
must be installed with appropriate enclosure in accordance with local Fire and
Electrical Codes and Laws.
3
Setting up your Dell Edge Gateway 10

WARNING: When installing the Power Module, use a cable appropriate for the
load currents: 3-core cable rated 15 A at 90 °C (194 °F) minimum, which
conform to either IEC60227 or IEC 60245. The Gateway accepts cables of 14
AWG minimum.
WARNING: Before installing that all of three power inputs (Terminal Block/
Power Jack/Battery Input) in power module shall be protected by the 20 A
fuses or circuit-breakers(over current protection device) in front of this
system.
WARNING: The system is for installation in a suitable industrial enclosure
(provides electrical, mechanical and fire hazard protection).
WARNING: The core module only can be wall mounted (without the need for
an additional enclosure)
WARNING: Only Sealed Lead Acid (SLA) battery rated 50Ah (or less) shall be
used
Professional installation instructions
Installation personnel
This product is designed for specific applications and needs to be installed by
qualified personnel with RF and regulatory related knowledge. The general user
shall not attempt to install or change the setting.
Installation location
The product shall be installed at a location where the radiating antenna is kept 20
cm from nearby persons in its normal operation condition in order to meet
regulatory RF exposure requirements.
External antenna
Use only the antenna(s) which have been approved by the applicant. Non-approved
antenna(s) may produce unwanted spurious or excessive RF transmitting power
which may lead to a violation of FCC/IC limits and is prohibited.
Installation procedure
Please refer to user’s manual for the detail.
Setting up your Dell Edge Gateway 11

WARNING: Please carefully select the installation position and make sure that
the final output power does not exceed the limits set forth in relevant rules.
The violation of these rules could possibly lead to serious federal penalties.
Instructions d'installation professionnelles
Le personnel d'installation
Ce produit est conçu pour des applications spécifiques et doit être installé par un
personnel qualifié avec RF et connaissances connexes réglementaire. L'utilisateur ne
doit pas tenter générale d'installer ou de modifier le réglage.
Lieu d'installation
Le produit doit être installé à un endroit où l'antenne de rayonnement est
maintenue à 20 cm de personnes à proximité dans son état de fonctionnement
normal, afin de répondre aux exigences réglementaires d'exposition aux
radiofréquences.
Antenne externe
Utilisez uniquement l'antenne(s) qui ont été approuvés par le demandeur. Antenne
(s) peuvent produire de l'énergie RF parasite indésirable ou excessive transmission
qui peut conduire à une violation des normes de la FCC / IC est interdite et non-
approuvé.
Procédure d'installation
ATTENTION: S'il vous plaît choisir avec soin la position d'installation et assurez-
vous que la puissance de sortie final ne dépasse pas les limites fixées dans les
règles pertinentes. La violation de ces règles pourrait conduire à des sanctions
fédérales graves.
Federal Communication Commission
Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Setting up your Dell Edge Gateway 12

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
• Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
• This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
NOTE: The country code selection is for non-US model only and is not available
to all US model. Per FCC regulation, all WiFi product marketed in US must fixed
to US operation channels only.
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1 this device may not cause interference, and
Setting up your Dell Edge Gateway 13

2 this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes:
1 l'appareil ne doit pas produire de brouillage, et
2 l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
This device complies with RSS-310 of Industry Canada. Operation is subject to the
condition that this device does not cause harmful interference.
Cet appareil est conforme à la norme RSS-310 d'Industrie Canada. L'opération est
soumise à la condition que cet appareil ne provoque aucune interférence nuisible.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter, except tested built-in radios.
Cet appareil et son antenne ne doivent pas être situés ou fonctionner en
conjonction avec une autre antenne ou un autre émetteur, exception faites des
radios intégrées qui ont été testées.
The County Code Selection feature is disabled for products marketed in the US/
Canada.
La fonction de sélection de l'indicatif du pays est désactivée pour les produits
commercialisés aux États-Unis et au Canada.
Radiation Exposure Statement: This equipment complies with IC radiation
exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator &
your body.
Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites
d'exposition aux rayonnements IC établies pour un environnement non contrôlé.
Setting up your Dell Edge Gateway 14

Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance
entre la source de rayonnement et votre corps.
Caution:
1 The device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems;
2 The maximum antenna gain permitted for devices in the bands 5250-5350
MHz and 5470-5725 MHz shall comply with the eirp limit; and
3 The maximum antenna gain permitted for devices in the band 5725-5825 MHz
shall comply with the eirp limits specified for point-to-point and non point-to-
point operation as appropriate.
4 The worst-case tilt angle(s) necessary to remain compliant with the eirp
elevation mask requirement set forth in Section 6.2.2(3) shall be clearly
indicated.
5 Users should also be advised that high-power radars are allocated as primary
users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
1 Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes
canaux;
2 Le gain maximal d’antenne permis pour les dispositifs utilisant les bandes
5250-5350 MHz et 5470-5725 MHz doit se conformer à la limite de p.i.r.e.;
3 Le gain maximal d’antenne permis (pour les dispositifs utilisant la bande
5725-5825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour
l’exploitation point à point et non point à point, selon le cas.
4 Les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de
la p.i.r.e. applicable au masque d’élévation, et énoncée à la section 6.2.2 3),
doivent être clairement indiqués.
5 De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars
de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la
priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Topics:
• Powering on the Dell Edge Gateway
Setting up your Dell Edge Gateway 15

• Removing the micro-SIM card
Powering on the Dell Edge Gateway
1 Install the Gateway on the wall mount using the Dell approved
wall mounting kit.
or
Install the Gateway on the rack infrastructure using the Dell approved
DIN-rail mounting brackets.
2 Connect the network cable.
or
Install the wireless antenna to enable the wireless connections
3 Connect a display to the Gateway (if required).
4 Connect a keyboard and mouse if accessing the Gateway directly.
5 Connect a SELV/limited energy circuit power source to the Dell Edge Gateway.
6 Connect a grounding cable to the Gateway if required.
7 Press the power button to power on the Gateway.
8 If setting up the system for the first time, complete the operating system setup.
NOTE: The Dell Edge Gateway is shipped with either Windows 10
Enterprise, Ubuntu Snappy, or Wind River Linux operating systems.
9 Connect and configure to devices using the RS422/RS485 ports.
NOTE: Turn on the corresponding dip switches to enable the
corresponding RS422/R485 ports.
Mounting the Dell Edge Gateway on the wall
You can mount the Dell Edge Gateway on a wall by using mounting brackets. The
brackets secure the Dell Edge Gateway to the wall.
1 Secure the two mounting brackets to the rear of the Dell Edge Gateway by
using four screws.
Setting up your Dell Edge Gateway 16

2 Drill four holes in the wall that correspond to the holes in the mounting
bracket, then place the Dell Edge Gateway against the wall and align the holes
in the mounting brackets with the holes in the wall.
Setting up your Dell Edge Gateway 17

3 Tighten the screws to secure the Dell Edge Gateway to the wall.
Setting up your Dell Edge Gateway 18

Mounting the Dell Edge Gateway on a DIN rail

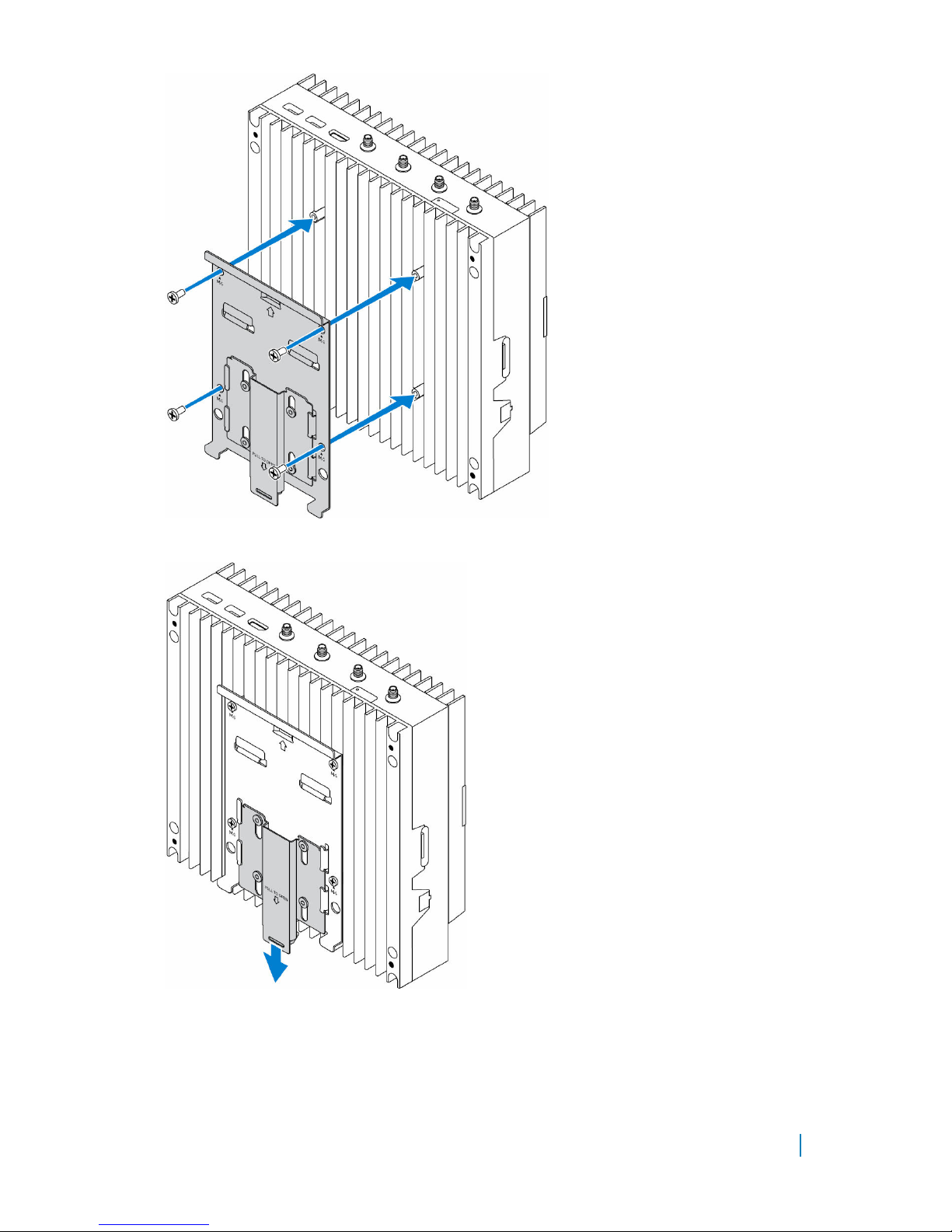

The Dell Edge Gateway can be mounted on a DIN rail. The DIN rail bracket mounts
to the back of the Dell Edge Gateway.
1 Align the screw holes on the DIN rail mount to the back of the Dell Edge
Gateway, place the screws on the DIN rail mount and secure it to the Dell
Edge Gateway
Setting up your Dell Edge Gateway 19

2 Pull down on the tab to release the latch on the DIN rail mount.
3 Mount the Dell Edge Gateway on a DIN rail.
Setting up your Dell Edge Gateway 20
