Dell™E2010H/E2210H/E2310H Flat Panel Monitor User's Guide
Notes, Notices, and Cautions




Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo aretrademarksofDellInc.;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries.ENERGYSTAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has
determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model E2010Hc/E2210Hc/E2310Hc/E2010Ht/E2210Hf/E2310Hf
May2009Rev.A00


About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix

NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page
About Your Monitor
Dell™E2010H/E2210H/E2310HFlatPanelMonitorUser'sGuide
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
LCD Monitor Quality & Pixel Policy
Maintenance Guidelines
Package Contents
Your monitor ships with all the components shown below. Ensure that you have received all the components and ContactDell™ if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.
lMonitor
lStand
lPower Cable
lDVI Cable


Product Features
The Dell™E2010H/E2210H/E2310H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features
include:
■E2010H: 20 inch (508.0 mm) viewable area display. 1600x900 resolution, plus full-screen support for lower resolutions.
■E2210H: 21.5 inch (546.0 mm) viewable area display. 1920x1080 resolution, plus full-screen support for lower resolutions.
■E2310H: 23 inch (584.0 mm) viewable area display. 1920x1080 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■Tilt adjustment capability.
■Removable stand and Video Electronics Standards Association (VESA) 100mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media which includes an information file (INF), Image Color Matching File (ICM) and product documentation.
■Energy Saver feature for ENERGY STAR®compliance.
■Security lock slot.
■Halogen Reduced.
■EPEAT Gold Rating.
■Stand lock.

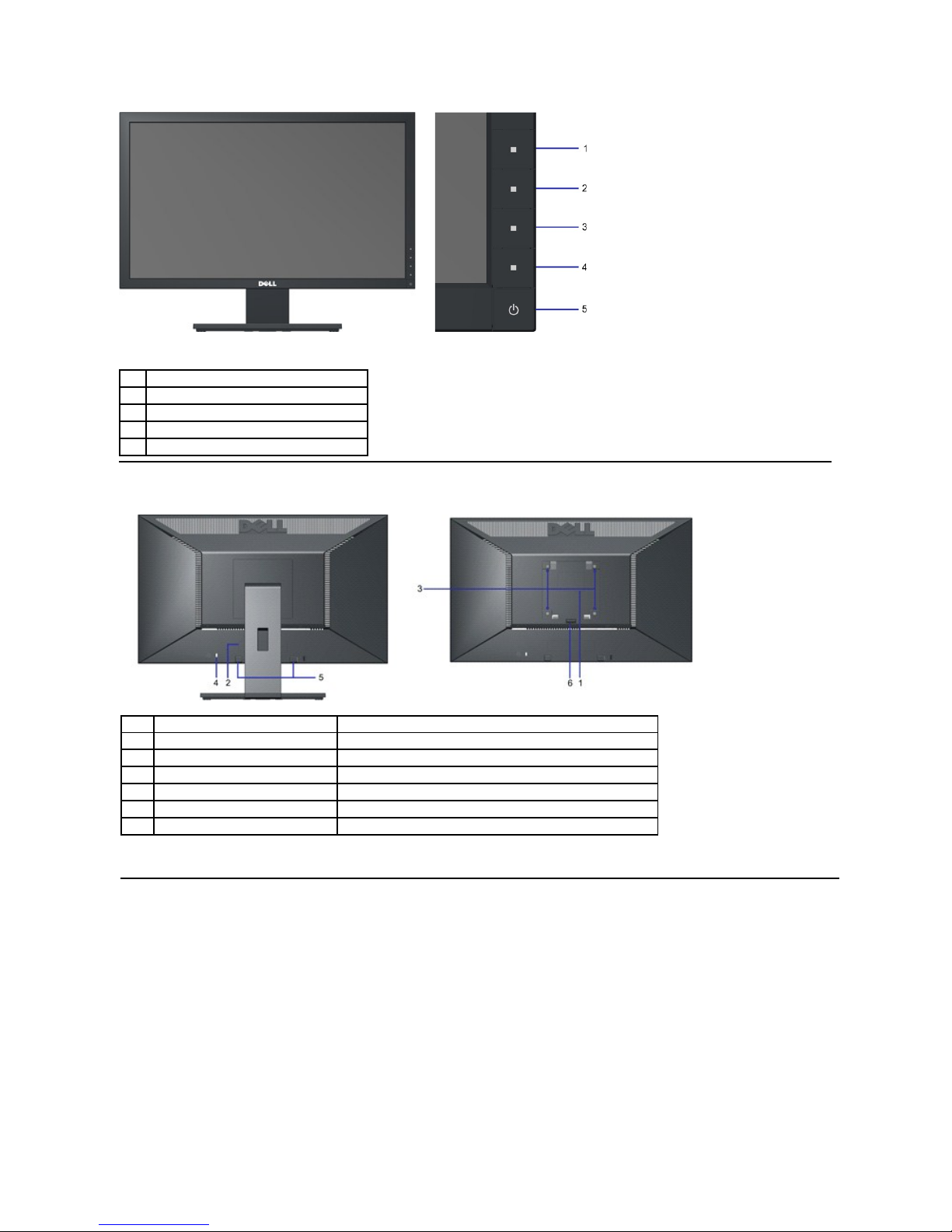

Identifying Parts and Controls
Front View
lVGA Cable (attached to the monitor)
lDrivers and Documentation media
lQuick Setup Guide
lSafety Information



Back View

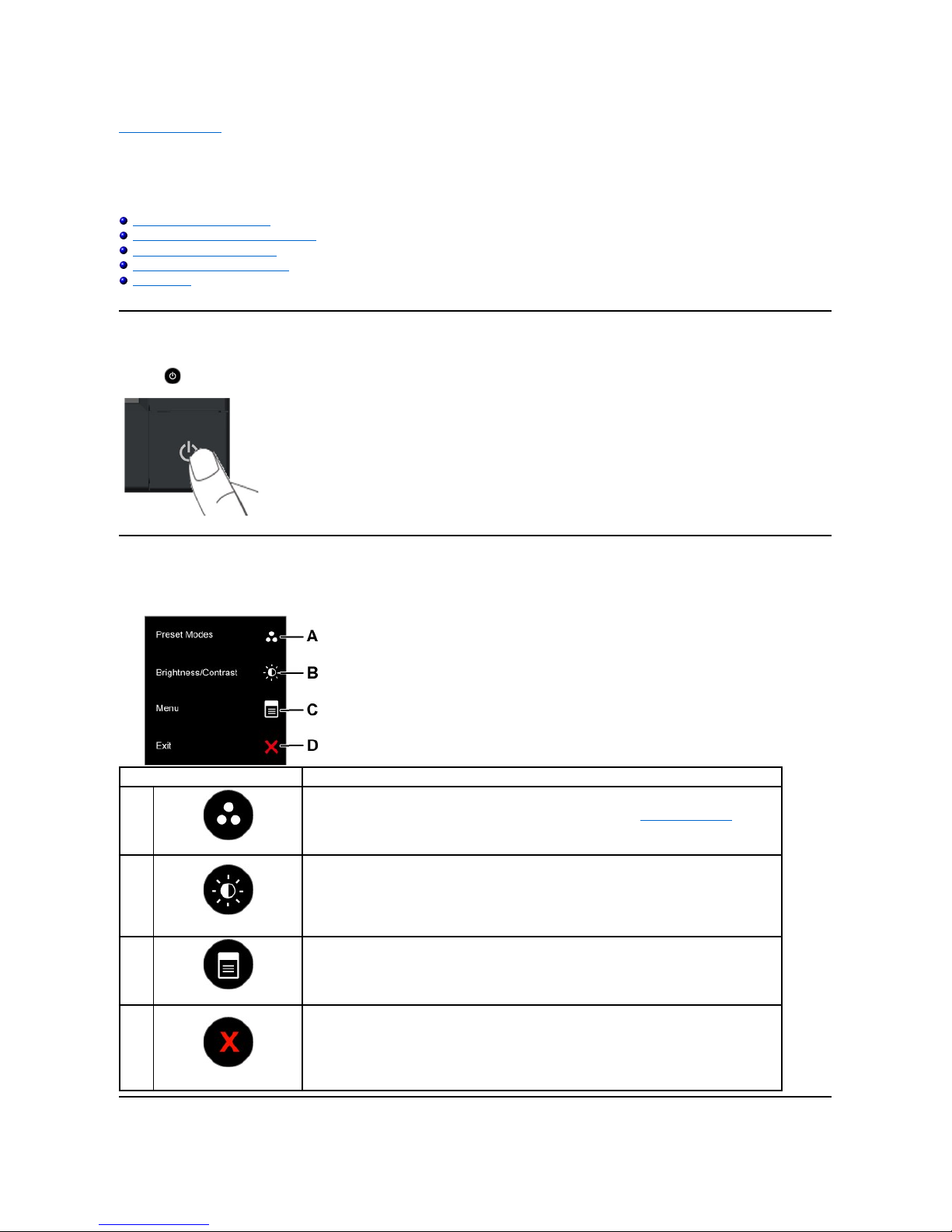

1.
Shortcut Key 1
2.
Shortcut Key 2
3.
OSD Menu
4.
Exit
5.
Power On/Off


Side View
Label
Description
Use
1
Regulatory rating label
List the regulatory approvals.
2
Barcode serial number label
Refer to this label if you need to contact Dell for technical support.
3
VESA mounting holes (100 mm)
To mount the monitor.
4
Security lock slot
Use a security lock with the slot to help secure your monitor.
5
Dell soundbar mounting brackets
To attach the optional Dell Soundbar.
6
Stand release button
Press to release the stand.

Bottom View

Monitor Specifications
The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor.
Power Management Modes
If you have VESA's DPM compliance display card or software installed
in your PC, the monitor automatically reduces its power consumption when not in use. This is referred to as
the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this
automatic power saving feature:
E2010H
E2210H
E2310H

Left Side

Right Side




Label
Description
Use
1
AC power connector
To connect the monitor power cable.
2
VGA connector
To connect your computer to the monitor using a VGA cable.
3
DVI connector
To connect your computer to the monitor using a DVI cable
4
Stand lock
Disable stand release button and lock stand assembly with fastening a
M3 machine screw.
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation
Active
Active
Active
Blue
26 W
Active-off mode
Inactive
Inactive
Blank
Amber
Less than 1 W
Switch off
-
-
-
Off
Less than 1 W
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation
Active
Active
Active
Blue
27 W
Active-off mode
Inactive
Inactive
Blank
Amber
Less than 1 W
Switch off
-
-
-
Off
Less than 1 W



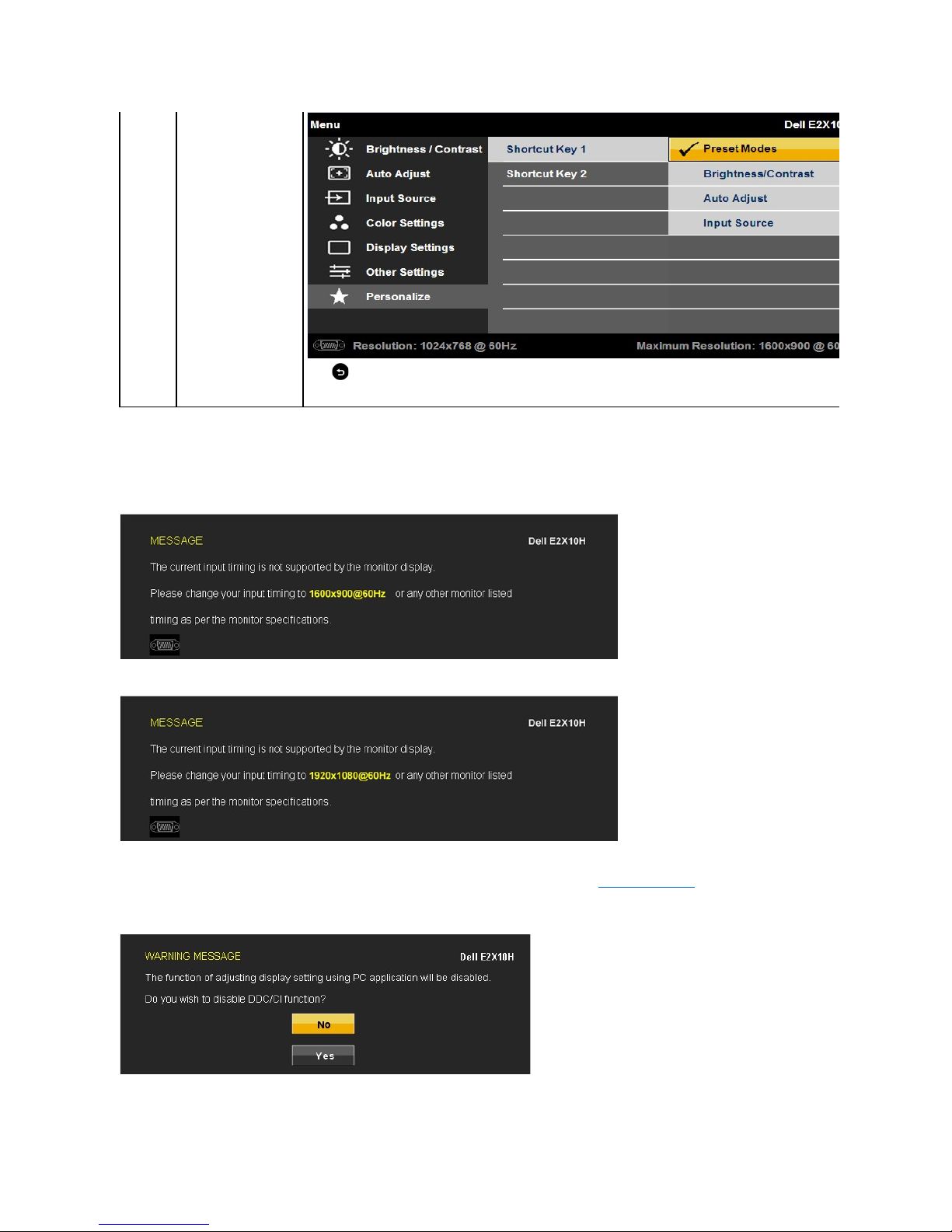

The OSD will only function in the normal operation mode. When any button except power button is pressed in Active-
off mode, the following messages will be displayed:
Activate the computer and monitor to gain access to the OSD.

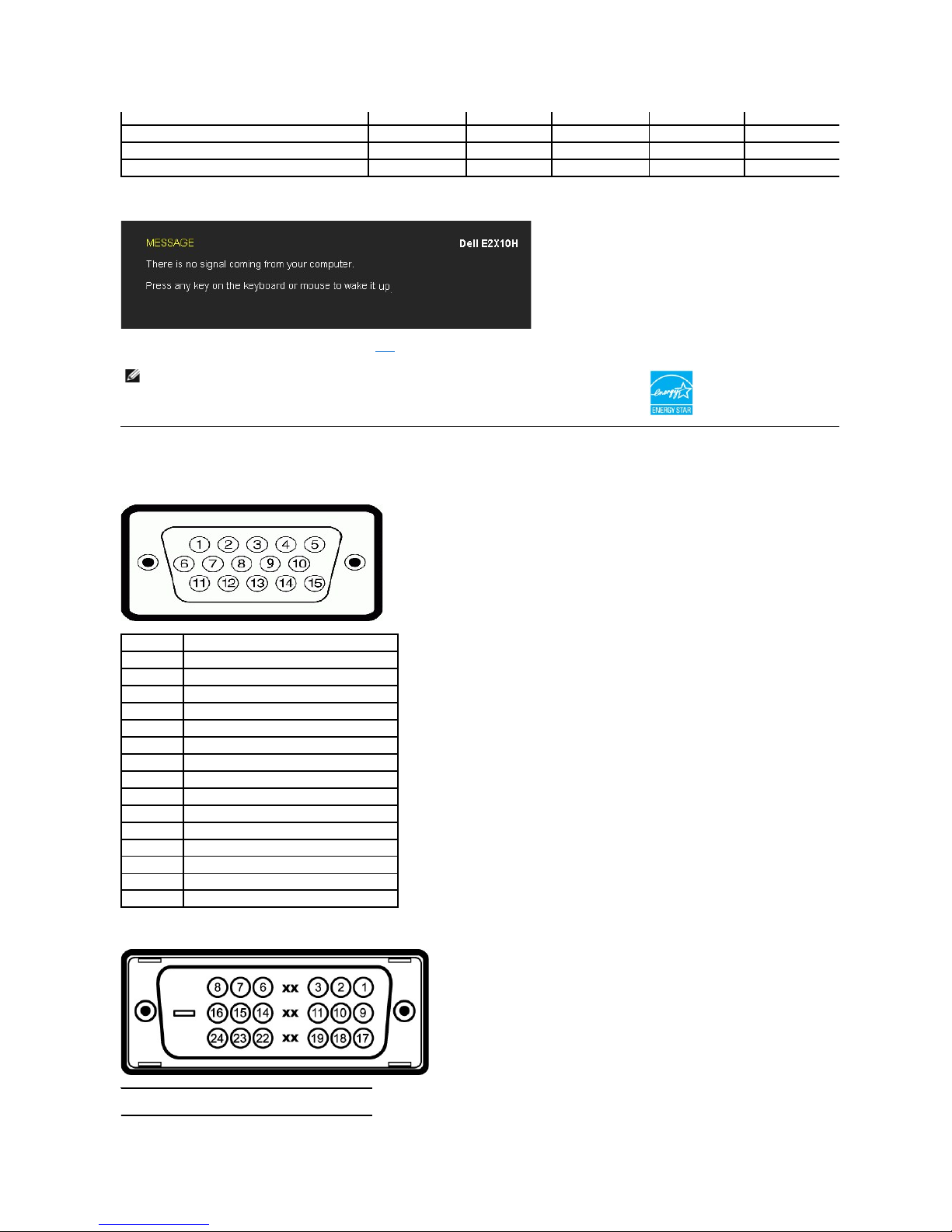

Pin Assignments
15-pin D-Sub connector
DVI connector
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation
Active
Active
Active
Blue
29 W
Active-off mode
Inactive
Inactive
Blank
Amber
Less than 1 W
Switch off
-
-
-
Off
Less than 1 W
NOTE: Dell E2010H/E2210H/E2310H Flat Panel monitor is TC003 and ENERGY STAR®-compliant.
Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

Pin Number
Monitor Side of the 15-pin Side Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
DDC +5V
10
GND-sync
11
GND
12
DDC data
13
H-sync
14
V-sync
15
DDC clock
Pin
Number
24-pin Side of the Connected Signal Cable

Plug and Play Capability
You can install the monitor in any Plug and Play-
compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data Channel
(DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can select different settings if required.
1
TMDS RX2-
2
TMDS RX2+
3
TMDS Ground
4
Floating
5
Floating
6
DDC Clock
7
DDC Data
8
Floating
9
TMDS RX1-
10
TMDS RX1+
11
TMDS Ground
12
Floating
13
Floating
14
+5V/+3.3V power
15
Selftest
16
Hot Plug Detect
17
TMDS RX0-
18
TMDS RX0+
19
TMDS Ground
20
Floating
21
Floating
22
TMDS Ground
23
TMDS Clock+
24
TMDS Clock-
Flat Panel Specifications
*Dell E2010H/E2210H/E2310H Flat Panel monitor color gamut (typical) is based on CIE 1976 (83%) and CIE1931 (72%) test standards.
Model number
Dell E2010H Flat Panel Monitor
Dell E2210H Flat Panel Monitor
Dell E2310H Flat Panel Monitor
Screen type
Active matrix -TFT LCD
Active matrix -TFT LCD
Active matrix -TFT LCD
Panel Type
TN
TN
TN
Screen dimensions
20.0 inches
(20.0-inch wide viewable image size)
21.5 inches
(21.5-inch wide viewable image size)
23 inches
(23-inch wide viewable image size)
Preset display area:
lHorizontal
lVertical

442.8 mm (17.4 inches)
249.0 mm (9.8 inches)

476.6 mm (18.8 inches)
268.1 mm (10.6 inches)

509.8 mm (20.1 inches)
286.7 mm (11.3 inches)
Pixel pitch
0.277 mm
0.248 mm
0.266 mm
Viewing angle:
lHorizontal
lVertical

170°typical
160°typical

170°typical
160°typical

170°typical
160°typical
Luminance output
250 CD/m²(typical)
250 CD/m²(typical)
250 CD/m²(typical)
Contrast ratio
1000 to 1 (typical)
1000 to 1 (typical)
1000 to 1 (typical)
Faceplate coating
Anti-glare
Anti-glare
Anti-glare
Backlight
2 CCFL edgelight system
2 CCFL edgelight system
2 CCFL edgelight system
Response Time
5ms typical
5ms typical
5ms typical
Color Gamut
72% (typical)
72% (typical)
72% (typical)

Resolution Specifications
Electrical Specifications
Model number
Dell E2010H/E2210H/E2310H Flat Panel
Monitor
Scan range
lHorizontal
lVertical

30 kHz to 83 kHz (automatic)
50 Hz to 75 Hz (automatic)
Maximum preset resolution
1600 x 900 at 60 Hz (For E2010H)
1920 x 1080 at 60 Hz (For E2210H/E2310H)
Model number
Dell E2010H/E2210H/E2310H Flat Panel
Monitor
Video input signals
Analog RGB: 0.7 Volts +/-5%, 75 ohm input
impedance
Synchronization input signals
Separate horizontal and vertical
synchronizations, polarity-free TTL level.
AC input voltage / frequency / current
100 to 240 VAC/50 or 60 Hz +3 Hz/1.6A (Max.)
Inrush current
120V:30A (Max.)
240V:60A (Max.)
Preset Display Modes
The following table lists the preset modes for which Dell guarantees image size and centering:
Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock (MHz)
Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400
31.5
70.0
28.3
-/+
VESA, 640 x 480
31.5
60.0
25.2
-/-
VESA, 640 x 480
37.5
75.0
31.5
-/-
VESA, 800 x 600
37.9
60.0
40.0
+/+
VESA, 800 x 600
46.9
75.0
49.5
+/+
VESA, 1024 x 768
48.4
60.0
65.0
-/-
VESA, 1024 x 768
60.0
75.0
78.8
+/+
VESA, 1152 x 864
67.5
75.0
108.0
+/+
VESA, 1280 x 1024
(For E2210H/E2310H)
64.0
60.0
108.0
+/+
VESA, 1280 x 1024
(For E2210H/E2310H)
80.0
75.0
135.0
+/+
VESA, 1600 x 900
(For E2010H)
55.5
60.0
97.8
+/-
VESA, 1920 x 1080
(For E2210H/E2310H)
67.5
60.0
148.5
+/+
Physical Characteristics
The following table lists the monitor physical characteristics:
Model Number
Dell E2010H Flat Panel Monitor
Dell E2210H Flat Panel Monitor
Dell E2310H Flat Panel Monitor
Connector type
15-pin D-subminiature, blue connector; DVI-D,
white connector
15-pin D-subminiature, blue connector;DVI-D,
white connector
15-pin D-
subminiature, blue connector; DVI
white connector
Signal cable type
Analog: Detachable, D-Sub, 15pins, shipped
attached to the monitor
Digital: Detachable, DVI-D, Solid pins, shipped
detached from the monitor
Analog: Detachable, D-Sub, 15pins, shipped
attached to the monitor
Digital: Detachable, DVI-D, Solid pins, shipped
detached from the monitor
Analog:
Detachable, D
attached to the monitor
Digital: Detachable, DVI
detached from the monitor
Dimensions: (with stand)
lHeight
lWidth

363.2 mm (14.30 inches)
481.2 mm (18.94 inches)

381.0 mm (15.00 inches)
515.0 mm (20.28 inches)

401.8 mm (15.82 inches)
548.8 mm (21.61 inches)

LCD Monitor Quality & Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a fixed pixel that appears as an extremely tiny
dark or bright discolored spot.When the pixel remains permanently lit, it is known as a “bright dot.”When the pixel remains black, it is known as a “dark dot.”
Inalmosteverycase,thesefixedpixelsarehardtoseeanddonotdetractfromdisplayqualityorusability.Adisplaywith1to5fixedpixelsisconsiderednormalandwithincompetitivestandards.
For more information, see Dell Support site at: support.dell.com.

lDepth
151.9mm(5.98inches)
158.9mm(6.26inches)
164.0mm(6.46inches)
Dimensions: (without stand)
lHeight
lWidth
lDepth

287.6 mm (11.32 inches)
481.2 mm (18.94 inches)
60.0mm(2.36inches)

306.5 mm (12.07 inches)
515.0mm(20.28inches)
64.5mm(2.54inches)

325.7 mm (12.82 inches)
548.8mm(21.61inches)
63.5mm(2.50inches)
Stand dimensions:
lHeight
lWidth
lDepth

289.3mm(11.39inches)
250.9 mm (9.88 inches)
158.9mm(6.26inches)

298.3mm(11.74inches)
258.9mm(10.19inches)
158.9mm(6.26inches)

310.8mm(12.24inches)
265.9mm(10.47inches)
164.0mm(6.46inches)
Weight with packaging
6.35kg(14.00lbs)
6.54kg(14.38lbs)
6.76
kg(14.87lbs)
Weight with stand assembly and cables
4.85kg(10.67lbs)
5.11kg(11.24lbs)
5.76kg(12.67lbs)
Weight without stand assembly
(For wall mount or VESA mount
considerations -no cables)
3.50kg(7.7lbs)
3.59kg(7.90lbs)
4.10kg(9.02lbs)
Weight of stand assembly
0.94kg (2.07 lbs)
1.00kg(2.20lbs)
1.14kg(2.51lbs)
Environmental Characteristics
The following table lists the environmental conditions for your monitor:
Model Number
Dell E2010H/E2210H/E2310H Flat
Panel Monitor
Temperature
lOperating
lNon-operating

0°to40°C(32°to104°F)
Storage: -20°to60°C(-4°to140°F)
Shipping: -20°to60°C(-4°to140°F)
Humidity
lOperating
lNon-operating

10% to 80% (non-condensing)
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90%(non-condensing)
Altitude
lOperating
lNon-operating

3,657.6 m (12,000 ft) max
12,192 m (40,000 ft) max
Thermal dissipation
E2010H:
102.5 BTU/hour (maximum)
88.8 BTU/hour (typical)
E2210H:
130.0 BTU/hour (maximum)
106.0 BTU/hour (typical)
E2310H:
136.8 BTU/hour (maximum)
112.8 BTU/hour (typical)


Maintenance Guidelines
Caring for Your Monitor
For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
lTo clean your antistatic screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-
cleaning tissue or solution suitable for the antistatic coating. Do not use benzene,
thinner, ammonia, abrasive cleaners, or compressed air.
lUseaslightlydampened,warmclothtocleantheplastics.Avoidusingdetergentofanykindassomedetergentsleaveamilkyfilmontheplastics.
lIf you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.
lHandleyourmonitorwithcareasadarker-colored monitor may scratch and show white scuff marks more than a lighter-coloredmonitor.
lTo help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.

Back to Contents Page
CAUTION: Read and follow the safety instructionsbeforecleaningthemonitor.
CAUTION:Beforecleaningthemonitor,unplugthemonitorpowercablefromtheelectricaloutlet.

Back to Contents Page

Appendix
Dell™E2010H/E2210H/E2310H Flat Panel Monitor User's Guide
Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell


CAUTION: Safety Instructions
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
(1) this device may not cause harmful interference, and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or customer service issues:

Back to Contents Page
CAUTION: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill,
or Dell product catalog.
1.
Visit support.dell.com.
2.
Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.
3.
Click Contact Us on the left side of the page.
4.
Select the appropriate service or support link based on your need.
5.
Choose the method of contacting Dell that is convenient for you.

Back to Contents Page
Setting Up Your Monitor
Dell™E2010H/E2210H/E2310HFlatPanelMonitor
IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess
1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1600 x 900 (for E2010H) or 1920x1080 (for E2210H/E2310H)
again.
Back to Contents Page
NOTE:Ifyouareunabletosettheresolutionto1600x900(forE2010H)or1920x1080(forE2210H/E2310H),pleasecontactDell™toinquireabouta
GraphicsAdapterthatsupportstheseresolutions.

Back to Contents Page
Setting Up Your Monitor
Dell™E2010H/E2210H/E2310H Flat Panel Monitor
IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Select Advanced.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1600 x 900 (for E2010H) or 1920 x 1080 (for E2210H/E2310H)
again.

Back to Contents Page
NOTE: If you are unable to set the resolution to 1600 x 900 (for E2010H) or 1920 x 1080 (for E2210H/E2310H), please contact the manufacturer of your
computerorconsiderpurchasingagraphicsadapterthatwillsupportthevideoresolutionof1600x900(forE2010H)or1920x1080(forE2210H/E2310H).


Back to Contents Page

Operating the Monitor
Dell™E2010H/E2210H/E2310H Flat Panel Monitor User's Guide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt

Power On the Monitor
Press the button to turn on the monitor.

Using the Front Panel Controls
Usethekeysonthefrontofthemonitortoadjusttheimagesettings.

Front panel Key
Description
A
Preset Modes

Use the Preset modes key to choose from a list of preset color modes. See Using the OSD Menu.
B
Brightness / Contrast
Use the Brightness / Contrast key to adjust the brightness and contrast.
C
Menu

Use the Menu key to access the Menu.
D
Exit

Use the Exit key to exit the Menu.

Using the On-Screen Display (OSD) Menu


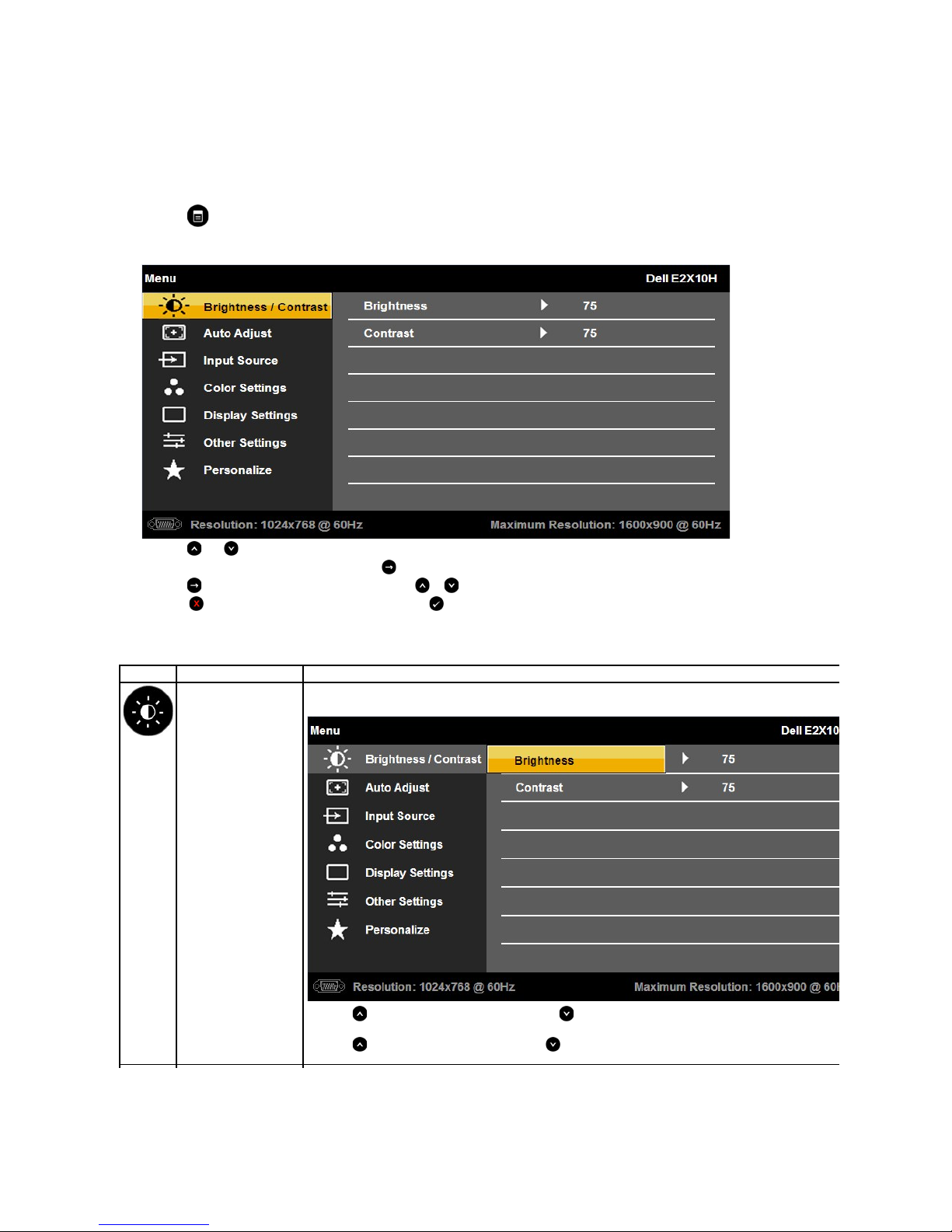

Accessing the Menu Syste
The table below provides a list of all the OSD menu options and their functions.

1.
Press the button to open the OSD menu and display the main menu.

Main Menu
2.
Press the and buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.
3.
To select the highlighted item on the menu press the button again.
4.
Press the buttontoentertheslidebarandthenusethe or buttons, according to the indicators on the menu, to make your changes.
5.
Select the to exit from the on-screen Display menu or select to accept and return to the previous menu.
Icon
Menu and Submenus
Description
BRIGHTNESS/CONTRAST
Use the Brightness and Contrast menu to adjust the Brightness/Contrast.

Brightness
Press the keytoincreasebrightnessandpressthe key to decrease brightness (min 0 ~ max 100).
Contrast
Press the key to increase contrast and press the key to decrease contrast (min 0 ~ max 100).

Auto
Adjust

Use
this key to activate automatic setup and adjust menu. The following dialog appears on a black screen as the monitor self
Auto Adjustment allows the monitor to self-
adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the Pixel Clock
(Coarse) and Phase (Fine) controls under Image Settings.
NOTE:
Auto Adjust does not occur if you press the button while there are no active video input signals or attached cables.
INPUT SOURCE
Use the INPUT SOURCE menu to select between different video signals that may be connected to your monitor.
VGA
Select VGA input when you are using the analog (VGA) connector. Push to select the VGA input source.
DVI-D
Select DVI-D input when you are using the Digital (DVI) connector. Push to select the DVI input source.
Scan for Sources
Select Auto Select to scan for available input signals.
COLOR SETTINGS
Use the Color Settingmenutoadjustthemonitor'scolorsettings.

Input Color Format
Allows you to set the video input mode to:
lRGB
: Select this option if your monitor is connected to a computer or DVD player using the HDMI cable or the HDMI to DVI adapter
lYPbPr: Select this option if your DVD player supports only YPbPr output.

Mode Selection
Allows you to set the display mode to:
lGraphics: Select this mode if your monitor is connected to your computer.
lVideo: Select this mode if your monitor is connected to a DVD player.
NOTE: Depending upon the Display Mode you select the Preset Modes available for your monitor change.

Preset Mode
Allows you to choose from a list of preset color modes.
In the Graphics mode, you can set the color to the following preset values:



lStandard: Loads the monitor's default color settings. This is the default preset mode.
lMultimedia: Loads color settings ideal for multimedia applications.
lGame: Loads color settings ideal for most gaming applications.
lWarm: Increase the color temperature. The screen appears warmer with a red/yellow tint.
lCool: Decreases the color temperature. The screen appears cooler with a blue tint.
lCustom (RGB): Allows you to manually adjust the color settings. press the and
keys to adjust the Red, Green, and Blue values and create
your own preset color mode.


In the Video mode, you can set the color to the following preset values:



lMovie:Loads color settings ideal for movies. This is the default preset mode.
lGame: Loads color settings ideal for most gaming applications.
lSports: Loads color settings ideal for sports.
lNature: Loads color settings ideal for nature.

Hue
Allows you to adjust the skin tone of the image. Use or to adjust the hue from '0' to '100'.
NOTE: Hue adjustment is available only in the Video mode.

Saturation
Allows you to adjust the color saturation of the image. Use or to adjust the saturation from '0' to '100'.
NOTE: Saturation adjustment is available only in the Video mode.


Reset Color Settings
Resets your monitor's color settings to the factory defaults.
DISPLAY SETTINGS
Use the Displays Settings menu to adjust the monitor's display settings.




Back
Press to go back to the main menu.

Horizontal Position
Use the or buttons to adjust image left and right. Minimum is '0' (-). Maximum is '100' (+).

Vertical Position
Use the or buttons to adjust image up and down. Minimum is '0' (-). Maximum is '100' (+)

Sharpness
This feature can make the image look sharper or softer. Use or to adjust the sharpness from '0' to '100'

Pisel Clock
The Phase and Pixel Clock adjustments allow you to adjust your monitor to your preference. Use or
buttons to adjust for best image quality

Phase
If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase (fine), again.

Reset Display Settings
Select this option to restore default display settings.
OTHER SETTINGS
Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.


Back
Language
Press to go back to the main menu.
Allows you to set the OSD display to one of eight languages: English, Spanish, French, German, Japanese, Brazilian Portuguese, Simplified Chinese or Russian
Menu Transparency
Allows you to adjust the OSD background from opaque to transparent.

Menu Timer
Allows you to set the time for which the OSD remains active after you press a key on the monitor.
Use the and keys to adjust the slider in 1 second increments, from 5 to 60 seconds.

Menu Lock
Controls user access to adjustments. When Lock is selected, no user adjustments are allowed.
NOTE:
When the OSD is locked, press the first OSD control above the Power On/Off control for 15 seconds to unlock it.

DDC/CI
DDC/CI (Display Data Channel/Command Interface) allows a software on your computer to adjust the monitor display settings like the brightness, color
balance etc.
Enable (Default): Optimizes the performance of your monitor and provides a better customer experience.
Disable: Disables the DDC/CI option and the following message appears on the screen.

LCD Conditioning
Helps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. You can enable this
feature by selecting "Enable".

Factory Reset
ResetsallOSDsettingstothefactorypresetvalues.
Personalize
Allows you to adjust shortcut key for: 1. Preset modes, 2. Brightness / Contrast, 3. Auto Adjust, 4. Input Source

OSD Warning Messages



Back
Press to go back to the main menu.
When the monitor does not support a particular resolution mode you will see the following message:
E2010H:
E2210H/E2310H:

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the
HorizontalandVerticalfrequencyrangesaddressablebythismonitor.Recommendedmodeis1600 x 900 (for E2010H) or 1920 x 1080 (for
E2210H/E2310H).

YouwillseethefollowingmessagebeforetheDDC/CIfunctionisdisabled.

WhenthemonitorentersthePowerSavemode,thefollowingmessageappears:
