Dell™P2210H/P2310HFlatPanelMonitorUser'sGuide
Note, Caution, and Warning
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries; ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an
ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc.
disclaims any proprietary interest in trademarks and trade names other than its own.
Model P2210Hc/P2310Hc
June2009Rev.A00
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loess of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury or death.
Great user manuals database on UserManuals.info
Back to Contents Page
About Your Monitor
Dell™P2210H/P2310HFlatPanelMonitorUser'sGuide
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Universal Serial Bus (USB) Interface
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not
be available in certain countries.
lMonitor
lStand
lPower Cable
lVGA Cable (attached to the monitor)
lDVI Cable
Great user manuals database on UserManuals.info
Product Features
The P2210H/P2310H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
■P2210H: 21.5-inch (548.86 mm) viewable area display (Measured diagonally).
■P2310H: 23-inch (584.2 mm) viewable area display (Measured diagonally).
■1920 x1080 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■Tilt, swivel, vertical extension and rotate adjustment capability.
■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■Retractable label card allows convenient access to monitor serial number for technical support and easily hidden away providing label-free clean look.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.
■Energy Saver feature for Energy Star compliance.
■Security lock slot.
■Asset Management Capability.
■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
■EPEAT Gold Rating
■Halogen Reduced
Identifying Parts and Controls
Front View
lUSB up stream cable (enables the USB ports on the monitor)
lDrivers and Documentation media
lQuick Setup Guide
lSafety Information
Great user manuals database on UserManuals.info
Back View
Label Card View
Front View
Front panel controls
Label
Description
1
Function buttons (For more information, see Operating the
Monitor)
2
Power (with power light indicator)
Back view
Back view with monitor stand
Label
Description
Use
1
VESA mounting holes (100 mm x 100 mm -
behind attached base plate)
Wall mount monitor using VESA compatible wall mount kit (100 mm x 100 mm)
2
Stand removal button
Release stand from monitor
3
Security lock slot
Secures monitor with security cable lock
4
Dell Soundbar mounting brackets
Attaches the optional Dell Soundbar
5
Information mark
Help locating regulatory and barcode labels
6
Cable management slot
Organizes cables by placing them through the slot
NOTE: Monitor is shipped with label card fully inserted in USB compartment. Pull out the label card to
access the barcode serial number label and regulatory rating label.
Great user manuals database on UserManuals.info
Bottom View
Left view
Right view
Label
Description
Use
1
USB downstream ports (2)
Connect your USB devices
2
Label Card Slot
For details, see Label Card View
Bottom view
Bottom view with monitor stand
Label
Description
Use
1
AC power cord connector
Connect the power cable
2
DC power connector for Dell Soundbar
Connect the power cord for the soundbar (optional)
3
DisplayPort connector
Connect your computer DP cable
4
DVI connector
Connect your computer DVI cable
5
VGA connector
Connect your computer VGA cable
6
USB upstream port
Connect the USB cable, that shipped with your monitor, to the monitor and
the computer. Once this cable is connected you can use the USB connectors
on the side and bottom of the monitor.
7
USB downstream ports (2)
Connect your USB devices. You can only use this connector after you have
connected the USB cable to the computer and USB upstream connector on
the monitor.
Great user manuals database on UserManuals.info
Monitor Specifications
Flat Panel Specifications
*[P2210H/P2310H] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.
Model number
Dell P2210H Flat Panel
Monitor
Dell P2310H Flat Panel
Monitor
Screen type
Active matrix -TFT LCD
Active matrix -TFT LCD
Panel type
TN
TN
Screen
dimensions
21.5 inches (21.5-inch viewable
image size)
23 inches (23-inch viewable
image size)
Preset display
area
476.64(H)X268.11(V)
509.18(H)X286.41(V)
Horizontal
476.64 mm (18.8 inch)
509.18 mm (20 inches)
Vertical
268.11 mm (10.6 inch)
286.41 mm (11.27 inches)
Pixel pitch
0.248 mm
0.265 mm
Viewing angle
160°(vertical)typical
170°(horizontal)typical
160°(vertical)typical
170°(horizontal)typical
Luminance
output
250 CD/m²(typical)
250 CD/m²(typical)
Contrast ratio
1000 to 1 (typical),
10000 to 1 (typical Dynamic
Contrast On)
1000 to 1 (typical),
10000 to 1 (typical Dynamic
Contrast On)
Faceplate
coating
Antiglare with hard-coating 3H
Antiglare with hard-coating 3H
Backlight
2-CCFL edgelight system
2-CCFL edgelight system
Response Time
5ms panel typical
5ms panel typical
Color depth
16.7 million colors
16.7 million colors
Color Gamut
83%*
83%*
Great user manuals database on UserManuals.info
Back to Contents Page
Appendix
Dell™P2210H/P2310HFlatPanelMonitorUser'sGuide
Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell
WARNING: Safety Instructions
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or customer service issues:
Back to Contents Page
WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product
catalog.
1.
Visit support.dell.com.
2.
Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.
3.
Click Contact Us on the left side of the page.
4.
Select the appropriate service or support link based on your need.
5.
Choose the method of contacting Dell that is convenient for you.
Great user manuals database on UserManuals.info
Back to Contents Page
Setting Up Your Monitor
Dell™P2210H/P2310HFlatPanelMonitor
IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess
1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920 x1080 again.
Back to Contents Page
NOTE:Ifyouareunabletosettheresolutionto1920x1080,pleasecontactDell™toinquireaboutaGraphicsAdapterthatsupportstheseresolutions.
Great user manuals database on UserManuals.info
Back to Contents Page
Setting Up Your Monitor
Dell™P2210H/P2310HFlatPanelMonitor
IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Select Advanced.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920 x1080 again.
Back to Contents Page
NOTE: If you are unable to set the resolution to 1920 x1080, please contact the manufacturer of your computer or consider purchasing a graphics
adapterthatwillsupportthevideoresolutionof1920x1080.
Great user manuals database on UserManuals.info
Back to Contents Page
Operating the Monitor
Dell™P2210H/P2310HFlatPanelMonitorUser'sGuide
Power On the Monitor
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt, Swivel, and Vertical Extension
Rotating the monitor
Adjusting the Rotation Display Settings of Your System

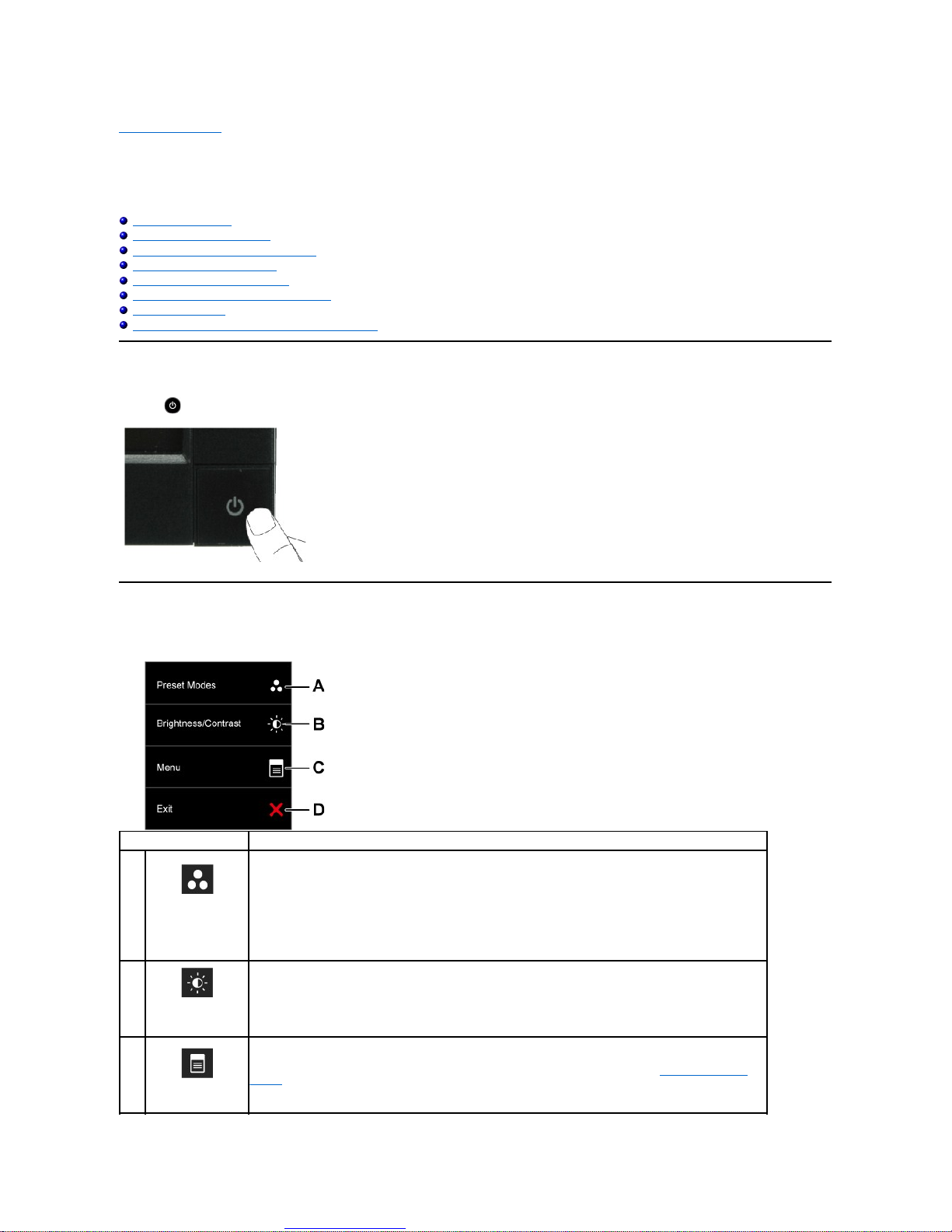

Power On the Monitor
Press the button to turn on the monitor.
Using the Front Panel
Usethekeysonthefrontofthemonitortoadjusttheimagesettings.
Front panel Button
Description
A
Shortcut
key/
Preset
Modes
Use Preset Modes to set the display mode to Graphics or Video according to the input signal.
Select Graphics if you are connecting a computer to your monitor.
Select Video if you are connecting a DVD player, STB, or VCR player to your monitor.
B
Shortcut key /
Brightness/Contrast
Use this button to directly access the "Brightness/Contrast" menu or to increase the values of the selected menu
option.
C
Menu
Use the MENU button to launch the on-screen display (OSD) and select the OSD Menu. See Accessing the Menu
System.
Great user manuals database on UserManuals.info

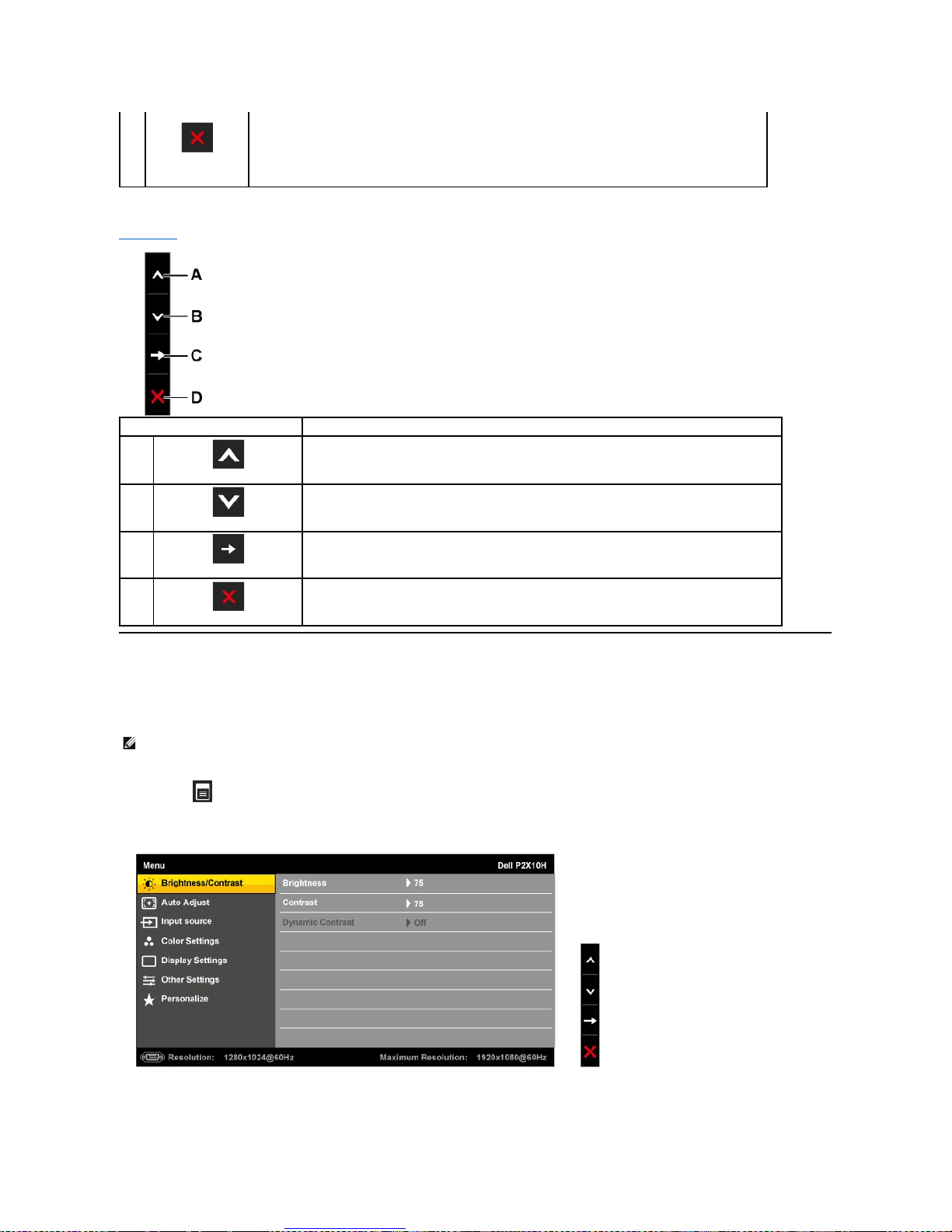

Front panel Key
Use the keysonthefrontofthemonitortoadjusttheimagesettings.
Using the On-Screen Display (OSD) Menu
Accessing the Menu System
1. Press the button to launch the OSD menu and display the main menu.
Main Menu for analog (VGA) Input
or
D
Exit
Use this button to go back to the main menu or exit the OSD main menu.
Front panel Key
Description
A
Up
Use the Up key to adjust (increase ranges) items in the OSD menu.
B
Down
Use the Down key to adjust (decrease ranges) items in the OSD menu.
C
OK
Use the OK key to confirm your selection.
D
Back
Use the back key to back previous menu.
NOTE: IfyouchangethesettingsandtheneitherproceedtoanothermenuorexittheOSDmenu,themonitorautomaticallysavesthosechanges.The
changes are also saved if you change the settings and then wait for the OSD menu to disappear.
Great user manuals database on UserManuals.info
Main Menu for digital (DVI) Input
or
Main Menu for displayport (DP) Input
2. Press the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the
following table for a complete list of all the options available for the monitor.
3.Press the buttononcetoactivatethehighlightedoption.
4.Press and button to select the desired parameter.
5. Press to enter the slide bar and then use the and buttons, according to the indicators on the menu, to make your changes.
6.Select the option to return to the main menu or exit the OSD menu.
NOTE: AUTO ADJUST is only available when you use the analog (VGA) connector.
Icon
Menu and
Submenus
Description
Great user manuals database on UserManuals.info
Brightness/
Contrast
Use this menu to activate Brightness/Contrast adjustment.
Brightness
Brightness adjusts the luminance of the backlight.
Press the button to increase brightness and press the button to decrease brightness (min 0 ~ max 100).
Contrast
Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.
Press the button to increase contrast and press the button to decrease contrast (min 0 ~ max 100).
The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
Dynamic
Contrast
Dynamic Contrast adjusts the contrast ratio to 10000:1.
Press the button to select the Dynamic Contrast "On" or "Off".
Auto Adjust
Even though your computer recognizes your monitor on startup, the Auto Adjustment function optimizes the display settings for use
with your particular setup.
Auto Adjustment allows the monitor to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune
your monitor by using the Pixel Clock
(Coarse) and Phase (Fine) controls under Image Settings.
NOTE: Inmostcases,AutoAdjustproducesthebestimageforyourconfiguration.
NOTE: Auto Adjust option is only available when you are using the analog (VGA) connector.
Great user manuals database on UserManuals.info
Input Sourc
e
Use the Input Source menu to select between different video signals that may be connected to your monitor.
Auto Source
Press to select the Auto source, the monitor will Auto detect the analog signal.
VGA
Select VGA input when you are using the analog (VGA) connector. Press to select the VGA input source.
DVI-D
Select DVI-D input when you are using the Digital (DVI) connector. Press to select the DVI input source.
DisplayPort
Select DisplayPort input when you are using the DisplayPort (DP) connector. Press to select the DisplayPort input source.
Color Settin
gs
Use the Color Settings to adjust the color setting mode and color temperature.
There are different color setting sub-menus for VGA/DVI-D and Video input.
Input Color
Format
Choose the RGB option if monitor is connected to a computer or a DVD using a VGA or DVI cable. Choose the YPbPr option if monitor is
connected to a DVD by a YPbPr to VGA or YPbPr to DVI cable or if the DVD color output setting is not RGB.
Mode
Selection
You can choose Graphics or Video according to the input signal.
lGraphics: Select this mode if your monitor is connected to your computer.
lVideo: Select this mode if you monitor is connected to a DVD player.
Preset Mode
When you select Graphics, you can choose Standard, Multimedia, Game, Warm, Cool, or Custom (R,G,B):
This manual suits for next models
3
Table of contents
Other Dell Monitor manuals
Dell
Dell SE2417HGX Instructions for use
Dell
Dell E156FP User manual
Dell
Dell S3220DGF Instructions for use
Dell
Dell S2317HWI User manual
Dell
Dell SE2722H User manual
Dell
Dell S2419HM User manual
Dell
Dell E2422HS User manual
Dell
Dell E2222HS Instructions for use
Dell
Dell C7016H User manual
Dell
Dell E1709W User manual
Dell
Dell P2422Hc User manual
Dell
Dell D2020H User manual
Dell
Dell SE2222H Instructions for use
Dell
Dell E1709Wc User manual
Dell
Dell SE178WFP User manual
Dell
Dell E1713S User manual
Dell
Dell E2223HN User manual
Dell
Dell P2423DE User manual
Dell
Dell E1910 - 19" LCD Monitor User manual
Dell
Dell M783P User manual
