Dell™ 2400MP Projector
Owner’s Manual

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you
make better use of your projector.
NOTICE: A NOTICE indicates either potential damage to
hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property
damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2006 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell
Inc. is strictly forbidden.
Trademarks used in this text: Dell , the DELL logo, Dimension, OptiPlex,Dell
Precision, Latitude, Inspiron,DellNet, PowerApp, PowerEdge, PowerConnect,
and PowerVault are trademarks of Dell Inc.; DLP and Texas Instruments are
trademarks of Texas Instruments Corporation; Microsoft and Windows are
registered trademarks of Microsoft Corporation; Macintosh is a registered
trademark of Apple Computer, Inc.
Othertrademarksandtradenamesmaybeusedinthisdocumenttorefertoeither
the entities claiming the marks and names or their products. Dell Inc. disclaims
any proprietary interest in trademarks and trade names other than its own.
Restrictions and Disclaimers
The information contained in this document, including all instructions, cau-
tions, and regulatory approvals and certifications, is based upon statements
provided to Dell by the manufacturer and has not been independently verified
or tested by Dell. Dell disclaims all liability in connection with any deficien-
cies in such information.
All statements or claims regarding the properties, capabilities, speeds, or
qualifications of the part referenced in this document are made by the
manufacturer and not by Dell. Dell specifically disclaims any knowledge of the
accuracy, completeness, or substantiation for any such statements.
Model 2400MP
March 2006 Rev. A00

Contents 3
Contents
1 Your Dell Projector . . . . . . . . . . . . . . . . . . 5
About Your Projector . . . . . . . . . . . . . . . . . 7
2 Connecting Your Projector . . . . . . . . . . . . 9
Connecting to a Computer . . . . . . . . . . . . . . . . 10
Connecting to a DVD Player . . . . . . . . . . . . . . . 11
Connecting a DVD Player with an S-video Cable . . 11
Connecting a DVD Player with a Composite Cable . 12
Connecting a DVD Player with a Component Cable 13
Professional Installation Options: . . . . . . . . . . 14
3 Using Your Projector . . . . . . . . . . . . . . . . 15
Turning Your Projector On . . . . . . . . . . . . . . . . 15
Turning Your Projector Off . . . . . . . . . . . . . . . . 15
Adjusting the Projected Image . . . . . . . . . . . . . 16
Raising the Projector Height . . . . . . . . . . . . 16
Lowering the Projector Height . . . . . . . . . . . 16
Adjusting the Projector Zoom and Focus . . . . . . . . 17
Adjusting Projection Image Size . . . . . . . . . . . . 18
Using the Control Panel . . . . . . . . . . . . . . . . . 19

4Contents
Using the Remote Control . . . . . . . . . . . . . . . . 21
Using the On-Screen Display . . . . . . . . . . . . . . 22
Main Menu . . . . . . . . . . . . . . . . . . . . . 23
Input Select . . . . . . . . . . . . . . . . . . . . . 23
Auto-Adjust . . . . . . . . . . . . . . . . . . . . . 23
Set Up . . . . . . . . . . . . . . . . . . . . . . . . 23
PICTURE (in PC Mode) . . . . . . . . . . . . . . . 25
PICTURE (in Video Mode) . . . . . . . . . . . . . 25
DISPLAY (in PC Mode) . . . . . . . . . . . . . . . 26
DISPLAY (in Video Mode) . . . . . . . . . . . . . 27
LAMP . . . . . . . . . . . . . . . . . . . . . . . . 27
LANGUAGE . . . . . . . . . . . . . . . . . . . . . 28
Preferences . . . . . . . . . . . . . . . . . . . . 29
4 Troubleshooting Your Projector . . . . . . . 33
Self-diagnostic for Video . . . . . . . . . . . . . . . . 37
Changing the Lamp . . . . . . . . . . . . . . . . . . . 37
5 Specifications . . . . . . . . . . . . . . . . . . . . . 39
6 Contacting Dell . . . . . . . . . . . . . . . . . . . . 45
7 Appendix: Regulatory Notices . . . . . . . . 73
FCC Notices (U.S. Only) . . . . . . . . . . . . . . . 73
NOM Information (Mexico Only) . . . . . . . . . . 74
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . 75

Your Dell Projector 5
1
Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have all the
items, and contact Dell if anything is missing.
Package Contents
1.8m power cord (3.0m in Americas) 1.8m VGA cable (D-sub to D-sub)
1.8m USB cable 1.8m D-sub to YPbPr cable
2.0m S-video cable 1.8m Composite Video cable

6Your Dell Projector
1.8m RCA to Audio cable 1.8m mini pin to mini pin cable
Batteries (2) Remote control
Documentation Carrying case
Package Contents
(continued)

Your Dell Projector 7
About Your Projector
1Control panel
2Elevator button
3Remote control receiver
4Lens
5Focus ring
6Zoom tab

8Your Dell Projector

Connecting Your Projector 9
2
Connecting Your Projector
1IR receiver
2VGA in (D-sub) connector
3VGA out (monitor loop-through)
4USB remote connector
5Audio output connector
6RS232 connector
7Power cord connector
8Audio input connector
9Composite video connector
10 S-video connector
11 Kensington lock hole

10 Connecting Your Projector
Connecting to a Computer
1Power cord
2D-sub to D-sub cable
3USB to USB cable

Connecting Your Projector 11
Connecting to a DVD Player
Connecting a DVD Player with an S-video Cable
1Power cord
2S-video cable

12 Connecting Your Projector
Connecting a DVD Player with a Composite Cable
1Power cord
2Composite video cable

Connecting Your Projector 13
Connecting a DVD Player with a Component Cable
1Powercord
2 D-sub to YPbPr cable

14 Connecting Your Projector
Professional Installation Options:
Connecting a Computer with a RS232 cable
1Powercord
2 RS232 cable

Using Your Projector 15
3
Using Your Projector
Turning Your Projector On
NOTE: Turn on the projector before you turn on the source. The power button
light blinks blue until pressed.
1 Remove the lens cap.
2 Connect the power cord and appropriate signal cables. For information about
connecting the projector, see "Connecting Your Projector" on page 9.
3 Press the power button (see "Using the Control Panel" on page 19 to locate the
power button). The Dell logo displays for 30 seconds.
4 Turn on your source (computer, DVD player, etc.). The projector automatically
detects your source.
If the "Searching for signal..." message appears on the screen, ensure
that the appropriate cables are securely connected.
If you have multiple sources connected to the projector, press the Source button
on the remote control or control panel to select the desired source.
Turning Your Projector Off
NOTICE: Unplug the projector after properly shutting down as explained in the
following procedure.
1 Press the power button.
2 Press the power button again. The cooling fans continue to operate for 90 seconds.
3 Disconnect the power cord from the electrical outlet and the projector.
NOTE: If you press the power button while the projector is running, the "Power
Off the Lamp?" message appears on the screen. To clear the message, press any
button on the control panel or ignore the message; the message disappears after 5
seconds.

16 Using Your Projector
Adjusting the Projected Image
Raising the Projector Height
1 Press the elevator button.
2 Raise the projector to the desired display angle, and then release the button to
lock the elevator foot into position.
3 Use the tilt adjustment wheel to fine-tune the display angle.
Lowering the Projector Height
1 Press the elevator button.
2 Lower the projector, and then release the button to lock the elevator foot into
position.
1Elevator button
2Elevator foot
3Tilt adjustment wheel

Using Your Projector 17
Adjusting the Projector Zoom and Focus
CAUTION: To avoid damaging the projector, ensure that the zoom lens and
elevator foot are fully retracted before moving the projector or placing the
projector in its carrying case.
1 Rotate the zoom tab to zoom in and out.
2 Rotate the focus ring until the image is clear. The projector focuses at distances
from 3.9 ft to 39.4 ft (1.2 m to 12 m).
1Zoom tab
2Focus ring

18 Using Your Projector

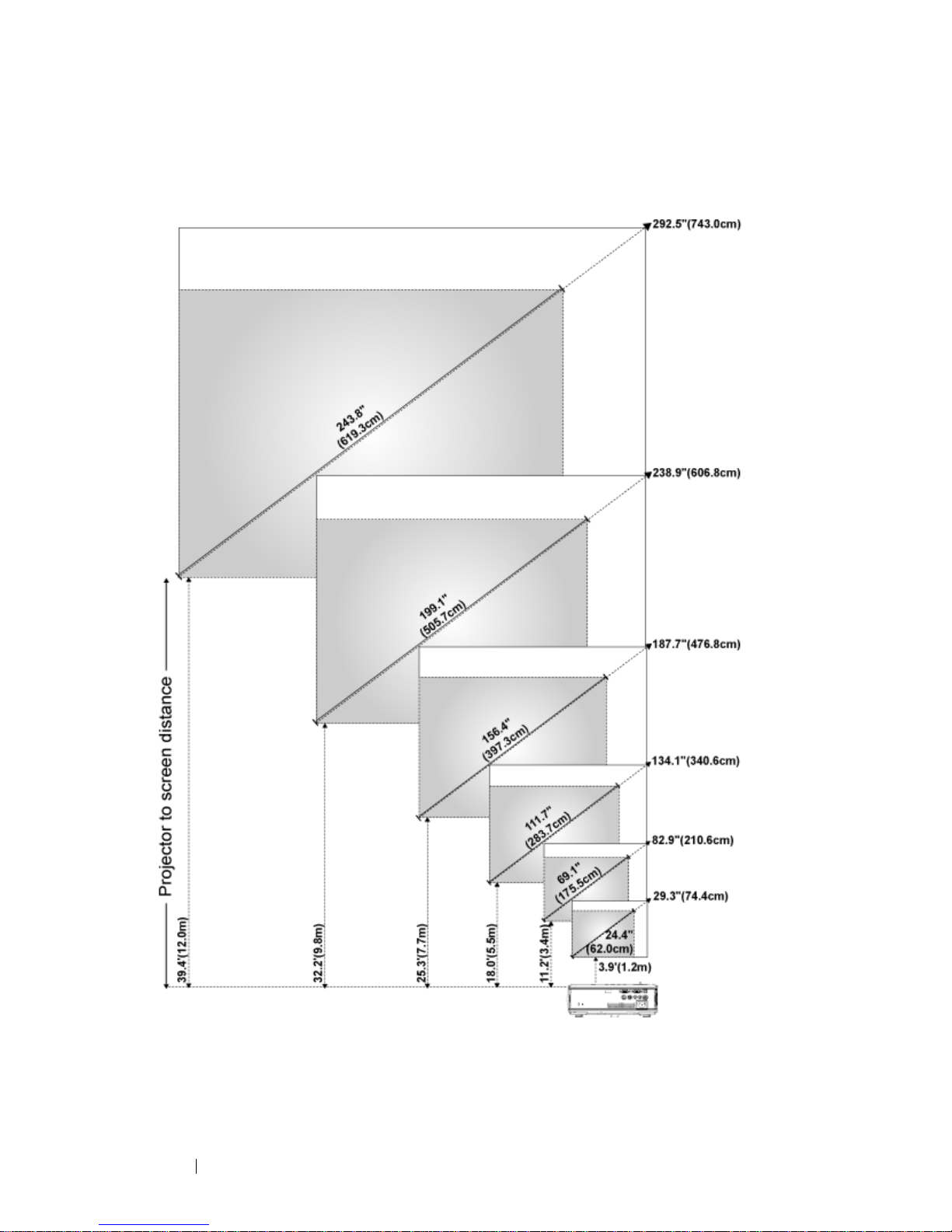

Adjusting Projection Image Size

Using Your Projector 19
Using the Control Panel
Screen
(Diagonal)
Max. 29.3" (74.4cm) 82.9"
(210.6cm) 134.1" (340.6cm) 187.7" (476.8cm) 238.9" (606.8cm) 292.5" (743.0cm)
Min. 24.4"
(62.0cm) 69.1" (175.5cm) 111.7" (283.7cm) 156.4" (397.3cm) 199.1" (505.7cm) 243.8" (619.3cm)
Screen
Size
Max.
(WxH) 23.4"X17.6" 66.3"X49.7" 107.3" X 80.4" 150.2" X112.6" 191.1" X 143.3" 234.0" X 175.5"
(59.4cm X
44.7cm) (168.4cm X 126.2cm) (272.5cm X 204.2cm) (381.5cm X 286.0cm) (485.4cm X 364.0cm) (594.4cmX 445.8cm)
Min.
(WxH) 19.5" X 14.6" 55.3" X 41.4" 89.4" X 67.0" 125.1" X 93.9" 159.3" X 119.5" 195.0" X 146.3"
(49.5cm X
37.1cm) (140.5cm X 105.2cm) (227.1cm X 170.2cm) (317.8cm X 238.5cm) (404.6cm X 303.5cm) (495.3cm X 371.6cm)
Distance 3.9' (1.2m) 11.2' (3.4m) 18.0' (5.5m) 25.3' (7.7m) 32.2' (9.8m) 39.4'
(12.0m)
* This graph is for user reference only.
1Power Turn the projector on and off. For more
information, see "Turning Your Projector On" on
page 15 and "Turning Your Projector Off" on
page 15.
2Source Press to toggle through Analog RGB, Composite,
Component-i, S-video, and Analog YPbPr sources
when multiple sources are connected to the
projector.

20 Using Your Projector
3Keystone adjustment Press to adjust image distortion caused by tilting
the projector. (±40 degrees)
4Resync Press to synchronize the projector to the input
source. Resync does not operate if the on-screen
display (OSD) is displayed.
5Menu Press to activate the OSD. Use the directional
keys and Menu button to navigate through the
OSD.
6TEMP warning light
• A solid orange TEMP light indicates that the
projector has overheated. The display
automatically shuts down. Turn the display on
again after the projector cools down. If the
problem persists, contact Dell.
• A blinking orange TEMP light indicates that a
projector fan has failed and the projector
automatically shuts down. If the problem
persists, contact Dell.
7LAMP warning light If the LAMP light is solid orange, replace the
lamp. If the LAMP light is blinking orange, the
system has failed and the projector will
automatically shut down. If this problem persists,
contact Dell.
8Enter Press to confirm the selection item.
9Keystone adjustment Press to adjust image distortion caused by tilting
the projector. (±40 degrees)
10 Up and Down Press to select the OSD items.
11 and buttons Press to adjust the OSD setting.
