Dell 3300MP User manual

Dell™3300MPProjectorUser'sGuide
Safety Instructions (Read before connecting the projector)
About Your Projector
Installation
Using Your Projector
Troubleshooting
Specifications
Regulatory Notices
Contacting Dell
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your projector.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
©2004 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and Texas Instruments are trademarks of Texas Instruments
Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation; Macintosh is a registered trademark of Apple Computer, Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc.
disclaims any proprietary interest in trademarks and trade names other than its own.
Restrictions and Disclaimers
The information contained in this document, including all instructions, cautions, and regulatory approvals and certifications, is based upon statements
provided to Dell by the manufacturer and has not been independently verified or tested by Dell. Dell disclaims all liability in connection with any deficiencies
in such information.
All statements or claims regarding the properties, capabilities, speeds, or qualifications of the part referenced in this document are made by the
manufacturer and not by Dell. Dell specifically disclaims any knowledge of the accuracy, completeness, or substantiation for any such statements.
February2004Rev.A00

Back to Contents Page
AboutYourProjector:Dell™3300MPProjector
Features
Equipment
Main Unit
Control Panel
Connection Ports
Remote Control

Features

Singlechip0.7"TexasInstrumentsDLP™technology
High contrast, double data rate (DDR) digital micro mirror device
True XGA (1024 x 768) native resolution
3.99 lbs (1.81 kg) lightweight compact design
1600 ANSI lumens brightness (Max)
1700:1 full on / full off contrast ratio
1.2x manual zoom lens
Built in 2W speaker
Auto image re-sizing (Auto-Sync) to 1024x 768 full screen with scaling compression compatibility for SXGA+, SXGA, XGA, SVGA,
VGA, MAC
Great connectivity -- Multiple PC and High Definition inputs (via M1-DA and RGB), S-Video, Composite Video (RCA), Component Video
Preset and user defined video modes for optimum video and graphic settings
LCD display for real time projector status
Self-diagnostic for video troubleshooting
State-of-the-art motion adaptive hardware de-interlacing with 3:2 and 2:2 pull down
180-watt user-replaceable P-VIP 3000-hour lamp
Eco Mode allows end user to extend lamp life to 5000 hours by reducing the lamp wattage and brightness.
Compatibility with Macintosh®computers
Compatibility with NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM, and HDTV (1080i, 720p, 576i/p, 480i/p)
High-definition TV compatibility
User-friendly, multi-language on-screen display (OSD)
Advanced auto vertical electronic keystone correction
Remote projector control from PC via RS232 port
User-friendly control panel with backlight buttons
Drop tested carrying case included
Plug and play for photo image display from the option for memory card reader (Memory card module sold separately)

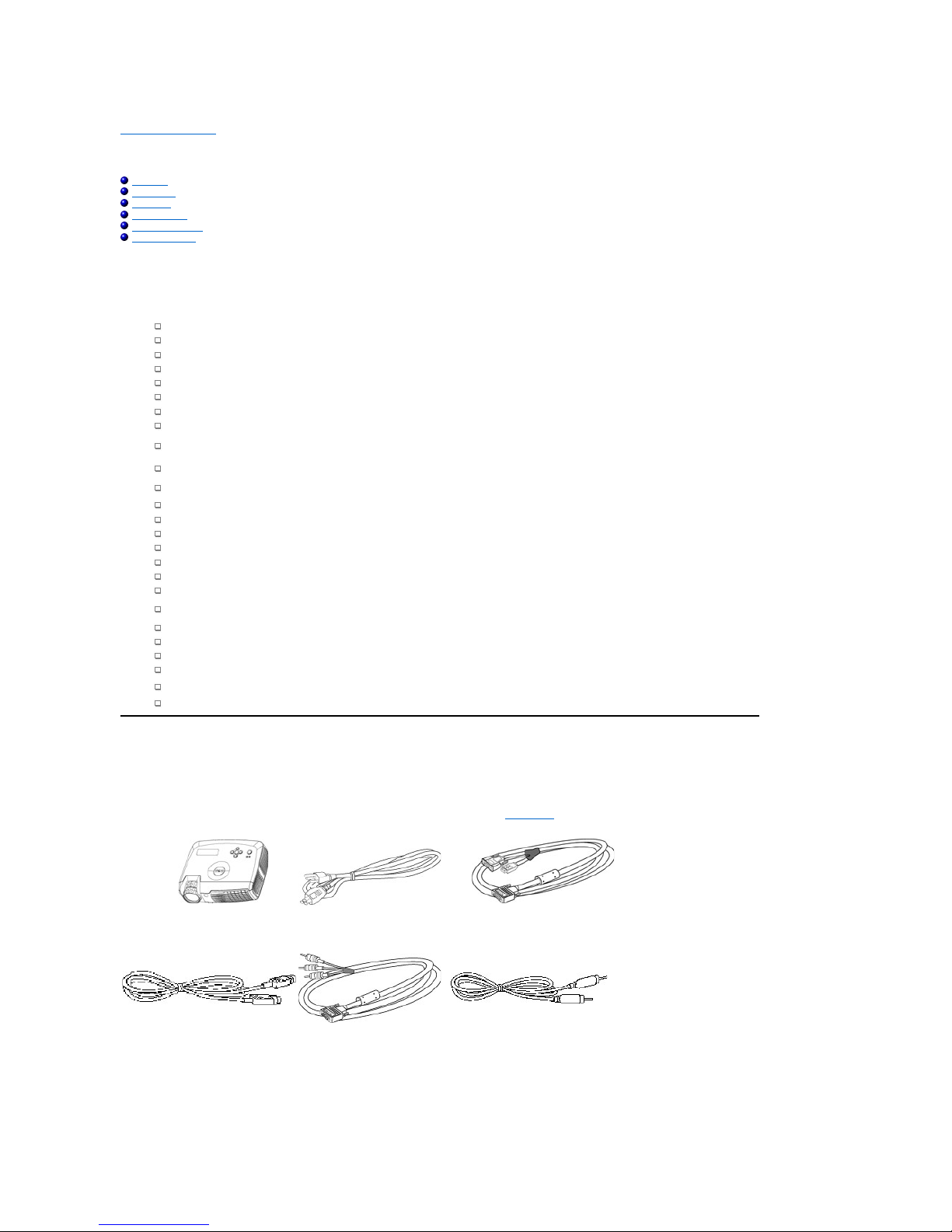

Equipment
Your projector comes with all the items shown below. Ensure that you have all the items, and contact Dell if anything is missing.

Main unit
3.0m Power cord
1.8m M1-A to D-sub/USB cable
2.0m S-video cable
1.8m M1-A to HDTV cable
1.8m Composite Video cable

Batteries (2)
1.8m RCA to Audio cable
1.8m 1/8" Mini Phone Jack cable
Remote control

Dell 3300MP Projector
User's Guide
Dell 3300MP Projector Quick Start
Card
Warranty Guide
Owner's Manual
Carrying case

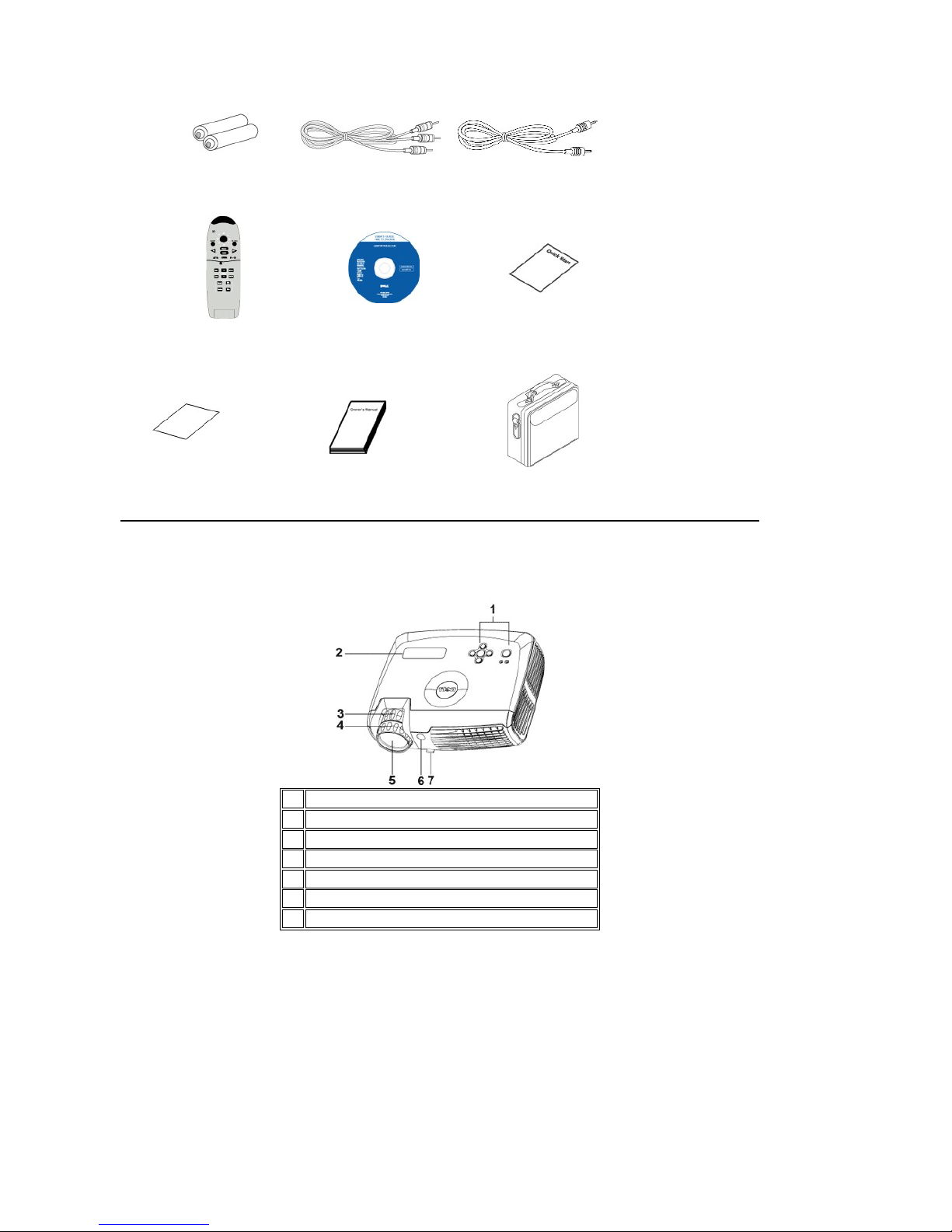

Main Unit

1
Control panel
2
LCD status display
3
Zoom tab
4
Focus ring
5
Lens
6
IR Remote control receiver
7
Elevator button
Control Panel


1
Power button
2
Source
3
Keystone adjustment
4
Re-sync
5
Four directional keys
6
Keystone adjustment
7
Menu
8
Lamp warning light
9
Temperature warning light
Connection Ports




1
Kensington lock hole
2
RS232 connector
3
Audio input connector
4
Composite video connector
5
S-video connector
6
M1-DA connector
7
VGA Out (monitor loop-through)
8
IR Receiver
Remote Control


1
Light
11
Directional Pad
2
Power button
12
R-sync button
3
PU button (page up)
13
Source button
4
Laser pointer
14
PD button (page down)
5
Hide button
15
Keystone correction
6
Mute button
16
Color Mode button
7
Volume+-button
17
Menu button
8
Freeze button
18
4:3/16:9 (aspect ratio) button
9
Normal button
19
Slide Show button
10
Preview button
20
Rotate button
CAUTION: The remote control has a Class II laser that emits radiation. To reduce the risk of injury to the eyes, do
not look directly into the laser light on the remote control and do not point the laser light into anyone's eyes.
Battery Disposal: Your projector remote control uses zinc-manganese batteries. If you need to replace the batteries, see your Dell 3300MP
Projector Quick Start Card.
Do not dispose of used batteries along with household waste. Contact your local waste disposal agency for the address of the nearest battery
deposit site.
Back to Contents Page

Back to Contents Page
