Dell M209X User manual

www.dell.com | support.dell.com
Dell™ M209X Projector
User’s Guide
Downloaded from ProjectorsManual.com Manuals

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you
make better use of your projector.
NOTICE: A NOTICE indicates either potential damage to
hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property
damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2007 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell
Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Dimension, OptiPlex,Dell
Precision, Latitude, Inspiron, DellNet, PowerApp, PowerEdge, PowerConnect,
and PowerVault are trademarks of Dell Inc.; DLP and DLP®logo are trademarks
of TEXAS INSTRUMENTS INCORPORATED ; Microsoft and Windows are registered
trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims
any proprietary interest in trademarks and trade names other than its own.
Model M209X
August 2007 Rev. A00
Downloaded from ProjectorsManual.com Manuals

Contents 3
Contents
1 Your Dell Projector . . . . . . . . . . . . . . . . . . 5
About Your Projector . . . . . . . . . . . . . . . . . 6
2 Connecting Your Projector . . . . . . . . . . . . 7
Connecting to a Computer . . . . . . . . . . . . . . . . . 8
Connecting to a DVD Player . . . . . . . . . . . . . . . . 9
Connecting a DVD Player with an S-video Cable . . . 9
Connecting a DVD Player with a Composite Cable . 10
Connecting a DVD Player with a Component Cable 11
Connecting a DVD Player with an HDMI Cable . . . 12
3 Using Your Projector . . . . . . . . . . . . . . . . 13
Turning Your Projector On . . . . . . . . . . . . . . . . 13
Turning Your Projector Off . . . . . . . . . . . . . . . . 13
Adjusting the Projected Image . . . . . . . . . . . . . 14
Raising the Projector Height . . . . . . . . . . . . 14
Lowering the Projector Height . . . . . . . . . . . 14
Adjusting the Projector Zoom and Focus . . . . . . . . 15
Adjusting Projection Image Size . . . . . . . . . . . . 16
Using the Control Panel . . . . . . . . . . . . . . . . . 17
Downloaded from ProjectorsManual.com Manuals

4Contents
Using the Remote Control . . . . . . . . . . . . . . . . 19
Using the On-Screen Display . . . . . . . . . . . . . . 20
Main Menu . . . . . . . . . . . . . . . . . . . . . 21
Input Select . . . . . . . . . . . . . . . . . . . . . 21
Auto-Adjust . . . . . . . . . . . . . . . . . . . . . 21
Set Up . . . . . . . . . . . . . . . . . . . . . . . . 22
PICTURE (in PC Mode) . . . . . . . . . . . . . . . 22
PICTURE (in Video Mode) . . . . . . . . . . . . . 23
DISPLAY (in PC Mode) . . . . . . . . . . . . . . . 24
DISPLAY (in Video Mode) . . . . . . . . . . . . . 25
LAMP . . . . . . . . . . . . . . . . . . . . . . . . 25
OTHERS . . . . . . . . . . . . . . . . . . . . . . . 27
4 Troubleshooting Your Projector . . . . . . . 31
Guiding Signals . . . . . . . . . . . . . . . . . . . . . 34
Changing the Lamp . . . . . . . . . . . . . . . . . . . 35
5 Specifications . . . . . . . . . . . . . . . . . . . . . 37
Contacting Dell . . . . . . . . . . . . . . . . . . . . . 41
6 Appendix: Glossary . . . . . . . . . . . . . . . . . 43
Downloaded from ProjectorsManual.com Manuals

Your Dell Projector 5
1
Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have all the
items, and contact Dell if anything is missing.
Package Contents
Power cord 1.8m VGA cable (VGA to VGA)
AAA Batteries (2) Remote control
CD User’s Guide& Documentation Carrying case
Downloaded from ProjectorsManual.com Manuals

6Your Dell Projector
About Your Projector
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of dust. The
dust may cause the system to fail and projector will automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5ºC to 35ºC).
NOTE: For more information, see the Product Information Guide that ships with
your projector.

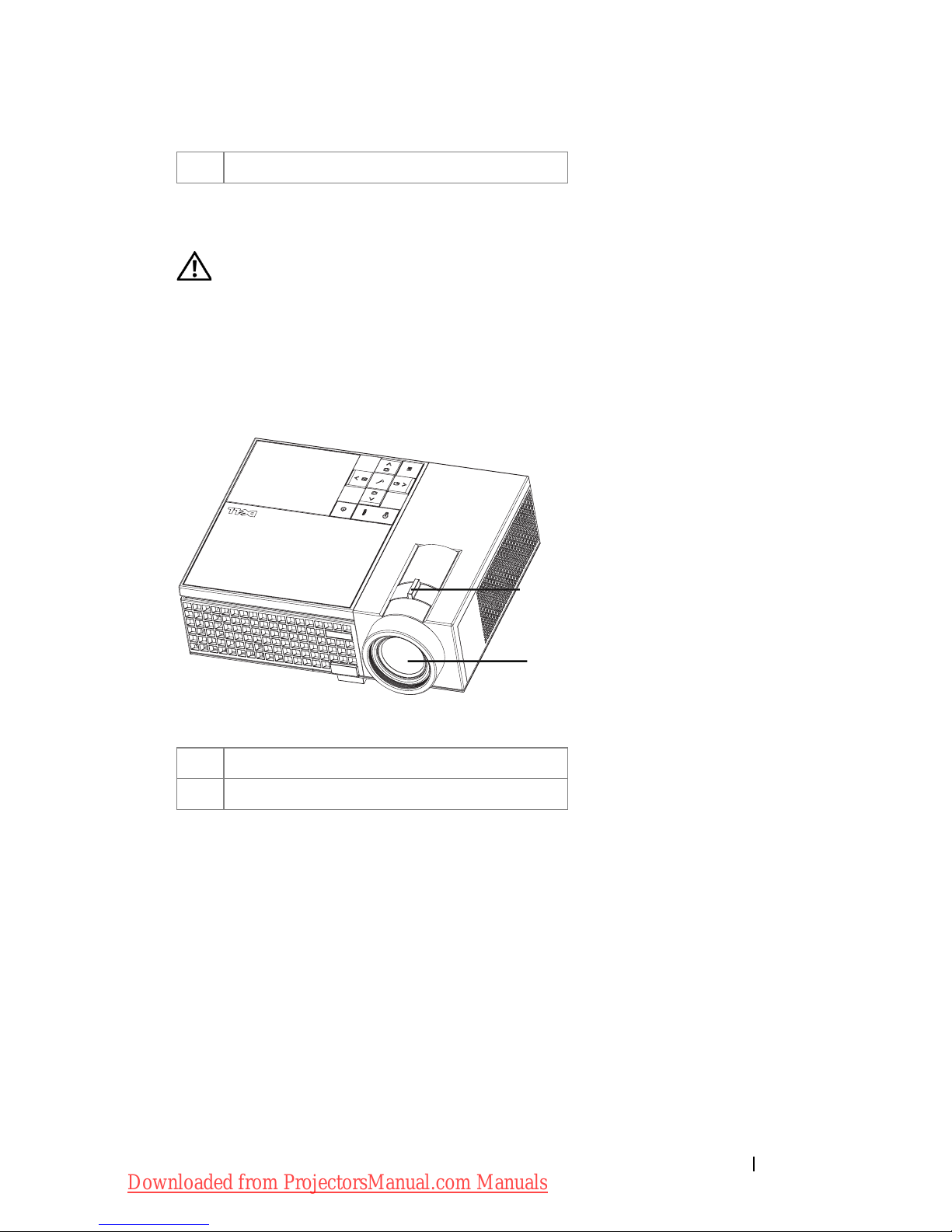

1Control panel
2Zoom tab
3Focus ring
4Lens
5Elevator button
6IR receiver
1
2
4
5
6
6
3
Downloaded from ProjectorsManual.com Manuals

Connecting Your Projector 7
2
Connecting Your Projector
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 6.
1USB remote connector
2VGA input connector
3HDMI input connector
4S-video input connector
5Video input connector
6Audio output connector
7Audio input connector
8Security cable slot
9Power cord connector
8
9
1234567
Downloaded from ProjectorsManual.com Manuals

8Connecting Your Projector
Connecting to a Computer
NOTE: The USB cable is not provided by Dell.
1Power cord
2VGA to VGA cable
3USB to USB cable
1
2
3
MOLEX
Downloaded from ProjectorsManual.com Manuals

Connecting Your Projector 9
Connecting to a DVD Player
Connecting a DVD Player with an S-video Cable
NOTE: The S-Video cable is not provided by Dell.
1Power cord
2S-video cable
2
1
Downloaded from ProjectorsManual.com Manuals

10 Connecting Your Projector
Connecting a DVD Player with a Composite Cable
NOTE: The Composite video cable is not provided by Dell.
1Power cord
2Composite video cable
2
2
1
