Dell PowerEdgeC6105
Getting Started
With Your System
Guide de mise en route
Primeiros passos com o sistema
Procedimientos iniciales con el sistema

Regulatory Model B03S
Dell PowerEdgeC6105
Getting Started
With Your System

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make
better user of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Information in this publication is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of
Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of
Dell Inc. AMD®is a registered trademark and AMD Opteron™ is a trademark of Advanced
Micro Devices, Inc. Red Hat Enterprise Linux®and Enterprise Linux®are registered
trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®is a registered
trademark and SUSE™ is a trademark of Novell Inc. in the United States and other countries.
Citrix®and XenServer®are either registered trademarks or trademarks of Citrix Systems, Inc.
in the United States and/or other countries. VMware®is a registered trademarks or trademarks
of VMWare, Inc. in the United States or other countries.
Other trademarks and trade names may be used in this publication to refer to either the entities
claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in
trademarks and trade names other than its own.
Regulatory Model B03S
July 2010 P/N 45F0M Rev. A00

Getting Started With Your System | 3
CAUTION: Restricted Access Location
This server is intended for installation only in restricted access locations as
defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions
apply:
•Access can only be gained by service persons or by users who have been
instructed about the reasons for the restrictions applied to the location
and about any precautions that shall be taken.
•Access is through the use of a tool or lock and key, or other means of
security, and is controlled by the authority responsible for the location.
Installation and Configuration
WARNING: Before performing the following procedure, review and
follow the safety instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Installing the Tool-Less Rail Solution
WARNING: Whenever you need to lift the system, get others to assist
you. To avoid injury, do not attempt to lift the system by yourself.
WARNING: The system is not fixed to the rack or mounted on the rails.
To avoid personal injury or damage to the system, you must adequately
support the system during installation and removal.
WARNING: To avoid a potential electrical shock hazard, a third wire
safety grounding conductor is necessary for the rack installation.
The rack equipment must provide sufficient airflow to the system to
maintain proper cooling.
CAUTION: When installing rails in a square-hole rack it is important to
ensure that the square peg slides through the square holes.

4|Getting Started With Your System

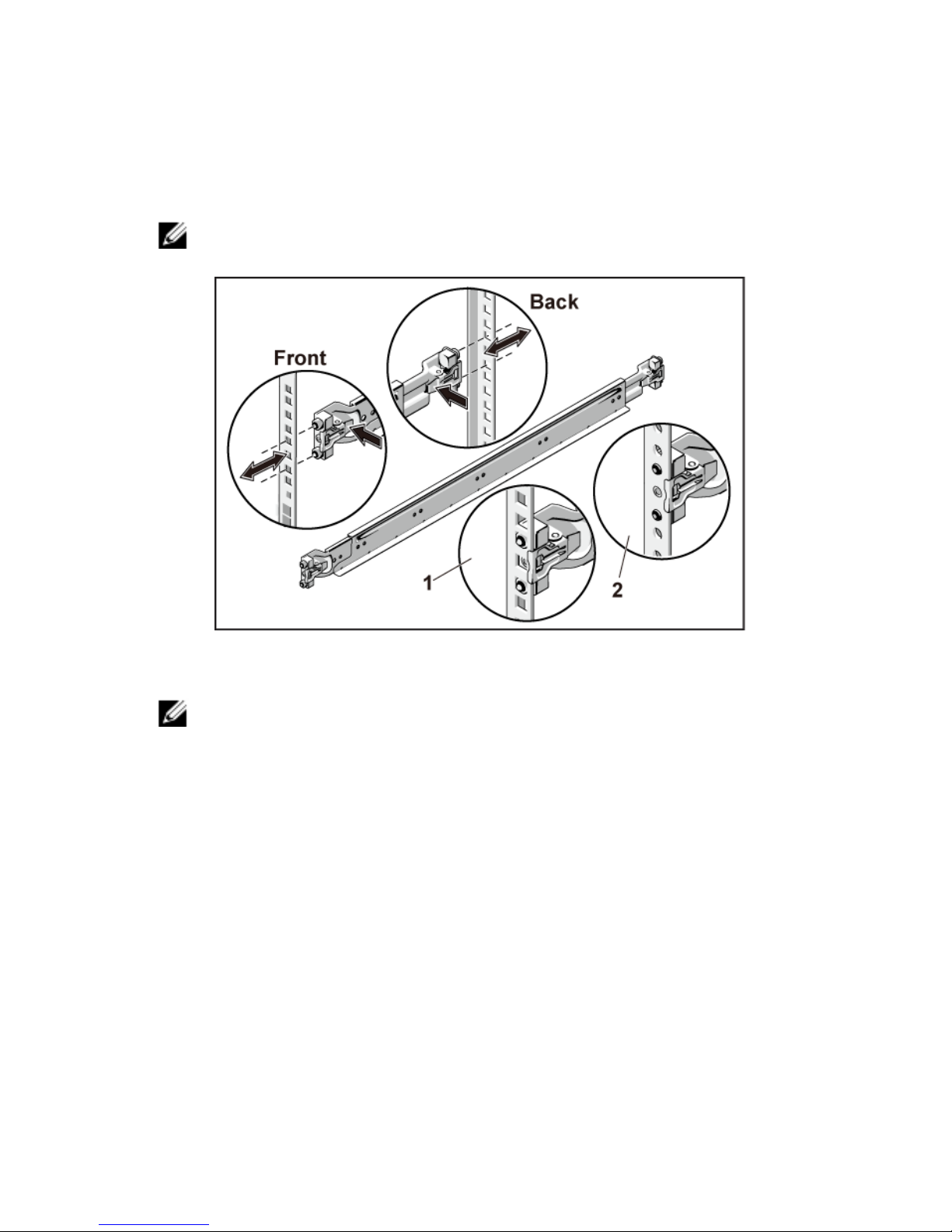

1Align the end pieces of the rails on the vertical rack flanges to seat the
pegs in the bottom hole of the first U and the top hole of the second U.
Engage the back end of the rail until the latch locks in place.
NOTE: The rails can be used in both square-hole (item 1 in figure below)
and round-hole racks (item 2 in figure below).
2Repeat step 1 to position and seat the front end piece on the vertical
flange.

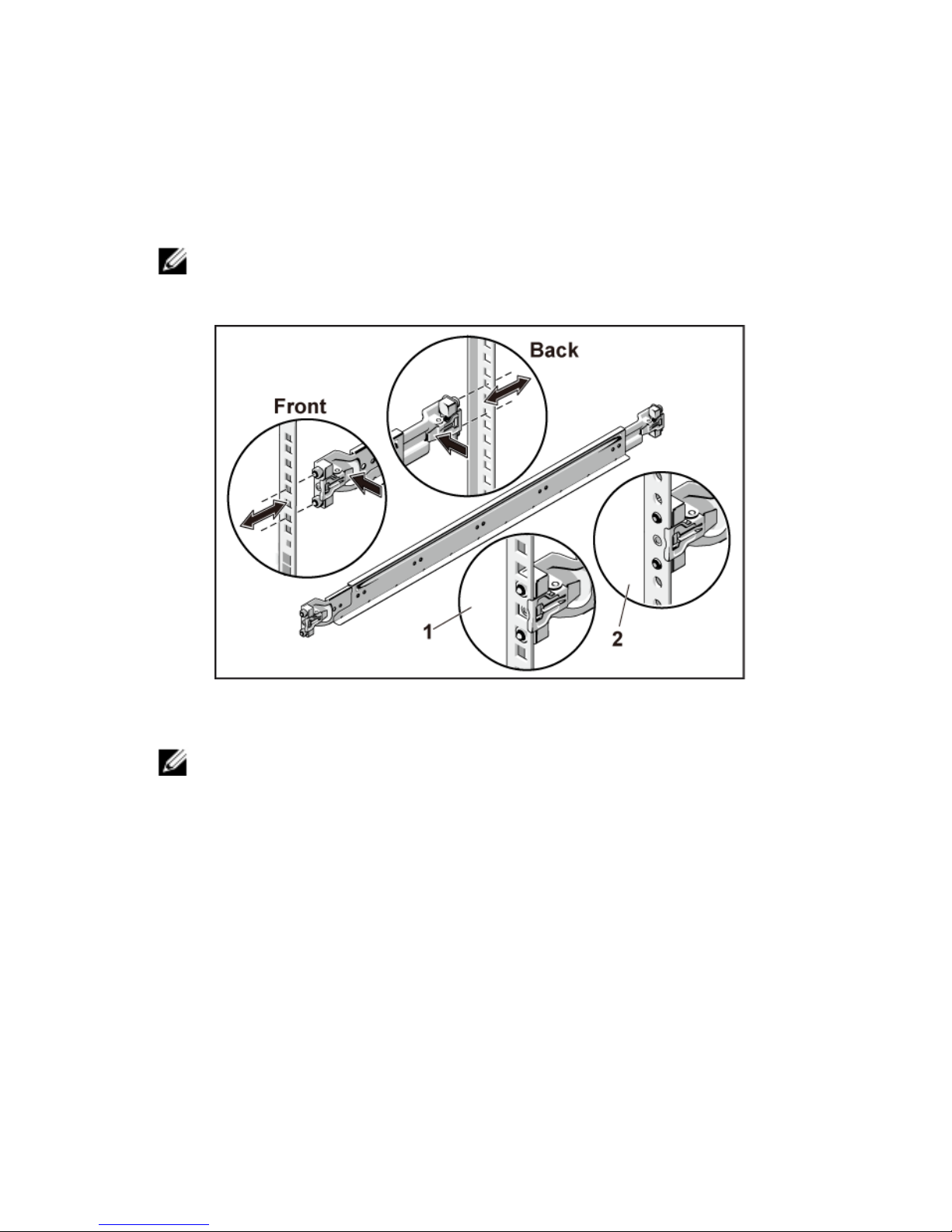

NOTE: To remove the rails, pull on the latch release button on the end
piece midpoint and unseat each rail.
3Slide the system into the rack.

Getting Started With Your System | 5
4If present, remove the chassis stabilizer shipping bracket (optional)
from the rack.
NOTE: To remove the rails, pull on the latch release button on the end
piece midpoint and unseat each rail.
5Tighten the thumbscrews to secure the ears of system to the front of
the rack.

6|Getting Started With Your System
Optional –Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which
cable to plug into each connector. Be sure to tighten the screws (if any) on
the monitor’s cable connector.

Getting Started With Your System | 7
Connecting the Power Cable (s)

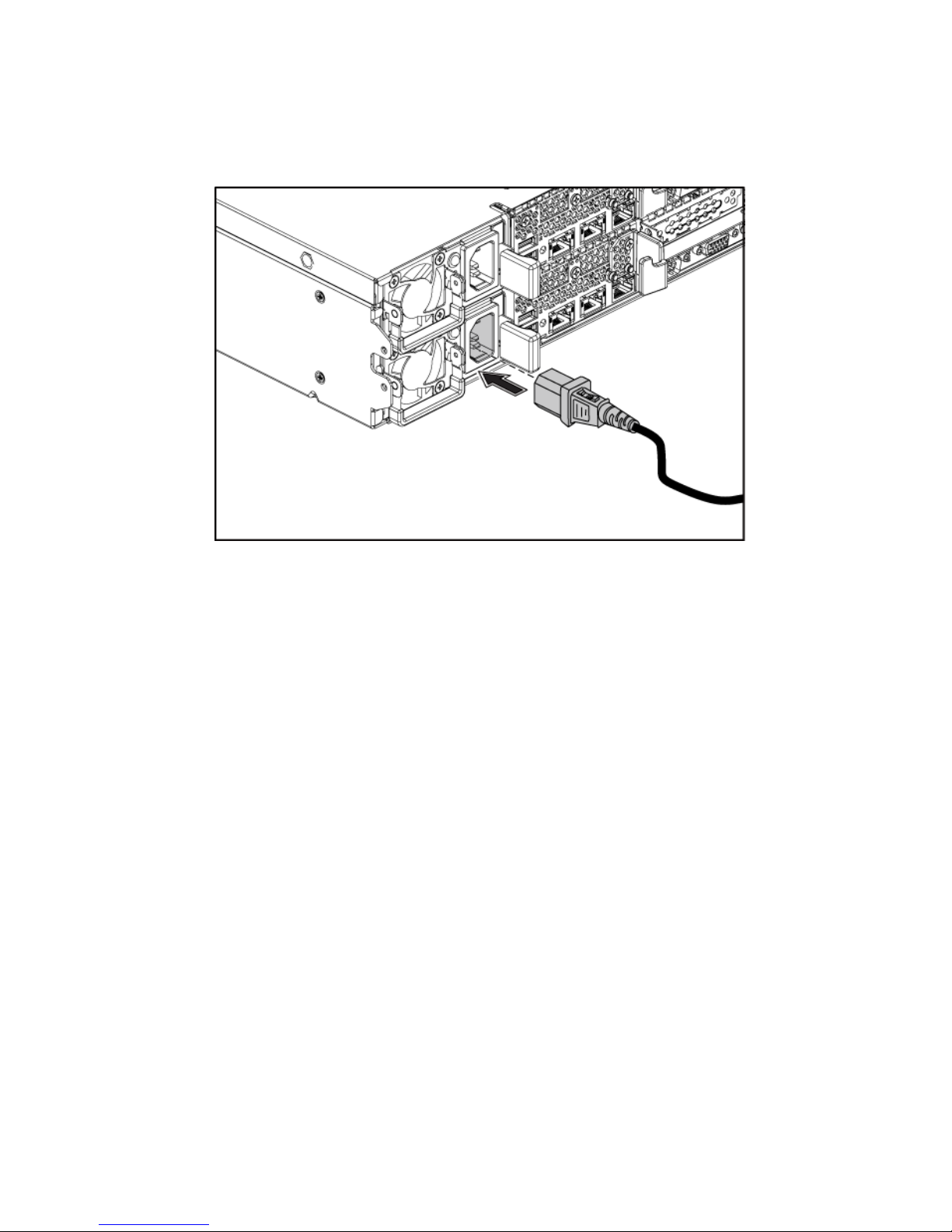

Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor. Plug the other end of the
power cables into a grounded electrical outlet or a separate power source
such as an uninterrupted power supply or a power distribution unit.

8|Getting Started With Your System
Turning On the System
Press the power button(s) either on the front or back of the system and
the monitor. The power indicators should light.

Getting Started With Your System | 9
Complete the Operating System Setup
To install an operating system for the first time, see the installation and
configuration documentation for your operating system. Be sure the
operating system is installed before installing hardware or software not
purchased with the system.
Supported Operating Systems
•Microsoft Windows Server 2008 Enterprise Edition Release 2 (64-bit)
•Microsoft Windows HPC 2008 Release 2
•Microsoft HyperV
•Red Hat Enterprise Linux 5.5 (64-bit)
•SUSE Linux Enterprise Server 11 SP1 (64-bit)
•VMware ESX Server 4.1
•Citrix XenServer Enterprise Edition 5.6
NOTE: For the latest information on supported operating systems,
see support.dell.com.
Other Information You May Need
WARNING: See the safety and regulatory information that
shipped with your system. Warranty information may be
included within this document or as a separate document.
The Hardware Owner’s Manual provides information about system features
and describes how to troubleshoot the system and install or replace system
components. This document is available at support.dell.com/manuals.

10 |Getting Started With Your System
Dell systems management application documentation provides information
about installing and using the systems management software. This
document is available online at support.dell.com/manuals.
NOTE: Always check for updates on support.dell.com/manuals
and read the updates first because they often supersede
information in other documents.
Technical Specifications
Processor (Per System Board)
Processor type One or two AMD Opteron 4000 series
platform processors
Expansion Bus (Per System Board)
Bus type PCI Express Generation 2
Expansion slots
PCIe One x16, half-length, half-height
Daughter card PCIe One x8, custom slot
Memory (Per System Board)
Architecture 800/1066/1333 MHz DDR3 registered
memory modules with ECC
Memory module sockets Twelve 240-pin DIMMs
Memory module capacities 2 GB, 4 GB, or 8 GB
Minimum RAM 12 GB
Maximum RAM 96 GB
Drives
Hard drives Up to twelve 3.5-inch, hot-swappable
SAS/SATA drives or up to twenty four
2.5-inch, hot-swappable
SAS/SATA/SSD drives
NOTE: SAS hard drives are supported
by add-on card.

Getting Started With Your System | 11
Connectors (Per System Board)
Back
NIC Two RJ-45 (10/100/1000 Mbps
Ethernet)
Serial 9-pin, DTE, 16550-compatible
USB Two 4-pin, USB 2.0-compliant
Video 15-pin VGA
Management Port Dedicated Ethernet port for remote
management access
Video (Per System Board)
Video type AST2050 video controller, VGA
connector
Video memory 8 MB
Power
AC power supply (per power supply)
Wattage 470 W
Voltage 100-240 VAC, 50/60 Hz, input
current range: 6.5-3.5 Amps
Heat dissipation 2390 BTU/hr maximum
Wattage 750 W
Voltage 100-240 VAC, 50/60 Hz, input
current range: 9.5-5.0 Amps
Heat dissipation 3414 BTU/hr maximum
Wattage 1024 W low line/1100 W high line
Voltage 100-240 VAC, 50/60 Hz, input
current range: 12.0-6.7 Amps
Heat dissipation 4575 BTU/hr maximum
Wattage 1400 W
Voltage 200-240 VAC, 50/60 Hz, maximum
input current: 9.6 Amps
Heat dissipation 5432 BTU/hr maximum
Maximum inrush current Initial In-rush Current cannot exceed
55 Amps (peak). Secondary In-rush
Current cannot exceed 35 Amps
(peak).

12 |Getting Started With Your System
Power
(continued
)
Battery (per system board)
System battery CR 2032 3.0-V lithium ion coin cell
RAID battery (optional) 3.7 V lithium ion battery pack
Physical
Height 8.76 cm (3.45 in)
Width 44.8 cm (17.6 in)
Depth 75.01 cm (29.47 in)
Weight (maximum configuration) 33.67 kg (74.2 lb)
Weight (empty) 15.11 kg (33.32 lb)
Environmental
NOTE: For additional information about environmental measurements for
specific system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a
maximum temperature gradation of
10°C per hour
NOTE: For altitudes above 2950 feet,
the maximum operating temperature is
derated 1°F/550 ft.
Storage –40° to 65°C (–40° to 149°F) with
a maximum temperature gradation
of 20°C per hour
Relative humidity
Operating 20% to 80% (noncondensing) with
a maximum humidity gradation
of 10% per hour
Storage 5% to 90% (noncondensing)
Maximum vibration
Operating 0.26 Grms at 5–350 Hz
Storage 1.93 Grms at 10–500 Hz for 15 min

Getting Started With Your System | 13
Environmental
(continued
)
Maximum shoc
k
Operating One shock pulse in the positive z axis
(one pulse on each side of the system)
of 31 G for 2.6 ms in the operational
orientation
Storage Six consecutively executed shock pulses
in the positive and negative x, y, and z
axes (one pulse on each side of the
system) of 71 G for up to 2 ms
Six consecutively executed shock pulses
in the positive and negative x, y,
and z axes (one pulse on each side
of the system) of 27 G faired square
wave pulse with velocity change
at 235 inches/second
(597 centimeters / second)
Altitude
Operating –16 to 3,048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet,
the maximum operating temperature is
derated 1°F/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Airborne Contaminant Level
Class G2 or lower as defined by
ISA-S71.04-1985

14 |Getting Started With Your System

Modèle réglementaire B03S
Dell PowerEdgeC6105
Guide de mise
en route

Remarques, précautions et avertissements
REMARQUE : une REMARQUE indique des informations importantes qui
peuvent vous aider à mieux utiliser votre ordinateur.
PRÉCAUTION : une PRÉCAUTON indique un risque de dommage
matériel ou de perte de données en cas de non-respect des
instructions.
AVERTISSEMENT : un AVERTISSEMENT indique un risque
de dommage matériel, de blessure corporelle ou de mort.
Les informations contenues dans ce document sont sujettes à modification sans préavis.
© 2010 Dell Inc. Tous droits réservés.
La reproduction du présent document, de quelque manière que ce soit, sans l'autorisation écrite
de Dell Inc. est strictement interdite.
Les marques utilisées dans ce document : Dell™, le logo DELL logo et PowerEdge™ sont des
marques de Dell Inc. AMD®est une marque déposée et AMD Opteron™ est une marque
d'Advanced Micro Devices, Inc. Red Hat Enterprise Linux®et Enterprise Linux®sont des
marques déposées de Red Hat, Inc. aux États-Unis et/ou dans d'autres pays. Novell®est une
marque déposée et SUSE™ est une marque de Novell Inc. aux États-Unis et dans d'autres pays.
Citrix®et XenServer®sont des marques déposées ou des marques de Citrix Systems, Inc. aux
États-Unis et/ou dans d'autres pays. VMware®est une marque déposée ou une marque de
VMware, Inc. aux États-Unis ou dans d'autres pays.
D'autres marques et noms de marque peuvent être utilisés dans ce document pour faire
référence aux entités se réclamant de ces marques et de ces noms ou de leurs produits. Dell Inc.
rejette tout intérêt propriétaire dans les marques et les noms de marques autres que les siens.
Modèle réglementaire B03S
Juillet 2010 N/P 45F0M Rév. A00

Guide de mise en route | 17
PRÉCAUTION : zone à accès restreint
Ce serveur est conçu pour être installé uniquement dans des zones à accès
restreint telles que définies selon la norme Cl. 1.2.7.3 de IEC 60950-1: 2001
où ces deux conditions s'appliquent :
•Seuls peuvent avoir accès le personnel d'entretien et les utilisateurs qui
ont été informés des motifs des restrictions appliquées au lieu et des
précautions à prendre.
•L'accès, qui se fait par l'intermédiaire d'un outil ou d'un verrou et d'une
clé, ou par d'autres moyens de sécurité, est contrôlé par le responsable
en charge du lieu.
Installation et configuration
AVERTISSEMENT : avant de commencer la procédure suivante,
lisez et respectez les consignes de sécurité fournies avec le système.
Déballage du système
Sortez le système de son emballage et identifiez chaque élément.
Installation des rails sans outils
AVERTISSEMENT : demandez toujours de l'aide avant de soulever le
système. N'essayez pas de le soulever seul, car vous risqueriez de vous
blesser.
AVERTISSEMENT : le système n'est fixé ni au rack ni aux rails. Vous
devez le soutenir correctement au cours de l'installation et du retrait
pour éviter de l'endommager ou de vous blesser.
AVERTISSEMENT : afin d'éviter une éventuelle électrocution, assurez-
vous de disposer d'un troisième conducteur de mise à la terre pour
l'installation du rack. L'équipement du rack doit assurer une ventilation
suffisante pour bien refroidir le système.
PRÉCAUTION : lorsque vous installez des rails dans un rack à trous
carrés, vérifiez que les taquets de fixation à tête carrée glissent bien
dans les trous carrés.

18 |Guide de mise en route
1Alignez l'embout des rails sur les collerettes verticales pour que les
taquets de fixation s'insèrent dans le trou du bas de la première unité
en U et le trou du haut de la deuxième unité en U. Glissez l'arrière
du rail jusqu'à enclenchement du loquet.
REMARQUE : les rails peuvent aussi bien être utilisés dans un rack à
trous carrés (élément 1 dans la figure ci-dessous) que dans un rack à
trous ronds (élément 2 dans la figure ci-dessous).
2Répétez l'étape 1 pour positionner et fixer les embouts avant des rails
sur la collerette verticale.
REMARQUE : pour retirer les rails, appuyez sur le bouton de
dégagement du loquet situé au milieu de l'embout et dégagez les rails
un par un.
3Glissez le système dans le rack.
