Dell™ PowerEdge™
R610 Systems
Getting Started With
Your System

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.; Citrix and XenServer are trademarks
of Citrix Systems, Inc. and/or more of its subsidiaries, and may be registered in the United States
Patent and Trademark Office and in other countries. Intel and Xeon are registered trademarks of Intel
Corporation in the U.S. and other countries; Microsoft, Hyper-V, Windows,and Windows Server are
either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other
countries. Red Hat and Enterprise Linux are registered trademarks of Red Hat, Inc. in the United States
and other countries; SUSE is a registered trademark of Novell, Inc., in the United States and other
countries. VMware is a registered trademark of VMware, Inc. in the United States and/or other
jurisdictions.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model E01S
December 2008 P/N R465D Rev. A01

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.

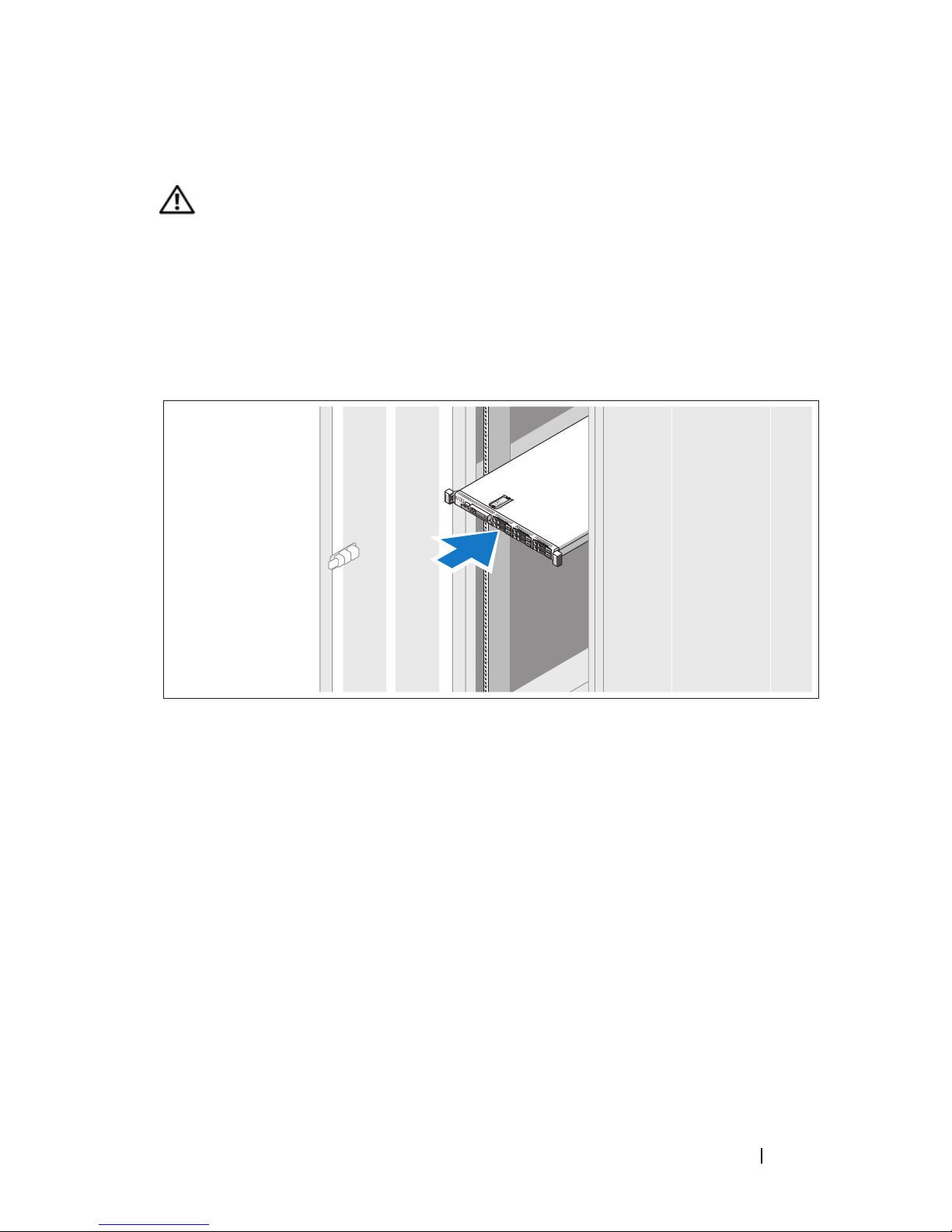

Installing the Rails and System in a Rack
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.

4Getting Started With Your System
Optional – Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.
Connecting the Power Cables
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.

Getting Started With Your System 5
Securing the Power Cord
Bend the system power cable into a loop as shown in the illustration and
secure the cable with the provided strap.
Plug the other end of the power cables into a grounded electrical outlet or a
separate power source such as an uninterruptible power supply (UPS) or a
power distribution unit (PDU).
Turning on the System
Press the power button on the system and the monitor. The power indicators
should light.

6Getting Started With Your System

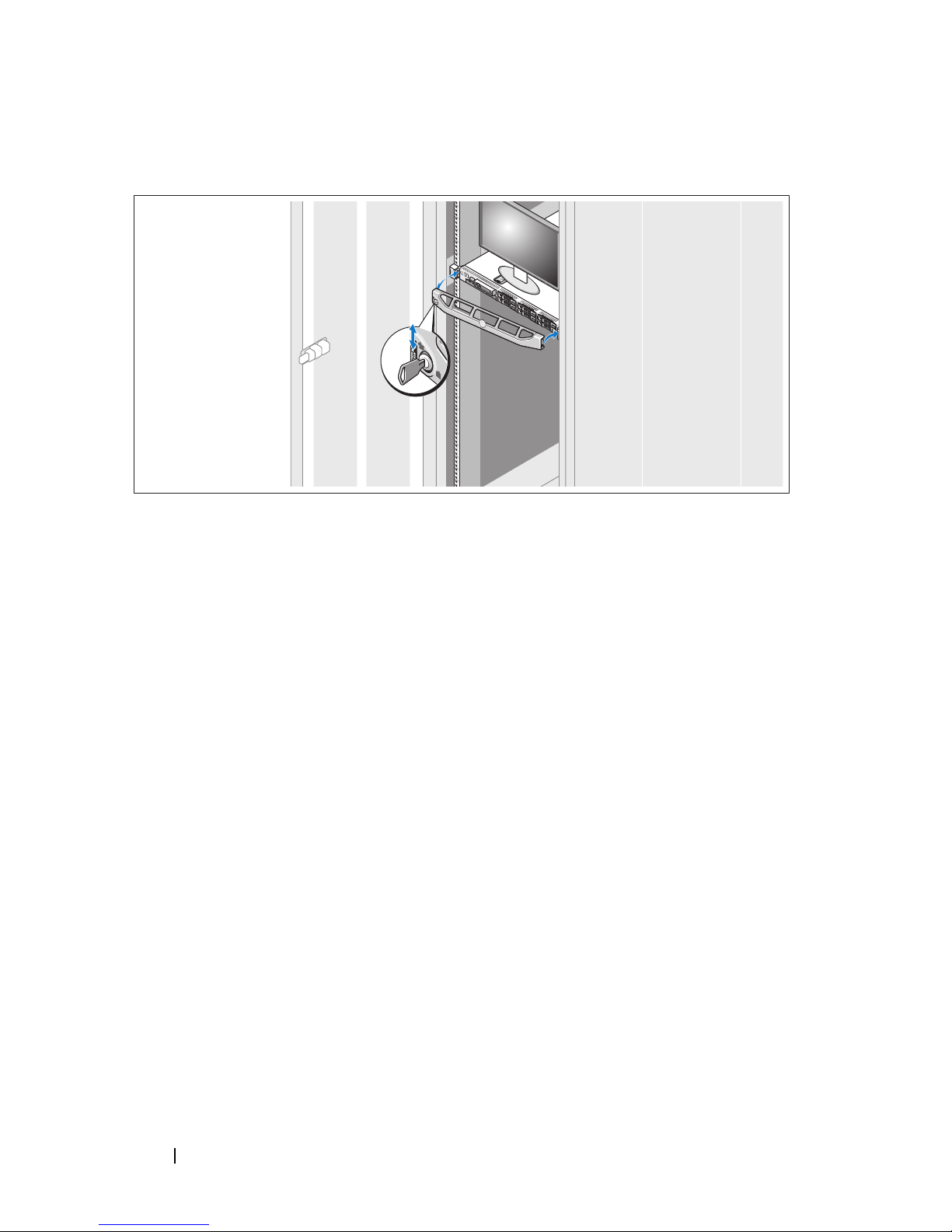

Installing the Optional Bezel
Install the bezel (optional).
Complete the 0perating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.
• Citrix
®
XenServer™ 5.0 with hotfix 1 or later
• Microsoft
®
Windows Server
®
2008 Hyper-V™
• Microsoft Windows Server 2008 Web, Standard, and Enterprise
(32-bit x86) Gold editions
• Microsoft Windows Server 2008 Web, Standard, Enterprise, and
Datacenter (x64) Gold editions
• Microsoft Window Small Business Server 2008, Standard and Premium
(x64) editions.
• Microsoft Windows Server 2003 Web, Standard, and Enterprise
(32-bit x86) editions with SP2
• Microsoft Windows Server 2003 Standard and Enterprise (x64) editions
with SP2

Getting Started With Your System 7
• Microsoft Windows Server 2003 R2 Standard and Enterprise (32-bit x86)
editions with SP2
• Microsoft Windows Server 2003 R2 Standard, Enterprise, and Datacenter
(x64) editions with SP2
• Microsoft Windows Small Business Server 2003 R2 Standard and Premium
editions with SP2
•RedHat
®
Enterprise Linux
®
ES and AS 4.7 (x86)
• Red Hat Enterprise Linux ES and AS 4.7 (x86_64)
• Red Hat Enterprise Linux 5.2 Server (x86_32)
• Red Hat Enterprise Linux 5.2 Server (x86_64)
• SUSE Linux Enterprise Server 10 SP2 (x86_64)
•VMware
®
ESX Version 4.0 and 3.5, Update 4 (when available)
• VMware ESXi Version 4.0 and 3.5, Update 4 (when available)
NOTE: For the latest information on supported operating systems, see
www.dell.com.
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with your
system. Warranty information may be included within this document or as a
separate document.
• The rack documentation included with your rack solution describes how
to install your system into a rack.
• The
Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document is available online at
support.dell.com.
• Any media that ships with your system that provides documentation and
tools for configuring and managing your system, including those
pertaining to the operating system, system management software, system
updates, and system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com and read the updates
first because they often supersede information in other documents.

8Getting Started With Your System
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system
does not perform as expected, see your Hardware Owner’s Manual.
Dell
™ offers comprehensive hardware training and certification. See
www.dell.com/training for more information. This service may not be offered
in all locations.
Technical Specifications
Processor
Processor type One or two quad- or dual-core Intel
®
Xeon
®
processors
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots via riser card:
Riser 1 (Center Riser)
Riser 2 (Left Riser)
(Slot 1) One full-height, half-length x8 link
(Slot 2) One full-height, half-length x8 link
NOTE: Both slots support up to 25 W, but only
one 25-W card can be installed in the system at
a time. With two cards installed, one 25-W card
can be installed while the other card must be
15 W or under.
Memory
Architecture 800, 1066 or 1333 MHz DDR3 registered
or unbuffered Error Correcting Code
(ECC) DIMMs. Support for Advanced
ECC or memory-optimized operation.
Memory module sockets Twelve 240-pin
Memory module capacities 1 GB or 2 GB UDIMMs;
2 GB, 4 GB, or 8 GB RDIMMs, single-, dual-,
or quad-ranked

Getting Started With Your System 9
Minimum RAM 1 GB with a single CPU
Maximum RAM 96 GB (with 8 GB RDIMMs) or
24 GB (with 2 GB UDIMMs)
Drives
Hard drives Up to six 2.5-inch, internal, hot-swappable
SAS or SATA hard drives with backplane
support
Diskette Drive Optional external USB 1.44-MB drive
Optical drive One optional internal slimline SATA DVD-
ROM or DVD+RW drive
Optional external USB DVD
NOTE: DVD devices are data only
Flash Drive Optional internal USB
Optional internal Secure Digital (SD)
memory card
Optional external SD memory card
Connectors
Back
NIC Four RJ-45 10/100/1000 Mbps Ethernet
Serial 9-pin, DTE, 16550-compatible
USB Two 4-pin, USB 2.0-compliant
Video 15-pin VGA
Optional external VFlash card One optional flash memory card slot with
iDRAC6 Enterprise
Front
Video 15-pin VGA
USB Two 4-pin, USB 2.0-compliant
Internal
USB One 4-pin, USB 2.0-compliant
Internal secure digital (SD) module One optional flash memory card slot with
the internal SD module
Memory (continued)

10 Getting Started With Your System
Video
Video type Integrated Matrox G200
Video memory 8 MB shared
Power
AC Power Supply (per power supply)
Wattage 717 W (High Output)
502 W (Energy Smart)
Voltage 90–264 VAC, autoranging, 47-63 Hz
Heat dissipation 2446.5 BTU/hr maximum (High Output)
1712.9 BTU/hr maximum (Energy Smart)
Maximum inrush current Under typical line conditions and over
the entire system ambient operating range,
the inrush current may reach 55 A per power
supply for 10 ms or less
Batteries
System battery CR 2032 3.0-V lithium coin cell
RAID battery (optional) 3.7-V lithium ion battery pack
Physical
Height 4.26 cm (1.68 in)
Width 48.24 cm (18.99 in) with rack latches
42.4 cm (16.69 in) without rack latches
Depth 77.2 cm (30.39 in) with power supplies
and bezel
73.73 (29.02 in) without power supplies
and bezel
Weight (maximum configuration) 17.69 kg (39 lb)
Weight (empty) 13.25 kg (29.2 lb)

Getting Started With Your System 11
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet, the
maximum operating temperature is derated
1°F/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a
maximum temperature gradation of 20°C
per hour
Relative humidity
Operating 20% to 80% (non-condensing) with a
maximum humidity gradation of 10%
per hour
Storage 5% to 95% (non-condensing) with a
maximum humidity gradation of 10%
per hour
Maximum vibration
Operating 0.26 Gms from 5–350 Hz for 5 minutes
in operational orientations
Storage 1.54 Gms from 10–250 Hz for 10 minutes
in all orientations
Maximum shock
Operating Half sine shock in all operational orientations
of 31 G plus or minus 5% with a pulse
duration of 2.6 ms plus or minus 10%
Storage Half sine shock on all six sides of 71 G plus or
minus 5% with a pulse duration of 2 ms plus
or minus 10%
Square wave shock on all six sides of 27 G
with a velocity change at 235 in/sec or greater

12 Getting Started With Your System
Altitude
Operating –16 to 3,048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet, the
maximum operating temperature is derated
1ºF/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Environmental (continued)

Systèmes Dell™
PowerEdge™ R610
Guide de mise
en route

Remarques, précautions et avertissements
REMARQUE : Une REMARQUE indique des informations importantes qui peuvent
vous aider à mieux utiliser votre ordinateur.
AVERTISSEMENT : Un AVERTISSEMENT vous avertit d'un risque
d'endommagement du matériel, de blessure corporelle ou de mort.
____________________
Les informations contenues dans ce document sont sujettes à modification sans préavis.
© 2008 Dell Inc. Tous droits réservés.
La reproduction de ces documents de quelque manière que ce soit sans l'autorisation écrite de Dell Inc.
est strictement interdite.
Dell, le logo DELL et PowerEdge sont des marques de Dell Inc. ; Citrix et XenServer sont des marques
de Citrix Systems, Inc. et/ou de plusieurs de ses filiales et peuvent être déposées au Bureau des brevets
et des marques commerciales aux Etats Unis ou dans d'autres pays. Intel et Xeon sont des marques
déposées d'Intel Corporation aux États-Unis et dans d'autres pays; Microsoft, Hyper-V,Windowset
Windows Server sont des marques ou des marques déposées de Microsoft Corporation aux États-Unis
et/ou dans d'autres pays. Red Hat et Enterprise Linux sont des marques déposées de Red Hat, Inc. aux
États-Unis et dans d'autres pays ; SUSE est une marque déposée de Novell, Inc. aux États-Unis et dans
d'autres pays. VMware est une marque déposée de VMware, Inc. aux États-Unis et dans d'autres
juridictions.
D'autres marques commerciales et noms de marque peuvent être utilisés dans ce document pour faire
référence aux entités se réclamant de ces marques et de ces noms ou de leurs produits. Dell Inc. dénie
tout intérêt propriétaire vis-à-vis des marques commerciales et des noms de marque autres que les siens.
Modèle E01S
Décembre 2008 N/P R465D Rév. A01

Guide de mise en route 15
Installation et configuration
AVERTISSEMENT : Avant de commencer, consultez les consignes de sécurité
fournies avec le système.
Déballage du système
Sortez le système de son emballage et identifiez chaque élément.
Installation des rails et du système dans un rack
Assemblez les rails et installez le système dans le rack en suivant les consignes
de sécurité et les instructions d'installation du rack fournies avec votre
système.

16 Guide de mise en route
Facultatif – Connexion du clavier, de la souris et du moniteur
Connectez le clavier, la souris et le moniteur (si nécessaire).
Les icônes des connecteurs situés à l'arrière du système indiquent où insérer
chaque câble. N'oubliez pas de serrer les vis situées sur le connecteur du câble
du moniteur, s'il en est équipé.
Connexion des câbles d'alimentation
Connectez le(s) câble(s) d'alimentation au système et, si vous utilisez un
moniteur, connectez son câble d'alimentation à celui-ci.

Guide de mise en route 17
Fixation du cordon d'alimentation
Repliez le câble d'alimentation système comme indiqué dans l'illustration
suivante et fixez-le avec la bande fournie.
Branchez ensuite l'autre extrémité des cordons d'alimentation sur une prise
de courant mise à la terre ou sur une source d'alimentation autonome
(onduleur ou unité de distribution de l'alimentation).
Mise sous tension du système
Appuyez sur le bouton d'alimentation du système et sur celui du moniteur.
Les voyants d'alimentation doivent s'allumer.

18 Guide de mise en route
Installation de la façade en option
Installez la façade (facultatif).
Finalisation de l'installation du système
d'exploitation
Si vous avez acheté un système d'exploitation préinstallé, consultez tout
d'abord la documentation associée, fournie avec l'ordinateur. Pour une
première installation du système d'exploitation, consultez la documentation
concernant l'installation et la configuration du système d'exploitation. Veillez
à installer le système d'exploitation avant tout élément matériel ou logiciel
acheté séparément.
• Citrix
®
XenServer™ 5.0 avec correctif 1 ou version ultérieure
• Microsoft
®
Windows Server
®
2008 Hyper-V™
• Microsoft Windows Server 2008 éditions Web, Standard et Enterprise
(32 bits x86) Gold
• Microsoft Windows Server 2008, éditions Web, Standard, Enterprise et
DataCenter (x64) Gold
• Microsoft Windows Small Business Server 2008, éditions Standard et
Premium (x64)
• Microsoft Windows Server 2003 éditions Web, Standard et Enterprise
(32 bits x86) avec SP2
