Dell™ PowerEdge™
T610 Systems
Getting Started
With Your System
系统使用入门
Memulai Dengan Sistem Anda
はじめに
시스템시작하기

Dell™ PowerEdge™
T610 Systems
Getting Started
With Your System
Model E03S

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.; Citrix and XenServer are trademarks
of Citrix Systems, Inc. and/or more of its subsidiaries, and may be registered in the United States
Patent and Trademark Office and in other countries. Intel and Xeon are registered trademarks of Intel
Corporation in the U.S. and other countries; Microsoft, Hyper-V, Windows,and Windows Server are
either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other
countries. Red Hat and Enterprise Linux are registered trademarks of Red Hat, Inc. in the United States
and other countries; SUSE is a registered trademark of Novell, Inc., in the United States and other
countries. VMware is a registered trademark of VMware, Inc. in the United States and/or other
jurisdictions.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model E03S
December 2008 P/N CX823 Rev. A01
CX823_tp1.fm Page 4 Friday, January 16, 2009 3:18 PM

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
NOTE: If you are using the optional rack configuration, assemble the rails
and install the system in the rack following the safety instructions and the rack
installation instructions provided with your system.

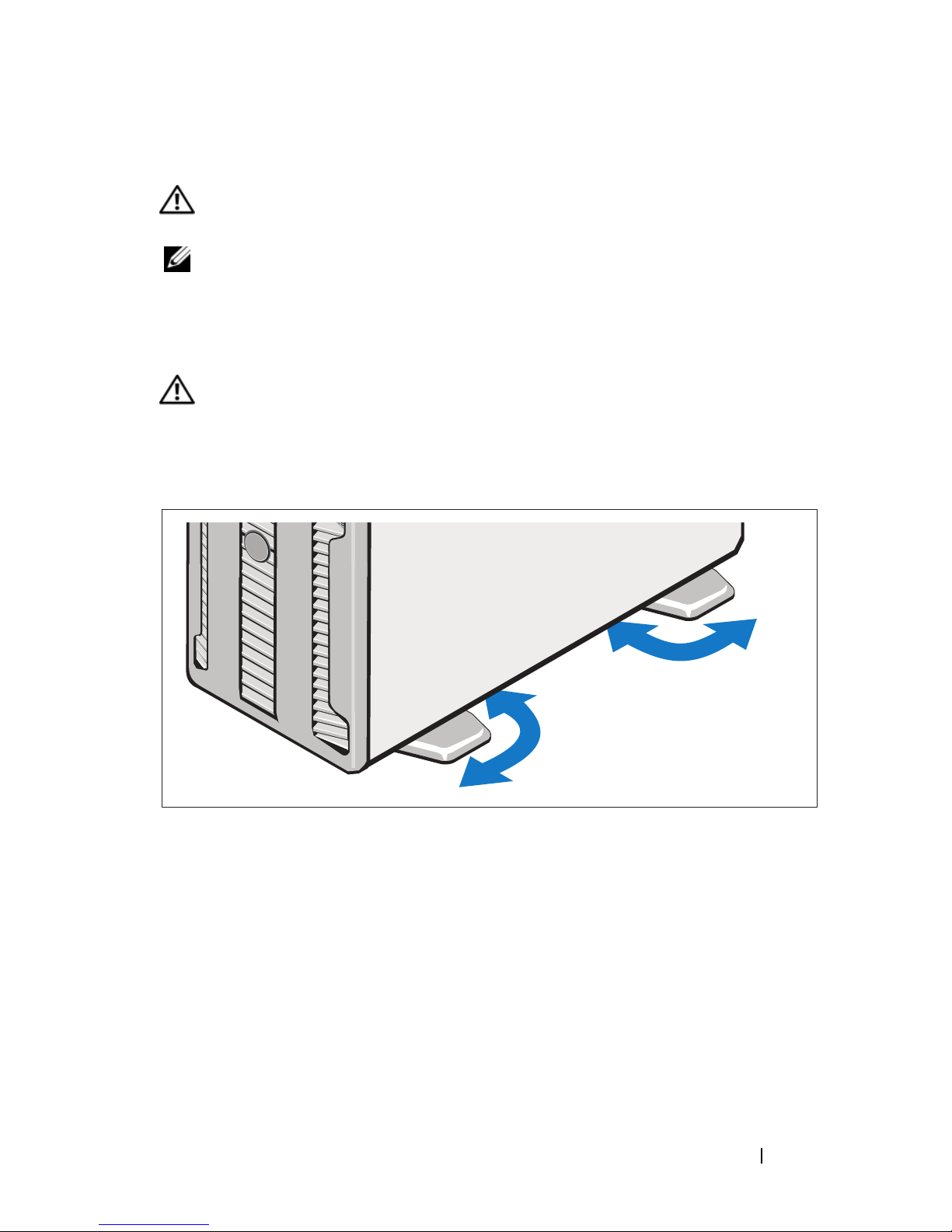

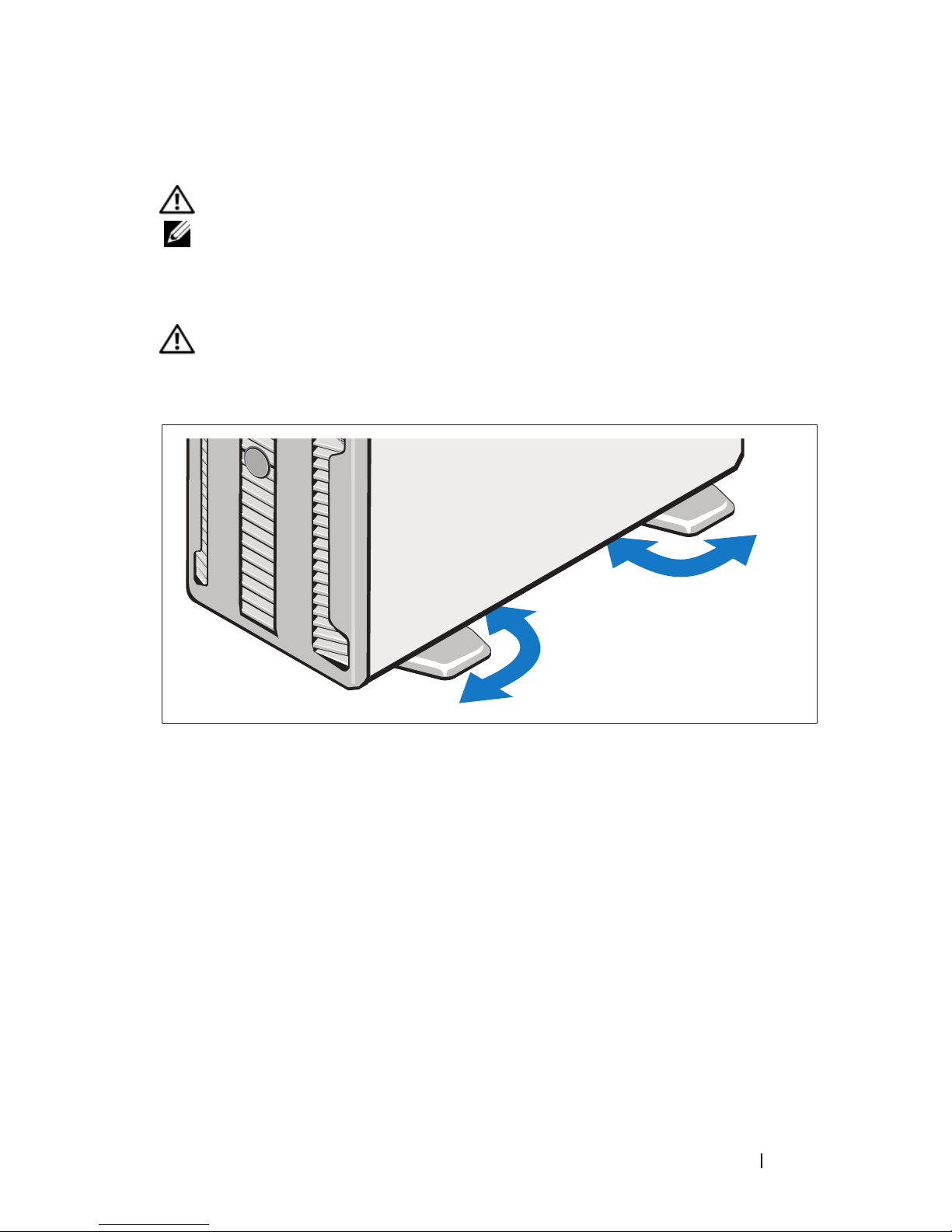

Stabilizing the Tower System
WARNING: The tower system has four feet on its bottom panel that can be
extended outward to help properly stabilize the system. Failure to extend the
feet poses the risk of having the system tip over, possibly causing bodily injury
or damage to the system.

4Getting Started With Your System

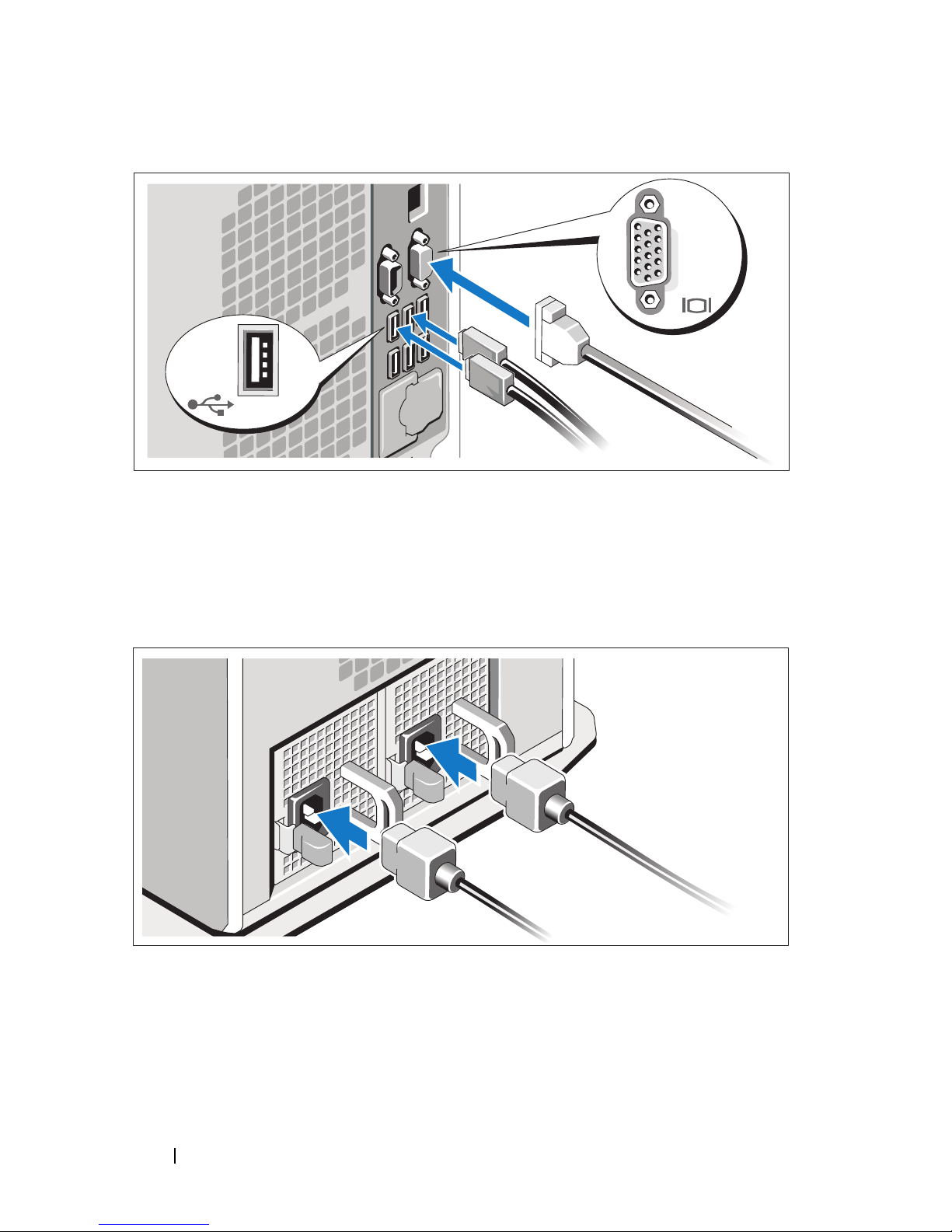

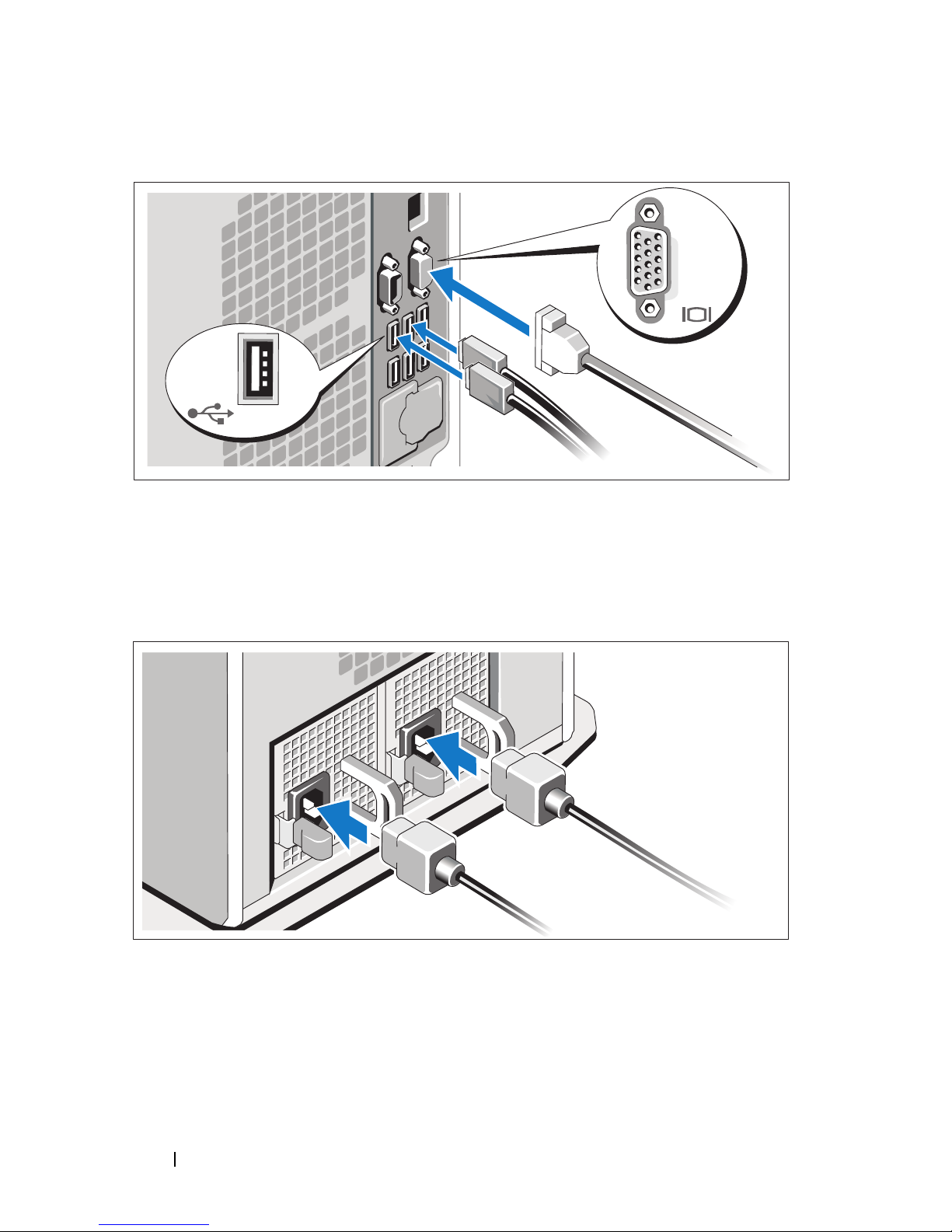

Optional – Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.
Connecting the Power Cables
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

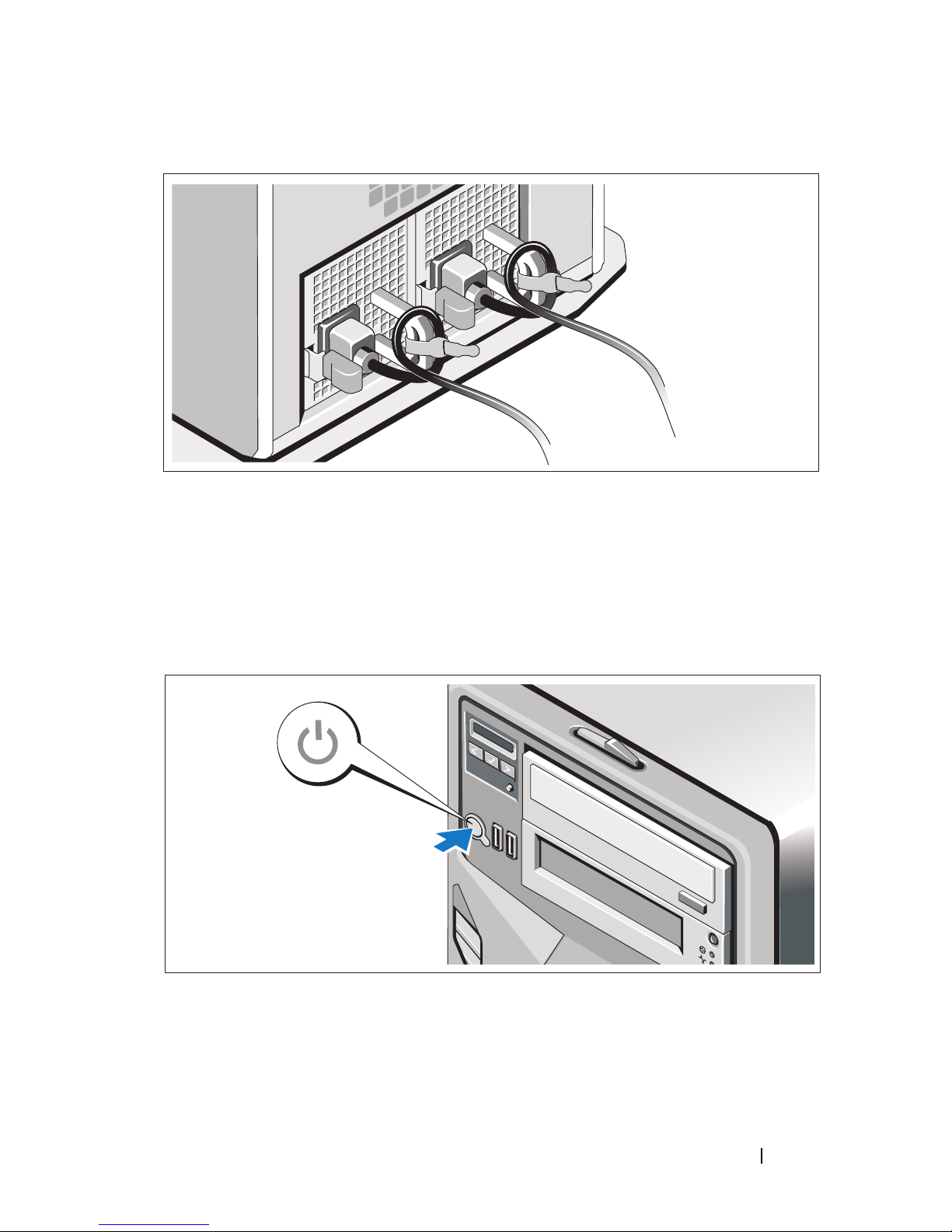

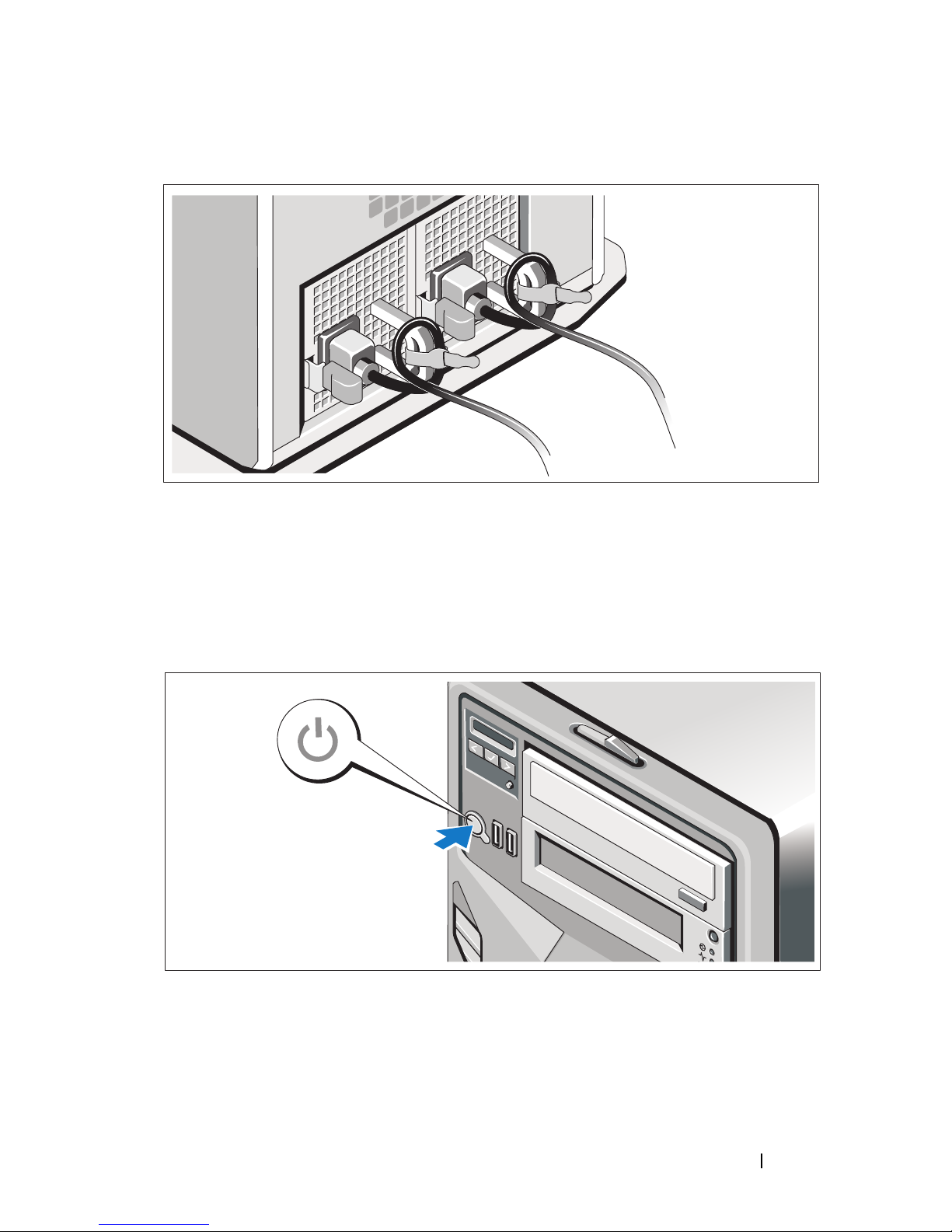

Securing the Power Cord
Bend the system power cable into a loop as shown in the illustration
and secure the cable to the bracket using the provided strap.
Plug the other end of the power cables into a grounded electrical outlet
or a separate power source such as an uninterruptible power supply (UPS)
or a power distribution unit (PDU).
Turning on the System
Press the power button on the system. The power indicators should light.

6Getting Started With Your System
Complete the 0perating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system
for the first time, see the installation and configuration documentation for
your operating system. Be sure the operating system is installed before
installing hardware or software not purchased with the system.
• Citrix
®
XenServer
™
5.0 with hotfix 1 or later
• Microsoft
®
Windows Server
®
2008 Hyper-V
™
• Microsoft Windows Server 2008 Web, Standard, and Enterprise
(32-bit x86) Gold editions
• Microsoft Windows Server 2008 Web, Standard, Enterprise,
and Datacenter (x64) Gold editions
• Microsoft Window Small Business Server 2008, Standard and Premium
(x64) editions.
• Microsoft Windows Server 2003 Web, Standard, and Enterprise
(32-bit x86) editions with SP2
• Microsoft Windows Server 2003 Standard and Enterprise (x64) editions
with SP2
• Microsoft Windows Server 2003 R2 Standard and Enterprise (32-bit x86)
editions with SP2
• Microsoft Windows Server 2003 R2 Standard, Enterprise, and Datacenter
(x64) editions with SP2
• Microsoft Windows Small Business Server 2003 R2 Standard and Premium
editions with SP2
•RedHat
®
Enterprise Linux
®
ES and AS 4.7 (x86)
• Red Hat Enterprise Linux ES and AS 4.7 (x86_64)
• Red Hat Enterprise Linux 5.2 Server (x86_32)
• Red Hat Enterprise Linux 5.2 Server (x86_64)
• SUSE Linux Enterprise Server 10 SP2 (x86_64)
• VMware
®
ESX Version 4.0 and 3.5, Update 4 (when available)
• VMware ESXi Version 4.0 and 3.5, Update 4 (when available)
NOTE: For the latest information on supported operating systems,
see www.dell.com.

Getting Started With Your System 7
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document
or as a separate document.
• The rack documentation included with your rack solution describes
how to install your system into a rack.
•The
Hardware Owner’s Manual provides information about system features
and describes how to troubleshoot the system and install or replace system
components. This document is available online at
support.dell.com.
• Any media that ships with your system that provides documentation
and tools for configuring and managing your system, including those
pertaining to the operating system, system management software, system
updates, and system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com and read the updates
first because they often supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not
perform as expected, see your Hardware Owner’s Manual. Dell
™
offers
comprehensive hardware training and certification. See www.dell.com/training
for more information. This service may not be offered in all locations.
Información de la NOM (sólo para México)
La información que se proporciona a continuación aparece en el dispositivo
descrito en este documento, en cumplimiento de los requisitos de la Norma
Oficial Mexicana (NOM):
Importador:
Número de modelo: E03S
Voltaje de
alimentación: 100–240 V CA
Frecuencia: 50/60 Hz
Consumo eléctrico: 7,0–3,5 A

8Getting Started With Your System
Technical Specifications
Processor
Processor type One or two quad- or dual-core Intel
®
Xeon
®
processors
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots: Two full-height, full-length x8 link
(slots 2 and 3)
Three full-height, half-length x4 link
(slots 1, 4 and 5)
NOTE: All slots support up to 25W, but
a maximum of two 25W cards and three
15W cards may be installed at any time,
regardless of the slots they are installed in.
Memory
Architecture 800, 1066, or 1333 MHz DDR3 registered
or unbuffered Error Correcting Code (ECC)
DIMMs. Support for Advanced ECC
or Memory Optimized operation.
Memory module sockets Twelve 240-pin
Memory module capacities 1 GB and 2 GB UDIMMs; and 2 GB, 4 GB,
or 8 GB RDIMMs (single, dual, or quad-rank,
dependent on capacity)
Minimum RAM 1 GB with a single processor
(1 DIMM per processor)
Maximum RAM 96 GB (with quad-rank 8 GB RDIMMs)
or 24 GB (with 2 GB UDIMMs)

Getting Started With Your System 9
Drives
Hard drives Up to eight 2.5-inch internal, hot-swappable
SAS or SATA hard drives with backplane
support
or
Up to eight 3.5-inch internal, hot-swappable
SAS or SATA hard drives with backplane
support
Diskette drive Optional external USB 1.44 MB drive
Optical drive One or two optional internal SATA DVD,
or DVD+RW drive
Optional external USB DVD
NOTE: DVD devices are data only
NOTE: If a half-height tape drive is installed, you can install one internal optical drive.
If a full-height tape drive is installed, no optical drives can be installed.
Tape drive One optional half-height (for use in one
optical drive bay) SAS, SATA or SCSI
with optional SCSI controller card
One optional full-height (for use in both
optical drive bays) SAS or SCSI with optional
SCSI controller card.
Flash drive Optional internal USB
Optional internal Secure Digital (SD)
memory card
Optional external SD memory card
Connectors
Back
NIC Two RJ-45 for integrated 10/100/1000 Mbps
Ethernet
Serial 9-pin, DTE, 16550-compatible
USB Six 4-pin, USB 2.0-compliant
Video 15-pin VGA

10 Getting Started With Your System
Optional external VFlash card One optional flash memory card slot
with iDRAC6 Enterprise
Front
USB Two 4-pin, USB 2.0-compliant
Internal
USB One 4-pin, USB 2.0-compliant
Internal secure digital (SD)
module
One optional flash memory card slot
on internal SD module
Video
Video type Integrated Matrox G200
Video memory 8 MB shared
Power
AC Power Supply (per power supply)
Wattage 870 Watt (High Output)
570 Watt (Energy Smart)
Voltage 90–264 VAC, autoranging, 47-63 Hz
Heat dissipation 2968.6 BTU/hr maximum (High Output)
1944.9 BTU/hr maximum (Energy Smart)
Maximum inrush current Under typical line conditions and over the
entire system ambient operating range, the
inrush current may reach 55 A per power
supply for 10 ms or less.
Batteries
System battery CR 2032 3.0 V lithium coin cell
RAID battery (optional) 3.7 V lithium ion battery pack
Connectors (continued)

Getting Started With Your System 11
Physical
Rack
Height 21.77 cm (8.57 in)
Width 48.25 cm (19.00 in)
(includes left and right rack latches)
Depth 62.10 cm (24.45 in)
(includes power supply with bezel)
Weight (maximum configuration) 35 kg (77 lb)
Weight (empty) 20.2 kg (44.53 lb)
Tower
Height (with feet) 44.10 cm (17.40 in)
Width (with feet) 27.40 cm (10.80 in)
Depth 62.10 cm (24.45 in)
(includes power supply with bezel)
Weight (maximum configuration) 35 kg (77 lb)
Weight (empty) 20.55 kg (45.30 lb)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet, the
maximum operating temperature is derated
1ºF/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a maximum
temperature gradation of 20°C per hour
Relative humidity
Operating 20% to 80% (non-condensing) with
a maximum humidity gradation of
10% per hour

12 Getting Started With Your System
Storage 5% to 95% (non-condensing) with a maximum
humidity gradation of 10% per hour
Maximum vibration
Operating 0.26 Gms from 5–350 Hz for 5 minutes
in operational orientations
Storage 1.54 Gms from 10–250 Hz for 10 minutes
in all orientations
Maximum shock
Operating Half sine shock in all operational orientations
of 31 G plus or minus 5% with a pulse
duration of 2.6 ms plus or minus 10%
Storage Half sine shock on all six sides of 71 G plus or
minus 5% with a pulse duration of 2 ms plus
or minus 10%
Square wave shock on all six sides of 27 G
with a velocity change at 235 in/sec or greater
Altitude
Operating –16 to 3048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet, the
maximum operating temperature is derated
1ºF/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Environmental (continued)

Dell™ PowerEdge™
T610 系统
系统使用入门
型号 E03S

注、小心和警告
注：
“注”表示可以帮助您更好地使用计算机的重要信息。
警告：
“警告”表示可能会造成财产损失、人身伤害甚至死亡。
____________________
本说明文件中的信息如有更改，恕不另行通知。
© 2008 Dell Inc. 版权所有，翻印必究。
未经 Dell Inc. 书面许可，严禁以任何形式复制这些材料。
Dell、 DELL 徽标和 PowerEdge 是Dell Inc. 的商标； Citrix 和XenServer 是Citrix Systems, Inc.
和/或其 个子公司的商标，并可能已在美国专利商标局和其它国家和地区注册。 Intel 和
Xeon 是Intel Corporation 在美国 和其它国家和地区的注册商标； Microsoft、Hyper-V、
Windows 和Windows Server 是Microsoft Corporation 在美国和 /或其它国家和地区的商标或注
册商标。Red Hat 和Enterprise Linux 是Red Hat, Inc. 在美国和其它国家和地区的注册商标；
SUSE 是Novell, Inc. 在美国和其它国家和地区的注册商标。 VMware 是VMware, Inc. 在美国
和/或其它管辖区域的注册商标。
本说明文件中述及的其它商标和产品名称是指拥有相应商标和产品名称的公司或其制造的
产品。 Dell Inc. 对本公司的商标和产品名称之外的其它商标和产品名称不拥有任何专有权。
型号 E03S
2008 年12 月P/N CX823 Rev. A01

系统使用入门 15
安装和配置
警告：
执行下列步骤 前，请复习系统随附的安全说明。
注：如果您使用可选的机 配置，请按照系统附带的安全说明和机 安装
说明组装滑轨并在机 中安装系统。
固定塔式系统
警告：
塔式系统在其底部面板上有四个支脚，可向外伸展以帮助正确
固定系统。如果未伸展支脚，可能会导致系统倾翻，以此造成人身伤
害或系统损坏。

16 系统使用入门
可选 –连接键盘、鼠标和显示器
连接键盘、鼠标和显示器（可选）。
系统背面的连接器附有图标，这些图标指示了要插 每个连接器的电缆。
确保拧紧显示器的电缆连接器上的螺钉（如果有）。
连接电源电缆
连接系统电源电缆至系统，并且，如果使用显示器，连接显示器电源电缆至
显示器。

系统使用入门 17
固定电源线
如图所示，将系统电源电缆弯曲成环状，然后使用提供的电缆带将电缆固定
到支架上。
将电源电缆的另一端插 接地的电源插座或单独的电源（如不间断电源
设备
[UPS]
或配电装置
[PDU]
）。
开启系统
按下系统上的电源按钮。电源指示灯将会亮起。

18 系统使用入门
完成操作系统安装
如果购买了预安装的操作系统，请参阅随系统提供的操作系统说明文件。
第一次安装操作系统，请参阅操作系统的安装和配置说明文件。
请确保先安装操作系统，然后再安装未预装的硬件或软件。
•Citrix
®
XenServer
™
5.0
，附带热修补程序
1
或更高版本
•Microsoft
®
Windows Server
®
2008 Hyper-V
™
•Microsoft Windows Server 2008 Web 、
Standard
和
Enterprise
（
32
位
x86
）
Gold
版
•Microsoft Windows Server 2008 Web 、
Standard
、
Enterprise
和
Datacenter (x64) Gold
版
•Microsoft Windows Small Business Server 2008 Standard 和
Premium
(x64)
版
•Microsoft Windows Server 2003 Web 、
Standard
和
Enterprise
（
32
位
x86
）版（ 含
SP2
）
•Microsoft Windows Server 2003 Standard 和
Enterprise (x64)
版（含
SP2
）
•Microsoft Windows Server 2003 R2 Standard 和
Enterprise
（
32
位
x86
）版（ 含
SP2
）
•Microsoft Windows Server 2003 R2 Standard
、
Enterprise
和
Datacenter
（
x64)
版（含
SP2
）
•Microsoft Windows Small Business Server 2003 R2 Standard
和
Premium
版（含
SP2
）
•Red Hat
®
Enterprise Linux
®
ES
和
AS 4.7 (x86)
•Red Hat Enterprise Linux ES
和
AS 4.7 (x86_64)
•Red Hat Enterprise Linux 5.2 Server (x86_32)
•Red Hat Enterprise Linux 5.2 Server (x86_64)
•SUSE Linux Enterprise Server 10 SP2 (x86_64)
•VMware
®
ESX
版本
4.0
和
3.5
，
Update 4
（如果有）
•VMware ESXi 版本
4.0
和
3.5
，
Update 4
（如果有）
注：有关支持的操作系统的最新信息，请访问 www.dell.com。
