INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DEF905EX1
CERAMIC COOKER
distributed by
DeLonghi Australia Pty Ltd
DeLonghi New Zealand Ltd

2
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features offered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL
This appliance has been designed and constructed in accordance with the following codes
and specications:
AS/NZS 60335.1 General Requirements for Domestic electrical appliances
AS/NZS 60335.2.6 Particular Requirements for Domestic electrical cooking appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements.

3
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
■After having unpacked the appliance, check to ensure that it is
not damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
■Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
■ Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
■ IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
■Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
■Do not operate your appliance by means of an external timer or
separate remote-control system.
■Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
■ WARNING: Ensure that the appliance is switched off before
replacing the oven lamp to avoid the possibility of electric shock.

4
■Do not use a steam cleaner because the moisture can get into
the appliance therefore making it unsafe.
■Do not touch the appliance with wet or damp hands (or feet).
■Do not use the appliance whilst in bare feet
■If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
■The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
■After use, ensure that the knobs are in the off position.
■Children less than 8 years of age shall be kept away unless
continuously supervised.
■This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
■The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
■ WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on
the hob and inside the oven).
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept
away.

5
■Make sure that electrical cables connecting other appliances in
the proximity of the cooker cannot come into contact with the hob
or become entrapped in the oven door.
■ WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch off the appliance and then cover ame e.g.
with a lid or a re blanket.
■ WARNING: Danger of re: do not store items on the cooking
surfaces.
■Do not place or leave empty pans on the glass ceramic hob.
■Do not allow heavy or sharp objects to drop on the glass ceramic hob.
■Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
■ WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
■ WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the rear or the
underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges,
that may cause injury.
■ FIRST USE OF THE OVEN - it is advised to follow these
instructions:
– Furnish the interior of the oven as described in the chapter
“CLEANING AND MAINTENANCE”.
– Switch on the empty oven on max to eliminate grease from the
heating elements.
– Disconnect the appliance from the electrical power supply, let
the oven cool down and clean the interior of the oven with a
cloth soaked in water and neutral detergent; then dry carefully.
■ CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.

6
■Do not line the oven walls or base with aluminium foil. Do not place
baking trays or the drip tray on the base of the oven chamber.
■ FIRE RISK! Do not store ammable material in the oven or in the
storage compartment.
■Always use oven gloves when removing the shelves and food
trays from the oven whilst hot.
■Do not hang towels, dishcloths or other items on the appliance or
its handle – as this could be a re hazard.
■Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
■Do not stand on the cooker or on the open oven door.
■Always stand back from the appliance when opening the oven
door to allow steam and hot air to escape before removing the
food.
■ SAFE FOOD HANDLING: Leave food in the oven for as short
a time as possible before and after cooking. This is to avoid
contamination by organisms which may cause food poisoning.
Take particular care during warmer weather.
■ WARNING: Take care NOT to lift the cooker by the door handle.

7
INSTALLATION
CAUTION:
■This appliance must be installed in accordance with these installation instructions.
■This appliance shall only be serviced by authorised personnel.
■This appliance is to be installed only by an authorised person in compliance
with the current electrical regulations and in observation of the instructions
supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
■Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
■Always disconnect the appliance from mains power supply before carrying out
any maintenance operations or repairs.
LOCATION
■ The cooker can be installed in a cabinet (g. 1).
■The cooker must be installed no less than 50 mm away from any side wall which
exceed the height of the cooktop.
■The appliance must be housed in heat resistant units.
■The walls of the units must be capable of resisting temperatures of 75 °C above
room temperature.
■Do not install the appliance near inammable materials (eg. curtains).
■If you stand the cooker on a pedestal, make sure you provide safety measures
to keep it in place.

8
Figure 1
50 mm
500 mm
650 mm
450 mm
Cooker overall dimensions [mm]
■ height: min 900 - max 925
■ width: 900
■ depth: 600

9
FITTING THE ADJUSTABLE FEET
The adjustable feet must be tted to the base of the cooker before use (g. 2).
Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for
the tting of the feet.
Fit the no. 4 (four) legs by screwing them tight into the support base as shown in gure 3.
LEVELLING THE COOKER
The cooker may be levelled by screwing the lower ends of the feet IN or OUT (g. 4).
Figure 3 Figure 4Figure 2
MOVING THE COOKER
WARNING: When raising cooker to upright
position always ensure two people carry
out this manoeuvre to prevent damage to
the adjustable feet (g. 5).
WARNING - Be carefull: Do not lift the
cooker by the door handle when raising to
the upright position (g. 6).
WARNING: When moving cooker to its
nal position DO NOT DRAG (g. 7). Lift
feet clear of oor (g. 5).
Figure 5
Figure 7Figure 6

10
ANTI-TILT BRACKET
Important!
To restrain the appliance and prevent it
tipping accidentally, t a bracket to its
rear to x it securely to the wall. Make
sure you also t the supplied lock pin to
the anti-tilt bracket.
To t the anti-tilt bracket:
1. After you have located where the
cooker is to be positioned, mark on the
wall the place where the two screws
of the anti-tilt bracket have to be tted.

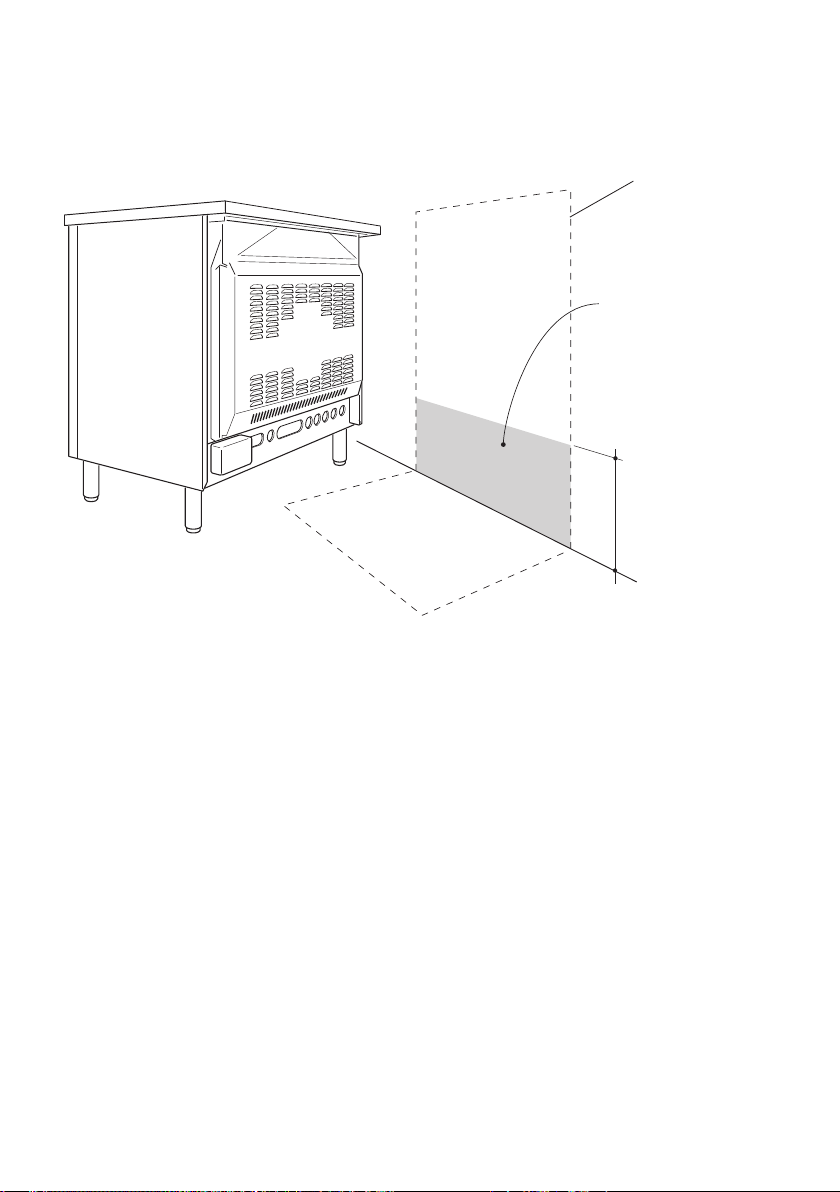

Please follow the indications given in
g. 8.
2. Drill two 8 mm diameter holes in
the wall and insert the plastic plugs
supplied.
Important!
Before drilling the holes, check that
you will not damage any pipes or
electrical wires.
3. Loosely attach the anti-tilt bracket with
the two screws supplied.
4. Move the cooker to the wall and adjust
the height of the anti-tilt bracket so
that it can engage in the slot on the
cooker’s back, as shown in g. 8.
5. Tighten the screws attaching the anti-
tilt bracket.
6. Push the cooker against the wall so
that the anti-tilt bracket is fully inserted
in the slot on the cooker’s back.
7. Access the bracket and t the lock pin:
■ Open the pivoting panel (g. 9).
■Fit the lock pin through the
bracket, as shown (g. 10).
■Close the pivoting panel.
min 220
max 245
(depending on feet adjustment)
450
450
0
+ 25
900 mm
Pivoting
panel
Lock pin
correctly
tted
Lock pin
Slot on the
cooker’s back
Cooker’s
back
Anti-tilt bracket
attached on the
rear wall
1
2
min 220
max 245
(depending on feet adjustment)
450
450
0
+ 25
900 mm
Pivoting
panel
Lock pin
correctly
tted
Lock pin
Slot on the
cooker’s back
Cooker’s
back
Anti-tilt bracket
attached on the
rear wall
1
2
min 220
max 245
(depending on feet adjustment)
450
450
0
+ 25
900 mm
Pivoting
panel
Lock pin
correctly
tted
Lock pin
Slot on the
cooker’s back
Cooker’s
back
Anti-tilt bracket
attached on the
rear wall
1
2
Figure 8
Figure 9
Figure 10

11
ELECTRICAL REQUIREMENTS
■The appliance must be connected to the mains checking that the voltage corresponds
to the value given in the rating plate and that the electrical cable sections can withstand
the load specied on the plate.
■A suitable disconnection switch must be incorporated in the permanent wiring, mounted
and positioned to comply with the local wiring rules and regulations. The switch must
be of an approved type installed in the xed wiring and provide a 3 mm air gap contact
separation in all poles in accordance with the local wiring rules.
In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must
be installed in the active (phase) conductor of the xed wiring.
■The switch must always be accessible.
■The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 75°C above ambient.
■To connect the cooker to the mains electricity supply, do not use adapters, reducers or
branching devices as they can cause overheating and burning.
■This cooker must be connected to a suitable double pole control unit adjacent to the
cooker. No diversity can be applied to this control unit.
■ This cooker must be connected to electrical supply using V105 insulated cable.
In New Zealand, this appliance must be connected to the electrical supply using a
cable tted with an appropriately rated plug. The plug must be compatible with the
socket-outlet tted to the nal subcircuit in the xed wiring that is intended to supply
the appliance.
■Once the appliance has been installed, the switch or socket must always be accessible.
■If the supply cord is damaged it must be replaced by the manufacturer or it’s Service
Agent or a similarly qualied person in order to avoid a hazard.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualied
electrician. He should also check that the domestic electrical system is suitable for the
power drawn by the appliance.
Replacing the power cord must be done by a qualied electrician in accordance with
the instructions supplied by the manufacturer and in compliance with established
electrical regulations.

12
max 290 mm
Dotted line
showing the
position of the
cooker when
installed
ELECTRIC CONNECTION
Area for ELECTRIC
connection
LOCATING THE AREA FOR ELECTRICAL CONNECTION
Figure 11

13
CONNECTION OF THE POWER SUPPLY CABLE
Important! This cooker must be connected to the electricity supply only by an
authorised person.
To connect the feeder cable to the cooker it is necessary to:
• Remove the two screws that hold shield “A” behind the cooker (g. 12).
• Open completely the cable clamp “D”.
• Fitted with a 6-pole terminal block, position the U bolts onto terminal block ‘B’ (g. 12)
according to the diagrams in gs. 13 - 14.
• Feed the supply cable through the cable clamp “D”. The supply cable must be of a
suitable size for the current requirements of the appliance; see the section “Feeder
cable section”.
• Connect the phase, neutral and earth wires to terminal “B” according to gures 13 and
14.
• Pull the feeder cable and block it with the cable clamp “D”.
• Re-mount shield “A”.
N.B. The earth conductor must be left about 3 cm longer than the others.
VOLTAGE AND POWER CONSUMPTION
230/400 V 3N 50 Hz 11900 W (51.74 A) (diversity not applied)
240/415 V 3N 50 Hz 12950 W (53.96 A) (diversity not applied)
FEEDER CABLE SECTION
This cooker must be connected to electrical supply using V105 insulated cable.
230 V~, 240 V~ 3 x 6 mm2(*)
230 V 3~, 240 V~ 4 x 4 mm2(*)
400 V 3N~, 415 V 3N~ 5 x 2,5 mm2(*)
400 V 2N~, 415 V 2N~ 4 x 4 mm2(*)
(*)Connection with wall box connection.
– Diversity factor applied.
– A diversity factor may be applied to the total loading of the appliance only by a
suitably qualied person.

14
2 3 4 51
2 3 4 51
2 3 4 51
2 3 4 51
PE
L1 L2 L3
230 V~
L1 L2 L3 NPE
N(L 2 )
PE
L1
L1 L2 NPE
400 V 3N~
400 V 2N~
230 V 3~
PE
123 4 5
N (L 2)L1
PE
123 4 5
PE
123 4 5
PE
123 4 5
L1L2L3
N
L1L2L3
N
L1L2
230 V~
400 V 2N~
400 V 3N~
230 V 3~
A
D
B
Figure 14
Figure 12 Figure 13
230 V~, 240 V~
230 V~, 240 V~
230 V 3~, 240 V 3~
230 V 3~, 240 V 3~
400 V 3N~, 415 V 3N~
400 V 3N~, 415 V 3N~
400 V 2N~, 415 V 2N~
400 V 2N~, 415 V 2N~

15
H
S2
N/7
1
1a
L/8
PR
TL
T
M5
432
1
F2 F3 F4 F5 F6
P3
4A
S2
4
P4
HS
2
4
4a
CR
1 4 3 2 5
P2 P1 P3
LF
C
G
S
V
TM
S1 F1
CF
S1
S2
4P1
P2
PILOT
2
S1
S2
4P1
P2
PILOT
2
S1
S2
4P1
P2
PILOT
2
S1
S2
4P1
P2
4a
2
S1
S2
4P1
P2
4a
2
P2
S
2
4
P1
S
2
4
P5
S2
4
H
H
H
ELECTRIC DIAGRAM
Figure 15

16
ELECTRIC DIAGRAM KEY
P1/2/5 Hob single zones elements
P3 Hob double zone (oval) element
P4 Hob double zone element
F2/3/6 Energy regulators (single zones)
F4/5 Energy regulators (double zones)
F1 Oven switch
TM Oven thermostat
LF Oven lamp
PR Oven programmer
CF Cooling fan motor
V Oven fan motor
C Oven top element
G Oven grill element
S Oven bottom element
TL Thermal overload
S1 Thermostat pilot lamp
S2 Hob elements pilot lamp
CR Hob elements residual heat lamps
M Terminal block
T Earth connection

17
USE AND CARE
CAUTION:
■This appliance must be used only for the task it has explicitly been designed for, that
is for domestic cooking of foodstuffs. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
■Do NOT place combustible materials or products on this appliance at any time.
■ Do NOT use or store ammable materials in the appliance storage compartment or
near this appliance.
■ WARNING: Accessible parts will become
hot when in use. To avoid burns and scalds,
young children should be kept away.
■Do NOT spray aerosols in the vicinity of
this appliance while it is in use.
■Do NOT modify this appliance.
USING THE OVEN FOR THE FIRST TIME
Operate as follows:
■Fit the side runner frames “G” into the holes
on the side walls inside the oven (g. 16).
■ If available, slide in the grease lter
on the back of the oven as in g. 19.
The grease lter is not supplied with this
appliance but can be purchased separately.
■Slide in, on the guides, the shelf and the
tray (g. 17).
 The rack must be tted so that the safety
notch, which stops it sliding out, faces the
inside of the oven; the guard rail shall be
at the back.
The oven tray must be correctly placed on
its wire shelf support (g. 18) then inserted
into the guides (g. 17). The oven tray shelf
support must be tted so that the safety
notch, which stops it sliding out, faces the
inside of the oven.
■To eliminate traces of grease in manufacture
it is necessary to preheat the oven at the
maximum temperature:
• for 60 minutes in the position, and for
another 15 minutes in the position.
■Slide off the wire racks to the oven wall as
in g. 16.
■Let the oven cool down, switch off the
electrical supply, then clean the inside of
the oven with a cloth soaked in water and
neutral detergent and dry thoroughly.
Figure 18
G
Figure 16
Guard rail
Stop notch
Stop notch
Figure 17

18
Figure 19
GREASE FILTER (OPTIONAL COMPONENT, CAN BE PURCHASED
SEPARATELY)
■ A special screen can be tted at the back of the oven to catch grease particles, mainly
when meat is being roasted.
 Slide in the grease lter on the back of the oven as in g. 19.
■Clean the lter after any cooking!
 The grease lter can be removed for cleaning and should be washed regularly in hot
soapy water.
 Always clean the lter after cooking as any solid residues on it might adversely affect
the oven performance.
■ Always dry the lter properly before tting it back into the oven.
CAUTION: When baking pastry etc. this lter should be removed.

19
123456
9
10
78
Controls description
1. Front right cooking zone control knob
2. Rear right cooking zone control knob
3. Central cooking zone control knob
4. Rear left cooking zone control knob
5. Front left cooking zone control knob
6. Oven temperature control knob
7. Oven function selector control knob
8. Electronic programmer
Pilot lamps:
9. Cooking zone/s ON indicator light
10. Oven temperature indicator light
Figure 20
Please note:
This appliance incorporates a safety cooling fan which you will hear operating whenever
the oven or grill are in use.
This fan is to reduce the external temperature of the appliance and cool the internal
components.
CONTROL PANEL

20
Attention:
Detach the appliance from the mains if the ceramic glass is cracked and contact the After-
Sales Service.
Metallic objects such as knives, forks, spoons and lids should not be placed on the hob
surface since they can get hot.
Figure 21
VITROCERAMIC COOKING HOB
1. “Hi-Light” single zone, Ø 180 mm 1800 W
2. “Hi-Light” single zone, Ø 145 mm 1200 W
3. “Hi-Light” double zone (oval), Ø 145 x 250 mm 2000/1100 W
4. “Hi-Light” double zone, Ø 210/120 mm 2200/750 W
5. “Hi-Light” single zone, Ø 145 mm 1200 W
6. Cooking zones residual heat indicators
OB
2
1
3
4
65
VITROCERAMIC HOB
