DeLonghi DEFL605E User guide

DE’LONGHI
COOKING
INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DEFL605E
CERAMIC COOKER
distributed by
DeLonghi Australia Pty Ltd
DeLonghi New Zealand Ltd

2
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features offered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL
This appliance has been designed and constructed in accordance with the following
codes and specications:
AS/NZS 60335.1 Household and similar electrical appliances - Safety General
requirements
AS/NSZ 60335.2.6
Safety Particular requirements for stationary cooking ranges, hobs,
ovens and similar appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements

3
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
■This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
■After having unpacked the appliance, check to ensure that it is
not damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
■Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
■ Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
■ IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
■Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.

4
■Do not operate your appliance by means of an external timer or
separate remote-control system.
■Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
■ WARNING: Ensure that the appliance is switched off before
replacing the oven lamp to avoid the possibility of electric shock.
■Do not use a steam cleaner because the moisture can get into
the appliance therefore making it unsafe.
■Do not touch the appliance with wet or damp hands (or feet).
■Do not use the appliance whilst in bare feet.
■If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
■The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
■After use, ensure that the knobs are in the off position.
■Children less than 8 years of age shall be kept away unless
continuously supervised.
■This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
■The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.

5
■ WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on
the hob and inside the oven).
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept
away.
■Make sure that electrical cables connecting other appliances in
the proximity of the cooker cannot come into contact with the hob
or become entrapped in the oven door.
■ WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch off the appliance and then cover ame e.g.
with a lid or a re blanket.
■ WARNING: Danger of re: do not store items on the cooking
surfaces.
■Do not place or leave empty pans on the glass ceramic hob.
■Do not allow heavy or sharp objects to drop on the glass ceramic
hob.
■Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
■ WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
■ WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the rear or the
underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges,
that may cause injury.
■ FIRST USE OF THE OVEN - it is advised to follow these
instructions:
– Furnish the interior of the oven as described in the chapter
“CLEANING AND MAINTENANCE”.

6
– Switch on the empty oven on max to eliminate grease from the
heating elements.
– Disconnect the appliance from the electrical power supply, let
the oven cool down and clean the interior of the oven with a
cloth soaked in water and neutral detergent; then dry carefully.
■ CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.
■Do not line the oven walls or base with aluminium foil. Do not place
baking trays or the drip tray on the base of the oven chamber.
■ FIRE RISK! Do not store ammable material in the oven or in the
storage compartment.
■Always use oven gloves when removing the shelves and food trays
from the oven whilst hot.
■Do not hang towels, dishcloths or other items on the appliance or
its handle – as this could be a re hazard.
■Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
■Do not stand on the cooker or on the open oven door.
■Always stand back from the appliance when opening the oven door
to allow steam and hot air to escape before removing the food.
■ SAFE FOOD HANDLING: Leave food in the oven for as short a time
as possible before and after cooking. This is to avoid contamination
by organisms which may cause food poisoning. Take particular
care during warmer weather.
■ WARNING: Take care NOT to lift the cooker by the door handle.
■ CAUTION: The cooking process has to be supervised. A short term
cooking process has to be supervised continuously.
■The appliance must not be installed behind a decorative door in
order to avoid overheating.

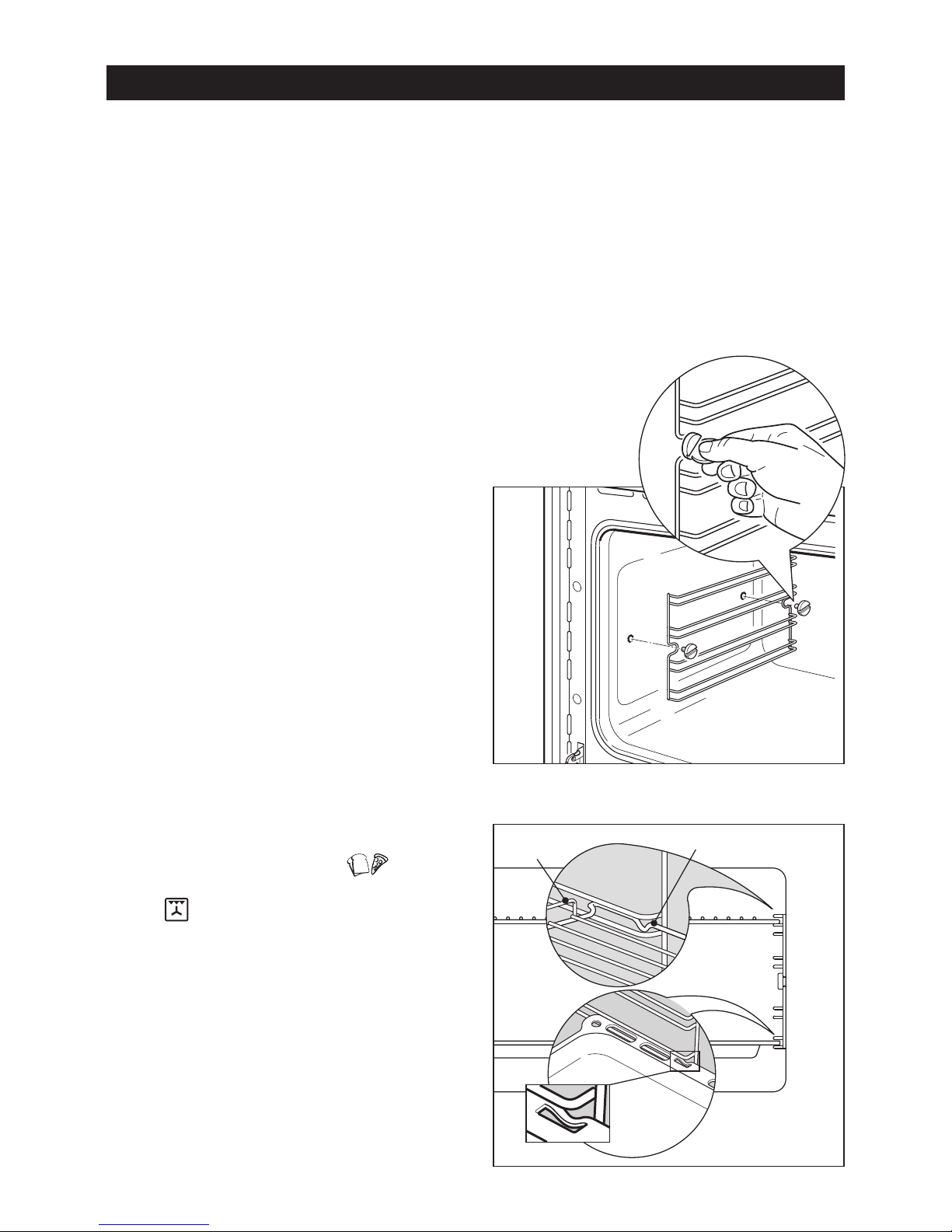

■ The oven accessories (e.g. oven wire rack) must be tted correctly
as indicated at page 17.
■If the power supply cable is damaged, it must be replaced only by
an authorized service agent in order to avoid a hazard.

7
INSTALLATION
CAUTION:
■This appliance must be installed in accordance with these installation instructions.
■This appliance shall only be serviced by authorised personnel.
■This appliance is to be installed only by an authorised person in compliance
with the current electrical regulations and in observation of the instructions
supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
■Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
■Always disconnect the appliance from mains power supply before carrying out
any maintenance operations or repairs.

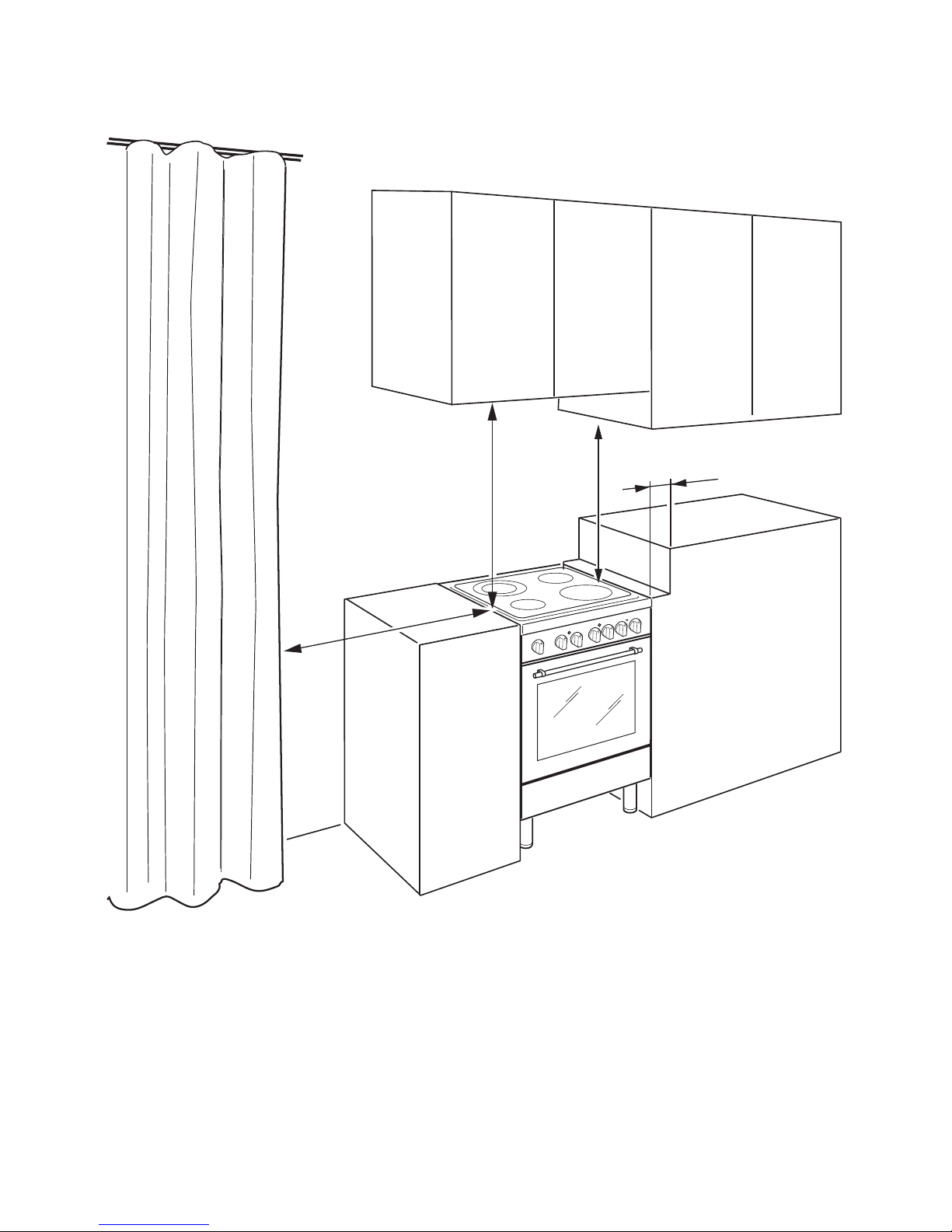

LOCATION
■ The cooker can be installed in a cabinet (g. 1).
■The cooker must be installed no less than 50 mm away from any side wall which
exceed the height of the cooktop.
■The appliance must be housed in heat resistant units.
■The walls of the units must be capable of resisting temperatures of 75 °C above
room temperature.
■Do not install the appliance near inammable materials (eg. curtains).
■If you stand the cooker on a pedestal, make sure you provide safety measures
to keep it in place.

8
Figure 1
Cooker overall dimensions [mm]
■ height: min 850 - max 900
■ width: 600
■ depth: 600
450 mm
50 mm
650 mm
500 mm

9
min 270 mm
max 320 mm
(depending on feet
height adjustment)
Dotted line
showing the
position of the
cooker when
installed
Area for
ELECTRIC
connection
ELECTRIC CONNECTION
Figure 2
FITTING THE ADJUSTABLE FEET
The adjustable feet must be tted to the base of the cooker before use (gs. 3, 4).
Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for
the tting of the feet.
Fit the no. 4 (four) legs by screwing them tight into the support base as shown in gure 3.
LEVELLING THE COOKER
The cooker may be levelled by screwing the lower ends of the feet IN or OUT (g. 4).
Figure 4
Figure 3

10

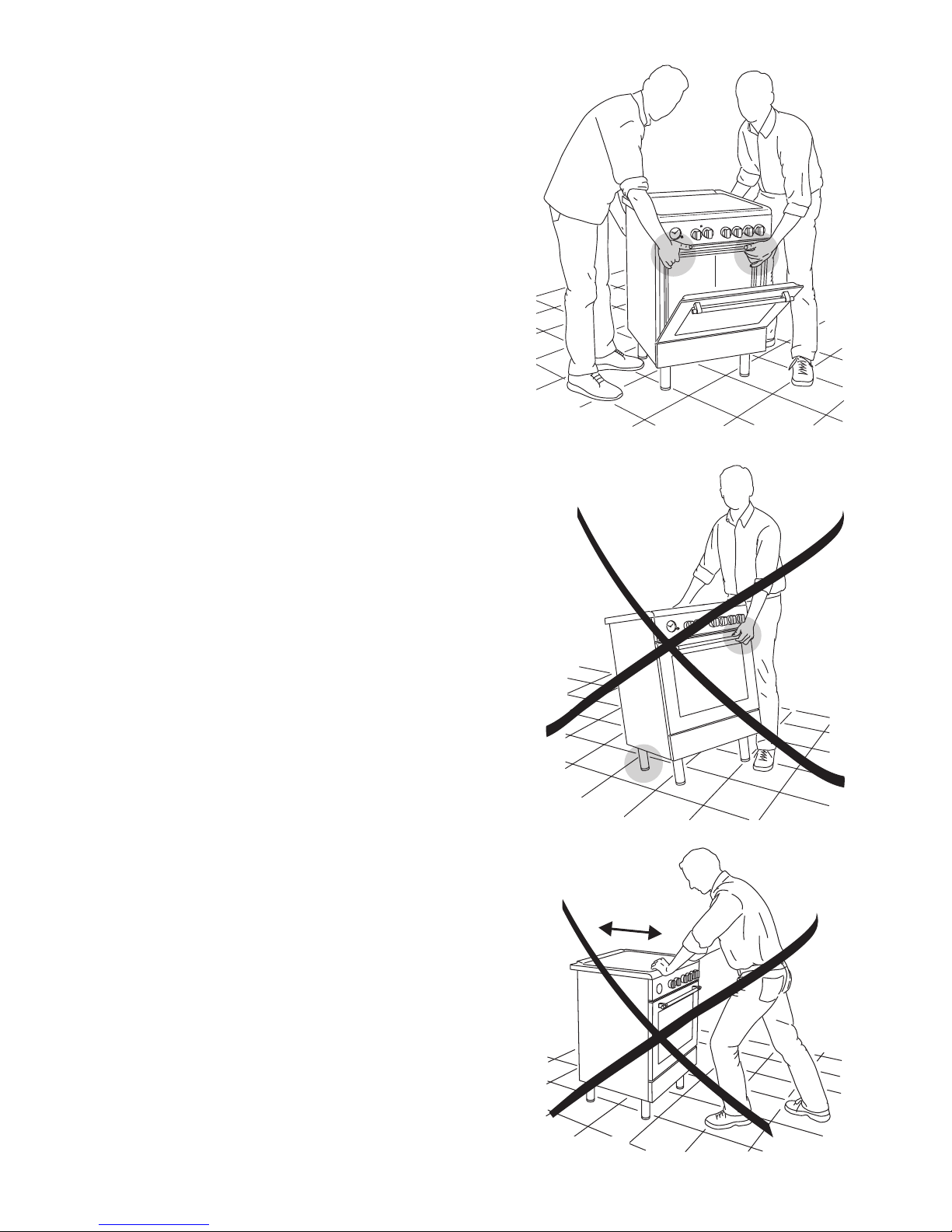

MOVING THE COOKER
WARNING: When raising cooker to upright
position always ensure two people carry
out this manoeuvre to prevent damage to
the adjustable feet (g. 5a).
WARNING - Be carefull: Do not lift the
cooker by the door handle when raising to
the upright position (g. 5b).
WARNING: When moving cooker to its
nal position DO NOT DRAG (g. 5c). Lift
feet clear of oor (g. 5a).
Figure 5a
Figure 5c
Figure 5b

11

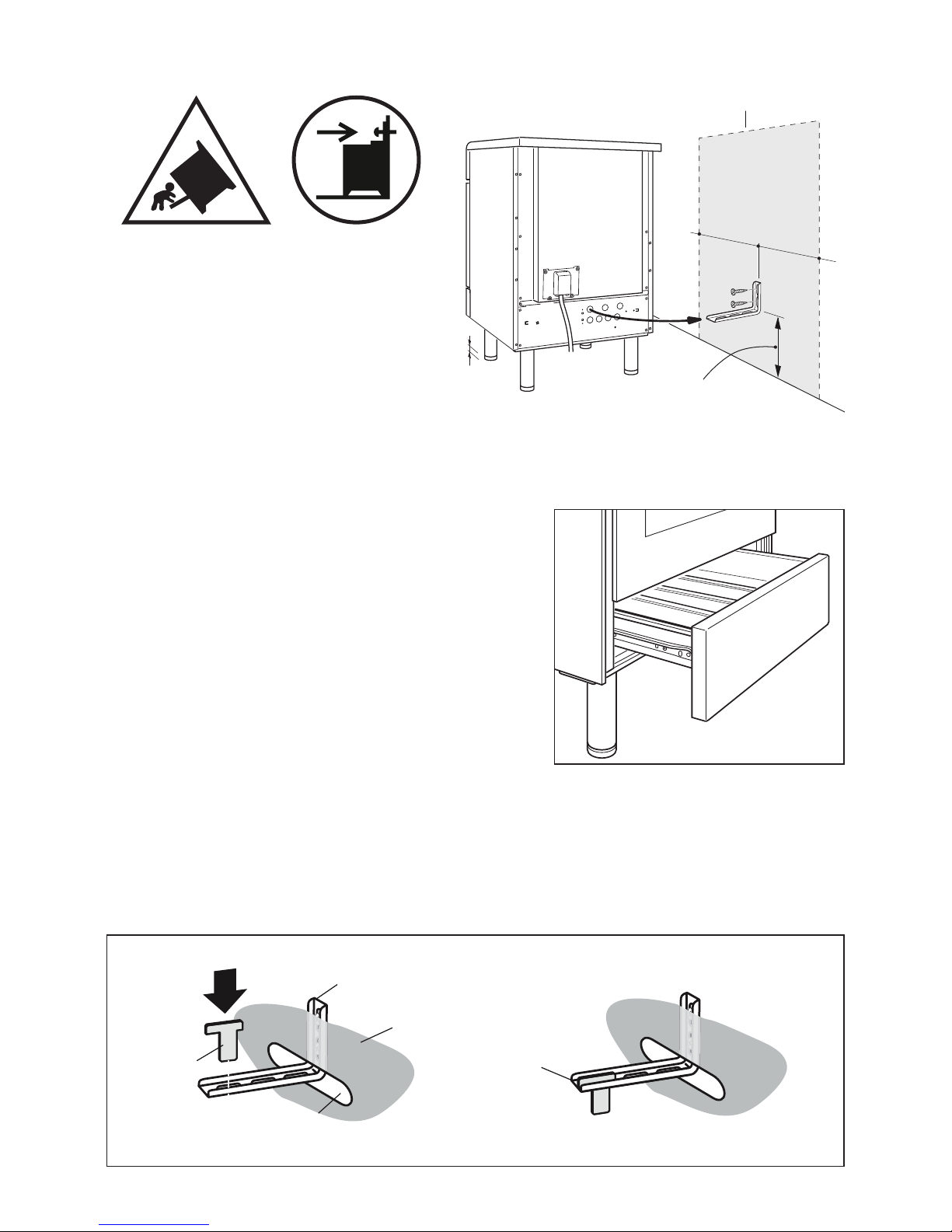

ANTI-TILT BRACKET
Important!
To restrain the appliance and prevent
it tipping accidentally, t a bracket to
its rear to x it securely to the wall.
Make sure you also t the supplied
lock pin to the anti-tilt bracket.
To t the anti-tilt bracket:
1. After you have located where the
cooker is to be positioned, mark on
the wall the place where the two
screws of the anti-tilt bracket have to be tted.
Please follow the indications given in g. 6a.
2. Drill two 8 mm diameter holes in the wall and
insert the plastic plugs supplied.
Important!
Before drilling the holes, check that you will
not damage any pipes or electrical wires.
3. Loosely attach the anti-tilt bracket with the two
screws supplied.
4. Move the cooker to the wall and adjust the height
of the anti-tilt bracket so that it can engage in the
slot on the cooker’s back, as shown in g. 6a.
5. Tighten the screws attaching the anti-tilt bracket.
6. Push the cooker against the wall so that the
antitilt bracket is fully inserted in the slot on the cooker’s back.
7. Access the bracket and t the lock pin:
■ Remove the drawer (g. 6b).
■ Fit the lock pin through the bracket, as shown (g. 6c).
■ Ret the drawer.
==
min 215 mm - max 265 mm
(depending on feet
height adjustment)
0
+50
Dotted line showing the position of
the cooker when installed
12
Fitting the lock pin through
the bracket
Lock pin
correctly
fitted
Lock pin
Slot on the
cooker’s back
Cooker’s
back
Anti-tilt bracket
attached on the
rear wall
Figure 6a
Figure 6b
Figure 6c

12
ELECTRICAL REQUIREMENTS
■The appliance must be connected to the mains checking that the voltage corresponds
to the value given in the rating plate and that the electrical cable sections can withstand
the load specied on the plate.
■A suitable disconnection switch must be incorporated in the permanent wiring, mounted
and positioned to comply with the local wiring rules and regulations. The switch must
be of an approved type installed in the xed wiring and provide a 3 mm air gap contact
separation in all poles in accordance with the local wiring rules.
In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must
be installed in the active (phase) conductor of the xed wiring.
■The switch must always be accessible.
■The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 75°C above ambient.
■To connect the cooker to the mains electricity supply, do not use adapters, reducers or
branching devices as they can cause overheating and burning.
■This cooker must be connected to a suitable double pole control unit adjacent to the
cooker. No diversity can be applied to this control unit.
■ This cooker must be connected to electrical supply using V105 insulated cable.
In New Zealand, this appliance must be connected to the electrical supply using a
cable tted with an appropriately rated plug. The plug must be compatible with the
socket-outlet tted to the nal subcircuit in the xed wiring that is intended to supply
the appliance.
■Once the appliance has been installed, the switch or socket must always be accessible.
■If the supply cord is damaged it must be replaced by the manufacturer or it’s Service
Agent or a similarly qualied person in order to avoid a hazard.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualied
electrician. He should also check that the domestic electrical system is suitable for the
power drawn by the appliance.
Replacing the power cord must be done by a qualied electrician in accordance with
the instructions supplied by the manufacturer and in compliance with established
electrical regulations.

13
CONNECTION OF THE POWER SUPPLY CABLE
Important! This cooker must be connected to the electricity supply only by an
authorised person.
■ Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (g.
7).
■ Unscrew the screw “D” and open completely the cable clamp “E” (gs. 8 - 9 - 10).
■ Position the U bolts “F” onto terminal board “G” (gs. 8 - 9- 10) according to the
diagrams in g. 11.
■Connect the phase, neutral and earth wires to terminal board “G” according to the
diagrams in g. 11.
■Strain the feeder cable and block it with cable clamp “E” (by screwing screw “D”).
■Close the terminal block cover (check the two hooks “A”are correctly hooked).
NOTE: The earth conductor must be left about 3 cm longer than the others.
VOLTAGE AND POWER CONSUMPTION
220-240 V 50 Hz 8470 W (36.8 A) (diversity not applied)
FEEDER CABLE SECTION
“TYPE H05RR-F or H05VV-F”
220-240 V ac 3 x 4 mm2(**)
380-415 V 3N ac 5 x 2,5 mm
2
(**)
380-415 V 2N ac 4 x 4 mm2(**)
(**) Connection with wall box connection.
– Diversity factor applied.
– A diversity factor may be applied to the
total loading of the appliance only by a
suitably qualied person.
A
Figure 7

14
230 V ~
1
2
3
5
4
N
L2
PE
L1
G
F
D
E
1
2
3
5
4
PE
N
L1
L2
G
F
D
E
400 V 2N ~
1
2
3
5
4
PE
N
L1
L2
L3
G
F
D
E
400 V 3N ~
Figure 8
Figure 10
Figure 9
PE
N (L2)
L1
230 V
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
PE
PE
400 V 3N
400 V 2N
N
L1
L2
N
L1
L3
L2
220-240 V ac 380-415 V 2N ac 380-415 V 3N ac
220-240 V ac 380-415 V 2N ac
380-415 V 3N ac
Figure 11

15
ELECTRIC DIAGRAM
TL
S2
T
F2 F4F3 F5
P1 P2 P4
HHH
S S S
2 2 2
4 4 4
S1 S1S1 S1
S2 S2S2 S2
44
4 4
P1 P1P1 P1
P2 P2P2 P2
2 22 2
P3
4
4A
HS
2
4a
42
5
31
M
TM
C
G S
V
S1
LF
CF
F1
TL
1
6
1a
6a
4
9
4a
9a
3
8
3a
8a
2
7
2a
7a
5
10
11
5a
10a
11a
450V
PA44
4
TB
Optional
CR
Figure 12

16
ELECTRIC DIAGRAM KEY
F1 Oven switch
F2/5 Radiant heaters energy regulators
F4 Double radiant heaters energy regulators
LF Oven lamp
TM Oven thermostat
TL Thermal overload
C Top element
G Grill element
S Bottom element
CIR Circular element
V Fan
CR Residual heat Lamp
CF Cooling fan
S1 Thermostat pilot lamp
S2 Radiant heaters pilot lamp
P1/4 Radiant heaters
P3 Double radiant heaters
MTerminal block
TB Testing block (optional)
TEarth connection

17
USE AND CARE
CAUTION:
■This appliance must be used only for the task it has explicitly been designed for, that
is for domestic cooking of foodstuffs. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
■Do NOT place combustible materials or products on this appliance at any time.
■ Do NOT use or store ammable materials in the appliance storage compartment or
near this appliance.
■ WARNING: Accessible parts will become hot when in use. To avoid burns and scalds,
young children should be kept away.
■Do NOT spray aerosols in the vicinity of this appliance while it is in use.
■Do NOT modify this appliance.
Figure 13
Figure 14
Stop notch
Stop notch
Guard rail
USING THE OVEN FOR THE FIRST
TIME
Operate as follows:
■Assemble the wire racks on the oven
walls using the 2 screws (g. 13).
■Slide into the guides, the shelf and the
tray (g. 14).
 The rack must be tted so that the
safety notch, which stops it sliding out,
faces the inside of the oven; the guard
rail shall be at the back.
 The tray must be tted so that the
safety notch, which stops it sliding out,
faces the inside of the oven.
■To eliminate traces of grease in
manufacture it is necessary to preheat
the oven at the maximum temperature:
• For 60 minutes in the position
and for another 15 minutes in the
position.
■ Unscrew the xing screws and slide
off the wire racks to the oven wall as
in g. 13.
■Let the oven cool down, switch off
the electrical supply, then clean the
inside of the oven with a cloth soaked
in water and neutral detergent and dry
thoroughly.

18
Figure 15
GREASE FILTER (OPTIONAL COMPONENT, CAN BE PURCHASED
SEPARATELY)
■ A special screen can be tted at the back of the oven to catch grease particles, mainly
when meat is being roasted.
 Slide in the grease lter on the back of the oven as in g. 15.
■Clean the lter after any cooking!
 The grease lter can be removed for cleaning and should be washed regularly in hot
soapy water.
 Always clean the lter after cooking as any solid residues on it might adversely affect
the oven performance.
■ Always dry the lter properly before tting it back into the oven.
CAUTION: When baking pastry etc. this lter should be removed.

19
Controls description
1. Front right cooking zone control knob
2. Rear right cooking zone control knob
3. Rear left cooking zone control knob
4. Front left cooking zone control knob
5. Oven function selector control knob
6. Oven temperature control knob
7. 60’ alarm control knob
Pilot lamp
8. Oven temperature indicator light
9. Hob elements ON indicator light
Figure 16
CONTROL PANEL
Please note:
Your appliance has been tted with a cooling fan to achieve optimum efciency of the
controls and to ensure lower surface temperatures are maintained.
The cooling fan motor switches ON/OFF depending on temperature.
Depending on cooking temperatures and times, the cooling fan may run on even after the
appliance oven has been switched off.
The duration of this time is dependent on previous cooking temperature and duration.
1
2
3
4
5
6
7
8
9
10
11
12 1
2
3
4
5
6
7
8
9
10
11
12 1
2
3
4
5
6
7
8
9
10
11
12 1
2
3
4
5
6
7
8
9
10
11
12
5
10
15
20
25
30
35
40
45
50
55 40
75
100
125
150
175
200
225
250
1234567
8 9

20
Figure 17
VITROCERAMIC HOB
VITROCERAMIC COOKING HOB
1. Hi-light cooking zone Ø 145 mm 1200 W (230V)
2. Double Hi-light cooking zone Ø 210/120 mm 2200/750 W (230V)
3. Hi-light cooking zone Ø 180 mm 1800 W (230V)
4. Residual heat indicators
Attention:
Detach the appliance from the mains if the ceramic glass is cracked and contact the After-
Sales Service.
Metallic objects such as knives, forks, spoons and lids should not be placed on the hob
surface since they can get hot.
1
3
2
1
4
