INSTRUCTION MANUAL
Customer Experience Center
www.DeltaChildren.com
WARNING:
Adult assembly required because of
small parts. Keep assembly parts
out
of reach of children under 3 years.
CHOKING HAZARD
SPYDER
STROLLER
Read all instructions BEFORE assembly and USE of product
KEEP INSTRUCTIONS FOR FUTURE USE.
11381
ADULT ASSEMBLY REQUIRED
STYLES AND COLORS MAY VARY
GRACO® SNUGRIDE® CLICK CONNECT™ (30, 35, 40) INFANT CAR SEAT (NOT INCLUDED)
CHICCO® KEYFIT 30™ INFANT CAR SEAT (NOT INCLUDED)
CHICCO® KEYFIT 35™ INFANT CAR SEAT (NOT INCLUDED)
NUNA® PIPA LITE™ INFANT CAR SEAT (NOT INCLUDED)
NUNA® PIPA™ INFANT CAR SEAT (NOT INCLUDED)
CYBEX® CLOUD Q™ INFANT CAR SEAT (NOT INCLUDED)
MAXI-COSI® MICO 30™ INFANT CAR SEAT (NOT INCLUDED)
UPPABABY® MESA™ INFANT CAR SEAT (NOT INCLUDED)
BRITAX® B-SAFE 35™ INFANT CAR SEAT (NOT INCLUDED)
2
CARE AND MAINTENANCE
WARNING: Please follow all of these instructions to ensure the safety of your child.
Keep these instructions for future reference.
WARNING: Failure to follow these instructions could result in serious injury or death.
• Avoid serious injury from falling or sliding out. ALWAYS insure that the child is properly positioned by
using the safety harness according to these instructions. ONLY children who have developed enough
upper body control to sit without leaning forward can use the front seat in the upright position.
• NEVER leave children unattended.
WARNING: CHOKING HAZARD Adult assembly required because of small parts.
Keep (assembly parts) out of reach of children under 3 years.
CAUTION: Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the
stroller and cause hazardous unstable conditions.
TO PREVENT INJURY
• Make sure all body parts are clear of the stroller when folding and unfolding.
• The maximum weight that can be carried in the lower basket, and child tray, each is 3 lbs (1.36 kg).
Excessive weight may cause a hazardous unstable condition to exist.
• Before allowing the children near the stroller, be certain the stroller is fully erect and latched in the open
locked position.
• Use of the stroller with children weighing more than 50 pounds (22.62 kg) per seat or over 42 inches
(106.7 cm) tall, may cause a hazardous unstable condition to the stroller.
• NEVER use the stroller on stairways or escalators.
• NEVER allow your stroller to be used as a toy.
• NEVER use the stroller in conjunction with bicycles, skateboards, roller skates, or in-line skates. Please
discuss using the jogging stroller with your health care provider prior to jogging use.
We recommend that the child occupant needs to be 6 months of age, at the minimum, before use
of the stroller.
Product features and decorations may vary from the photo.
• To clean the plastic parts on stroller use a mild cleaning solution with warm water on a sponge or
damp cloth. Hand wash fabric with damp cloth and air dry. Do not use bleach.
• To keep your stroller wheels from squeaking, use silicone or graphite based lubricant.
• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or
repair parts as needed, discontinue use of stroller if it should become damaged or malfunctions.
3
LIMITED MANUFACTURER WARRANTY
This Delta product is warranted to be free from defects for a period of 90 days from the
date of purchase under normal use. This warranty extends only to the original retail
purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the
registration is on file with Delta. This limited manufacturer warranty does not cover the following:
• Products purchased as floor models or samples.
• Items purchased on an “as-is” basis, as a second hand product, or as a resale product.
• Items purchased at a Final sale, a “Going out of Business” sale, or a Liquidation sale.
TO REGISTER YOUR PRODUCT for important safety alerts and updates to your product please
visit www.deltachildren.com
TO REPORT A PROBLEM, please log on to www.deltachildren.com and click the Consumer
Date of Purchase: _____________ (you should also keep your receipt)
DON’T MISS YOUR CHANCE TO BE COVERED FOR ALL OF LIFES MISHAPS!
With Delta’s Extended Warranty, you’re covered for mechanical failure from normal use or if your item
stops working due to normal wear and tear, plus all those unexpected surprises.
2 YEARS OF PROTECTION
For Additional Information:
Simply visit our Website, register your product, and add the Extended Warranty
https://www.deltachildren.com/pages/product-registration
Extended Warranty only available in the following States: Arkansas, Colorado, Delaware, District of Columbia, Georgia, Idaho, Illinois, Indiana,
Iowa, Kansas, Kentucky, Louisiana, Maryland, Michigan, Mississippi, Missouri, Nebraska, Nevada, New Hampshire, New York, North Carolina,
North Dakota, Pennsylvania, Rhode Island, South Dakota, Tennessee, Utah, West Virginia
EXTENDED WARRANTY
4
Chid Bar
Car Seat
Adapter Joint
5-in-1 Car
Seat Adapter
Stroller Seat Stroller Frame
Canopy
IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts, or sharp
edges. NEVER use if any parts are missing or broken. Contact manufacturer for replacement parts and instructions if needed.
Never substitute parts. IMPORTANT! Adult assembly is required.
PARTS
IMPORTANT! Please remove all parts from the package and identify them before assembly.
5

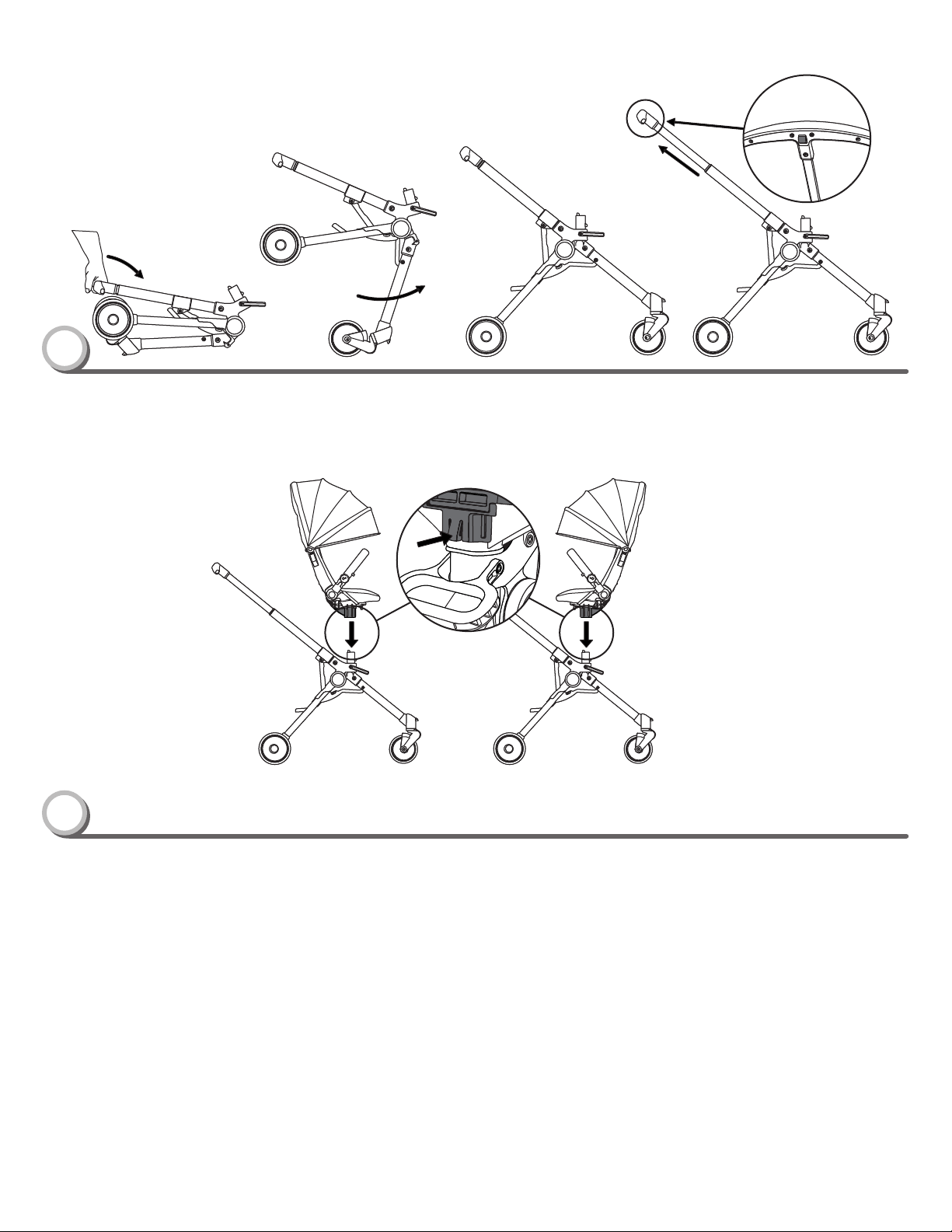

• Unfolding Stroller: Lift the end of the stroller handle upward until the stroller unfold sout, or manually pull the stroller apart (Fig. 1).
• NOTE: Stroller frame should “CLICK” in place once in fully locked position.
• Attaching Stroller Seat: Face stroller seat to the preferred direction. Front facing seat (Fig. 2) or rear facing seat (Fig. 2A). Press stroller seat into
stroller frame housing until it “CLICKS” into a fully locked position (Fig. 2B).
• Removing Stroller Seat: Press button located on the bottom of the stroller frame and lift stroller seat upward to fully remove. (Fig. 2B)
• NOTE: Pull upward on seat to ensure that the stroller seat is securely locked into right / left seat housing.Once a position has been decided, attach
the stroller joint to the stroller frame joint until it clicks in place.
1
2
ASSEMBLY
FRONT FACING REAR FACING
Fig. 1
Fig. 2 Fig. 2A
Fig. 2B
6
SETUP AND USE

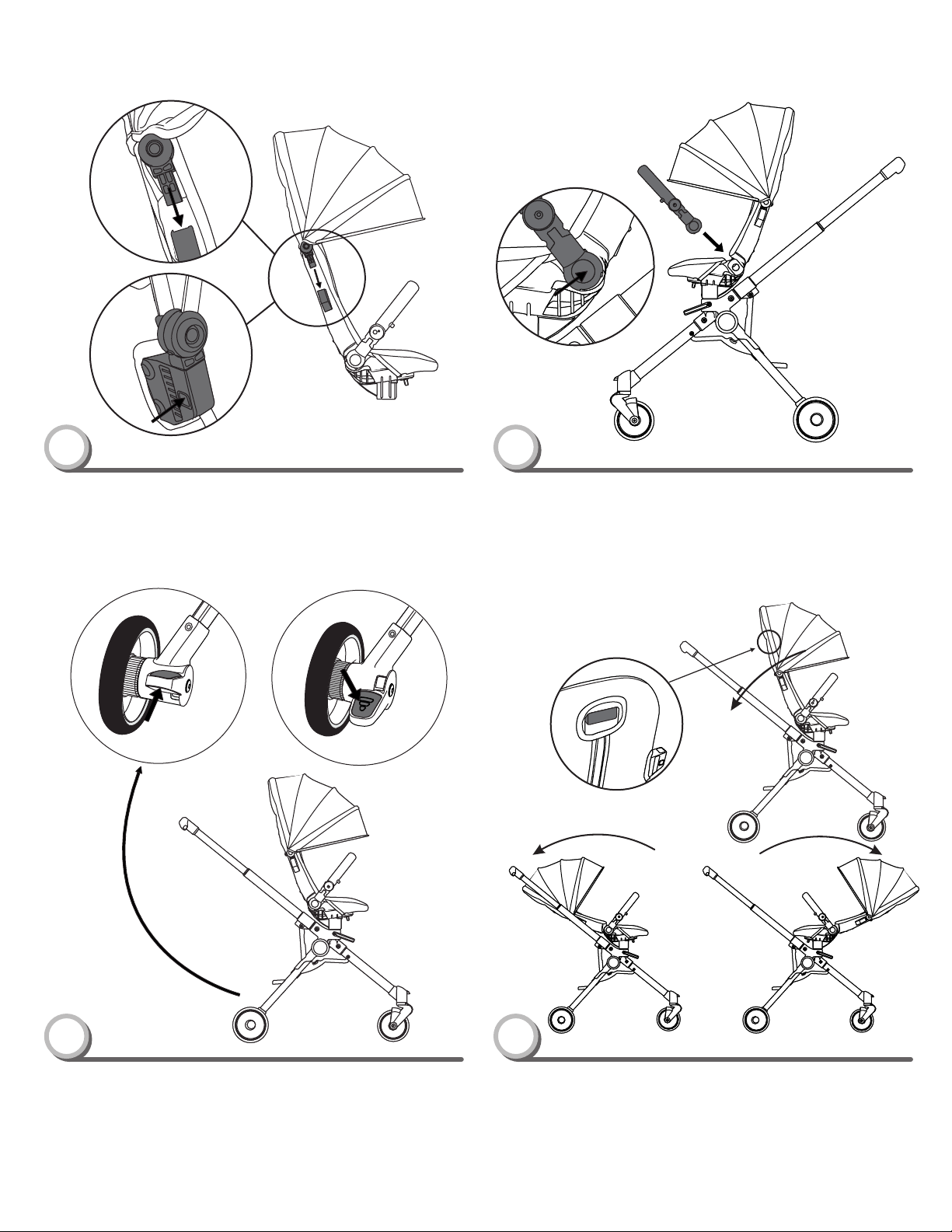

• Attaching Canopy: Locate canopy joint and insert it to the stroller
seat joints until it “CLICKS” in a fully locked position (Fig. 1).
• Removing Canopy: Locate release button behind canopy joint and
press on both sides of canopy to remove (Fig. 1A).
• Unlocking Wheels: Apply light downward pressure on top section of both
brake levers located on each side of the rear wheel axle (Fig. 3).
• Locking Wheels: Apply light downward pressure on both brake located on
each side of the rear wheel (Fig. 3A).
• Check to make sure the brakes are in a fully locked position, stroller will not
move when pushed.
• Reclining Stroller Seat: Lift the recline latch located on the top
center of the stroller seat upward and rotate seat downward into any
of the three positions (Fig. 4).
• Returning To An Upright Position: Lift the recline latch upward and
rotate seat upward into desired position (Fig.4).
• Attaching Child Bar: Insert left / right sides of the child bar into the
child bar housing located on the left / right side of the stroller seat
(Fig. 2).
• Removing Child Bar: Press both child bar buttons located on both
sides of the joint and pull upward to release. (Fig. 2A).
1
3
2
4
UNLOCK
BRAKE LOCK
BRAKE
Fig. 1
Fig. 2
Fig. 2A
Fig. 1A
Fig. 3A
Fig. 4
Fig. 3
7

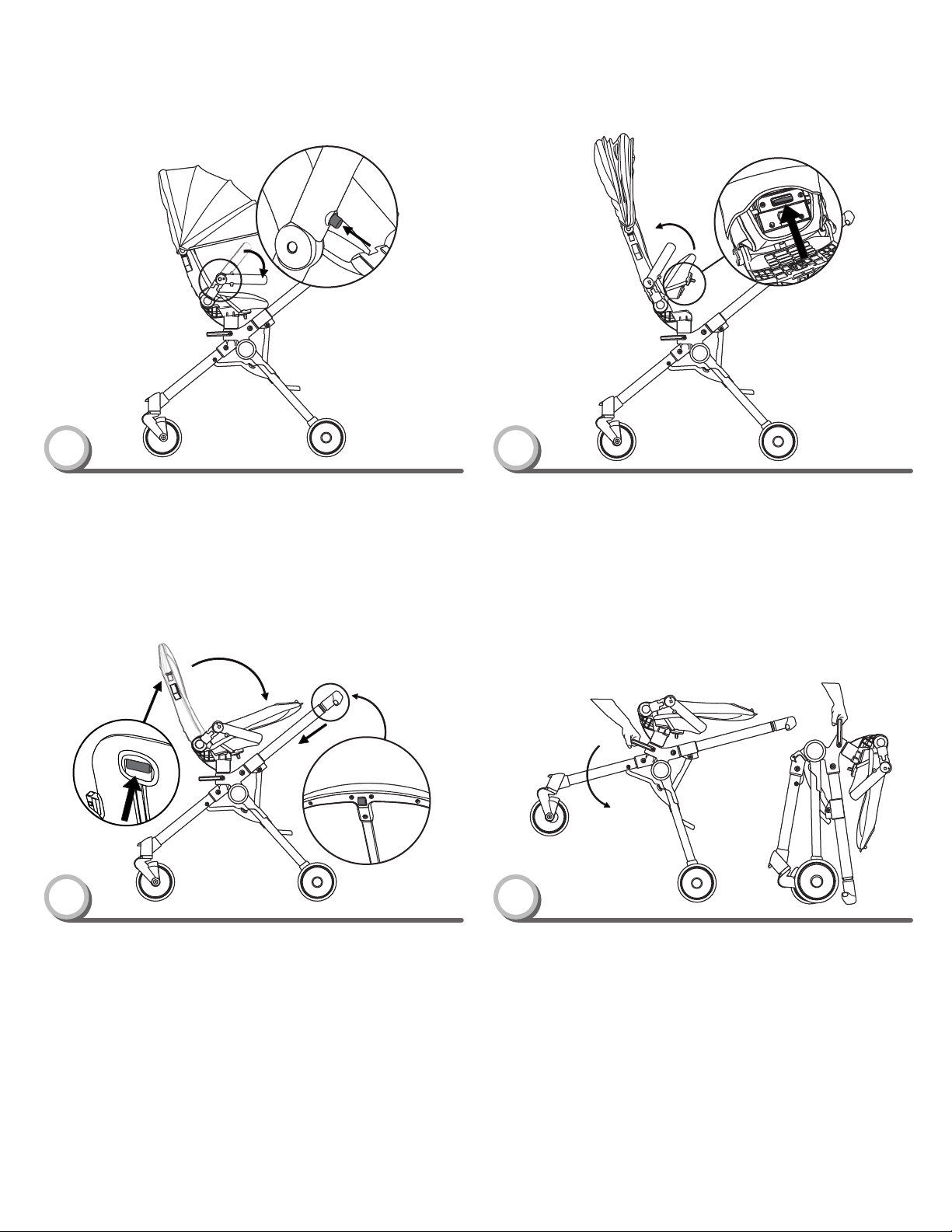

FOLDING STROLLER FRONT FACING

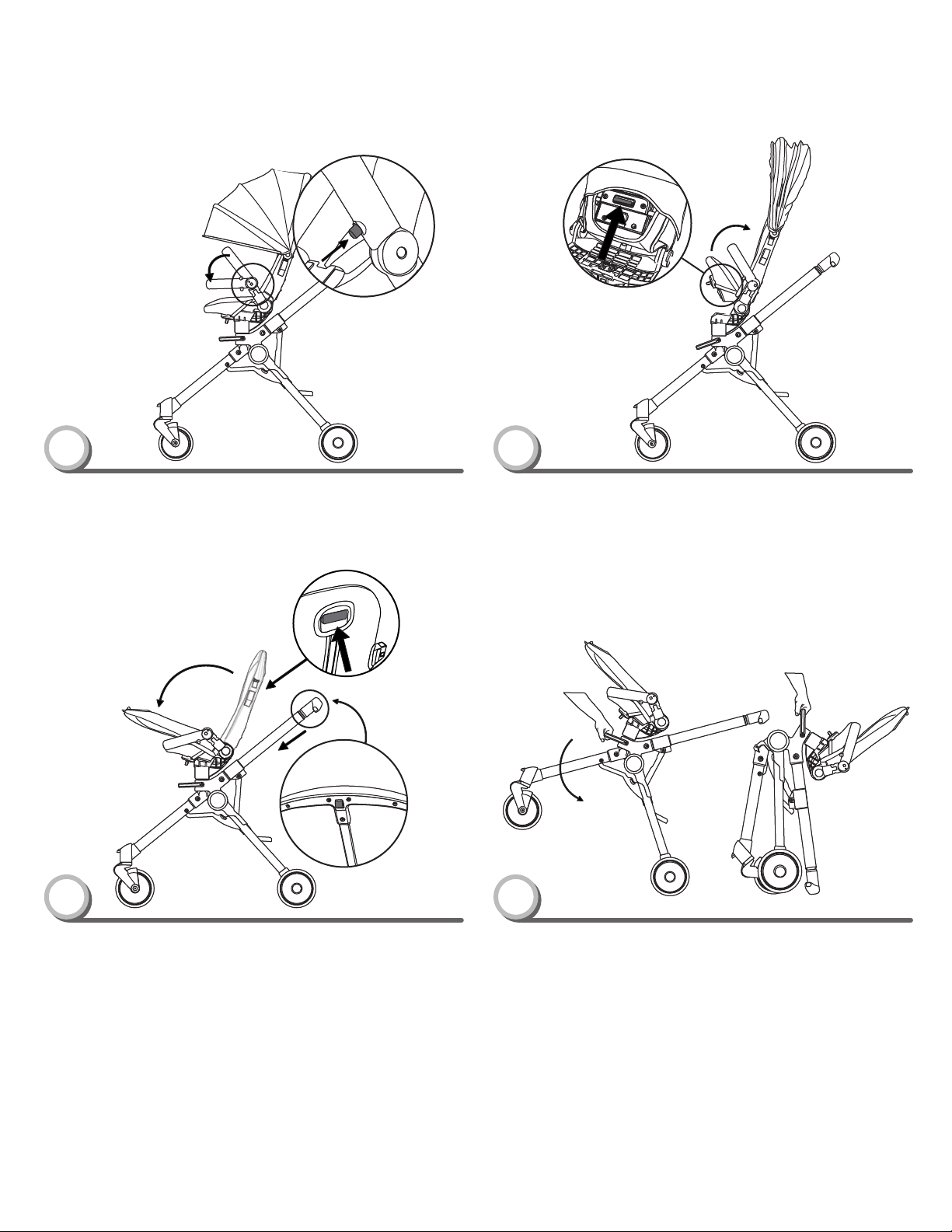

• Folding Back Rest: Locate the recline level behind the stroller back
rest and adjust until the back rest is in a down position (Fig. 3)
• Adjusting Handle: Press the button behind handle to adjust handle
in a fully down position (Fig. 3A).
• Folding Stroller Frame: Locate handle on the stroller frame and lift
upward until the stroller is in a fully folded position (Fig. 4).
• Folding Seat: Press the unlock button under the stroller seat to
fold the bottom of the seat upward (Fig. 2).
• Folding Child Bar: Press BOTH buttons (located on bottom
side of child bar) and fold handle downward until in a fully down
position (Fig. 1).
1
3
2
4
Fig. 1 Fig. 2
Fig. 3
Fig. 3A
Fig. 4
8
FOLDING STROLLER REAR FACING
• Folding Back Rest: Locate the recline level behind the stroller back
rest and adjust until the back rest is in a down position (Fig. 3)
• Adjusting Handle: Press the button behind handle to adjust handle
in a fully down position (Fig. 3A).
• Folding Stroller Frame: Locate handle on the stroller frame and lift
upward until the stroller is in a fully folded position (Fig. 4).
• Folding Seat: Press the unlock button under the stroller seat to
fold the bottom of the seat upward (Fig. 2).
• Folding Child Bar: Press BOTH buttons (located on bottom
side of child bar) and fold handle downward until in a fully down
position (Fig. 1).
1
3
2
4
Fig. 1 Fig. 2
Fig. 3
Fig. 3A
Fig. 4
9
SECURING CHILD
1
Securing Child
• Place your child in the stroller. Position the crotch belt between your
child’s legs.
• Pull shoulder straps over child’s arm and shoulder and fasten both strap
ends to the restraint system.
• Fasten both waist belts to the buckle on each side of the crotch belt.
Make sure you hear a “click” on both sides.
• Check to be sure the restraint system is securely attached by pulling it
away from your child. The restraint system should remain attached.
3
To tighten the waist belts and shoulder straps:
• Feed the anchored end of a waist belt up through the buckle to form a
loop A. Pull the free end of the waist belt B.
• Repeat this procedure to tighten the other waist belt.
• Feed the top end of the shoulder strap through the plastic stay to form
a loop . Pull the bottom end down to tighten the strap .
• Repeat this procedure to tighten the other shoulder strap.
To loosen the waist belts and shoulder straps:
• Feed the free end of the waist belt up through the buckle to form a
loop A. Enlarge the loop by pulling on the end of the loop toward the
buckle. Pull the anchored end of the waist belt to shorten the free end
of the waist belt B.
• Repeat this procedure to loosen the other waist belt.
• Feed the bottom end of the shoulder strap through the plastic stay to
form a loop . Pull the top end up to loosen the strap .
• Repeat this procedure to loosen the other shoulder strap.
Please Note: After adjusting the restraint system to t your child, make
sure you pull on it to be sure it is securely fastened.
TIGHTEN
LOOSEN
5 Point Safety
Harness
2
• Tighten each waist belt and shoulder strap so that the restraint system
is snug against your child.
Please refer to the next section for instructions to tighten the waist
belts.
C
C
D
D
Before Placing your Child in Stroller:
Close Canopy. Press both brake pedals down until they “click” into the locke position.
Make sure the brake pedals are pressed down completely.
Always set both brake pedals when parking the stroller.
Waist Belt
Waist Belt
Crotch Belt
Restraint System
10

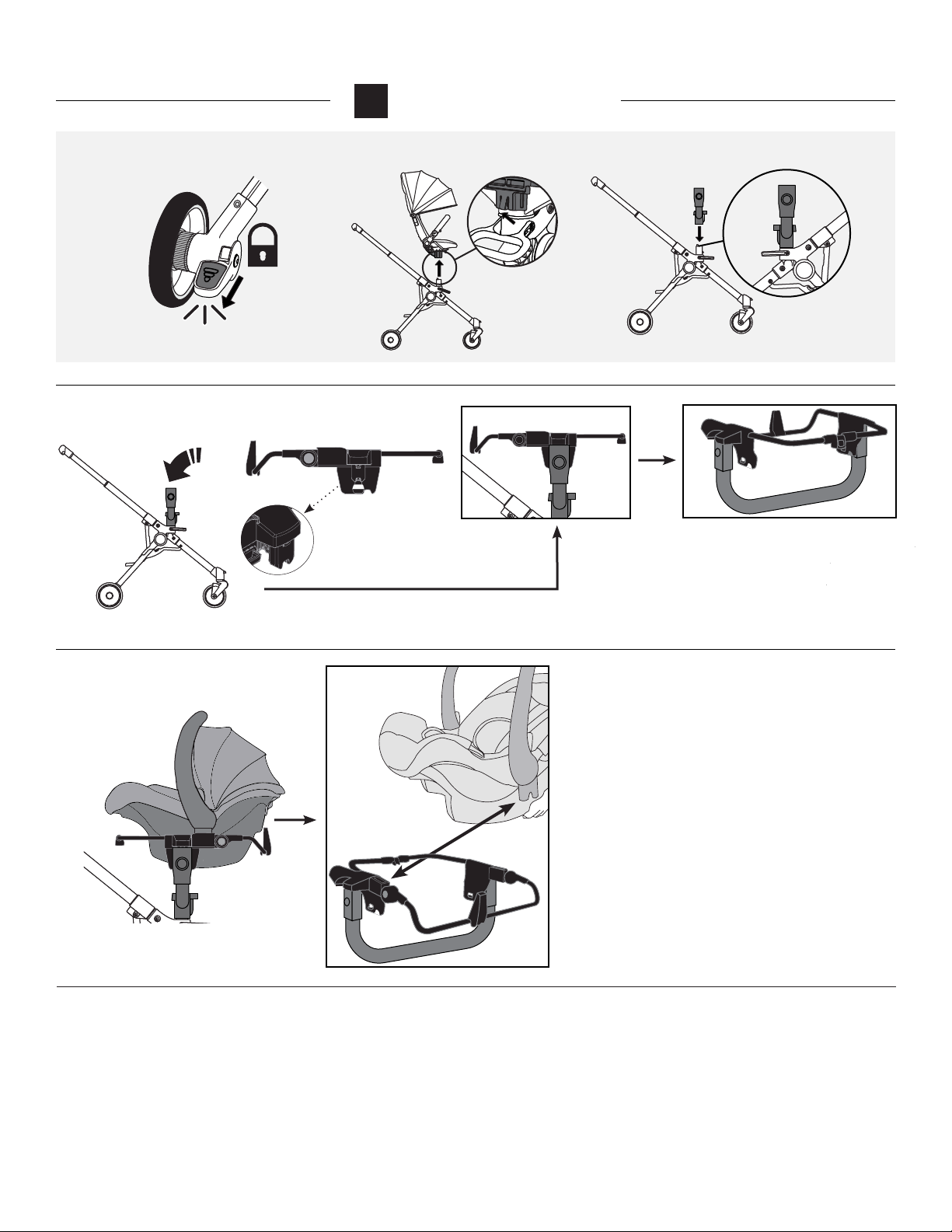

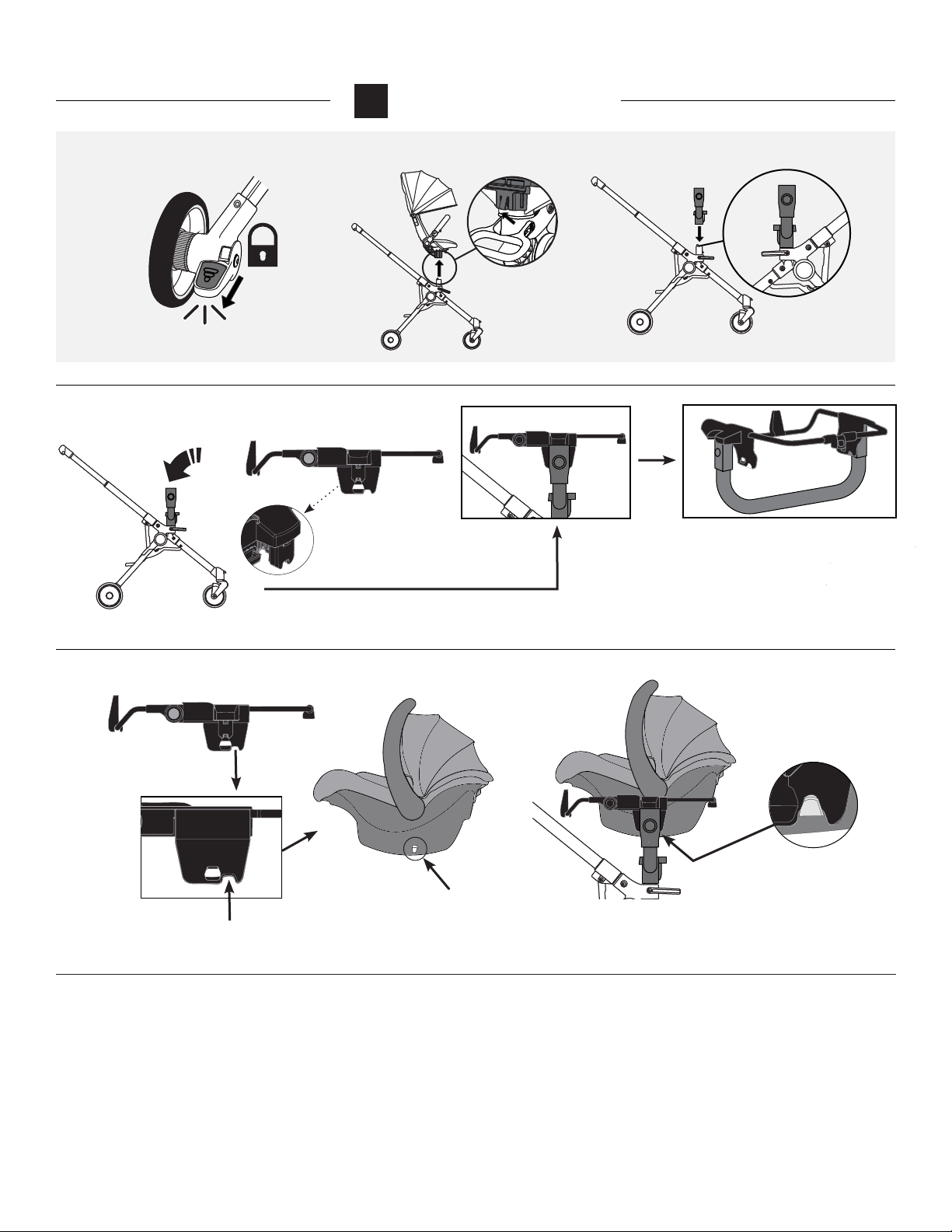

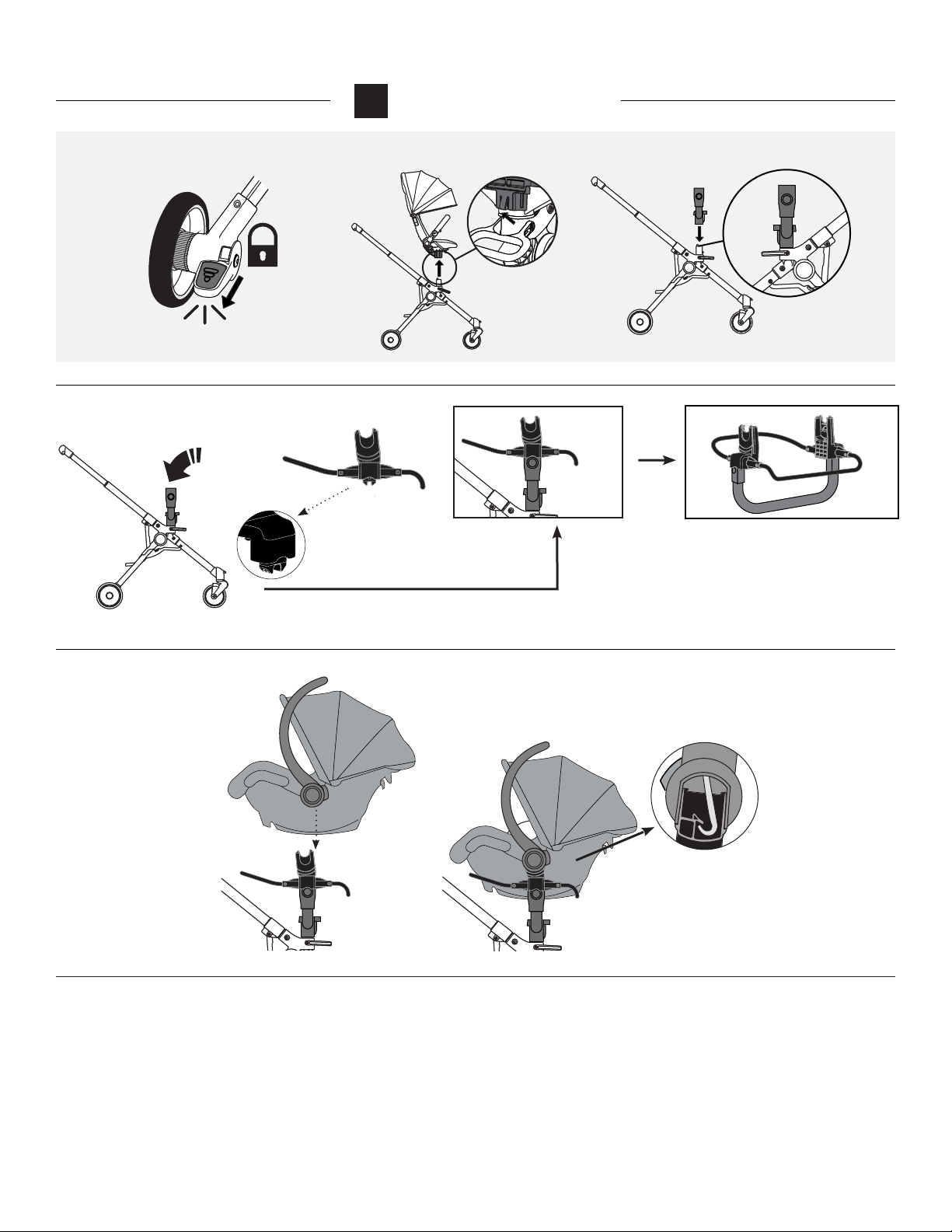

ATTACHING CHICCO CAR SEATS
BEFORE STARTING
!
Attaching Car Seat Adapter:
Attaching Car Seat:
Lock The Rear Wheels: Remove Seat: Attach Seat Adapter:

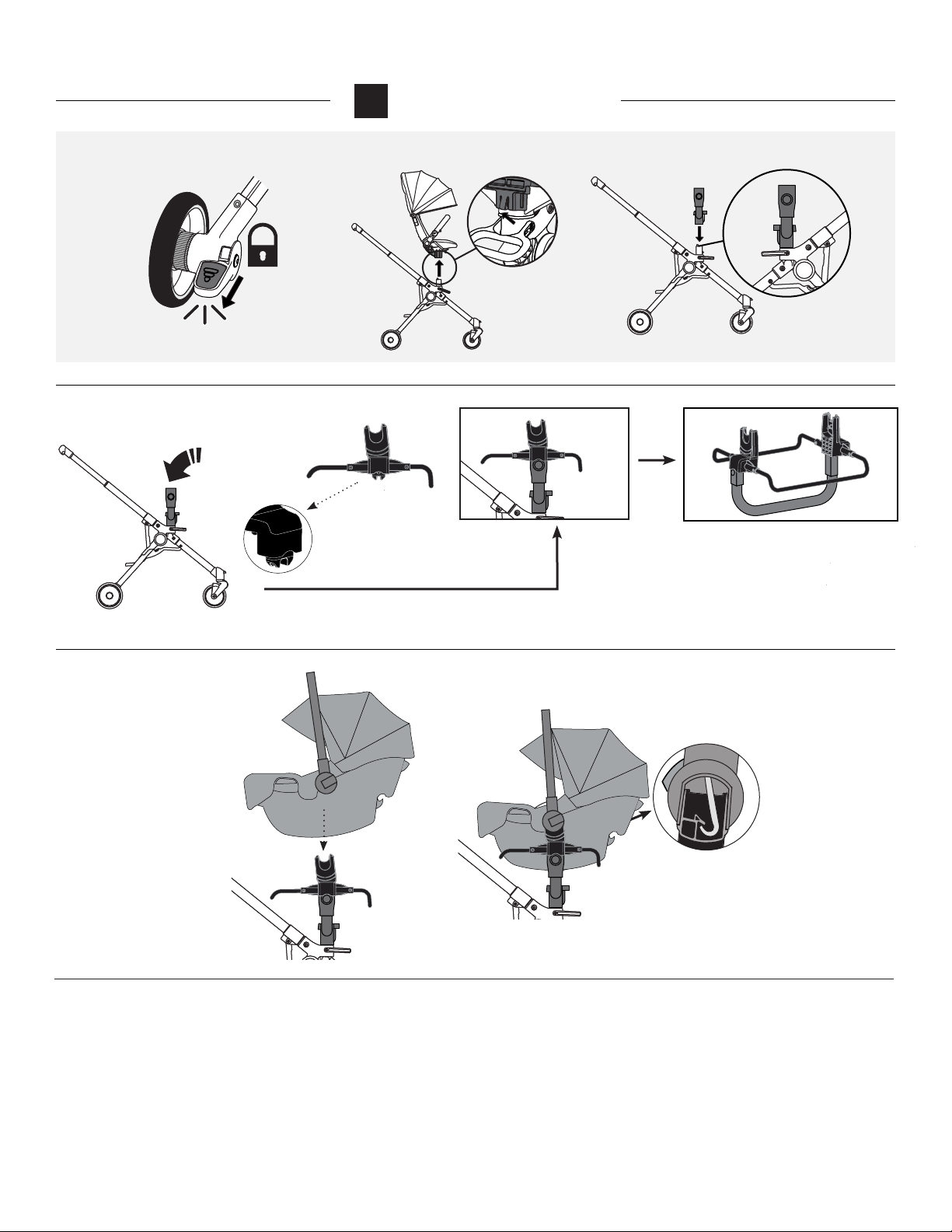

• Attach the 5-in-1 car seat adapter to the stroller frame. (Fig. C) until it
“CLICKS” into a fully locked position. (Fig. D)
• Place car seat into 5-in-1 car seat adapter until it “CLICKS” into a fully locked
position. Chicco car seats “CLICK” and lock on both sides of the adapter
when in a fully locked position (Fig. E).Make sure car seat is fully fastened
by pulling upward.
1.
Fig. E
Car seat adapter
correct placement
Insert on both sides
Back Front
Fig. C
Fig. 1
Fig. A
Fig. B
Locking tabs located on
both sides of car seat Car seat in a fully
locked position
Chicco Car Seat side locking tabs lock
under this area on the adapter
Car seat locking tabs lock on both sides
when in a fully locked position
Car seat adapter “CLICKS” and locks on
both sides of the stroller frame when in a
fully locked position
Fig. D
Attaching Chicco Car Seats – Keyfit 30 and Keyfit 35
Make sure both left and right stroller
brakes are in a fully locked position. Insert seat adapter to stroller frame until it is in a
fully locked position
11

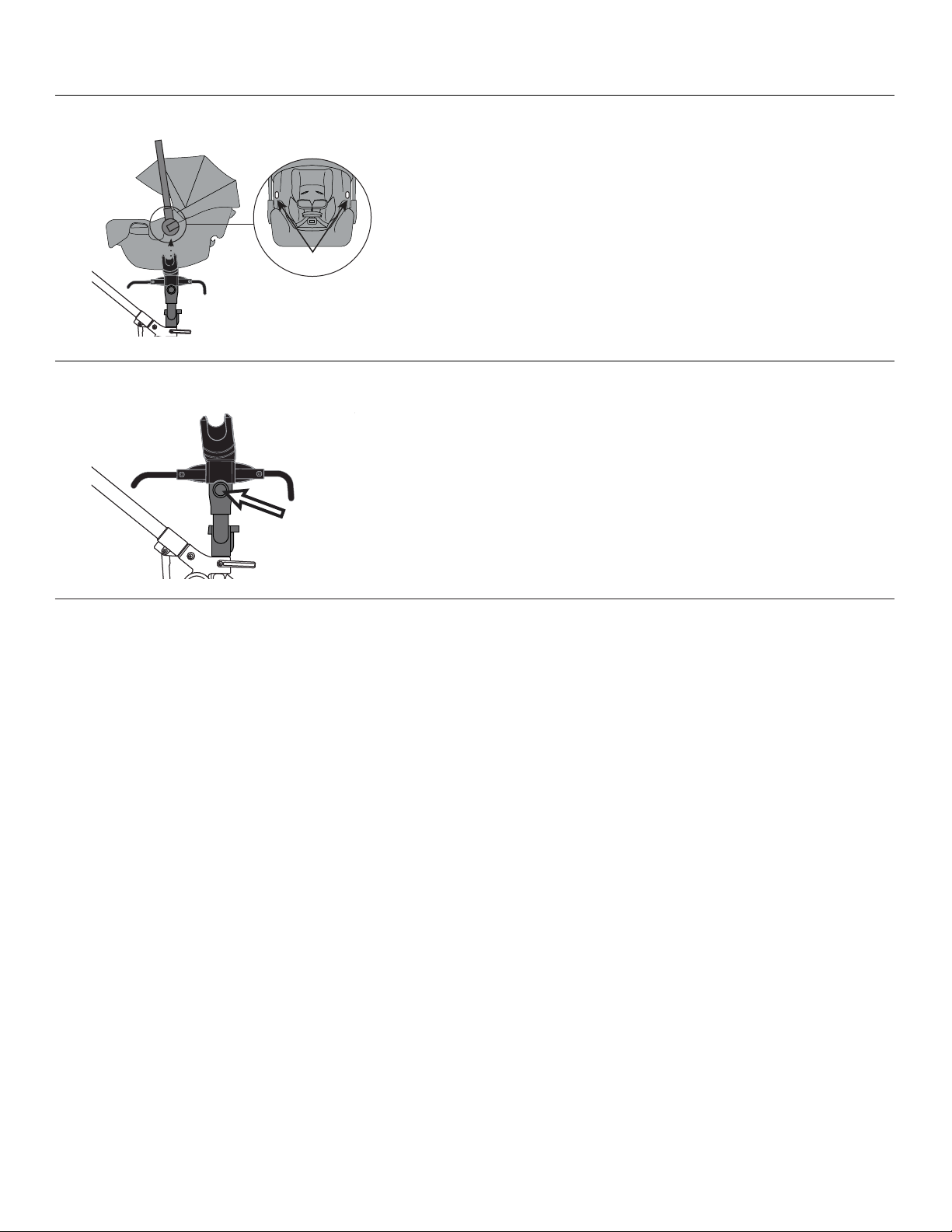

REMOVING CHICCO CAR SEATS

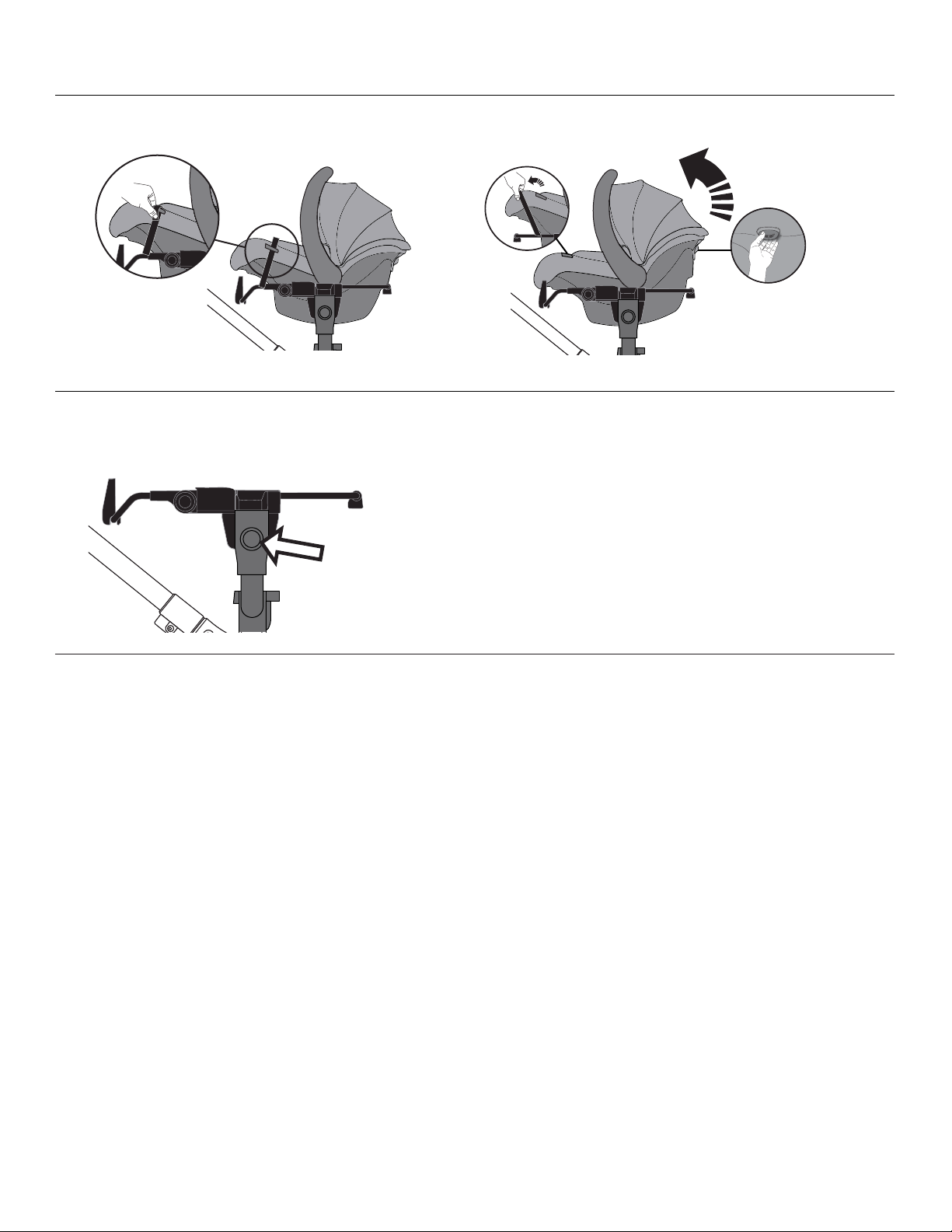

Securing Car Seat With Velcro Straps
• Final step to secure the footrest side of car seat onto stroller, use the straps
with velcro to secure seat onto stroller. (Fig. E)
• Check that car seat is securely attached by pulling up on the car seat.
Removing Car Seat
• Undo velcro straps from car seat. (Fig. F)
• Squeeze release handle at back of infant restraint and lift upward out of
adapter. (Fig. G)
Securing Car Seat With Velcro Straps:
Removing Car Seat Adapter:
Removing Car Seat:
Removing Car Seat Adapter
• Press both buttons located on both sides of the stroller frame and lift
upward on the adapter until fully removed from stroller. (Fig. H)
2.
Fig. F
Fig. H
Fig. G
Fig. E
12
ATTACHING GRACO CAR SEATS
BEFORE STARTING
!
Attaching Car Seat Adapter:
Attaching Car Seat:
Lock The Rear Wheels: Remove Seat: Attach Seat Adapter:
Fig. E
Car seat adapter
correct placement
Insert on both sides
Back Front
Fig. C
Fig. 1
Fig. A
Fig. B
Car seat adapter “CLICKS” and locks on
both sides of the stroller frame when in a
fully locked position
Fig. D
• Attach the 5-in-1 car seat adapter to the stroller frame. (Fig. C) until it
“CLICKS” into a fully locked position. (Fig. D)
• Place car seat into 5-in-1 car seat adapter until it “CLICKS” into a fully locked
position. Graco car seats “CLICK” and lock on both sides of the adapter
when in a fully locked position (Fig. E).Make sure car seat is fully fastened
by pulling upward.
Attaching Graco Car Seats – SnugRide Click Connect 30, 35, and 40
1.
Locking tabs located on both
sides of car seat
Car seat in a fully
locked position
Graco Car Seat side locking tabs lock
under this area on the adapter
Car seat locking tabs lock on both sides
when in a fully locked position
Make sure both left and right stroller
brakes are in a fully locked position. Insert seat adapter to stroller frame until it is in a
fully locked position
13
REMOVING GRACO CAR SEATS
Securing Car Seat With Velcro Straps
• Final step to secure the footrest side of car seat onto stroller, use the straps
with velcro to secure seat onto stroller. (Fig. F)
• Check that car seat is securely attached by pulling up on the car seat.
Removing Car Seat
• Undo velcro straps from car seat. (Fig. G)
• Squeeze release handle at back of infant restraint and lift upward out of
adapter. (Fig. H)
Securing Car Seat With Velcro Straps:
Removing Car Seat Adapter:
Removing Car Seat:
Removing Car Seat Adapter
• Press both buttons located on both sides of the stroller frame and lift
upward on the adapter until fully removed from stroller. (Fig. I)
2.

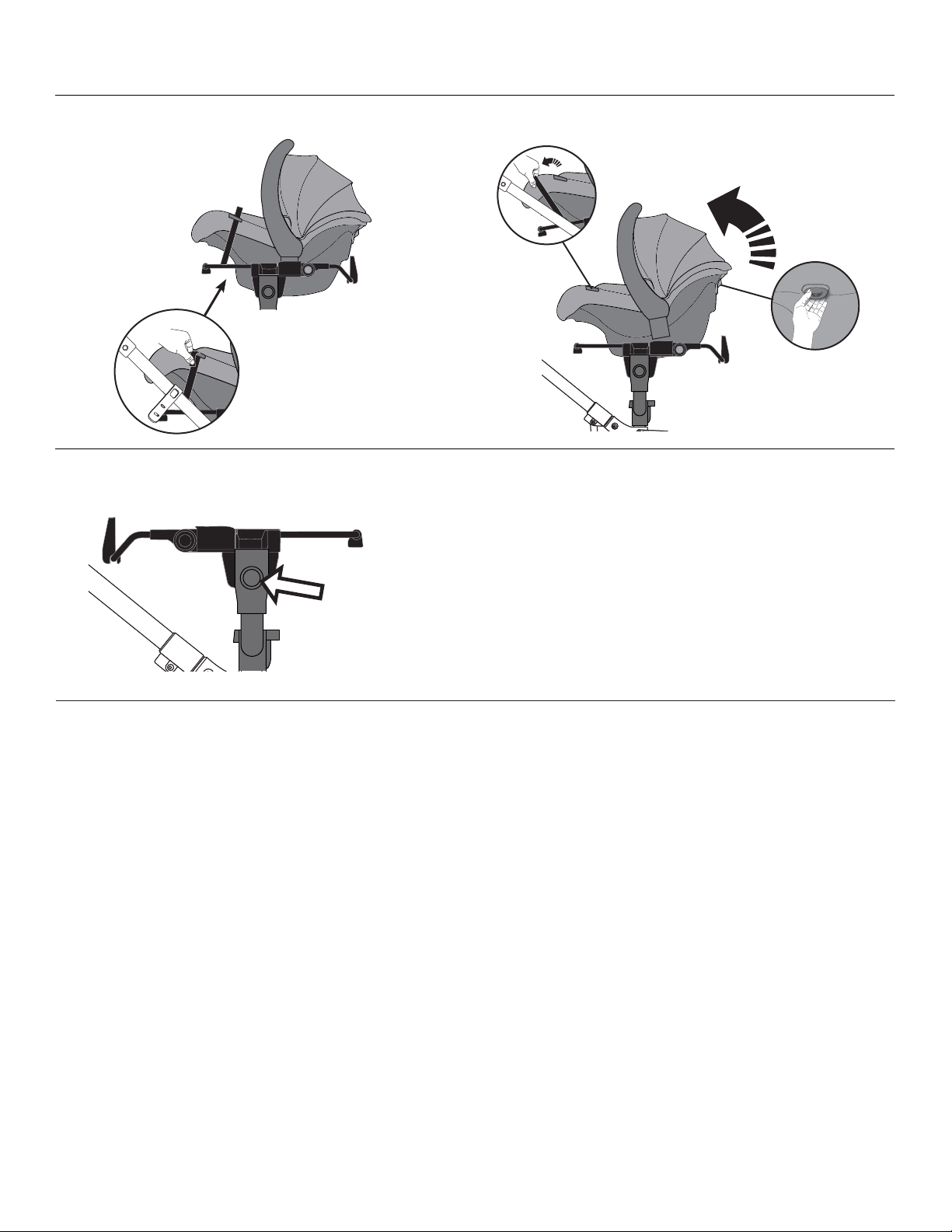

Fig. G
Fig. I
Fig. H
Fig. F
14
ATTACHING BRITAX CAR SEATS
BEFORE STARTING
!
Attaching Car Seat Adapter:
Attaching Car Seat:
Lock The Rear Wheels: Remove Seat: Attach Seat Adapter:
1.
Attaching Britax Car Seats – B-Safe 35
• Attach the 5-in-1 car seat adapter to the stroller frame (Fig. C) until it
“CLICKS” into a fully locked position. (Fig. D)
• Place car seat into 5-in-1 car seat adapter until it “CLICKS” into a fully locked
position. Britax car seats “CLICK” and lock on both sides of the adapter
(Fig. E). Make sure car seat is fully fastened by pulling upward.
Car seat clicks and locks
into the sides of the
adapter
Britax Car Seat clicks and locks into the sides
of the adapter when in a fully locked position
Fig. E
Car seat adapter
correct placement
Insert on both sides
Back Front
Fig. C
Fig. 1
Fig. A
Fig. B
Car seat adapter “CLICKS” and locks on
both sides of the stroller frame when in a
fully locked position
Fig. D
Make sure both left and right stroller
brakes are in a fully locked position. Insert seat adapter to stroller frame until it is in a
fully locked position
15
Securing Car Seat With Velcro Straps:
Removing Car Seat Adapter:
Removing Car Seat:
REMOVING BRITAX CAR SEATS
2.
Securing Car Seat With Velcro Straps
• Final step to secure the footrest side of car seat onto stroller, use the straps
with velcro to secure seat onto stroller. (Fig. F)
• Check that car seat is securely attached by pulling up on the car seat.
Removing Car Seat
• Undo velcro straps from car seat. (Fig. G)
• Squeeze release handle at back of infant restraint and lift upward out of
adapter. (Fig. H)
Removing Car Seat Adapter
• Press both buttons located on both sides of the stroller frame and lift
upward on the adapter until fully removed from stroller. (Fig. I)
Fig. G
Fig. I
Fig. H
Fig. F
16
Car seat adapter “CLICKS” and locks on
both sides of the stroller frame when in a
fully locked position
1.
Attaching Nuna Car Seats – Pipa and Pipa Lite
• Attach the car seat adapter to the stroller frame. (Fig. C) until it “CLICKS”
into a fully locked position. (Fig. D)
• Place car seat into car seat adapter until it “CLICKS” into a fully locked
position (Fig. E). Nuna car seats “CLICK” and lock on the center of the
adapter when in a fully locked position (Fig. F). Make sure car seat is fully
fastened by pulling upward.
ATTACHING NUNA CAR SEATS
BEFORE STARTING
!
Attaching Car Seat Adapter:
Attaching Car Seat:
Lock The Rear Wheels: Remove Seat: Attach Seat Adapter:
Fig. 1
Fig. A
Fig. B
Fig. C
Fig. D
Fig. E Fig. F
Car seat adapter - correct
placement
Insert on both sides
Back
Front
Make sure both left and right stroller
brakes are in a fully locked position. Insert seat adapter to stroller frame until it is in a
fully locked position
17
Removing Car Seat Adapter:
Removing Car Seat:
2.
REMOVING NUNA CAR SEATS
Removing Car Seat
• Press both buttons located at the front of the car seat and lift upward out of
the adapter. (Fig. G)
Removing Car Seat Adapter
• Press both buttons located on both sides of the stroller frame and lift
upward on the adapter until fully removed from stroller. (Fig. H)

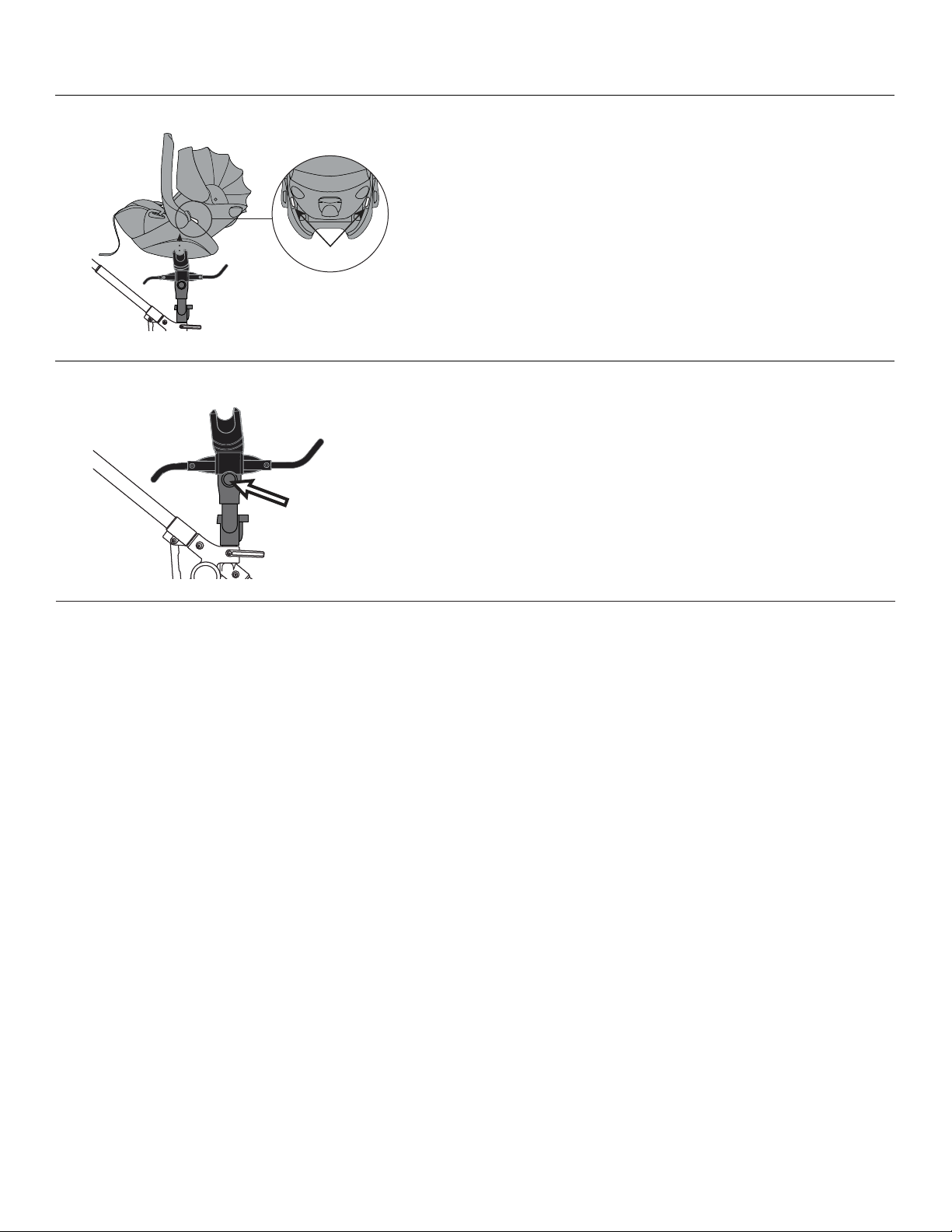

Fig. G
Fig. H
18
1.
Attaching Cybex Car Seats – Cloud Q
• Attach the car seat adapter to the stroller frame. (Fig. C) until it “CLICKS”
into a fully locked position. (Fig. D)
• Place car seat into car seat adapter until it “CLICKS” into a fully locked
position (Fig. E). Cybex car seats “CLICK” and lock on the center of the
adapter when in a fully locked position (Fig. F). Make sure car seat is fully
fastened by pulling upward.
ATTACHING CYBEX CAR SEATS
BEFORE STARTING
!
Attaching Car Seat Adapter:
Attaching Car Seat:
Lock The Rear Wheels: Remove Seat: Attach Seat Adapter:
Car seat adapter “CLICKS” and locks on
both sides of the stroller frame when in a
fully locked position
Fig. 1
Fig. A
Fig. B
Fig. C
Fig. D
Fig. E Fig. F
Car seat adapter - correct
placement
Insert on both sides
Back
Front
Make sure both left and right stroller
brakes are in a fully locked position. Insert seat adapter to stroller frame until it is in a
fully locked position
19
Removing Car Seat Adapter:
Removing Car Seat:
REMOVING CYBEX CAR SEATS
Removing Car Seat
• Press both buttons located at the rear of the car seat and lift upward out of
the adapter. (Fig. G)
Removing Car Seat Adapter
• Press both buttons located on both sides of the stroller frame and lift
upward on the adapter until fully removed from stroller. (Fig. H)
2.
Fig. G
Fig. H
20
ATTACHING MAXI COSI CAR SEATS
BEFORE STARTING
!
Attaching Car Seat Adapter:
Attaching Car Seat:
Lock The Rear Wheels: Remove Seat: Attach Seat Adapter:
Car seat adapter “CLICKS” and locks on
both sides of the stroller frame when in a
fully locked position
Fig. 1
Fig. A
Fig. B
Fig. C
Fig. D
Fig. E Fig. F
Car seat adapter - correct
placement
Insert on both sides
Back
Front
1.
Attaching Maxi-Cosi Car Seats– Mico 30
• Attach the car seat adapter to the stroller frame. (Fig. C) until it “CLICKS”
into a fully locked position. (Fig. D)
• Place car seat into car seat adapter until it “CLICKS” into a fully locked
position (Fig. E). Maxi-Cosi car seats “CLICK” and lock on the center of the
adapter when in a fully locked position (Fig. F). Make sure car seat is fully
fastened by pulling upward.
Make sure both left and right stroller
brakes are in a fully locked position. Insert seat adapter to stroller frame until it is in a
fully locked position
Table of contents
Other Delta Children Stroller manuals
Delta Children
Delta Children Jeep Classic Jogger User manual
Delta Children
Delta Children The Clutch User manual
Delta Children
Delta Children J is for Jeep Atlas AL Sport User manual
Delta Children
Delta Children babyGap 14982 User manual
Delta Children
Delta Children Jeep POWERGLYDE 11409 User manual
Delta Children
Delta Children Jeep WRANGLER DELUXE User manual
Delta Children
Delta Children Revolve 11898 User manual
Delta Children
Delta Children Jeep CLUTCH PLUS User manual
Delta Children
Delta Children Jeep Gemini User manual
Delta Children
Delta Children LX SIDE X SIDE User manual
Delta Children
Delta Children LX PLUS SIDE X SIDE 11709 User manual
Delta Children
Delta Children J is for Jeep Side x Side Destination User manual
Delta Children
Delta Children J is for JEEP CROSS COUNTRY SPORT PLUS User manual
Delta Children
Delta Children CLUTCH PLUS 11363 User manual
Delta Children
Delta Children DELUXE LITE User manual
Delta Children
Delta Children CLASSIC TOUR User manual
Delta Children
Delta Children Disney baby 61100-2344 User manual
Delta Children
Delta Children Jeep 12597A User manual
Delta Children
Delta Children HERCULES User manual
Delta Children
Delta Children Little Folks OLYMPIA User manual
