Read all instructions BEFORE assembly and USE of product
KEEP INSTRUCTIONS FOR FUTURE USE.
TREK JOGGING
STROLLER

Customer Service [email protected] www.DeltaChildren.com
2
WARNING: Please follow all of these instructions to ensure the safety of your child. Keep these
instructions for future reference.
WARNING: Failure to follow these instructions could result in serious injury or death.
WARNING: Avoid serious injury from falling or sliding out. Always insure that the child is properly
positioned by using the safety harness according to these instructions.
WARNING: Never leave children unattended.
WARNING: FALL HAZARD from tip over. Before running, jogging, or walking fast, LOCK the front
wheel from swiveling.
CAUTION: This is a single occupant jogging stroller for one child only. The use of more than one
child may cause an unstable condition which can injure your child. Do not place parcels, diaper bags
or accessory items on jogging stroller as this can cause an unstable condition.
• The maximum weight that can be carried in the lower basket, child tray, parent fabric tray and
carry all parent organizer each is 3 lbs (1.36 kg).
• Before allowing the children near the stroller, be certain the stroller is fully erect and latched in the
open locked position.
• Use of the stroller with children weighing more than 50 pounds (22.62 kg) or over 42 inches (106.7
cm) tall, may cause a hazardous unstable condition to the stroller.
• NEVER use the stroller on stairways.
• NEVER use the stroller in conjunction with bicycles, skateboards, roller skates, or in-line skates.
Please discuss using the jogging stroller with your health care provider prior to jogging use. We
recommend that the child occupant needs to be 6 months of age, at the minimum, before use of
the stroller.
• To clean the stroller use a mild household soap with warm water on a sponge or clean cloth.
• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Re-
place or repair parts as needed.
• Discontinue use of stroller if it should become damaged or malfunctions. Please contact our cus-
tomer service at [email protected] to arrange for repair or obtain replacement parts.
• If you experience any difficulty with assembly, missing parts or use, please DO NOT return this
item to the store. Retail stores are unable to properly assist you. Contact our Customer Service
Department directly for assistance at [e-mail]
2
CARE AND MAINTENANCE

Customer Service [email protected] www.DeltaChildren.com
3
Before returning this product to the store!
Let’s see if we can assist you!
• Not sure how to assemble our product?
Visit our site for easy to follow instructions along with some Tricks and Tips assembly vid-
eos https://www.deltachildren.com/pages/instructions
• If you are missing a piece or have a damaged part
Please contact our Consumer Experience Center for assistance at
[email protected]. To better assist you please have your Style# or Model# and Lot#
available. This can be found on a white rectangular sticker on your product, on the regis-
tration card, and on the product’s box.
• In the event we do not have a replacement part available
You may need to return your product to the retailer for an exchange or refund.
• Warranty
In order to protect your investment, don’t forget to register your product.
You may also wish to consider purchasing our extended warranty.
Visit https://www.deltachildren.com/pages/extended-warranty for more details.
• Please note:
“All Final”, “As Is” or Third Party/Liquidator sales are not covered under our Limited
Manufacturer Warranty.

Customer Service [email protected] www.DeltaChildren.com
4
This Delta product is warranted to be free from defects for a period of 90 days from the date of purchase
under normal use. If a product is defective during this period, we will at our option repair or replace the
defective part or product. This limited warranty extends only to the original retail purchaser and is valid only
when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta. This
limited warranty does not cover the following:
• Products purchased as floor models or samples.
• Items purchased on an “as-is” basis, as a second hand product, or as a resale product.
• Items purchased at a Final sale, a “Going out of Business” sale, or a Liquidation sale. This limited warranty gives
you specific legal rights and you may also have other rights which vary from state to state.
This limited warranty gives you specific legal rights and you may also have other rights which vary from state
to state.
TO REGISTER YOUR PRODUCT for important safety alerts and updates to your product please visit www.
deltachildren.com
TO REPORT A PROBLEM, please log on to www.deltachildren.com and click the Consumer Care Tab, or
contact us by email at [email protected]
Date of Purchase: _____________ (you should also keep your receipt)
EXTENDED WARRANTY
DON’T MISS YOUR CHANCE TO BE COVERED FOR ALL OF LIFE’S MISHAPS!
With Delta’s Extended Warranty, you’re covered for mechanical failure from normal use or if
your item stops working due to normal wear and tear, plus all those unexpected surprises.
2 YEARS OF PROTECTION
For Additional Information:
Simply visit our Website, register your product, and add the Extended Warranty
https://www.deltachildren.com/pages/product-registration
Extended Warranty only available in the following States: Arkansas, Colorado, Delaware, District of Columbia, Georgia, Idaho,
Illinois, Indiana, Iowa, Kansas, Kentucky, Louisiana, Maryland, Michigan, Mississippi, Missouri, Nebraska, Nevada, New Hampshire,
New York, North Carolina, North Dakota, Pennsylvania, Rhode Island, South Dakota, Tennessee, Utah, West Virginia
LIMITED MANUFACTURER WARRANTY

Customer Service [email protected] www.DeltaChildren.com
5
Child Tray
Parent Organizer
Rear Wheels
Front Wheel
Front Wheel Retainer Plate
Front Wheel Axel Lock Nuts
Stroller

Customer Service [email protected] www.DeltaChildren.com
6
ASSEMBLY
FRONT WHEEL
IMPORTANT! To ensure safe operation of your stroller, please follow these instructions carefully. Please keep these
instructions for future reference.
IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or
sharp edges. NEVER use stroller if any parts are missing or broken. IMPORTANT! Adult assembly is required.
• Remove stroller from box. The front wheel, rear wheels, parent tray and child tray need to be
installed prior to use.
WARNING: This front wheel utilizes a front wheel axle lock nut system. Please follow all of these instructions to ensure
the safety of your child. Failure to follow these instructions could result in serious injury or death.
1. Lean the stroller backwards so the rear axle frame is
resting on a flat surface and the front wheel forks are
pointing upward (Fig. 1).
2. Hook the front wheel axle into the front fork’s slots
(Fig. 1A).
Fig. 1
Fig. 1A
• To attach the front wheel, unfold stroller as described
in the following section:

Customer Service [email protected] www.DeltaChildren.com
7
ASSEMBLY
WARNING:
FALL HAZARD
Wheel can detach and cause tip over. Pull on the wheel to assure it is securely attached and make sure the front swivel
wheel is in a locked position during running, jogging or walking fast.
WARNING: ALWAYS check that both front axle lock nuts are fully tighten before each use to ensure that the front wheel is
securely fastened to the frame.
3. Slide the retainer plate onto the front wheel axle. Be sure
that the retainer plate’s bent tab is facing towards the
front fork slot. The bent tab on the retainer plate must
be lined up with and trapped inside the front fork slot
before tightening the wheel (Fig. 1B).
4. Install the axle lock nuts and tighten with standard
wrench, box or open end wrench. The front axle lock nut
will be fully tighten and securely fastened when there is
significant resistance to front fork. Repeat on other side.
The wheel should be held tightly in place (Fig. 1C).
Fig. 1B
TESTING FOR PROPER WHEEL INSTALLATION
Axle Lock Nut
Retainer Plate
Front Forks
Axle and Hub
Slot
Fig. 1C

Customer Service [email protected] www.DeltaChildren.com
8
6

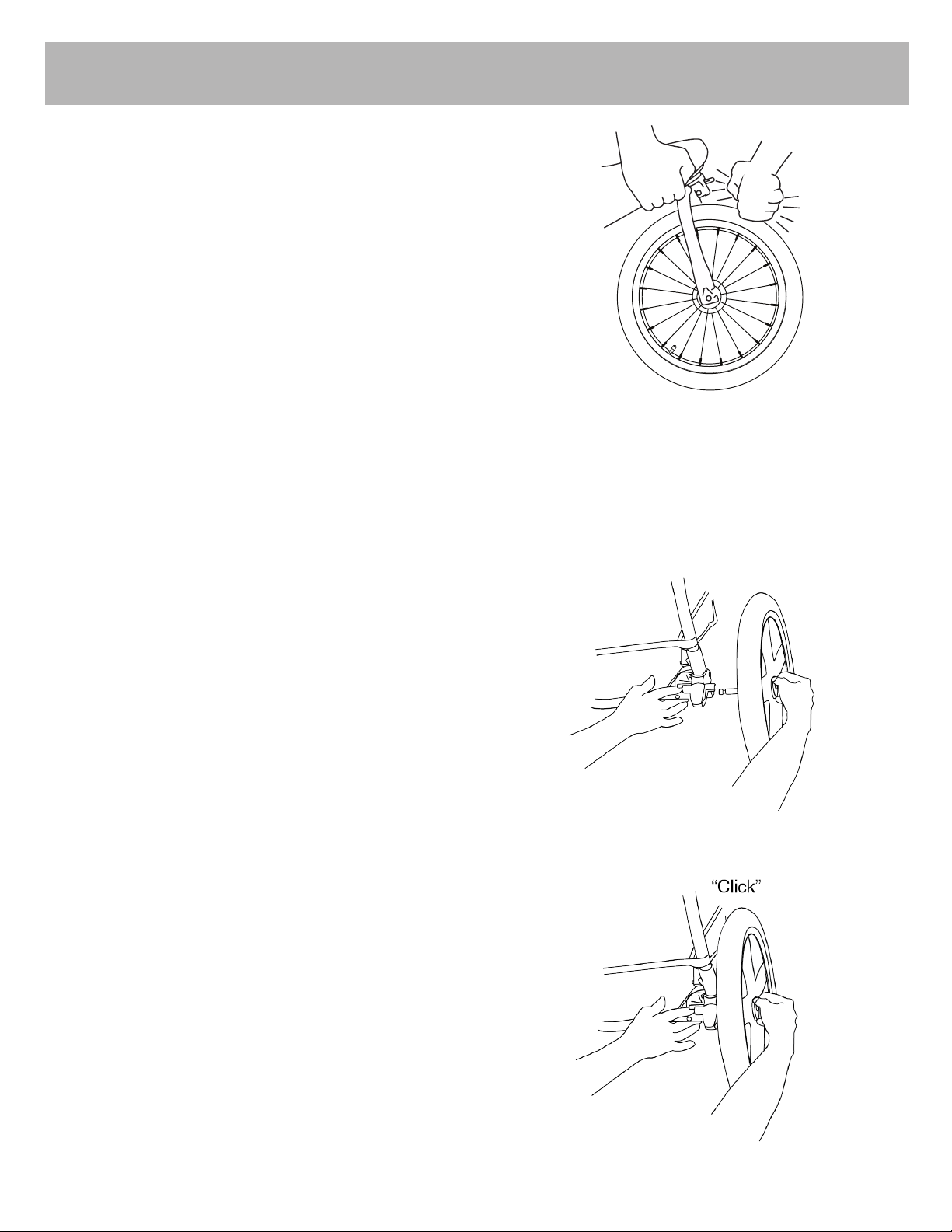

5. Lift the front wheel off of the ground and sharply
strike the top of the tire. (Fig. 1D) The wheel should
not be loose or come off.
6. To attach the rear wheels, lay stroller on its side.
Align back wheel axle to the stroller's rear wheel axle
housing (Fig. 2). Push the back wheel axle inward
until you hear a "click" (Fig. 2A). Once in a fully
locked position, check to make sure back wheel is
in a fully locked position by pulling outward. Repeat
steps for other side back wheel. NEVER use stroller if
any wheels are not in a fully locked position. Please
contact our customer service department immediately
at 1-800-377-3777 for assistance.
REAR WHEEL
Fig. 1D
Fig. 2
Fig. 2A
ASSEMBLY

Customer Service [email protected] www.DeltaChildren.com
9
7. To attach parent fabric organizer take velcro strap: A)
Wrap velcro strap around top of jogger handle (Fig. 3).
B) Thread velcro strap through plastic buckle from the
top down and through (Fig 3A) C) Pull strap tight (Fig.
3B). D) Wrap velcro strap around top of handle. Inside
the organizer is a velcro strip, attach velcro strap to strip
inside organizer. (Fig. 3C). Repeat on opposite side.
To open the canopy: pull forward on the front edge of
the canopy until fully opened. (Fig. 4) To close canopy:
push backward on front edge until canopy is all the
way collapsed. (Fig. 4A)
PARENT TRAY
CANOPY
WARNING: The maximum weight that can be carried in the parent tray is 3 lbs (1.36 kg). NEVER place hot liquids in the
parent tray as can cause serious burns and NEVER place more then 3lbs (1.36kg) in parent tray as may cause an unstable
condition.
Open
Fig. 4
Fig. 3
Close
Fig. 4A
Fig. 3A Fig. 3B Fig. 3C
ASSEMBLY
8.

Customer Service [email protected] www.DeltaChildren.com
10
To open the sun visor: grab front edge of sun visor
under canopy and pull down and rotate forward until
fully extended. (Fig. 5)
To open, flip backwards to show peek-a-boo window.
(Fig. 6)
SUN VISOR
PEEK-A-BOO-WINDOW
CHILD TRAY
ASSEMBLY
To attach the child tray: Rotate and align left and
right side of child tray posts with the left and right
side stroller tray posts. Press left and right side child
tray posts into left and right side stroller tray posts
into a fully locked position. Press left side child tray
button and snap child tray onto stroller tray posts.
Release button to lock child tray onto stroller (Fig. 7).
Repeat on right side of child tray. Check to make sure
the child tray is securely attached to the stroller by
pulling upward on the child tray.
9.
10.
11.
Fig. 5
Fig. 6
Fig. 7

Customer Service [email protected] www.DeltaChildren.com
11

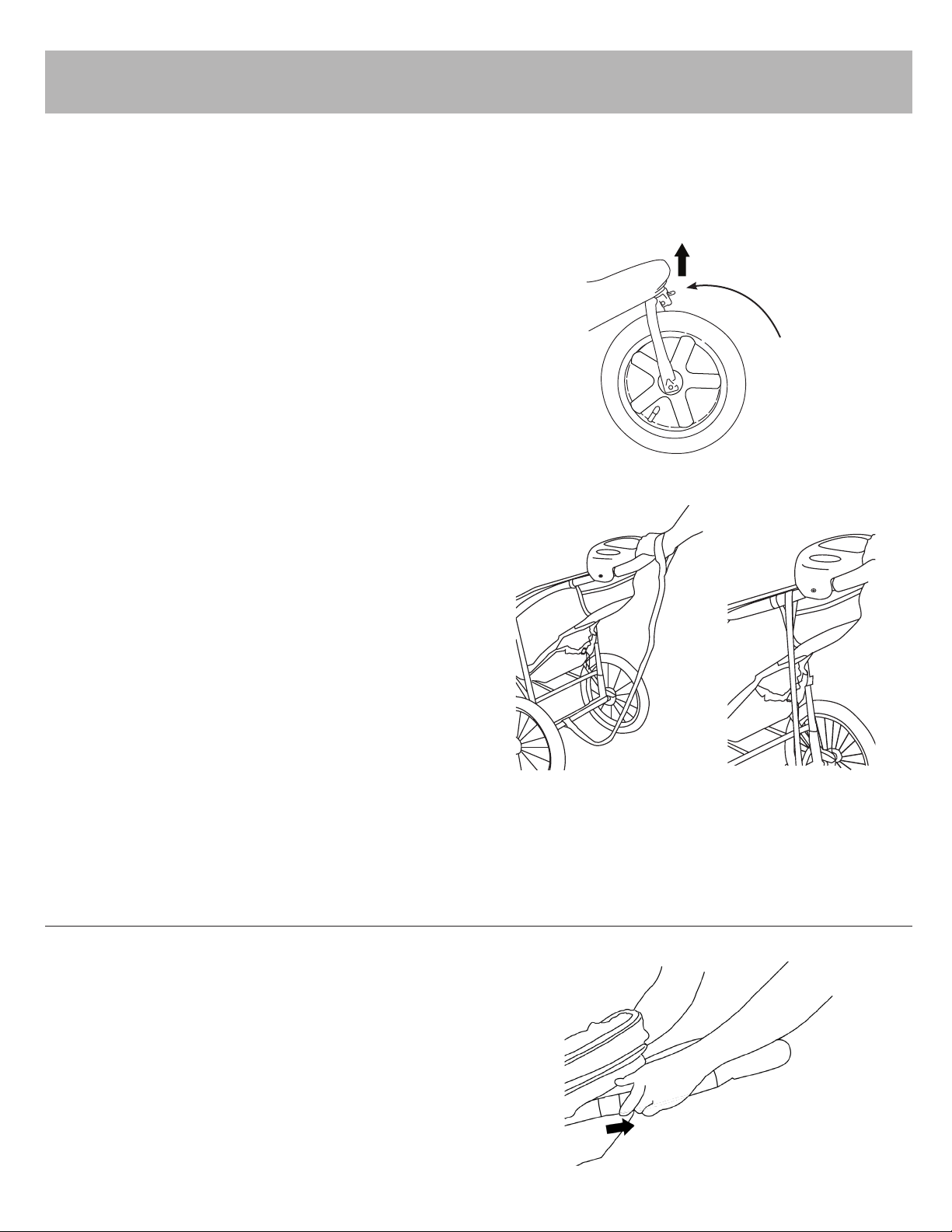

To access child seat: press left or right release buttons
(Fig. 8) and rotate tray upward (Fig. 8A).
ADJUSTABLE HANDLE
Fig. 8
Fig. 8A
ASSEMBLY
To remove the child tray: Press the right and left
release buttons and pull upward on child tray. (Fig.
8B)
To adjust handle, first press handle release button
(Fig. 9) and push handle upward or downward to
desired position (Fig. 9A). When you here a "click"
handle is safely locked into handle position.
Fig. 8B
12.
13.
14.
At the same time
press inward here on
both sides
(Fig. 9)
Rotate handle upward
or downward
(Fig. 9A)

Customer Service [email protected] www.DeltaChildren.com
12
Rear Wheel Brakes: To lock rear wheel brakes, press
downward on brake lever located on each rear wheel.
(Fig. 10) Please note in order to line up the break tab
with brake tab slots stroller may need to be moved
forward or backwards slightly. Check to make sure
the brakes are in a fully locked position, so stroller
will not move when pushed. To release brakes, gently
push up on the brake lever.
Fig. 10
SAFETY
BRAKES
WARNING: Always lock brakes when not in use on a hill or incline as stroller may roll away or slide down the hill.
WARNING: Never leave child unattended in stroller.
Fig. 14
Rear Wheel
Brakes
15.

Customer Service [email protected] www.DeltaChildren.com
13

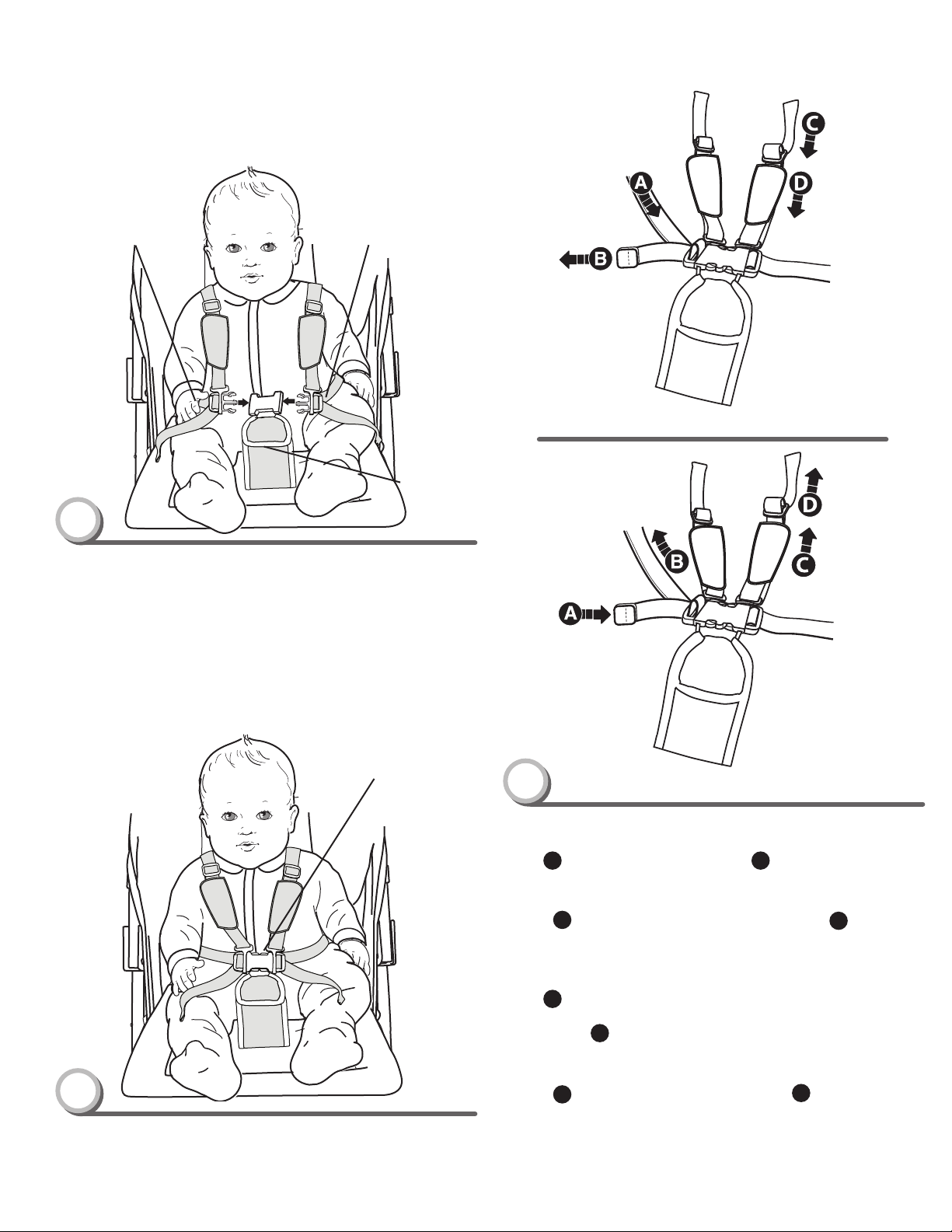

TO SECURE THE CHILD
1
Securing Child
•Place your child in the stroller. Position the crotch belt between your
child’s legs.
•Pull shoulder straps over child’s arm and shoulder and fasten both strap
ends to the restraint system.
•Fasten both waist belts to the buckle on each side of the crotch belt.
Make sure you hear a “click” on both sides.
•Check to be sure the restraint system is securely attached by pulling it
away from your child. The restraint system should remain attached.
3
To tighten the waist belts and shoulder straps:
•Feed the anchored end of a waist belt up through the buckle to form a
loop A. Pull the free end of the waist belt B.
•Repeat this procedure to tighten the other waist belt.
•Feed the top end of the shoulder strap through the plastic stay to form
a loop . Pull the bottom end down to tighten the strap .
•Repeat this procedure to tighten the other shoulder strap.
To loosen the waist belts and shoulder straps:
•Feed the free end of the waist belt up through the buckle to form a
loop A. Enlarge the loop by pulling on the end of the loop toward the
buckle. Pull the anchored end of the waist belt to shorten the free end of
the waist belt B.
•Repeat this procedure to loosen the other waist belt.
•Feed the bottom end of the shoulder strap through the plastic stay to form
a loop . Pull the top end up to loosen the strap .
•Repeat this procedure to loosen the other shoulder strap.
Please note: After adjusting the restraint system to fit your child, make sure
you pull on it to be sure it is securely fastened.
TIGHTEN
LOOSEN
Crotch Belt
Waist BeltWaist Belt
5 Point Safety
Harness
2
• Tighten each waist belt and shoulder strap so that the restraint
system is snug against your child. Please refer to the next section
for instructions to tighten the waist belts.
Restraint System
C
C
D
D
Before Placing your Child in Stroller:
Close Canopy. Press both brake pedals down until they “click” into the locked position.
Make sure the brake pedals are pressed down completely.
Always set both brake pedals when parking the stroller.

Customer Service [email protected] www.DeltaChildren.com
14

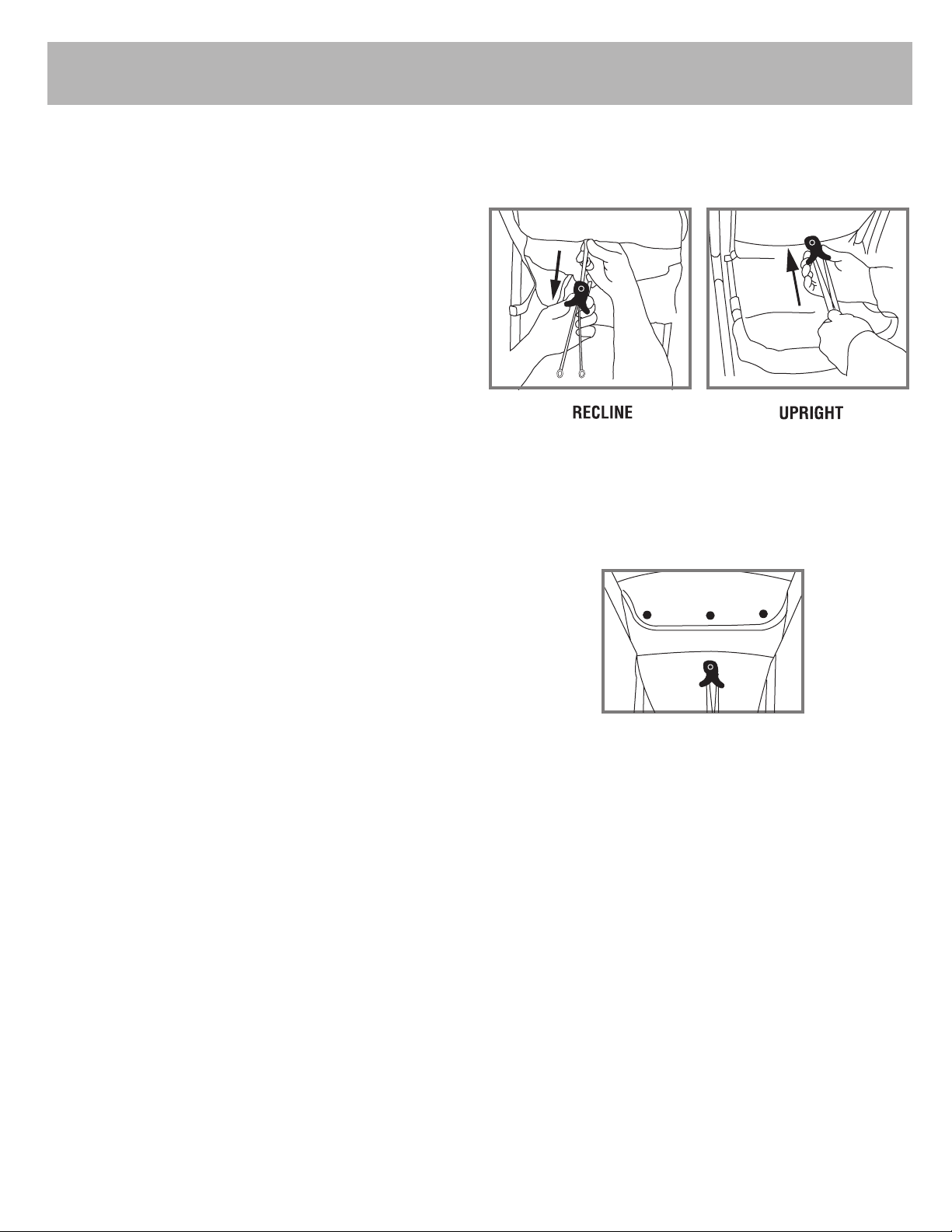

SEAT BACK RECLINE POSITIONING
Fig. 11 Fig.
11A
Fig.
11B
16.
17.
To return to an upright position, hold bottom cord
loops while squeezing cord housing and move cord
housing upwards towards the backseat, as shown
in Fig. 11A.
Snap the three back buttons located on the
back of the seat, as shown in Fig. 11B.
Squeeze both sides on cord housing and pull away
to recline seat, as shown in Fig. 11.
ASSEMBLY
WARNING: Always keep the three back buttons attached to the back of the seat at all times.

Customer Service [email protected] www.DeltaChildren.com
15
HOW TO ATTACH GRACO AND EVENFLO
CAR SEATS
(Adapter Sold Separately)
To use the car seat feature, lock back wheels, close
the canopy as described in the canopy
section (Please see Page 7, Fig. 5A). Recline seat by
squeezing both sides of cord housing as described
in seat back positioning section (Please see Page
12, Fig. 11). Turn and lock grey latches (Fig. 12).
Align car seat as shown in Fig. 12A. Angle feet first,
while lowering car seat into a locked position on the
child tray. Car seat is in a locked position when the
car seat "CLICKS" into the child tray. Graco car seat
locked position (Fig. 12B) Evenflo car seat locked
position (Fig. 12C). Make sure car seat is locked in
place by pulling upward on car seat. Make sure car
seat is locked in place by pulling upward on car seat.
Fig.
12A
Fig. 12
Car Seat Safety
Grey Latches
1.
2.
® ®
ASSEMBLY
Evenflo®locked position -
grey locking tab clicks
Back of Evenflo®Car Seat
Graco locked position -
red locking tab clicks
®
Back of Graco Car Seat
®
Fig. 12B Fig. 12C
Britax Car
Seat Velcro
Graco, Evenflo, and
Chicco Car Seat
Velcro
Fig. 12D
Fig. 12E
Final step is to secure the car seat to the
stroller using the straps with velcro. (Fig. 12D)
•The top strap is to secure Graco,
Chicco, and Evenflo car seats only.
•The lower velcro strap is to secure
Britax car seats only.
Secure the footrest side of car seat onto the
stroller, use the straps with velcro to secure
seat onto stroller. (Fig. 12E).
Check that car seat is securely attached by
pulling up on the car seat. To remove, undo
latches.
A
B
A
B

Customer Service [email protected] www.DeltaChildren.com
16
Fig. 13A
Fig. 13B

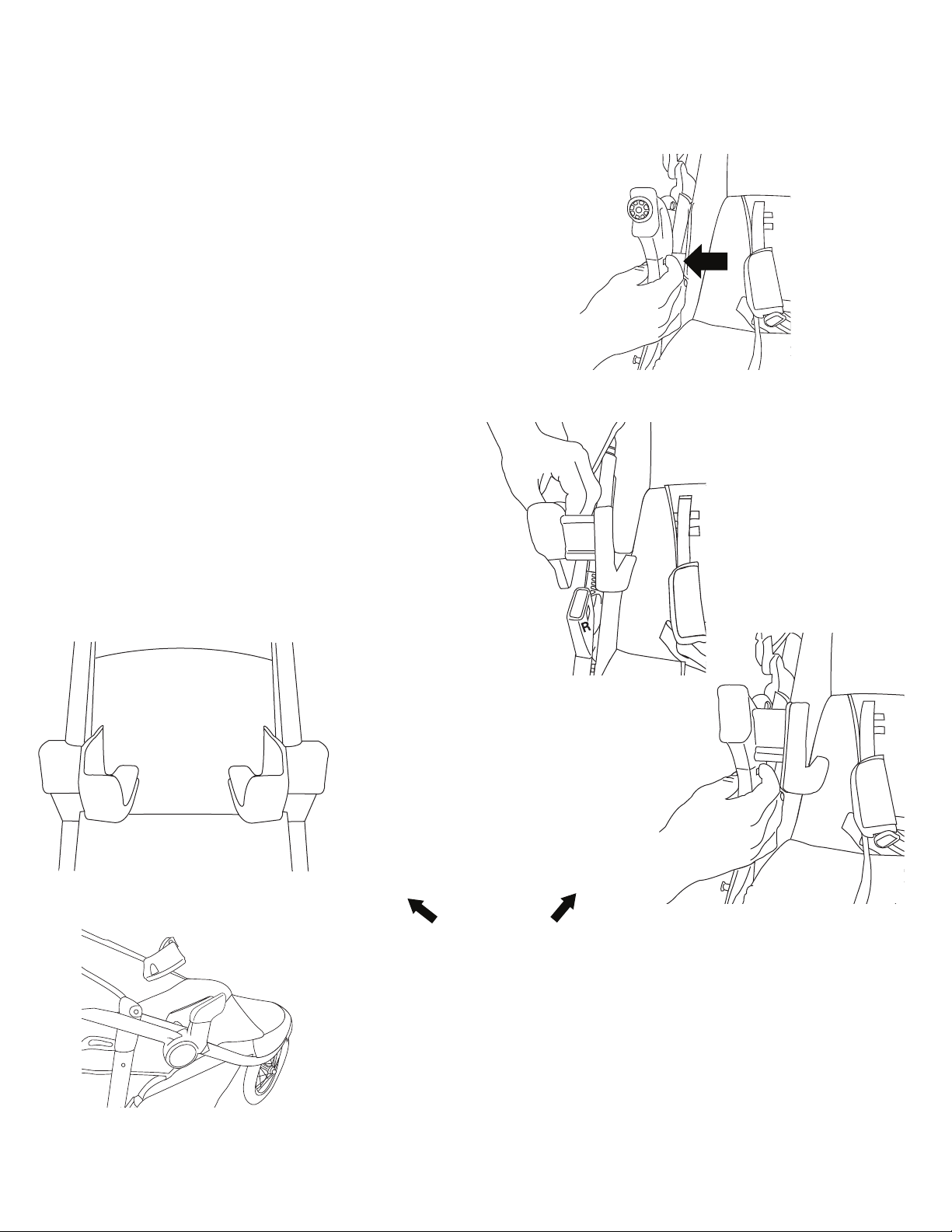

2. Locate the Chicco left / right adapter. They are labeled
on the inside (L This Side Facing In) and (R This Side
Facing In). Line up the bottom of Chicco right side
adapter (R This Side Facing In) with stroller arm post
labeled "R" (Fig. 13A). Insert Chicco adapter into
stroller right arm post (Fig. 13B). Make sure release
button is securely fastened into right side slot by
pulling upward to make sure Chicco adapter stays in
place. Repeat with left side Chicco adapter.
Left Side
Front View
Right Side
Front View
L
R
R
Insert With Locking
Tab Facing Inward
Chicco Car Seat
Adapters Attached
To Stroller
Correct Placement
When Facing Into Stroller
Fig. 13
HOW TO ATTACH CHICCO CAR SEATS
®
1. To use Chicco Keyfit 30 Car seat first, lock the
back wheels, close the canopy as described in
the canopy section (Please see Page 7, Fig. 5A).
Recline seat by squeezing both sides of cord
housing as described in seat back positioning
section (Please see Page 12, Fig. 11) remove
child tray (Please see Page 9, Fig. 8C) and child
tray attachment arms. Press the release buttons
located on the inner side of stroller arm. Press
release button and pull upward at the same time
until tray attachment arm is released (Fig. 13).
(Adapter Sold Separately)

Customer Service [email protected] www.DeltaChildren.com
17
Fig. 13C
Fig. 13D
Lock tab will
"Click" when
locked in place.

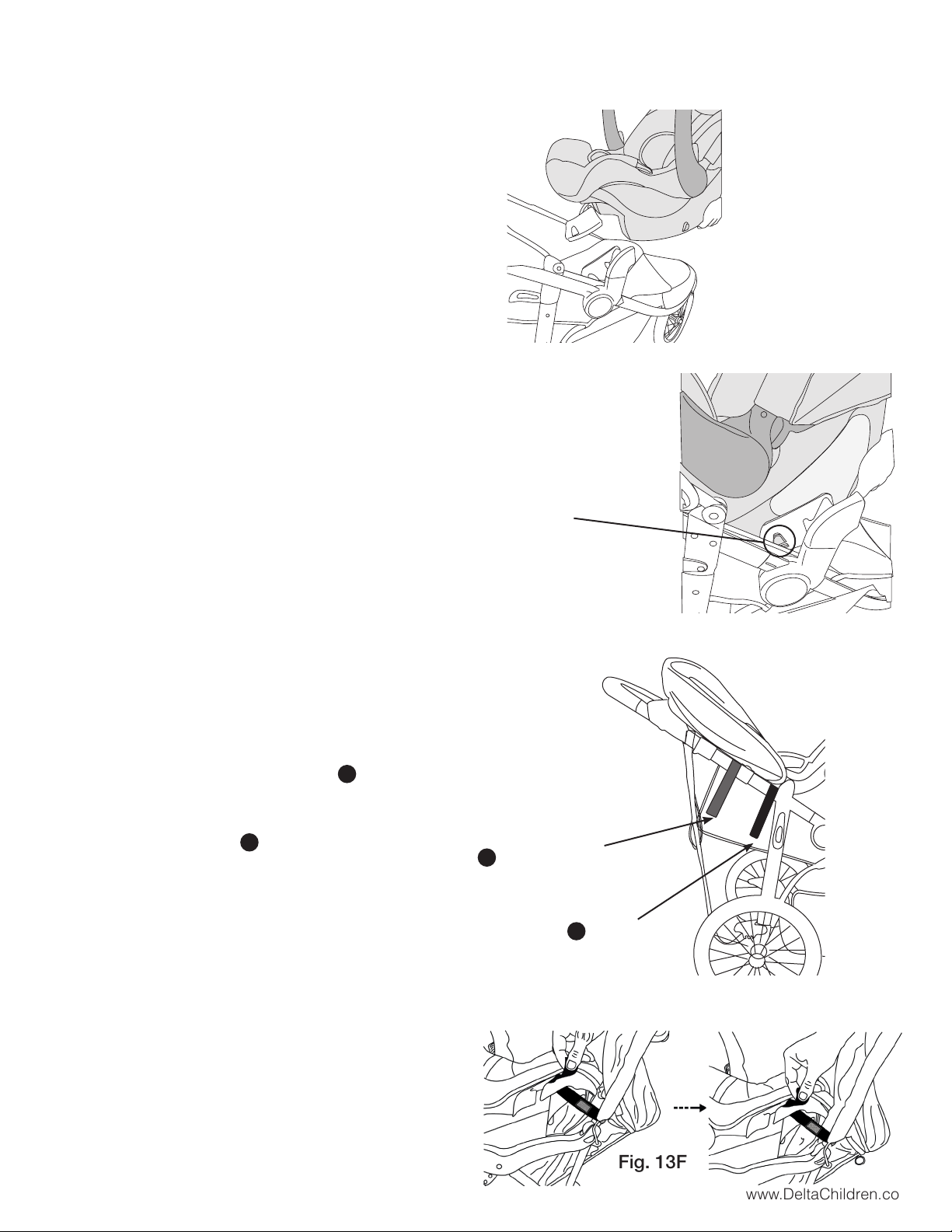

3. To attach Chicco car seat, line up foot end of car
seat toward stroller (Fig. 13C). Slide car seat into
Chicco adapters. Make sure car seat is locked in
place by pulling upward on car seat. Car seat is
secured when both side lock tabs have "clicked"
into place and car seat does not lift up. (Fig. 13D) To
remove car seat, lift the back lever located on the
back of the car seat and lift car seat upward to fully
remove.
4.
Britax Car
Seat Velcro
Graco, Evenflo, and
Chicco Car Seat Velcro
Fig. 13E
Fig. 13F
Final step is to secure the car seat to the
stroller using the straps with velcro. (Fig. 13E)
•The top strap is to secure Graco,
Chicco, and Evenflo car seats only.
•The lower velcro strap is to secure
Britax car seats only.
Secure the footrest side of car seat onto the
stroller, use the straps with velcro to secure
seat onto stroller. (Fig. 13F).
Check that car seat is securely attached by
pulling up on the car seat. To remove, undo
latches.
A
B
A
B

Customer Service [email protected] www.DeltaChildren.com
18
Fig. 14
1.
HOW TO ATTACH BRITAX CAR SEATS
To use Britax B-Safe 35 Car seat first, lock the back wheels,
close the canopy as described in the canopy section
(Please see Page 7, Fig. 5A). Recline seat by squeezing
both sides of cord housing as described in seat back
positioning section (Please see Page 12, Fig. 11) remove
child tray (Please see Page 9, Fig. 8C) and child tray
attachment arms. Press release button and pull upward at
the same time until tray attachment arm is released. (Fig.
14)
Fig.
14A
Fig.
14B
Fig.
14C
2. Locate the Britax left / right adapter. They are labeled
on the inside (L This Side Facing In) and (R This Side
Facing In) (Fig. 14A). Line up the bottom of Britax right
side adapter (R This Side Facing In) with stroller arm
post labeled "R" (Fig. 14B). Insert Britax adapter into
stroller right arm post (Fig. 14C). Make sure release
button is securely fastened into right side slot by
pulling upward to make sure Britax adapter stays in
place. Repeat with left side Britax adapter.
Insert With
Locking
Tabs Facing
Inward
L
R
Inner Side of Adapters
THIS SIDE FACING IN
L
BRITAX
THIS SIDE FACING IN
BRITAX
R
Correct Placement
When Facing Into Stroller
(Adapter Sold Separately)

Customer Service [email protected] www.DeltaChildren.com
19
Britax Car
Seat Velcro
Graco, Evenflo, and
Chicco Car Seat
Velcro
3. To attach Britax B-Safe 35 car seat, line up foot end of
car seat toward stroller (Fig. 14D). Glide car seat into
Britax attachments. Make sure car seat is locked in place
by pulling upward on car seat. Car seat is secure once
both side lock tabs have "clicked" into place and car
seat does not lift up. (Fig. 14E) To remove car seat, lift the
back lever located on the back of the car seat and lift car
seat upward to fully remove.
Fig.
14D
Fig. 14F
Fig.
14E
Car seat will
"CLICK" when
locked in place.
Final step is to secure the car seat to the
stroller using the straps with velcro. (Fig. 14F)
•The top strap is to secure Graco,
Chicco, and Evenflo car seats only.
•The lower velcro strap is to secure
Britax car seats only.
Secure the footrest side of car seat onto the
stroller, use the straps with velcro to secure
seat onto stroller. (Fig. 14G).
Check that car seat is securely attached by
pulling up on the car seat. To remove, undo
latches.
4.
A
B
A
B
Fig. 14G

Customer Service [email protected] www.DeltaChildren.com
20
JOGGING WITH YOUR STROLLER
Close the canopy as described in the canopy section
(Please see Page 7 Fig. 5A). Recline seat by
releasing buckle as described in seat back positioning
section (Please see Page 12 Fig. 11).
• The stroller is folded by simultaneously pulling each
trigger fold located on right and left handle above the
canopy (Fig. 16). When the fold latches are released,
the handle will begin to rotate and lower toward the
floor. Fig. 16
TO FOLD STROLLER
WARNING: Care must be taken when folding and unfolding the stroller to prevent finger entrapment.
When you are jogging with your child, use the
following safety features:
• LOCK THE FRONT SWIVEL WHEEL BY PUSHING
UPWARD ON THE FRONT SWIVEL WHEEL LOCK
PUTTING THE FRONT WHEEL INTO A STRAIGHT
POSITION. (Fig. 15)
• SAFETY TETHER STRAP: Always connect the safety
tether strap to either right or left wrist when jogging.
The tether strap will keep the stroller from moving
or rolling away in the event that you trip or stumble
while running. (Fig. 15A) The safety tether strap must
remain connected to the rear lower frame cross
member at all times. The safety tether strap can be
stored on the left or right side of the stroller with the
velcro attachment, when not in use. (Fig. 15B)
Fig.
15A
Fig. 15
Push Upward To
Lock Front Swivel
Wheel
Fig.
15B
1.
1.
Front Swivel
Wheel Lock
• NOTE: Do not remove the safety tether strap from
the bottom wheel axle as it is intended to prevent the
stroller from tipping backwards if the stroller happens
to move or roll away in the event that you trip or
stumble.
ASSEMBLY
