Chapter 1 Getting Started
Delta Extension Digital I/O Module, DOP-EXIO14RAE and DOP-EXIO28RAE (hereinafter
called “DOP-EXIO series”) provided for DOP-AE series HMI only. Therefore, before using
Delta Extension Digital I/O Module, the user has to open the ScrEdit (Screen Editor)
programming software, click “File” > “New” to open a new project, and select the type of
DOP-AE series HMI being used (see Fig. 1.1).
Fig. 1.1 New project dialog box
After selecting the type of DOP-AE series HMI, press OK button to complet the setting. Then,

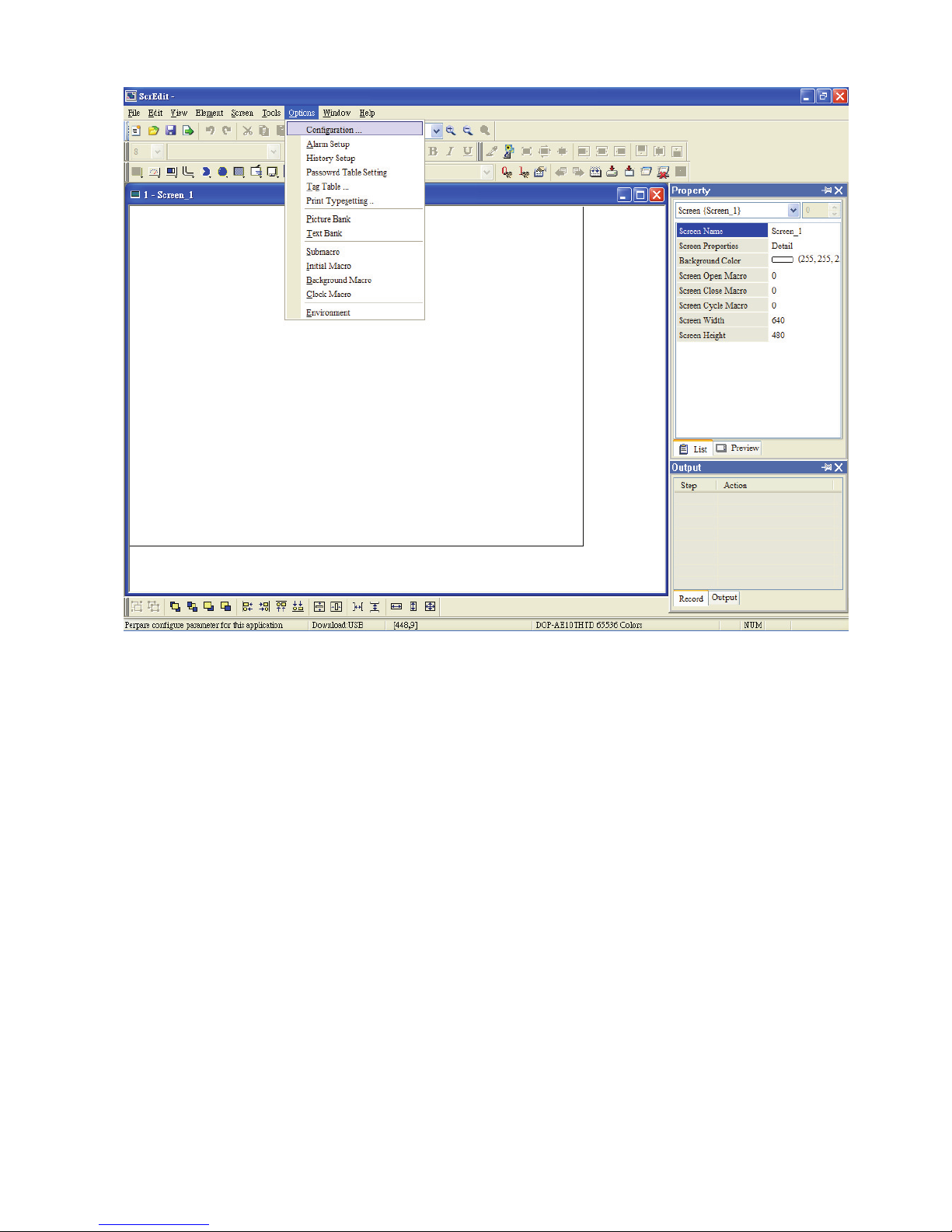

click “Options > “Configuration” to enter into “Other” tab in Configuration option (see Fig. 1.2).
Check the box next to “Enable EXIO (Compile Ladder)” to activate the function of Delta
Extension Digital I/O Module. The user can also select the digital input and output points here
by using the drop down list right below the “Enable EXIO (Compile Ladder)” option (see Fig.
1.3).

Chapter 1 Getting Started|DOP-EXIO Series
1-2 Revision March, 2008, Doc. Name: 2007PDD23000014
Fig. 1.2 Configuration option

Chapter 1 Getting Started|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 1-3
Fig. 1.3 Other tab
When “Enable EXIO (Compile Ladder)” option is selected, the “Ladder Editor” icon will appear
and be available for use on the toolbar (See Fig. 1.4 and 1.5). The user can click this icon and
start ladder diagram editing directly or click “Tool” > “Ladder Editor” command from the menu
(See Fig. 1.6).
Fig. 1.4 Toolbar before “Enable EXIO (Compile Ladder)” option is selected
Fig. 1.5 Toolbar after “Enable EXIO (Compile Ladder)” option is selected

Chapter 1 Getting Started|DOP-EXIO Series
1-4 Revision March, 2008, Doc. Name: 2007PDD23000014
Fig. 1.6 Ladder Editor option

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 2-1
Chapter 2 HMI-WPLSoft Introduction
Clicking the “Ladder Editor” icon can open HMI-WPLSoft editing window immediately
(see Fig. 2.1). At the same time, the window of ScrEdit (Screen Editor) will zoom out and hide
automatically. Please note that HMI-WPLSoft and ScrEdit programming software cannot be
used simultaneously. When the user is editing a ladder diagram and in the meantime the user
wants to edit a HMI program, the user must close the window of HMI-WPLSoft and then it is
possible for the user to edit a HMI program in the environment of ScrEdit programming
software successfully. There is no Open and Save option provided in the ladder diagrm editing
window. When the ladder diagrm editing window is closed, the ladder diagrm editing program
is saved automatically.
Fig. 2.1 HMI-WPLSoft editing window
There are five parts in the following for the window of HMI-WPLSoft.
Menu bar
There are nine functions for selection: File(F), Edit(E), Compiler(P), Comments(M),
Search(S), View(V), Options(O), Window(W), and Help(H). Each option has a pull-down
menu.
Menu Bar
Toolbar
Ladder Diagram
Editing Area
Instruction
Editing Area
Status Bar

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
2-2 Revision March, 2008, Doc. Name: 2007PDD23000014
Toolbar
There are many icons provided for the user to execute functions by clicking the mouse
directly. The followings are the available toolbar on HMI-WPLSoft.
1. Standard Toolbar
2. HMI-WPLSoft Toolbar
3. Ladder diagram Toolbar (display in Ladder Diagram Mode only)
Ladder Diagram Editing Area
This is the area for designing the editing the ladder diagram by requirement.
Instruction Editing Area
This is the area for designing the editing the instructions by requirement.
Status Bar
It is used to display messages, including replace/insert mode, the coordinate of the editing
diagram or object, etc.
2.1 File
The “File” function is shown as follows, including pull-down menu options:

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 2-3
Print(P) ÖPrint current file (only print current window, i.e. one of ladder diagram or
instruction mode).
Method 1: Click “File(F)” > “Print (P)”.
Method 2: Click the icon from the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (P).
After the editing is completed, the user can use the icon or click “File” > “Print (P)”
to print the editing program or instrucation and relevant data. In the different editing
window, the user can use Print(P) function to print the ladder diagram or instruction data.
Please refer to the following descriptions.
Print Ladder Diagram
In Ladder Diagram Mode (when the ladder diagram editing window is opened), click the
icon on toolbar or choose “Print(P)” command from the “File” menu, the print
selection dialog box will open allowing the user to set the print options, configure printed
diagrams layout and print the ladder diagrams shown on the screen. When the print
selection dialog box is opened, the user can choose “Whole Range” to print all ladder
diagrams displayed on the screen or choose “Step Range Specification” to print the
range specified by the user (Start and End). Also, the user can determine if the title,
page numbers and cover are printed or not. Click “Preview” button is to show the ladder
diagrams as they would look if printed. Click “Printer setup” button is to setup the printer
and configure the layout of the printed ladder diagrams.
The ladder diagrams displayed in the ladder diagram editing window is the same as the
printed file. It indicates that the comments will be printed also if there are comments
displayed on the ladder diagrams.
Print Instruction
In Instruction Mode (when the instruction editing window is opened), click the icon
on toolbar or choose “Print(P)” command from the “File” menu, the print selection dialog
box will open allowing the user to set the print options, configure printed instruction
layout and print the instructions. When the print selection dialog box is opened, the user
can choose “Whole Range” to print all instructions displayed on the screen or choose
“Step Range Specification” to print the range specified by the user (Start and End). Also,
the user can determine if the title, page numbers and cover are printed or not. Click
“Preview” button is to show the instructions as they would look if printed. Click “Printer
setup” button is to setup the printer and configure the layout of the printed instructions.

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
2-4 Revision March, 2008, Doc. Name: 2007PDD23000014
Printer Setup(Q) ÖSelect and set printer.
Method 1: Click “File” > “Printer Setup(Q)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Q).
Exit(X) ÖEnd HMI-WPLSoft
Method 1: Click “File(F)” > “Exit(X)”.
Method 2: Click the icon at the right upper corner of the window.
Method 3: Use keyboard shortcuts by pressing keys (Alt) + (X).
File Explanation:
There are six saved files which each one of them has different extension names created
simutaneously after finishing program editing and compiler. If the user wants to copy a
complete program (including all comments and settings in the program) to other disk or
another directory, it is recommended to copy all six saved files with different extension names.
If the user wants to make a complete backup copy of the program file, the following six
different files should be saved all together.
Extension Name Explanation
1 * .DLP ÖThe instruction file for DOP-EXIO series.
2 * .LAD ÖLadder diagram file
3 * .LMT ÖThe file used to record ladder diagram segment comments.
4 * .LAB ÖThe file used to record label P and I.

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 2-5
Extension Name Explanation
5 * .RCM ÖThe default comment file for special D/special M.
6 * .DOP* ÖHMI ScrEdit (Screen Editor) file.
2.2 Edit

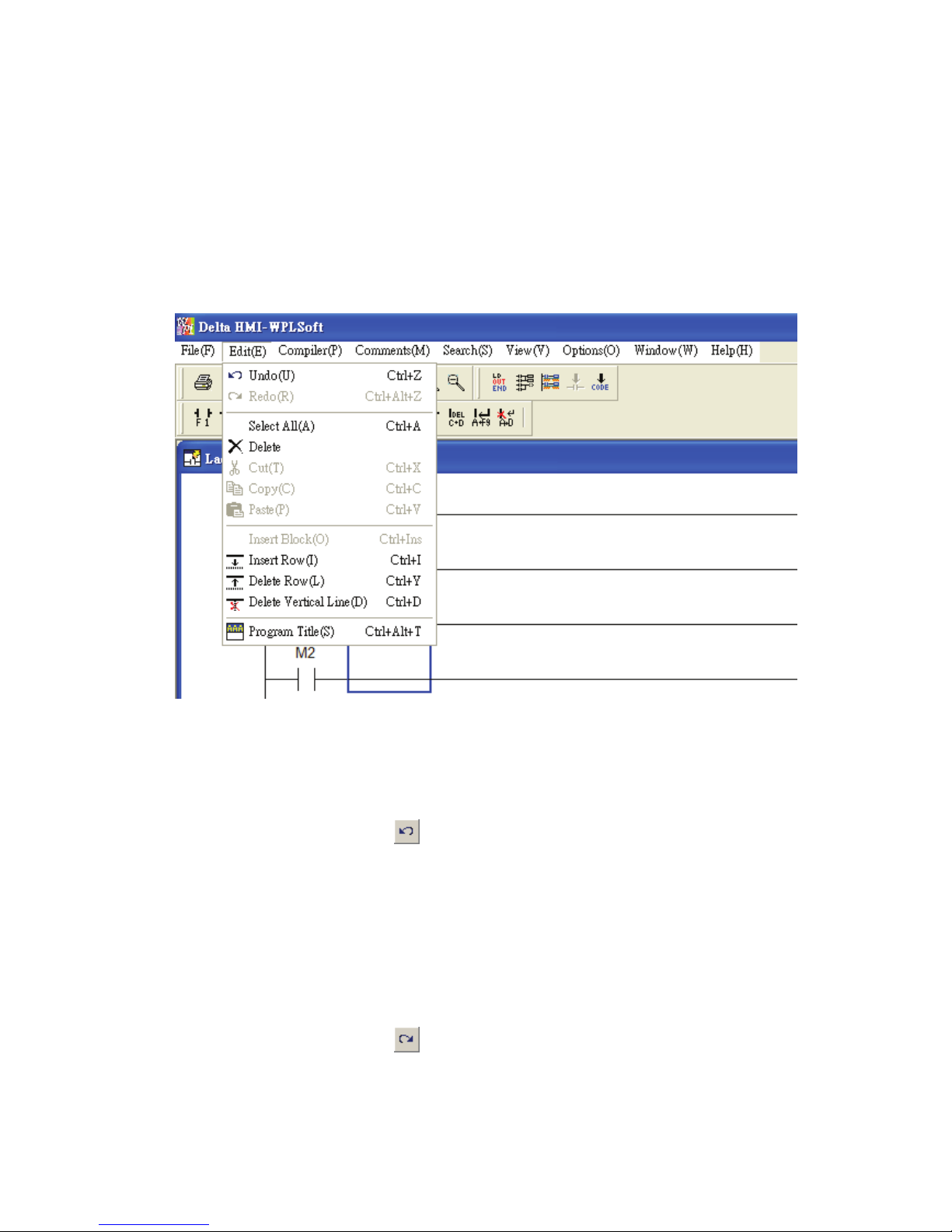

The “Exit” function is shown as follows, including pull-down menu options:
Undo(U) ÖUndo the most recent actions (the system allows the user to perform
undo action for max. 10 times)
Method 1: Click “Edit(E)” > “Undo(U)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (Z).
Method 4: Right click the mouse to get a pop-up menu and select “Undo” in the
pop-up menu.
Redo(R) ÖRedo the undo action.
Method 1: Click “Edit(E)” > “Redo(R)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (Alt) + (Z).

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
2-6 Revision March, 2008, Doc. Name: 2007PDD23000014
Method 4: Right click the mouse to get a pop-up menu and select “Redo” in the
pop-up menu.
Select All(A) ÖSelect everything in a program file.
Method 1: Click “Edit(E)” > “Select All (A)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (A).
Delete ÖDelete a selection (selected block or data) where the cursor is.
Method 1: Click “Edit(E)” > “Delete”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing key (Delete).
Method 4: Right click the mouse to get a pop-up menu and select “Delete” in the
pop-up menu.
Cut(T) ÖCut a selection (selected block or data) in a program file.
Method 1: Click “Edit(E)” > “Cut(T)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (X).
Method 4: Right click the mouse to get a pop-up menu and select “Cut” in the
pop-up menu.
Copy(C) ÖCopy a selection (selected block or data) from a program file.
Method 1: Click “Edit(E)” > “Copy(C)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (C).
Method 4: Right click the mouse to get a pop-up menu and select “Copy” in the
pop-up menu.
Paste(P) ÖPaste a selection (selected block or data) on a program file.
Method 1: Click “Edit(E)” > “Paste(P)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (V).
Method 4: Right click the mouse to get a pop-up menu and select “Paste” in the
pop-up menu.

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 2-7
Insert Block(O) ÖInsert a selection (selected block or data) into a program file (This
function is valid for Ladder Diagram Mode only.).
Method 1: Click “Edit(E)” > “Insert Bock(O)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Ins).
Method 3: Right click the mouse to get a pop-up menu and select “Insert Block” in
the pop-up menu.
Insert Row(I) ÖInsert a blank row into a program file.
Method 1: Click “Edit(E)” > “Insert Row(I)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (I).
Method 3: Right click the mouse to get a pop-up menu and select “Insert Row” in
the pop-up menu.
Delete Row(L) ÖDelete a row from a program file.
Method 1: Click “Edit(E)” > “Delete Row(L)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Y).
Method 3: Right click the mouse to get a pop-up menu and select “Delete Row” in
the pop-up menu.
Delete Vertical Line(D) ÖDelete the vertical lines from a program file(This function is
valid for Ladder Diagram Mode only.).
Method 1: Click “Edit(E)” > “Delete Vertical Line(D)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (D).
Method 4: Right click the mouse to get a pop-up menu and select “Delete Vertical
Line” in the pop-up menu.
Program Title(S) ÖThe information of program title, file name, company name and
designer are shown here and can be printed as an easy cover.
Method 1: Click “Edit(E)” > “Program Title(S)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Alt) + (T).

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
2-8 Revision March, 2008, Doc. Name: 2007PDD23000014
2.3 Compiler

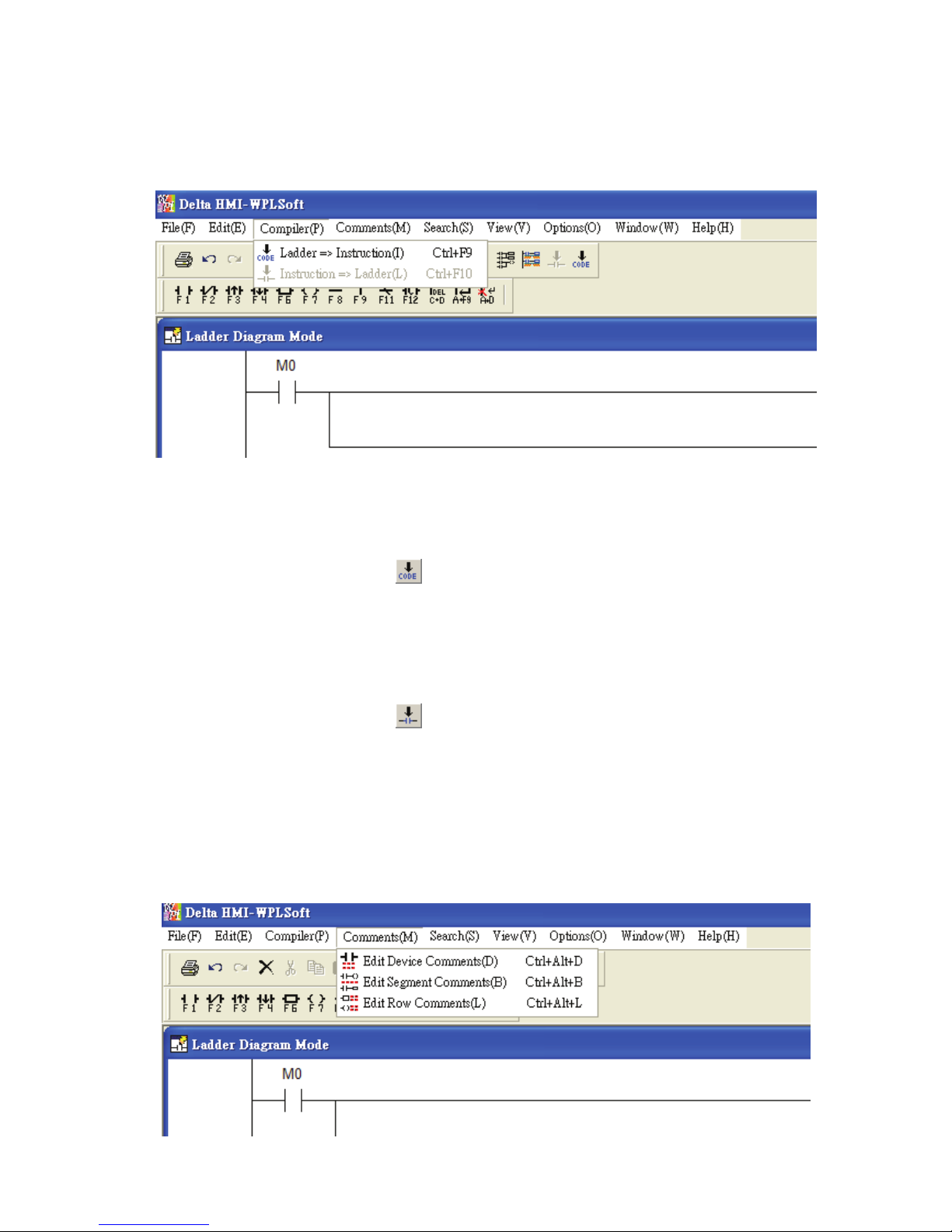

The “Compiler” function is shown as follows, including pull-down menu options:
Ladder => Instruction(I) ÖConvert ladder diagrams to instruction codes.
Method 1: Click “Compiler(P)” > “Ladder => Instruction(I)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (F9).
Instruction => Ladder(L) ÖConvert instruction codes to ladder diagrams.
Method 1: Click “Compiler(P)” > “Instruction => Ladder(L)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (F10).
2.4 Comments
The “Comments” function is shown as follows, including pull-down menu options:

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 2-9
Edit Device Comments(D) ÖInsert a comment for every operand of the device
where the cursor is positioned.
Method 1: Click “Comment(M)” > ” Edit Device Comments(D)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Alt) + (D).
Method 3: Right click the mouse to get a pop-up menu and select “Edit Device
comments” in the pop-up menu.
Edit Segment Comments(B) ÖInsert a segment comment in the blank row (This
function is valid for Ladder Diagram Mode only.).
Method 1: Click “Comment(M)” > "Edit Segment Comments(B)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Alt) + (B).
Method 3: Right click the mouse to get a pop-up menu and select “Edit Segment
Comments” in the pop-up menu.
Edit Row Comments(L) ÖInsert a row comment after output coil or instruction of
each row (This function is valid for Ladder Diagram Mode only.).
Method 1: Click “Comment(M)” > ” Edit Row Comments(L)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Alt) + (L).
Method 3: Right click the mouse to get a pop-up menu and select “Edit Row
comments” in the pop-up menu.
2.5 Search
The “Search” function is shown as follows, including pull-down menu options:

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
2-10 Revision March, 2008, Doc. Name: 2007PDD23000014
Go to(J) ÖJump to the designated location (unit: Step).
Method 1: Click “Search(S)” > ”Go to(J)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (J).
Search/Replace(F) ÖSearch or replace the device name and instruction of the
designated device.
Method 1: Click “Search(S)” > ”Search/Replace(F)”.
Method 2: Click the icon on the toolbar.
Method 3: Use keyboard shortcuts by pressing keys (Ctrl) + (F).
Go to the Start(T) ÖJump to the start of the program.
Method 1: Click “Search(S)” > ”Go to the Start(T)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (Home).
Go to the End(N) ÖJump to the end of the program.
Method 1: Click “Search(S)” > ”Go to the End(N)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl) + (End).
2.6 View
The “View” function is shown as follows, including pull-down menu options:

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 2-11
Toolbars(T) ÖDisplay a list of the toolbars available in HMI-WPLSoft, including
Status Bar, Standard, PLC and Ladder Diagram toolbars.
~Status Bar: display or hide status bar.
Method: Click “View(V)” > “Toolbars(T)” > “Status Bar”.
~Standard: display or hide standard toolbar.
Method: Click “View(V)” > “Toolbars(T)” > “Standard”.
~PLC: display or hide HMI-WPLSoft toolbar.
Method: Click “View(V)” > “Toolbars(T)” > “PLC”.
~Ladder Diagram toolbar: display or hide Ladder Diagram toolbar (display in
Ladder Diagram Mode only).
Method: Click “View(V)” > “Toolbars(T)” > “Ladder Diagram”.
Zoom(Z) ÖLet the user change and reduce the magnification level of the program.
Zoom In function is used to get a closer look of the program and Zoom Out
function is used to see more of the program. The default settings for zooming
provided by the system are Auto, 50 %, 75 %, 100 %, 125 %, 150 %, 175 % and
200 %.
Method 1: Click “View(V)” > “Zoom (Z)”.
Method 2: Zoom In. Use keyboard shortcuts by pressing keys (Shift) + (Alt) + (I)
or click the icon on the toolbar to zoom in.
Method 3: Zoom Out. Use keyboard shortcuts by pressing keys (Shift) + (Alt) +
(O) or click the icon on the toolbar to zoom out.

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
2-12 Revision March, 2008, Doc. Name: 2007PDD23000014
Instruction List(I) ÖChange to Instruction Mode.
Method 1: Click “View(V)” > “Instruction List(I)”.
Method 2: Click the icon on the toolbar.
Ladder Diagram(L) ÖChange to Ladder Diagram Mode.
Method 1: Click “View(V)” > “Ladder Diagram(L)”.
Click the icon on the toolbar.
List of Used Device(U) ÖDisplay all device usage status.
Method 1: Click “View(V)” > “List of Used Device(U)”.
Method 2: Use keyboard shortcuts by pressing keys (Ctrl)+ (Alt) + (U).
Show Comments(M) ÖDisplay or hide device comments.
Method 1: Click “View(V)” > “Show Comments(M)”.
Method 2: Click the icon on the toolbar.
2.7 Options
The “Options” function is shown as follows, including pull-down menu options:
Prompt to Edit Device Comment(H) ÖIf this option is selected, in Instruction Mode
or Ladder Diagram Mode, the system will ask the user to enter the corresponding
device comment at the same time when the user uses the instruction code to edit a
DOP-EXIO series program.
Method: Click “Options(O)” > “Prompt to Edit Device Comment(H)”.

Chapter 2 HMI-WPLSoft Introduction|DOP-EXIO Series
Revision March, 2008, Doc. Name: 2007PDD23000014 2-13
Language Setup(L) ÖAllow the user to change the display language of
HMI-WPLSoft by requirement. There are three available languages for selection,
Tranditional Chinese, Simplied Chinese and English.
Method: Click “Options(O)” > “Language Setup(L)”.
2.8 Window
The “Window” function is shown as follows, including pull-down menu options:
Cascade(C) ÖArrange windows in an overlapping way.
Method: Click “Window(W)” > “Cascade(C)”.
Title Horizontally(H) ÖArrange the file in a horizontal way.
Method: Click “Window(W)” > “Title Horizontally(H)”.
Title Vertically(V) ÖArrange files in a vertical way.
Method: Click “Window(W)” > “Title Vertically(V)”.
The current files list Öe.g. Instruction Mode and Ladder Diagram Mode.
Method: In HMI-WPLSoft editing window, activate Instruction Mode and Ladder
Diagram Mode and click “Window(W)”, and then the user can see
them show in Window drop-down menu.
