Delta RPI H3 110 User manual
Quick Installation Guide
RPI H3_110
Europe
2Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
© Copyright – Delta Energy Systems (Germany) GmbH – All
rights reserved.
This quick installation guide is included with our solar inverter
and is intended for use by the installer.
The technical instructions and illustrations in this manual are
reproduced without prior written permission from Delta Energy
Systems. Maintenance technicians and end users may not
release the information contained in this quick installation guide,
and may not use it for purposes not directly associated with the
proper use of the solar inverter.
notice.
This manual applies for solar inverters models:
RPI H3_110
If you experience deviations between the descriptions in this
quick installation guide and the information on the inverter dis-
play, please check www.solar-inverter.com for a quick installation
standard manual can also be downloaded from our website.
Delta Energy Systems (Germany) GmbH
Tscheulinstrasse 21
79331 Teningen
Germany
Table of contents
1 General safety instructions 3
4
3 Information on the type label 5
5
5 Planning the installation 6
7
8
14
16
18
18
Inverter ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Baud rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
13 Technical data
3
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
General safety instructions
1
High electrocution
Potentially fatal voltage is applied to the solar
inverter during operation. This potentially fatal
voltage is still present for 15 seconds after all
power sources have been disconnected.
Never open the inverter.
Always disconnect the inverter from
power before installation, open the DC
disconnection switch and make sure neither
can be accidentally reconnected.
Wait at least 15 seconds until the capacitors
have discharged.
High electrocution
Potentially fatal voltage may be applied to the
DC connections of the solar inverter. When light
is falling on solar modules, they immediately start
producing energy. They do so, even when the
sun is not shining.
Never disconnect the solar modules when the
solar inverter is powered.
First switch off the grid connection so that
the solar inverter cannot feed energy into the
grid.
Turn the DC disconnection switch to position
.
Make sure the DC connections cannot be
accidentally touched.
Read this quick installation guide before you start installing
the inverter.
The inverter can safely and normally be operated if installed
and used in accordance with this manual (see IEC 62109-
5.3.3). Delta Energy Systems is not responsible for damage
incurred by failure to observe the installation and commis-
sioning instructions in this manual. For this reason, be sure
to observe and follow all instructions!
Installation and commissioning may only be performed by
-
ing instructions found in this manual.
The inverter must be disconnected from power and the solar
modules before any work on it can be performed.
The inverter has a high leakage current value. The ground
wire must be connected before commissioning.
Do not remove any warning signs that the manufacturer has
installed on the solar inverter.
Improper handling of the inverter may result in physical injury
and damage to property. For this reason, observe and follow
all general safety instructions and warnings.
The inverter contains no components that must be main-
tained or repaired by the operator or installer. All repairs must
be performed by Delta Energy Systems. Opening the cover
will void the warranty.
Do not disconnect any cables when the solar inverter is pow-
ered due to risk of a fault arc.
To prevent lightning strikes, follow the relevant regulations
applicable in your country.
The surface of the solar inverter can become very hot dur-
ing operation. Use safety gloves when working on the solar
inverter.
Only devices in compliance with SELV (EN 69050) may be
connected to the RS485 interfaces.
-
ply with the IP65 protection rating. Unused connections must
be closed by placing cover caps on the solar inverter.
4Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
Label Usage
Grid Grid Green; lights up when the solar inverter feeds into the
grid
AlArm Alarm Red; Indicates an error, fault, or warning
Buttons
SEL Select Move to the next menu entry. Change a value. Cancel
value setting.
ENT Enter
Finish editing (adopt set value).
Display, buttons, LEDs
Type label
Electrical connectors
DC switch
DC Inputs
AC Connector
RS485
Digital inputs
and dry contacts
5
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
15 seconds
Risk of death by electrocution
Potentially fatal voltage is present when the solar inverter is in operation that remains for 15 seconds after being
disconnected from power.
Never open the solar inverter. The solar inverter contains no components that must be maintained or repaired by
the operator or installer. Opening the cover will void the warranty.
Read the manual delivered with the inverter before working with the solar inverter and follow the instructions
contained in the manual.
The housing of the inverter must be grounded if this is required by local regulations.
Regulatory Compliance Mark (RCM mark): The inverter is compliant with the Australian Electrical Safety and
EMC standards. Applies only to Australia and New Zealand.
Information on the type label
3
4
AC Plug
Mounting plateInverter
Quick Installation Guide and
General Safety Instructions
2 mounting nuts M5 to fasten the
inverter to the mounting plate
Quick Installation Guide
RPI H3_110
Europe
2 x
6Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
Planning the installation
5
>30 cm >30 cm >30 cm
>50 cm
>50 cm
Ensure adequate air circulation. Hot air must be able
each inverter.
Do not install inverters directly above one another.
Otherwise, the upper inverter is warmed up by the
lower one.
Consider the operating temperature range (see
“Technical data”, p. 22).
When the operating temperature range is exceeded,
the solar inverter reduces the amount of power gener-
ated.
The inverter has protection
degree IP65 and can be installed
indoors or in protected outdoor
areas (that means outdoor but
protected by a roof against direct
sun, rain or snow).
Where to mount the inverter
?
?
?
?
✔
✘
✘
Mount the inverter so that the LEDs and display can be eas-
ily seen and that the buttons can be operated. Make sure the
Always use the mounting plate
supplied with the inverter.
Check that the wall is capable of
bearing the heavy weight of the
inverter.
Use dowels and screws that are
suitable for the wall material and
the heavy weight.
Mount the inverter on a vibration-
free wall to avoid disruptive
vibrations.
wall.
only. Brick walls can cause prob-
lems if they are too bumpy.
Possible noise emissions can be
disruptive when the inverter is
used in living areas or in buildings
with animals. Therefore, choose
your installation location carefully.
Mount the solar inverter vertically.
7
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
6
392
145 145
200
7070
100100
Hang the inverter onto
the mounting plate.
Check that the rail of the inverter hangs
correctly in the mounting plate and screw
the inverter to the mounting plate.
Fasten the mounting plate
with 6 M5 screws to the wall.
1 2
3
4Ground the inverter housing.
Washer spring
Washer
M4 Screw
Grounding cable
Toothed ring
Perform a continuity check for the grounding con-
nection. If the test fails, scratch the paint off the
inverter housing below the tooth lock washer to
get a better electrical connection.
8Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
7
High electrocution
Turn the DC disconnection switch to position
before you connect or disconnect the
AC plug.
Important information regarding safety
-
try or region.
operator.
For the safety of the user and for the security of your installation,
install safety and protection devices that are required for your
installation environment (example: automatic circuit breaker and/
or overcurrent protection equipment).2
Use the proper upstream circuit breaker to protect the inverter:
Upstream circuit breaker 16 A
G N L
N
L
PE
to the
inverter
Due to its design, the inverter is not capable of feeding DC resid-
-
dance with DIN VDE 0100-712.
When examining these possible fault situations in terms of the
currently valid installation standards, Delta has come to the
conclusion that there is no danger when operating the inverter
in combination with a type A upstream residual-current device
(RCD).
Therefore faults that would otherwise require the use of a type B
residual-current device due to the inverter can be excluded.
The integrated all-pole sensitive RCMU provides additional
safety. RCD Type A can be used for this inverter, according to the
following table.
Minimum tripping current of the RCD 30 mA *
Table: Recommended RCD Type A for a single inverter
* see description in the note below
The value of the tripping current mainly depends
on the installation of the PV generator, the size of
the PV array and environmental conditions (e.g.
humidity).
9
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
1. Turn the DC disconnection switch to position .
2. Remove the cable sheath as shown and remove 12 mm of
insulation from each wire end. Do not twist wire ends as this
reduces the surface contact area with the wire end sleeve
(bootlace pin).
12 mm
52.5 mm
12 mm
55 mm (PE)
3. Place a wire end sleeve on each wire end and crimp them on
tightly.
4. Connect the AC cable to the AC plug as described below.
Unscrew the cable nut from the cable housing.
-
driver.
3.5 mm
Slide cable nut and cable housing onto the AC cable in the
given order.
Slide the wires of the AC Cable into the connections in the
socket insert and screw them tightly (typical torque 0.8 to
1.0 Nm). Observe the correct phase sequence when wiring
the AC plug.
N
L
= PE
10 Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05

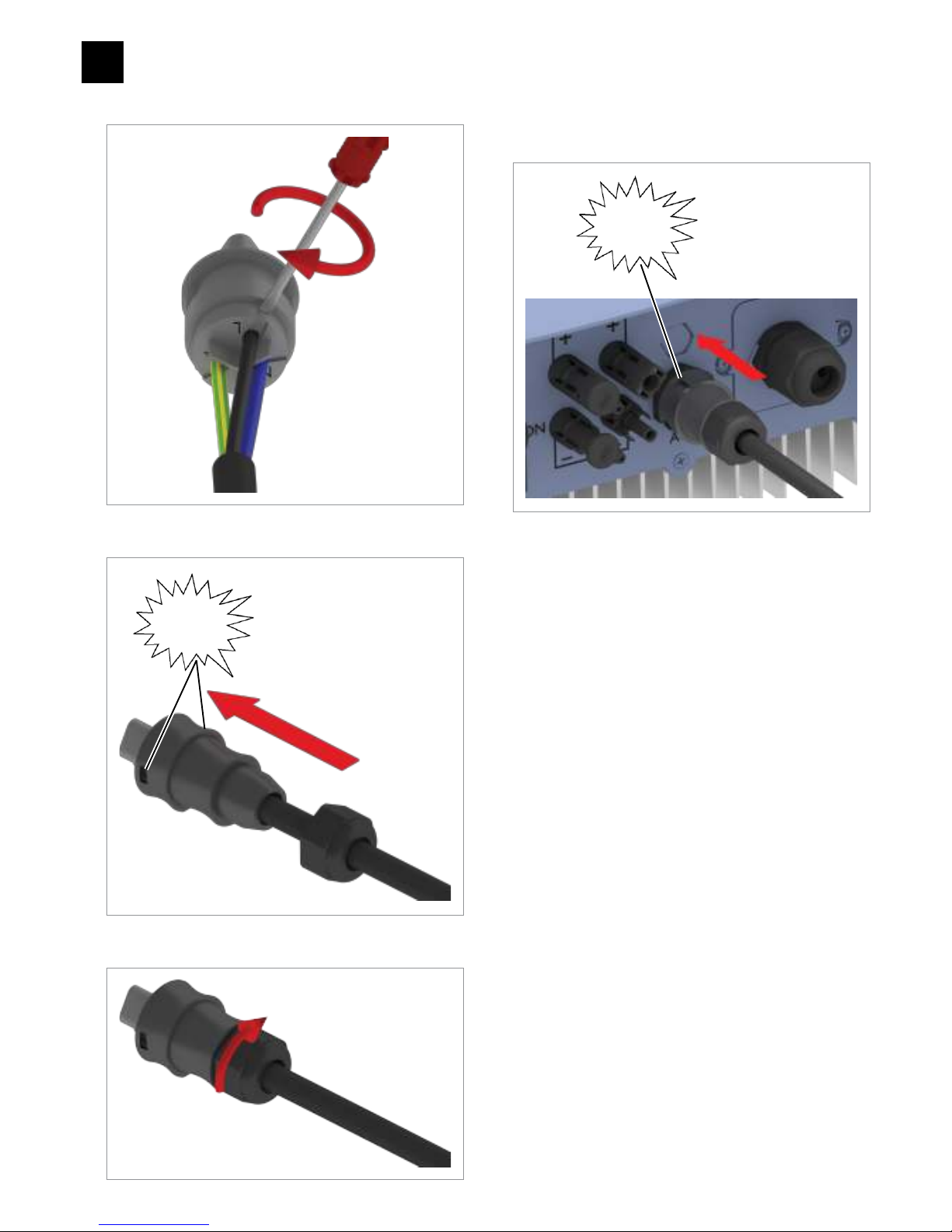

0.8 ... 1 Nm
Slide the cable housing into the socket insert until you can
hear a “click” sound.
CLICK
Fasten the cable nut to the cable housing (typical torque 4 +
1 Nm).
4 + 1 Nm
Insert the AC plug into the AC connector on the inverter until
you can hear a “click” sound.
CLICK
We recommend using a strain-relief clamp directly behind
the AC plug.
7
11
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
Use properly sized wires (see table)
AC plug Wieland RST25i3S S1AZR2V
BG03 (96. 032.4154.3)
Current rating
Min. / max. cable diameter 10 ... 14 mm
Min. / Max. wire diameter 0.75 ... 4 mm2
Recommended torque for termi-
nal screws 0.8 ... 1.0 Nm
Read and follow the instructions delivered with the AC plug.
or rigid copper cable.
When calculating the cross section of the cable, consider:
material used
thermal conditions
cable length
type of installation
AC voltage drop
power losses in cable
your country!
Grounding the inverter
The inverter must be grounded via the AC connector’s PE con-
ductor. To do this, connect the PE conductor to the designated
terminal of the AC plug.
WARNING
Dual Supply
Do not work on this equipment until it is isolated from
both mains and on site generation supplies
Isolate on-site Generating Unit(s) at ………………………………………………….
Isolate mains supply at………………………………………………………
Warning – Only persons authorised by the DNO may remove the main cut out fuse
In some countries, the following labels have to be applied on the
front of each micro inverter. Please check applicable national and
local standards and regulations.
Warning
Two sources of voltage present
- distribution network
- photovoltaic panels
Isolate both sources before
carrying out any work
12 Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
8
High electrocution
Potentially fatal voltage may be applied to the
DC connections of the solar inverter. When light
is falling on solar modules, they immediately start
producing energy. They do so, even when the
sun is not shining directly onto the solar mod-
ules.
Turn the DC disconnection switch to position
.
Never disconnect the solar modules when the
solar inverter is powered.
First switch off the grid connection so that
the solar inverter cannot feed energy into the
grid.
Make sure the DC connections cannot be
accidentally touched.
To ensure protection degree IP65, cap all
unused connectors with the caps delivered
with the inverter.
Turn the DC disconnection switch to position , before you
connect the DC cables.
Check the polarity of the DC voltage before you connect the
solar modules.
(1) Check of your mod-
ules for required safety equipment like fuses.
+
–
+
–
13
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
a
b
a b
mmmm
DC–
^
1,5 / 2,5
3-6 32.0010P0001-UR
5,5-9 32.0012P0001-UR
4 / 6
3–6 32.0014P0001-UR
5,5-9 32.0016P0001-UR
DC+
1,5 / 2,5
3-6 32.0011P0001-UR
5,5-9 32.0013P0001-UR
4 / 6
3-6 32.0015P0001-UR
5,5-9 32.0017P0001-UR
France: Safety caps are needed for each
DC input that is connected to a string of
solar modules. To remove the safety caps,
a open-end spanner is needed.
It is recommended to use a special open-
end spanner for the MC4 DC plugs if you
need to disconnect MC4 DC plugs from
the inverter. Otherwise you might destroy
the DC plugs.
14 Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
9
If you need to wire dry contacts, digital inputs
or RS485, it is recommended to do this in a dry
environment and before you hang the inverter
onto the wall.
Reasons for this are:
You will have to remove the covers from the
connection ports. Water could leak into the
inverter.
The terminal blocks inside are not easily
accessible.
2
1
1 RS485 terminal block
2 Switch for RS485 termination resistor
RS485 is used to connect the inverters of the PV plant via a data-
logger to a monitoring system.
For connecting RS485, terminals 3/4 or 5/6 are used. It does not
matter which pair of terminals you use. The second pair you only
need when you connect multiple inverters via RS485.
If you want to use SOLIVIA Monitor, the Internet based monitor-
ing from Delta, you will also need a SOLIVIA M1 G2 Gateway.
Default baud rate is 19200 which can be changed on the inverter
(see chapter “Setting the baud rate”, p. 19).
21 43 65
Terminal
1 VCC
2 GND
3 DATA+ (RS485)
4 DATA– (RS485)
5 DATA+ (RS485)
6 DATA– (RS485)
Baud rate 9600, 19200, 38400; Standard: 19200
Data bits 8
Stop bit 1
Parity not applicable
15
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
If you connect multiple inverters via RS485,
set a different Inverter ID for each inverter
(see “Setting the inverter ID”, p. 18).
If your datalogger has no integrated termination resistor, switch
RS485
ONOFF ONOFF ONOFF
Datalogger
Termination resistor = ON Termination resistor = OFF Termination resistor = OFF
RS485
ONOFF
Datalogger
Termination resistor = ON
On the inverter you connect single wires, on the gateway you
have to use a RJ45 plug.
Connect inverter and gateway according to the following table:
Inverter
18
DATA+ Terminal 3 or 5 Pin 7
DATA– Terminal 4 or 6 Pin 6 or 8
16 Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
10
When your grid operator wants you to set a
power limitation, e.g. for the 70% regulation in
Germany, you need the Delta Service Software,
which is available from Delta.
If you need to wire dry contacts, digital inputs or
RS485, it is recommended to do this in a dry en-
vironment and before you hang the inverter onto
the wall. Reasons for this are:
You will have to remove the covers from the
connection ports. Water could leak into the
inverter.
The terminal blocks inside are not easily
accessible.
2
1
1 Dry contacts
2 Digital inputs and outputs
123456
Pin
1 Digital input 1 (DI1)
2 Digital input 2 (DI2)
3 Digital input 3 (DI3)
4 Digital input 4 (DI4)
5 Output 1 (DO1)
6 Output 1 (DO2)
When the inverter is feeding into the grid, the dry contact is
closed.
If you want to use a PC with the Delta Service Software to set up
the inverter, you need a USB/RS485 adapter to connect the PC
to the RS485 terminal block of the inverter.
The USB/RS485 adapter is available from Delta.
Connect the pins according to the following table:
Inverter
1
8
DATA+ Pin 3 or 5 Pin 4
DATA– Pin 4 or 6 Pin 5
17
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
Tips for wiring
Unscrew and carefully pull out the terminal block of the dry
contacts.
Unscrew and carefully pull out the terminal block of the
digital inputs.
Carefully put in the terminal block of the digital inputs and
tighten the screws.
Carefully put in the terminal block of the dry contacts and
tighten the screws.
18 Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
11
To execute commissioning, the inverter needs to be pow-
ered either by AC (the grid) or DC (the solar modules)
Next / Enter
UK G83-2 1. Use the button SEL to select your country or grid.
ENT .
N / Y
Exit ?
2. ENT .
To select another country or grid, press the button SEL and repeat step 1.
þ
3.0 kVA
Inverter
If your PV plant contains multiple inverters, for each of the inverters a different inverter ID has to be set.
The inverter ID is needed to identify each inverter via RS485. For a description of the RS485 connection,
see “Connecting to a datalogger via RS485”, p. 14.
ID : 1
Inverter
1. In the main menu, use the button SEL to select Inverter ID.
2. Press the buttons SEL and ENT at the same time and hold them for at least 3 seconds.
The menu to change the inverter ID is shown.
ID = 1 ?
Setting ID:
ID = 2 ?
Setting ID:
3. Use the button SEL to change the inverter ID.
4. ENT .
The new inverter ID is shown in the main menu.
ID : 2
Inverter
19
Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
UK G83-2
Country
1. In the main menu, use the button SEL to select Country.
2. Press the buttons SEL and ENT at the same time and hold them for at least 10 sec-
onds.
For a few seconds the following message is displayed.
Shut down
Inverter
19200
Baud rate
3. Use the button SEL to select Baud rate and press the button ENT .
Next / Enter
9600
4. Use the button SEL to select another baud rate.
To accept the selection, press the button ENT .
N / Y
9600
5. ENT .
The new baud rate is shown.
9600
Baud rate
N / Y
Exit ?
6. Use the button SEL to select Exit ? and press the button ENT
20 Quick installation guide for RPI H3 inverters EU EN 5013227802 02 2016-01-05
UK G83-2
Country
1. In the main menu, use the button SEL to select Country.
2. Press the buttons SEL and ENT at the same time and hold them for at least 10 sec-
onds.
For a few seconds the following message is displayed.
Shut down
Inverter
14:05
26/11/2014
3. Use the button SEL to select the entry with time and date.
To change the setting, press the button ENT .
14:05
26/11/2014
4. Use the button SEL to change the value.
ENT .
14:05
26/11/2014
5. Repeat step 3and 4for each value.
N / Y
Exit ?
6. Use the button SEL to select Exit ? and press the button ENT
Table of contents
Other Delta Inverter manuals
Delta
Delta BDI Series Specification sheet
Delta
Delta E6-TL-US Specification sheet
Delta
Delta C1000 Specification sheet
Delta
Delta M30A 231 Specification sheet
Delta
Delta HES Series User manual
Delta
Delta M125HV User manual
Delta
Delta SI 5000 Specification sheet
Delta
Delta M100-212 Specification sheet
Delta
Delta H9E Specification sheet
Delta
Delta REG2000 Series User manual
Delta
Delta M50A-260 User manual
Delta
Delta RPI M6A User manual
Delta
Delta RPI M6A Specification sheet
Delta
Delta M70A 263 Specification sheet
Delta
Delta SOLIVIA 10 EU T4 TL Specification sheet
Delta
Delta Solivia 2.5 Instruction Manual
Delta
Delta RPI M50A_120 User manual
Delta
Delta RPI M6A User manual
Delta
Delta M70A User manual
Delta
Delta M15A 220 Specification sheet
Popular Inverter manuals by other brands
Autarco
Autarco MX3000 Installation and operation manual
Mitsubishi Electric
Mitsubishi Electric FR-A8APR instruction manual
Selectronic Australia
Selectronic Australia LD250-24 owner's manual
TSUNESS
TSUNESS TSOL-H3.0K-S user manual
Mitsubishi Electric
Mitsubishi Electric FR-F820-00046 Installation guidelines
Riello
Riello SIRIO HV MT K64 user manual
Champion Global Power Equipment
Champion Global Power Equipment 200964 Operator's manual
SpectraDynamics
SpectraDynamics HROG-5 operating manual
BRUEL & KJAER
BRUEL & KJAER 1023 Service manual
Sunways
Sunways NT 2600 user manual
Sportsman
Sportsman GEN4000-SS instruction manual
Nedap
Nedap PowerRouter installation manual
Generac Power Systems
Generac Power Systems 02010-1 Owners and installation manual
Omron
Omron JZA user manual
Kaco
Kaco blueplanet 20.0 TL3 operating instructions
Generac Power Systems
Generac Power Systems quietpact 85d owner's manual
OutBack Power Technologies
OutBack Power Technologies Radian GS8048 Operator's manual
TECO
TECO E510s Series Quick Setting-up Manual
