Delta AGC7648A User manual

Delta Networking – Agema Family
AGC7648 Deep-Buffer Switch
- AGC7648A
- AGC7648S
Installation Guide

ii
AGC7648 Deep-Buffer Switch
Copyright
All specications and gures are subject to change without prior notice. Actual products may look
different from the photos.
All trademarks and logos mentioned in this guide are the properties of their respective holders.
Copyright © Delta Products Corporation. All rights reserved.
Regulatory and Safety Information
This product has been tested in accordance to, and complies with the following safety standards and
electromagnetic compatibility (EMC) inspection standards.
Emissions
Applicable standard
• AS/NZS CISPR 22: Class A
• ICES-003, Issue Class A
• EN 55022: Class A
• VCCI Class A
• FCC CFR 47 Part 15, Subpart B Class A
Safety
Applicable standard
• EN 60950-1, Second Edition
• UL/CSA 60950-1, Second Edition
• IEC 60950-1, Second Edition Including All National
Immunity
Applicable standard
• EN 300 386, EMC for Network Equipment
• EN 55024:
• EN 61000-3-2: Harmonic Current Emissions
• EN 61000-3-3: Voltage Fluctuations and Flicker
• EN 61000-4-2: ESD
• EN 61000-4-3: Radiated Immunity
• EN 61000-4-4: EFT
• EN 61000-4-5: Surge
• EN 61000-4-6: Low Frequency Conducted Immunity
• EN61000-4-8: Power Frequency magnetic eld
• EN61000-4-11: Voltage dips and interruptions
RoHS
Applicable standard All AG-Series components are EU RoHS compliant
Warning: Fiber Optic Port Safety
When using a ber optic port, never look at the transmit laser while it is powered
on. Also, never look directly at the ber TX port and ber cable ends when they are
powered on.

iii
Table of Contents
Table of Contents
Chapter 1: Introduction -------------------------------------------------------------------1
1.1 Overview ------------------------------------------------------------------------------------ 1
1.2 Package Content -------------------------------------------------------------------------- 1
1.3 Features ------------------------------------------------------------------------------------- 2
Chapter 2: Appearance and Mechanism --------------------------------------------3
2.1 Product Overview ------------------------------------------------------------------------- 3
2.2 LED Identication ------------------------------------------------------------------------- 4
2.3 System Requirements ------------------------------------------------------------------- 6
2.4 Data Center Deployment ---------------------------------------------------------------- 7
2.5 Power Supply Modules ------------------------------------------------------------------ 8
2.6 Fan Tray Module -------------------------------------------------------------------------- 8
Chapter 3: Installation ---------------------------------------------------------------------9
3.1 Mounting ------------------------------------------------------------------------------------ 9

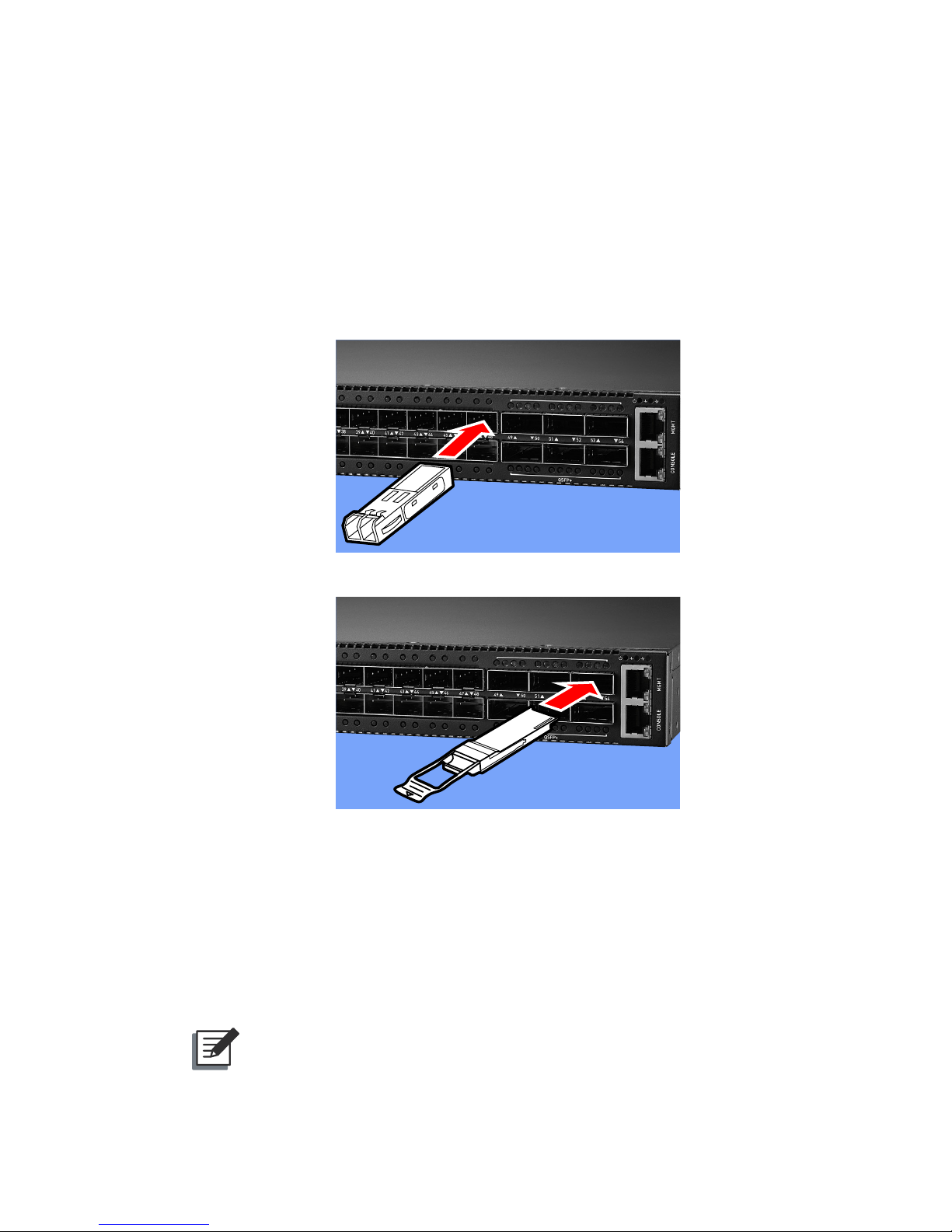

3.2 Installing an Optional SFP+/QSFP/QSFP28 Transceiver ---------------------11
3.3 Connecting to the Console Port ------------------------------------------------------12
3.4 Connecting to a Power Source -------------------------------------------------------12
Chapter 4: Making the Network Connections ----------------------------------- 15
4.1 Twisted-pair Connections --------------------------------------------------------------15
4.2 Fiber Optic Connections ---------------------------------------------------------------16
4.3 Ethernet Cabling -------------------------------------------------------------------------17
Appendix 1 : Technical Specifications--------------------------------------------- 18
Appendix 2 : Warranty------------------------------------------------------------------- 19
Limited and Support Warranty -------------------------------------------------------------19
Technical Support -----------------------------------------------------------------------------19

1
AGC7648 Deep-Buffer Switch
Chapter 1: Introduction
1.1 Overview
The AGC7648 is a ToR/Leaf and EoR switch with deep buffers for Data Center Networks, as
well as Carrier network deployments. AGC7648 is not only offering 100GbE uplink ports but
also supporting virtualization features. Total I/O bandwidth is 800G and the oversubscription
ratio is up to 1.35:1. The switch will provide customers x86-based CPU as modular design
which offers the exibility for upgrading CPUs. The switch is SDN capable and will support
choices of NOS from third party software companies and as well as ONIE, OpenFlow for
today’s open network ecosystem. It also provides comprehensive capability on layer 2 and
layer 3 features, including SNMP, Spanning Tree, VLAN, QinQ, Trunk, QoS, RIP, OSPF,
IGMP, DVMRP, PIM-DM, PIM-SM, Access Control, etc. This product which aims for Data
Center and Carrier Networks also supports advance features such as MPLS, TRILL, PFC,
VEPA, QCN, VxLAN and NVGRE to meet Data Center high performance and virtualization
requirement.
1.2 Package Content
After unpacking this switch, check the contents to be sure you have received all the
components. Then, before beginning the installation, be sure you have all other necessary
installation equipment.
•AGC7648 series switch: AGC7648A or AGC7648S
•1 x AC power supply for AC version or 1 x DC power supply for DC version
•Rack-mounting kits
•2 x Velcro strips
•Installation guide
If any item is missing or damaged, contact the vendor immediately, see “Technical Support”.

2
• IntroductionChapter 1
1.3 Features
The following lists the main features of the AGC7648 switch:
•48 x 10GbE SFP+ ports
•6 x 100GbE QSFP28 ports
•1 x OOB Management
•1 x Console port (RJ-45 type)
•1 x USB port
•Hot plugging redundant power supply support
•4 Fan modules
•Power supply LED / System / FAN status LED indication
•Extensive system LED and per port LEDs
•On board high performance CPU system with large memory
•Internal power supply; Max power 800W
•800Gbps full-duplex switching
•4GB GDDR5 of packet buffer memory
•External TCAM for extending classication database
•VxLAN and NVGRE tunneling support in hardware for network virtualization
•Pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible SwitchOS software

3
AGC7648 Deep-Buffer Switch
Chapter 2: Appearance and Mechanism
2.1 Product Overview
2.1.1 Front View
Management port x 1
Console port x 1
QSFP28 port x 6
SFP+ port x 48
(Figure 2-1: Front View)
2.1.2 Rear View
PSU x 1
4 Fan tray slots
Reset x 1
Secondary PSU
slot x 1 (optional)
USB port x 1
(Figure 2-2: Rear View)
NOTE:
The switch supports up to two PSUs. However, it is shipped with one power supply
pre-installed in the rear panel of the switch. You may purchase an additional PSU for
redundancy.

4
• Appearance and MechanismChapter 2
2.2 LED Identification
This section provides an overview of the front and rear LEDs.
2.2.1 Front LEDs
Upper SFP+ Port LED
Lower SFP+ Port LED
Upper QSFP28 Port LED
Lower QSFP28 Port LED
Power LED
System LED
Fan LED
(Figure 2-3: Front LED Identification)
LED Description
System LED
• Off – No power
• Blinking Green – Booting, or System in Diagnostic mode
• Solid Green – Normal operation
• Solid Yellow – Critical alarm
• Blinking Yellow – Non-critical alarm
Power LED
• Solid Orange – Booting
• Off – Power is disconnected
When NOS is running:
• Solid Green – 2 Power Supplies are supplied to the switch and operating
normally
• Solid Yellow – Single power supply is installed and operating
• Blinking Yellow – 2 Power Supplies are installed, but only single power
supply is operating
Fan LED • Solid Green – FAN is operating normally
• Solid Yellow – FAN is failed including incompatible airow direction

5
AGC7648 Deep-Buffer Switch
LED Description
10G SFP+ slots
Link LED (Left)
• Off – No link
• Solid Green – A valid 10Gbps link
• Solid Yellow – A valid 1G link
Act LED (Right)
• Off – No link
• Solid Green – A valid 10Gbps link
• Solid Yellow – A valid 1G link
• Blinking Green – Packet transmission or reception in progress
100G QSFP28
slots
LED1 (Solid Lighting – Linkup; Blinking – Activity)
• Solid Green – 100G Operation
• Solid White – 50G Operation
• Solid Amber – 40G Operation
• Solid Blue – 25G Operation
• Solid Purple – 10G Operation
• Off – No Link
LED 2 and 4 (Solid Lighting – Linkup; Blinking – Activity)
• Solid Blue – 25G Operation
• Solid Purple – 10G Operation
• Off – No Link
LED 3 (Solid Lighting – Linkup; Blinking – Activity)
• Solid White – 50G Operation
• Solid Blue – 25G Operation
• Solid Purple – 10G Operation
• Off – No Link
*LED2-4 (working in breakout)
Management port
Link LED
• Off – No link is established on the port
• Solid Yellow – A valid link at 10/100Mbps is established on the port
• Solid Green – A valid link at 1000Mbps is established on the port
• Blinking Green – Packet transmission or reception in progress
Act LED
• Off – No link is established on the port
• Blinking Green – Activity, transmitting or receiving packet at this port

6
• Appearance and MechanismChapter 2
2.2.2 Rear LEDs
Fan tray LED Power Supply LED
(Figure 2-4: Rear LED Identification)
LED Description
Fan tray LED • Solid Green – Fan is operating normally
• Solid Red – Fan failure
Power Supply
LED
• Off – No power or power supply failed
• Solid Green – Power is ok
2.3 System Requirements
Component Requirement
System requirements
Switch fabric capacity Non-blocking full wire speed on all packet sizes
Forwarding architecture Store and forward or cut-through
Port packet forwarding rate
(at 64 Bytes) 14880000 pps (10Gb)
Memory type • 4GB GDDR5 of packet buffer memory
• External TCAM for extending classication database
Console port Serial RS232 console ports (RJ45)
Management port 10/100/1000Mbps, auto sensing, auto negotiation
Port requirements
Speed Capability per Port
• 1G/10Gbps (SFP+ port)
• 40G/100Gbps (QSFP28 port)
• 10G/25G/50G (QSFP28 port, working in breakout)
Full-Duplex Flow Control Support the IEEE 802.3x PAUSE frame

7
AGC7648 Deep-Buffer Switch
2.4 Data Center Deployment
The following gure illustrates the converaged Ethernet data center deployment.
Leaf-Spine
Fabric
SDN
Control Plane
VNF/Services
Control Plane
AGC7648 AGC7648 AGC7648 AGC7648 AGC7648
AG9032 v1AG9032 v1AG9032 v1
SDN enabled Central Office Fabric
Commodity servers, switches and networks access
Access
Core Router
(Core)
(Figure 2-5: Carrier High Level Architecture)
10G downlink
100G uplink100G link
10G downlink
Data Center
VPN/MPLS VPN/MPLS
VPN/MPLS
End of Row
AGC7648 AGC7648 AGC7648 AGC7648
AGC7648
AG9032 v1AG9032 v1
Internet
Internet
Data Center Data Center
(Figure 2-6: Data Center ToR and EoR Deployment)

8
• Appearance and MechanismChapter 2
2.5 Power Supply Modules
The power supply modules are hot-swappable power supply units (PSUs) for the switch.
You can install up to two PSUs. The PSUs operate in a load-sharing mode and provides 1+1
redundancy.
(Figure 2-7: Power Supply Unit)
NOTE:
1+1 redundancy is a system where a switch power supply is backed up by
another switch power supply in a load-sharing mode. If one power supply fails,
the other power supply takes over the full load of the switch.
WARNING:
• The switch includes plug-in power supply and fan tray modules that are
installed into its chassis. All modules have a front-to-back airow direction.
• Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
• Remove the power cable from the module prior to removing the module
itself. Power cable must not be connected prior to insertion in the chassis or
equivalent.
2.6 Fan Tray Module
The fan tray module is part of the switch air cooling system that provides cooling for the
switch. You must install the fan tray module in the switch that matches the airow direction
of the installed power supply unit.
(Figure 2-8: Fan Tray Module)

9
AGC7648 Deep-Buffer Switch
Chapter 3: Installation
3.1 Mounting
This switch can be mounted in a standard 19-inch equipment rack or on a horizontal surface.
Mounting instructions for each type of site follow.
3.1.1 Rack Mounting
Prior rack mounting the switch, pay particular attention to the following factors:
•Mechanical Loading: Do not place any equipment on top of a rack-mounted unit.
•Circuit Overloading: Be sure that the supply circuit to the rack assembly is not overloaded.
•Grounding: Rack-mounted equipment should be properly grounded. Particular attention
should be given to supply connections other than direct connections to the mains.
To rack-mount devices:
1. Attach the two brackets to the device using the eight M4 screws provided in the rack
mounting kit.
NOTE:
The switch can also be mounted in a rack using a rack shelf or rack “L” brackets.
(Figure 3-1: Attaching the Brackets)
2. Mount the device in the rack, using four 12-24 rack-mounting screws.
NOTE:
Rack screws and clip nuts are not supplied in the rack-mounting kit.
CAUTION:
Due to the switch’s weight, it should be installed by at least two people.

10
• InstallationChapter 3
(Figure 3-2: Installing the Switch in a Rack)
3. If installing a single switch only, go to “Connecting to a Power Source”.
4. If installing multiple switches, mount them in the rack, one below the other, in any order.
3.1.2 Horizontal Surface Mounting
The switch includes four pre-installed rubber feet for horizontal surface mounting.
To mount devices on a horizontal surface, follow these steps:
1. Attach the four adhesive feet to the bottom of the rst switch.
(Figure 3-3: Attaching the Adhesive Feet)
2. Set the device on a at horizontal surface near an AC power source, making sure there are
at least two inches of space on all sides for proper air ow.
3. If installing a single switch only, go to “Connecting to a Power Source”.
4. If installing multiple switches, attach four adhesive feet to each one, then place each device
squarely on top of the one below, in any order.

11
AGC7648 Deep-Buffer Switch
3.2 Installing an Optional SFP+/QSFP/QSFP28 Transceiver
The SFP+ slots support the following optional transceivers and cables:
•10GBASE-SR
•10GBASE-LR
•10GBASE AOC
•10GBASE DAC
•1GBase-SX
•1GBase-LX
The QSFP28 slots support the following optional transceivers and cables:
•100G Base-SR4
•100G Base-LR4
•100G AOC
•100G DAC
•40G Base-SR
•40G Base-LR4
•40G AOC
•40G DAC
(Figure 3-4: Inserting an SFP+ Transceiver into a Slot)
(Figure 3-5: Inserting a QSFP28 or QSFP Transceiver into a Slot)
To install the SFP+, QSFP, or QSFP28 transceiver, follow these steps:
1. Consider network and cabling requirements to select an appropriate SFP+, QSFP, or
QSFP28 transceiver type.
2. Insert the transceiver with the optical connector facing outward and the slot connector
facing down. Note that SFP+, QSFP, or QSFP28 transceivers are keyed so they can only
be installed in one orientation.
3. Slide the SFP+, QSFP, or QSFP28 transceiver into the slot until it clicks into place.
NOTE:
•SFP+, QSFP, or QSFP28 transceivers are hot-swappable. The switch does
not need to be powered off before installing or removing a transceiver.
However, always rst disconnect the network cable before removing a
transceiver.
•SFP+, QSFP, or QSFP28 transceivers are not provided in the switch
package.

12
• InstallationChapter 3
3.3 Connecting to the Console Port
This port is used to connect a console device to the switch through a nullmodem serial cable.
The console device can be a PC or workstation running a VT-100 terminal emulator, or a
VT-100 terminal. An RJ-45-to-DB-9 cable is supplied with the switch for connecting to a PC’s
RS-232 serial DB-9 DTE port. The pin assignments used in the RJ-45-to-DB-9 cable are
described below.
DP-9 port
RJ-45 connector
(Figure 3-6: Console Port Connection)
3.4 Connecting to a Power Source
3.4.1 Installing an AC Power Supply
To connect a switch to a power source:
1. Insert the power cable plug directly into the AC socket of a PSU located at the back of the
switch.
Power socket
(Figure 3-7: Power Socket)
2. Plug the other end of the cable into a grounded, 3-pin, AC power source.
NOTE:
For International use, you may need to change the AC line cord. You must use a
line cord set that has been approved for the socket type in your country.
3. Check the PSU and front-panel LEDs as the device is powered on to be sure that AC
power is being received and the Power LED is on. If not, check that the power cable is
correctly plugged in.

13
AGC7648 Deep-Buffer Switch
4. Repeat steps 1 and 2 when a second PSU module is installed.
Two installed PSU modules operate in a load-sharing mode and provide 1+1 redundancy.
3.4.2 Installing a DC Power Supply
Two types of connection to a power source:
a. DC power cord for DC source connection
1. Insert the power cable plug directly into the DC socket of a PSU located at the back of the
switch.
GND
-48V(-DC)
-48V_RTN (+DC)
(Figure 3-8: Installing a DC Power Supply and Power Cable)
2. Plug the other end of the cable into DC power source. This product is intended to be
supplied by DC power source with rated -40 ~ -72Vdc, 16A minimum, Tma = 40 degree C,
and the altitude of operation = 3048 m. The power cable should be 14AWG (16A minimum,
72V minimum).
CAUTION:
•Reversing polarity when connecting DC power wires can
permanently damage the power supply or the system.
•Always disconnect the power cable from power source before you
service the power supply slots.
3. Check the PSU and front-panel LEDs as the device is powered on to be sure that DC
power is being received and the Power LED is on. If not, check that the power cable is
correctly plugged in.
4. Repeat steps 1 and 2 when a second PSU module is installed.
Two installed PSU modules operate in a load-sharing mode and provide 1+1 redundancy.

14
• InstallationChapter 3
b. Adapter connector for DC source connection
1. Attach the connector directly into the DC socket of a PSU located at the back of the switch.
GND
-48V(-DC)
-48V_RTN (+DC)
(Figure 3-9: Assembling a DC Connector and Power Wires)
2. Plug the other end of power wires into DC power source. This product is intended to be
supplied by DC power source with rated -40 ~ -72Vdc, 16A minimum, Tma = 40 degree C,
and the altitude of operation = 3048 m. The power cable should be 14AWG (16A minimum,
72V minimum).
CAUTION:
•Reversing polarity when connecting DC power wires can
permanently damage the power supply or the system.
•Always disconnect the power cable from power source before you
service the power supply slots.
3. Check the PSU and front-panel LEDs as the device is powered on to be sure that DC
power is being received and the Power LED is on. If not, check that the power cable is
correctly plugged in.
4. Repeat steps 1 and 2 when a second PSU module is installed.
Two installed PSU modules operate in a load-sharing mode and provide 1+1 redundancy.

15
AGC7648 Deep-Buffer Switch
Chapter 4: Making the Network Connections
The AGC7648 switch is designed to provide high-speed, lossless Ethernet connections
between server racks through its 10G SFP+ or 100G QSFP28 ports. This chapter describes
how to make network connections to the switch.
4.1 Twisted-pair Connections
The switch’s Management port connection requires an unshielded twisted-pair (UTP)
cable with RJ-45 connectors at both ends. Use Category 5, 5e or 6 cable for 1000BASE-T
connections, Category 5 or better for 100BASE-TX connections, and Category 3 or better for
10BASE-T connections.
4.1.1 Cabling Guidelines
The RJ-45 port on the switch supports an automatic MDI/MDI-X pinout conguration, so
you can use a standard straight-through twisted-pair cable to connect to any other network
device (PCs, servers, switches, routers, or hubs).
4.1.2 Connecting to the Management Port
1. Attach one end of a twisted-pair cable segment to the link device’s RJ-45 connector.
RJ-45 connector
(Figure 4-1: Making a Connection to the Management Port)
2. Attach the other end to the Management port on the switch.
Make sure the twisted pair cable does not exceed 100 meters (328 ft) in length.
3. When the connection is made, the Mgmt LED (on the switch) will light green to indicate that
the connection is valid.

16
• Making the Network ConnectionsChapter 4
4.2 Fiber Optic Connections
Optional 10G SFP+ or 100G QSFP28 transceivers can be used for ber connections from
the switch to other network devices in the data center. An SFP+ or QSFP28 transceiver may
also be used for long distance connections to devices at another site.
WARNING:
•This switch uses lasers to transmit signals over ber optic cable. The lasers
are compliant with the requirements of a Class 1 Laser Product and are
inherently eye safe in normal operation. However, you should never look
directly at a transmit port when it is powered on.
•When selecting a ber SFP+ or QSFP28 device, considering safety, please
make sure that it can function at a temperature that is not less than the
recommended maximum operational temperature of the product. You must
also use an approved Laser Class 1 SFP+ or QSFP28 transceiver.
The following gure illustrates the SFP+ or QSFP28 port ber connection.
(Figure 4-2: Making SFP+ Port Fiber Connection)
(Figure 4-3: Making QSFP28 Port Fiber Connection)

17
AGC7648 Deep-Buffer Switch
4.3 Ethernet Cabling
To ensure proper operation when installing the switch into a network, make sure that the
current cables are suitable for 10BASE-T, 100BASE-TX or 1000BASE-T operation. Check the
following criteria against the current installation of your network:
•Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP) cables with RJ-
45 connectors; Category 3 or better for 10BASE-T, Category 5 or better for 100BASE-TX,
and Category 5, 5e or 6 for 1000BASE-T.
•Protection from radio frequency interference emissions
•Electrical surge suppression
•Separation of electrical wires (switch related or other) and electromagnetic elds from
data based network wiring
•Safe connections with no damaged cables, connectors or shields
