DENON AVR/AVC control protocol
Ver. 4.37.2
Application model : AVR-5805CI/Upgraded AVR-5805/AVC-A1XVA/Upgraded AVC-A1XV
Application terminal : RS-232C/ Ethernet
Connector specification
1. RS-232C
Connector type : DB-9pin female type, slave straight connection (DCE type)
( 1pin : GND , 2pin : TxD , 3pin : RxD , 5pin : Common(GND) , 4,6,7,8,9pin : NC )
Communication format :
Synchronous system : Tone step synchronization
Communication system : A half duplex
Communication speed : 9600bps
Character length : 8 bits
Parity control : None
Start bit : 1 bit
Stop bit : 1 bit
Communication procedure : Non procedural
Communication data length : 135 bytes (maximum)
Version Date Contents Page
4.37.2 27.Apr.’06 Original

2/34
2. Ethernet
Connector type ：RJ-45(10BASE-T/100BASE-TX)
Communication format ：
Communication system : A half duplex
Communication speed : 10Mbps/100Mbps
Communication port : TCP port 23 (telnet)
Communication data length : 135bytes (maximum)

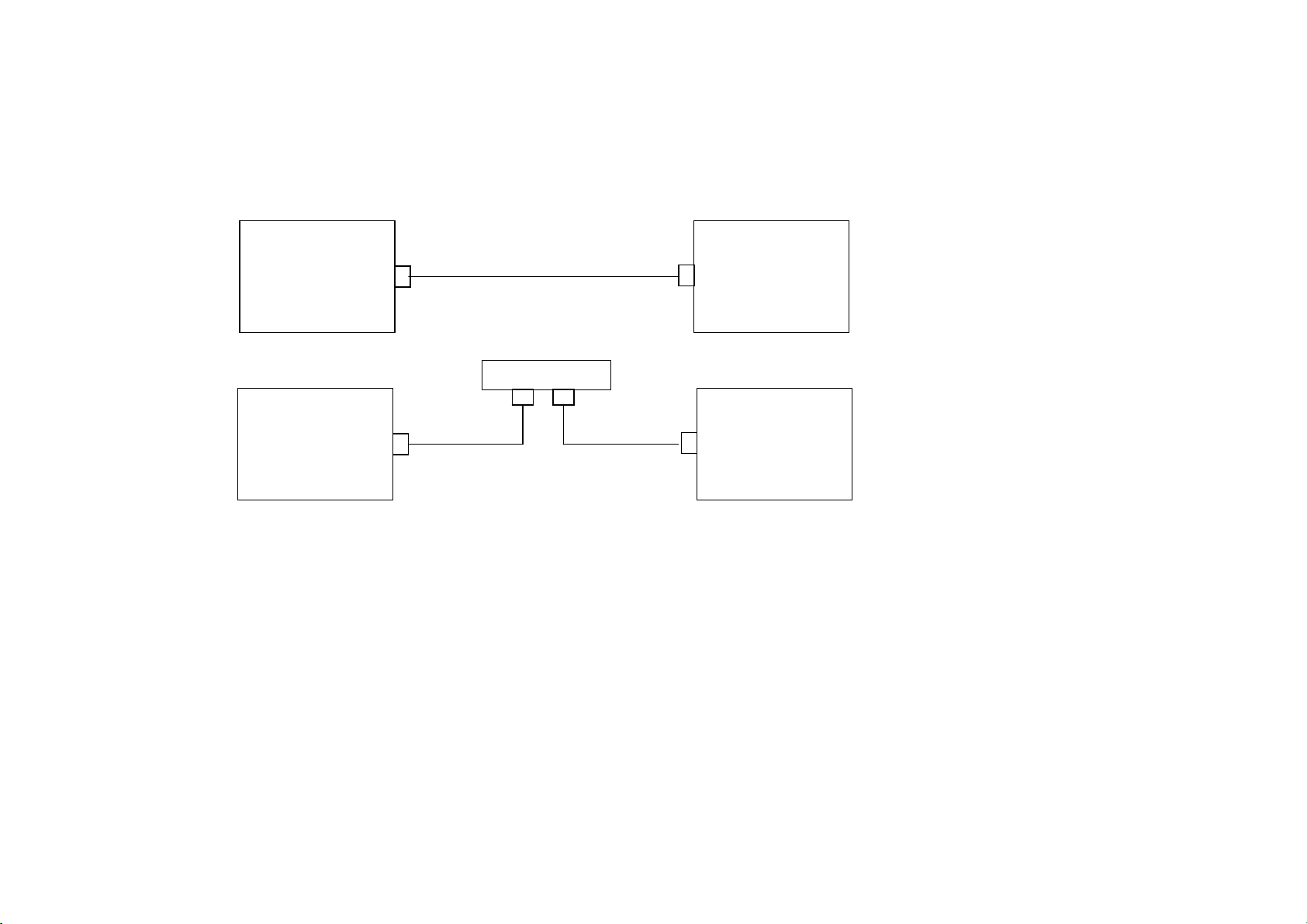

PC AVR/AVC
Ethernet
Cross cable
PC AVR/AVC
HUB
Ethernet
Straight
cable
Ethernet
Straight
cable
Example ①
Example ②

3/34
NETWORK SETUP of AVR-5805UPG/AVC-A1XVA
>Procedure of Network Setup mode.
(1)Press SYSTEM SETUP button, then System Setup Menu appears on FL-display(and OSD)
(2)Select Option Setup and select Network Setup.
(3)Set parameters described below.
<DHCP> "ON"---Use this setting when DHCP server is on the local network.
"OFF"---Use this setting when DHCP server is not on the local network.
<IP Address> When <DHCP> sets "OFF”, please set IP address.
When <DHCP> sets "ON”, you can confirm the IP address that is set by server.
<Subnet Mask> When <DHCP> sets "OFF”, please set Subnet Mask.
When <DHCP> sets "ON”, you can confirm the Subnet Mask that is set by server.
<Gateway> Set the address of Gateway when Gateway is on the local network.
Do not set this parameter when Gateway is not on the local network.
<Primary DNS> Do not set this parameter.
<Second DNS> Do not set this parameter.
<Proxy> Set this parameter "OFF".
<Network Option:Standby Mode Power Saving>
“OFF”---Use this setting when using the AVR-5805UPG/AVC-A1XVA connected in a network.
“ON”--- Use this setting when not using the AVR-5805UPG/AVC-A1XVA connected in a network.
This setting is reducing the power consumption in the standby mode.

4/34
Protocol specification
The following three data forms is defined.
COMMAND : The message sent to a system(AVR/AVC) from a controller(Touch Panel etc.)
A command to a system is given from a controller.
EVENT : The message sent to a controller(Touch Panel etc.) from a system(AVR/AVC)
The result is sent, when a system is operated directly and a state changes.
*The form of EVENT presupposes that it is the same as that of COMMAND.
**Refer to the following table for the contents of COMMAND and EVENT.
RESPONSE : The message sent to a controller(Touch Panel etc.) from a system(AVR/AVC)
if the ‘request command’ (COMMAND+?+CR(0x0D)) has came from a controller.
The RESPONSE should be sent within 200ms of receiving the COMMAND.
*The form of RESPONSE presupposes that it is the same as that of EVENT.
Basic specification : The command by ASCII CODE, parameter expression
*ASCII CODE which can be used is from 0x20 to 0x7F : the alphabet and the number of 0-9 , and space (0x20) , Some signs ,
AND carriage return(0x0D)--- It is used only as a pause sign.
Command structure : COMMAND + PARAMETER + CR(0x0D)
COMMAND : ASCII CODE of 2 characters
ex. SI : Select Input source
MS : surround Mode Setting
MV : Master Volume setting
PW : system PoWer setting
PARAMETER : ASCII CODE ( up to 25 characters)
ex. DVD : function name
CDR/TAPE : function name
THX SURROUND EX : surround mode name
SUPER STADIUM : surround mode name
*Special Parameter--- ? : for request command

5/34
The example of a command * <CR> is the meaning of 0x0D.
SIDVD<CR> : Select Input source DVD
MSTHX SURROUND EX<CR> : surround Mode Set to THX SURROUND EX
MVUP<CR> : Master Volume UP
PWON<CR> : system Power ON
PWSTANDBY<CR> : system PoWer STANDBY
SI?<CR> : Request command for now playing input source >> Return RESPONSE ‘SI***<CR>’

6/34
Others
A) COMMAND is receivable also during transmission of EVENT.
B) Since CHANNEL VOLUME changes simultaneously when the SURROUND MODE changes, the value of the channel volume of all channels
returns as EVENT.
C) CHANNEL VOLUME returns the data of ALL channels by the present SURROUND MODE also including an intact channel. In this case,
the data of an intact channel is set to "50".
D) Since SURROUND MODE changes simultaneously when the INPUT source changes, the SURROUND MODE (and also the value of the channel
volume of all channels , It described in B) ) returns as EVENT.
E) When SURROUND MODE is the same in between INPUT source change before and after, EVENT of SURROUND MODE and CHANNEL VOLUME
does NOT return.
F) Although EVENT of SURROUND MODE returns when the present SURROUND MODE is set up again, CHANNEL VOLUME does NOT return.
G) When SURROUND MODE is changed, before returning SURROUND MODE after change as EVENT, the present SURROUND MODE is returned.
H) The RESPONSE should be sent as opposed to the request command by all the commands with which an EVENT exists , not need to
the another request commands(ex. SV command).
I) The PARAMETER (with COMMAND and RESPONSE, EVENT) of minimum level of MASTER VOLUME defines “99”.
J) If the MASTER VOLUME & ZONE2 VOLUME（ZONE2 THEATER:5.1ch or 7.1ch system）& CHANNEL VOLUME set with 0.5dB step, the PARAMETER
(with COMMAND and RESPONSE, EVENT) defines three ASCII characters as bellows.
ex. MASTER VOLUME = +1.0dB : MV81<CR>
+0.5dB : MV805<CR>
0dB : MV80<CR>
-0.5dB : MV795<CR>
-1.0dB : MV79<CR>
| |
-79.5dB : MV005<CR>
-80.0dB : MV00<CR>
--- : MV99<CR>
* At the **.0dB step, only uses two ASCII characters as PARAMETER, same as usual.
K) Six seconds later, please transmit the next COMMAND after transmitting a power on COMMAND（PWON）.

7/34
COMMAND and PARAMETER list
COMMAND PARAMETER function example
PW ON POWER ON/STANDBY change PWON<CR>
STANDBY PWSTANDBY<CR>
? Request PW Status PW?<CR>
MV UP MASTER VOLUME UP/DOWN , direct change to ***dB MVUP<CR>
DOWN MVDOWN<CR>
** **:00 to 99 by ASCII , 80=0dB, 99=---(MIN) MV80<CR>
? Request MV Status MV?<CR>
CV FL UP CHANNEL VOLUME UP/DOWN , direct change to ***dB CVFL UP<CR>
FL DOWN ---FRONT Lch CVFL DOWN<CR>
FL ** **:38 to 62 by ASCII , 50=0dB CVFL 50<CR>
FR UP CVFR UP<CR>
FR DOWN ---FRONT Rch CVFR DOWN<CR>
FR ** **:38 to 62 by ASCII , 50=0dB CVFR 50<CR>
C UP CVC UP<CR>
C DOWN ---CENTER ch CVC DOWN<CR>
C ** **:38 to 62 by ASCII , 50=0dB CVC 50<CR>
SW1 UP ---SWLeft or SWFront or SWMain ch (SWch 2 or 3SP) CVSW1 UP<CR>
SW1 DOWN ---SUBWOOFER (When SWch is 1SP) CVSW1 DOWN<CR>
SW1 ** **:00,38 to 62 by ASCII , 50=0dB, 00=OFF CVSW1 50<CR>
SW2 UP CVSW2 UP<CR>
SW2 DOWN ---SWRight or SWBack ch (SWch 2 or 3SP) CVSW2 DOWN<CR>
SW2 ** **:00,38 to 62 by ASCII , 50=0dB, 00=OFF CVSW2 50<CR>
LFE UP CVLFE UP<CR>
LFE DOWN ---LFEch (SWch 2 or 3SP) CVLFE DOWN<CR>
LFE ** **:00,38 to 62 by ASCII , 50=0dB, 00=OFF CVLFE 50<CR>
SLA UP CVSLA UP<CR>
SLA DOWN ---SURROUND L(A)ch CVSLA DOWN<CR>
SLA ** **:38 to 62 by ASCII , 50=0dB CVSLA 50<CR>
SRA UP CVSRA UP<CR>
SRA DOWN ---SURROUND R(A)ch CVSRA DOWN<CR>
SRA ** **:38 to 62 by ASCII , 50=0dB CVSRA 50<CR>
MV , CV COMMAND : "*" parameter uses two or three ASCII characters. (see page6 (J) section)

8/34
COMMAND PARAMETER function example
CV SLB UP CVSLB UP<CR>
SLB DOWN ---SURROUND L(B)ch CVSLB DOWN<CR>
SLB ** **:38 to 62 by ASCII , 50=0dB CVSLB 50<CR>
SRB UP CVSRB UP<CR>
SRB DOWN ---SURROUND R(B)ch CVSRB DOWN<CR>
SRB ** **:38 to 62 by ASCII , 50=0dB CVSRB 50<CR>
SBL UP CVSBL UP<CR>
SBL DOWN ---SURROUND BACK Lch (SBch 2SP) CVSBL DOWN<CR>
SBL ** **:38 to 62 by ASCII , 50=0dB CVSBL 50<CR>
SBR UP CVSBR UP<CR>
SBR DOWN ---SURROUND BACK Rch (SBch 2SP) CVSBR DOWN<CR>
SBR ** **:38 to 62 by ASCII , 50=0dB CVSBR 50<CR>
SB UP CVSBL UP<CR>
SB DOWN ---SURROUND BACKch (SBch 1SP) CVSBL DOWN<CR>
SB ** **:38 to 62 by ASCII , 50=0dB CVSBL 50<CR>
? Request CV Status CV?<CR>
MU ON OUTPUT MUTE ON/OFF change MUON<CR>
OFF MUOFF<CR>
? Request MU Status MU?<CR>
CV COMMAND : "*" parameter uses two or three ASCII characters. (see page6 (J) section)

9/34
COMMAND PARAMETER function example
SI PHONO Select INPUT source SIPHONO<CR>
CD SICD<CR>
TUNER SITUNER<CR>
DVD SIDVD<CR>
VDP SIVDP<CR>
TV SITV<CR>
DBS SIDBS<CR>
VCR-1 SIVCR-1<CR>
VCR-2 SIVCR-2<CR>
VCR-3 SIVCR-3<CR>
VCR-4 SIVCR-4<CR>
V.AUX SIV.AUX<CR>
CDR/TAPE SICDR/TAPE<CR>
AUX SIAUX<CR>
? Request SI Status SI?<CR>
ZM ON MAIN-ZONE ON/OFF change ZMON<CR>
OFF ZMOFF<CR>
? Request ZM Status ZM?<CR>
SV DVD VIDEO SELECT mode set , and select source SVDVD<CR>
VDP SVVDP<CR>
TV SVTV<CR>
DBS SVDBS<CR>
VCR-1 SVVCR-1<CR>
VCR-2 SVVCR-2<CR>
VCR-3 SVVCR-3<CR>
VCR-4 SVVCR-4<CR>
V.AUX SVV.AUX<CR>
SOURCE VIDEO SELECT mode cancel SVSOURCE<CR>
? Request SV Status SV?<CR>
