Deponti Giallo User manual

User manual / Assembly instructions
Deponti Veranda
Type Giallo
Version: EN –February 2023
www.deponti.com

www.deponti.com Assembly Manual –Giallo Veranda page
2
Contents
1. Introduction 3
2. Safety precautions and warnings 3
3. Product description 5
4. Parts overview 6
4.1 Exploded view 6
4.2 Delivery inspection 6
4.3 Parts list 7
5. Preparation for assembly 9
5.1 Conditions for assembly 9
5.2 Inspection of tools and accessories 11
5.3 Measuring & determining dimensions 12
5.3.1 Height adjustments 13
5.3.2 Veranda projection 13
5.3.3 Number of posts 14
5.4 Joining verandas 16
6. Assembly 18
6.1 Mounting the wall profile 18
6.2 Pre-installing the gutter 20
6.2.1 Installing the leaf catcher in the gutter 20
6.2.2 Attaching the decorative profile to the gutter 21
6.3 Installing posts, gutter and end beams 23
6.3.1 Installing posts on concrete bases 23
6.3.2 Installing the gutter 25
6.3.3 Installing the end beams 26
6.4 Installing the middle beams 28
6.5 Preparing and installing the roofing sheets 30
6.6 Finishing 34
7. Maintenance 38
8. Disposal of waste 38
9. Warranty conditions 38
10. Contact 38
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE!
For the duration and the terms and conditions of the warranty we recommend that you contact your Deponti
partner. We also refer you to our General Terms and Conditions of Sale and Delivery which are available on
request. Deponti B.V. accepts no liability for any damage or injury resulting from a failure to carefully follow the
instructions in this manual or exercise due caution during transport, assembly, use and maintenance of the
Veranda. As a result of our policy of continuous product improvement, certain product details may differ from what
is described in this manual. For this reason the instructions provided only serve as a guideline for installation of
the product this manual describes. This manual has been compiled with the utmost care, but Deponti B.V. cannot
be held responsible for any errors in this manual or the consequences thereof. Furthermore, all rights are
reserved and no part of this manual may be reproduced in any way whatsoever.

www.deponti.com Assembly Manual –Giallo Veranda page
3
MANUAL
LEES
AANDACHTIG
!
!
1. Introduction
Congratulations on the purchase of your Deponti Veranda!
Before you can start enjoying your Veranda it must be assembled properly. This manual provides
clear instructions for all the steps you must complete for correct assembly of your Deponti Veranda.
We recommend that you take the time to read the entire manual before you begin assembly.
Check whether you have received all the necessary parts before you begin assembly. For your safety,
follow all the applicable instructions. This also guarantees the safety of the installed roof. If you
should have any questions, please feel free to contact your Deponti partner.
This manual should be kept in a safe, dry and shady place. In the event of damage or loss, the user
must request a new copy of the manual from the Deponti partner.
2. Safety precautions and warnings
Important:
Please read the safety precautions and warnings before assembling the veranda.
•During assembly, carefully follow the instructions and guidelines as described in this manual.
Never change the order of the steps to be performed. If any aspect of the assembly
procedure is unclear, please contact your Deponti partner. We reserve the right to make
technical changes without written notice.
•We normally recommend that the veranda must be assembled by at least two
people (qualified technicians/authorized installers) working together.
•Check the delivery immediately upon receipt. In the event of damage or an incomplete
delivery please contact your Deponti partner immediately.
•The materials must be stored in a dry, ventilated area, not exposed to direct sunlight.
•Open the packaging carefully. Make sure that you do not damage the product.
•To prevent damage to your veranda, place the parts on a smooth, clean surface. Place the
profiles on a flat surface, protected from sun and rain.
READ
CAREFULLY

www.deponti.com Assembly Manual –Giallo Veranda page
4
2. Safety precautions and warnings (continued)
•Adding or removing parts, the use or installation of materials. other than described in this
manual, may adversely affect the safety of the veranda and is therefore strongly
discouraged!
•Cordon off the assembly location so that others are kept at a safe distance.
•Always place a ladder on a firm, stable surface.
•Always wear the correct protective clothing (work gloves, dust mask, safety glasses, shoes
with non-slip soles, etc.) during installation or servicing.
•Mount the system against a firm, flat wall and on a flat and stable foundation. Ensure that
the wall and the ground are clean and dry.
•Never stand on the polycarbonate sheets.
The polycarbonate sheets are strong, but insufficiently resistant to point loads. Do not walk
on them!
•Make sure all fasteners are properly tightened. Check this regularly.
•Make sure you have applied sealant on the veranda so it is completely waterproof.
•You must maintain and clean your veranda at least once a year. During this yearly
maintenance make sure all fasteners are properly tightened.
•Dispose the product in accordance with local laws and regulations.
•When safety regulations and instructions are not followed correctly, Deponti B.V. will not
accept any responsibility for damage(s) and injuries.

www.deponti.com Assembly Manual –Giallo Veranda page
5
3. Product features
The aluminium veranda type Giallo is composed of posts, gutter profile, wall profile, beams,
polycarbonate roofing sheets, cover strips and the necessary assembly materials.
As standard, a straight decorative gutter is included and rectangular posts, consisting of two parts.
The Deponti Giallo veranda is available as standard in widths of 4060, 5060, 6060 or 7060 as a single
section; there is no limit to the number of sections that can be joined end to end.
The roof can have a projection of 2500, 3000, 3500, 4000 or 6000mm.
Details
Colours RAL9001, RAL9016, RAL7024
Gutter Straight*
Posts Rectangular (115x150 mm consisting of two parts (U-profile and click-on
strip)
Roofing Polycarbonate (Opal / Clear / Ultra-clear / Solar control) or 44.2 glass
Width (mm) 4060/5060/6060/7060** or a multiple thereof.
Projection (mm) 2500/3000/3500/4000/6000***
* Optional round or classic gutter
** Please note: 7060mm is not available in RAL9001.
*** Please note: Only available with opal or clear polycarbonate. In order to realize this
projection, you must reinforce the beams yourself for the correct application. The standard
6m beams supplied by us are not reinforced. We are not liable for incorrect use of our
products.
A Deponti veranda can be installed on any existing foundation or stone surface if it complies. For
added strength or when there is no good foundation present, concrete bases can be used. These
concrete bases can be easily installed out of sight under the posts with the supplied bolts.
The concrete bases are available with or without a rainwater discharge opening.

www.deponti.com Assembly Manual –Giallo Veranda page
6
3
22
1
14
17
21
22 12
2
4
5
8
7A
9
10
10
11
13
12
15 16
18
19
20
23
20
23
18
7B
6
4. Parts Overview

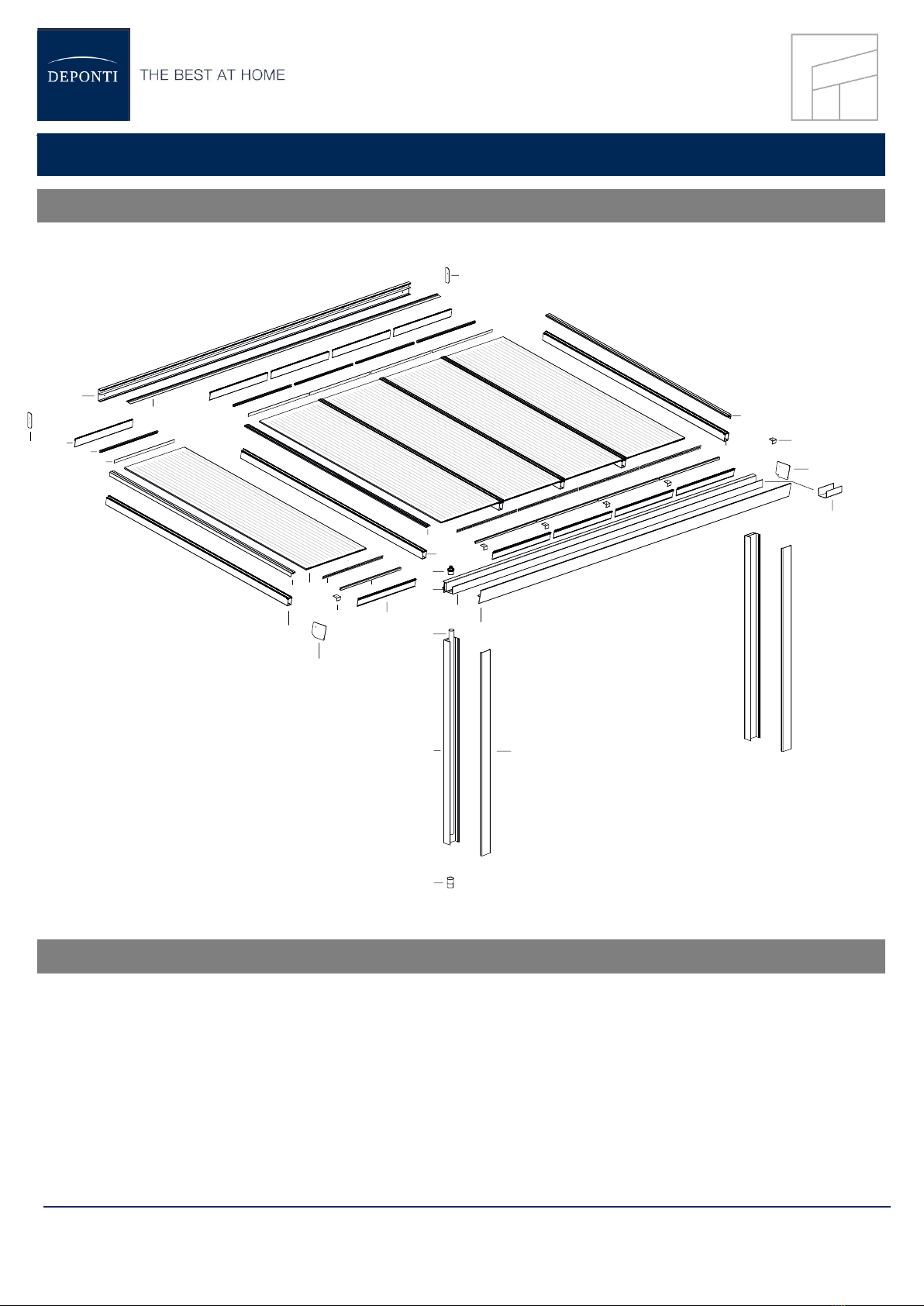

4.1 Exploded view
4.2 Delivery Inspection
The veranda shown in this manual is a 5x3 metre Giallo, with two posts. This merely serves as an
example. The type and number of components supplied depends on your order.
Note: Always carefully check the delivered items against the accompanying delivery note to ensure
that the quantity and quality are correct. Any visible defects must be reported in writing within 7
days of delivery.

www.deponti.com Assembly Manual –Giallo Veranda page
7
4.3 Parts list

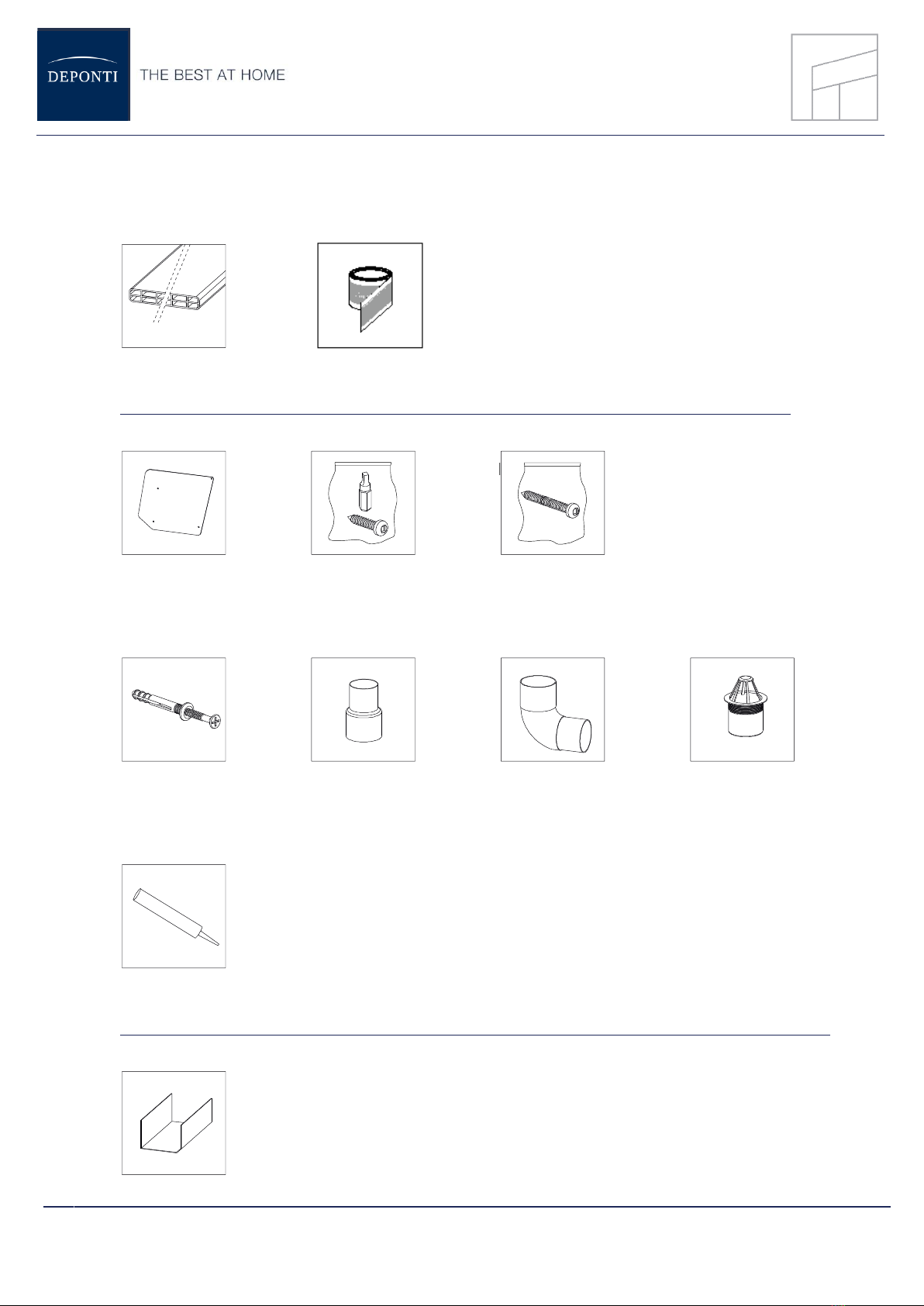

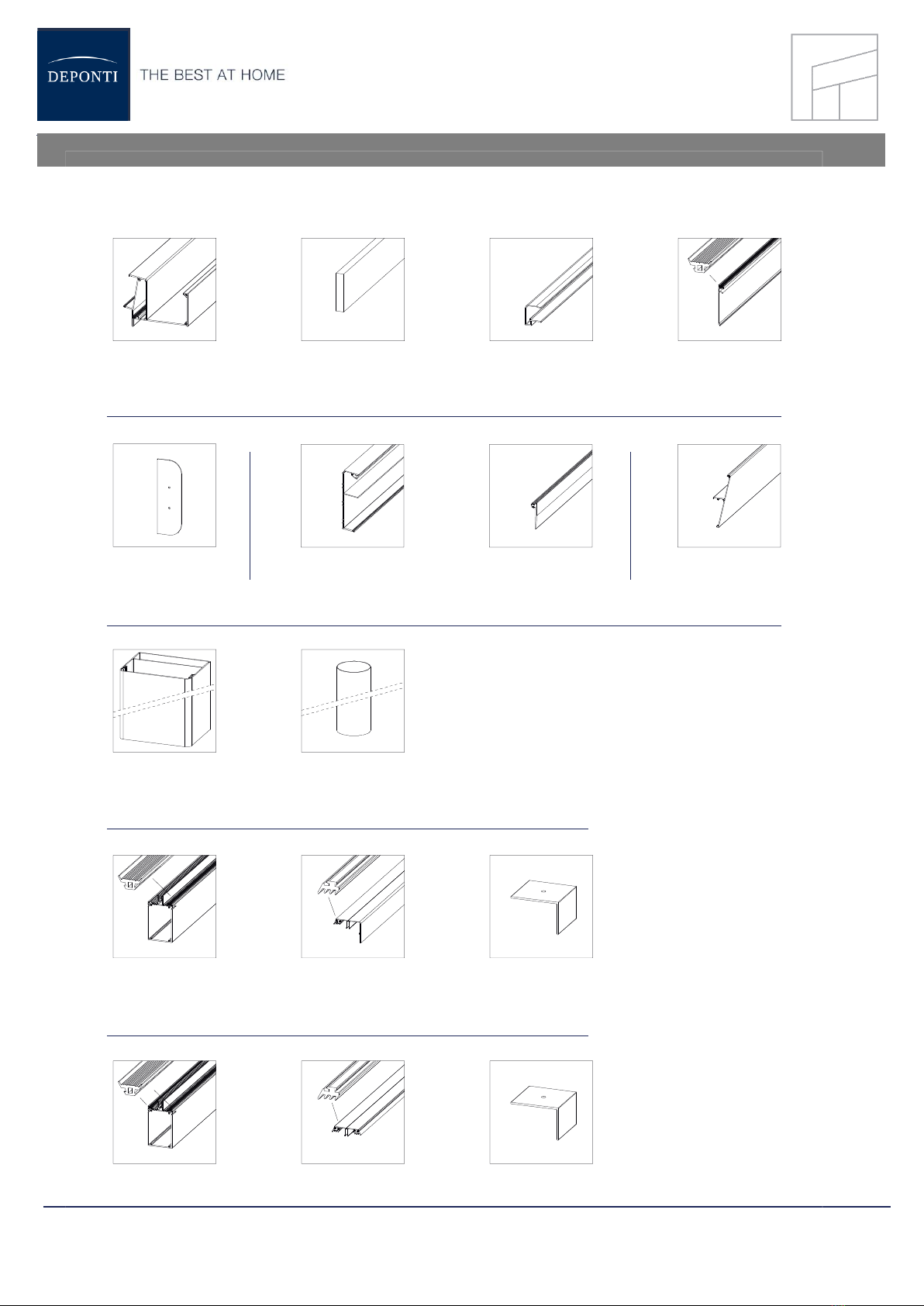

The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
02. Gutter
profile
16. Condensation profile
long 17. Condensation
profile short
12. Trim click strip
22. side cover
wall profile
01. Wall profile
21. Wall profile
rubber
05. Decorative
profile for
gutter
7. Post rectangular
7A. U-profile / 7B. Click-on
strip
09. Rainwater discharge
pipe ø60 mm
10. End beam
1x sealing rubber
18. End cover strip
1x sealing rubber
20. Sheet stopper
11. Middle beam
2x sealing rubber
19. Top cover strip
2x sealing rubber
20. Sheet stopper
06. Steel strip
20x100 mm

www.deponti.com Assembly Manual –Giallo Veranda page
8
XX
13. Polycarbonate
Sheet 980 mm
15. Anti-dust tape
(Perforated)
15. Anti-dust tape
(Perforated)
23. Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
08. Rainwater
discharge sleeve
08A. 90° rainwater
discharge sleeve
(option)
1x coloured
sealant
1x sealant gun
1x hole saw 60 mm
04. Leaf catcher
03. Gutter connector (Option)
or

www.deponti.com Assembly Manual –Giallo Veranda page
9
!
5. Preperation for assembly
5.1 Conditions for assembly
•Note: The optimal processing temperature for the sealant is +5 °C to +40 °C.
Ground & façade
•A good flat stable surface is required for construction of the veranda.
•The location where the roof will be placed must be construction-ready and free of obstacles
(garden furniture, flower boxes, etc.) so installers can perform their work without hindrance.
•Any obstacles, including utility lines (such as power cables, etc.), roots and debris, must have
been removed from the ground.
•
•The façade must be free of sun shades, etc.
•The place where the wall profile will be placed must be firm, even and flat.
Dimensions & slope
•This Deponti roof should be installed with a slope of 15,7 cm per metre.
The height of the wall profile and the passage height (distance from bottom of gutter to the
ground) are completely dependent on each other and determined by this slope.
•The maximum length of the roof is 6 metres. However, keep in mind the requirements
concerning the maximum free span and number of posts (see page 14).
Posts & joined verandas
•Maximum distance between the posts is 6 metres (see page 14).
•When verandas are joined, a post is always placed under the coupling.
•The rainwater discharge cannot be placed inside a post above which gutters are joined.
Attachments at walls
•Due to expansion of the materials, the veranda may not be placed tightly between two walls;
there must be a gap of 1.5 mm per metre of width of the veranda.
•When concrete bases are used the posts cannot be placed against the wall, because the
block is wider than the post.
Screws and drilling
•Deponti supplies special 4.2x19 mm and 4.2x40 mm stainless steel screws with the veranda.
Note: Pre-drill a hole for each screw with a 3 mm drill bit!
If you continue to turn them after they are tight, the screw head may break off. It is
recommended that you screw carefully, with the torque limiter on your drill set properly.
•Note: Never drill and screw through the PVC rainwater discharge pipe in one of the posts.

www.deponti.com Assembly Manual –Giallo Veranda page
10
!
5.1 Conditions for assembly (continued)
Sealant
•Deponti supplies sealant in the colours cream and graphite grey. This supplied sealant has
been specially selected for the waterproof sealing of aluminium to aluminium or to most
common construction materials, such as walls, concrete, etc. Follow the instructions on the
tube.
•Note: This sealant is not suitable for sealing the polycarbonate sheets. If you need to seal
your sheets, because you have a rainwater discharge (downspout) pipe run through it for
example, we have special transparent sealant in our range. This sealant is available from
retailers.
Rubber seals
•A Deponti veranda is standard equipped with pre-assembled, colour-matched rubber seals.
Before installation, the rubber seals for both the aluminium cover strips and the beams must
be cut to length.
•If the rubber seals are deformed, they can be straightened again with a little heat, from a hot
air heater or hair dryer for example.
Remove protective film
•It is recommended that the protective film be removed from the aluminium parts and the
roofing sheets at the last possible moment, to prevent damage. When mounting the roofing
sheets, however, the edges of the protective film must be pulled back a few centimetres
towards the middle of the sheet so the film does not get stuck in the profiles; otherwise it
will be difficult to remove later.
Warranty is void if the Giallo veranda is not assembled and installed in accordance with
the instructions.

www.deponti.com Assembly Manual –Giallo Veranda page
11
Ø3
Ø8
Silicon spray
Ø60
5.2 Inspection of tools and accessories
)

www.deponti.com Assembly Manual –Giallo Veranda page
12
B: Length of wall profile, gutter profile and decorative profile.
H1: Height from ground to bottom of wall profile.
H2: Height from ground to bottom of gutter profile (= passage height).
D: Distance from back of wall profile to inside of post (= projection).
D + 70 mm: Distance from back of wall profile to centre of rainwater discharge
pipe.
H2
B
H1
D+ 70mm
D
D
H1
H2
D+70 mm
5.3 Measuring & determining dimensions
The Deponti veranda is available in a large range of sizes. Moreover, the roof has a modular design
and can be quickly and easily made to size. However, please note that our current and future
modular options are based on standard sizes. If you do not install your roof using the standard sizes,
your options will also have to be adapted to size.

www.deponti.com Assembly Manual –Giallo Veranda page
13
5.3.1 Height adjustments
A Deponti veranda is designed for a slope of 15,7 cm per metre. All the static strength calculations, as
well as all sizes and dimensions in this manual, are based on this.
The height of the wall profile and the passage height (distance from bottom of gutter to the ground)
are completely dependent on each other and determined by this slope. However, these heights can
be adjusted very easily while maintaining the slope.
If you are going to install your veranda based on the standard dimensions, you can use the dimension
table below.
Projection
Beam length
Distance from back of wall
profile to inside of post (D)
Height from
ground to
bottom of gutter
profile (H2)
Height from ground
to bottom of wall
profile (H1)
2.5 meter
247 cm
244 cm
250 cm
288 cm
3 meter
297 cm
293 cm
250 cm
296 cm
3.5 meter
347 cm
343 cm
250 cm
304 cm
4 meter
397 cm
392 cm
250 cm
311 cm
6 meter
597 cm
590 cm
250 cm
342 cm
If you choose to place the wall profile lower or make the passage height of the gutter lower, you
must:
Subtract the same number of centimetres from both of these measurements. So if your wall profile is
mounted 30 cm lower, you must also shorten your posts by 30 cm.
If you want to reduce the passage height, you can easily shorten the length of the posts by making a
square cut. However, you must then also mount the wall profile the same distance lower on the wall.
The same applies if you decide to mount the wall profile lower on the wall.
Calculation example 1: You have a roof with a length of 300 cm and you want to reduce the standard
passage height from 250 cm to 220 cm. You therefore shorten your posts by 30 cm or you place the
posts 30 cm in the ground, so the bottom of your gutter is at a height of 220 cm. Your wall profile
must therefore be lowered by 30 cm, which means that the bottom of the wall profile must be
placed at 296 cm - 30 cm = 266 cm.
Calculation example 2: You have a roof with a length of 400 cm and you want to place the standard
wall profile 25 cm lower on the wall, at 286 cm instead of 311 cm. You must therefore also place the
bottom of the gutter profile 25 cm lower, which means that you either have to cut 25 cm off your
posts, reducing their length to 225 cm (250 cm - 25 cm) or you have to place your posts 25 cm in the
ground.
5.3.2 Veranda projection
The basic dimensions of a Deponti canopy are approximate. The exact dimensions from the rear of
the wall profile to the inside of the upright can be found in the table above. Example: A 3 metre drop
canopy is not exactly 3 metres. Check the table above for exact sizes in centimetres.

www.deponti.com Assembly Manual –Giallo Veranda page
14
5.3.3 Number of posts
The number of posts of a Deponti roof Type Giallo depends on the width and the projection of the
roof. An overview is provided in the table below with polycarbonate roofing.
Width (B)
Projection
Number of posts
4060 mm
2500 mm
2
4060 mm
3000 mm
2
4060 mm
3500 mm
2
4060 mm
4000 mm
2
4060 mm
6000 mm
3
5060 mm
2500 mm
2
5060 mm
3000 mm
2
5060 mm
3500 mm
2
5060 mm
4000 mm
3
5060 mm
6000 mm
3
6060 mm
2500 mm
2
6060 mm
3000 mm
2
6060 mm
3500 mm
3
6060 mm
4000 mm
3
6060 mm
6000 mm
3
7060 mm
2500 mm
3
7060 mm
3000 mm
3
7060 mm
3500 mm
3
7060 mm
4000 mm
3
7060 mm
6000 mm
3

www.deponti.com Assembly Manual –Giallo Veranda page
15
With glass
In this case the gutter profile, wall profile and decorative profile are supplied in multiple lengths of
4060, 5060 or 6060 mm. The centre-to-centre distance of the beams, the number of sections and the
glass width depend on the width of the Deponti veranda. The dimensions are shown in the table
below.
Dimensions
width x length
sections
C-to-C
dimension
beams
glass width
4060 x 2500
6
667
637
4060 x 3000
6
667
637
4060 x 3500
6
667
637
4060 x 4000
6
667
637
4060 x 6000
6
667
637
5060 x 2500
7
714
684
5060 x 3000
7
714
684
5060 x 3500
7
714
684
5060 x 4000
7
714
684
5060 x 6000
7
714
684
6060 x 2500
8
750
720
6060 x 3000
8
750
720
6060 x 3500
8
750
720
6060 x 4000
8
750
720
6060 x 6000
8
750
720
7060 x 2500
9
778
748
7060 x 3000
9
778
748
7060 x 3500
9
778
748
7060 x 4000
9
778
748
7060 x 6000
9
778
748

www.deponti.com Assembly Manual –Giallo Veranda page
16
HOH maat 1000 mm 30 mm30 mm
5000 mm
5060 mm
HOH maat 1000 mm HOH maat 1000 mm HOH maat 1000 mm HOH maat 1000 mm
5.4 Joining verandas
There is no limit to the width in which the Deponti verandas can be delivered. This is because the
verandas can be joined end to end. In this case the gutter profile, wall profile and decorative profile
are supplied in multiple lengths of 4060, 5060, 6060 or 7060 mm.
The centre-to-centre distance between the beams of a Deponti veranda is 1000 mm (1 metre).
A roof with five one-metre sections has a total width of 5060 mm. The extra 60 mm is the distance
from the centre of the beam to the outside of the beam, which is 30 mm; this extra width is at both
ends, for a total of 60 mm.
When standard size sheets are used, the total width of joined roofs must therefore also end with 60
mm, e.g. 8060, 9060, 10060, etc.
So if you have ordered a roof with a width of 9060 mm, the delivery will consist of one 5060 mm
gutter section and one 4060 mm gutter section. Together this is 9120 mm. You must ensure that the
width ends with xx60, so these profiles must be shorted by a total of 60 mm before installation. This
can be done by removing 30 mm from both sections: 5030 mm + 4030 mm = 9060 mm. You can also
choose to shorten one profile by 60 mm. 5060 mm + 4000 mm = 9060 mm.
This shortening applies to the wall profile, gutter profile and decorative profile. After this shortening
the further assembly is identical to that for a normal roof.

www.deponti.com Assembly Manual –Giallo Veranda page
17
1. Clean and degrease the gutter
and the gutter extension.
2. Insert the gutter connector ¼ of
the way into the gutter and apply
sealant on the inside edge.
3. Now press the gutter extension
further until it is half way into the
gutter.
4. Insert the second gutter ¼ of the
way into the other side of the
extenstion and apply sealant on the
edge.
5. Now press the second gutter
completely over the gutter
extension to form a seamless joint
between the gutters.
6. The gutter connector can now be secured
with the short stainless steel screws in the
chamber of the gutter and on the front side
under the decorative profile. Apply sealant
onthe assembly so it is smooth and
waterproof!
cleaner
3
1/4
1/2
1/4
B
2
2
It is recommended that you join the gutter sections with the supplied gutter extension before
installation. The installation steps are shown below:

www.deponti.com Assembly Manual –Giallo Veranda page
18
50 cm
10 cm
50 cm
Ø8 mm
B
1
B
Ø8 mm
1
6. Assembly
6.1 Mounting the wall profile
If the wall profile does not need to be shortened, you can mount it straight away. Otherwise you
must first cut the wall profile to the desired length. Do not place the supplied rubber strip in the wall
profile yet; this rubber strip is fit in place after mounting.

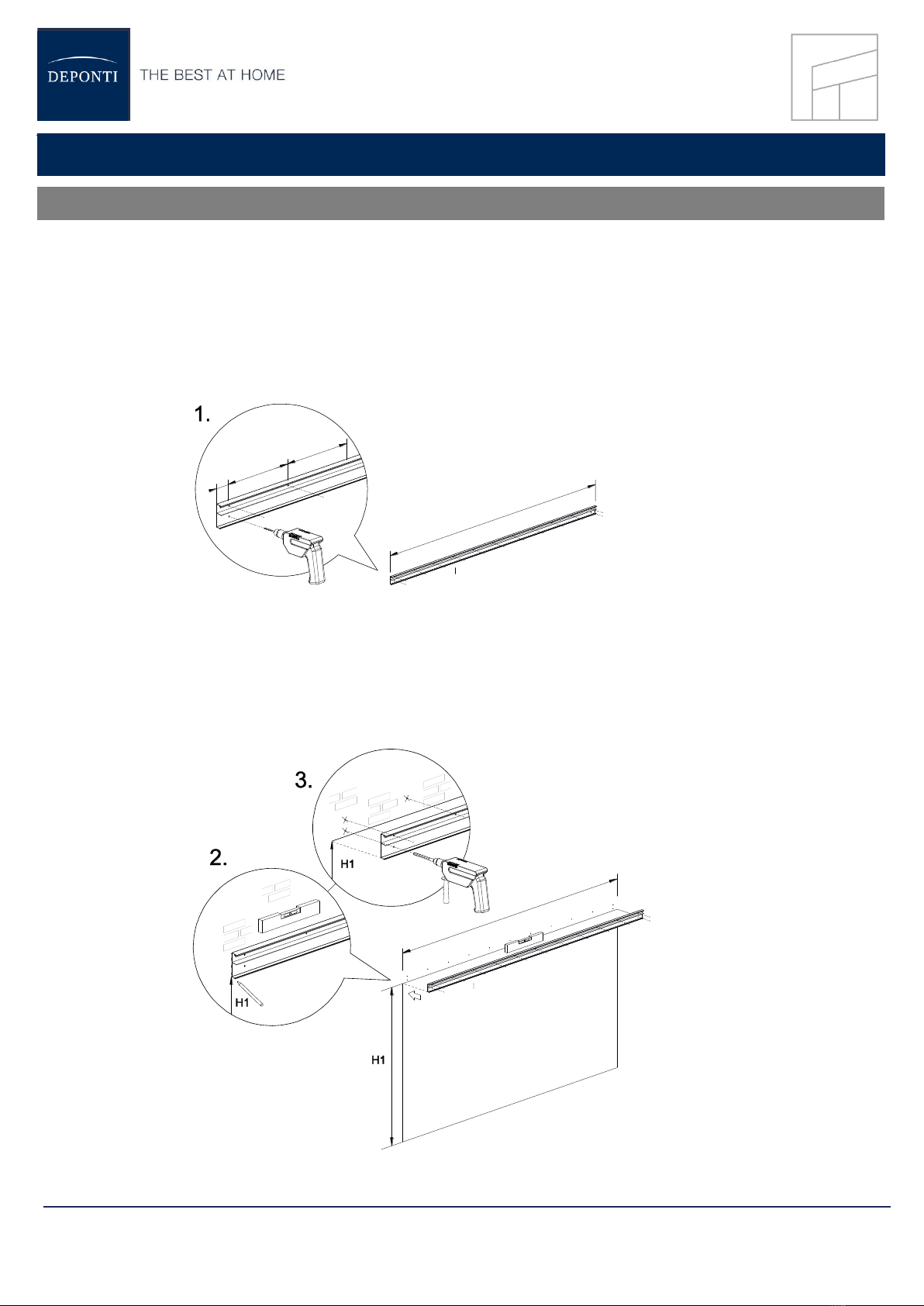

1. Drill holes in the wall profile at 50 cm intervals. Begin approximately 10 cm from one end and
finish approximately 10 cm from the other end. Use a metal drill bit with a diameter of 8 mm.
2. Now mark the wall with a line to indicate where the bottom of the wall profile should be.
Place the wall profile on the line and then mark the holes that you pre-drilled in your wall profile.
3. Now use a concrete drill bit with a diameter of 8 mm to drill the holes. Make sure the wall profile
is level.

www.deponti.com Assembly Manual –Giallo Veranda page
19
cleaner
1

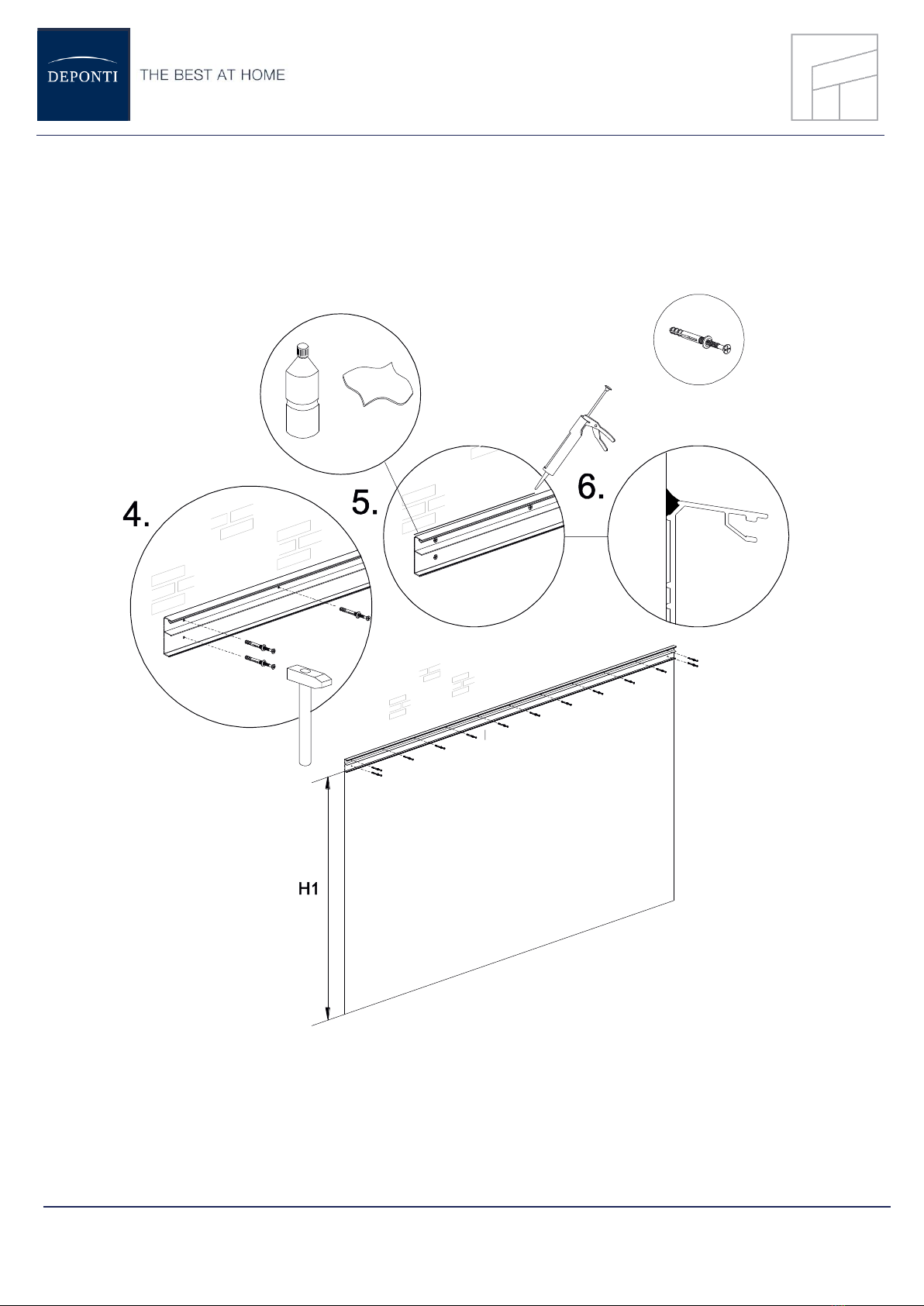

4. Fasten the wall profile with the supplied frame fixing screws (these should only be used if
appropriate for the wall material).
5. Degrease the top edge of the wall profile along the wall.
6. Apply sealant the top edge of the wall profile (between the wall and the wall profile)
to make a good seal. Strike off the sealant to make it smooth and waterproof.

www.deponti.com Assembly Manual –Giallo Veranda page
20
4
Ø60
2
55
78,5
Ø60
6.2 Pre-installing the gutter
If the standard gutter length is correct, you can pre-install it straight away. If not, you must first cut
the gutter profile and decorative profile to the desired length.
6.2.1 Installing the leaf catcher in the gutter

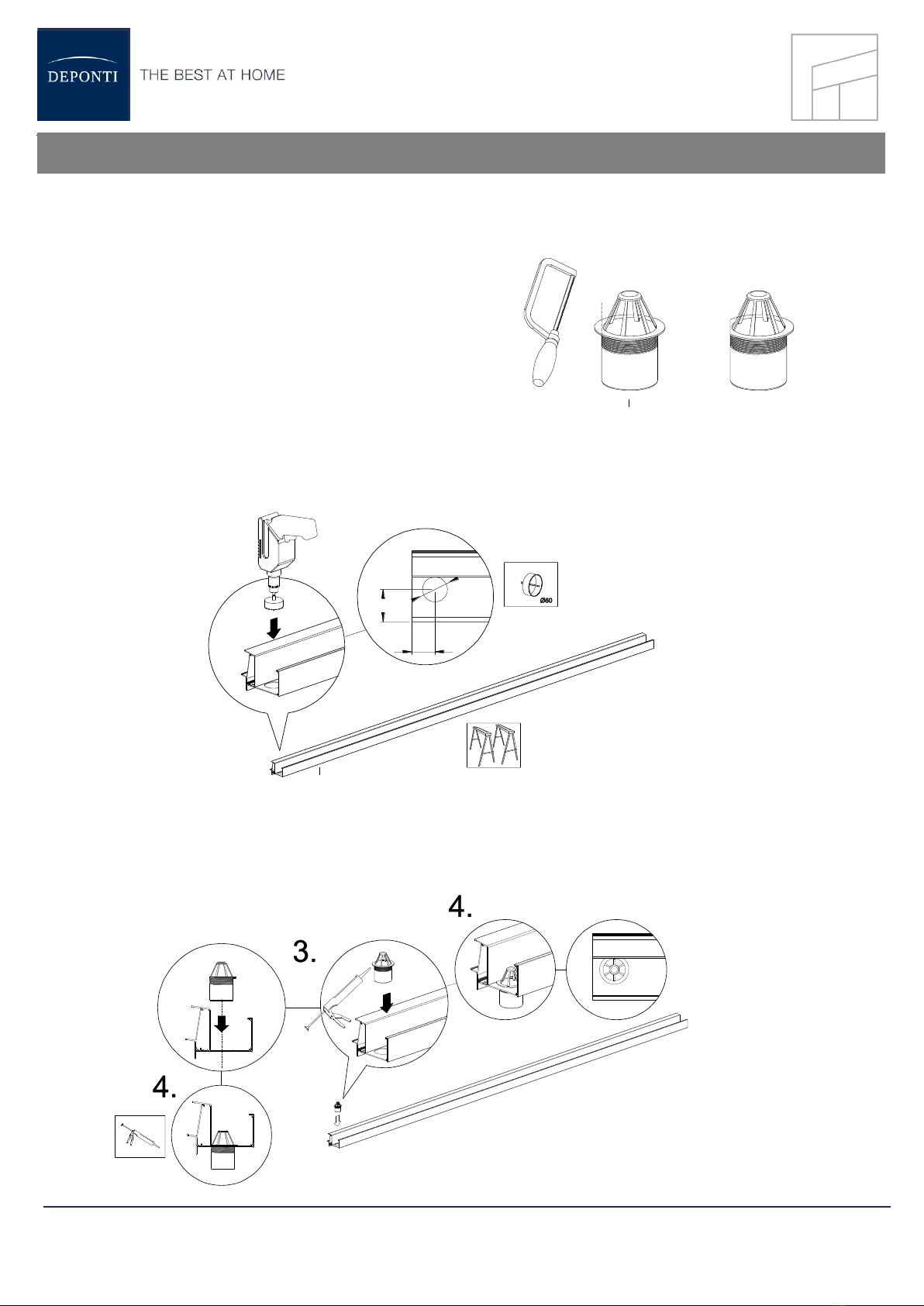

1. Cut/saw off one end of the leaf catcher so
it fits in the gutter profile.
2. Place the gutter flat and firm on a table or sawhorses.
Determine where the rainwater discharge post (and leaf catcher) will be placed, i.e. at the left or
right end of the gutter. Mark the position of the hole for the leaf catcher in the gutter.
Now carefully drill the hole in the gutter with the ø60 mm hole saw.
3. Apply sealant to the underside of the leaf catcher.
4. Place the leaf catcher in the hole in the gutter (with the cut side towards the side of the gutter
profile with the open chambers). Apply sealant to form a waterproof seal around the leaf catcher.
