Deponti Nebbiolo User manual

User manual / Assembly instructions
Deponti Veranda
Type Nebbiolo
Version: EN –February 2022
www.deponti.com

www.deponti.com Assembly Manual –Nebbiolo Veranda page
2
Contents
1. Introduction 3
2. Safety precautions and warnings 3
3. Product description 5
4. Parts overview 6
4.1 Exploded view 6
4.2 Delivery inspection 6
4.3 Parts list 7
5. Preparation for assembly 9
5.1 Conditions for assembly 9
5.2 Inspection of tools and accessories 11
5.3 Measuring & determining dimensions 12
5.3.1 Height adjustments 13
5.3.2 Roof length 13
5.3.3 Roof width 14
6. Assembly 15
6.1 Mounting the wall profile 15
6.2 Installing posts, gutter and end beams 17
6.2.1 Installing posts 17
6.2.2 Pre-drilling the gutter (option) 19
6.2.3 Installing the gutter 20
6.2.4 Installing the end beams 21
6.4 Installing the middle beams 23
6.5 Preparing and installing the roofing sheets 25
6.6 Finishing 29
7. Maintenance 33
8. Disposal of waste 33
9. Warranty conditions 33
10. Contact 33
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE!
For the duration and the terms and conditions of the warranty we recommend that you contact your Deponti
partner. We also refer you to our General Terms and Conditions of Sale and Delivery which are available on
request. Deponti B.V. accepts no liability for any damage or injury resulting from a failure to carefully follow the
instructions in this manual or exercise due caution during transport, assembly, use and maintenance of the
veranda. As a result of our policy of continuous product improvement, certain product details may differ from what
is described in this manual. For this reason the instructions provided only serve as a guideline for installation of
the product this manual describes. This manual has been compiled with the utmost care, but Deponti B.V. cannot
be held responsible for any errors in this manual or the consequences thereof. Furthermore, all rights are
reserved and no part of this manual may be reproduced in any way whatsoever.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
3
MANUAL
LEES
AANDACHTIG
!
!
1. Introduction
Congratulations on the purchase of your Deponti Veranda!
Before you can start enjoying your Veranda it must be assembled properly. This manual provides
clear instructions for all the steps you must complete for correct assembly of your Deponti Veranda.
We recommend that you take the time to read the entire manual before you begin assembly.
Check whether you have received all the necessary parts before you begin assembly. For your safety,
follow all the applicable instructions. This also guarantees the safety of the installed roof. If you
should have any questions, please feel free to contact your Deponti partner.
This manual should be kept in a safe, dry and shady place. In the event of damage or loss, the user
must request a new copy of the manual from the Deponti partner.
2. Safety precautions and warnings
Important:
Please read the safety precautions and warnings before assembling the veranda.
•During assembly, carefully follow the instructions and guidelines as described in this manual.
Never change the order of the steps to be performed. If any aspect of the assembly
procedure is unclear, please contact your Deponti partner. We reserve the right to make
technical changes without written notice.
•We normally recommend that the veranda must be assembled by at least two
people (qualified technicians/authorized installers) working together.
•Check the delivery immediately upon receipt. In the event of damage or an incomplete
delivery please contact your Deponti partner immediately.
•The materials must be stored in a dry, ventilated area, not exposed to direct sunlight.
•Open the packaging carefully. Make sure that you do not damage the product.
•To prevent damage to your veranda, place the parts on a smooth, clean surface. Place the
profiles on a flat surface, protected from sun and rain.
READ
CAREFULLY

www.deponti.com Assembly Manual –Nebbiolo Veranda page
4
2. Safety precautions and warnings (continued)
•Adding or removing parts, the use or installation of materials. other than described in this
manual, may adversely affect the safety of the veranda and is therefore strongly
discouraged!
•Cordon off the assembly location so that others are kept at a safe distance.
•Always place a ladder on a firm, stable surface.
•Always wear the correct protective clothing (work gloves, dust mask, safety glasses, shoes
with non-slip soles, etc.) during installation or servicing.
•Mount the system against a firm, flat wall and on a flat and stable foundation. Ensure that
the wall and the ground are clean and dry.
•Never stand on the polycarbonate sheets.
The polycarbonate sheets are strong, but insufficiently resistant to point loads. Do not walk
on them!
•Make sure all fasteners are properly tightened. Check this regularly.
•Make sure you have used sealant on the veranda so it is completely waterproof.
•You must maintain and clean your veranda at least once a year. During this yearly
maintenance make sure all fasteners are properly tightened.
•Dispose the product in accordance with local laws and regulations.
•When safety regulations and instructions are not followed correctly, Deponti B.V. will not
accept any responsibility for damage(s) and injuries.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
5
3. Product description
The aluminium veranda type Nebbiolo is composed of posts, gutter profile, wall profile, beams,
polycarbonate roofing sheets, cover strips and the necessary assembly materials.
The Deponti Nebbiolo veranda is available as standard in widths of 4045, 5045 or 6045 as a single
section. The roof can have a projection of 2500, 3000 or 3500mm.
Details
Colours RAL9001 / RAL7024
Gutter standard half-round
Posts Square (65x65mm)
Roof covering Polycarbonate (Opal/Clear/Ultra-clear/Solar control)
Width (mm) 4045/5045/6045
Projection (mm) 2500/3000/3500
A Nebbiolo veranda can be installed on any existing foundation or stone surface. For extra stability
optional base plates can be used. These base plates can be fastened to the foundation with two
ground screws. The posts can be easily attached to the base plates with two screws.
Note: The type of fastener to be used for ground attachment depends on the type of surface (steel,
concrete or wood). Which types of fasteners are to be used must be determined by the installer, so
fasteners are not included.
Rainwater discharge
The Nebbiolo veranda can be easily fitted with rainwater discharge by drilling one or more holes at
the position where the post meets the gutter. The post then serves as rainwater discharge pipe.
A range of rainwater discharge fittings are available for further connection (EPDM rubber drain ring,
50/60 mm leaf catcher, 60 mm rainwater discharge pipe and bend). Your Deponti partner can
provide you with more information about this.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
6
17
14
7A
12
3
2
1
11A
15
16
10
7A
8911B
12
17
14
7B
13
4
6
16
5
4. Parts Overview

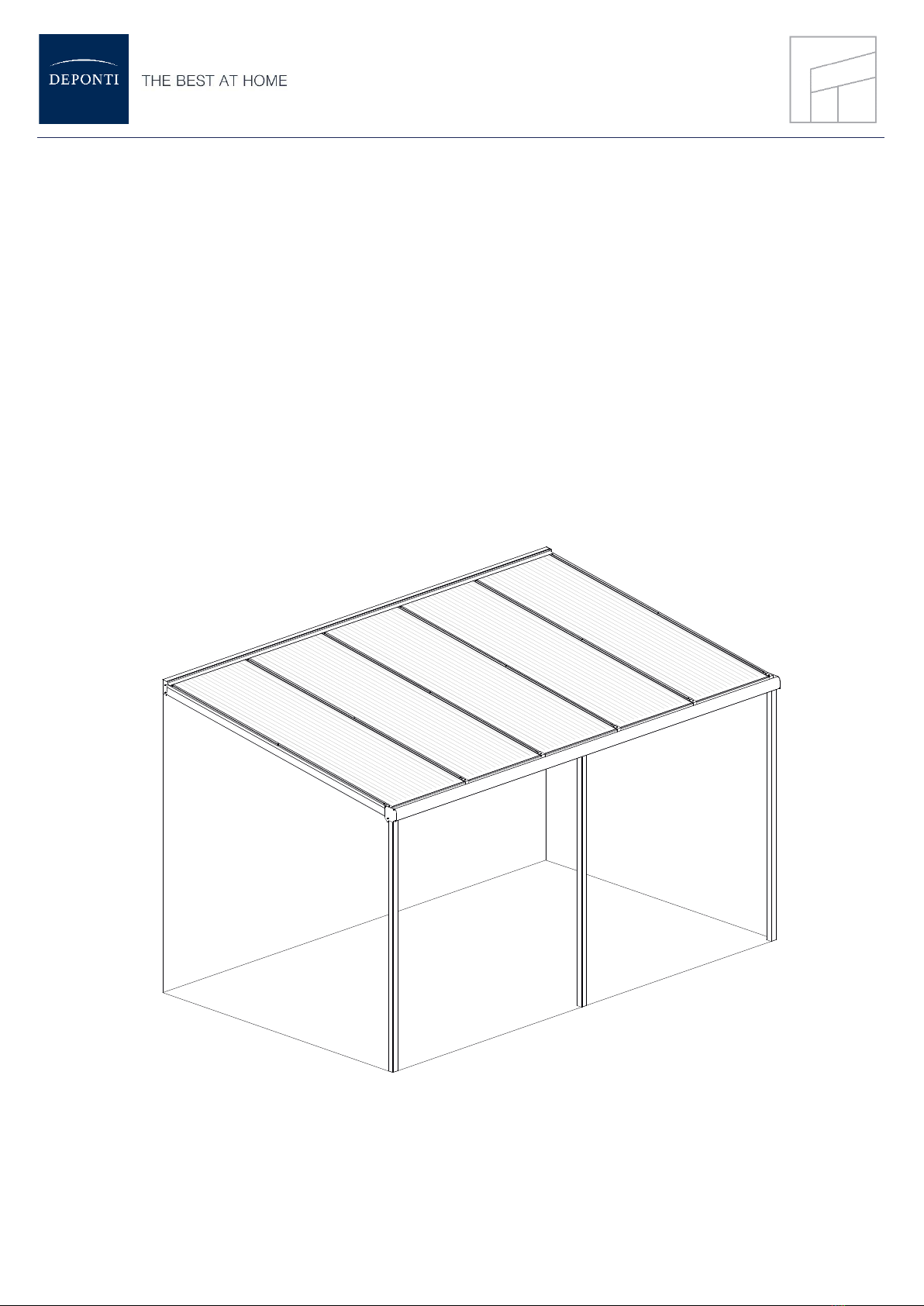

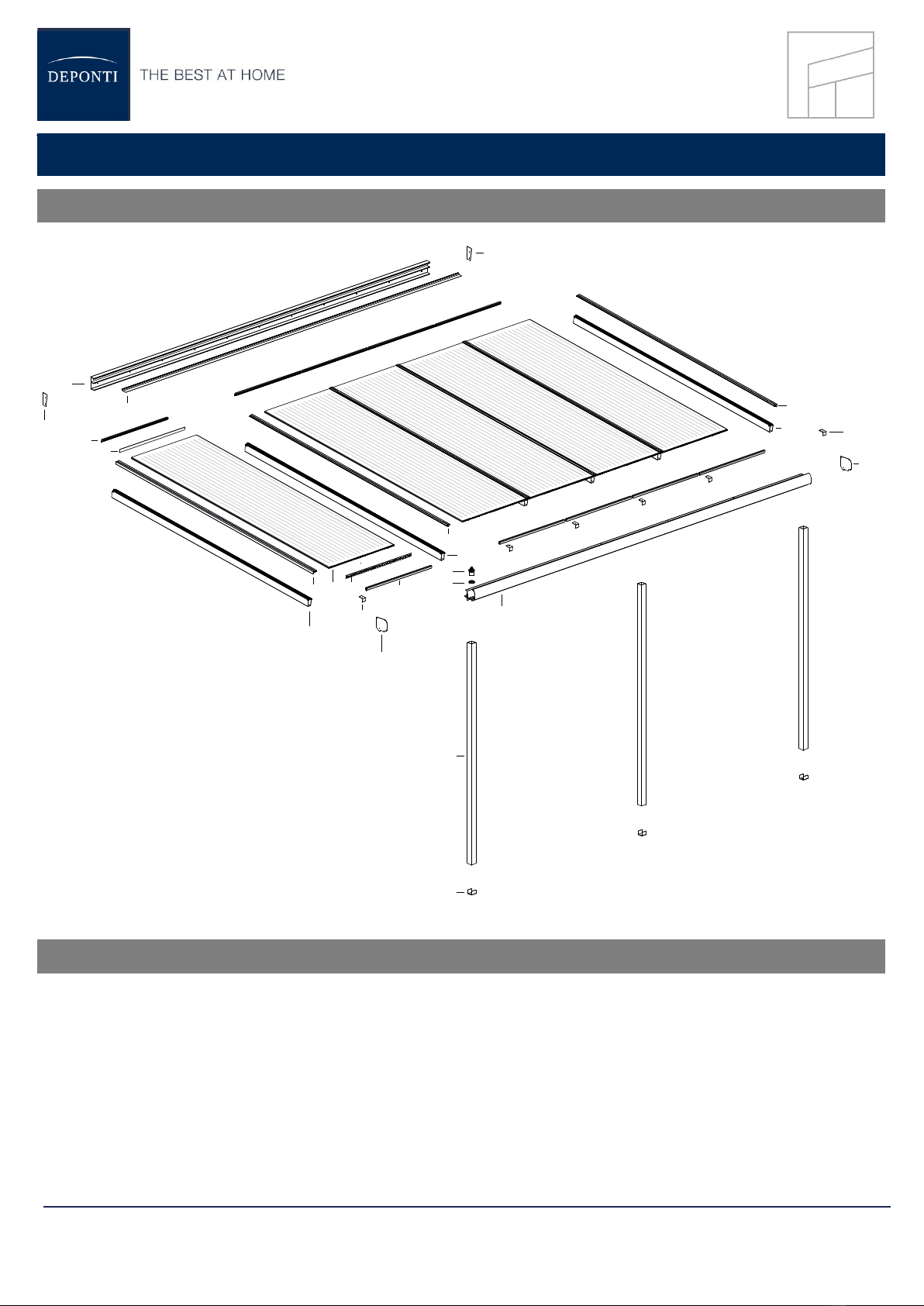

4.1 Exploded view
4.2 Delivery Inspection
The veranda shown in this manual is a 5x3 metre Nebbiolo. This merely serves as an example. The
type and number of components supplied depends on your order.
Note: Always carefully check the delivered items against the accompanying delivery note to ensure
that the quantity and quality are correct. Any visible defects must be reported in writing within 7
days of delivery.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
7

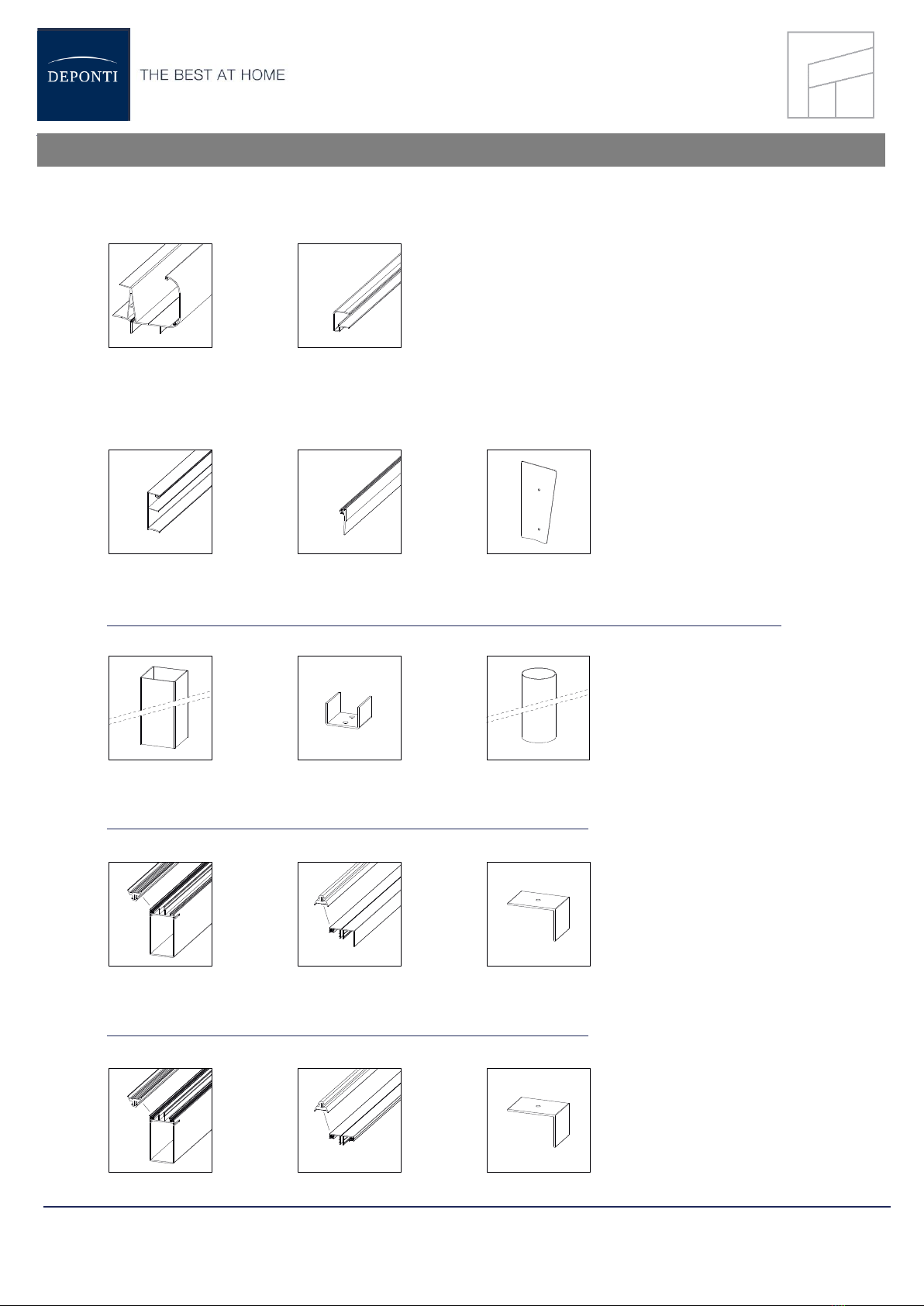

4.3 Parts list
The following overview shows which parts are packed together. Carefully check the individual
packaging units against the order form for quantity and quality.
04. Gutter
profile
11A/B. Condensation
profile
01. Wall profile
15. Wall profile
rubber
03. Post square
02. Base plate
(option)
07A. End rafter
1x sealing rubber
12. End cover strip
1x sealing rubber
14. Sheet stopper
07B. Middle rafter
2x sealing rubber
13. Top cover strip
2x sealing rubber
14. Sheet stopper
16. Side cover
wall profile
Rainwater discharge pipe
60 mm
(option)

www.deponti.com Assembly Manual –Nebbiolo Veranda page
8
XX
08. Polycarbonate
Sheet 980 mm
09. Anti-dust tape
(Perforated)
09. Anti-dust tape
(Perforated)
17. Side cover
gutter profile
1x bag of screws
short 4.2x16 + bit
1x bag of screws
long 4.2x40
1x set frame fixing
screws
90° rainwater
discharge sleeve
(option)
Rainwater
discharge sleeve
(option)
1x coloured sealant
05. EPDM rubber
drain ring (option)
or
or
06. Leaf catcher
50/60 mm (option)

www.deponti.com Assembly Manual –Nebbiolo Veranda page
9
!
5. Preperation for assembly
5.1 Conditions for assembly
•Note: The optimal processing temperature for the sealant is +5 °C to +40 °C.
Ground & façade
•A good flat stable surface is required for construction of the veranda.
•The location where the roof will be placed must be construction-ready and free of obstacles
(garden furniture, flower boxes, etc.) so installers can perform their work without hindrance.
•Any obstacles, including utility lines (such as power cables, etc.), roots and debris, must have
been removed from the ground.
•The façade must be free of sun shades, etc.
•The place where the wall profile will be placed must be firm, even and flat.
Dimensions & slope
•This Deponti roof should be installed with a slope of 15,7cm per metre.
The height of the wall profile and the passage height (distance from bottom of gutter to the
ground) are completely dependent on each other and determined by this slope.
•The maximum length of the roof is 4 metres. However, keep in mind the requirements
concerning the maximum free span and number of posts.
Posts & joined verandas
•Maximum distance between the posts is 4 metres.
•When verandas are joined, a post is always placed under the coupling.
•The rainwater discharge cannot be placed inside a post above which gutters are joined.
Attachments at walls
•Due to expansion of the materials, the veranda may not be placed tightly between two walls;
there must be a gap of 1.5 mm per metre of width of the veranda.
•When concrete bases are used the posts cannot be placed against the wall, because the
block is wider than the post.
•If you want to place a post against a wall, you must saw the flange off of one side and drill
two new holes in the flange so that you can secure the post in four places.
Screws and drilling
•Deponti supplies special 4.2x19 mm and 4.2x40 mm stainless steel screws with the veranda.
Note: Pre-drill a hole for each screw with a 3 mm drill bit!
If you continue to turn them after they are tight, the screw head may break off. It is
recommended that you screw carefully, with the torque limiter on your drill set properly.
•Note: Never drill and screw through the PVC rainwater discharge pipe in one of the posts.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
10
!
5.1 Conditions for assembly (continued)
Sealant
•Deponti supplies sealant in the colours RAL9001 and RAL7024. This supplied sealant has been
specially selected for the waterproof sealing of aluminium to aluminium or to most common
construction materials, such as walls, concrete, etc. Follow the instructions on the tube.
•Note: This sealant is not suitable for sealing the polycarbonate sheets. If you need to seal
your sheets, because you have a rainwater discharge (downspout) pipe run through it for
example, we have special transparent sealant in our range.
Rubber seals
•A Deponti veranda is standard equipped with pre-assembled, colour-matched rubber seals.
Before installation, the rubber seals for both the aluminium cover strips and the beams must
be cut to length.
•If the rubber seals are deformed, they can be straightened again with a little heat, from a hot
air heater or hair dryer for example.
Remove protective film
•It is recommended that the protective film be removed from the aluminium parts and the
roofing sheets at the last possible moment, to prevent damage. When mounting the roofing
sheets, however, the edges of the protective film must be pulled back a few centimetres
towards the middle of the sheet so the film does not get stuck in the profiles; otherwise it
will be difficult to remove later.
Warranty is void if the Nebbiolo veranda is not assembled and installed in accordance with
the instructions.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
11
1
2
3
4
5
6
5.2 Inspection of tools and accessories
)

www.deponti.com Assembly Manual –Nebbiolo Veranda page
12

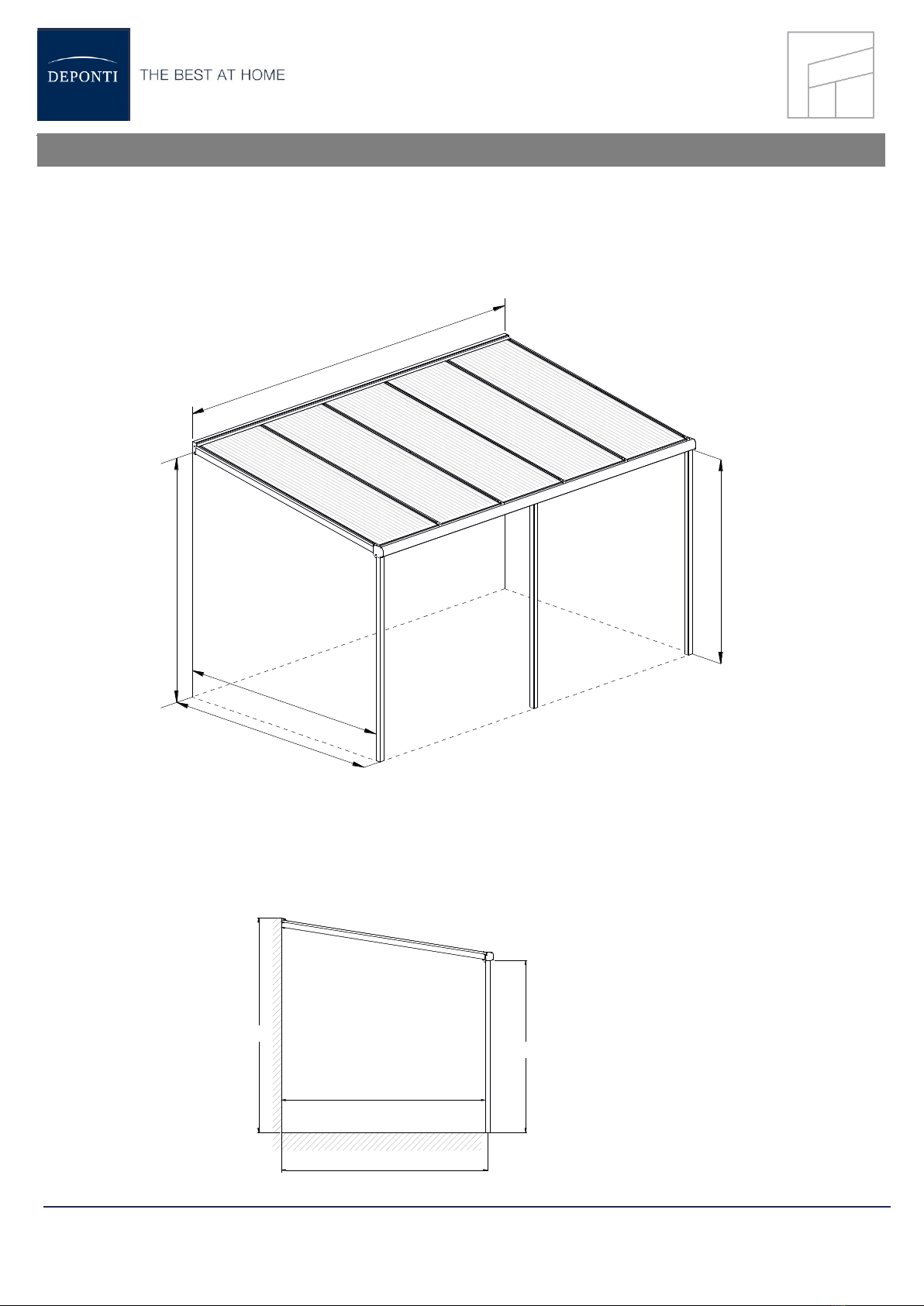

B: Length of wall profile and gutter profile.
H1: Height from ground to bottom of wall profile.
H2: Height from ground to bottom of gutter profile (= passage height).
D: Distance from back of wall profile to inside of post
D + 32,5 mm: Distance from back of wall profile to centre of rainwater discharge
pipe.
B
H1
D
D+32,5mm
H2
D
H1
H2
D+32,5 mm
5.3 Measuring & determining dimensions
The Deponti veranda is available in a large range of sizes. Moreover, the roof has a modular design
and can be quickly and easily made to size. However, please note that our current and future
modular options are based on standard sizes. If you do not install your roof using the standard sizes,
your options will also have to be adapted to size.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
13
5.3.1 Height adjustments
A Deponti veranda is designed for a slope of 15,7cm per metre. All the static strength calculations, as
well as all sizes and dimensions in this manual, are based on this.
The height of the wall profile and the passage height (distance from bottom of gutter to the ground)
are completely dependent on each other and determined by this slope.
However, these heights can be adjusted very easily while maintaining the slope.
If you are going to install your veranda based on the standard dimensions, you can use the dimension
table below.
Projection
Beam length
Distance from back of wall
profile to inside of post (D)
Height from
ground to
bottom of gutter
profile (H2)
Height from ground
to bottom of wall
profile (H1)
2.5 meter
247 cm
244 cm
250 cm
288 cm
3 meter
297 cm
293 cm
250 cm
296 cm
3.5 meter
347 cm
343 cm
250 cm
304 cm
If you choose to place the wall profile lower or make the passage height of the gutter lower, you
must:
Subtract the same number of centimetres from both of these measurements. So if your wall profile is
mounted 30 cm lower, you must also shorten your posts by 30 cm.
If you want to reduce the passage height, you can easily shorten the length of the posts by making a
square cut. However, you must then also mount the wall profile the same distance lower on the wall.
The same applies if you decide to mount the wall profile lower on the wall.
Calculation example 1: You have a roof with a length of 300 cm and you want to reduce the standard
passage height from 250 cm to 220 cm. You therefore shorten your posts by 30 cm or you place the
posts 30 cm in the ground, so the bottom of your gutter is at a height of 220 cm. Your wall profile
must therefore be lowered by 30 cm, which means that the bottom of the wall profile must be
placed at 296 cm - 30 cm = 266 cm.
5.3.2 Veranda projection
The basic dimensions of a Deponti canopy are approximate. The exact dimensions from the rear of
the wall profile to the inside of the upright can be found in the table above. Example: A 3 metre drop
canopy is not exactly 3 metres. Check the table above for exact sizes in centimetres.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
14
HOH maat 1000 mm 22,5 mm22,5 mm
5000 mm
5045 mm
HOH maat 1000 mm HOH maat 1000 mm HOH maat 1000 mm HOH maat 1000 mm
5.3.3 Veranda width
Deponti verandas can be delivered in three standard widths.
The gutter profile and wall profile are supplied in multiple lengths of 4045, 5045 or 6045 mm.
The centre-to-centre distance between the beams of a Deponti veranda is 1000 mm (1 metre).
A roof with five one-metre sections has a total width of 5045 mm. The extra 45 mm is the distance
from the centre of the beam to the outside of the beam, which is 22.5 mm; this extra width is at both
ends, for a total of 45 mm.
When standard size sheets are used, the total width of the roof must therefore also end with 45 mm,
e.g. 4045, 5045 or 6045 mm.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
15
1
B
Ø8 mm
50 cm
50 cm
10 cm
B
H1
H1
Ø8 mm
1
6. Assembly

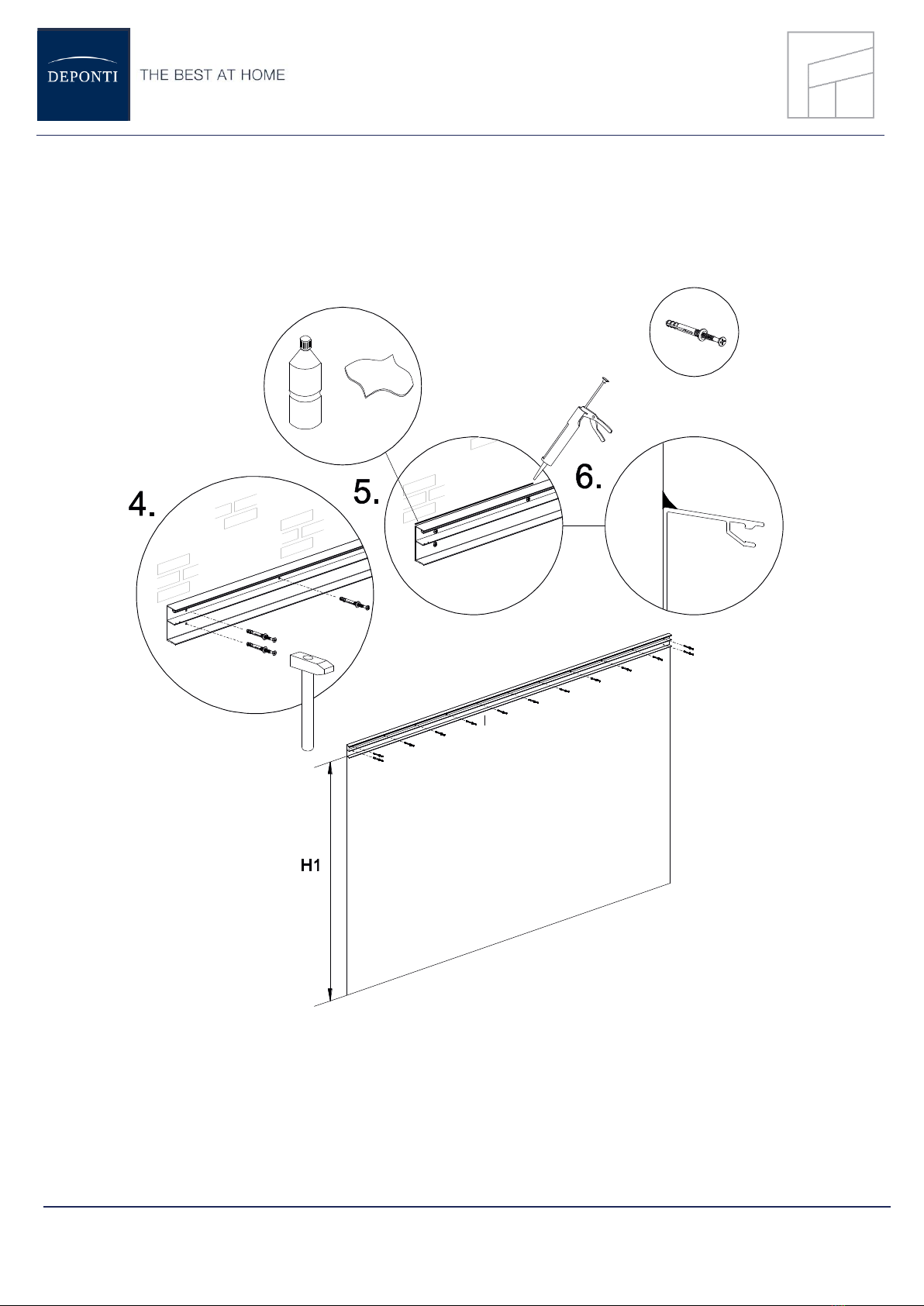

6.1 Mounting the wall profile
If the wall profile does not need to be shortened, you can mount it straight away. Otherwise you
must first cut the wall profile to the desired length. Do not place the supplied rubber strip in the wall
profile yet; this rubber strip is fit in place after mounting.
1. Drill holes in the wall profile at 50 cm intervals. Begin approximately 10 cm from one end and
finish approximately 10 cm from the other end. Use a metal drill bit with a diameter of 8 mm.
2. Now mark the wall with a line to indicate where the bottom of the wall profile should be.
Place the wall profile on the line and then mark the holes that you pre-drilled in your wall profile.
3. Now use a concrete drill bit with a diameter of 8 mm to drill the holes. Make sure the wall profile
is level.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
16
cleaner
1
4. Fasten the wall profile with the supplied frame fixing screws (these should only be used if
appropriate for the wall material).
5. Degrease the top edge of the wall profile along the wall.
6. Apply sealant the top edge of the wall profile (between the wall and the wall profile) to make a
good seal. Strike off the sealant to make it smooth and waterproof.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
17
½B-32,5 mm
D+32,5 mm
D+32,5 mm ½B-32,5 mm
2
2(optie)
(optie)
6.2 Pre-installing the gutter, posts and end beams

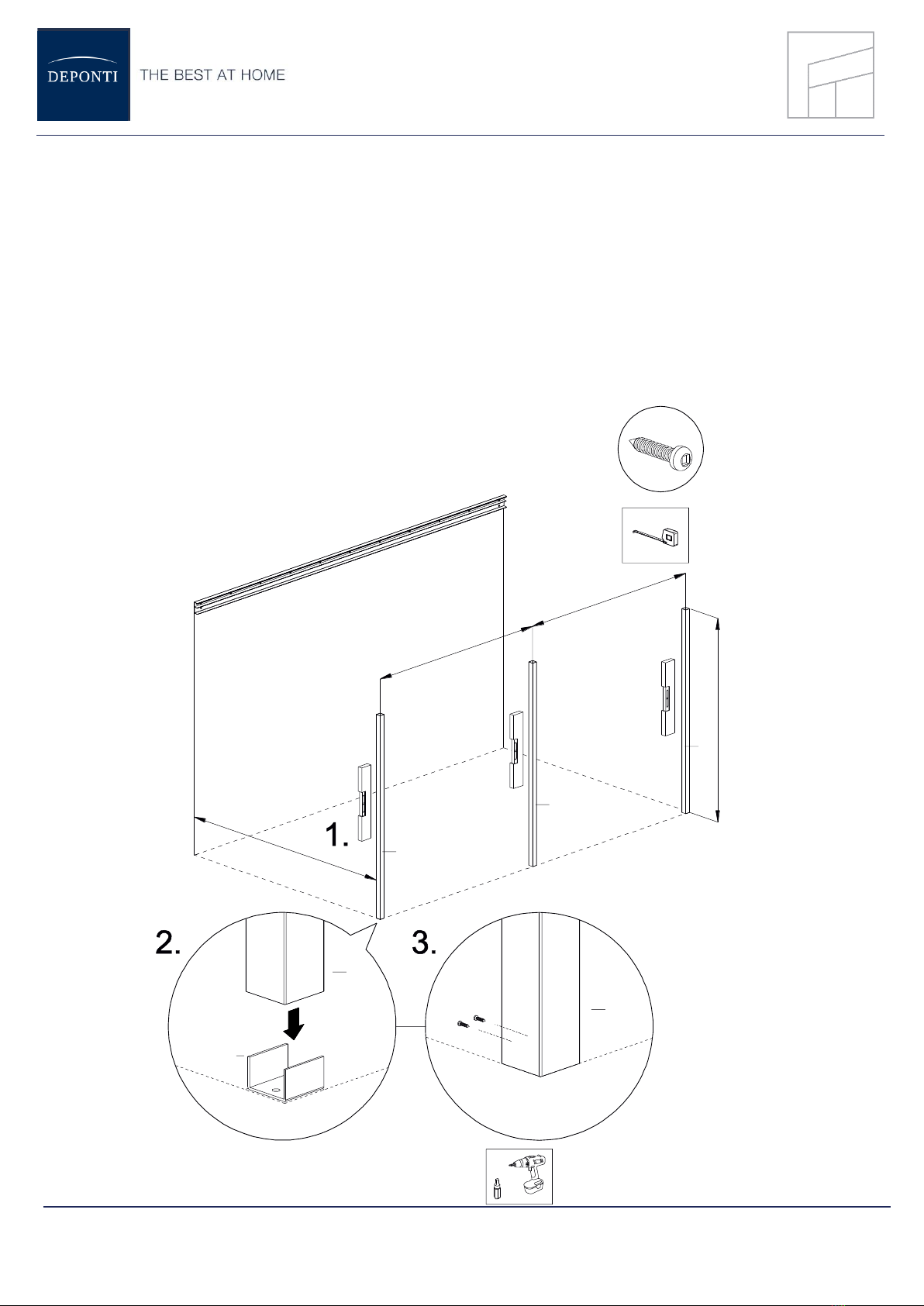

6.2.1 Installing posts
Determine the positions of the posts and the rainwater discharge post on the ground.
Now mark a line on the ground to indicate the centre point of the posts, at a distance of L + 32.5 mm
from the rear of the wall profile.
If you are using the optional base plates, position these at the centre of the posts. Make sure that the
base plates are positioned perfectly square and level.
Now drill holes in the ground and attach the base plates with two suitable ground screws.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
18
½B-32,5 mm
½B-32,5 mm
D
2 (optie)
3
3
3
3
3
H2
1. Place the posts and the rainwater discharge post at the marked positions on the ground.
2. If you are using optional floor plates, place the posts over the (U-shaped) floor plates. Make sure
the posts are level.
3. Attach the posts to the floor plates with two screws.
Note: Place the screws on the back side of the posts so they are out of sight.
Option: Rainwater discharge
Use the hole saw to drill the hole for the rainwater discharge at the desired height near the bottom
of the rainwater discharge post. Place the 90° rainwater discharge sleeve in this hole in the rainwater
discharge post.
Place the PVC rainwater discharge pipe in the rainwater discharge post and connect it to the 90°
rainwater discharge sleeve.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
19
75
32,5
Ø50
Ø50
4

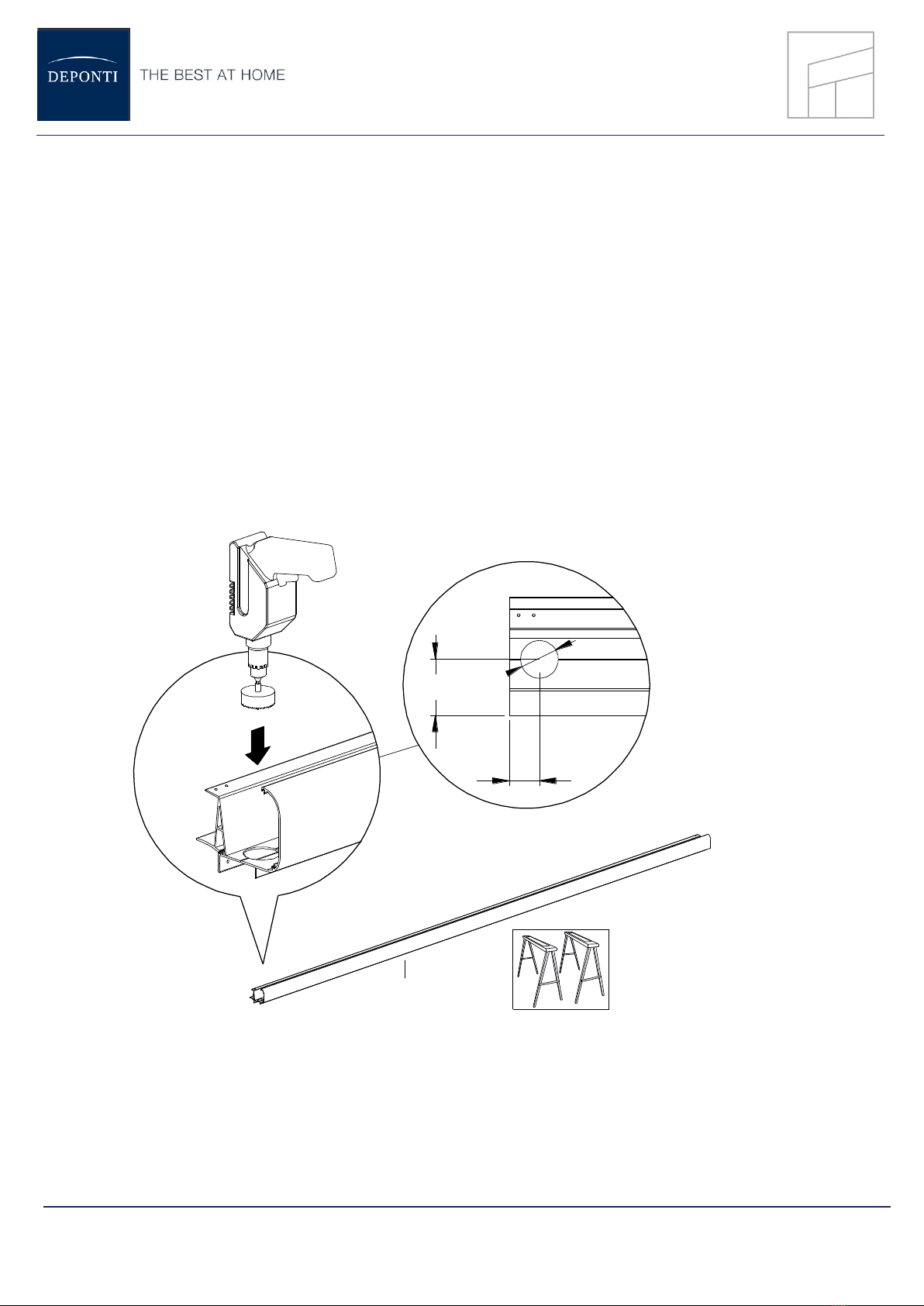

6.2.2 Pre-drilling the gutter
If the standard gutter length is correct, you can pre-drill and install it straight away. If not, you must
first cut the gutter profile to the desired length.
Pre-drilling hole(s) in the gutter profile for rainwater discharge
The rainwater discharge can be easily achieved by drilling one or more holes in the gutter at the
position where the post meets the gutter. The post then serves as rainwater discharge pipe.
A range of rainwater discharge fittings are available for further connection (EPDM rubber drain ring,
50/60 mm leaf catcher, 60 mm rainwater discharge pipe and bend).
1. Place the gutter flat and firm on a table or sawhorses.
2. Determine where the rainwater discharge post (and optional leaf catcher or EPDM rubber drain
ring) will be placed, i.e. at the left or right end of the gutter. Mark the position and dimensions of the
hole for the leaf catcher or EPDM rubber drain ring in the gutter.
3. Now carefully drill the hole in the gutter with the hole saw (ø50-60 mm).
4. Fit the optional leaf catcher or EPDM rubber drain ring in the hole.

www.deponti.com Assembly Manual –Nebbiolo Veranda page
20
3
3
3
4

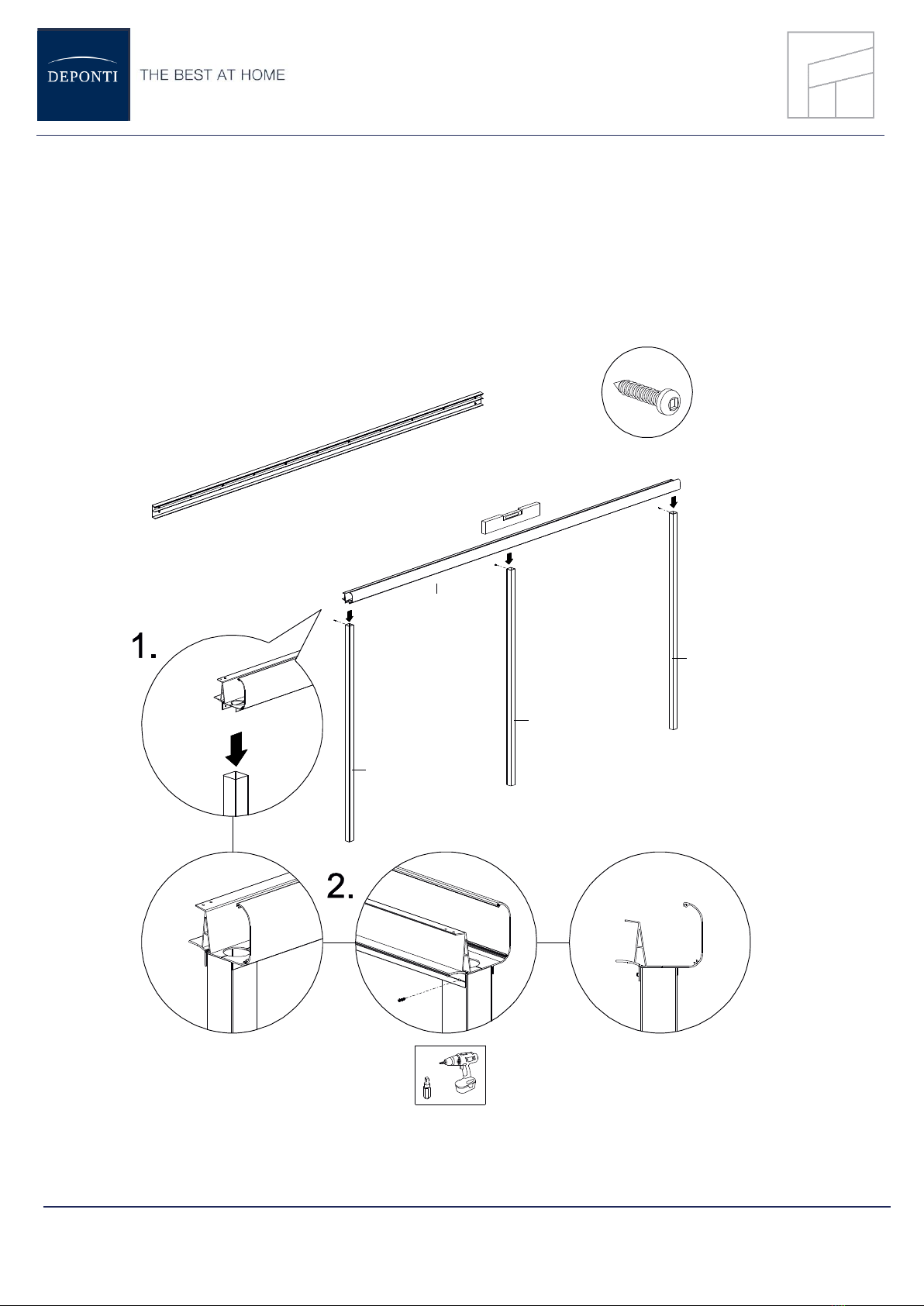

6.2.3 Installing the gutter
1. Now place the gutter profile on the posts. Make sure the optional leaf catcher is positioned
properly in the PVC rainwater discharge pipe inside the post.
2. Screw the posts to the gutter with one short screw through the lower lip of the gutter profile and
into the post. This way you can adjust the position of the gutter later, if necessary.
Note: ultimately the posts will be secured with two screws. The first screw should not be placed in
the middle of the post but rather approximately a third of the way in from the edge. Be careful not to
drill and screw through the PVC pipe in one of the posts!
