Deprag MINIMAT-EC 320E22-00120 User manual

013742en
Operating Instruction Booklet
- Original instructions -
EC-Screwdriver Spindle
for stationary use
MINIMAT-EC
Size 22
320E22-00120 420988 D
320E22-00200 420988 E
NOTICE ALL DOCUMENTATIONS !
Before beginning work this operating instruction booklet and the enclosed
safety instructions (no. 016000, pink-colored booklet) have to be read through
carefully. Always follow the instructions during operation. Give this operating in-
struction booklet and the appropriate safety instructions to the operator.

2
Contents
1SIGNAL WORD AND SYMBOL DEFINITION...............................................................3
2SAFETY INSTRUCTIONS.............................................................................................4
3INTENDED USE ............................................................................................................6
4DELIVERY CAPACITY..................................................................................................6
5GENERAL......................................................................................................................7
6ASSEMBLY INSTRUCTIONS .......................................................................................8
6.1. Installation Instructions...............................................................................................8
6.2. Dimension Sheet........................................................................................................9
6.3. Installation................................................................................................................10
6.3.1 Required Equipment...............................................................................................11
6.3.2 Optional Equipment................................................................................................12
6.4. Connect EC-Screwdriver Spindle to AST10/AST11.................................................13
6.5. Connect EC-Screwdriver Spindle to AST(i)6 Sequence Controller ..........................14
7OPERATION................................................................................................................15
7.1. Insert and Change Inserting Tool.............................................................................16
8TESTING THE REPEATABILITY OF THE SCREWDRIVER ......................................17
8.1. Calibration Test Instructions.....................................................................................17
8.2. Overview of the Screwdriver Speed Settings...........................................................17
8.3. Overview of the Screw Plate and Washer Spring Arrangements .............................18
9MAINTENANCE AND UPKEEP ..................................................................................19
9.1. Maintenance Plan.....................................................................................................19
10 TROUBLESHOOTING.................................................................................................20
11 SHUT DOWN AND STORAGE....................................................................................20
12 TECHNICAL DATA......................................................................................................21
13 EC-DECLARATION OF INCORPORATION................................................................22
14 SERVICE LOCATIONS AND AUTHORIZED PARTNERS..........................................23
List of illustrations
Illustration 1 - Installation...................................................................................................10
Illustration 2 - Insert and Change Inserting Tool................................................................16

3
1 Signal Word and Symbol Definition
The signal words and symbols used in the technical documentation (safety instructions,
operating instruction booklet, etc.) have the following meaning:
DANGER
Indicates an immediate danger which causes serious injuries or even
death if not avoided.
WARNING
Indicates a threatening danger which can cause serious injuries or even
death if not avoided.
CAUTION
Indicates a danger or unsafe procedure which can cause injuries to a per-
son or material damages if not avoided.
NOTICE
Indicates a potentially dangerous situation which can cause damage to
the product or its surroundings if not avoided.
IMPORTANT
Indicates tips and other useful information.
In each case the symbol used does not replace the safety text. The text must always be
read fully. In some cases other symbols will be used with the signal words.

4
2 Safety Instructions
see also enclosed safety instruction bookletno. 016000
WARNING
Potential loss of life due to electric shock!
Work on electrical equipment mayonly be carried out by qualified electrical
technicians.
WARNING
Serious injuries or even death possible!
Disconnect screwdriver from power supply before changing or mounting the
screwdriver tool (bit, socket) or accessory.
CAUTION
Screwdriver will heat-up in relation to its average load respectively
sequence of operation
If the selection of the type of screwdriver is incorrectly or its operation is not
appropriate for the application, the tool might overheatwhich could result in
injuries (burnings).
Use the screwdriver only as described in the operating instruction booklet.
CAUTION
Risk of crushing hands between holding bracket and work piece or
modification parts in confined spaces.
Make sure that any bracket used is correctly installed.
Keep hands away from holding fixture (if used). This applies especially
when unscrewing.
CAUTION
Rotating drive, rotating bit/socket or drive extension.
Injuries to fingers or even broken fingers.
When wearing gloves(e.g. rubber coated or metal reinforced) make sure
that they not become entangled.
Do not wear loose fitting gloves or gloves with cut or frayed fingers.

5
Never exceed the rated voltage and power.
Never hold the drive, screwdriver tool or drive extension with your hands.
If you cannot supportthe reaction torque of the machine independently then use a
torque support (e.g. linear stand, telescopic arm, holding fixture/holder-on, support
grip). It generally applies that: In any case use a torque support to absorb the reac-
tion torque above:for straight screwdrivers 4 Nm; for pistol grip screwdrivers 10 Nm
and for angle nutrunners 60 Nm.
If itis notpossible to use a torque support, use side handles for straight and pistol grip
screwdrivers. Side handles are recommended for straight screwdrivers at a torque set-
ting over 4 Nm and for pistol grip screwdrivers at torque settings over 10 Nm.
Use a finder/sleeve fitting where practicable.
When using sockets or adapters(e.g.magnet holder) make sure thatthey are in good
condition and suitable for use with this machine.
To prevent sockets breakage use only sockets (e.g. for impact or impulse screwdrivers)
which are suitable for use with this machine.
After turning off the tool, the screwdriver tool will continue to rotate (inertia).

6
3 Intended Use
This EC-Screwdriver Spindle is part of the EC-Screwdriving System, which is only designed
for screw-assembly in an industrial environment.
The MINIMAT-EC-Screwdriver Spindle of the series 320E… is designed for the stationary
use in:
Construction Slide Units
Multi-Spindle Screwdriving Stations
Cartesian Screwdriving Robots
Gantry Screwdriving Cells
DEPRAG EC-Screwdriver Spindles allow free programming of the screw tightening process.
Within the power range of the selected spindle,
the torque value
the speed
the stand-by and
the direction of rotation
can be adjusted individually to the assembly requirement.
The EC-Screwdriver Spindle is insulated to protect against an electrical power surge.
Start-up and continuous operation of the EC-Screwdriver Spindle are only
allowed in conjunction with a DEPRAG sequence controller (e.g. AST6,
ASTi6, AST10 or AST11).
4 Delivery Capacity
Check that the shipment is complete and that there have been no damages in transit.
Quantity Name Order No.
1 Operating Instruction Booklet 013742
1 Safety Instruction Booklet 016000
1 EC-Screwdriver 420988 D / E
1 Calibration Certificate -

7
5 General
The EC-Screwdriver Spindle 320E22-00xx0 is part of the EC-Screwdriving System.
The essential characteristics of this screwdriver series are:
brush-less EC-Drive with commutator over encoder
torque- and angle-controlling
The EC-Screwdriving System is designed for the use in an industrial environment for a
maximum torque of 1.2 or 2.0 Nm (depending on the type of screwdriver Technical
Data).
The EC-Screwdriving System mainly consists of two components:
the EC-Screwdriver Spindle of the series 320E22-00xx0.
the sequence controller AST10-1 / AST11-1 with integrated amplifier or sequence con-
troller AST(i)6
For more equipment Optional Equipment and Operating Instructions “Sequence Con-
troller AST10/AST11” or “Sequence Controller AST(i)6”
IMPORTANT
The operation of the screwdriver spindle requires a programmable se-
quence controller (AST10-1, AST11-1 or AST(i)6) with integrated amplifier
and a motor cable.
The sequence controller offers standard screwdriving programs for tightening screws to
a specific torque value respectively loosening at a specific angle value. Their parameters
are adjustable directly via the controller’s keyboard.
Special screwdriving sequences are easy to create: standard assembly steps, already
stored in the controller, can be selected and comfortably built up to form a complete as-
sembly process. This happens via the integrated web server’s PC operator board.
No special PC software is required – only a normal web browser (such as MS explorer)
and an Ethernet port.
Additional software modules for documentation and screw join analysis (data logging,
graphics, etc.) are available as optional equipment.
Also optionally available is an update service for the sequence controller which provides
continuous update of the controller’s function and control software.
The controller’s integrated display and operating unit indicates the operating mode and
assembly status. It also allows a direct change of parameters (such as speed, torque and
angle values etc.) within the assembly process and without the need of a PC connection.
In automatic mode, the sequence controller communicates with the system’s PLC.
Screwdriving programs can be selected and started. After completion of the assembly
process, the sequence controller will report the status of the result to the PLC.
An Ethernet port allows the network of more screwdriver spindles (i.e. multi spindle sys-
tems) with centralized process monitoring (graphics, statistics, individual data sets, etc.).

8
6 Assembly Instructions
WARNING
Potential loss of life due to electric shock!
Before working on the tool (e.g. assembly, installation and maintenance)
disconnect the electric equipment from power supply (switch off main switch
and pull out main plug).
6.1. Installation Instructions
When installing the EC-Screwdriver Spindle the following points have to be observed:
Install the EC-Screwdriver Spindle according to the Dimension Sheet.
The EC-Screwdriver Spindle may be installed in any orientation.
Use only mounting brackets having a sufficient size (Dimension Sheet).
Use only the mounting elements delivered to mount the EC-Screwdriver Spindle.
Level the EC-Screwdriver Spindle and the screwdriving position so that there are no or
only low radial forces (e.g. by dead load).
Support plates are not included in delivery of the EC-Screwdriver Spindle.
Make sure to choose a suitable material (e.g. steel with tensile strength
Rm 370 N/m²) for support plates.
Make sure not to exceed the max. driver stroke (Dimension Sheet) dur-
ing screwdriving.

9
6.2. Dimension Sheet

10
6.3. Installation
see also Dimension Sheet as well as Operating Instructions “EC-Screwdriving System”
Illustration 1 - Installation
Motor Cable
KMO-AST10
EC-Screwdriver
320E22-00xx0
Sequence Controller
A
ST10/AST11
measuring cable
KN-AST10
or
Sequence Controller
AST(i)6

11
6.3.1 Required Equipment
Name Order No.
Sequence controller AST10-1
Sequence controller AST10-1-P (prepared for Profibus)
OR
Sequence controller AST10-1-P kpl. (with integrated
Profibusmodule)
385440 A
385440 B
385440 P
Motor cable KMO-AST1x (length 8.2 / 16.4 / 26.2 / 39.4 ft.)
to connect EC-screwdriver spindle with sequence controller 385442 A / B / C / D
alternativ: Motor cable with angle connection 90° KMO-AST1x
(length 8.2 / 16.4 / 26.2 / 39.4 ft.)
to connect EC-screwdriver spindle with sequence controller 385442 E / F / G / H
Power supply cable KN-AST10/11/40 (length 5.9 ft. EU / 5.9 ft.
US, 8.2 ft.CHINA)
to connect sequence controller to power supply 385443 A / B / C
Name Order No.
Sequence controller AST11-1
OR with module „safety stop“
Sequence controller AST11-1-S
390041 A
390041 B
Motor cable KMO-AST1x (length 8.2 / 16.4 / 26.2 / 39.4 ft.)
to connect EC-screwdriver spindle with sequence controller 385442 A / B / C / D
alternativ: Motor cable with angle connection 90° KMO-AST1x
(length 8.2 / 16.4 / 26.2 / 39.4 ft.)
to connect EC-screwdriver spindle with sequence controller 385442 E / F / G / H
Power supply cable KN-AST10/11/40 (length 5.9 ft. EU / 5.9 ft.
US, 8.2 ft.CHINA)
to connect sequence controller to power supply 385443 A / B / C
Connector cable AST10-Screwfeeder 385477 A
Name Order No.
Sequence controller AST6-1 428001 A
Sequence controller ASTi6-1 (withoutdisplay) 428004 A
Power supply cable 230V-1.8 m / 5.9 ft
Power supply cable 115V-1.8 m / 5.9 ft 812587 812295

12
6.3.2 Optional Equipment
Name Part No.
Spring sleeve cpl.
without screw suction with screw suction 364672 A 364672 C
For more equipment – see Operating instruction AST10 and leaflet D3490 E.
Finder and bit are notincluded in the delivery capacity of the spring sleeve.
You will find suitable inserting tools
in our catalog D3320 or
on the internet as follows: www.deprag.com
Screwdriving Technology Selection program: Inserting tools
Assembly- and Spare Parts Drawing Spring Sleeve cpl. 364672 A
Assembly- and Spare Parts Drawing Spring Sleeve cpl. 364672 C
All catalogs are available for download from our web site: www.deprag.com

13
6.4. Connect EC-Screwdriver Spindle to AST10/AST11
see chapter DIMENSION SHEETas well as Instructions „Sequence Controller“
CAUTION
Differing power supplies can result in injuries to persons or damage to
the equipment
Before connecting electrical power, insure that your power supply is
compatible with that recommended for the controller (Technical Data).
Plug-in the motor cable atthe sequence
controller and fix it.
ATTENTION
During operation malfunctions or damages can be caused to the
contacts.
Fully tighten the plug connection between screwdriverand screwdriver
cable!
Plug-in the other end of the motor cable into the
upper connection of the EC-screwdriver spindle
and then fully tighten themotor cable.
Do this by first tightening the plug connection a
little and then pushing it in and then tightening it
further.This should be repeated as many times
as necessary until the thread cannotbe turned
and tightened any more.
Main switch
Connectthe sequence controller to the power
supply. Switch on the sequence controller on
main switch.
Enter the calibration value and the value of the
calibration offsetin the sequence controller.
You will find this values in the calibration
certificate (
 Operation Instruction “Sequence
Controller”).
IMPORTANT
For more information about the start-up of the sequence controller, read the
quick-start instructions of sequence controller AST10 or AST11 with
320E....Screwdriver which is also included in delivery.

14
6.5. Connect EC-Screwdriver Spindle to AST(i)6 Sequence Controller
see chapter DIMENSION SHEETas well as Instructions „Sequence Controller AST(i)6“
CAUTION
Differing power supplies can result in injuries to persons or damage to
the equipment
Before connecting electrical power, insure that your power supply is
compatible with that recommended for the controller (Technical Data).
Plug-in the motor cable at the sequence
controller and fix it.
ATTENTION
During operation malfunctions or damages can be caused to the
contacts.
Fully tighten the plug connection!
Connectthe sequence controller to the power
supply. Switch on the sequence controller on
main switch.
Enter the calibration value and the value of the
calibration offsetin the sequence controller.
You will find this values in the calibration
certificate (
 Operation Instruction “Sequence
Controller AST(i)6”).
IMPORTANT
For more information about the start-up of the sequence controller, read the
quick-start instructions of sequence controller AST(i)6 with
320E....Screwdriver which is also included in delivery.

15
7 Operation
This design of Screwdriver may be operated in connection with a sequence controller only.
CAUTION
The turning bit may cause an injury to fingers or hands.
Trained personnel may operate the EC-screwdriver spindle only.
IMPORTANT
Proceed with the operating according to the “Operating Instructions Se-
quence Controller AST10”.

16
7.1. Insert and Change Inserting Tool
Disconnect screwdriver spindle from power supply before changing or
mounting the screwdriver tool (bit, socket).
IMPORTANT
Use only high-quality inserts (e.g. bits)and connecting components with
external drive E6.3 as perDIN ISO1173 respectively external drive E11.2
as per DIN ISO 1173.
You will find suitable inserting tools
in our catalog D3320 or
on the internet as follows: www.deprag.com
Screwdriving Technology Selection program: Inserting tools
The screwdriver spindle is equipped with a quickchange chuck.
To remove or insert the bit, pull the sleeve into the front.
Push the bit into the hex until it locks.
Let the sleeve snap back.
Drive E 6.3.

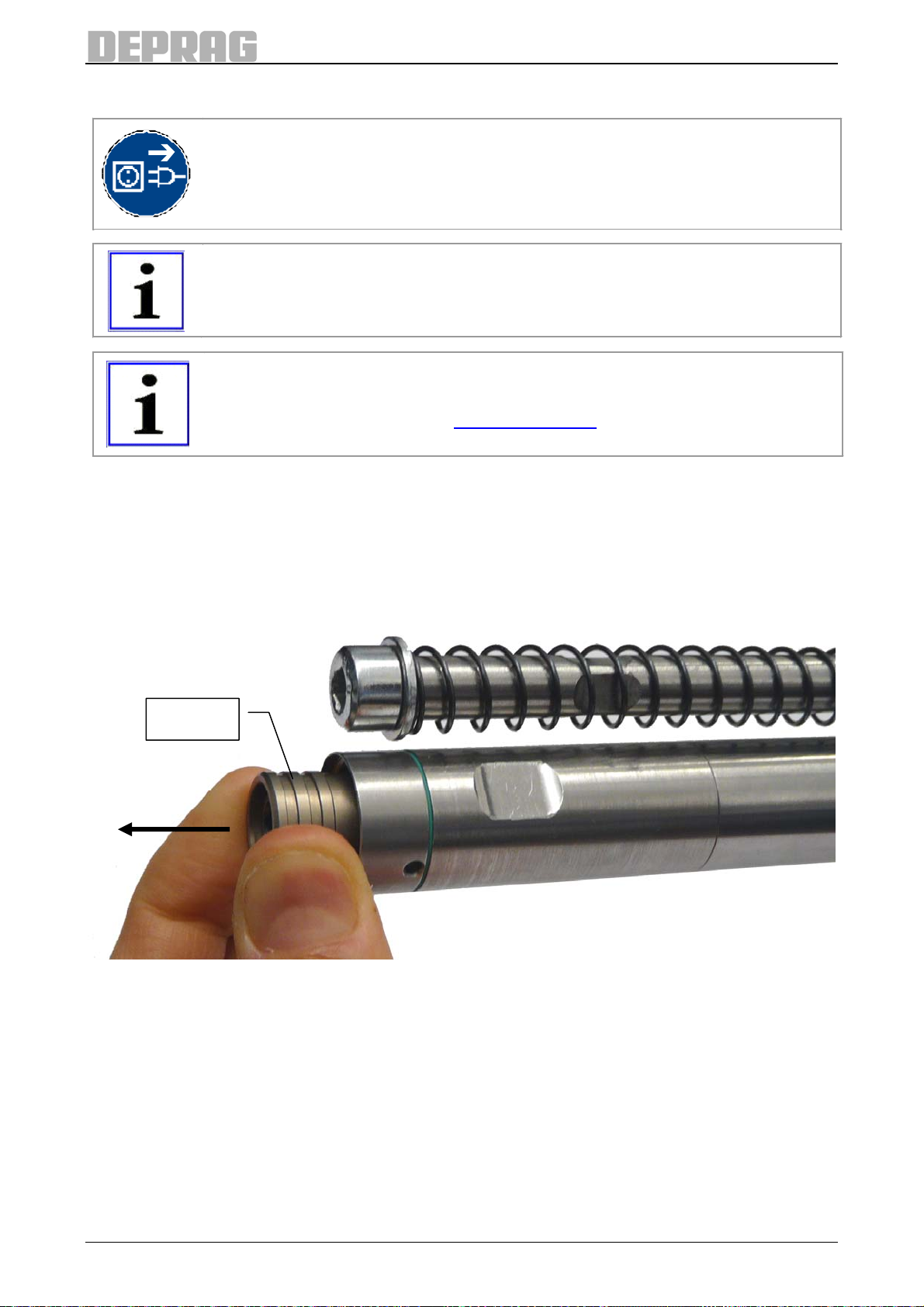

Illustration 2 - Insert and Change Inserting Tool
Sleeve

17
8 Testing the repeatability of the Screwdriver
To insure the reliability of the reported screwdriving results the user should perform a
periodic review or recalibration of the screwdriver and screwdriver electronic controller.
The interval or number of assembly cycles in between the calibration check should be
defined b
y
the user and the users in house
p
olic
y
.
8.1. Calibration Test Instructions
Testing of the screwdriver is performed using the spring table information from point
8.3.Overview of the Screw plate and Washer Spring Arrangements.
In addition a 1 step program using the command parameter „Drive To Torque“ should
be set in the ASTController.
The Screwdriver speed in the 1 step program should be setaccording to point 8.2.
Overview of the Screwdriver S
p
eed Settin
g
s.
8.2. Overview of the Screwdriver Speed Settings
Screwdriver Series320E – DefaultSpeed Setting
Screwdriver Model Speed (rpm)
320Exx22-00005 240
320Exx22-00012 240
320Exx22-00025 200
320Exx22-00050 160
320Exx22-00080 120
320Exx22-00120 150
320Exx22-00200 100
320Exx27-0004-x 120
320Exx27-0014-x 50
320Exx27-0010/0018-x 200
320Exx27-0022-x 140
320Exx27-0024-x 100
320Exx27-0035-x 100
320Exx27-0040-x 50
320Exx27-0042-x 80
320Exx27-0050-x 30
320Exx27-0060-x 60
320Exx36-0040-x 200
320Exx36-0060-x 150
320Exx36-0090 110
320Exx36-0120-x 80
320Exx36-0180-x 50
320Exx36-0250 35
320Exx36-0280 30

18
8.3. Overview of the Screw Plate and Washer Spring Arrangements

19
9 Maintenance and Upkeep
WARNING
Assembly and maintenance work may only be carried out by service
personnel of the company DEPRAG.
Incorrect assembly or maintenance work could create hazards for the op-
erator and cause damage to the EC-screwdriver.
WARNING
Potential loss of life due to electric shock!
Disconnect screwdriver spindle from power supply before performing main-
tenance and repair work!
The maintenance of the EC-screwdriver may only be carried out by DEPRAG service per-
sonnel.
The maintenance covers all disassembly and inspection of all mechanical parts as well as
the cleaning and re-greasing of all moveable parts (gear, drive).
After each maintenance check the shut-off accuracy and if necessary re-calibrate.
For this reason it is advisable to carry out maintenance work and re-calibrations of the
screwdriver at regular intervals.
9.1. Maintenance Plan
IMPORTANT
Adapt the maintenance work depending on the condition of the machine
and amount of wear in each individual case.
No. Work to be carried out Cycles Notes
1. Check machine for external
damage Before starting work Replace worn ordamaged cables and parts.
2. Check inserting tool for wear
and tear and if it is
undamaged
Before starting work Replace worn or damaged
inserting tools
immediately.
For further maintenance and repair work, send the machine to DEPRAG.

20
10 Troubleshooting
Please consult the operation instruction “Sequence Controller
AST10/AST11“ or “Sequence Controller AST(i)6“
Possible faults and their causes are shown below:
Fault Cause Solution
No power supply Check correct connection of the motor
cable.
Sequence controller not
switched on Switch the sequence controller on atthe main switch.
AST10/AST11chapter Connections
an Pin Layout
AST(i)6chapter Assembly Instruction
EC-
screwdriver
does not start
Controller displays error
message see Operating Instruction AST10/AST11chapter 10
Troubleshooting
AST(i)6chapter Error Display and
Troubleshooting
If necessary, please send the tool to DEPRAG for service.
For further examples of faults please consultthe instruction manual of the sequence
controller AST10, AST11 or se
q
uence controller AST
(
i
)
6.
11 Shut Down and Storage
For shut-down perform the following steps:
No. Action
1. Disconnect the electric equipment from power supply (switch off main switch and
pull out main plug).
2. Disconnect the screwdriver from the power supply.
3. Close all connections (with protection caps).
The screwdriver may now be stored until needed again.
