Desco SCS 992X-0350 User manual

Thank you for purchasing the SCS 992X Bar Ionizer.
Before installing and using the product, please read this instruction manual carefully and
be sure you fully understand all safety information and operating procedures. Please store
the manual in a secure location for convenient reference. If you need further help on the
instructions and precautions given here, please contact a Desco Japan sales
representative or authorized dealer.
© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page i of 20 May 2016

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 1 of 20 May 2016

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 2 of 20 May 2016
Do not use this product with any AC adapter other than the provided
SCS AC adapter or power supply unit (LPS type) certified by UL60950-1.
Be sure to connect to 24VDC output.
This equipment should be inspected and cleaned frequently. This will
prevent excessive accumulation of dirt which may result in flashover or risk
of fire.

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 3 of 20 May 2016
Do not use this product with intermittent air flow. If you want to use this
product with intermittent air flow, contact Desco Japan beforehand.
Ensure the installation location is stable and surface is level before
installation is performed.
Complete the necessary information on the enclosed warranty card (postcard), and be
sure to return it to Desco Japan. Failure to do so may prevent you from receiving
services such as repair, replacement, and inspection.

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 4 of 20 May 2016
This product is an air bar ionizer (static electricity eliminating
device) used to neutralize electrostatic buildup in locations where it
is a frequent problem. In contains an ionized air emitter, and can be
set up easily by supplying 24 VDC. It must be grounded to work
properly. It generates ionized air quickly and efficiently. It also
includes functions to detect operating malfunctions and a cleaning
timer that counts electrified time, ensuring that it can be used safely
and reliably.

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052E Page 5 of 20 May 2016
Air Tube Connection Size: For Bar Lengths 300-1650 OD 6mm
For Bar Lengths 1850 and greater OD 8mm
Emitter Connector
Emitter

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 6 of 20 May 2016
case any damage should be found or any abnormal operation should
be observed, please contact the distributor from which you bought
this unit or Desco Japan directly.

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 7 of 20 May 2016
Installation hole 04.2
Display area Intermediate bracket Main unit (ABS)
Installation
bracket
Emitter electrode
Emitter needle nozzle
Emitter needle
Power/Signal connector
Air connector
1600 or less 06 (both ends)
1850 or over 08 (both ends)
10
10 59.8
65 50pxA=B 65
L
L-20
D
14 22
22
32
29
Main unit (ABS)
Installation
bracket
Emitter needle
Power/Signal connector
Air connector
1600 or less 06 (both ends)
1850 or over 08 (both ends)
50pxA=B
L
L-20
05.2
Emitter electrode
Emitter needle nozzle
Intermediate bracket
650
65
Installation hole
05.2Length9
2.5
74
67 17
24
59.8
10
10 65
99
Display area
05.2

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 8 of 20 May 2016
The red alarm LED will illuminate during the following
conditions:
- Discharge occurs at the emitter needles or other
high-voltage part
- Over-current is applied to the ionizer’s circuits
Resets hour counter and turns off Yellow LED.
Yellow LED illuminates when you have exceeded the
running hours limit chosen by using T-Select.
Selector to set-up the number of hours between
cleaning reminders.

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TBJ-9052E Page 9 of 20 May 2016

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 10 of 20 May 2016

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 11 of 20 May 2016

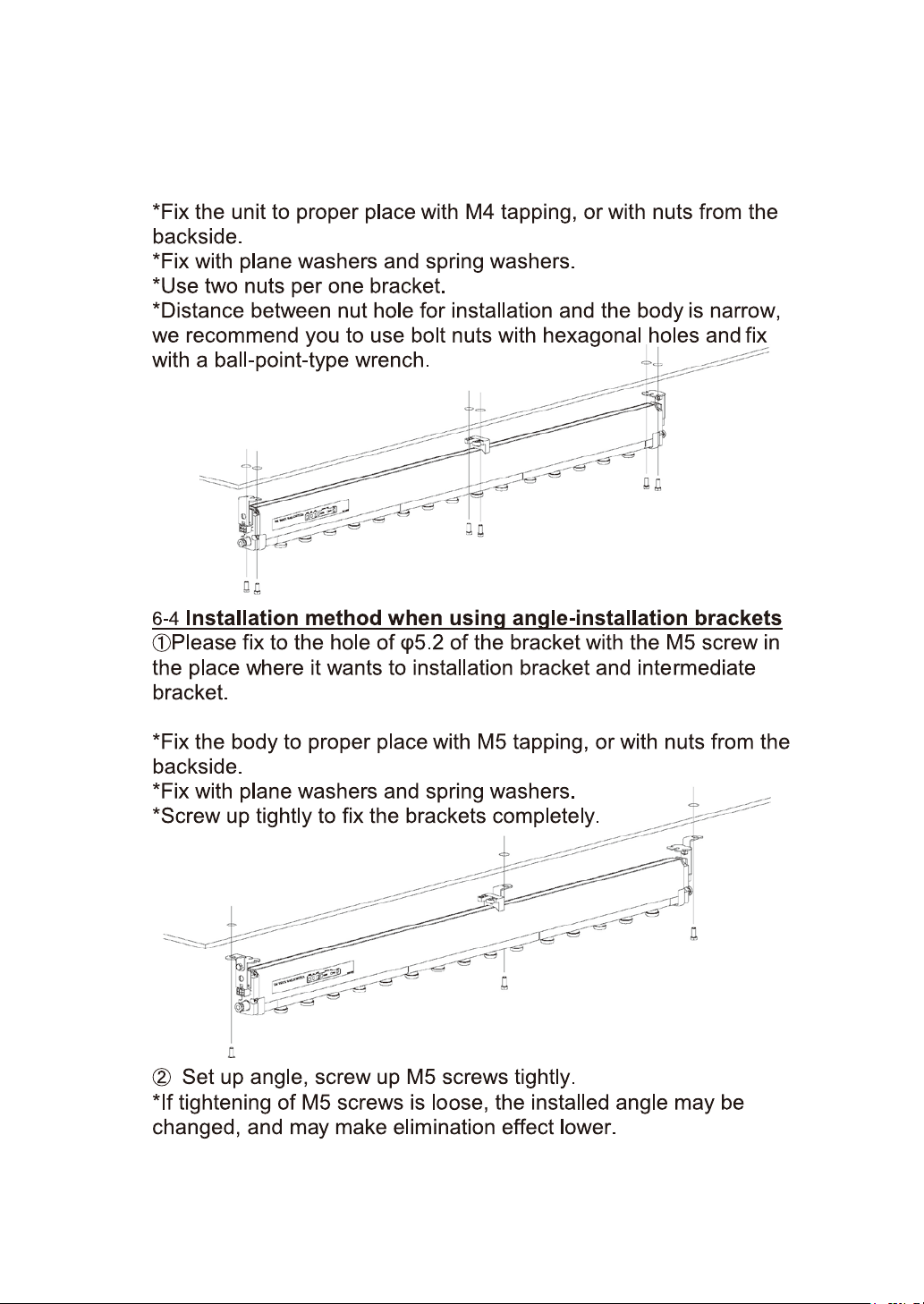

Position the unit in its proper place with M4 screws in 4.2mm OD holes

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TBJ-9052E Page 12 of 20 May 2016

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TBJ-9052E Page 13 of 20 May 2016

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 14 of 20 May 2016
Air tube 08 1800mm
T branch connector
Air tube 06 or 08 1800mm 992X Air tube 06 or 08 1800mm
Air tube 08 150mm
Air pressure gauge (MPa)
Air flow meter (l/min)
Regulator
Air tube 08
Primarily air
pressure 0.8MPa

© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 15 of 20 May 2016

8. Operating the Product
8-1 Setup before Starting Operation
Check the ionizer wiring and air tubing.
Supply air to the unit from the air equipment that is used.
Use air pressure off 0.5MPa or less.
Supply DC24V power to the unit. The POWER LED and RUN
LED on the unit illuminate and electrostatic elimination starts.
If the optional power adapter is used, supply AC100-240V,
50/60Hz
8-2 Steps when Stopping Operation
8-3 Canceling the Alarm
Because this device utilizes high voltage, if a safety or operating
problem is detected, the high voltage is shut off. At this time the
RUN LED turns OFF and the ALARM LED illuminates. The system
is configured so that the system cannot be restarted unit the alarm
has been reset.
When the ALARM LED is illuminated, refer to “9.
Troubleshooting” in this manual and correct the problem before
restarting operation.
© 2016 DESCO INDUSTRIES INC.
Employee Owned
DESCO JAPAN
TB-9052 Page 16 of 20 May 2016
Remove power source.
Remove air supply.
Remove power source, correct problem per troubleshooting guide in
Section 9 and then restore power supply.
Remove power source.
Correct problem per troubleshooting guide in Section 9 and then restore
power supply.
