SERVICE BULLETIN
SB-21-064-J
Replaces SB-21-064-I
IMPORTANT: Read and follow all instruc-
tions and SAFETY PRECAUTIONS before
using this equipment. Retain for future
reference.
5, 10, 15 GALLON QMS TANKS
(STAINLESS STEEL)
DESCRIPTION

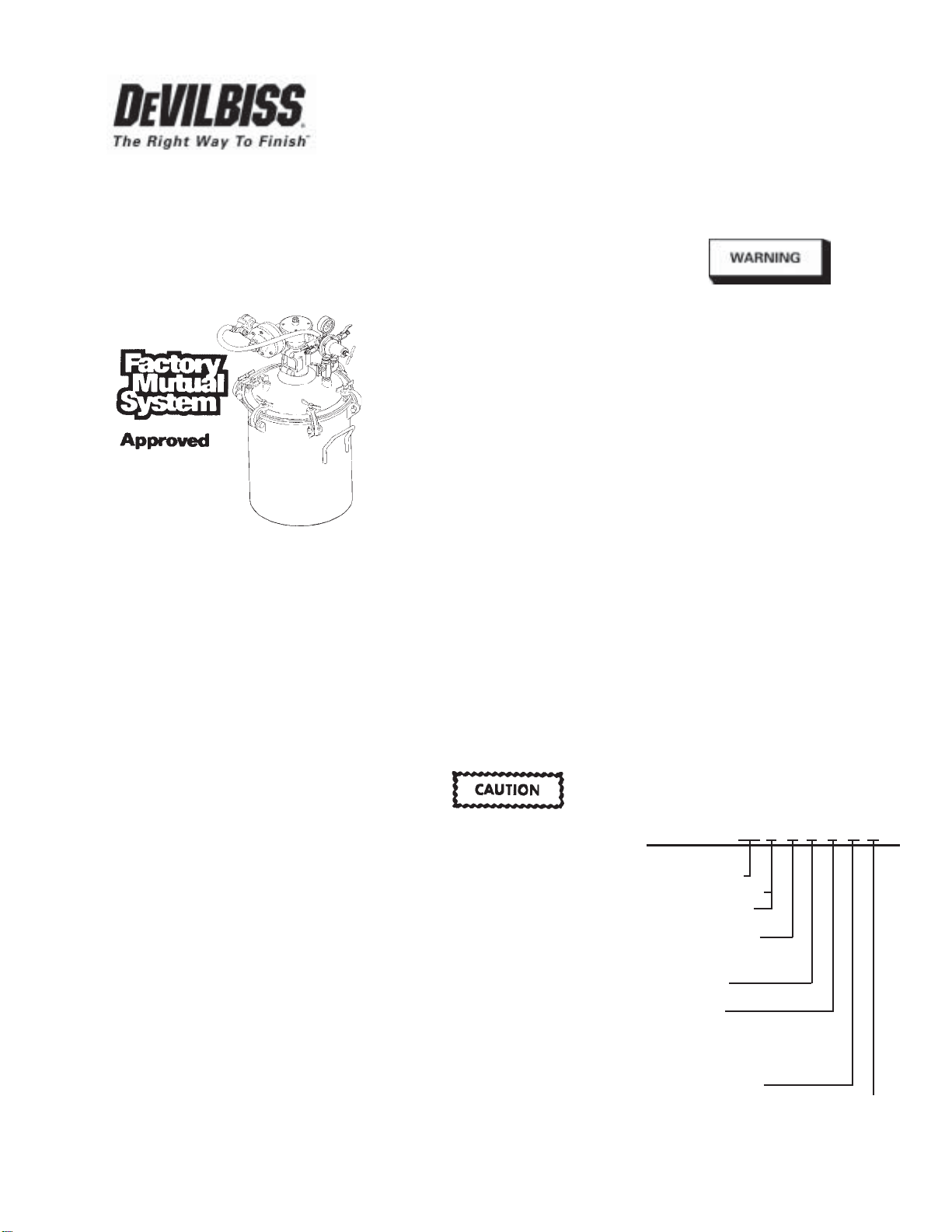

DeVilbiss pressure feed tanks are intended
for use as a pressure container to supply
material at a constant preset pressure up to
a maximum of 110 psi. The tanks are built to
ASME specifications, and are FM approved.
DeVilbiss pressure tanks are also certified
for vacuum operation.
NOTE
These pressure tanks are constructed
from stainless steel and other non-
reactive materials. Materials con-
taining halogented solvents can be
used safely with these tanks.
Standard Nonregulated Tanks
(No Regulation)
Standard type tank for use to distribute
“regulated” air by remote filter/regulator or
other similar control to pressure tank.
Equipped with pressure gauge, safety valve,
air bleed down valve, and air inlet valve.
Standard Fluid Regulated Tanks
(Single Regulation)
Standard type tank for use on jobs where
precision control of both fluid and atomiza-
tion air pressures is not required. Also used
where atomization air can be taken from
filter/regulator air lines. Provides standard
fluid pressure control only. Equipped with
pressure regulator, pressure gauge, air bleed
down valve, safety valve, and inlet and
outlet air valves. (For conversion to double
regulation, use kit QMS-436.)
Standard Air and Fluid Regulated Tanks
(Dual Regulation)
Precision controlled tanks for use with
materials that are best applied at low,
closely controlled, fluid and atomization air
pressures. Used with portable air compres-
sors or with air lines when no other means
of air pressure regulation (filter/regulator)
is available. Equipped with two regulators
(one for fluid pressure, the other for atomi-
zation air pressure), two pressure gauges,
air bleed down valve, safety valve, and
inlet and outlet valves.
Extra Sensitive Fluid Regulation
Tanks especially adapted for use with elec-
trostatic spray installations, application of
lubricants, special coatings, etc. Suitable for
use wherever extremely sensitive, non-fluc-
tuating low pressure control is required.
Large, reinforced, synthetic diaphragm
type regulator controls to a maximum of
30 pounds pressure. Equipped with extra
sensitive pressure regulator, pressure
gauge, air bleed down valve, safety valve,
inlet valve, and unregulated outlet valve.
Agitation
Pressure tanks can be equipped with differ-
ent types of fluid agitation, or no agitation.
Hand agitation or air agitators are provided
to suit any application.
Refer to specifications chart to ensure
that fluids and solvents being used
are chemically compatible with the
tank wetted parts. Before placing
fluids or solvents in tank, always
read accompanying manufacturer’s
literature.
Air pressure loads that are higher
than design loads, or changes to the
pressure feed tank, can cause the
tank to rupture or explode.
•Asafety valve protects the tank
from overpressurization. During
each use, pull ring on the safety
valve to make sure it operates freely
and relieves air pressure. If the valve
is stuck, does not operate freely, or
does not relieve air pressure, it must
be replaced with a safety valve
having the same rating. Do not
eliminate, make adjustments to, or
substitute this valve.
•Changes to the air tank will
weaken it. Never drill into, weld, or
change the tank in any way.
•Maximum working pressure of
this tank is 110 psi.
MODEL NUMBERS
The model numbers are coded with specific
information for each character and position
in the number. Refer to the following table
for an explanation of each position and
meaning for each character in the model
number. Use this information in selecting
the proper model from the MODEL APPLI-
CATION TABLE.
TYPE OF REGULATION
0= NONE
1= ONE REGULATOR
2= TWO REGULATORS
3= EXTRA-SENSITIVE
T = TOP FLUID
OUTLET
PRODUCT
IDENTIFICATION
QM T -5
G = GALVANIZED
S = STAINLESS
STEEL
COMPLETELY
FACTORY
ASSEMBLED
TANK SIZE
5= 5-GAL
10 = 10-GAL
15 = 15-GAL
TYPE OF AGITATION
0=NONE
2=HAND
3=QS-5012(STD)
6=31-381
(RECIPRO-
CATING)

Page 2SB-21-064-J
SAFETY PRECAUTIONS
This manual contains important information that all users should know and understand before using the equipment. This information
relates to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the following terms
to draw your attention to certain equipment labels and portions of this Service Bulletin. Please pay special attention to any label or
information that is highlighted by one of these terms:
Important information to alert you
to a situation that might cause
serious injury if instructions are not
followed.
Important information that tells how
to prevent damage to equipment, or
how to avoid a situation that might
cause minor injury.
NOTE
Information that you should pay
special attention to.
The following hazards may occur during the normal use of this equipment. Please read the following chart.
HAZARD CAUSE SAFEGUARDS
Fire Solvents and coatings can be highly 1. Adequate exhaust must be provided to keep
flammable or combustible, especially the air free of accumulations of flammable
when sprayed. vapors.
2. Smoking must never be allowed in the spray
area.
3. Fire extinguishing equipment must be present
in the spray area.
Fire - Pressure Tank Vapors from flammable liquids 1. Keep tank at least 10 feet away from sources
can catch fire or explode. of ignition. Ignition sources include hot objects,
mechanical sparks, and arcing (non-explosion
proof) electrical equipment.
InhalingToxic Substances Certain materials may be harmful if 1. Follow the requirements of the Material
inhaled, or if there is contact with the skin. Safety Data Sheet supplied by your coating
material manufacturer.
2. Adequate exhaust must be provided to keep
the air free of accumulations of toxic materials.
3. Use a mask or respirator whenever there is a
chance of inhaling sprayed materials. The mask
must be compatible with the material being
sprayed and its concentration. Equipment must
be as prescribed by an industrial hygienist or
safety expert, and be NIOSH approved.
Explosion, Pressure Making changes to pressure 1. Never drill into, weld, or modify tank in any
Tank - Rupture tank will weaken it. way.
2. Do not adjust, remove, or tamper with the
safety valve. If replacement is necessary, use
the same type and rating of valve.
General Safety Improper operation or maintenance may Operators should be given adequate training in
create a hazard. the safe use and maintenance of the equipment
(in accordance with the requirements of NFPA-33,
Chapter 15 in U.S.). Users must comply with all local
and national codes of practice and insurance
company requirements governing ventilation, fire
precautions, operation, maintenance and housekeep-
ing (in the U.S., these are OSHA Sections 1910.94
and 1910.107, and NFPA-33).

SB-21-064-J Page 3
DIMENSIONS
INSIDE
INSIDE HEIGHT OVERALL OVERALL
TANK SIZE DIAMETER AT CENTER HEIGHT* WIDTH WEIGHT*
(Inches) (Inches) (Inches) (Inches) (Pounds)
5 Gallon 14 16 20-5/16 18-1/2 51
10 Gallon 14 19-1/16 23-3/8 18-1/2 54
15 Gallon 14 29-1/16 33-3/8 18-1/2 78
*Basic tank, not including regulators or agitation.
MODEL APPLICATION TABLE
MODEL NUMBER AGITATOR REGULATOR
5 GALLON 10 GALLON 15 GALLON TYPE/DRIVE TYPE NUMBER
QMST-5500 QMST-51000 QMST-51500 None None QMS-4003
QMST-5510 QMST-51010 QMST-51510 None Single QMS-4006
QMST-5520 QMST-51020 QMST-51520 None Double QMS-4007
QMST-5502 QMST-51002 ———— Hand/Crank None QMS-4003
QMST-5512 QMST-51012 QMST-51512 Hand/Crank Single QMS-4006
QMST-5513 QMST-51013 QMST-51513 Std/Air Single QMS-4006
QMST-5523 QMST-51023 QMST-51523 Std/Air Double QMS-4007
QMST-5516 QMST-51016 QMST-51516 Recip/Air Single QMS-4006
QMST-5526 QMST-51026 QMST-51526 Recip/Air Double QMS-4007
———— ———— QMST-51530 None Ex Sen QMS-4010
QMST-5533 QMST-51033 ———— Std/Air Ex Sen QMS-4010
Static electricity is created by the flow of
fluid through the pressure tank and hose. If
all parts are not properly grounded, sparking
may occur. Sparks can ignite vapors from
solvents and the fluid being sprayed.
If static sparking, or slight shock, is
experienced while using this equipment,
stop spraying immediately.
Ground the pressure tank by connecting
one end of a 12 gauge minimum ground
wire to the pressure tank and the other end
to a true earth ground. Local codes may
have additional grounding requirements.
If using an air quick disconnect (Q.D.) at the
inlet to the regulator at the pressure tank,
do not disconnect the Q.D. while the tank is
pressurized, unless the ball valve is closed.
Doing so will allow tank pressure to quickly
relieve, and can potentially pull paint back
through the air regulator and air motor
depending upon the liquid level in the tank.
Tank pressure should always be relieved
by opening the pet cock (relief valve) or
pulling the safety valve ring.
NOTE
(For non-direct drive models)
A tank with agitator assembly is shipped with the
curved edge of the paddle down. When a steel
insert container is used it is necessary to turn the
bottom paddle upside down so that the flat side is
down. In either position, the correct adjustment
on the paddle position is with the end of
the paddle hub flush with end of the shaft. This
mounting should give 1/2 inch clearance between
the edge of the paddle and the insert container.
Pressure Relief Procedure
High pressure can cause a serious
injury. Pressure is maintained in a
pressure tank after the system has
been shut down. Before attempting
removal of fill plug or cover, pressure
must be relieved using the following
steps:
1. Turn off the main air supply
to the tank.
2. Close air inlet valve located
on tank air manifold.
3. Bleed off air in the tank by turning
the air relief valve thumb screw
counterclockwise. Wait until all the air
has escaped through the valve before
removing the pressure tank cover or
fill plug.
4. Leave the air relief valve open
until you have reinstalled the
cover or fill plug.
Mix and prepare material to be used according to
manufacturer’s instructions. Strain material
through a fine mesh screen to remove lumps,
skin, and foreign matter that might enter and clog
fluid passages and/or spray equipment.
SPECIFICATION CHART
Maximum Working Pressure ............. 110 PSI
Tank Shell ............................................ 304 Stainless Steel,
.............................................................. 13 gauge (.0897 in.) thick
Tank Lid ............................................... 304 Stainless Steel,
.............................................................. 3/16 in. thick
Agitator Shaft ...................................... 303 Stainless Steel
Fluid Tube ............................................ 316 Stainless Steel,
.............................................................. 3/8 in. pipe
Fluid Valve, Outlet .............................. 316 Stainless Steel,
.............................................................. 3/8-18 NPSM outlet
Air Manifold ........................................ CRS - zinc plated
Shaft Seal ............................................ Engineered Teflon,
.............................................................. Stainless Steel
Agitator Paddles ................................. Nylon, Glass Filled
Fluid Outlet .......................................... 316 Stainless Steel
Bottom Outlet (Optional Kit) .............. 304 Stainless Steel,
.............................................................. 3/4 in. NPSM outlet
TO ASSEMBLE REGULATORS AND HOSE TO TANK
Assemble
single
regulator to
manifold
using
an 11/16
wrench.
Assemble
double
regulator
to manifold
using
an 11/16
wrench.
Assemble
hose to
either
manifold
using a 5/8
wrench.
PTFE

Page 4SB-21-064-J
1. Follow pressure relief procedures
above.
2. To add material to tank, remove lid
and pour directly into the tank or con-
tainer.
NOTE
If desired, a U.S. or metric 5 gallon
pail of fluid can be placed directly
into the tank.
3. Replace the lid assembly and tighten
thumb screws (6) securely.
4. The air supply to the tank should be
filtered to remove dirt, water and oil
(see Clean Air ™ under Accessories,
page 8). Connect the air supply line to
the tank inlet valve.
5. Connect the material hose to fluid
outlet ball valve (16).
USING BOTTOM OUTLET PORT
The pressure tank has a 1 inch NPT drain
port in the bottom of the tank. Bottom outlet
kits may be connected into the drain port.
Use bottom outlet feature when top outlet is
not desirable. Direct bottom outlet piping to
either one of two holes located in tank skirt.
A dolly to raise the tank off the floor is not
required.
OPERATION
1. Close air inlet valve to tank. Turn handle
on regulator counterclockwise until
spring tension is relieved.
2. Turn on air supply to tank.
3. Open air inlet valve to tank.
4. Open fluid outlet valve.
5. Turn handle on tank pressure regulator
clockwise to pressurize tank. Clockwise
increases material pressure; counter-
clockwise will decrease material pres-
sure. If the pressure tank has no regula-
tor, adjust pressure at the source.
6. Turn on atomization air to spray gun at
source of supply.
7. Test spray. For further instructions, see
spray gun service bulletin SB-2-001.
NOTE
If tank has a hand agitator, agitate
material periodically by turning
crank slowly clockwise.
If an air motor drive is used, start
the agitator by slowly opening the
needle valve. Air motor speed
should be regulated according to
the nature of the material being
agitated. The agitator should be
running continuously while using
the tank.
PREVENTIVE MAINTENANCE
To clean equipment, proceed as follows:
1. Turn off the air supply.
2. Follow pressure relief procedure
on page 3.
3. Turn T-handle adjusting screw on tank
fluid regulator counterclockwise until
no spring pressure is felt.
SERVICE CHECKS
CONDITION CAUSE CORRECTION
A. Air escaping from port on 1. Broken or damaged diaphragm. 1. Replace diaphragm.
regulator cap.
B. Pressure creepage registered 1. Dirty or worn valve seat in 1. Clean or replace valve seat.
on gauge. regulator.
C. Material tends to settle out 1. Not enough agitation of material. 1. Increase agitation.
rapidly.
D. Air leakage at agitator seal. 1. Defective seal assembly. 1. Replace.
E. Paint getting into bearing 1. Paint level in tank too high. 1. Do not fill tank above
assembly of agitator. agitator bearing assembly.
2. Defective agitator shaft seal. 2. Replace.
F. Fluid or air leak at lid gasket. 1. Thumb screw not tight. 1. Tighten.
2. Defective lid gasket. 2. Replace.
G. Air mixing with paint. 1. Fluid tube not sealed to lid. 1. Tighten fluid tube into lid.
2. Excessive agitation. 2. Reduce speed of agitator.
NOTE: Occasionally check pressure gauge. The needle should return to zero with no pressure on the gauge.
4. Loosen thumb screws (6), tip clamp (7)
back, and tip lid (15) to one side of
tank. Do not remove lid from tank.
5. Loosen spray gun air cap retaining
ring about three turns.
6. Turn on air supply.
7. Cup cloth over air cap on the gun and
pull trigger. This will force material
back through the hose, into the tank.
8. Empty and clean tank and parts that
come into contact with material.
Use a solvent compatible with
material being used.
9. Pour solvent into tank.
10. Replace lid and tighten thumb screws
and clamps.
11. Spray until clean solvent appears.
12. Repeat steps 4 through 8.
LUBRICATION
Refer to the service manual provided with
the air motor for lubrication information.
The bearings in the agitator bearing assem-
bly are impregnated with a special non-
gumming oil. Therefore, additional lubrica-
tion is not required.
The agitator shaft seal does not require
lubrication.

SB-21-064-J Page 5
5,10,15 Gallon Stainless Steel Tanks
Exploded View
•Open side of Shaft Seal
(27A) faces downward.
3
17
20
22
24
19
USED ONLY WITH
BOTTOM OUTLET
25
18
11
12
7
4
5
2
6
8
16
13
31
30
29
33
34
32
27A
•
10
15
14
*27B
24
26
23
37
39
28
21
9
Refer to Accessories
for Agitator Drives.
36 Used with
no agitation.
19
38
40
For bottom outlet
conversion remove
and discard plug.
Refer to Accessories
for bottom outlet.
NOTE
Use a Teflon based
sealant on all air/fluid
connections.
*Retainer 27B only required in
tank if used for vacuum opera-
tion. Not necessary to replace if
tank is used for pressure only.
27
PTFE

Page 6SB-21-064-J

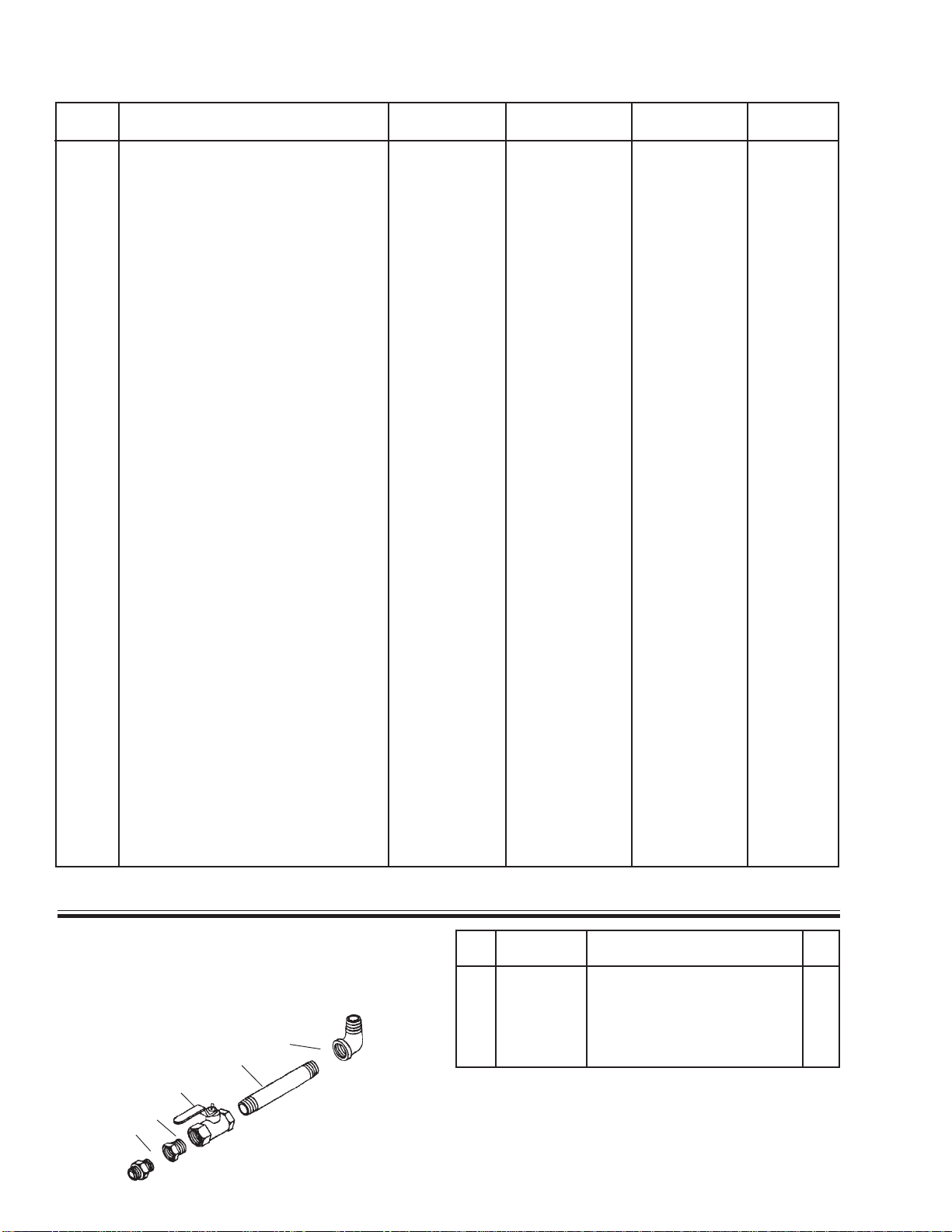

PARTS LIST FOR STAINLESS STEEL 5, 10, 15 GALLON TANKS
REF INDIVIDUAL
NO. DESCRIPTION 5 GALLON 10 GALLON 15 GALLON PARTS REQ.
1--- Not Used
2Disposable Tank Liner PTL-406-K20 PTL-410-K8 PT-415-K10 1
3Tank Assembly (includes items 4 through 9) QMS-440 QMS-441 — 1
+4 Clevis Pin — — — 6
•+5 Cotter Pin (1/8 diameter x 1 in. long) — — — 6
+6 Thumb Screw QM-1352 QM-1352 QM-1352 6
+7 Clamp — — — 6
8 Tank, Stainless Steel QMS-505 QMS-510 QMS-515 1
9 Plug — — — 1
10 Stationary Paddle Kit (includes items — QMS-445 QMS-445 1
11 and 12)
11 Stationary Paddle — — — 1
•12 Hex Socket Head Cap Screw — — — 1
(5/16-18 x 1-1/4, Stainless Steel)
13 Fluid Tube (3/8-18 NPT) QMS-10-1 QMS-11-1 QMS-12-1 1
14 Lid Gasket, Santoprene QM-1458-1 QM-1458-1 QM-1458-1 1
15 Tank Lid, Stainless Steel QMS-417 QMS-417 QMS-417 1
16 Ball Valve, 316 Stainless Steel VA-527 VA-527 VA-527 1
17 90°St. Elbow (3/8 x 18 NPT Stainless Steel) SSP-1939 SSP-1939 SSP-1939 1
•18 Plug (3/8-18 NPT Stainless Steel) — — — 1
19 Agitator Assembly (includes items QMS-432 QMS-433 QMS-434 1
20 through 34)
20 Retaining Nut QMS-46 QMS-46 QMS-46 1
21 Thrust Collar Kit (includes items 22 and 23) QMS-447 QMS-447 QMS-447 1
22 Thrust Collar — — — 1
•23 Set Screw (5/16-18 x 3/8) — — — 1
24 Thrust Washer Kit (includes 2 washers) KK-5049 KK-5049 KK-5049 2
25 Bearing Assembly QMS-407 QMS-407 QMS-407 1
26 O-Ring (Kit of 2) SSG-8184-K2 SSG-8184-K2 SSG-8184-K2 1
27 Shaft Seal Kit KK-5042 KK-5042 KK-5042 1
27A Shaft Seal — — — 1
27B Retainer — — — 1
28 Agitator Shaft (5/8" Diameter) QMS-6 QMS-7 QMS-8 1
29 Agitator Paddle Kit (includes items 30 and — — QMS-444 1
31), nylon
30 Agitator Paddle — — — 1
•31 Hex Socket Head Cap Screw — — — 1
(5/16-18 x 1-1/4, Stainless Steel)
32 Agitator Paddle Kit (includes items 33 and QMS-444 QMS-444 QMS-444 1
34), Nylon
33 Agitator Paddle — — — 1
•34 Hex Socket Head Cap Screw — — — 1
(5/16-18 x 1-1/4, Stainless Steel)
35 Not Used — — —
36 Plug QMS-3 QMS-3 QMS-3 1
37 Air Manifold QMG-21 QMG-21 QMG-21 1
38 Air Relief Valve SS-2707 SS-2707 SS-2707 1
•39 Street Elbow (1/4"-18 NPT Brass) — — — 1
40 Safety Valve Assembly, 110 PSI TIA-5110 TIA-5110 TIA-5110 1
Safety Valve Assembly, 40 PSI (for tanks TIA-5040 TIA-5040 TIA-5040 1
with extra sensitive regulation)
• Purchase locally.
+ KK-5014 Clamp, Pin and Screw Kit includes 1 each of Items 4, 5, 6 & 7.
ACCESSORIES
QMS-443 BOTTOM OUTLET CONVERSION KIT
Fittings that allow standard top outlet tank to feed from bottom by
removing plug in bottom port. Kit includes stainless steel shutoff
valve and all stainless steel parts.
Ref. Replacement
No. Part No. Description Qty.
41 ----- Adapter, 3/4" NPT 1
to 3/4-14 NPS(M)
42 ----- Reducer Bushing, 3/4 to 1" s.s. 1
43 ----- Ball Valve, 1 x 1 NPT(f) s.s. 150 PSI 1
44 ----- Pipe Nipple (1" Stainless Steel) 1
45 ----- Street Elbow (1" Stainless Steel) 1
41
42
43
44
45

SB-21-064-J Page 7
QMS-4010 EXTRA SENSITIVE REGULATOR KIT
Use with electrostatic spray or other applications requiring ex-
tremely sensitive nonfluctuating low pressure control. Kit
includes one extra sensitive gauge, one extra sensitive regulator,
inlet and outlet shutoff valves, and connection fittings. Refer to
SB-6-131 for regulator service parts.
Ref Replacement
No. Part No. Description Qty.
61 SSP-8217-ZN Swivel Adapter 1
62 VA-542 Valve 2
63 SSP-2629-ZN Tee Male Branch 2
•64 ----- Hex Reducer Bushing 2
(3/8 x 1/4 Galvanized)
65 HAR-501 Extra Sensitive Regulator 1
66 83-1414 Gauge 30 lb. 1
• Purchase locally.
QM-142 HAND CRANK
Mounts on agitator shaft to provide manual
agitation of materials in tank.
QMS-4003 NO REGULATION KIT
Use when fluid pressure in tank is regulated by some other
separate controls. Kit includes air shutoff valve, gauge to read
fluid pressure in tank, and fittings.
Ref Replacement
No. Part No. Description Qty
•46 SSP-35-CD Swivel Coupling 1
•47 ----- Street Tee (1/4") 1
48 83-1290 Gauge 150 lb 1
49 VA-542 Valve 1
• Purchase locally.
QMS-4006 SINGLE REGULATOR KIT (STANDARD)
Provides standard fluid pressure control only. For use when atomi-
zation air is controlled by a separate filter-regulator. Kit includes
pressure regulator with gauge, inlet and outlet shutoff valves, and
connection fittings. Refer to 77-2781 for regulator service parts.
Ref Replacement
No. Part No. Description Qty.
50 SSP-8217-ZN Swivel Adapter 1
51 VA-542 Valve 2
52 HAR-511 Regulator 1
53 83-1290 Gauge 150 lbs. 1
•XX ---- Bushing 3/8 NPT(m) x 1/4 NPT(f) 2
(Supplied/Regulator)
•YY ---- Pipe Plug 1/4 NPT (Supplied/Reg) 1
• Purchase locally.
ACCESSORIES (CONTINUED)
48
49
46
47
Ref Replacement
No. Part No. Description Qty.
54 VA-542 Valve 2
55 HAR-507 Regulator (Painted) 1
56 83-1355 Gauge, 100 lbs. 1
57 83-4233 D.M. Nipple 1/4 x 3/8 Universal 1
Pipe Threads
58 83-1290 Gauge, 150 lbs. 1
59 HAR-511 Regulator 1
60 SSP-8217-ZN Swivel Adapter 1
•XX ---- Bushing 3/8 NPT(m) x 1/4 NPT(f) 2
(Supplied/Regulator)
•YY ---- Pipe Plug 1/4 NPT (Supplied/Reg) 2
• Purchase locally.
60
54
57
54
59
55
56
63
65
64
62
66
61
62
64
63
51
51
52
50
53
QMS-4007 DUAL REGULATOR KIT (STANDARD)
Provides independent controls for fluid pressure in tank and
atomization air pressure. Kit includes two regulators with gauges,
inlet and outlet shutoff valves, and connection fittings. Refer to
SBBI-6-147 and 77-2781 for regulator service parts.
YY
XX
XX
YY
XX
XX
58
YY

Page 8SB-21-064-J
ACCESSORIES (CONTINUED)
QMS-436 CONVERSION TO DOUBLE REGULATOR
ASSEMBLY KIT
Adapts to tanks equipped with single regulator to provide
independent pressure control of atomization air and fluid pres-
sure. Converts QMS-4006 single regulator to a QMS-4007 dual
regulator. Refer to SBBI-6-147 for regulator service parts.
Ref Replacement
No. Part No. Description Qty.
67 HAR-507 Regulator 1
68 83-1355 Gauge, 100 lbs. 1
69 83-4233 D.M. Nipple 1/4 x 3/8 1
Universal Pipe Thds.
•YY ---- Pipe Plug 1/4 NPT 1
(Supplied/Regulator)
• Purchase locally.
VS-534 FLUID STRAINER
Primary fluid strainer that attaches between fluid
outlet valve and fluid hose to strain material.
Components made of stainless steel with nylon filter.
Comes standard with 100-mesh screen. For more
information see SB-7-072.
68
67
69
9/04 ©2004 Inc. All rights reserved. Printed in U.S.A.
YY
QS-5012 Air Motor Drive
Standard duty 1/2 hp agitator
drive with 15:1 gear reduction.
Operates from 20 to 120 rpm.
Mounts on agitator shaft.
Includes throttling valve, fittings,
and hose for connection to air
supply on tank lid. For further
information see SB-19-087.
31-381 Reciprocating Air Motor Drive
Low air consumption motor
mounts easily on tanks equipped
for material agitation. Slow back
and forth motion ensures proper
agitation. Operates at 10 to 30
cycles per minute. For more
information see part Sheet 77-2788.
DISPOSABLE TANK LINERS
Molded polyethylene tank liners to reduce solvent
waste and tank cleanup time. The liner is made of
tough, durable, leakproof polyethylene and can
be used with all compatible materials.
PTL-406-K20 Kit of 20 tank liners for 5 gal.
PTL-410-K8 Kit of 8 tank liners for 10 gal.
PTL-415-K10 Kit of 10 tank liners for 15 gal.
HFRL-508, HFRL-509 CLEAN AIR™
CONTROL UNITS
These units are designed to remove dirt,
pipe scale and most liquid aerosol.
Includes an automatic drain which expels
liquids which accumulate in the filter bowl.
Inner Diameter .............. 11.75" (298.45mm)
Outer Diameter ........... 15.375" (390.52mm)
Height/Depth ..................... 3.75" (95.25mm)
Case Qty .................................................... 20
PTS-5Gal-K20-200 ..................... 200 micron
(approx. 65 wire mesh)
PTS-5Gal-K20-400 ..................... 400 micron
(approx. 37 wire mesh)
PTS-5Gal-K20-600 ..................... 600 micron
(approx. 28 wire mesh)
PROSPECTORTM PRESSURE TANK STRAINERS
FOR 5, 10, AND 15 GALLON TANKS
Prospector™ strainers are an economical way to remove foreign
material from paint, stain, lacquer and coatings.
WARRANTY
This product is covered by DeVilbiss' 1 Year Limited Warranty.
DeVilbiss Worldwide Sales and Service Listing: www.devilbiss.com
Industrial Finishing
DeVilbiss has authorized distributors throughout the world. For
technical assistance or the distributor nearest you, see listing below.
U.S./Canada Technical Service Office:
195 Internationale Blvd., Glendale Heights, IL 60139
Toll-Free Telephone: [phone] (U.S.A. and Canada only)
Toll-Free Fax: [phone]
29-3100 SCRUBS®HAND CLEANER TOWELS
Scrubs® are a pre-moistened hand cleaner
towel for painters. No water is needed.
