DeWalt DXGN7200 User manual

To reduce the risk of injury, read and follow these instructions before
operating product.
Pour réduire les risques d'accident, nous vous conseillons de lire et
de respecter les instructions suivantes avant toute utilisation du produit.
Para reducir el riesgo de lesiones, lea y siga estas instrucciones
antes de operar el producto.
02/12 0068659
INSERT
ADDITIF
ADICIÓN
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-8888-4431-66871 ••wwww.dewalt.com
Generator DXGN7200
Génératrice DXGN7200
Generador DXGN7200

2English

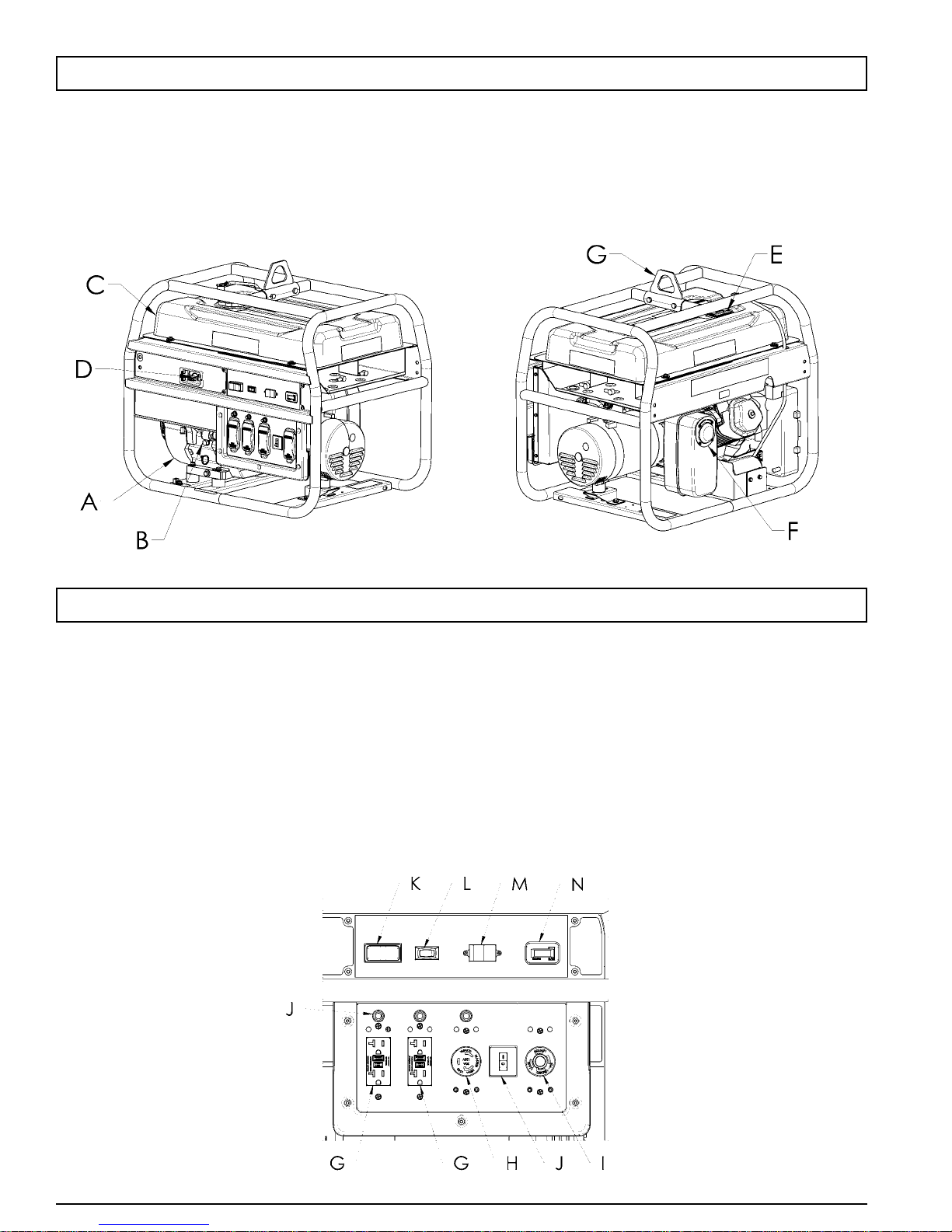

CONTROL PANEL
A. Honda GX390 OHV engine
B. Low oil sensor
C. 8 gallon metal fuel tank
D. Fuel shut-off valve
E. Fuel gauge
F. Spark arrester
G. Lifting hook
GENERATOR FEATURES
G. NEMA 5-20R 125V - 20A GFCI Receptacle
H. NEMA L5-30R 125V - 30A Receptacle
I. NEMA L14-30R 125/250V - 30A Receptacle
J. Circuit Breakers
K. Engine On/Off Switch
L. Idle Control Switch
M. Voltage Selector Switch
N. Digital Hour Meter
• Press and release mode button to toggle
between Total Timer and Timer 1 (TMR1).
• Total Timer displays and records the total hours
your generator has run. Total Timer is not
resettable.
• Timer 1 can be used to track operating hours for
service intervals. Timer 1 is resettable by
holding the mode button down for 3 seconds
while TMR1 is displayed.

3
English
This generator model is provided with both electric start
and recoil start capabilities. Avoid prolonged cranking, as it
can damage the engine.
The required battery is a nominal 12 volt sealed
rechargeable lead-acid battery and can be operated in any
position without leakage. It complies with non-spillable battery
regulations. Its convenient size offers a 30% reduction over
conventional batteries.
Length = 7.14 inches, Width = 3.03 inches,
Height = 6.59 inches, Weight = 12.56 lbs
18AH Rating
UL Recognized
DEWALT part number: DXGN018BT (0063574)
Battery Kit Parts List
Item Description Qty
A *Bolt, M5 x M12 2
B. *Nut 5MM 2
C. *Washer Flat M5 2
* These are standard parts available at your local hardware
store.
Note: The Positive and Negative Terminals must be con-
nected to the Battery before the Electric Start Feature will
work.
Initial Battery Connection - Refer to the Installation Instructions
Below.
Battery Removal & Installation:
Removal: Remove the nut and bolt from the negative and
positive post, being careful not to short across the terminals.
(Shorting the terminals together can cause sparks, damage to
the battery or generator or even burns or explosions.)
Always abide by the safety warnings provided with the
battery. Remove the battery and re-cycle and dispose of
properly.

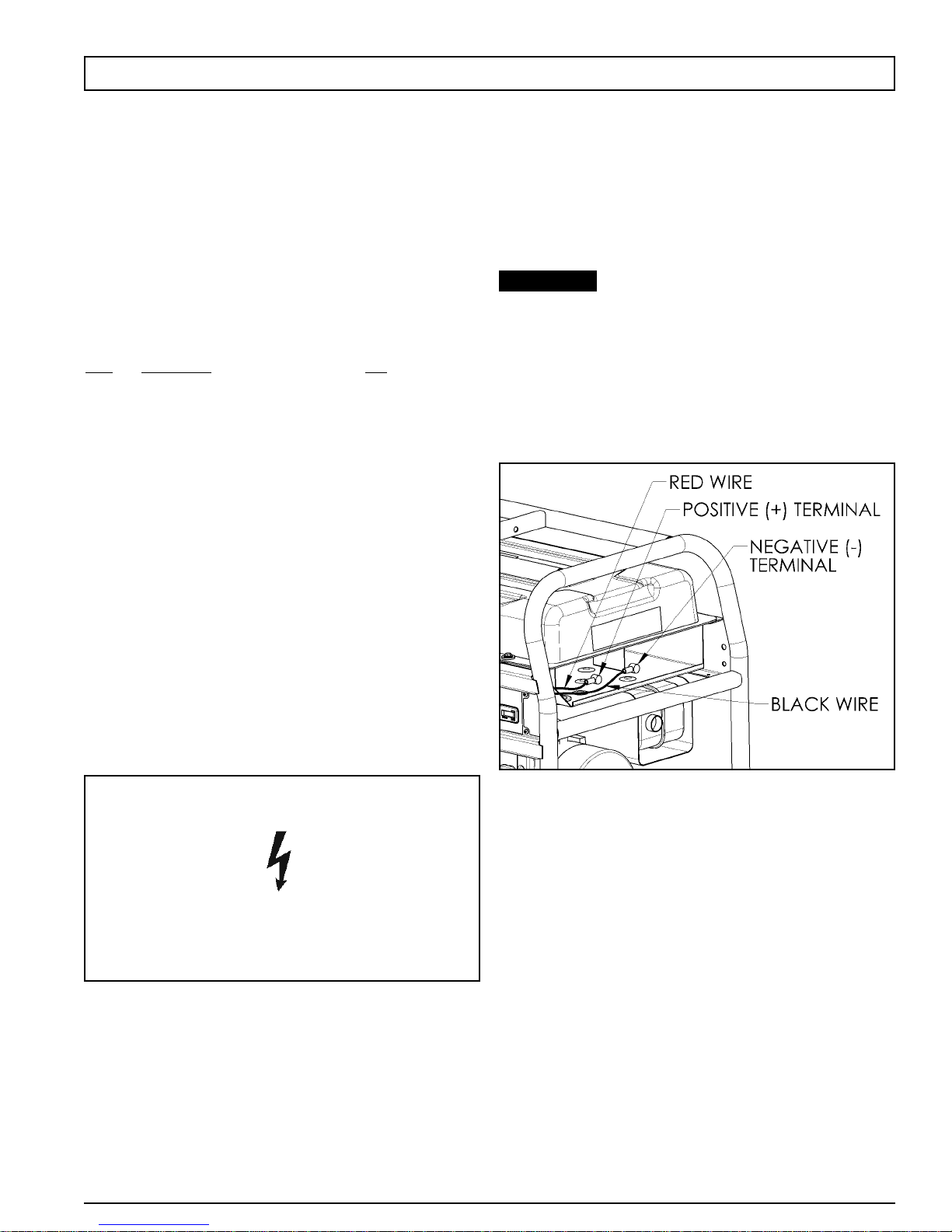

Installation:
Hook up the new battery, or re-install the new battery, as
follows: Place the battery in the position provided. Connect
the Red 10 Gauge wire to the positive (+) terminal and the
Black 10 Gauge wire to the negative (-) terminal with the bolt,
nut, and washer provided. Make sure all connections are tight.
Your battery is now connected and ready for use.
STARTING THE GENERATOR SET
Be sure Oil has been added to the engine
as specified in the Owner's Manual.
Move engine On/Off switch to On position. Push and hold the
On/Off switch in the Start position until the engine starts and
release.
Note: If the engine does not start after 5 seconds, stop and
wait 10 seconds and repeat this step.
ELECTRIC START
• Do not short-circuit the battery terminals.
• Do not charge in a sealed container.
• Keep sparks, flame away.
NOTICE:

8

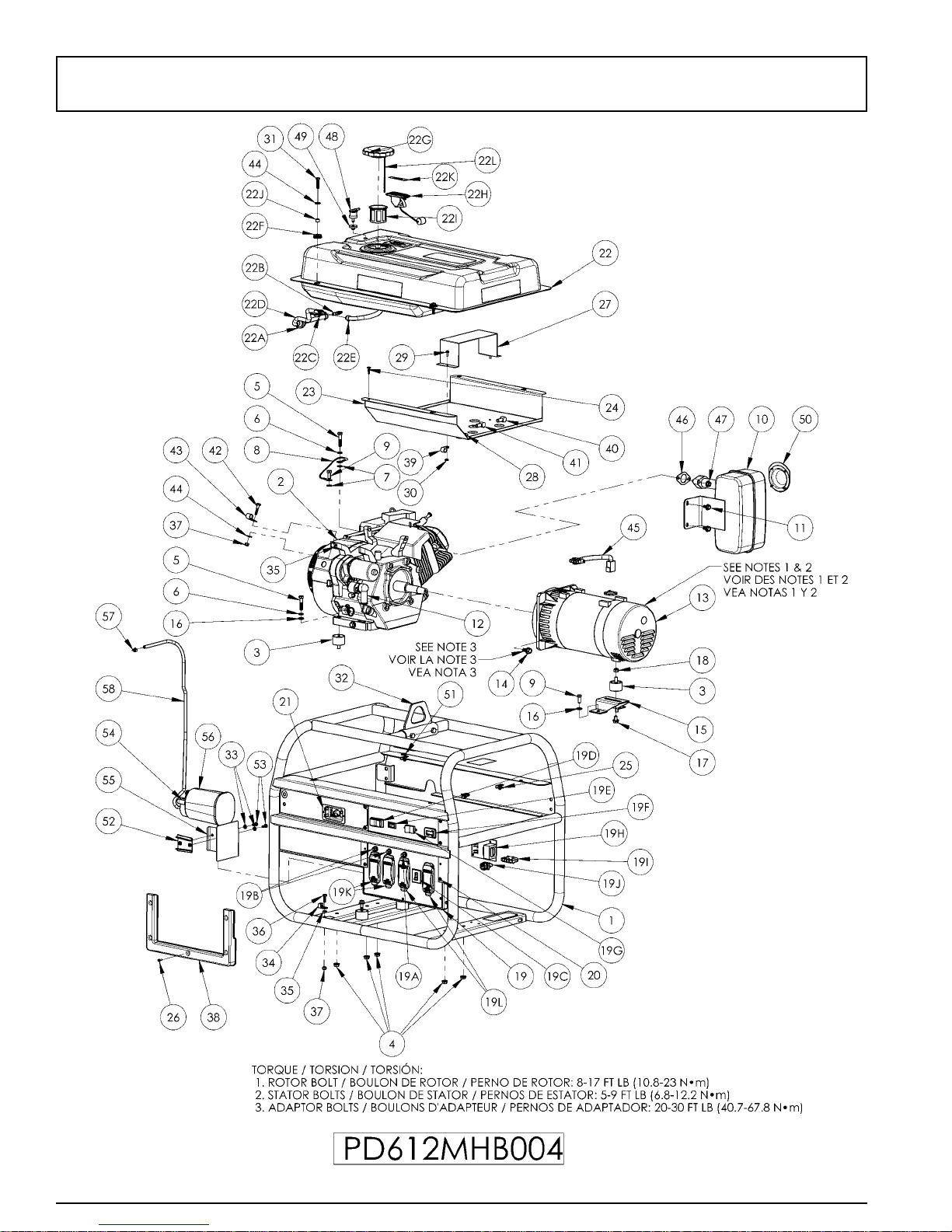

PARTS DRAWING / SCHEMA DES PIÈCES / DIAGRAMA DE PIEZAS

9
REF. PART DESCRIPTION DESCRIPTION DESCRIPCIÓN QTY
NO. NO.
1 0068617 Carrier, assembly Ensemble transport Transportador, conjunto 1
2 EHB130CB1AY Engine Honda GX390 OHV Moteur Honda GX390 Motor Honda GX390 1
3 0051094 Isolator Sectionneur Aislador 5
4 0057254 Nut, hex flg 5/16-18 Écrous 5/16-18 Tuerca 5/16-18 7
5 0003947 Bolt, 5/16-18 x 1.50 Boulon Perno 4
6 0000943 Washer, lock 5/16 Contre-écrou 5/16 Arandela, de cierre 5/16 4
7 0049234 Washer, star external 5/16 Rondelle à dents externa 5/16 Arandela, estrella 5/16 2
8 0049224 Assembly, ground wire Ensemble fil de masse tressé a tierra Conjunto, cable trenzado 1
9 0049744 Bolt, hex 5/16-18 x 3/4 Boulon, tête hex 5/16-18 x 3/4 Perno 3
10 0057664 Muffler Silencieux Silenciador 1
11 0000901.01 Bolt whz 5/16-24 x .63 Boulon Perno 2
12 0063965 Cover, battery post Couvercle Tapa 1
13 AMM6800RB0000Z Alternator Mecc Alte Alternateur Mecc Alte Alternador Mecc Alte 1
14 0000919.01 Bolt whz 3/8-16 x .75 Boulon Perno 4
15 0068624 Bracket, stator Support de stator Soporte del estator 1
16 0000992 Washer, flat 5/16 Rondelle plate 5/16 Arandela, plana 5/16 5
17 0049279 Bolt whz 5/16-18 x .50 Boulon Perno 1
18 0048736 Nut, nyloc 5/16-18 Écrous nyloc 5/16-18 Tuerca, nyloc 5/16-18 1
19 0068662 Panel, wired Tableau complet câblé Panel, cabeado completo 1
19A 0049382 Circuit Breaker 30 amp Disjoncteurs 30 amp Cortacircuitos 30 amp 1
19B 0049071 Circuit Breaker 20 amp Disjoncteurs 20 amp Cortacircuitos 20 amp 2
19C 0069098 Circuit Breaker 27 amp dual Disjoncteurs 27 amp double Cortacircuitos 27 amp doble 1
19D 0067612 Switch, Momentary Interrupteur Interruptor 1
19E 0050298 Switch, Rocker Interrupteur Interruptor 1
19F 0069300 Hour meter Horomètre Contador Horario 1
19G 0069041 Switch, Rocker 120V full power Interrupteur Interruptor 1
19H 0069027 Idle control module Module de commande du ralenti Módulo, control en vacío 1
19I 0062797 Connector, panel Connecteur, tableau Conector, panel 1
19J 0067515 Strain relief Réducteur de tension Protección contra tirones 1
19K 0068629 Cover, receptacle GFCI Couvercle de prise Tapa de receptáculo 2
19L 0069336 Cover, receptacle twistlock Couvercle de prise Tapa de receptáculo 2
20 0062021 Screw #10 x .50 Torx Vis Tornillo 6
21 0067645 Insert, fuel valve holder Insertion de soupape Adición de válvula 1
22 0068723 Fuel tank assembly (includes 22A-22L) Ensemble de réservoir (inclut 22A-22L) Conjunto tanque (incluye 22A-22L) 1
22A 0050766 Fuel fitting with filter Raccord de carburant Adaptador de combustible 1
22B 0064306 Connector 1/4 barb x 3/16 barb Connecteur Conector 1
22C 0049920 Fuel shut off Robinet de carburant Válvula de combustible 1
22D 1130634480 Fuel hose Flexible de carburant Manguera de combustible 1
22E 0035857 Clamp, Hose Crampon, tuyau Abrazadera, manguera 6
22F 0061877 Grommet Oeillet Arandela de cabo 4
22G 0068689 Fuel Cap Capuchon Tapa de combustible 1
22H 0068722 Fuel gauge/screws Jauge de carburant/vis Indicador de combustible/tornillos 1
22I 0061942 Fuel filter Filtre à carburant Filtro de combustible 1
22J 0066072 Insert mount Insertion Inserto 4
22K 0066076 Decal, fuel gauge Décalcomanie de jauge Calcomanía de indicador 1
22L 0066090 Ring, chain attachment Anneau Anillo 1
23 0068630
Shield, heat Écran de chaleur Pantalla para el calor 1
24 0064138 Screw #10 x .75 Vis Tornillo 4
25 0068752 Clip U M6-1.0 Attache Presilla 4
26 0067855 Screw #8-18 x .50 Torx Vis Tornillo 5
27 0068631 Bracket, battery hold-down Support, Botte Soporte, batería 1
28 0057183 Grommet 7/8 ID Oeillet Arandela de cabo 1
29 0047864 Screw HSW #10-32 x .50 Vis Tornillo 2
30 0051930 Nut Hex #10-32 KEPS Écrous Tuerca 2
31 0068939 Bolt HH M6 x 30mm Boulon M6 x 30mm Perno M6 x 30mm 4
32 0069150 Assembly, lifthook Ensemble de barre de levage Conjunto de gancho para levantar 1
33 0068749 Washer, lock 1/4 Contre-écrou 1/4 Arandela, de cierre 1/4 2
34 0008854 Lug, ground Oeillet de mise à la terre Terminal, tierra 1
35 0049073 Washer, star external 1/4 Rondelle à dents externa 1/4 Arandela, estrella 1/4 1
36 0012526 Bolt, 1/4-20 x .75 Boulon Perno 1
37 0040832 Nut, nyloc 1/4-20 Écrous nyloc 1/4-20 Tuerca, nyloc 1/4-20 2
38 0069089 Bezel, control panel Panneau Anillo 1
39 0047706 Clamp, nylon 1/2 Collier Abrazadera 1
40 0064221 Boot, black Botte, noir Bota, negro 1
41 0064220 Boot, red Botte, roughe Bota, rojo 1
42 0000398 Bolt, 1/4-20 x 1.25 Boulon Perno 1
43 0052931 J clamp Collier Pinza vinílica 1
44 0068738 Washer, flat 1/4 Rondelle plate 1/4 Arandela, plana 1/4 6
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS

WARNING: To avoid possible personal injury or equipment damage, a registered electrician or an authorized service representative should
perform installation and all service. Under no circumstances should an unqualified person attempt to wire into a utility circuit.
AVERTISSEMENT: Pour éviter toute blessure personnelle ou dommage à l’équipement, l’installation et tout entretien devralent être effectués par un
électricien qualifié ou un préposé au service autorisé. En aucun cas, une personne non-qualifiée ne devrait essayer de faire le raccord au circuit principal.
ADVERTENCIA: Para evitar posibles lesiones físcas o daños materiales, es necesario que la instalación y todo el servicio sea realizado por un
electricista matriculado o representatnte de servicio autorizado. Bajo ninguna circunstancia debe permitirse que una persona que no está capacitad trate
de manipular cables dentro del circuito de servicio eléctrico.
10
REF. PART DESCRIPTION DESCRIPTION DESCRIPCIÓN QTY
NO. NO.
45 0067752 Harness, alternator to panel Harnais Arreos 1
46 0063362
Gasket Joint Empaquetadura 1
47 0061393 Nut flange 8mm
Écrous 8mm Tuerca 8mm 2
48 0067767 Valve, rollover Soupape Válvula 1
49 0065127 Bushing, valve Bague Buje 1
50 0066808 Spark arrester Pare-étincelles Apagachispas 1
51 0066813 Grommet, 3/8 ID Oeillet Arandela de cabo 1
52 0068728 Bracket, carbon canister Support Soporte 1
53 0068747 Bolt HH M6 x 14 Boulon M6 x 14 Perno M6 x 14 2
54 1130688810 Fuel hose 10” Flexible de carburant 10 po Manguera de combustible 10 pulg 1
55 0069444 Shield, carbon canister Écran Pantalla 1
56 0068720 Carbon Canister Cartouche de carbone Canastillo de carbón 1
57 0050859 Clamp, Hose Crampon, tuyau Abrazadera, manguera 1
58 1130660180 Fuel hose 28.5” Flexible de carburant 28,5 po Manguera de combustible 28,5 pulg 1
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS

11
DXGN7200 WIRING SCHEMATIC / SCHÉMA ÉLECTRIQUE D'INSTALLATION /
ALAMBRADO ESQUEMATICO
27A
