Dewalt Dxpw60606 User manual

DXPW60606

Pressure Washer

Laveuse à pression

Lavadora a presión

INSTRUCTION MANUAL

GUIDE D'UTILISATION

MANUAL DE INSTRUCCIONES

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE

GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE

USAR EL PRODUCTO.

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-877-FNA-GAS1 (1-877-362-4271)•www.dewaltpw.com

English

A. Panel assembly

B. Nozzle Grommets

C. Professional Spray gun

D. Wheel

E. Quick-connect

spray wand

F. Frame

G. Engine dipstick/oil plug

H. Engine switch

I. Starter grip

J. Engine

K. Throttle control lever

L. Choke control

M. Fuel valve lever

N. Gas cap

O. Handle assembly

P. High-pressure hose

Q. High-pressure pump

DXPW60606 PRESSURE WASHER

Engine

Refer to the engine instruction manual for location and

operation of other engine controls.

Pump

For best results, pump oil designed specifically for

pressure washers is recommended, as these contain a

rust inhibitor and an anti-foaming agent. If this oil is not

available, an SAE 30W non-detergent oil may be used.

FIG. 1

ABQ

ENGINE

English

Denitions: Safety Guidelines

The definitions below describe the level of severity

for each signal word. Please read the manual and pay attention

to these symbols.

DANGER: Indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous

situation which, if not avoided, could result in death or serious

injury.

CAUTION: Indicates a potentially hazardous

situation which, if not avoided, may result in minor or

moderate injury.

NOTICE: Indicates a practice not related to personal injury

which, if not avoided, may result in property damage.

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS

(1-877-362-4271)

Specications

MODEL WEIGHT HEIGHT WIDTH LENGTH MAX** GPM** ENGINE

DXPW60606 145 lbs

(65.8 kg) 25.5"

(64.7 cm) 28"

(71.1 cm) 45"

(114.3 cm) 4200

(29,958 kPa) 4.0

(15.4 L/min)

HONDA***

389cc OHV

** PSI and GPM ratings determined in accordance with the Pressure Washers Manufacturers Association (PWMA)

standard PW101.

*** HONDA™ is a registered trademarks of the HONDA MOTOR CO., LTD used under license from AMERICAN HONDA MOTOR CO. INC.

Important Safety Instructions

DANGER: Carbon Monoxide. Using an engine indoors can kill

you in minutes. Engine exhaust contains high levels of carbon

monoxide (CO), a poisonous gas you cannot see or smell. You

may be breathing CO even if you do not smell engine exhaust.

WARNING: This product and its exhaust contain chemicals

known to the State of California to cause cancer, and birth

defects and other reproductive harm.

 NEVER use an engine inside homes, garages, crawlspaces or

other partly enclosed areas. Deadly levels of carbon monoxide can

build up in these areas. Using a fan or opening windows and doors

does NOT supply enough fresh air.

 ONLY use outdoors and far away from open windows, doors and

vents. These openings can pull in engine exhaust.

            

home. ALWAYS use a battery-powered or battery backup CO

alarm in your house. Read and follow all directions for CO

alarm before using. If you feel sick, dizzy or weak at anytime,

move to fresh air immediately. See a doctor. You could have

carbon monoxide poisoning.

English

WARNING: Do not operate this unit until you read this instruction

manual and the engine instruction manual for safety, operation and

maintenance instructions.

WARNING: When using this product basic precautions should

always be followed, including the following:

1. Read all instructions before using the product.

2. To reduce the risk of injury, close supervision is necessary when a

product is used near children.

3. Know how to stop the product and bleed pressures quickly. Be

thoroughly familiar with the controls.

4. Stay alert–watch what you are doing.

5. Do not operate the product when fatigued or under the influence of

alcohol or drugs.

6. Keep operating area clear of all persons.

7. Do not overreach or stand on unstable support. Keep good

footing and balance at all times.

8. Follow the maintenance instructions speciﬁed in the manual.

DANGER: RISK OF INJECTION OR SEVERE INJURY. KEEP

CLEAR OF NOZZLE. DO NOT DIRECT DISCHARGE STREAM

AT PERSONS. THIS PRODUCT IS TO BE USED ONLY BY

TRAINED OPERATORS.

WARNING: This product may not be equipped with a spark-

arresting muffler. If the product is not equipped and will be used

around flammable materials or on land covered with materials such

as agricultural crops, forest, brush, grass or other similar items,

then an approved spark arrester must be installed and is legally

required in the state of California. It is a violation of California statutes

section 130050 and/or sections 4442 and 4443 of the California

Public Resources Code, unless the engine is equipped with a spark

arrester, as defined in section 4442, and maintained in effective

working order. Spark arresters are also required on some U.S. Forest

Service land and may also be legally required under other statutes and

ordinances.

WARNING: This product and its exhaust contain chemicals

known to the State of California to cause cancer, and birth

defects or other reproductive harm. In addition, some cleaning

products and dust contain chemicals known to the State

of California to cause cancer, and birth defects or other

reproductive harm. Wash hands after handling.

Save theSe inStructionS

DANGER: RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Spilledgasolineandit’s

vapors can become ignited

from cigarette sparks,

electrical arcing, exhaust

gases and hot engine

components such as

the muffler.

 • Shutoffengineandallow

it to cool before adding fuel

to the tank.

 • Usecareinfillingtankto

avoid spilling fuel. Move

pressure washer away

from fueling area before

starting engine.

 • Heatwillexpandfuelinthe

tank which could result in

spillage and possible fire

explosion.

 • Keepmaximumfuellevel

1/2" (12.7 mm) below

bottom of filler neck

to allow for expansion.

 • Operatingthepressure

washer in an explosive

environment could

result in a fire.

 • Operateandfuelequipment

in well-ventilated areas free

fromobstructions.Equip

areas with fire extinguisher

suitable for gasoline fires.

English

 • Materialsplacedagainstor

near the pressure washer

can interfere with its proper

ventilation features causing

overheating and possible

ignition of the materials.

 • Neveroperatepressure

washer in an area containing

dry brush or weeds.

 • Mufflerexhaustheatcan

damage painted surfaces,

melt any material sensitive to

heat (such as siding, plastic,

rubber, vinyl or the pressure

hose, itself), and damage

live plants.

 • Alwayskeeppressurewasher

a minimum of 4' (1.2m)

away from surfaces (such as

houses, automobiles or

live plants) that could be

damaged from muffler

exhaust heat.

 • Improperly stored fuel could

lead to accidental ignition.

Fuel improperly secured

could get into the hands of

childrenorotherunqualified

persons.

 • StorefuelinanOSHA

approved container, in a

secure location away from

work area.

 • Useofacids,toxicor

corrosive chemicals,

poisons, insecticides, or any

kind of flammable solvent

with this product could

result in serious injury or

death.

 • Donotsprayflammable

liquids.

DANGER: RISK TO BREATHING (ASPHYXIATION)

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Breathingexhaustfumes

will cause serious injury

or death! Engine exhaust

contains carbon monoxide,

an odorless and deadly gas.

 • Operatepressurewasherin

a well-ventilated area. Avoid

enclosed areas such as

garages, basements, etc.

 • Neveroperateunitinornear

a location occupied by

humans or animals.

 • Somecleaningfluids

contain substances which

could cause injury to skin,

eyes or lungs.

 • Useonlycleaningfluids

specifically recommended

for high-pressure washers.

Follow manufacturers

recommendations. Do not

use chlorine bleach or any

other corrosive compound.

English

 • Donotallowhosetocontact

muffler.

 • Neverattachorremove

wand or hose fittings while

system is pressurized.

 • Whenusingreplacement

lances or guns with this

pressure washer, DO NOT

use a lance and/or lance/gun

combination that is shorter

in length than what was

provided with this pressure

washer as measured from

the nozzle end of the lance

to the gun trigger.

 • Injuriescanresultifsystem

pressure is not reduced

before attempting

maintenance or

disassembly.

 • Torelievesystempressure,

shut off engine, turn off water

supply and pull gun trigger

until water stops flowing.

 • Use only accessories rated

equaltoorhigherthan

the rating of the pressure

washer.

DANGER: RISK OF FLUID INJECTION AND LACERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Yourpressurewasher

operates at fluid pressures

and velocities high enough

to penetrate human and

animal flesh, which could

result in amputation or

other serious injury. Leaks

caused by loose fittings or

worn or damaged hoses

can result in injection injuries.

DO NOT TREAT FLUID

INJECTION AS

A SIMPLE CUT! See a

physician immediately!

 • Inspectthehigh-pressure

hose regularly. Replace

the hose immediately if it is

damaged, worn, has melted

from contacting the engine,

or shows any signs of

cracks, bubbles, pinholes, or

other leakage. Never grasp a

high-pressure hose that

is leaking or damaged.

 • Nevertouch,graspor

attempt to cover a pinhole

or similar water leak on the

high-pressure hose. The

stream of water IS under high

pressure and WILL

penetrate skin.

 • Neverplacehandsinfront

of nozzle.

 • Directsprayawayfromself

and others.

 • Makesurehoseandfittings

are tightened and in good

condition. Never hold onto

the hose or fittings during

operation.

English

DANGER: RISK OF INJURY FROM SPRAY

WHAT CAN HAPPEN HOW TO PREVENT IT

 • High-velocityfluidspray

can cause objects to break,

propelling particles at high

speed.

 • AlwayswearANSI-approved

Z87.1 safety glasses. Wear

protective clothing to protect

against accidental spraying.

 • Neverpointwandatorspray

people or animals.

 • Lightorunsecuredobjects

can become hazardous

projectiles.

 • Alwayssecuretriggerlock

when wand is not in service

to prevent accidental

operation.

 • Neverpermanentlysecure

trigger in pull-back (open)

position.

DANGER: RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Unsafeoperationofyour

pressure washer could lead

to serious injury or death to

you or others.

 • Donotusechlorine

bleach or any other

corrosive compound.

 • Becomefamiliarwiththe

operation and controls of

the pressure washer.

 • Keepoperatingareaclear

of all persons, pets and

obstacles.

 • Donotoperatetheproduct

when fatigued or under the

influence of alcohol or drugs.

Stay alert at all times.

 • Neverdefeatthesafety

features of this product.

 • Donotoperatemachine

with missing, broken or

unauthorized parts.

 • Neverleavewand

unattended while unit

is running.

English

 • Ifproperstartingprocedure

is not followed, engine can

kickback causing serious

hand and arm injury.

 • Ifenginedoesnotstartafter

twopulls,squeezetrigger

of gun to relieve pump

pressure. Pull starter cord

slowly until resistance is felt.

Then pull cord rapidly to

avoid kickback and prevent

hand or arm injury.

 • Thespraygun/wandis

a powerful cleaning tool

that could look like a toy

to a child.

 • Keepchildrenawayfromthe

pressure washer at all times.

 • Reactiveforceofspray

will cause gun/wand to

kickback, and could cause

the operator to slip or fall

or misdirect the spray.

Improper control of gun/

wand can result in

injuries to self and

others.

 • Donotoverreachorstand

on an unstable support.

 • Donotusepressurewasher

while standing on a ladder.

 • Gripgun/wandfirmlywith

both hands. Expect the

gun to kickback when

triggered.

DANGER: RISK OF INJURY OR PROPERTY DAMAGE

WHEN TRANSPORTING OR STORING

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Fueloroilcanleakorspill

and could result in fire or

breathing hazard. Serious

injury or death can result.

Fuel or oil leaks will damage

carpet, paint or other

surfaces in vehicles

or trailers.

 • Oilcouldfillthecylinderand

damage the engine if the unit

is not stored or transported in

an upright position.

 • Ifpressurewasheris

equippedwithafuelshut-

off valve, turn the valve to

the OFF position before

transporting to avoid fuel

leaks. If pressure washer is

notequippedwithafuelshut-

off valve, drain the fuel from

tank before transporting. Only

transport fuel in an OSHA-

approved container.

Always place pressure washer

on a protective mat when

transporting to protect against

damage to vehicle from leaks.

Always transport and store

unit in an upright position.

Remove pressure washer

from vehicle immediately upon

arrival at your destination.

English

WARNING: RISK OF BURSTING

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Over inflation of tires could

result in serious injury and

property damage.

 • Useatirepressuregauge

to check the tires pressure

before each use and while

inflating tires; see the tire

sidewall for the correct tire

pressure.

NOTE: Air tanks,

compressors and similar

equipmentusedtoinflate

tires can fill small tires similar

to these very rapidly. Adjust

pressure regulator on air

supply to no more than the

rating of the tire pressure.

Add air in small increments

andfrequentlyusethetire

gauge to prevent over

inflation.

 • High-velocityfluidspray

directed at pneumatic tire

sidewalls (such as found

on automobiles, trailers and

the like) could damage the

sidewall resulting in serious

injury.

 • Onpressurewashersrated

above 1600 psi (11032kPa)

use the widest fan spray

(40º nozzle) and keep the

spray a minimum of 8"

(20 cm) from the pneumatic

tire sidewall. Do not aim

spray directly at the joint

between the tire and rim.

WARNING: RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Contactwithhotsurfaces,

such as engines exhaust

components, could result in

serious burn.

 • Duringoperation,touch

only the control surfaces

of the pressure washer.

Keep children away from

the pressure washer at all

times. They may not be able

to recognize the hazards of

this product.

English

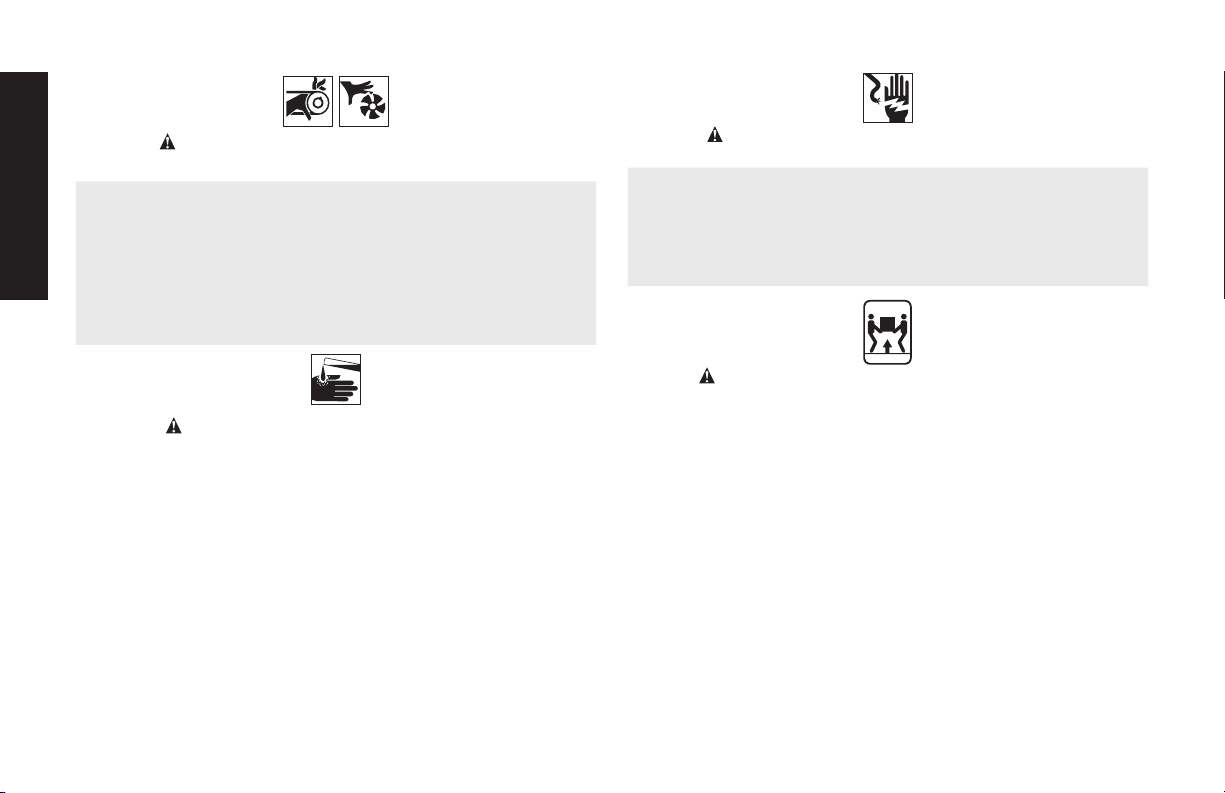

WARNING: RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Movingpartssuchasthe

pulley, flywheel, and belt can

cause serious injury if they

come into contact with you

or your clothing.

• Neveroperatewithguardsor

covers which are damaged

or removed.

• Keepyourhair,clothing,and

gloves away from moving

parts. Loose clothes, jewelry,

or long hair can be caught in

moving parts.

WARNING: RISK OF CHEMICAL BURN

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Useofacids,toxicor

corrosive chemicals, poisons,

insecticides, or any kind of

flammable solvent with this

product could result in seri-

ous injury or death.

 • Donotsprayacids,gasoline,

kerosene, or any other

flammable materials with this

product. Use only household

detergents, cleaners and

degreasers recommended

for use with pressure

washers.

 • Wearprotectiveclothing

to protect eyes and skin

from contact with sprayed

materials.

WARNING: RISK OF

ELECTRICAL SHOCK

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Spraydirectedatelectri-

cal outlets or switches, or

objects connected to an

electrical circuit, could result

in a

fatal electrical shock.

 • Unpluganyelectrically

operated product before

attempting to clean it. Direct

spray away from electric

outlets and switches.

WARNING: RISK OF

INJURY FROM LIFTING

WHAT CAN HAPPEN HOW TO PREVENT IT

 • Seriousinjurycanresult

from attempting to lift too

heavy an object.

 • Thepressurewasheristoo

heavy to be lifted by one

person. Obtain assistance

from others before lifting.

Save theSe inStructionS

For Future uSe

inStaLLation

Pressure Washer Assembly (Fig. 1)

Verify the fuel and oil tanks are empty prior to installing the handle.

RefertotheHondaengineowner’smanualfordetails.Ifthefuelandoil

tanksarenotempty,raisethemachineandprovideadequatesupport

before performing this installation.

Alwaysprovideadequatesupportbeforeperformingtheseoperations.

English

5. Attach high-pressure

hose (P) to spray gun.

Make sure it is secure.

6. Connect wand (E) to

spray gun. Make sure

connection is secure.

7. Place the grommets

(B) onto the panel assembly (A) and push into place.

 8.Removethefivecoloredquick-connectnozzlesfromtheplasticbag

and insert them into correct grommet on the nozzle holder. Nozzles

are color coded to match colored nozzles on panel assembly.

NOTE: The high-pressure pump was filled with oil at the factory.

Always check oil level before using (refer to Maintenance for more

information).

WARNING: Risk of bursting.

Use a tire pressure gauge to check the

tires pressure before each use and while inflating tires; see the tire sidewall

for the correct tire pressure.

NOTE:Airtanks,compressorsandsimilarequipmentusedtoinflate

tires can fill small tires similar to these very rapidly. Adjust pressure

regulator on air supply to no more than the rating of the tire pressure.

Add air in small increments and frequently use the tire gauge to

prevent over inflation.

9. The pressure washer is now ready for handling. Make sure to

followtheOwner’sManualinstructionsbeforestartingthepressure

washer.

Tools required (Not included):

1/2" (13mm) open-end wrench

1/2" (13mm) socket or 1/2" (13mm) wrench

Hardware (Included with your machine):

1 Handle (F)

1 Leg Assembly (DD)

4 Bolts (EE)

8 Flat Washers (FF)

4 Nuts (GG)

1. Remember to secure/support the machine before removing or

loosening the bolts. Use the wrench and socket to remove the leg

assembly bolts (EE, GG).

2. Position/slide the handle (O) into the frame (F) and on the outside

of each side of the foot bracket assembly (DD).

3. Align the holes in the Handle with the mounting holes in the frame

and leg assemblies.

4. Fasten the handle (O) to the foot bracket (DD) and frame (F) with

the hardware (EE, FF, GG) from step 1 as shown and tighten each

nut until snug.

EE FF

FF EE

English

oPeration

Pressure Adjustments

The pressure setting is preset at the factory to achieve optimum pres-

sure and cleaning. To lower the pressure, follow these instructions.

1. Back away from the surface to be cleaned. The further away you

are, the less the pressure will be on the surface to be cleaned.

2. Change to the 40˚ nozzle (white). This nozzle delivers a less

powerful stream of water and a wider spray pattern. Refer to

Spray Wand Nozzles.

NOTICE: DO NOT attempt to increase pump pressure. A higher

pressure setting than the factory set pressure may damage pump.

3. Reduce the speed of the gasoline engine (RPM). Slow the engine

down and the water pressure will go down with it.

Spray Wand Nozzles (Fig. 1)

The nozzles for the spray wand are stored in the nozzle holder (B) on the

panel assembly (A). Colors on the panel identify nozzle location and spray

pattern. Refer to the following chart to choose the correct nozzle for

the job to be performed.

Nozzle Color Spray Pattern Uses Surfaces*

Red

0˚ powerful

pinpoint for very

intense cleaning

metal or

concrete;

DO NOT use on

wood

Yellow

15˚ intense cleaning

of small areas

metal, concrete

or wood

Nozzle Color Spray Pattern Uses Surfaces*

Green

25˚intense cleaning

of larger areas

metal, concrete

or wood

White

40˚covers wide

areas of

cleaning

metal, concrete,

wood or vinyl

Black

low pressure applies cleaning

solutions

metal, concrete,

wood or vinyl

* NOTICE: The high-pressure spray from your pressure washer

is capable of causing damage to surfaces such as wood, glass,

automobile paint, auto striping and trim, delicate objects such

as flowers and shrubs. Before spraying, check the item to

be cleaned to assure yourself that it is strong enough to resist

damage from the force of spray.

CHANGING NOZZLES ON SPRAY WAND

DANGER: Risk of fluid injection. Do not direct discharge stream

toward persons, unprotected skin, eyes or any pets or animals.

Serious injury will occur.

WARNING: Flying objects could cause risk of serious injury. DO

NOT attempt to change nozzles while pressure washer is running. Turn

engine off before changing nozzles.

English

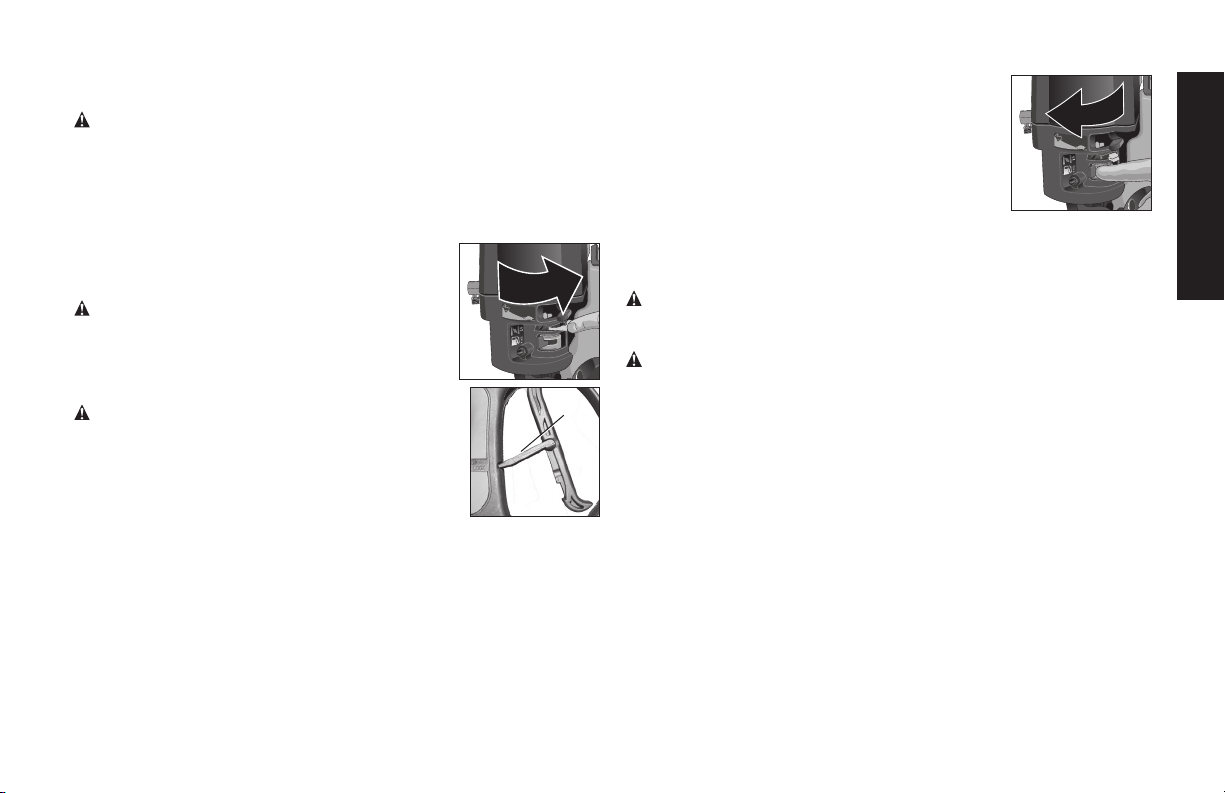

 1.Pullquick-connectcouplerbackandinsert

nozzle.

 2.Release quick-connect coupler and twist

nozzle to make sure it is secure in coupler.

WARNING: Flying object could cause risk

of serious injury. Ensure nozzle is completely

inserted in quick-connect socket and quick-

connect snap ring is fully engaged (forward)

before squeezing gun trigger.

Chemicals and Cleaning Solvents

Applying chemicals or cleaning solvents is a low-pressure operation.

NOTE: Use only soaps and chemicals designed for pressure washer

use. Do not use bleach.

TO APPLY CHEMICALS AND SOLVENTS

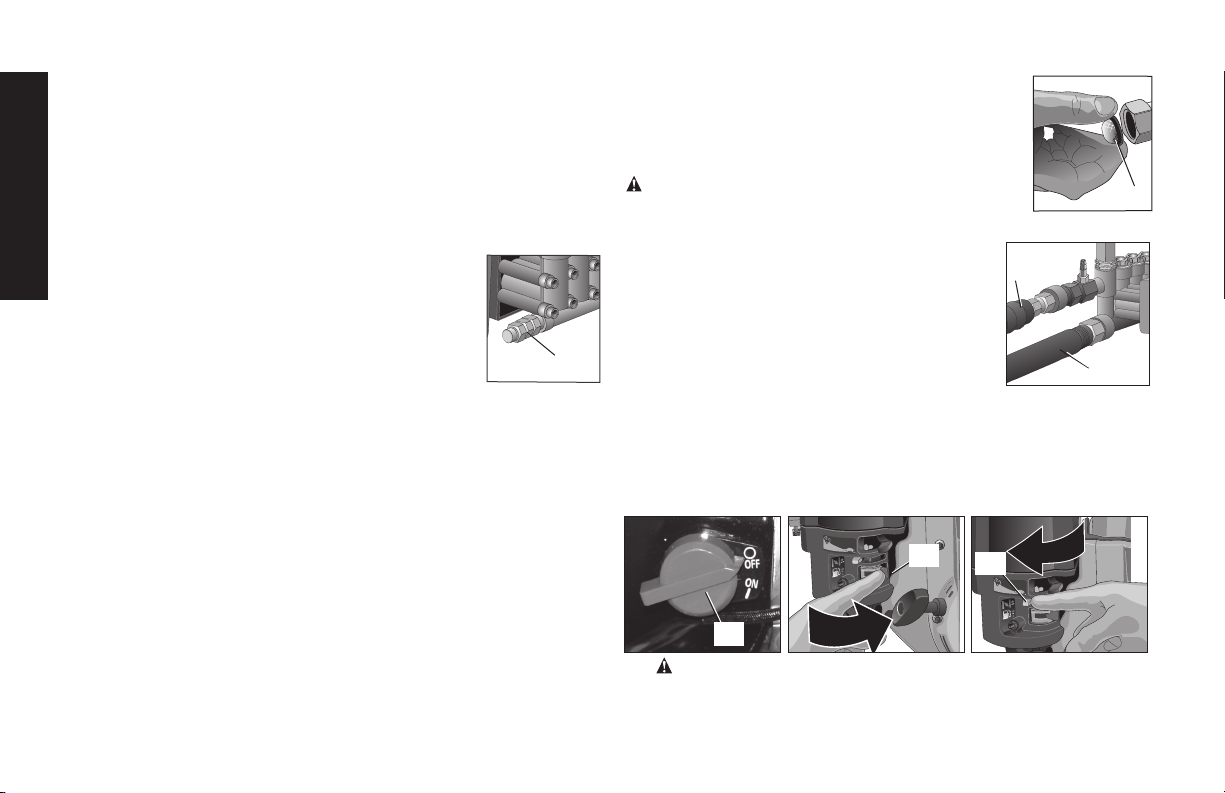

1. Press chemical hose (S) onto barbed fitting

located near high pressure hose connection

of pump as shown.

2. Place the other end of chemical hose with

filter on it into the container holding chemical/

cleaning solution.

NOTE: For every 10 gallons (38 liters) of water

pumped 1 gallon (3.8 liters) of chemical/

cleaning solution will be used.

 3.Installlow-pressure(black)nozzleintoquickconnectfittingofspray

wand, refer to Spray Wand Nozzles.

NOTE: Chemicals and soaps

will not siphon if the black soap nozzle is not installed on the spray

wand.

4. After use of chemicals, place chemical hose into container of clean

water and draw clean water through chemical injection system to

rinse system thoroughly. If chemicals remain in the pump it could

be damaged. Pumps damaged due to chemicals will not be

covered under warranty.

Starting

WARNING: To reduce the risk of injury, read the pressure washer

instruction manual and the engine instruction manual before starting

pressure washer.

DANGER: Risk of fluid injection and laceration. When using the

high-pressure setting, DO NOT allow the high-pressure spray to come

in contact with unprotected skin, eyes, or with any pets or animals.

Serious injury will occur.

         

enough to penetrate human and animal flesh, which could result

in amputation or other serious injury. Leaks caused by loose fit-

tings or worn or damaged hoses can result in injection injuries.

DO NOT TREAT FLUID INJECTION AS A SIMPLE CUT! See a

physician immediately!

DANGER: Carbon Monoxide. Using an engine indoors can kill

you in minutes. Engine exhaust contains high levels of carbon

monoxide (CO), a poisonous gas you cannot see or smell. You

may be breathing CO even if you do not smell engine exhaust.

         

Engine exhaust contains carbon monoxide, an odorless and

deadly gas.

        

enclosed areas such as garages, basements, etc.

 

animals.

WARNING: Risk of fire, asphyxiation and burning. Never fill fuel tank

when engine is running or hot. Do not smoke when filling fuel tank.

 

bottom of filler neck to provide space for fuel expansion. Wipe

any fuel spillage from engine and equipment before starting

engine.

English

 -

fler during or immediately after use of your pressure washer.

Damage to hoses from contact with hot engine surfaces will

NOT be covered by warranty.

NOTICE: Never pull water supply hose to move pressure washer.

This could damage hose and/or pump inlet.

 DO NOT use hot water, use cold water only.

  turn water supply off while pressure washer engine is

running or damage to pump will result.

 DO NOT stop spraying water for more than

two minutes at a time. Pump operates in

bypass mode when spray gun trigger is not

pressed. When the temperature inside the pump

rises too high the thermal relief valve (T) will open

and release a gush of water in an effort to lower

the temperature inside the pump. The thermal

relief valve will then close. If pump is left in bypass mode for

more than two minutes internal components of the pump can

be damaged.

START-UP PROCEDURE

 1.In a well-ventilated outdoor area, add fresh, high-quality, unleaded

gasoline with a pump octane rating of 86 or higher. Do not overfill.

Wipe up spilled fuel before starting the engine. Refer to engine

instruction manual for correct procedure.

2. Check engine oil level. Refer to the engine instruction manual for

correct procedure.

3. Connect the water hose to the water source. Turn the water source

on to remove all air from the hose. When a steady stream of water is

present, turn the water source off.

4. Verify the filter screen (U) is in water inlet of pump.

The cone side faces out.

5. Connect the cold water source (V) to pump inlet.

NOTE: Water source must provide a minimum of 5

gallons per minute at 20 psi (138 kPa).

WARNING: To reduce the possibility of

contamination always protect against backflow when

connected to a potable water system.

6. Connect high-pressure hose (P) to pump outlet.

7. If applying a chemical or cleaning solution,

refer to Chemicals and Cleaning Solvents.

8. Turn the water source on.

NOTICE: Risk of property damage. Failure to do

so could cause damage to the pump.

9. Remove all air from the pump and high pressure

hose by depressing trigger until a steady stream

of water is present.

10. Turn the engine ON/OFF switch (H) to the ON position.

11. Place the fuel valve lever (M) in the ON postion.

12.

If the engine is cold, move the choke (K) to the CLOSED position

as shown.

13. WARNING: Risk of unsafe operation. Pull starter grip slowly

until resistance is felt. Then pull starter grip (I) rapidly to avoid

kickback and prevent hand or arm injury.

English

NOTE: Do not allow the starter grip to snap back. Return it gently by

hand.

WARNING: Risk of unsafe operation. If engine does not start after

two pulls, squeeze trigger of gun to relieve pump pressure. Pull starter

cord slowly until resistance is felt. Then pull cord rapidly to avoid

kickback and prevent hand or arm injury.

NOTE: If the oil level in the engine is low, the engine will not start. If

the engine does not start, check the oil level and add oil as needed.

14. As the engine warms up, move the choke to

the OPEN position.

15. Depress trigger on gun to start water flow.

WARNING: Risk of unsafe operation. Stand

on a stable surface and grip gun/wand firmly with

both hands. Expect the gun to kickback when

triggered.

16. Release trigger to stop water flow.

DANGER: Risk of injury from spray. Engage the X

trigger lock (X) when gun is not in use to prevent

accidental spraying.

17. Adjust spray for the task being performed by

changingquickconnectnozzle.RefertoSpray

Wand Nozzles.

Shutting Down

1. If chemicals were applied, place the chemical hose into a container

of clean water and draw clean water through chemical injection

system to rinse system thoroughly.

NOTICE: Risk of property damage Failure to do so could cause

damage to the pump.

2. Place the engine ON/OFF switch (H) to the OFF Position.

3. Place the fuel valve lever (M) in the OFF

postion.

NOTICE: Risk of property damage.  turn

water supply off while pressure washer engine is

running or damage to pump will result.

4. Turn water source off.

5. Pull trigger on spray gun to relieve any water

pressure in hose or spray gun.

6. Refer to Storage for proper storage procedures.

Maintenance

WARNING: Risk of burning. When performing maintenance, you

may be exposed to hot surfaces, water pressure or moving parts that

can cause serious injury or death.

WARNING: Risk of fire. Always disconnect, spark plug wire, let

the engine cool and release all water pressure before performing any

maintenance or repair. The engine contains flammable fuel. Do not

smoke or work near open flames while performing maintenance.

To ensure efficient operation and longer life of your pressure washer,

a routine maintenance schedule should be prepared and followed.

If the pressure washer is used in unusual conditions, such as high

temperaturesordustyconditions,morefrequentmaintenancechecks

willberequired.

Engine

Consult the engine instruction manual for the manufacturer's

recommendations for any and all maintenance.

NOTE:Thepressurewasherframeisequippedwithanoildrain

hole to help make changing the engine oil easier.

Pump

NOTE: The pump was filled with oil at the factory.

English

Change pump oil after the first 50 hours of operation and every 300

hours thereafter.

TO CHECK OIL

The oil level should come to the dot in the middle of the sight

glass(AA).

HOW TO CHANGE BB

PUMP OIL

1. Loosen pump dipstick/oil

plug (BB).

2. Place a container under

the oil drain plug (CC).

3. Remove pump oil drain

plug.

4. After oil is drained, replace

oil drain plug. Tighten securely.

5. Remove pump dipstick/oil plug and fill with 30W non-detergent oil.

6. Replace pump dipstick/oil plug and tighten securely.

Nozzle Cleaning

If the nozzle becomes clogged with foreign materials, such as dirt,

excessive pressure may develop. If the nozzle becomes partially

clogged or restricted, the pump pressure will pulsate. Clean the

nozzle immediately using the nozzle kit supplied and the following

instructions:

1. Shut off the pressure washer and turn off the water supply.

2. Pull trigger on gun handle to relieve any water pressure.

3. Disconnect the spray wand from the gun.

4. Remove the high-pressure nozzle from the Y

spray wand. Remove any obstructions with

the nozzle cleaning tool (Y) provided and

back flush with clean water.

5. Direct water supply into spray wand to

back flush loosened particles for 30

seconds.

6. Reassemble the nozzle to the wand.

7. Reconnect spray wand to gun then turn on water supply.

8. Start pressure washer and place spray wand into high pressure

setting to test.

To Clean the Water Inlet Filter

This filter screen (U) should be checked periodically and cleaned if

necessary.

1. Remove the filter screen (U) by grasping the

end and removing it from water inlet of pump.

2. Clean filter by flushing it with water on both

sides.

3. Reinsert filter into water inlet of pump. Cone

side faces out.

NOTE: Do not operate pressure washer without

ﬁlter properly installed.

StoraGe

Engine

Consult the engine instruction manual for the manufacturer's

recommendations for storage.

Pump

The manufacturer recommends using a pump protector/

winterizer when storing the unit for more than 30 days and/or

when freezing temperatures are expected. If a pump protector/

winterizer is not available, RV antifreeze can be used as outlined in the

following steps.

English

NOTE: Using a pump protector/ winterizer or RV antifreeze helps

to provide proper lubrication to the internal seals of the pump

regardless of temperature or environment.

1. Obtain a funnel, 6 oz. (170 mL)

of RV antifreeze and 16–36" (40–

91cm) of garden hose with a male

hose connector attached to one

end.

NOTICE: Risk of property damage.



freeze is corrosive and can damage

pump.

2. Disconnect spark plug wire.

3. Connect length of garden hose

to water inlet of pump.

4. Add RV antifreeze to hose as shown.

5. Pull engine starter rope slowly several times until antifreeze

comes out of high-pressure hose connection of pump.

6. Remove garden hose from water inlet of pump.

7. Reconnect spark plug wire.

Pressure Washer

1. Drain all water from high-pressure hose, coil it and store it in

cradle of the pressure washer handle.

2. With nozzle pointed down and the spray gun and wand in a

verticalposition,squeezetriggertodrainallwaterfromspraygun

and wand. Store in gun holder.

3. Store chemical hose so it is protected from damage.

CAUTION: Risk of personal injury. Avoid placing hands between

handle and frame when assembling to prevent pinching.

NOTICE: Risk of property damage. Always store and transport unit

in an upright position.

acceSSorieS

Recommended accessories for use with your tool are available for

purchase from your local dealer or authorized service center. If you

need assistance in locating any accessory for your tool, please contact

the FNA Group at www.dewaltpw.com, 1825 Greenleaf Avenue, Elk

Grove Village, Il 60007, or call (877) FNA-GAS1.

DANGER: Risk of fluid injection. When using replacement lances

or guns with this pressure washer, DO NOT use a lance and/or lance/

gun combination that is shorter in length than what was provided with

this pressure washer as measured from the nozzle end of the lance to

the gun trigger.

WARNING: The use of any other accessory not recommended

for use with this tool could be hazardous. Use only accessories rated

equal to or higher than the rating of the pressure washer.

Service inForMation

Please have the following information available for all service calls:

Model Number ____________ Serial Number ___________

Date and Place of Purchase ____________________________

Repairs

To assure product SAFETY and RELIABILITY, repairs, maintenance

and adjustment should be performed by a FNA factory service center,

aFNAauthorizedservicecenterorotherqualifiedservicepersonnel.

Always use identical replacement parts.

English

Limited Warranty

The manufacturer of this product agrees to repair or replace designated

parts that prove defective within the warranty period listed below at the

manufacturer’s sole discretion. Specific limitations/extensions and

exclusions apply.

This warranty covers defects in material and workmanship and not

parts failure due to normal wear, depreciation, abuse, accidental

damage, negligence, improper use, maintenance, or storage. To make

a claim under the terms of the warranty, all parts said to be defective

mustberetainedandavailableforreturnuponrequesttoadesignated

Warranty Service Center for warranty inspection. The judgments and

decisions of the manufacturer concerning the validity of warranty

claims are final.

These warranties pass through to the end user and are non-

transferable. As a factory authorized and trained Warranty Service

Center, the factory will honor the terms of all component warranties

and satisfy claims of the appropriate warranty provisions.

Normal wear items include, but are not limited to, valves and seals,

which are not covered by this warranty.

This warranty replaces all other warranties, express or implied,

including without limitation any warranties of merchantability or fitness

for a particular purpose and all such warranties are hereby disclaimed

and excluded by the manufacturer. The manufacturer’s warranty

obligation is limited to repair and replacement of defective products as

provided herein and the manufacturer shall not be liable for any further

loss, damages, or expenses – including damages from shipping,

accident, abuse, acts of God, misuse, or neglect. Neither is damage

from repairs using parts not purchased from the manufacturer or

alterations performed by non-factory authorized personnel. Failure to

installandoperateequipmentaccordingtotheguidelinesputforthin

the instruction manual shall void warranty.

This warranty does not cover the following: machines used for

rental purposes, damage resulting from shipping (claims must be

filed with freighter), accident, abuse, act of God, misuse, or neglect.

Neither is damage from repairs or alterations performed by non-

factoryauthorizedpersonnelorfailuretoinstallandoperateequipment

according to the guidelines put forth in the instruction manual.

Themanufacturerwillnotbeliabletoanypersonsforconsequential

damage, for personal injury, or for commercial loss.

ENGINE

Covered by engine manufacturer warranty. See engine manual.

HIGH PRESSURE PUMP (DEFECTS IN MATERIAL AND

WORKMANSHIP)

Two (2) years from date of purchase.

WARRANTY DOES NOT APPLY TO FAILURES DUE TO:

 • Freightdamage

 • Freezedamage

 • Damage caused by parts or accessories not obtained from an

authorized dealer or not approved by the manufacturer.

 • Normalwearofmovingpartsorcomponentsaffectedbymoving

parts.

FRAME (DEFECTS IN MATERIAL AND WORKMANSHIP)

One (1) year from date of purchase.

ACCESSORIES (DEFECTS IN MATERIAL AND

WORKMANSHIP)

Includes nozzles, hoses, spray guns, wands

Ninety (90) days from date of purchase.

English

Glossary

Bypass mode: Allows water to re-circulate within pump when the gun trigger is not pulled.

Chemical hose: Feeds cleaning agents into the pump to mix with the water. Refer to Chemicals and Cleaning Solvents.

Chemical injection system: Mixes cleaners or cleaning solvents with water to improve cleaning effectiveness.

Choke control: Opens and closes carburetor choke valve.

CU: Cleaning Units. GPM multiplied by psi. (GPM x PSI = CU)

Fuel valve lever: Opens/closes connection between fuel tank and carburetor.

GPM: Gallons Per Minute. The unit of measure for the flow rate of water.

PSI:PoundsperSquareInch.Theunitofmeasureforwaterpressure.Alsousedforairpressure,hydraulicpressure,etc.

kPa (kilopascal): Metricpressuremeasurement.1kilopascalequal1000pascals.

Quick-connect spray wand: Allowstheusertoquicklychangeouthigh-pressurenozzles.RefertoSprayWandNozzles.

Thermal relief valve: When the temperature inside the pump rises too high the valve will open and release a gush of water in an effort to lower

the temperature inside the pump. The valve will then close.

Water supply: Allpressurewashersmusthaveasourceofwater.Theminimumrequirementsforawatersupplyare20psi(138kPa)and5

gallons per minute.

English

Troubleshooting Guide

Thissectionprovidesalistofthemorefrequentlyencounteredmalfunctions,theircausesandcorrectiveactions.Theoperatorormaintenance

personnelcanperformsomecorrectiveactions,andothersmayrequiretheassistanceofaqualifiedFNAtechnicianoryourdealer.

Problem Code

Engine will not start ........................................................................................................1, 2, 3, 4, 5, 6, 7, 8, 36

(refer to the engine's instruction manual for further engine troubleshooting)

No or low pressure (initial use) ........................................................................................9, 10, 11, 12, 13, 14, 15, 16

Will not draw chemicals ..................................................................................................16, 17, 18, 19, 20, 21

No or low pressure (after period of normal use) ..............................................................22, 23, 24

Water leaking at gun/spray wand connection.................................................................25, 26

Water leaking at pump....................................................................................................25, 26, 27, 28

Oil leaking at pump.........................................................................................................29, 30, 31, 32, 33, 34, 35
