Dexter Laundry O Series Quick start guide

Dexter Industrial On Premise O-series
Reversing T-50 and T-80 Dryer
Parts & Service Manual
Part # 8533-112-001 7/21

2
Indicates an imminently hazardous situation, which if
not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation, which if not
avoided could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may
also be used to alert against unsafe practices. Minor
burns, pinch points that result in bruises and minor
chemical irritation.
Indicates information or a company policy that relates
directly or indirectly to the safety of personnel or protec-
tion of property.
This is the user caution symbol. It indicates a condition
where damage to the equipment resulting in injury to
the operator could occur if operational procedures are
not followed. TO REDUCE THE RISK OF DAMAGE OR
INJURY, refer to accompanying documents; follow all
steps or procedures as instructed.
This is the electrical hazard symbol. It indicates that
there are DANGEROUS HIGH VOLTAGES PRESENT inside
the enclosure of this product. TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK, do not attempt to open the
enclosure or gain access to areas where you are not
instructed to do so. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL ONLY
Caution! There are sharp edges on various sheet metal
parts internal to the enclosure. Use safety consciousness
when placing or moving your hands while working in the
interior of this equipment.
Caution! To reduce the risk of damage to the Water Inlet
Valve, do not supply inlet water with a temperature that
exceeds 70˚ C.
Caution! To reduce the risk of re or explosion, do not
operate this equipment in any hazardous classied
(ATEX) environment.
Equipment Safety Warnings
Symbols and Terminology Used in this Equipment
Part # 8533-112-001 7/21

3

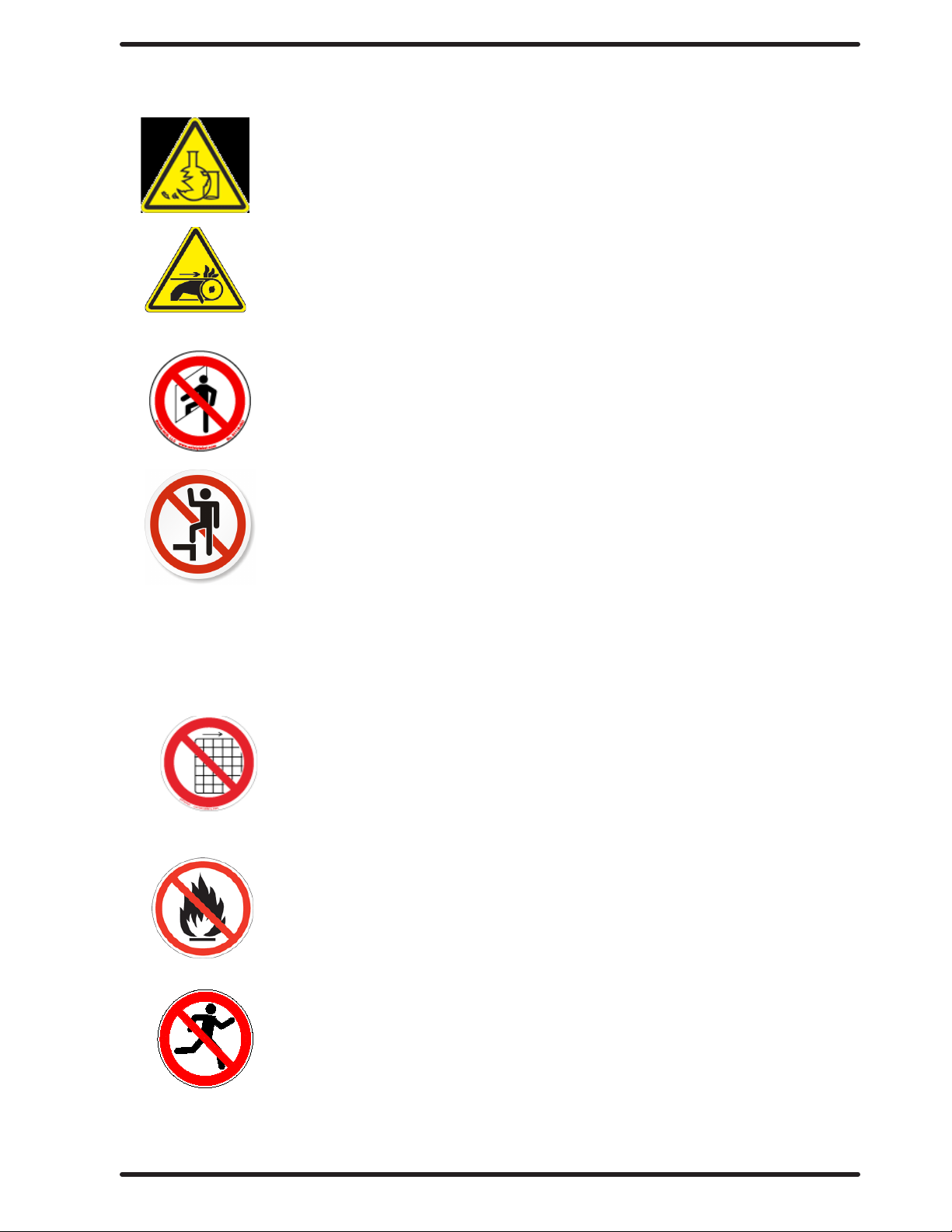

Warning! Do not operate equipment if door glass is
damaged in any way.
Warning! Keep clear of rotating parts.
Prohibited! Do not enter this equipment or space.
Prohibited! Do not step or stand on this equipment.
Prohibited! Do not operate without all guards and covers in
place.
Prohibited! Do not operate without all guards and covers in
place.
Prohibited! Do not wash or Dry clothing impregnated with
ammable liquids (petrochemical).
Prohibited! Do not allow children to play in or around
equipment.
Equipment Safety Warnings Symbols and
Terminology Used in this Equipment
Part # 8533-112-001 7/21

4

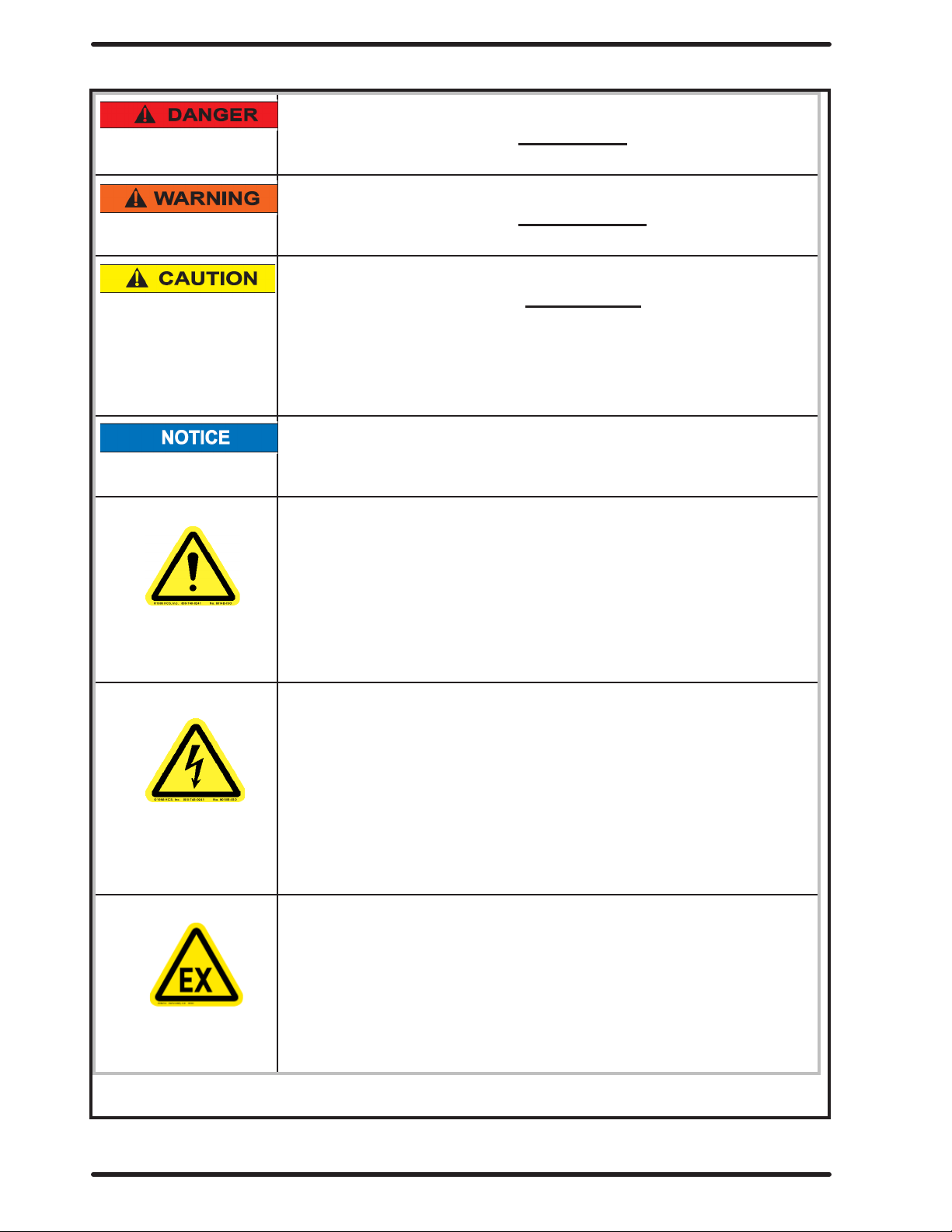

Indicates an imminently hazardous situation,
which if not avoided, will result in death or seri-
ous injury.
Indicates a potentially hazardous situation,
which if not avoided could result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices. Minor burns, pinch
points that result in bruises and minor chemical
irritation.
Indicates information or a company policy that
relates directly or indirectly to the safety of per-
sonnel or protection of property.
This is the user caution symbol. It indicates a
condition where damage to the equipment re-
sulting in injury to the operator could occur if
operational procedures are not followed.
TO REDUCE THE RISK OF DAMAGE OR INJURY,
refer to accompanying documents; follow all
steps or procedures as instructed.
This is the electrical hazard symbol. It indicates
that there are DANGEROUS HIGH VOLTAGES
PRESENT inside the enclosure of this product.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, do not attempt to open the enclosure or
gain access to areas where you are not instruct-
ed to do so. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL ONLY
Caution! To reduce the risk of re or explosion,
do not operate this equipment in any hazardous
classied (ATEX) environment.
Part # 8533-112-001 7/21

5
• All washers and Dryers must be installed in ac-
cordance to all applicable electrical, plumbing and all
other local codes.
• These installation and operation instructions are
for use by qualied personnel only. To avoid injury
and electrical shock, do not perform any servicing
other than that contained in the installation and op-
eration instructions, unless qualied.
Do not install washers or Dryers in an explosive at-
mosphere.
•Care must be stressed with all foundation work to
ensure a stable unit installation, eliminating pos-
sibilities of excessive vibration.
•Foundation must be level within 13 mm to ensure
proper washer operation.
Do not operate Dryer if door glass is damaged in any
way.
Do not wash or Dry clothing impregnated with am-
mable liquids (petrochemical).
WARNING
Part # 8533-112-001 7/21

6
Children should be supervised to
ensure they do not operate or play
in or around equipment.
Keep all panels in place to protect against electrical
shock and injury and add rigidity to washer.
WARNING
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
A washer should not be allowed to operate if any of the following occur:
• Excessive high water level.
• Machine is not connected to a properly earthed circuit.
• Door does not remain securely locked during the entire cycle.
• Vibration or shaking from an inadequate mounting or foundation
Part # 8533-112-001 7/21

7
Warning! Do not operate equipment if door glass is
damaged in any way.
Warning! Keep clear of rotating parts.
Prohibited! Do not enter this equipment or space.
Prohibited! Do not step or stand on this equip-
ment.
Prohibited! Do not operate without all guards and
covers in place.
Prohibited! Do not operate without all guards and
covers in place.
Prohibited! Do not wash or Dry clothing impreg-
nated with ammable liquids (petrochemical).
Prohibited! Do not allow children to play in or
around equipment.
Part # 8533-112-001 7/21

8
Prohibited! Do not attempt to open, touch, or pro-
ceed before referring to the manual or unless quali-
ed.
Mandatory! Read all supporting documentation be-
fore operating or maintaining equipment.
Mandatory! Disconnect power before servicing
equipment.
Mandatory! Lock out and tag out before servicing
this equipment.
Mandatory! Children should be supervised to ensure
they do not operate equipment.
Part # 8533-112-001 7/21

9
Table of Contents
Section 1: Specications & Installation
Specications, Mounting Dimensions
Specications. & Dimensions 50Lb............12 & 13
Specications. & Dimensions 80Lb............14 & 15
Section 2:Installation Instructions
Dryer Installation & Clearances.........................18
Dryer Make up air................................................19
Electrical Requirements......................................19
Gas Requirements...............................................20
Exhaust Installation ..................................20 & 21
Dryer Ignition & Testing.....................................21
Water Connection (optional)..............................22
Section 3: Dryer Operating & Programming
Dryer Operating Instructions.....................26 & 27
Dexter Live Dryer Programming.................28 - 34
Dryer Manual Programming........................35 - 42
Section 4:
Dryer Service,Troubleshooting and Schematics
Dryer Service Procedures............................43 - 57
Dryer Troubleshooting Tips.........................58 - 65
Dryer Schematics & Diagrams 60hz...........66 - 73
Section 5:
Dryer Parts Data.........................................75 - 113
Section 6:
Electric Heated Dryer & Steam
Electric Dryer Parts Schematics Electric
Heated...............................................................
Section 7:
50hz Gas Dryers
50hz Dryer Parts.....................................117 & 118
50hz Dryer Schematics............................120 - 125
Section 8:
Maintenance Dryer..........................................127
Dexter Safety
Guidelines
WARNING
These washers are equipped with devices and features
relating to their safe operation. To avoid injury or electrical
shock, do not perform and service, unless qualied to do
so.
WARNING
For your safety, the information in this manual
must be followed to minimize the risk of re or
explosion or to prevent property damage, personal
injury or loss of life.
IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use
any telephone in your building.
• Clear the room, building or area of all
occupants.
• Immediately call your gas supplier from
a neighbor’s telephone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the
re department. Installation and service must
be performed by a qualied installer, service
agency or the gas supplier.
Dry only fabrics washed in water
to avoid the risk of fire, including
spontaneous combustions, do not dry:
• Items containing foam rubber, or any similarly
textured rubber-like materials.
• Any items on which you have used a cleaning solvent
or which contain ammable liquids or solids, such as
naptha, gasoline, or other oils or waxes.
To activate your warranty, be sure to return
your red warranty form to the factory.
Please have serial number and model ready
when calling for assistance.
Part # 8533-112-001 7/21

10 Part # 8533-112-001 7/21
Notes

11
Part # 8533-112-001 7/21
Section 1:
Dryer
Specications
and
Mounting

12
Capacity:
Dry Weight Capacity - lb (kg) 50 (22.7)
Cylinder Volume - cu ft (L) 15.8 (447.4)
Speed:
Tumbler Speed - RPM 45
Motor Size - 60 Hz - hp (kW) 2 hp & 0.5 (1.5 kw & 0.38)
Airow:
60 Hz Model - cfm (M3/min) 910 (25.8)
50 Hz Model - cfm (M3/min) 760 (21.5)
Dimensions:
Cabinet Height - in (cm) 72 1/4 (183.5)
Cabinet Width - in (cm) 34 1/2 (87.6)
Cabinet Depth - in (cm) 50 (127)
Door Opening - in (cm) 25 5/8 (65.1)
Floor to Door Bottom - in (cm) 27 1/4 (69.2)
Cylinder Diameter - in (cm) 32 1/2 (82.6)
Cylinder Depth - in (cm) 33 (83.8)
Lint Screen Area - sq in (sq cm) 708 (4568)
Weight:
Net weight - lb (kg) 560 (254)
Shipping Information:
Shipping Weight - lb (kg) 620 (281.2)
Shipping Height - in (cm) 77 1/4 (196.2)
Shipping Width - in (cm) 36 (91.4)
Shipping Depth - in (cm) 53 1/2 (135.9)
Gas Requirements (Gas Models Only):
Gas Supply Connection - in (mm) 1/2 (12.7)
Natural Gas Supply (Water Column) - in (cm) 5-8 (12.7 - 20.3)
LP Gas Supply (Water Column) - in (cm) 11 1/2 - 13 1/2 (29.2 - 34.3)
Gas Usage (Gas Models Only):
60Hz Model - BTU/hr (kW) 145,000 (42.5)
50Hz Model - BTU/hr (kW) 120,000 (35.2)
Electrical Requirements:
Gas Models:
Model Volts / Hz / Phase / Wiring Circuit Breaker / Running Amps / Wire Size / Reversing
-11 208-240 / 60 / 1 / 2 wire + ground 15 / 5.1 / #12 / Reversing
-39 230 / 50 / 1 / 2 wire + ground 10 / 5.1 / 2.1 mm2/ Reversing
Installation Recommendations:
Minimum Clearance Between Machines - in (cm) 0 (0)
Minimum Clearance Behind Machines - in (cm) 18 (45.7)
Make-Up Air Required - sq ft (sq cm) 1.25 (1161)
Exhaust Size - in (cm) 8 (20.3)
Max. Exhaust Back Pressure (Water Column) - in (mm) 0.3 (7.6)
Recommended Exhaust Length - ft (m) & 2 elbows 14 (4.3)
Water Requirements for Fire Response Models:
Water Inlet Size - in (mm) 3/4 (19)
Pressure (min/max) - psi (kPa) 40-120 (276-827))
T-50 EXPRESS DRYER SPECIFICATIONS
Part # 8533-112-001 7/21

13
T-50 EXPRESS DRYER SPECIFICATIONS
SIDE FRONT TOP
Part # 8533-112-001 7/21

14
Capacity:
Dry Weight Capacity - lb (kg) 80 (36.3)
Cylinder Volume - cu ft (L) 23 (651.3)
Speed:
Tumbler Speed - RPM 40
Motor Size - 60 Hz Model - hp (kW) 1 (0.75)
Motor Size - 50 Hz Model - hp (kW) 0.75 (0.56)
Motor Size - Reversing Models - hp (kW) 1 & 0.75 (0.75 & 0.56)
Airow:
60 Hz Model - cfm (M3/min) 1200 (34)
50 Hz Model - cfm (M3/min) 1000 (28.3)
Dimensions:
Cabinet Height - in (cm) 75 3/4 (192.4)
Cabinet Width - in (cm) 38 1/2 (97.8)
Cabinet Depth - in (cm) 51 3/4 (131.4)
Door Opening - in (cm) 25 5/8 (65.1)
Floor to Door Bottom - in (cm) 29 1/4 (74.3)
Cylinder Diameter - in (cm) 36 1/2 (92.7)
Cylinder Depth - in (cm) 38 (96.5)
Lint Screen Area - sq in (sq cm) 823 (5310)
Weight:
Net Weight - lb (kg) 715 (324.3)
Shipping Information:
Shipping Weight - lb (kg) 770 (349.3)
Shipping Height - in (cm) 80 3/4 (205.1)
Shipping Width - in (cm) 40 1/4 (102.2)
Shipping Depth - in (cm) 55 1/2 (141)
Gas Requirements (Gas Models Only):
Gas Supply Connection - in (mm) 3/4 (19.1)
Natural Gas Supply (Water Column) - in (cm) 5-8 (12.7 - 20.3)
LP Gas Supply (Water Column) - in (cm) 11 1/2- 13 1/2 (29.2 - 34.3)
Gas Usage (Gas Models Only):
60Hz Model - BTU/hr (kW) 215,000 (63)
50Hz Model - BTU/hr (kW) 195,000 (57.1)
Electrical Requirements:
Gas Models:
Model Volts / Hz / Phase / Wiring Circuit Breaker / Running Amps / Wire Size / Reversing
-10 120 / 60 / 1 / 2 wire + ground 15 / 10.4 / #12 / Reversing
-11 208-240 / 60 / 1 / 2 wire + ground 15 / 5.5 / #12 / Reversing
-15 208-240 / 60 / 1 / 2 wire + ground 15 / 5.5 / #12 / Non-Rev
-15 120 / 60 / 1 / 2 wire + ground 15 / 10.4 / #12 / Non-Rev
-39 230 / 50 / 1 / 2 wire + ground 10 / 5.2 / 2.1 mm2 / Both
Installation Recommendations:
Minimum Clearance Between Machines - in (cm) 0 (0)
Minimum Clearance Behind Machines - in (cm) 18 (45.7)
Make-Up Air Required - sq ft (sq cm) 1.5 (1394)
Exhaust Size - in (cm) 8 (20.3)
Max. Exhaust Back Pressure (Water Column) - in (mm) 0.3 (7.6)
Recommended Exhaust Length - ft (m) & 2 elbows 14 (4.3)
Water Requirements for Fire Response Models:
Water Inlet Size - in (mm) 3/4 (19)
Pressure (min/max) - psi (kPa) 40-120 (276-827))
T-80 EXPRESS DRYER SPECIFICATIONS
Part # 8533-112-001 7/21

15
T-80 EXPRESS DRYER SPECIFICATIONS
Part # 8533-112-001 7/21
SIDE FRONT TOP

16 Part # 8533-112-001 7/21
Notes

17
Part # 8533-112-001 7/21
Section 2:
Dryer
Installation

18
Dryer Installation
All commercial dryer installations must conform with local codes or, in the absence of local codes, with
the latest edition of the National Fuel Gas Code ANSI Z223.1A. Canadian installations must comply with
current Standard CAN/CGA-B149 (.1 or .2) Installation Code for Gas Burning Appliances or Equipment,
and local codes if applicable. Australian installations must meet installation requirements and pipe sizing
requirements of AS/NZA 5601. The appliance, when installed, must be electrically grounded in accordance
with the latest edition of the National Electrical Code, ANSI/NFPA70, or, when installed in Canada, with
Standard CSA C22.1 Canadian Electrical Code Part 1.
To connect the dryer to the supply piping, use a listed connector in compliance with the Standard for Con-
nectors for Gas Appliances, ANSI Z21.24 • CSA 6.10.
Installation Clearances:
This unit may be installed at the following alcove clearances. (millimeters)
1. Left side- 0”
2. Right side- 0” *
3. Back- 18” (457) (Certied for 1” (25) clearance; however, 18” (457) clearance is neces-
sary behind the belt guard to allow servicing and maintenance.)
4. Front- 48” (1220) (to allow use of dryer)
5. Top- Refer to gure labelled “Vertical Clearance Dimensions”.
Certication allows 0” clearance at the top 1” (25) back from the front. However, a
1/4” (6)clearance is required to allow opening the upper service door. A 10” (254)
clearance is required from the top at all other points.
6. Floor- This unit may be installed upon a combustible oor.
*Units may be installed in direct contact with an adjacent dryer, provide
ing allowance is made for opening upper and lower service doors. Do-
not obstruct the ow of combustion and ventilation air. Maintain
minimum of 1” (25) clearance between duct and combustible material.
VERTICAL CLEARANCE DIMENSIONS - ALL (30/50/80)
Part # 8533-112-001 7/21

19
MAKE-UP AIR
Adequate make-up air must be supplied to replace air exhausted by dryers on all types of installations.
Refer to specications for the minimum amount of make-up air opening to outside for each dryer. This is a
net requirement of eective area. Screens, grills or louvers, which will restrict the ow of air, must be con-
sidered. Consult the supplier to determine the free area equivalent for the grill being used. The source of
make-up air should be located suciently away from the dryers to allow an even airow to the air intakes
of all dryers. Multiple openings should be provided.
The sources of all make-up air and room ventilation air movement to all dryers must be located away from
any dry cleaners. This is necessary so that solvent vapors will not be drawn into the dryer inlet ducts. Dry
cleaner solvent vapors will decompose in contact with open ame such as the gas ame present in clothes
dryers. The decomposition products are highly corrosive and will cause damage to the dryer(s) ducts and
clothes loads
ELECTRICAL REQUIREMENTS.
The electrical power requirements necessary to operate the unit satisfactorily are listed on the serial plate
located on the back panel of each dryer and in the specications section of this manual. The electrical con-
nection should be made to the terminal board, on the rear of the unit. It is absolutely necessary that the
dryer be grounded to a known ground. Individual circuit breakers for each dryer are required.
Individual circuit breakers for each unit are recommended. Do not use ground-fault circuit breakers or
ground-fault circuit interrupter outlets. The wiring diagram is located on the belt guard on the back of the
machine
TRANSIENT VOLTAGE SURGE SUPPRESSORS
Like most electrical equipment your new machine can be damaged or have its life shortened by voltage
surges due to lightning strikes which are not covered by factory warranty. Local power distribution
problems also can be detrimental to the life of electrical components. We recommend the installation of
transient voltage surge suppressors for your new equipment. These devices may be placed at the power
supply panel for the complete installation and don’t require and individual device for each machine.
These surge protectors help to protect equipment from large spikes and also from small ongoing spikes
in the power that occur on a day to day basis. These smaller surges can shorten overall life of electrical
components of all types and cause their failure at a later date. Although they can’t protect against all
events, these protective devices have a good reputation for signicantly lengthening the useful life of
electronic components.
Electronic Components are helped to have a longer useful life when they are supplied with the clean
stable electrical power they like.
We are including the following names and links to a few suppliers of these devices for those who don’t
currenty have a source.
MANUFACTURER LINK
MCG Surge Protection mcgsurge.com
Eaton Corporation eaton.com/us/en-us
Schneider Electric se.com/us/en
Asco Power Technolgies ascopower.com/us/en
Emerson Electric Co. emerson.com/en-us
Part # 8533-112-001 7/21

20
GAS REQUIREMENTS.
The complete gas requirements necessary to operate the dryer satisfactorily are listed on the serial plate
located on the back panel of the dryer. An individual gas shuto valve is recommended for each dryer
and may be required by local code (not supplied). The inlet gas connection to the unit is 1/2 inch [12.7]
pipe thread for T-30/50 and 3/4 inch [19.1] for the T-80/T-120. A joint compound resistant to the action
of liqueed petroleum gases should be employed in making pipe connections. A 1/8 inch NPT plugged
tapping, accessible for test gage connection, must be installed immediately upstream of the gas supply
connection to the dryer. A drip tee should be provided in the gas piping entering the unit to catch dirt and
other foreign articles. All pipe connections should be checked for leakage with soap solution. Never check
with an open ame. The recommended natural gas supply pressure is 7 inches water column (17.8 cm) at
each dryer.
With the burners in operation, check the gas pressure at the threaded port in the end of the burner
manifold. Adjust the dryer’s gas control valve for 3.5 inches water column (8.89 cm w.c.) pressure at the
manifold (Adjust T-30 -39 models to 3.4 in. w.c. (8.64 cm w.c.)).
For altitudes above 2,000 feet (610m) it is necessary to de-rate the BTU input. Contact your local distribu-
tor for instructions. L.P. gas conversion kits are available for this dryer. Contact your local distributor.
CAUTION: The dryer must be disconnected from the gas supply piping system during any pressure test-
ing of that system. Do not expose the dryer’s gas control valve to testing pressure.
Burner Set-Up
All gas burner manifolds should be checked for proper gas pressure while burning. Dryer manifold
pressure should be set at 3.5 W.C. for Natural Gas while burner operating.
EXHAUST INSTALLATION. (Refer to Figure 2 at the end of section 6.)
Exhausting of the dryer(s) should be planned and constructed so that no air restrictions occur. Any re-
striction due to pipe size or type of installation can cause slow drying time, excessive heat, and lint in the
room.
From an operational standpoint, incorrect or inadequate exhausting can cause a cycling of the high limit
thermostat which shuts o the main burners and results in inecient drying.
Individual exhausting of the dryers is recommended. All heat, moisture, and lint should be exhausted
outside by attaching a pipe of the proper diameter to the dryer adapter collar and extending it out through
an outside wall. This pipe must be very smooth on the inside, as rough surfaces tend to collect lint which
will eventually clog the duct and prevent the dryer from exhausting properly. All elbows must be smooth
on the inside. All joints must be made so the exhaust end of one pipe is inside the next one downstream.
The addition of an exhaust pipe tends to reduce the amount of air the blower can exhaust. This does
not aect the dryer operation if held within practical limits. For the most ecient operation, it is recom-
mended that no more than 14’ (4.3m) of straight (8” (20.3cm) for T-30/50/80, 10 or 12” (25.4 or 30.5cm)
for T-120) diameter pipe be used with two right angle elbows. When more than two elbows are used,
2’ (61cm) of straight pipe should be removed for each additional elbow. No more than four right angle
elbows should be used to exhaust a dryer.
Maintain minimum 1” (25) clearance between duct and combustible material.
If the exhaust pipe passes through a wall, a metal sleeve of slightly larger diameter should be set in the
wall and the exhaust pipe passed through this sleeve. This practice is required by some local codes and
is recommended in all cases to protect the wall. This type of installation should have a means provided to
prevent rain and high winds from entering the exhaust when the dryer is not in use. A hood with a hinged
damper can be used for this purpose. Another method would be to point the outlet end of the pipe down-
ward to prevent entrance of wind and rain. In either case, the outlet should be kept clear, by at least 24”
(610), of any objects which would cause an air restriction.
Part # 8533-112-001 7/21
