DFI DT122-GH User manual

DT122-GH
Desktop Box PC
User’s Manual
A54800945
Preliminary
Version

2User's Manual | DT122-GH
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particu-
lar purpose. The user will assume the entire risk of the use or the results of the use of this
document. Further, the manufacturer reserves the right to revise this publication and make
changes to its contents at any time, without obligation to notify any person or entity of such
revisions or changes.
Changes after the publication’s first release will be based on the product’s revision. The web-
site will always provide the most updated information.
© 2019. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class A
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3User's Manual | DT122-GH
Copyright ................................................................................................2
Trademarks ............................................................................................. 2
FCC and DOC Statement on Class A.............................................2
About this Manual ...............................................................................4
Warranty .................................................................................................4
Static Electricity Precautions............................................................ 4
Safety Measures....................................................................................4
Safety Precautions ...............................................................................5
About the Package .............................................................................. 5
Before Using the System................................................................... 5
Chapter 1 - Introduction ...................................................................6
Overview................................................................................................................................. 6
Key Features .......................................................................................................................... 6
Specifications........................................................................................................................ 7
Getting to Know the DT122-GH..................................................................................... 8
Mechanical Dimensions.................................................................................................... 9
Chapter 3 - Installing Devices .........................................................11
Opening the chassis........................................................................................................... 11

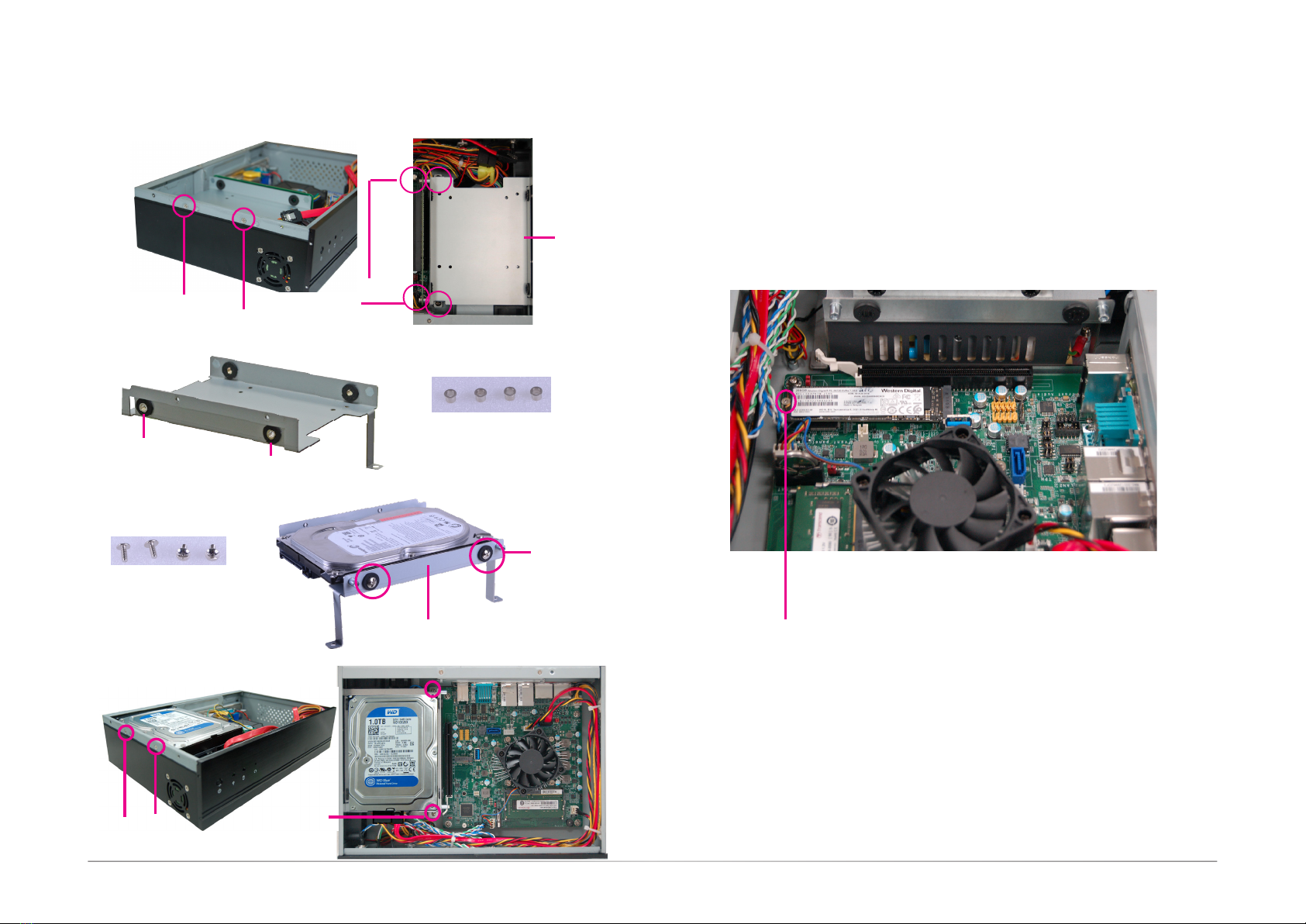

Installing a 2.5" or 3.5" SATA Drive................................................................................ 12
Installing an M.2 Module.................................................................................................. 13

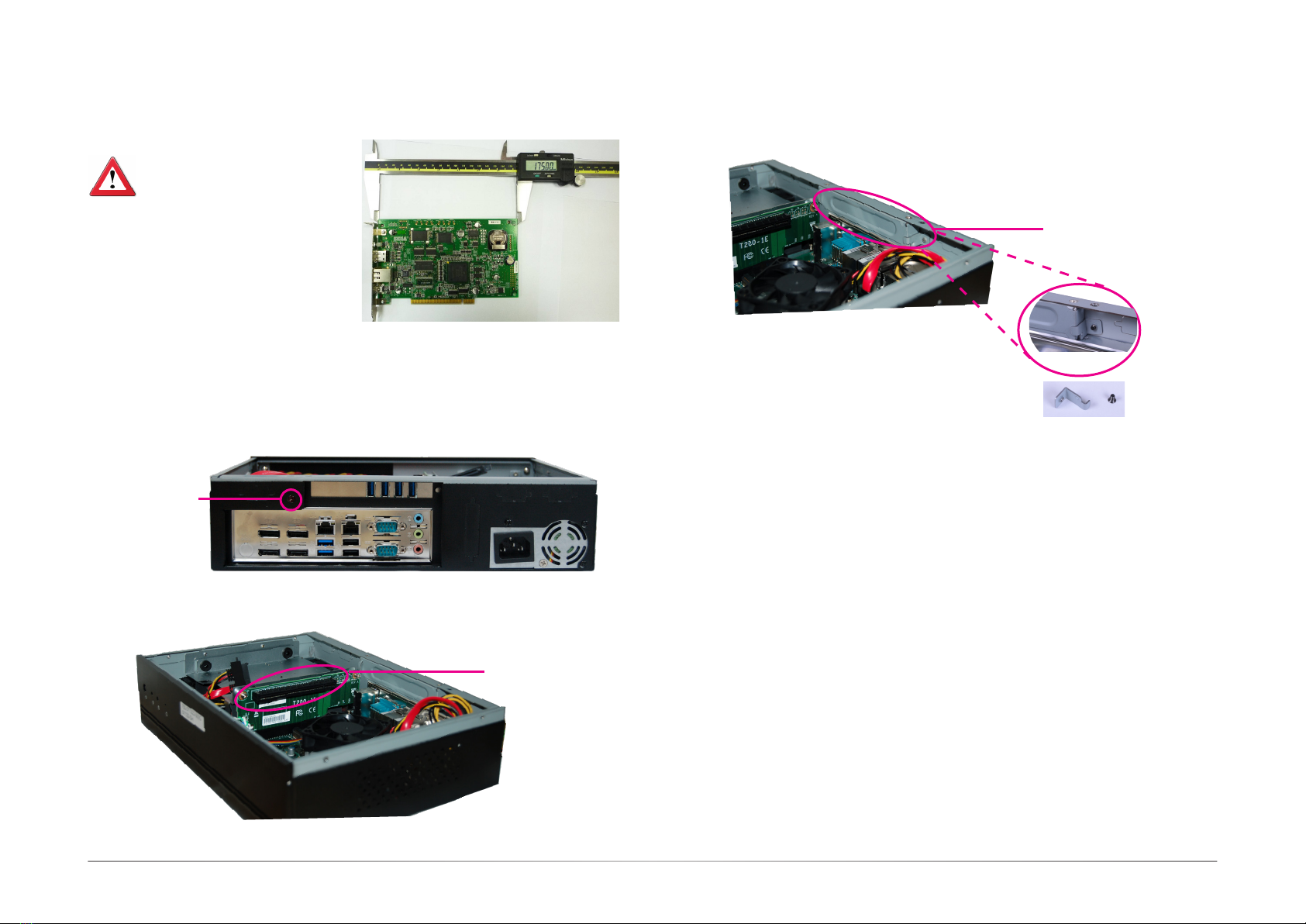

Installing a PCIe Expansion Card................................................................................... 14

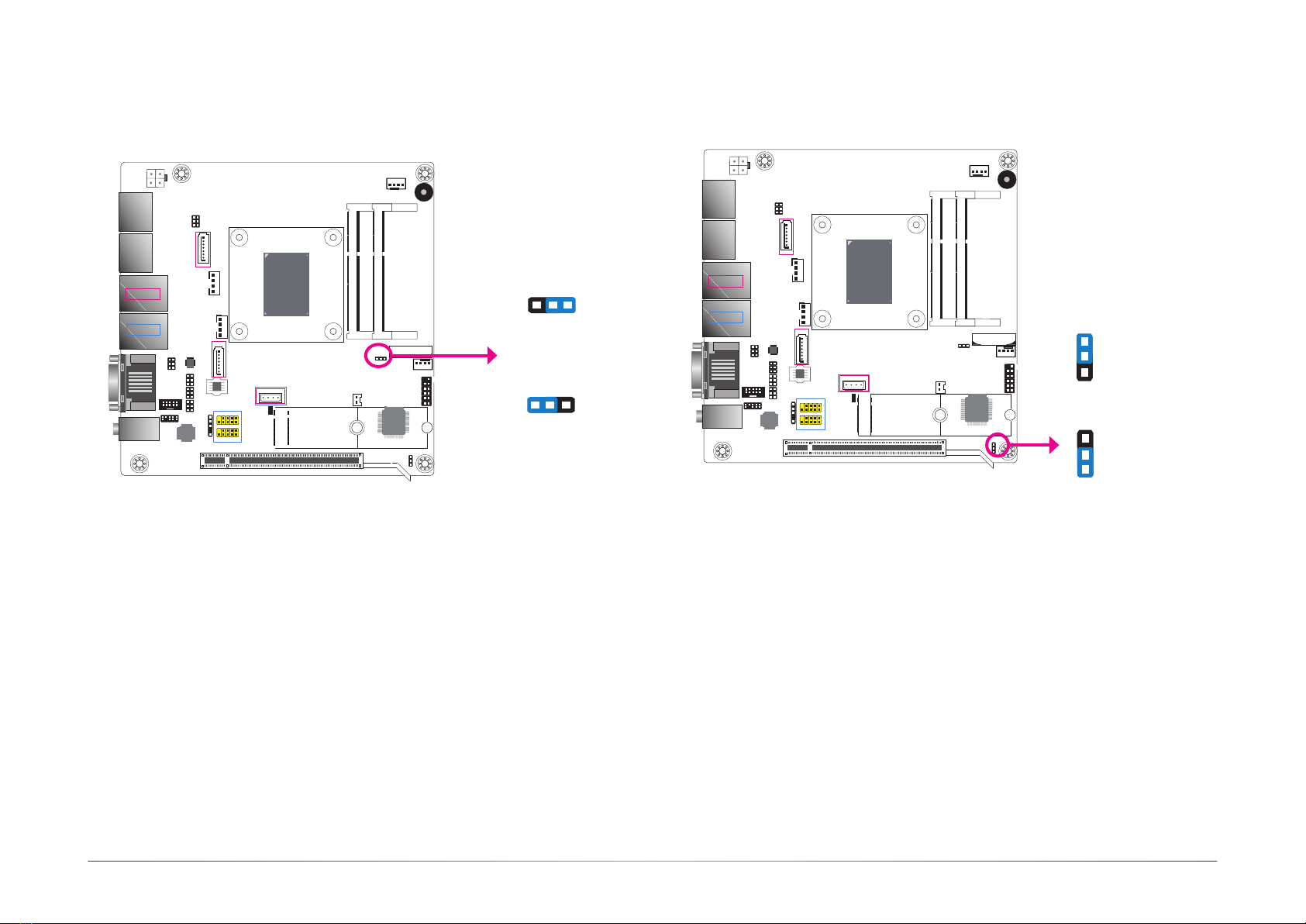

Chapter 4 - Jumper Settings............................................................ 16
Clear CMOS Data ................................................................................................................. 16
Auto Power-on Select........................................................................................................ 16
COM2 RS232/Power Select .............................................................................................. 17

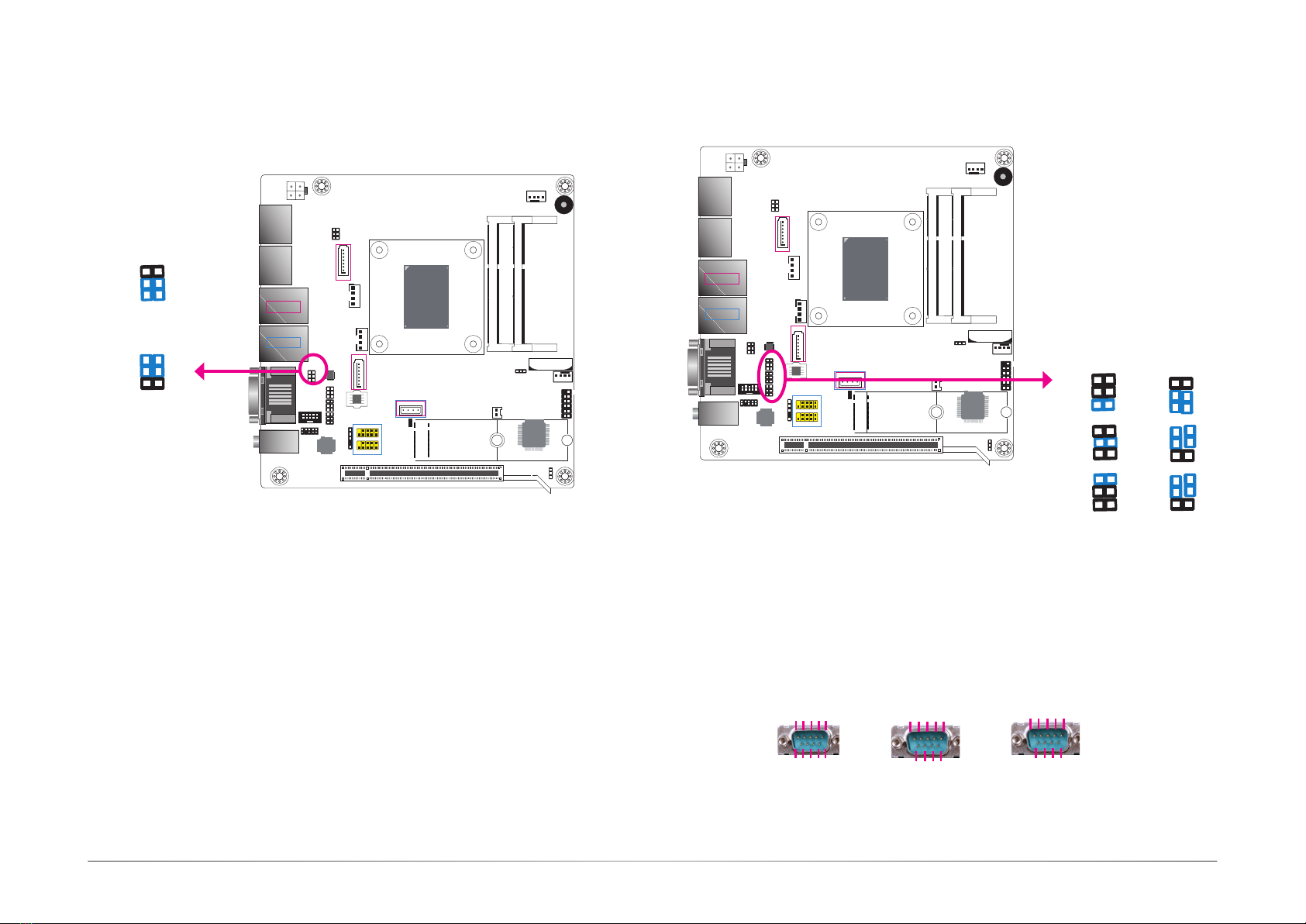

COM2 RS232/422/485 Select .......................................................................................... 17
SATA Ports Signal Select .................................................................................................. 18
Chapter 6 - Mounting Options .......................................................26
Table of Contents
Chapter 7 - BIOS Setup ...................................................................... 28
Chapter 8 - Supported Software.................................................... 44

4User's Manual | DT122-GH
About this Manual
An electronic file of this manual can be obtained from the DFI website at www.dfi.com.To
download the user’s manual from our website, please go to “Support” > “Download Center.”
On the Download Center page, select your product or type the model name and click “Search”
to find all technical documents including the user’s manual for a specific product.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

5User's Manual | DT122-GH
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• DT122-GH system unit
• HDD drive bay kit
• Screw pack for M.2 installation
Optional Items
• Power Cord
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System
Before powering-on the system, prepare the basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.
Safety Precautions
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating.
DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the system
and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.

6
User's Manual | DT122-GH
Chapter 1
Chapter 1 - Introduction
Overview
Key Features
Model Name DT122-GH
Graphics AMD® Ryzen™ Embedded V1000/R1000 series
Chipset AMD®Radeon™ Vega Graphics
LAN 2 LAN ports
COM 2 COM ports (DB-9)
Displays 4 x DP++ (V1000), quad display
3 x DP++ (R1000), triple display
USB 2 USB 3.0 ports
2 USB 2.0 ports
Audio Mic-in, Line-in & Line-out

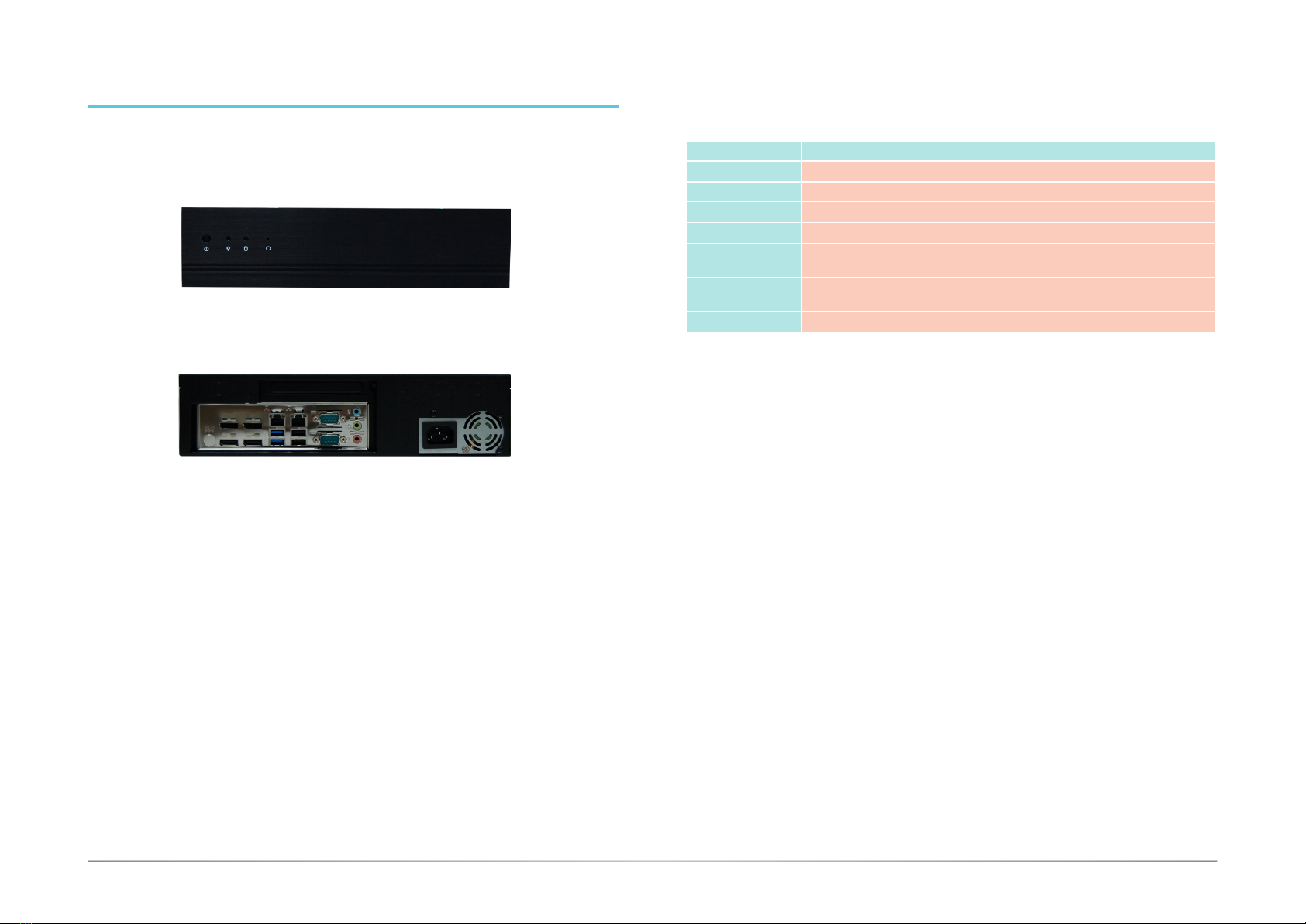

Front View
Rear View

7
User's Manual | DT122-GH
Chapter 1

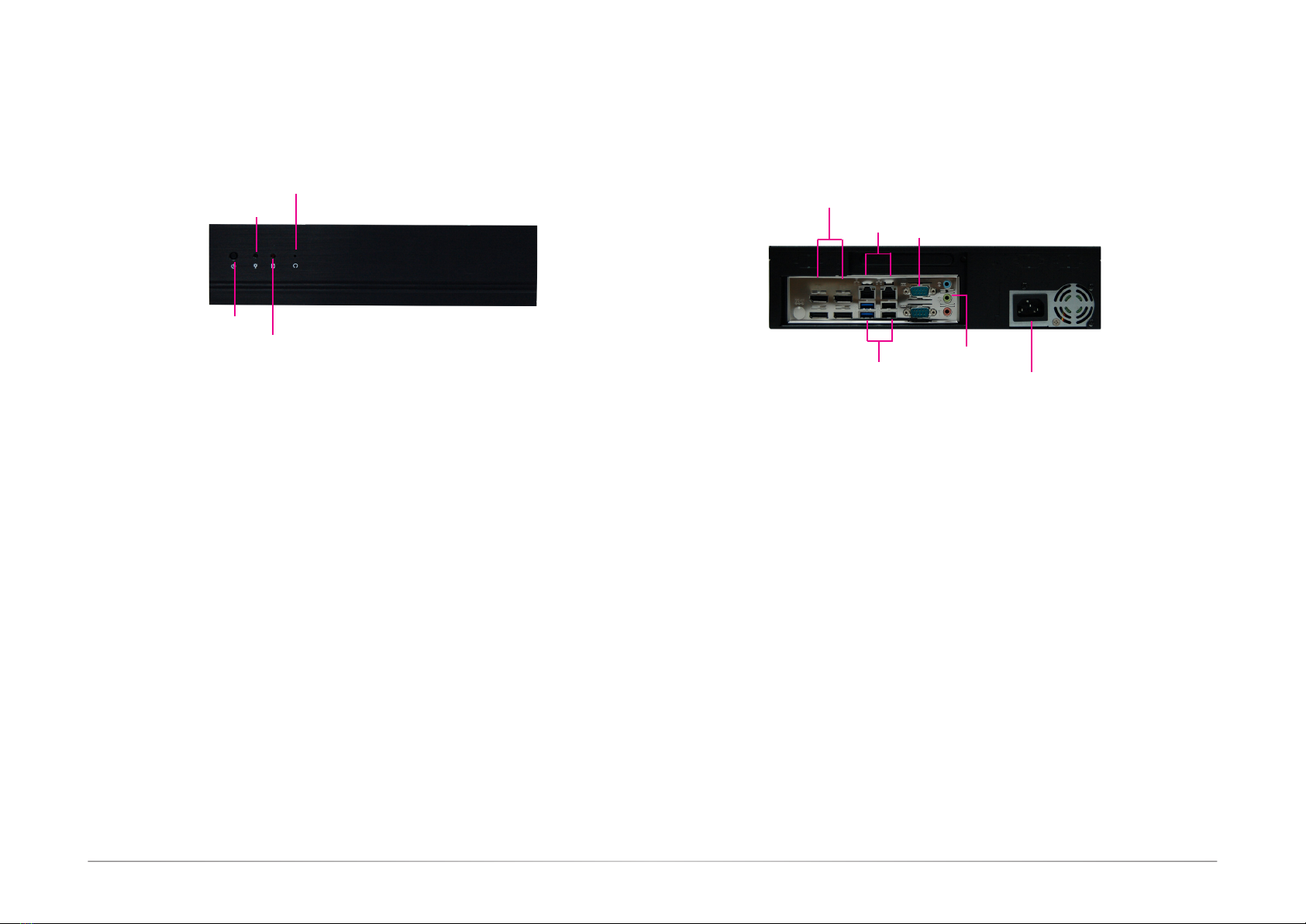

I/O Ports • Front Panel
- 1 Power button
• Rear Panel
- 2 x GbE (RJ-45)
- 1 x RS-232/422/485 (DB-9) & 1 x RS-232 (DB-9)
- 2 x USB 3.0
- 2 x USB 2.0
- 4 x DP++ (V1000) or 3 x DP++ (R1000)
- Mic-in, line-in & line-out jack
Environment • Temperature
- Operating: 0oC~45oC, -40oC~60oC (V1404i only)
- Storage: -40 to 85°C
• Humidity
- 10 to 90% RH (non-condensing)
• Operating Vibration
- IEC68-2-64
• Operating Shock
- Operating: 3G peak acceleration (11 msec. duration)
- Non-operating: 5G peak acceleration (11 msec. duration)
Construction
• Front
Bezel aluminum + Chassis Sheet Metal
Dimensions • 300mm x 75mm x 217mm (W x H x D)
Mounting Wall mount
Weight • 3.7 kg
OS Support Windows 10
Linux
STANDARDS AND
CERTIFICATIONS
• Shock
Operating: 3G
Non-operating: 5G
• Vibration
Operating: Random 5~500Hz 1G
Non-operating: Sweep Sine 10~500Hz 2G
• Package Drop
ISTA Project 2A
• CE/FCC Class A (to be applied)
Other Features
• Watchdog Timer function;
System Reset, programmable via software from 1 to
255 Seconds
Specifications
Processor
System
AMD
®
Ryzen™ Embedded V1000 series
AMD®Ryzen™ Embedded V1807, Quad Core, 2M Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W
AMD®Ryzen™ Embedded V1756, Quad Core, 2M Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W
A MD®Ryzen™ Embedded V1605, Quad Core, 2M Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W
AMD®Ryzen™ Embedded V1202, Dual Core, 1M Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W
AMD
®
Ryzen™ Embedded R1000 series
Memory • 2 x 260-pin SODIMM up to 32GB
• Dual Channel DDR4 3200MHz
Graphics • AMD®Radeon™ Vega Graphics
• OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
• Displays: 4 x DP++ (V1000) or 3x DP++ (R1000)
• Supports resolution up to 4096x2160 @ 60Hz)
• Supports quad or triple display
Storage 1 x 3.5" or 2 x 2.5" SATA 3.0 Drive Bay
Ethernet 2 x Realtek RTL8111HN Integrated 10/100/1000 Ethernet Controller
Expansion Slots • 1 x PCIe or 1 x PCI expansion slot (through an optional riser card connected to the
onboard PCIe x16 slot (x8 bandwidth with V1000, x4 bandwidth with R1000)
• 1 x M.2 2280 slot (M Key, PCIe x4 with V1000; x2 signal with R1000)
Audio Realtek ALC887-VD Audio Codec with 5.1 Channel
Power • Power type
- Single 12V DC (150W)
• DC-in External Power Adapter (available upon request)
Cooling System 1 x System Fan
1 x CPU Fan

8
User's Manual | DT122-GH
Chapter 1
Getting to Know the DT122-GH
Front View
Power Button
Press to power on or power off the system.
Reset Button
Press to reset the system.
HDD LED (red)
Indicates the status of the hard drive. It blinks when the storage devices of the system are
being accessed.
Power LED (green)
Indicates the power status of the system. It is green when the system is powered on.
Rear View
DP++ Ports
Connets to the DisplayPort of an LCD monitor.
COM 1/COM 2 Port
Connets serial devices.
USB Ports
Connect USB 3.0/2.0/1.1 devices.

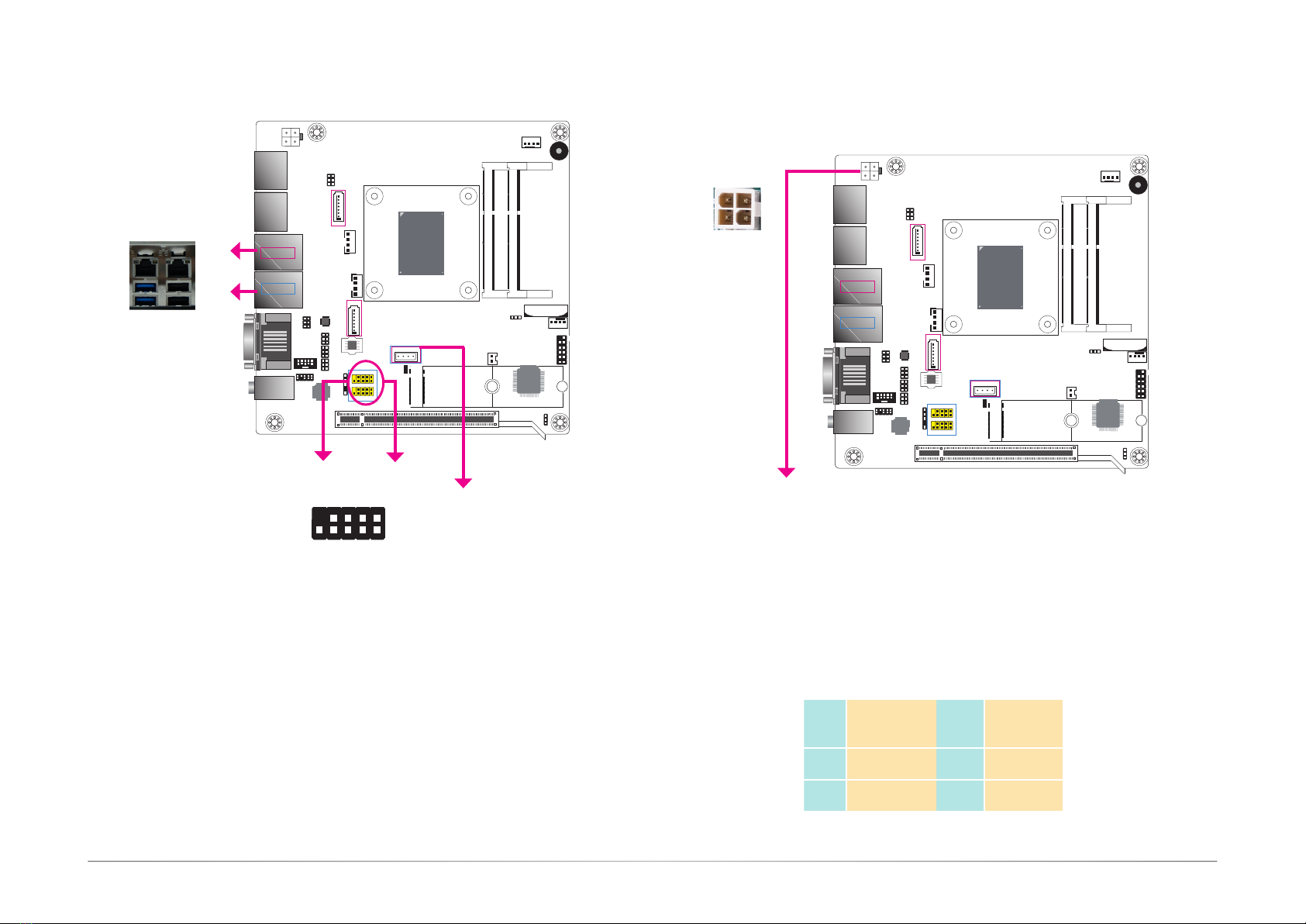

LAN Ports
Used to connect the system to a local area network.

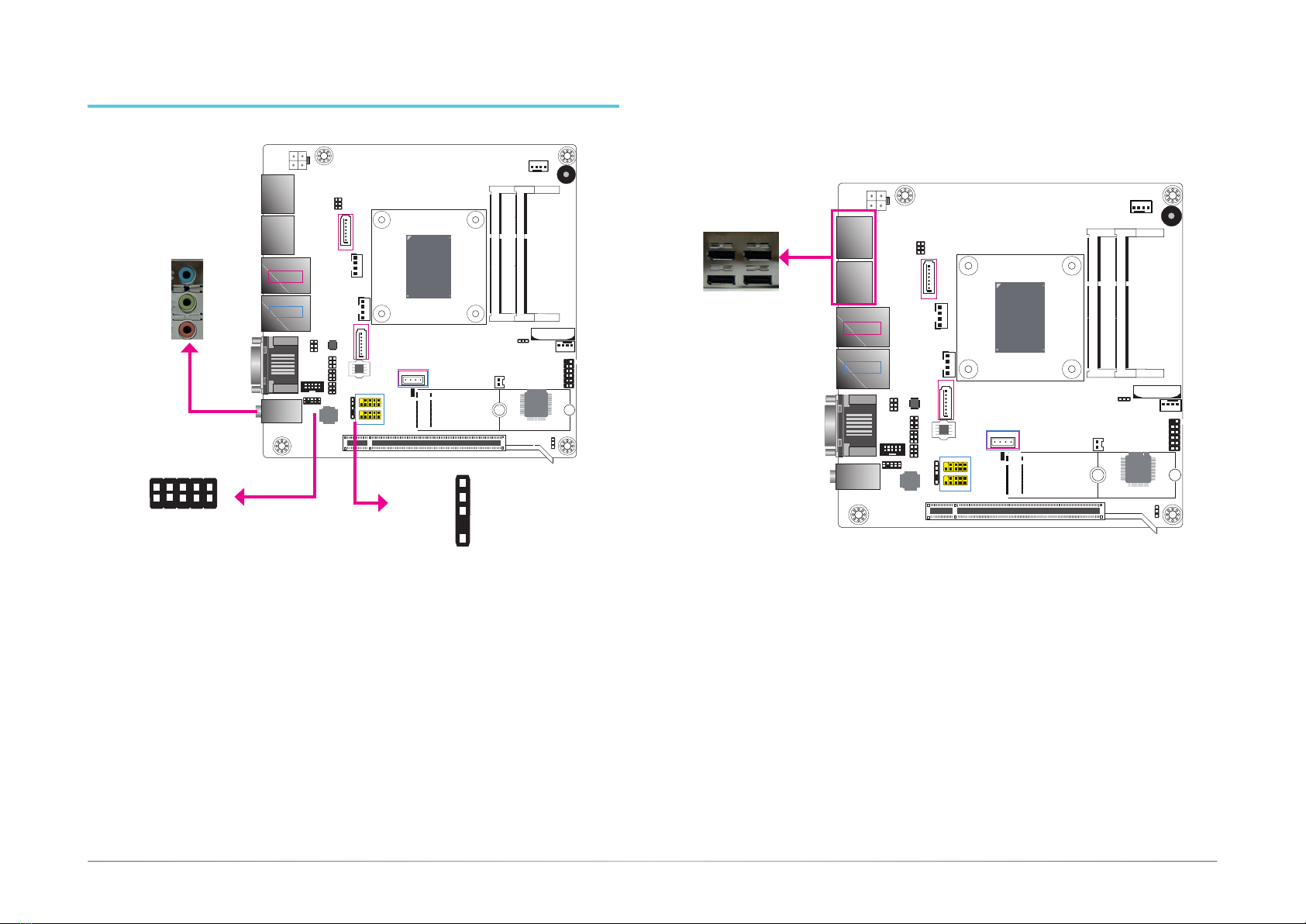

Line-in
Connects an external audio device such as musical instruments and amplifiers.
Line-out
Connets a speaker.
Mic-in
Connects an external microphone.
Power LED
Reset Button
Power Button
HDD LED
Line-in
Line-out
Mic-in
USB 3.0_2 USB 2.0_2
USB 3.0_1 USB 2.0_1
DP++_0 DP++_2
DP++_1 DP++_3
LAN 1 LAN 2 COM 1
COM 2
AC Power socket

9
User's Manual | DT122-GH
Chapter 1
Mechanical Dimensions
Chapter 1
300.00
73.60
217.20
218
Front View
Right ViewLeft View
Rear View

10User’s Manual | DT122-GH
Chapter 2
Chapter 2 - Getting Started
Chapter 2
Preparing the System
Before you start using the system, you need the following items:
• SATA drive
• M.2 module
• AC power cord
• PS/2 or USB keyboard/mouse
• Screwdriver
• Memory module (optional)
Installing Devices
The following are devices that can be installed in the system.
• Memory modules
• M.2 modules
Configuring the BIOS
To get you started, you may need to change configurations such as the date, time and the
type of hard disk drive.
1. Power on the system.
2. After the memory test, the message “Press DEL to run setup” will appear on the screen.
Press the Delete key to enter the AMI BIOS setup utility.
Installing the Operating System
Most operating system software can be installed using a DVD (and DVD burner) or bootable
USB drive.
Make sure a SATA or an M.2 module is already installed.
1. Refer to the following chapters for information about installing a storage device.
2. Refer to your operating system manual for instructions on installing the operating system.
Installing the Drivers
The system requires you to install drivers for some devices to operate properly. Refer to the
Supported Software chapter for instructions on installing the drivers.
