Chapter 1 Introduction
RM641-HD
Desktop Box PC
User’s Manual
A44000637

www.d.com
2
Chapter 1 Introduction
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2016. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class A
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.d.com
3
Chapter 1 Introduction
Table of Contents
Copyright .......................................................... 2
Trademarks....................................................... 2
FCC and DOC Statement on Class A...... 2
About this Manual .......................................... 4
Warranty ......................................................... 4
Static Electricity Precautions........................ 4
Safety Measures............................................... 4
Safety Precautions........................................... 5
About the Package ......................................... 5
Chapter 1 - Introduction.............................. 6
Overview.................................................................................6
Specifications...........................................................................7
Getting to Know the RM641-HD................................................8
Chapter 2 - Getting Started........................10
Preparing the System.............................................................10
Installing Devices................................................................... 10
Configuring the BIOS .............................................................10
Installing the Operating System.............................................. 10
Installing the Drivers.............................................................. 10
Chapter 3 - Installing the Device...............11
Removing the Chassis Cover................................................... 11
Installing the SATA Drive........................................................ 11
Installing the DIMM module ................................................... 13
Installing the CPU.................................................................. 13
Installing the fan and heat sink .............................................. 15
Installing the PCI/PCIe expansion card ................................... 16
Chapter 4 - Jumper Settings.......................17
Clear CMOS Data ...................................................................17
PS/2 Keyboard/Mouse Power Select ........................................ 17
USB Power Select ..................................................................18
Power-on Select.....................................................................18
COM 1/COM 2 RS232/422/485 Select ..................................... 19
COM 1/COM 2 RS232/Power Select......................................... 20
SATA DOM Power Select......................................................... 20
Digital I/O Power Select.........................................................21
Digital I/O Output State ......................................................... 21
Chapter 5 - Ports and Connectors...........22
Rear Panel I/O Ports .............................................................. 22
PS/2 Keyboard/Mouse Port ........................................................ 22
COM (Serial) Ports ................................................................... 23
Graphics Interfaces .................................................................. 24
RJ45 LAN Ports ........................................................................ 24
USB Ports................................................................................ 25
Audio ..................................................................................... 26
I/O Connectors ......................................................................26
SATA (Serial ATA) Connectors .................................................... 26
Digital I/O Connector................................................................ 27
Cooling Fan Connectors............................................................. 28
Power Connectors .................................................................... 28
Chassis Intrusion Connector ..................................................... 29
Front Panel Connector .............................................................. 29
Standby Power LED .................................................................. 30
Expansion Slots ....................................................................... 30
S/PDIF Connector..................................................................... 31
Parallel Port ............................................................................. 31
LPC Debug Port........................................................................ 32
SMBus Connector ..................................................................... 32
LAN LED Connector .................................................................. 33
Battery ................................................................................... 33
Chapter 6 - BIOS Setup...............................34
AMI BIOS Setup Utility........................................................... 35
Updating the BIOS.................................................................57
Notice: BIOS SPI ROM ...........................................................57
Chapter 7 - Supported Software...............58
Appendix A - System Error Message........67
Appendix B - Troubleshooting Checklist..68

www.d.com
4
Chapter 1 Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in-
sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click
“User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or
servicing. After installation or servicing, cover the system chassis before plugging the power
cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

www.d.com
5
Chapter 1 Introduction
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 RM641 system unit
• 1 x Drive Panel Door Keylock
Safety Precautions
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating.
DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the system
and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.

www.d.com
6
Chapter 1 Introduction
Chapter 1 - Introduction
Chapter 1
Overview
Key Features
Model Name RM641-HD
Processor 4th generation Intel®CoreTM processors
Chipset Intel® H81 Chipset
LAN 2 LAN ports
COM 2 COM ports
Display 1 VGA, DVI-I (DVI-D signal)
USB 4 USB 2.0 ports at the rear panel I/O ports;
2 USB 3.0 ports at the rear panel I/O ports
Audio Realtek ALC886
Front View
Rear View

www.d.com
7
Chapter 1 Introduction
Specifications
Processor System Processor LGA 1150 Socket
4th Generation Intel®Core™ Processors
Intel®Core™ i7-4790S Processor (8M Cache, up to 4.0 GHz); 65W
Intel®Core™ i7-4770S Processor (8M Cache, up to 3.9 GHz); 65W
Intel®Core™ i7-4770TE Processor (8M Cache, up to 3.3 GHz); 45W
Intel®Core™ i5-4590S Processor (6M Cache, up to 3.7 GHz); 65W
Intel®Core™ i5-4590T Processor (6M Cache, up to 3.0 GHz); 35W
Intel®Core™ i5-4570S Processor (6M Cache, up to 3.6 GHz); 65W
Intel®Core™ i5-4570TE Processor (4M Cache, up to 3.3 GHz); 35W
Intel®Core™ i3-4360 Processor (4M Cache, 3.7 GHz); 54W
Intel®Core™ i3-4350T Processor (4M Cache, 3.1 GHz); 35W
Intel®Core™ i3-4340TE Processor (4M Cache, 2.6 GHz); 35W
Intel®Core™ i3-4330 Processor (4M Cache, 3.5 GHz); 54W
Intel®Core™ i3-4330TE Processor (4M Cache, 2.4 GHz); 35W
Intel®Pentium®Processor G3420 (3M Cache, 3.2 GHz); 53W
Intel®Pentium®Processor G3320TE (3M Cache, 2.3 GHz); 35W
Intel®Celeron®Processor G1820 (2M Cache, 2.7 GHz); 53W
Intel®Celeron®Processor G1820TE (2M Cache, 2.2 GHz); 35W
Chipset Intel® H81 Chipset
Memory Two 240-pin DIMM up to 16GB Dual Channel DDR3 1333/1600MHz
BIOS AMI SPI 64Mbit
Graphics Controller Intel®HD Graphics
Feature Direct X, Supports 6 Graphics Execution Units (EUs),
Intel®Clear Video Technology
Display 1 x VGA (resolution up to 1920x1200 @ 60Hz)
1 x DVI-I (DVI-D signal, resolution up to 1920x1200 @ 60Hz)
Dual
Display VGA + DVI-I (DVI-D signal)
Storage 3 x 5.25" Optical Drive Bays (Front Accessible)
1 x 3.5"/2.5" SATA 3.0 Drive Bay (Front Accessible)
EXPANSION Interface 1 PCIe x16 (Gen 3)
1 PCIe x4 (Gen 2, x1 signal)
4 PCI (PCI 2.3, one shared with ISA slot)
2 ISA
AUDIO Audio
Codec
Realtek ALC886
Ethernet Controller 1 x Intel®82574 PCIe (10/100/1000Mbps)
1 x Intel®I217LM PCIe (10/100/1000Mbps)
LED Indicators 1 x Power LED
1 x HDD LED
Front I/O USB 2 x USB 2.0 (available upon request)
Front
Door
1 x Drive Panel Door With Keylock
Buttons 1 x Power Switch
1 x Reset Switch
Chapter 1
REAR I/O Ethernet 2 x GbE (RJ-45)
Serial 2 x RS-232/422/485 (DB-9)
USB 2 x USB 3.0
4 x USB 2.0
PS/2 1 x PS/2 (mini-DIN-6)
Display 1 x VGA
1 x DVI-I (DVI-D signal)
Audio 1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in
Buttons 1 x ATX Switch
Cooling Fan 2 x 92cm System Fan with Quick Access Filter
WATCHDOG
TIMER
Output & Interval System Reset, Programmable via Software from 1 to 255
Seconds
POWER Supply ATX PS/2 Power Supply 500W
AC Power Input : 90~264V
OS SUPPORT WES 7
MECHANISM Construction SECC, Flexible Hold Down Bar
Dimensions ( W x H x D) 483mm x 177mm x 451mm
Weight TBD
ENVIRONMENT Operating Temperature 0 to 45°C
Storage Temperature -20 to 60°C
Relative Humidity 0 to 90% RH (non-condensing)
STANDARDS AND
CERTIFICATIONS Shock Operating: 3G Non-operating: 3G
Vibration
Operating: Random 5~500Hz 1G Non-operating:
Sweep Sine 10~500Hz 1.5G
Package Drop ISTA Project 1A
Certication TBD

www.d.com
8
Chapter 1 Introduction
Getting to Know the RM641-HD
Chapter 1

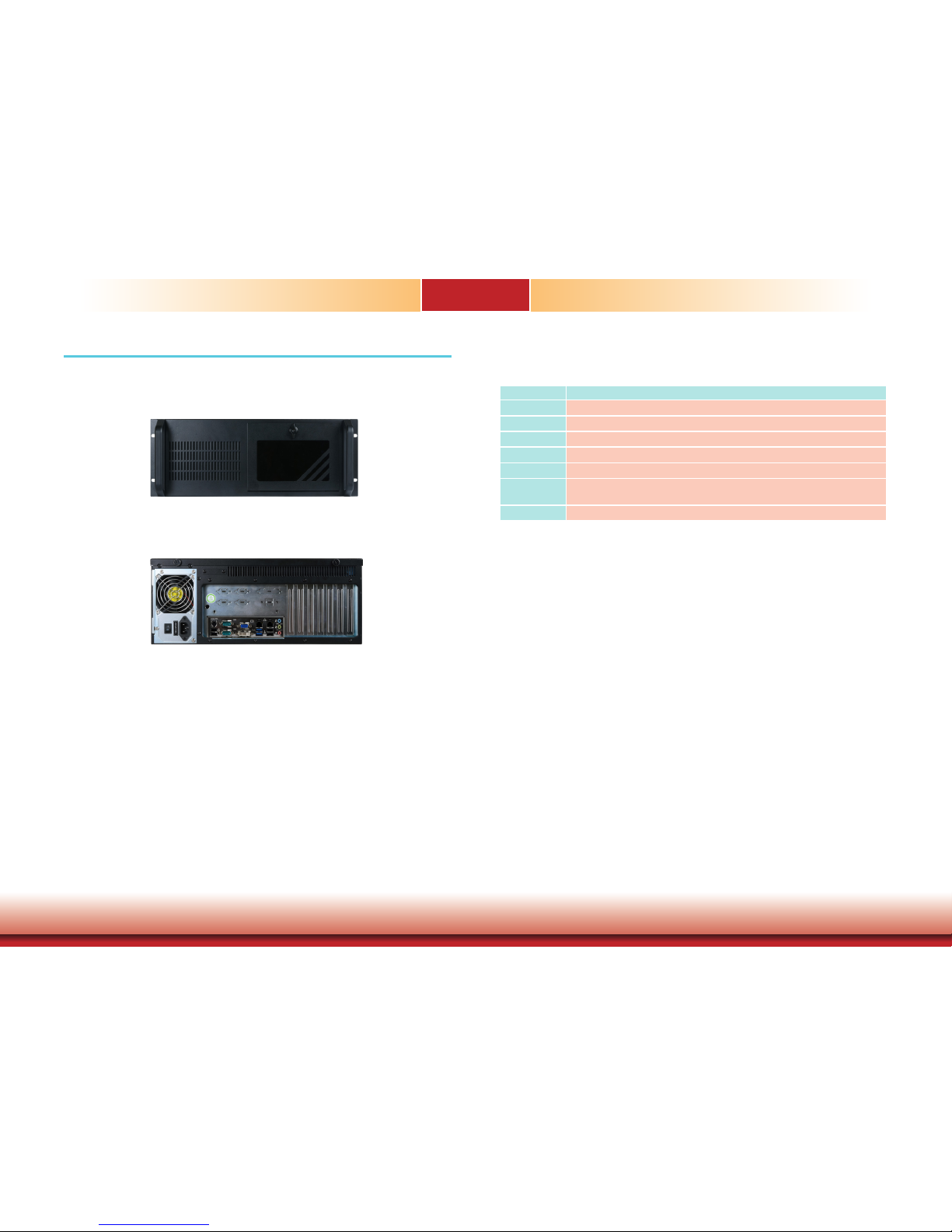

Front View
Power Button
Press to power on or power off the system.
Reset Button
Press to reset the system.
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
Rear View
DC-in jack
Used to plug a power adapter.
Keyboard/mouse
Used to connect to a PS/2 keyboard or mouse
COM Port
Used to connect serial devices.
VGA Port
Used to connect to a VGA display.
DVI-I
Used to connect to a DVI-I display (DVI-D signal).
USB 2.0 and 3.0 Ports
Used to connect USB 2.0/3.0 devices.
LAN 1-2 Ports
Used to connect the system to a local area network.
Line-in (Light Blue)
Used to connect to your audio devices such as Hi-fi set, CD player, tape player, AM/FM radio
tuner, synthesizer.
Line-out jack (Lime)
This jack is used to connect a headphone or speaker.
Mic-in jack
Used to connect to a microphone.
Power LED
Reset
Power
HDD LED
keyboard/mouse
USB 2.0
LAN 1-2
USB 3.0
USB 2.0
Line-in
Line-out
Mic-in
COM
DVI-I
DC-in Jack VGA

www.d.com
9
Chapter 1 Introduction
451.2
429.80
173.60
H.D.D.
POWER
POWER
RESET
482.60
464.60
177.00
101.60
37.70 92.0092.0092.00120.00
Mechanical Dimensions
Chassis Dimensions Motherboard Dimensions
Chapter 1
Front View
Rear View
0.00
0.00
95.29 78.74
54.31 33.99
13.67
6.66
26.97 45.72 47.29 63.46
82.60
105.13
135.58
171.73
197.48
203.20
209.55
10.16
29.22
46.94
143.93
154.94
180.93
227.33
233.68
78.74
20.32
2.38
26.38
45.72
90.81
93.72
154.74
165.82 198.46 203.20
227.33
175.87
164.54
154.94
150.29
130.79
112.79
94.79
75.29
22.86

www.d.com
10
Chapter 2 Getting Started
Chapter 2 - Getting Started
Chapter 2
Preparing the System
Before you start using the system, you need the following items:
• AC power adapter
• CD-ROM drive (for installing software/drivers)
Installing Devices
The following are devices that can be installed in the system.
• Memory module
• CPU
• SATA hard drive
• PCI/PCIe expansion card
Configuring the BIOS
To get you started, you may need to change configurations such as the date, time and the
type of hard disk drive.
1. Power-on the system.
2. After the memory test, the message “Press DEL to run setup” will appear on the screen.
Press the Delete key to enter the AMI BIOS setup utility.
Installing the Operating System
Most operating system software are provided in a CD therefore you need to install a CD-ROM
drive in order to use the CD.
Make sure a SATA drive is already installed.
1. Refer to the following chapters for information on connecting a CD-ROM drive and install-
ing a SATA drive.
2. Refer to your operating system manual for instructions on installing the operating system.
Installing the Drivers
The system package includes a CD disk. The CD includes drivers that must be installed to pro-
vide the best system performance. Refer to the Supported Software chapter for instructions on
installing the drivers.
