DFI OPS100-SH User manual

1
Chapter 1 Introduction www.d.com
OPS100-SH
User’s Manual
A44900714

2
Chapter 1 Introduction www.d.com
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2017. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class A
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
Chapter 1 Introduction www.d.com
Table of Contents
Copyright............................................................2
Trademarks.........................................................2
FCC and DOC Statement on Class A ....................2
About this Manual...............................................4
Warranty ...........................................................4
Static Electricity Precautions ................................4
Safety Measures..................................................4
Safety Precautions ..............................................5
About the Package..............................................5
Chapter 1 - Introduction......................................6
Overview: OPS100-SH..............................................................6
Overview: OPS-DB ...................................................................6
Key Features ...........................................................................6
Specifications...........................................................................7
Getting to Know the OPS100-SH...............................................8
Mechanical Dimensions ............................................................9
Chapter 2 - Getting Started .................................10
Chapter 3 - Installing the Devices........................11
Installing a SODIMM .............................................................. 13
Installing an M.2 Module........................................................ 13
Installing a Wi-Fi Module........................................................ 14
Chapter 4 - Board Layout and Jumper Settings ....15
Clear CMOS Data ...................................................................15
USB Power Select ..................................................................15
AT/ATX Mode Select...............................................................16
Chapter 5 - Ports and Connectors........................17
Front Panel I/O Ports .............................................................17
Rear Panel I/O Ports ..............................................................17
I/O Ports (OPS-DB)................................................................ 18
12~19V DC-in (OPS-DB) ............................................................................. 18
Display Interfaces (OPS100-SH and OPS-DB) ............................................... 19
USB Ports (OPS100-SH and OPS-DB) ........................................................... 20
COM Port (OPS100-SH and OPS-DB)............................................................ 21
COM Port (OPS-DB) .................................................................................... 21
RJ45 LAN Port (OPS100-SH)........................................................................ 22
Audio (OPS100-SH)..................................................................................... 22
Storage and Communication Expansion Slots .............................................. 23
Internal I/O Connectors ......................................................... 24
LPC Connector (OPS100-SH) ....................................................................... 24
Line-out Connector (OPS-DB) ...................................................................... 24
FAN Connector (OPS100-SH and OPS-DB).................................................... 25
FAN Connector (OPS-DB) ............................................................................ 25
GPIO Connector (OPS-DB) .......................................................................... 26
I2C Connector (OPS-DB) ............................................................................. 26
Standby Power LED (OPS100-SH)................................................................ 27
Battery (OPS100-SH) .................................................................................. 27
The TX25A-80P Connector (OPS100-SH) ...................................................... 28
Signal Description....................................................................................... 29
The FX18-60S Connector (OPS100-SH) ........................................................ 31
Signal Description....................................................................................... 32
Chapter 6 - BIOS Setup ......................................33
Main .......................................................................................................... 34
Advanced .................................................................................................. 34
Security...................................................................................................... 47
Boot........................................................................................................... 48
Exit............................................................................................................ 49
Updating the BIOS...................................................................................... 50
Notice: BIOS SPI ROM ................................................................................ 50
Chapter 7 - Supported Software ..........................51
Chapter 8 - Intel AMT Settings ...........................60

4
Chapter 1 Introduction www.d.com
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in-
sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click
“User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or damages to the product that
has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or
servicing. After installation or servicing, cover the system chassis before plugging the power
cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

5
Chapter 1 Introduction www.d.com
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 OPS100-SH system unit
• 1 CD disk includes: Drivers and Manual
Optional Items
• Wall Mount kit
• Power Cord
• Power Adapter: 120W, 12V
• Docking Board: OPS-DB
• Wi-Fi + Bluetooth module: M.2 2230 802.11a/b/g/n/ac + Bluetooth 4.1, Intel AC8260, 2
cables, 2 antennas
• SSD: Intel®SSD 600P Series or M.2 2280 SATA 3.0 (64GB/128GB MLC)
• Video Capture: Yuan SC560N14K (4K@60 HDMI Capture Card PCIe x4)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Safety Precautions
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating.
DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the system
and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.

6
Chapter 1 Introduction www.d.com
Chapter 1 - Introduction
Chapter 1

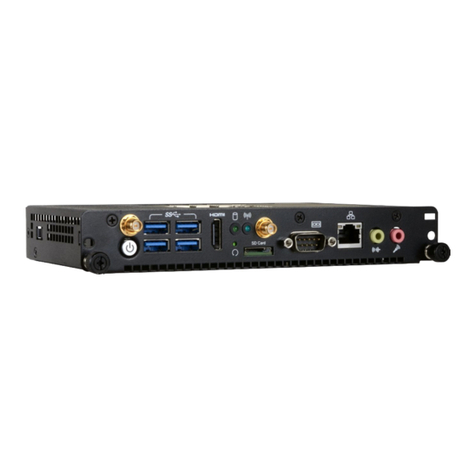

Overview: OPS100-SH
Key Features
Model Name OPS100-SH
Processor 6th Generation Intel®Xeon®and Core™processors
LAN 1 LAN port
COM 1 COM port
Display 1 HDMI-input
Audio Microphone and Line-out ports
USB 4 USB 3.0 Type A ports
External Storage microSD card slot
Power Switch Power-on button and reset switch
Front View
Rear View
Line-out
Power Button
HDD LED
HDMI-in
USB 3.0
COM LAN
microSD Card
Antenna hole
Antenna hole Wireless LED
Mic-in
Reset Button
HRS FX18 JAE TX25A
Overview: OPS-DB
Model Name OPS-DB
Display 1 HDMI (2.0) and 2 DisplayPort (1.2) outputs
USB 1 USB 3.0 and 2 USB 2.0 Type A ports
COM 1 COM port
Power 12~19V DC-in
Power Switch Power-on button
DP(B)
Power Button
DP(A)
COM USB 3.0
HDMI-out
USB 2.0
DC-in
Notes:
1. Throughout this guide the OPS100-SH may be referred to as the OPS+ Module .
2. The OPS-DB (referred to as the Docking Board) is an expansion dock, which
provides additional I/O connectivity.

7
Chapter 1 Introduction www.d.com
Platform Security TPM 2.0 with Intel®TXT (Intel® Trusted Execution Technology)
Power • Power input voltage: 12~19V DC-in (DC-in jack connector)
Cooling System • Heatsink with fan
Environment • Operating Temperature:
0°C to 45°C
• Storage Temperature:
-40 to 85°C
• Relative Humidity:
10 to 90% RH (non-condensing)
Construction • Aluminum + SGCC
Dimensions • 180mm x 30mm x 119mm (W x H x D)
Weight • TBD
OS Support • Windows 10 Enterprise (64-bit)
• Windows 8.1
Watch Dog Timer System Reset, Programmable via Software from 1 to 255 Seconds
Standards and
Certications
Packaged Shock (Drop): 6 face drops, 2 corner drops and 3 edge drops
for a total of 11 drops from a height of 36 inches if package weight < 20
pounds (30 inches if package weight ≥ 20 to < 40 pounds)
Packaged Vibration: 0.015 g2/Hz from 5 Hz to 40 Hz, Sloping to 0.00015
g2/Hz at 500 Hz, Input acceleration is 1.09 gRMS, 1 hour per axis for all 3
axes for all samples; Random control limit tolerance is ± 3 dB.
Specifications
Processor Intel®Xeon®Processor E3-1515M v5, Quad Core, 8M Cache, 2.8GHz (3.7GHz)
Intel®Core™ i5-6440EQ Processor, Quad Core, 6M Cache, 2.7GHz (3.4GHz)
Intel®Core™ i3-6100E Processor, Dual Core, 3M Cache, 2.7GHz
Chipset Intel®CM236 Chipset
Intel®HM170 Chipset
Memory • Supports dual-channel DDR4 2400/2133MHz
• Supports 4GB/8GB/16GB SODIMM modules up to a total of 32GB
Graphics Intel®HD Gen 9 Graphics
OpenGL 5.0, DirectX 12, OpenCL 2.1
• Supports these codecs:
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265,
VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
• Output displays:
1 x HDMI-input
2 x DP (1.2): resolution up to 4096x2160 @ 60Hz
1 HDMI-output (2.0): resolution up to 3840x2160 @ 60Hz
• Triple display: HDMI + 2 DP
Audio • Realtek ALC888
• Audio ports: Mic-in and Line-out
Wireless
Connectivity
• 1 x M.2 (Type 2230 E Key) (PCIe/USB) for wireless modules
Storage • 1 x M.2 (Type 2280 M Key) (PCIe x4/SATA) for SSD modules
• 1 x micro SD Card Slot
Ethernet 1 x Intel®I219LM PCIe with iAMT 11.6 (10/100/1000Mbps)
Expansion 1 x PCIe x4 expansion slot (on the OPS-DB Docking Board)
Front and rear
Panel I/O Ports
• Front Panel
1 x GbE (RJ-45)
1 x RS-232 (DB-9)
4 x USB 3.0 (type A)
1 x HDMI-input
1 x Line-out
1 x Mic-in
1 x Power Button
1 x Reset Button
2 x Wi-Fi Module Antenna Holes
• Rear Panel
The JAE TX25A-80P connector: The Hirose FX18-60S connector:
1 x HDMI 2.0 1 x DP 1.2
1 x DP 1.2
2 x USB 2.0
1 x USB 3.0
1 x 12~19V DC-in
Chapter 1

8
Chapter 1 Introduction www.d.com
Power Button with LED (Green)
Press this button to power on or power off the system.
USB 3.0 Ports
These ports connect USB 3.0 or USB 2.0/1.1 devices.
HDMI-in Port
This port can be used to connect an HDMI source (e.g. an HDMI port of a computer) and let
the signal pass through to another output display.
Reset Button
Press this button to reset the system without turning on or off the power.
COM Port
This port connects serial devices.
LAN Port
This port connects the system to a local area network (LAN).
Microphone/Line-out Ports
This port connects audio devices such as microphones and speakers.
microSD Card Slot
This port connects a microSD card that complies with SD specication v1.0/v1.1/v2.0 SDHC.
Wireless LED (2)
The wireless LED indicates the wireless connection status. The LED behavior depends on the
wireless module used.
HDD LED (Green)
This LED indicates the status of the disk drive.
Getting to Know the OPS100-SH
Chapter 1
Front View Rear View
HRS FX18/JAE TX25A
The OPS+ Module enables the integration of a pluggable module and a display panel
by employing a dened interconnect based on the JAE and HRS combo plug and their
receptacle connectors.
For detailed pin assignments and connector specications, refer to Chapter 4 and 5.
HDD State Disk access activity HDD present or HDD not present
LED Behavior Blink Off
Line-out
Power Button
HDD LED
HDMI-in
USB 3.0
COM LAN
microSD Card
Antenna Hole(1)
Antenna Hole(1) Wireless LED(2)
Mic-in
Reset Button
HRS FX18 JAE TX25A
Notes:
1. The OPS+ Module is equipped with a Wi-Fi module to provide Wi-Fi connectivity.
Please install antennas to these SMA connectors.
2. There may not be indicator light depending on the installed Wi-Fi module; for
example, the LED will not be lit for Intel®Dual Band Wireless-AC 8260.

9
Chapter 1 Introduction www.d.com
Mechanical Dimensions
Chassis Dimensions
Chapter 1
Motherboard Dimensions
The overall dimensions of the OPS+ Module exclusive of the front panel frame is 180 x 30 x
119 mm (W x H x D). The following illustrations show the dimensions of the OPS+ Module as
well as the dimension and location of the front panel screw holes:
Unit: mm Unit: mm
165.00
0.00
103.40
111.90
81.05
89.15
10.40
2.95
17.00
1.50
115.70
0.00
20.00
10.97
15.74
56.43
102.00
97.30
34.15
106.00
109.59
54.59
120.00
2.70
33.50 17.00
50.54
64.75
107.98
122.79
144.00 156.50
45.60 31.95
The following illustration shows the overall dimensions of the motherboard and the
components with their relative positions.
200.00
180.00
30.00
2-R2.25
119.00
2-R2.25 91.50
14.50
4.50
5.00 192.00 5.00 23.00
3.00
14.50
4.50
7.00
Front View
Right View
Left View
Rear View
Top View

10
Chapter 2 Getting Started www.d.com
Chapter 2 - Getting Started
Chapter 2
Preparing the System
Before you start using the system, you need the following items:
• Wireless Antennas (if wireless module is installed)
• AC power adapter
• CD-ROM drive (for installing software/drivers)
Installing Devices
The following are devices that can be installed in the system.
• microSD card
• M.2 SSD card
• M.2 wireless card
• M.2 capture card
Configuring the BIOS
To get you started, you may need to change configurations such as the date, time and the type
of hard disk drive.
1. Power-on the system.
2. After the memory test, the message “Press DEL to run setup” will appear on the screen.
Press the Delete key to enter the BIOS setup utility.
Installing the Operating System
Most operating system software are provided in a CD therefore you need to install a CD-ROM
drive in order to use the CD. Alternatively, you can remotely install an operating system using
Intel®AMT.
Please refer to your operating system manual for instructions on installing the operating system.
Installing the Drivers
The system package includes a CD disk. The CD includes drivers that must be installed to pro-
vide the best system performance. Refer to the Supported Software chapter for instructions on
installing the drivers.
