DFI U340 Series User manual

Sleek, Powerful, Flexible - Customized Computing Solutions
DFI Technologies, LLC.
1065 National Drive, Ste. 1,
Sacramento
California 95834
916.568.1234
800.909.4DFI
fax [phone]
www.dfitech.com

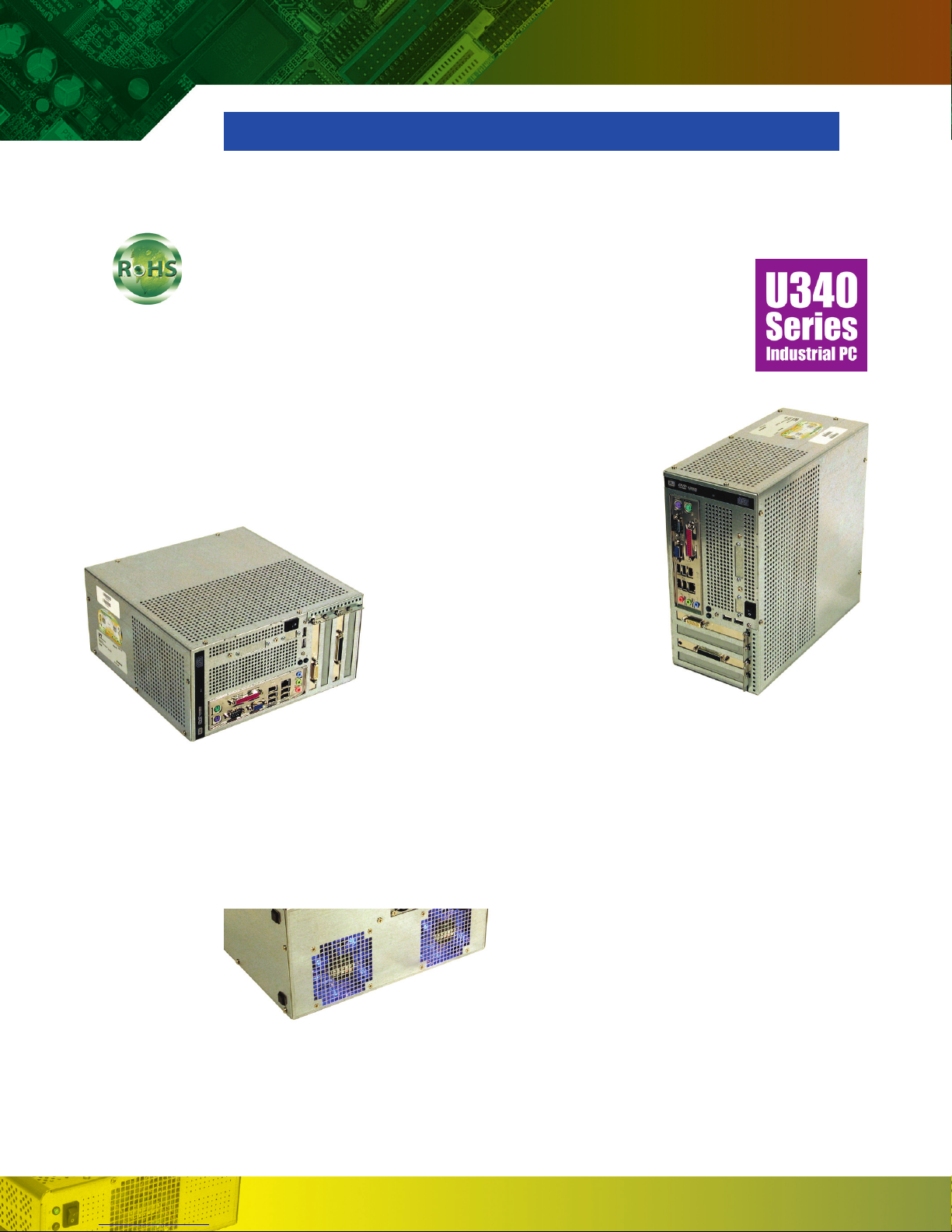

Need the power of an Intel Pentium D or Core 2 Quad processor and up to 4 expansion slots? The
U340 can be your best choice. It is a light industrial computer with 4 expansion slots in the smallest
possible Micro-ATX enclosure. The placement of this U340 is also exible... it can be placed vertically
or horizontally inside your equipment or machine. The optical drive, switch, indicators
and all the I/O ports are on the same side so that it is easy to access these items during
installation or setup in your equipment or machine.
The U340 series is made for a wide range of Micro-ATX sized main boards. All our
main boards include on-board video, integrated network, audio, serial and USB ports.
These DFI-ACP boards support the Intel Celeron M, Pentium M, Celeron D, Pentium 4,
Pentium D, Core 2 Duo and Core 2 Quad processors. The processor
choices range from low-power, low-heat to high-performance quad-
core. There are more options for the memory size, hard drive capacity
and CD/DVD-drives. The combinations are nearly endless, ensuring
you will get the best conguration for your application.
All these U340 systems have on-board video
output, but for even more video features
such as to drive multiple monitors, you can
plug in a PCI Express video board, or use a
DFI ADD2 Dual-DVI card for the U340/470.
The U340 Series’ galvanized steel frame
construction makes our solution durable,
yet lightweight. It is ideal for embedded
applications such as digital signage, gaming,
automation, multimedia kiosks, or any other application where you need a
powerful computer and room to add your PCI expansion boards.
Our Micro-ATX industrial main boards are different from those available in the commercial market. DFI
products use boards designed and manufactured by the DFI Applied Computing Products division,
at our Taiwan manufacturing facility. All DFI-ACP main boards are guaranteed to be available for 3
to 5 years from the date the boards were introduced. The DFI-ACP boards are based on embedded
roadmap components for the main chipset and processors. If a product does go end of life, notice
is sent six months before this DFI-ACP board is
discontinued, and a replacement is recommended for
evaluation.
All our DFI-ACP products utilize technologies and
technical information learned from our high-volume
commercial main boards that have been shipped by
the hundreds of thousands. Along with our upgraded industrial components found on these boards,
all this knowledge and experience translates to a more stable and compatible platform for your
embedded and industrial applications.
 DFI U340 Series

U340
470
U340
475
U340
480
U340
485
Enclosure Galvanized Steel Frame Construction
Main Board DFI-ACP
G7V330-B
DFI-ACP
G5G330-P
DFI-ACP
G7L330-B
DFI-ACP
G7B330-B
Processor Type
Intel Celeron D,
or Pentium 4
(Desktop type)
Intel Celeron M,
or Pentium M
(Mobile type)
Intel Celeron D, Pentium 4,
or Pentium D
(Desktop type)
Intel Celeron D, Pentium 4,
Pentium D, Core 2 Duo
or Core 2 Quad
(Desktop type)
Processor FSB 533 / 800 400 / 533 533 / 800 533 / 800 / 1066
Main Chipsets Intel 915GV
+ ICH6
Intel 915GME
+ ICH6M
Intel 945G
+ ICH7
Intel Q965
+ ICH8
System Memory
4 Slots, Dual-channel
DDR 333/400,
4 GB max.
2 Slots,
DDR333,
2 GB max.
4 Slots, Dual-channel,
DDR2 533/667,
4 GB max.
2 Slots, Dual-channel
DDR2 533/667/800,
4 GB max.
PCI Slots
1 PCI Express x16
(ADD2 Dual-DVI card only) 1 PCI Express x16 1 PCI Express x16 1 PCI Express x16
1 PCI Express x1 1 PCI Express x1 1 PCI Express x1 1 PCI Express x4
2 PCI 2 PCI 2 PCI 2 PCI
HDD 2 Notebook-type HDDs, or 1 Desktop-type HDD
Optical Drive Bay Notebook-type CD, CD R/W, DVD or DVD R/W Optical Drive, or Compact Flash Drive Kit
PS/2 Keyboard and Mouse
Ports 1 pair 1 pair 1 pair 1 pair
DB-9 Serial Port 1111
Video Port 1 DB-15 1 DB-15 1 DB-15 1 DB-15
RJ45 LAN Port 1x (10/100/1000) 1x (10/100/1000) 1x (10/100/1000) 1x (10/100/1000)
USB Port 6666
IEEE 1394 Port 1 1 1 0
Audio Jacks 3336
DB-25 Parallel Port 1111
Dimension
W x H x D
11.170” x 5.594” x 11.589”
(283.7 x 142.1 x 294.4 mm)
Ventilation Two 80 mm enclosure fans
Power Supply Internal auto-110/220V 350W power supply with power factor correction and noise killer feature
Operating Temperature 0ºC - 50ºC (32ºF - 122ºF), 10% - 90% RH.
All pictures are for illustration only. The I/O port arrangement, motherboard and add-in boards will differ depending on the conguration.
Copyright (C) 2008, DFI Technologies, LLC. All product names, company names are trademarks or registered trademarks
of their respective companies. All specications, pictures and prices are subject to change without prior notice. OEM
customers with long-term supply agreements and revision control agreements will certainly be notied. v20081029
