DFI G586SPB AIO User manual

G586SPBAIO
Rev.A+
System Board
User’s Manual
- 32060802 -

FCC Statement on Class B
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful in-
terference when the equipment is operated in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular in-
stallation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
•Consult the dealer or an experienced radio TV technician for help.
Notice:
1.The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to oper-
ate the equipment.
2.Shielded interface cables must be used in order to comply with the
emission limits.
The manufacturer makes no warranties with respect to this documenta-
tion and disclaims any implied warranties of merchantability, quality, or
fitness for any particular purpose. The information in this document is
subject to change without notice. The manufacturer reserves the right to
make revisions to this publication and to make changes to any and/or
all parts of its content, at any time, without obligation to notify any per-
son or entity of such changes. Further, the manufacturer assumes no
responsibility for any errors that may appear in this document.

Table of Contents
Chapter 1: Introduction............................................................ 5
Features and Specifications.................................................. 6
Package Checklist .............................................................. 8
Chapter 2: Hardware Installation............................................... 9
Preparing the Area.............................................................. 9
Handling the System Board.................................................. 9
Installing the System Board.................................................10

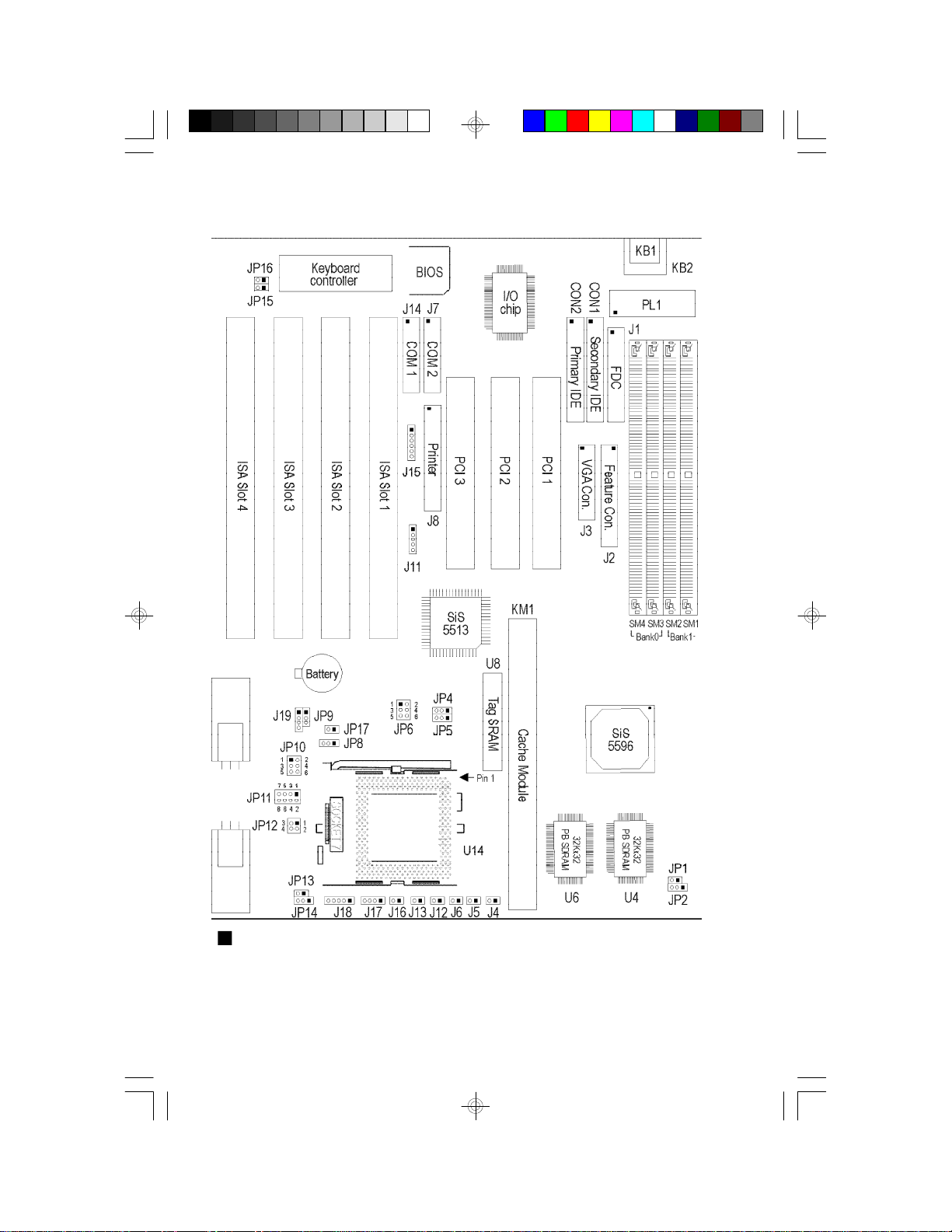

Board Layout ....................................................................12
System Memory................................................................13
Installing a SIM Module.................................................15
Cache Memory.................................................................15
Installing the Cache Module...........................................16
Jumper Settings for Cache.............................................16
Cacheable Memory......................................................17
CPU Installation................................................................17
Jumper Settings for CPUs..............................................18
Installing Upgrade CPUs................................................20
Jumper Settings for Password Clear.......................................23
Jumper Settings for Display Type...........................................23
Jumper Settings for PS/2 Mouse...........................................24
Jumper Settings for Internal/External Battery...........................24
Built-in Ports.....................................................................25
Serial Ports.................................................................25
PS/2 Mouse Port..........................................................26
Parallel Port ................................................................26
Floppy Disk Drive Controller...........................................27
IDE Hard Disk Interface.................................................27
VGA Port....................................................................29
Installing Expansion Cards...................................................29
Chapter 3: Software Installation...............................................30
Award BIOS CMOS Setup Utility...........................................30
Standard CMOS Setup..................................................31
BIOS Features Setup....................................................35
Chipset Features Setup.................................................39
Power Management Setup.............................................41
PNP/PCI Configuration..................................................44

Load BIOS Defaults......................................................46
Load Setup Defaults.....................................................46
Integrated Peripherals...................................................46
Supervisor Password....................................................49
User Password............................................................49
IDE HDD Auto Detection................................................50
HDD Low Level Format .................................................52
Save & Exit Setup........................................................53
Exit Without Saving.......................................................53
System Error Report ..........................................................54
Driver Installation...............................................................55
Chapter 4: Troubleshooting Checklist.............................................56
Appendix A: Types of Modules......................................................60
Appendix B: Memory and I/O Maps................................................61
Appendix C: Connectors..............................................................63

The G586SPB AIO, equipped with a 321-pin Zero Insertion Force (ZIF)
CPU socket, is a Pentium processor-class system board supporting In-
tel Pentium CPUs running at 75MHz, 90MHz, 100MHz, 120MHz,
133MHz, 150MHz, 166MHz and 200MHz frequencies. The G586SPB
AIO also supports future Pentium OverDrive processors and AMD-K5
PR75/PR90/PR100 CPUs.
The G586SPB AIO can support 8MB to 256MB of system memory. It is
equipped with 4 SIMM sockets using EDO or fast page mode x32
DRAM. This system board also supports pipeline burst SRAM and pro-
vides easy cache upgrades using a 256KB cache module.
The G586SPB AIO comes with a built-in video accelerator. The VGA
controller can display graphic resolutions up to 1024x768, 256 colors
with 1MB DRAM and up to 1280x1024, 256 colors with 2MB DRAM.
The built-in VGA function also supports VESA DDC1 and DDC2B Plug
and Play monitors.
The G586SPB AIO design is based on the Peripheral Component Inter-
connect (PCI) local bus and Industry Standard Architecture (ISA) stan-
dards. It is equipped with 3 dedicated PCI slots and 4 dedicated 16-bit
ISA slots.
The G586SPB AIO board has two bus master PCI IDE connectors. Bus
mastering reduces CPU use during disk transfer. This system board is
also equipped with two NS16C550A-compatible serial ports, an SPP/
ECP/EPP parallel port, a floppy disk drive controller, one PS/2 mouse
port, one PS/2 or AT keyboard connector and one IrDA connector for
wireless connectivity between your computer and peripheral devices.
Chapter 1
Introduction

6
Features and Specifications
PROCESSOR
•IntelPentium75/90/100/120/133/150/166/200MHz
•Future Pentium OverDrive processor
•AMD-K5 PR75/PR90/PR100 and future AMD-K5 CPUs
CHIPSET
•SiS 5596: PCI, memory and VGA controller
•SiS 5513: PCI system I/O
CACHE MEMORY
•Supports 256KB or 512KB pipeline burst, direct map write-back
cache installed on the system board
•One 160-pin cache module slot, COAST 2.x standard
•Onboard 256KB: upgradeable with a 256KB cache module for a
maximum of 512KB cache
SYSTEM MEMORY
•8MB to 256MB memory
•Four 72-pin SIMM sockets
•Unified Memory Architecture: 64-bit main memory is shared between
the CPU and the graphics controller
•Uses EDO or fast page mode x32 DRAM (60ns or 70ns)
BIOS
•Award BIOS, Windows 95 Plug and Play compatible
•Flash EPROM for easy BIOS upgrades
ENERGY EFFICIENT DESIGN
•System power management supported
•CPU stopped clock control
•Hardware supports SMI green mode
•Microsoft/Intel APM compliant
GRAPHICS ACCELERATOR
•Accelerated 64-bit graphics controller
•Built-in video accelerator
•Supports VESA DDC1 and DDC2B

7
•Graphics resolutions
1MB:640x480, 16M colors, 60Hz, NI
800x600, 64K colors, 60Hz, NI
1024x768, 256 colors, up to 75Hz, NI
2MB:640x480, 16M colors, 75Hz, NI
800x600, 16M colors, 75Hz, NI
1024x768, 64K colors, 75Hz, NI
1280x1024, 256 colors, 60Hz, NI
•VGA drivers and utilities
Power management utility
VESA Video BIOS Extensions (VBE)
Windows 95 - supports DirectDraw
Windows 3.1- supports DCI
Windows NT (optional)
OS/2 2.x/Warp (optional)
PCI IDE INTERFACE
•Supports fast Mode 3 and Mode 4 Enhanced IDE
•DMA Mode 2 Bus Master IDE
•Two IDE connectors to control four drives (e.g. two HDDs, one tape
drive and one CD-ROM)
•Bus mastering reduces CPU use during disk transfer
•ATAPI IDE CD-ROM supported
INTEGRATED I/O
•Two NS16C550A-compatible enhanced serial ports
•One SPP/ECP/EPP parallel port
•Supports 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB floppy drives
•One IrDA TX/RX header
•Two USB connectors supported in future revision
CPU SOCKET
•321-pin ZIF socket (Intel Socket 7)
CONNECTORS
•1 IrDA TX/RX connector
•2 serial ports
•1 parallel port
•2 IDE connectors
•1 floppy connector

8
•1 analog VGA port
•1 VGA feature connector
•1 PS/2 mouse port
•1 PS/2 or AT keyboard connector
EXPANSION SLOTS
•3 dedicated PCI slots
•4 dedicated 16-bit ISA slots
PCB
•4 layers
•26cm (10.24") x 22cm (8.66")
Package Checklist
The G586SPB AIO package contains the following items:
•The G586SPB AIO system board
•The G586SPB AIO user’s manual
•One 40-pin IDE hard disk cable
•One 34-pin floppy disk drive cable
•One 25-pin printer port cable for chassis mounting
•One card-edge bracket with serial and mouse port cables
•One card-edge bracket with an analog VGA port cable
•One IDE driver diskette
•One set of VGA driver diskettes
•Cache module (optional)
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

9
Chapter 2
Hardware Installation
This chapter summarizes the steps to install the G586SPB AIO system
board into your system unit. It also includes a description of the area in
which you must work and directions for memory installation. Before in-
stalling the system board, obtain the memory you plan to install. Please
refer to the information on pages 13 and 14 for the number and type of
memory modules needed for the amount of memory you require.
Preparing the Area
Before unpacking the system board, make sure the location you have
selected is relatively free of dust and static electricity. Excessive expo-
sure to dust, static electricity, direct sunlight, excessive humidity, ex-
treme cold, and water can damage the operational capabilities of your
system board. Avoid placing the unit on surfaces such as carpeted
floors. These areas also attract static electricity which can damage
some circuits on your system board.
Make sure the power source has a properly grounded, three-pronged
socket. It is essential that the power connection be properly grounded
for correct functioning of your system board. For further protection, we
recommend that you use a surge suppressor. This will protect the sys-
tem board from damage that may result from a power surge on the
electrical line.
Move items that generate magnetic fields away from your system board
since magnetic fields can also damage your system board. Once you
have selected the ideal location, unpack the G586SPB AIO system
board carefully.
Handling the System Board
It is quite easy to inadvertently damage your system board even before
installing it in your system unit. Static electrical discharge can damage
computer components without causing any signs of physical damage.
You must take extra care in handling the system board to ensure
against electrostatic build-up.

10
Static Electricity Precautions
1.To prevent electrostatic build-up, leave the board in its anti-static
bag until you are ready to install it.
2.Wear an antistatic wrist strap.
3.Do all preparation work on a static-free surface with the system
board components facing up.
4.Hold the system board only by its edges. Be careful not to touch
any of the components, contacts or connections, especially gold
contacts, on the board.
5.Avoid touching the pins or contacts on all modules and connectors.
Hold modules and connectors by their ends.
Warning:
Electrostatic discharge (ESD) can damage your processor, disk drives,
add-in boards, and other components. Perform the upgrade instruction
procedures described at an ESD workstation only. If such a station is
not available, you can provide some ESD protection by wearing an anti-
static wrist strap and attaching it to a metal part of the system chassis.
If a wrist strap is unavailable, establish and maintain contact with the
system chassis throughout any procedures requiring ESD protection.
Installing the System Board
If you are installing the G586SPB AIO system board, the following out-
lines the basic installation steps. Before installing the system board into
your system unit, you should prepare the tools you will need.
You will need:
•One medium size, flat-bladed screwdriver
•One medium Phillips screwdriver
•One needle-nosed pliers
•One small nutdriver

11
1.Unlock your system unit. Turn off the power and disconnect all
power cords and cables.
2.Remove the system unit cover. Refer to the manufacturer’s instruc-
tions if necessary.
3.Detach all connectors from the old system board and remove ex-
pansion cards seated in any expansion slots.
4.Loosen the screws holding the original system board and remove
the board from the system. Save the screws.
5.Remove the G586SPB AIO from its original packing box. Be careful
to avoid touching all connectors and pins on the board. Please refer
to the handling instructions on pages 9-10 for proper handling tech-
niques.
6.Insert the memory modules into the memory banks on the
G586SPB AIO. The quantity and location of the memory modules
depends on the memory configuration and type of modules you in-
tend to use.
7.Insert the cache module, if any, into the cache module slot on the
G586SPB AIO. Refer to the Cache Memory section for upgrading
your cache memory.
8.Install the CPU. Be sure pin 1 of the CPU is aligned with pin 1 of
the socket.
9.Set the corresponding jumpers.
10.Install the prepared G586SPB AIO system board into the case and
replace the screws.
11.Reinstall all cards and connectors and replace the system unit
cover. Reconnect all power cords and cables.

12
Board Layout
square denotes pin 1

13
SIMM3
1MBx32
—
2MBx32
—
1MBx32
1MBx32
2MBx32
System Memory
The SIMM (Single In-line Memory Module) sockets are divided into two
banks on the system board, Bank 0 and Bank 1. Each bank consists of
2 SIMM sockets. Refer to page 12 for the locations of the SIMM sockets.
You will need either 2 or 4 pieces of SIM modules, depending on the
amount of memory you intend to install. Make sure you insert the same
type of SIMMs in one bank. You can install SIMMs in either of the
banks, Bank 0 or Bank 1, but you must populate one bank first before
going to the next bank.
The G586SPB AIO system board can support 8MB to 256MB of
memory using 1MBx32, 2MBx32, 4MBx32, 8MBx32, or 16MBx32 72-pin
SIMMs. The table below shows the supported SIM modules and their
corresponding memory sizes.
The table below summarizes the bank locations and modules needed
for the corresponding memory sizes.
MemorySize
8MB
8MB
16MB
16MB
16MB
24MB
24MB
Bank0
SIMM4
1MBx32
—
2MBx32
—
1MBx32
1MBx32
2MBx32
SIMM2
—
1MBx32
—
2MBx32
1MBx32
2MBx32
1MBx32
Bank1
SIMM1
—
1MBx32
—
2MBx32
1MBx32
2MBx32
1MBx32
SIMMs
1MBx32
2MBx32
4MBx32
8MBx32
16MBx32
Memory Size
4MB
8MB
16MB
32MB
64MB

14
SIMM1
—
4MBx32
2MBx32
4MBx32
1MBx32
4MBx32
2MBx32
—
8MBx32
4MBx32
8MBx32
1MBx32
8MBx32
2MBx32
8MBx32
4MBx32
—
16MBx32
8MBx32
16MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
SIMM4
4MBx32
—
2MBx32
1MBx32
4MBx32
2MBx32
4MBx32
8MBx32
—
4MBx32
1MBx32
8MBx32
2MBx32
8MBx32
4MBx32
8MBx32
16MBx32
—
8MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
16MBx32
MemorySize
32MB
32MB
32MB
40MB
40MB
48MB
48MB
64MB
64MB
64MB
72MB
72MB
80MB
80MB
96MB
96MB
128MB
128MB
128MB
136MB
136MB
144MB
144MB
160MB
160MB
192MB
192MB
256MB
Bank0
SIMM3
4MBx32
—
2MBx32
1MBx32
4MBx32
2MBx32
4MBx32
8MBx32
—
4MBx32
1MBx32
8MBx32
2MBx32
8MBx32
4MBx32
8MBx32
16MBx32
—
8MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
16MBx32
SIMM2
—
4MBx32
2MBx32
4MBx32
1MBx32
4MBx32
2MBx32
—
8MBx32
4MBx32
8MBx32
1MBx32
8MBx32
2MBx32
8MBx32
4MBx32
—
16MBx32
8MBx32
16MBx32
1MBx32
16MBx32
2MBx32
16MBx32
4MBx32
16MBx32
8MBx32
16MBx32
Bank1

15
Installing a SIM Module
A SIM module simply snaps into a socket on the system board. Pin 1 of
the SIM module must correspond with Pin 1 of the socket.
notch
key
1.Position the SIMM above the socket with the “notch” in the module
aligned with the “key” on the socket.
2.Seat the module at a 45° angle into the bank. Make sure it is com-
pletely seated. Tilt the module upright until it locks in place in the
socket.
Cache Memory
The G586SPB AIO system board can support 256KB or 512KB pipeline
burst, direct map write-back cache SRAM. Your system board may
come with 256KB or 512KB cache mounted at locations U4 and U6 of
the system board. If your system board is mounted with 256KB cache,
you may upgrade your cache memory to 512KB by installing a 256KB
cache module in the 160-pin cache module slot (KM1). Regardless of
the amount of cache memory installed, one SRAM is mounted on loca-
tion U8 for tag RAM to store the cacheable addresses. Refer to page 12
for the locations of the cache module slot (KM1), U4 and U6.
Warning:
We highly recommend that you use the T2BSM32-256 cache module. If
you are using a cache module other than the one recommended above,
make sure your cache module meets the Intel COAST 2.x specification.
Severe damage might occur on the cache module or system board if
you insert modules other than the one specified above.

16
Jumper Settings for Cache
Cache
Size
256KB
512KB
512KB
Onboard
Cache
256KB
256KB
512KB
Upgradeable
Cache Module
0KB
256KB
NA
JP2
1-2 On
2-3 On
1-2 On
JP4
1-2 On
1-2 On
1-2 On
JP5
1-2 On
2-3 On
2-3 On
Jumpers JP2, JP4 and JP5
Cache Size Select
Installing the Cache Module
Locate the 160-pin cache module slot on the system board (KM1). Posi-
tion the cache module above the slot. Make sure pin 1 of the cache
module is aligned with pin 1 of the slot. Carefully slide the module into
the slot. Press firmly on the top of it to seat it properly.
12
312
3
1-2On2-3On

17
CPU Installation
The G586SPB AIO allows for easy installation of CPUs. Make sure all
jumpers are set correctly before applying power or you may damage the
CPU or system board. Please see the jumper settings on the following
pages. Use the needle-nosed pliers to move the jumpers if necessary.
Cacheable Range
Cacheable Memory
256KB
512KB
8-bits Tag
64MB
128MB
7-bits Tag
1 Dirty Bit
32MB
64MB
Cache Size
The “L2 (WB) Tag Bit Length” category in the Chipset Features Setup of
the Award BIOS Setup utility allows you to set the “Tag Bit Length” to
“7-bits” or “8-bits”. The default setting is “7-bits”. This setting will in-
crease the performance of your system but the cacheable memory will
be smaller than that of an "8-bits" setting.

18
Jumper Settings for CPUs
Intel CPUs
JP6
JP1
JP13
JP14
JP12 JP11 JP10
135
4
6 2
135
46 2
1 3 5 7
2 4 6 8
3
1
4
2
CPU Internal/External (Freq.) Speed
75/50, 90/60, 100/66 (1.5x) 120/60, 133/66 (2x) 150/60, 166/66 (2.5x) 200/66 (3x) reserved
JP14
2-3 On 1-2 On 1-2 On 2-3 On
JP13
Off Off On On
* Default
Warning: The default setting of JP10, JP11 and JP12 is 3.3V (VR/STD). If the voltage of your CPU is not 3.3V, make sure you set JP10, JP11 and JP12 according to the voltage of your CPU, otherwise, your system will hang.
CPU
Voltage
2.7V 2.8V 2.9V 3.3V* (VR/STD) 3.5V (VRE)
JP10
1-2 On 3-4 On 5-6 On
All Off All Off
JP11
1-2 On 1-2 On 1-2 On
3-4 On, 5-6 On,
7-8 On
3-4 On, 5-6 On,
7-8 On
JP12
1-2 On 1-2 On 1-2 On 1-2 On 3-4 On
CPU Speed
75MHz 90/120/150MHz 100/133/166/200MHz
System
Bus Clock
50MHz 60MHz 66.6MHz
PCI CLK
25MHz 30MHz 33.3MHz
Pins
1-2
Off
On
Off
Pins
3-4
On Off Off
Pins
5-6
Off Off Off
JP6
Off Off Off
JP1

19
P-Rating
PR75 PR90 PR100
JP1
JP13
JP14
CPU
Voltage
2.7V 2.8V 2.9V 3.3V*
3.5V
JP10
1-2 On 3-4 On 5-6 On
All Off All Off
JP11
1-2 On 1-2 On 1-2 On
3-4 On, 5-6 On,
7-8 On
3-4 On, 5-6 On,
7-8 On
JP12
1-2 On 1-2 On 1-2 On 1-2 On 3-4 On
* Default
CPU Speed
75MHz 90MHz 100MHz
System
Bus Clock
50MHz 60MHz 66.6MHz
PCI CLK
25MHz 30MHz 33.3MHz
Pins
1-2
Off
On
Off
Pins
3-4
On
Off Off
Pins
5-6
Off Off Off
JP6
CPU P-Rate/Internal/External
Freq. Speed
75/75/50, 90/90/60, 100/100/66 (1.5x) 2x for future CPUs
JP14
2-3 On 1-2 On
JP13
Off Off
AMD-K5 CPUs
JP6 135
4
6 2
JP12 JP11 JP10
135
46 2
1 3 5 7
2 4 6 8
3
1
4
2
JP1
Off Off Off
Warning: The default setting of JP10, JP11 and JP12 is 3.3V. If the voltage of your CPU is not 3.3V, make sure you set JP10, JP11 and JP12 according to the voltage of your CPU, otherwise, your system will hang.

20
Zero Insertion Force (ZIF) Socket
Installing Upgrade CPUs
The G586SPB AIO is equipped with a 321-pin Zero Insertion Force
(ZIF) socket at location U14 of the system board. Refer to page 12 for
the location of the ZIF socket. This socket is designed for easy removal
of an old CPU and easy insertion of an upgrade CPU. The ZIF socket
allows you to carefully place the new CPU into its position. If you need
to apply excessive force to insert the CPU, you are not installing the
CPU correctly.
Warning:
Open the socket only if you are actually installing a CPU. The warranty
on the original CPU will be voided if the S/N seal is broken. Before
proceeding with the upgrade, take note of the following. The micropro-
cessor and heatsink may be hot if the system has been running. To
avoid the possibility of a burn, power the system off and let the proces-
sor and heatsink cool for 20 minutes.
The 321-pin ZIF socket consists of five rows of pin holes on each side.
To prevent improper CPU installation, the ZIF socket has a Plug/Keying
mechanism. Several holes in the socket are plugged so that the CPU
will go in only one way. If you cannot easily insert the CPU, verify that
pin 1 of the CPU is aligned with pin 1 of the socket.
To install an upgrade CPU, do the following.
1.Make sure the handle on the side of the ZIF socket is up. To raise
the handle, push it down, slightly pull it out to the side, then raise it
as far as it will go. It may be necessary to initially apply a small
