DFI AK74-TC User manual

AK74-TC
Rev. A+
System Board Users Manual
Carte Mère Manuel Pour Ut l sateur
System-Plat ne Benutzerhandbuch
Manual del Usuar o de Placas Base
49900121

Copyr ght
This publication contains information that is protected by
copyright. No part of it may be reproduced in any form or by
any means or used to make any transformation/adaptation
without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 001. All Rights Reserved.
Trademarks
Microsoft® MS-DOS®, WindowsTM, Windows® 95, Windows® 98,
Windows® 98 SE, Windows® ME, Windows® 000 and Windows
NT® 4.0 are registered trademarks of Microsoft Corporation.
AMD, AthlonTM and DuronTM are registered trademarks of
Advanced Micro Devices, Inc. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caut on
To avoid damage to the system:
 Use the correct AC input voltage range.
To reduce the risk of electric shock:
 Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide

Qu ck Setup
Gu de
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
2
4
64
86

5

Quick Setup Guide
Qu ck Setup
Gu de
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1. Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
7
10
18
Note:
The users manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesnt
match those shown in this manual, this manual should always be
regarded as the most updated version.

6
Quick Setup Guide

Qu ck Setup
Gu de
1.1 System Board Layout

7

Quick Setup Guide
Qu ck Setup
Gu de
1.2 Jumpers
1.2.1 CPU Frequency Ratio - SW1
Ratio
Auto
5x
5.5x
6x
6.5x
7x
7.5x
8x
8.5x
9x
9.5x
10x
10.5x
11x
11.5x
1 x
1 .5x
1
Off
On
On
On
On
On
On
On
On
On
On
On
On
On
On
On
On
2
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
4
Off
Off
Off
Off
Off
On
On
On
On
Off
Off
Off
Off
On
On
On
On
5
Off
On
On
On
On
Off
Off
Off
Off
Off
Off
Off
Off
On
On
On
On
Important:
We do not recommend that you adjust the C U to a higher
frequency ratio because it may result to the C Us or systems
instability and are not guaranteed to provide better system
performance. If you are unable to boot up the system with the
frequency ratio you selected, please power off the system and
set SW1 pins 1-5 to Off (Auto).

8
Quick Setup Guide

Qu ck Setup
Gu de
1.2.2 Clear CMOS Data - JP8
-3 On:
Clear CMOS Data
1- On:
Normal (default)
1
3
1
3
1.2. Onboard Audio Codec - JP4, JP5, JP6 and JP7
1- On:
Enable the
Onboard Audio
Codec (default)
-3 On:
Disable the
Onboard Audio
Codec
1
3
JP4 JP6JP5 JP7
1
3
JP4 JP6JP5 JP7

9

Quick Setup Guide
Qu ck Setup
Gu de
1.2.4 USB Power for USB 1 and USB 2 - JP
-3 On:
5VSB
1- On:
5V (default)
1
3
1
3

10
Quick Setup Guide

Qu ck Setup
Gu de
1. Ports and Connectors
1. .1 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your computer
prior to connecting or disconnecting a
mouse or keyboard. Failure to do so
may damage the system board.
PS/ Mouse
PS/ Keyboard
1. .2 Parallel Port
Parallel Port

11

Quick Setup Guide
Qu ck Setup
Gu de
1. . Universal Serial Bus Ports
USB
USB 1
USB 3 and USB 4
(J19)
1. .4 Serial Ports
COM 1
Serial Port COM
Serial Port
1 VCC
UP -
3 UP +
4 Ground
5 Key
6 VCC
7 UP3-
8 UP3+
9 Ground
10 Ground
11 Ground
1 Ground
13 UP +
14 UP -
15 VCC

1
Quick Setup Guide

Qu ck Setup
Gu de
1. .5 Game/MIDI Port and Audio Jacks
1. .6 Internal Audio Connectors
Game/MIDI Port
Audio Jacks
Line-out
Line-in
Mic-in
Line-out/Mic-in
(J33)
1 VCC
VCC
3 -Data
4 -Data
5 +Data
6 +Data
7 Ground
8 Ground
9 Ground
10 Ground
1 Left audio channel
Ground
3 Ground
4 Right audio channel
1 Modem-out (from modem)
Ground
3 Ground
4 Modem-in (to modem)
AUX-in / CD-in
TAD

13

Quick Setup Guide
Qu ck Setup
Gu de

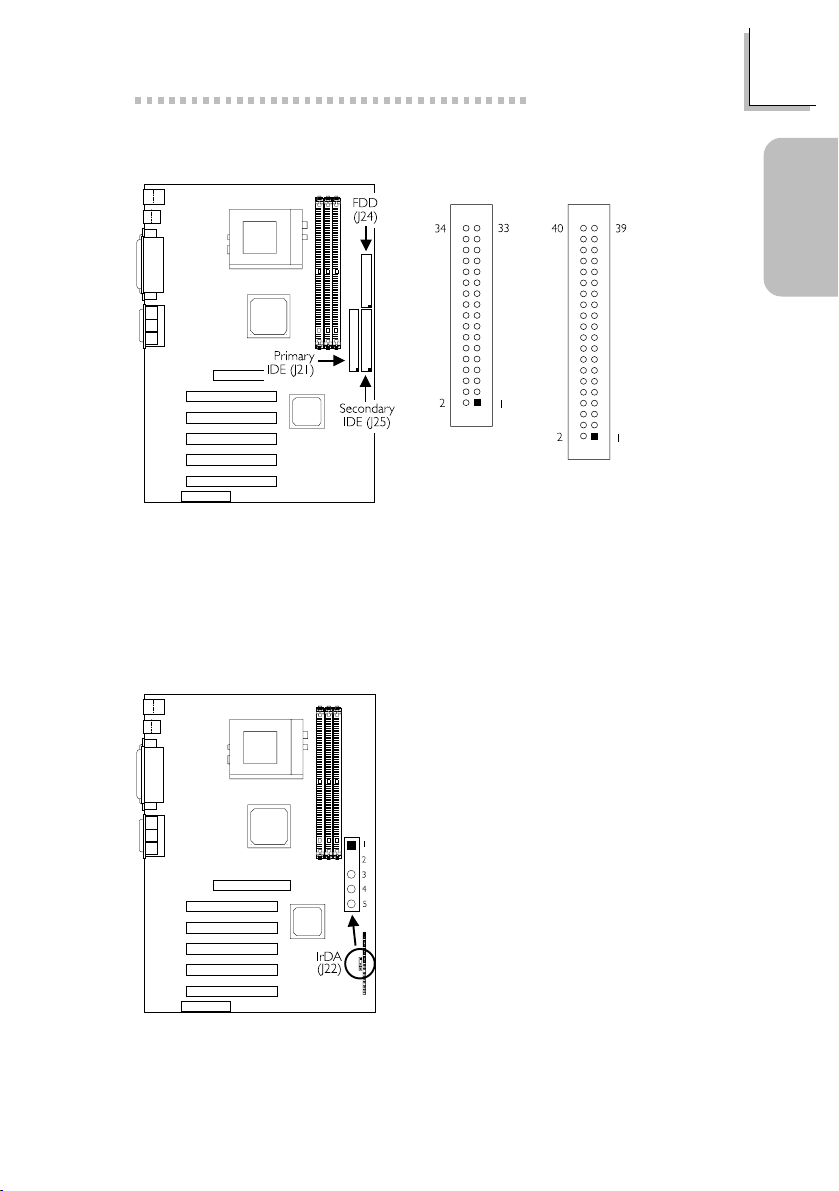

1. .7 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD
IDE
1. .8 IrDA Connector
1 VCC
N. C.
3 IRRX
4 Ground
5 IRTX
The sequence of the pin functions on
some IrDA cable may be reversed
from the pin function defined on the
system board. Make sure to connect
the cable to the IrDA connector
according to their pin functions.

14
Quick Setup Guide

Qu ck Setup
Gu de

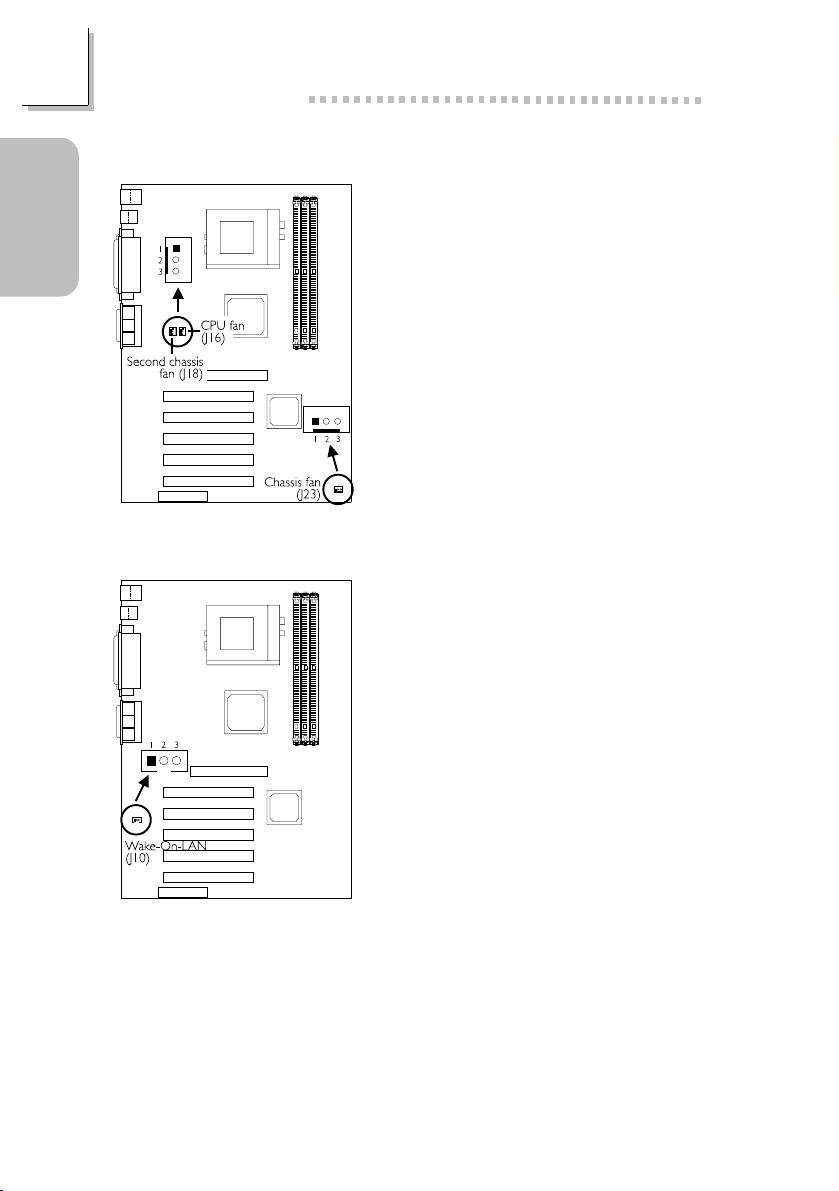

1. .10 Wake-On-LAN Connector
The 5VSB power source of your power
supply must support ≥7 0mA.
1 +5VSB
Ground
3 WOL
1. .9 Fan Connectors
1On
+1 V
3 Sense
1 On/Off
+1 V
3 Sense
1 Ground
+1 V
3N. C.
CPU Fan
Chassis Fan
Second Chassis Fan

15

Quick Setup Guide
Qu ck Setup
Gu de
1. .11 Wake-On-Ring Connector
1 Ground
RI#
If you are using a modem add-in card,
the 5VSB power source of your power
supply must support ≥7 0mA.
1. .12 Power Connector
1 3.3V
3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +1 V
11 3.3V
1 -1 V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
0 +5V
The system board requires a minimum of 300W electric current.

16
Quick Setup Guide

Qu ck Setup
Gu de

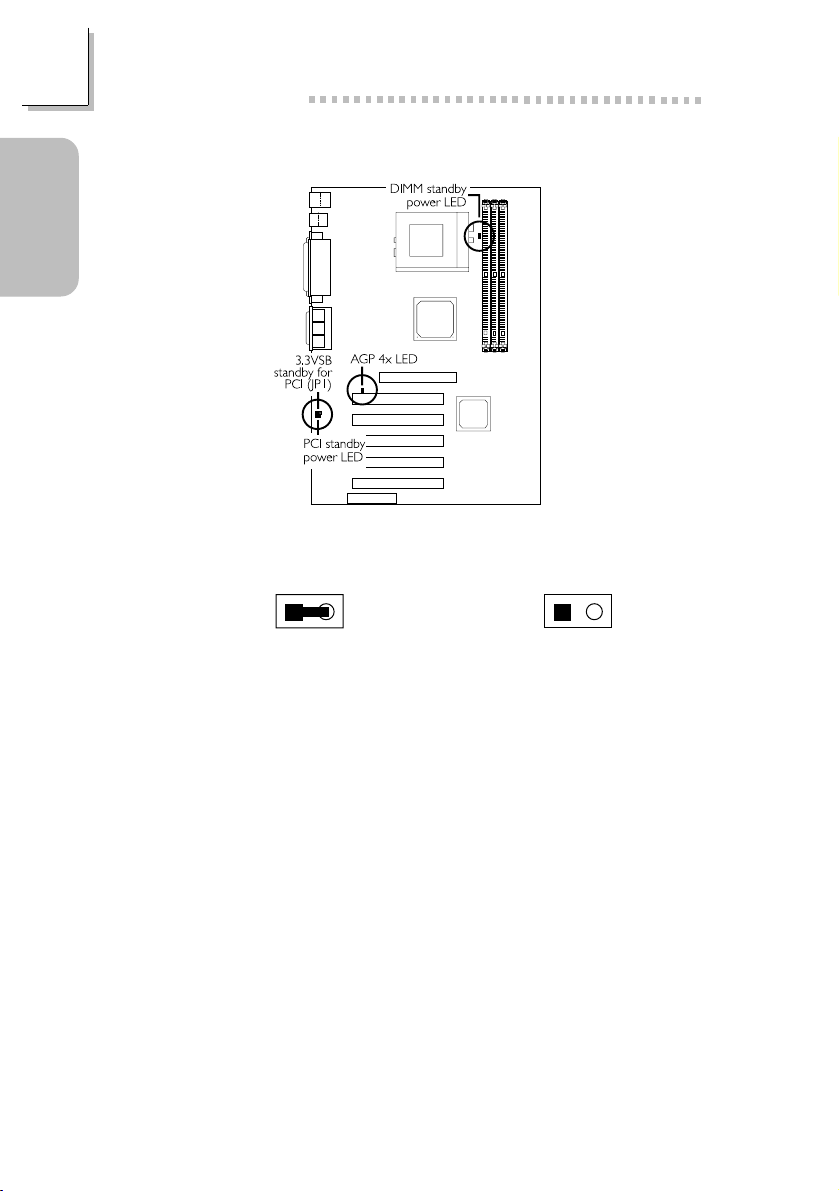

1. .1 AGP 4x LED / DIMM/PCI Standby Power LED
The AGP 4x LED will light only when the AGP slot is installed with a 4x
add-in card.
The DIMM Standby Power LED will turn red when the systems power is
on or when it is in the Suspend state (Power On Suspend or Suspend to
RAM). It will not light when the system is in the Soft-Off state.
The PCI Standby Power LED will turn red when the system is in the
power-on, Soft-Off or Suspend (Power On Suspend or Suspend to RAM)
state.
Lighted LEDs serve as a reminder that you must power-off the system
then turn off the power supplys switch or unplug the power cord prior to
installing any memory modules or add-in cards.
On: Default
3.3VSB Standby Power to PCI slots
(PCI . spec.)
Off:
Non-PCI . spec.
11
. VSB Standby for PCI - Jumper JP1

17

Quick Setup Guide
Qu ck Setup
Gu de

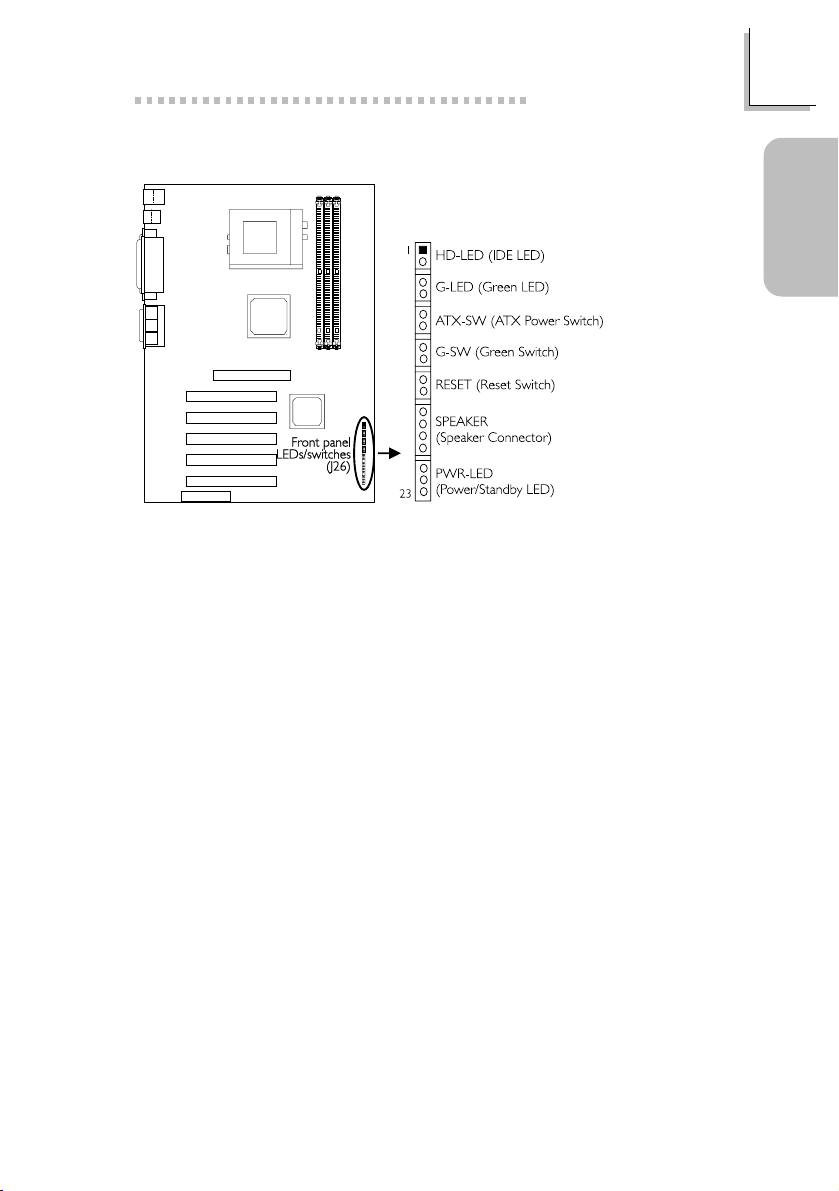

1. .14 Front Panel LEDs and Switches
1 HDD LED Power
HDD
3 N. C.
4 Green LED Power
5 Ground
6 N. C.
7 PWRBT+
8 PWRBT-
9 N. C.
10 SMI
11 Ground
1 N. C.
13 H/W Reset
14 Ground
15 N. C.
16 Speaker Data
17 N. C.
18 Ground
19 Speaker Power
0 N. C.
1 LED Power (+)
N.C.
3 LED Power (-) or
Standby Signal

18
Quick Setup Guide

Qu ck Setup
Gu de
1.4 Award BIOS Setup Utility
1.4.1 Main Menu
1.4.2 Standard CMOS Features
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc
F10 : Quit : Save & Exit Setup ↑↓→← : Select Item
Time, Date, Hard Disk Type...
The settings on the screen are for reference only. Your version may not be
identical to this one.
↑↓→← :Move
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
F6:Fail-Safe Defaults F7:Optimized Defaults
F1:General Help
Fri, May 18 2001
4 : 35 : 5
Press Enter None
Press Enter None
Press Enter None
Press Enter None
1.44M, 3.5 in.
None
EGA/VGA
All, But Keyboard
640K
129024K
130048K
Item Help
Menu Level
Change the day, month,
year and century
Enter:Select
F5:Previous Values +/-/PU/PD:Value F10:Save ESC:Exit
K
K
K
K

19

Quick Setup Guide
Qu ck Setup
Gu de
1.4. Advanced BIOS Features
1.4.4 Advanced Chipset Features
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Advanced BIOS Features
Item Help
Menu Level
Allows you to choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled and
someone attempt to
write data into this
area, BIOS will show a
warning message on
screen and alarm beep
↑↓→← Move F1:General HelpEnter:Select +/-/PU/PD:Value F10:Save ESC:Exit
X
X
Virus Warning
CPU L1 Cache
CPU L2 Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
HDD S.M.A.R.T. Capability
Disabled
Enabled
Enabled
Enabled
Enabled
Floppy
HDD-0
LS120
Enabled
Disabled
Disabled
Off
Disabled
6
250
Setup
Non-OS2
Disabled
F6:Fail-Safe Defaults F7:Optimized DefaultsF5:Previous Values
The settings on the screen are for reference only. Your version may not be
identical to this one.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Advanced Chipset Features
The settings on the screen are for reference only. Your version may not be
identical to this one.
X
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values+/-/PU/PD:Value F10:Save ESC:Exit
DRAM Timing By SPD
SDRAM Cycle Length
DRAM Clock
System BIOS Cacheable
Video RAM Cacheable
AGP Aperture Size
AGP-4X Mode
AGP Driving Control
AGP Driving Value
OnChip USB
USB Keyboard Support
OnChip Sound
OnChip Modem
Disabled
3
100MHz
Disabled
Disabled
64M
Enabled
Auto
DA
Enabled
Disabled
Auto
Auto

0
Quick Setup Guide

Qu ck Setup
Gu de
1.4.5 Integrated Peripherals
The screen above list all the fields available in the Integrated Peripherals
submenu, for ease of reference in this manual. In the actual CMOS setup,
you have to use the scroll bar to view the fields. The settings on the screen
are for reference only. Your version may not be identical to this one.
X
X
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Integrated Peripherals
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values+/-/PU/PD:Value F10:Save ESC:Exit
On-Chip Primary IDE
On-Chip Secondary IDE
IDE Prefetch Mode
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
Init Display First
IDE HDD Block Mode
Onboard FDD Controller
Onboard Serial Port 1
Onboard Serial Port 2
UART2 Mode Select
IR Function Duplex
TX,RX Inverting Enable
Onboard Parallel Port
Parallel Port Mode
ECP Mode Use DMA
EPP Mode Select
Onboard Legacy Audio
Sound Blaster
SB I/O Base Address
SB IRQ Select
SB DMA Select
MPU-401
MPU-401 I/O Address
Game Port (200-207H)
Enabled
Enabled
Enabled
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
PCI Slot
Enabled
Enabled
3F8/IRQ4
2F8/IRQ3
Standard
Half
No, Yes
378/IRQ7
ECP/EPP
3
EPP1.7
Enabled
Disabled
220H
IRQ 5
DMA 1
Disabled
330-333H
Enabled
