DFI NS70-EC User manual

NS70-EC
NS70-EL
Rev.A+
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Tablero Electrónico del Sistema Manual del Usuario
935-NS7001-200
58200210

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2002. All Rights Reserved.
Trademarks
Windows®98, Windows®98 SE, Windows®ME, Windows®2000,
Windows NT®4.0 and Windows®XP are registered trademarks of
Microsoft Corporation. Intel®and Pentium®4 are registered
trademarks of Intel Corporation. SiS®is a registered trademark of
Silicon Integrated Systems Corporation. Award is a registered
trademark of Award Software, Inc. Other trademarks and registered
trademarks of products appearing in this manual are the properties
of their respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide
1
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
22
39
57
76
ADMtek AN983B
RJ45 LAN port
!
!
NS70-EL
"
"
NS70-EC

5
1
Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1.2 Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
8
9
17

6
Quick Setup Guide
1
Quick Setup
Guide
1.1 System Board Layout
NS70-EC
KB
Mouse
USB 1
USB 2
3
4
1
2
ATX power
(ATXPWR2)
AC’97
SiS
961B
SiS
645DX
Socket 478
DDR SDRAM
DIMM 1
Floppy
Primary IDE
(IDE 1)
Secondary
IDE (IDE 2)
CPU fan
(J10)
+12V power
(ATXPWR1)
DDR SDRAM
DIMM 2
DDR
SDRAM
DIMM 3
AUX-in
(J4)
CD-in
(J3)
System
fan 2 (J1)
Front audio (J5)
Wake-On-LAN (J7) System
fan 1 (J8)
USB3&4(J9)
IrDA
(J14)
Clear
CMOS
(JP3)
KBMS1
LAN-USB1
COM 1 (CN2)
COM 2 (CN1)
Parallel (CN4)
I/O
chip
Game/Audio
(CN3)
Battery
G-LED
HD-LED
SPEAKER
RESET G-SW
P-LED
SP-LED
SP-SW
J11
Wake-On-
Ring (J6)
BIOS
10
91
2
AGP Slot
PCI 5 Slot
PCI 4 Slot
PCI 2 Slot
PCI 1 Slot
PCI 3 Slot
CNR Slot
2
1
9
10
Square denotes pin 1
USB 1
(Black)
Mouse
(Green)
KB
(Purple)
COM 1 COM 2
Parallel
(Burgundy)
Game/MIDI
(Gold)
Line-In
(Light Blue)
Speaker-Out
(Lime)
Mic-In
(Pink)
USB 2
(Black)
(Teal/Turquoise)

7
1
Quick Setup Guide
Quick Setup
Guide
NS70-EL
(Supports onboard LAN)
Note:
The illustrations on the following pages are based on the NS70-EL
system board, which is the board that supports onboard LAN.
KB
Mouse
LAN
USB 1
USB 2
3
4
1
2
ATX power
(ATXPWR2)
AC’97
SiS
961B
SiS
645DX
Socket 478
DDR SDRAM
DIMM 1
Primary IDE
(IDE 1)
Secondary
IDE (IDE 2)
CPU fan
(J10)
+12V power
(ATXPWR1)
DDR SDRAM
DIMM 2
DDR
SDRAM
DIMM 3
AUX-in
(J4)
CD-in
(J3)
System
fan 2 (J1)
Front audio (J5)
Wake-On-LAN (J7) System
fan 1 (J8)
USB3&4(J9)
IrDA
(J14)
Clear
CMOS
(JP3)
KBMS1
LAN-USB1
ADMtek
AN983B
I/O
chip
Game/Audio
(CN3)
Battery
G-LED
HD-LED
SPEAKER
RESET G-SW
P-LED
SP-LED
SP-SW
J11
Wake-On-
Ring (J6)
BIOS
10
91
2
AGP Slot
PCI 5 Slot
PCI 4 Slot
PCI 2 Slot
PCI 1 Slot
PCI 3 Slot
CNR Slot
COM 1 (CN2)
COM 2 (CN1)
Parallel (CN4)
2
1
9
10
Floppy
USB 2/1
(Black)
Mouse
(Green)
KB
(Purple)
COM 1
Parallel
(Burgundy) Game/MIDI
(Gold)
Line-In
(Light Blue)
Speaker-Out
(Lime)
Mic-In
(Pink)
RJ45
LAN
(Teal/Turquoise)
COM 2
Square denotes pin 1
Onboard LAN
setting (JP1)

8
Quick Setup Guide
1
Quick Setup
Guide
1.2 Jumpers
1.2.1 Clear CMOS Data - JP3
321
1-2 On:
Clear CMOS Data
321
2-3 On: Normal
(default)
Clear CMOS
(JP3)
321
1.2.2 Onboard LAN - JP1 (NS70-EL only)
123
1-2 On: Enabled
(default)
1232-3 On: Disabled
Onboard LAN
setting (JP1)
123

9
1
Quick Setup Guide
Quick Setup
Guide
1.3 Ports and Connectors
1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
The Wake-On-PS/2 Keyboard/
Mouse function, when enabled,
allows a PS/2 keyboard or
PS/2 mouse to wake up a
system from the S3/S4/S5 state.
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or
keyboard. Failure to do so may
damage the system board.
PS/2 Mouse
PS/2 Keyboard
1.3.2 Parallel Port
Parallel Port
Mouse
(Green)
KB
(Purple)
KBMS1
Parallel
(Burgundy)
CN4

10
Quick Setup Guide
1
Quick Setup
Guide

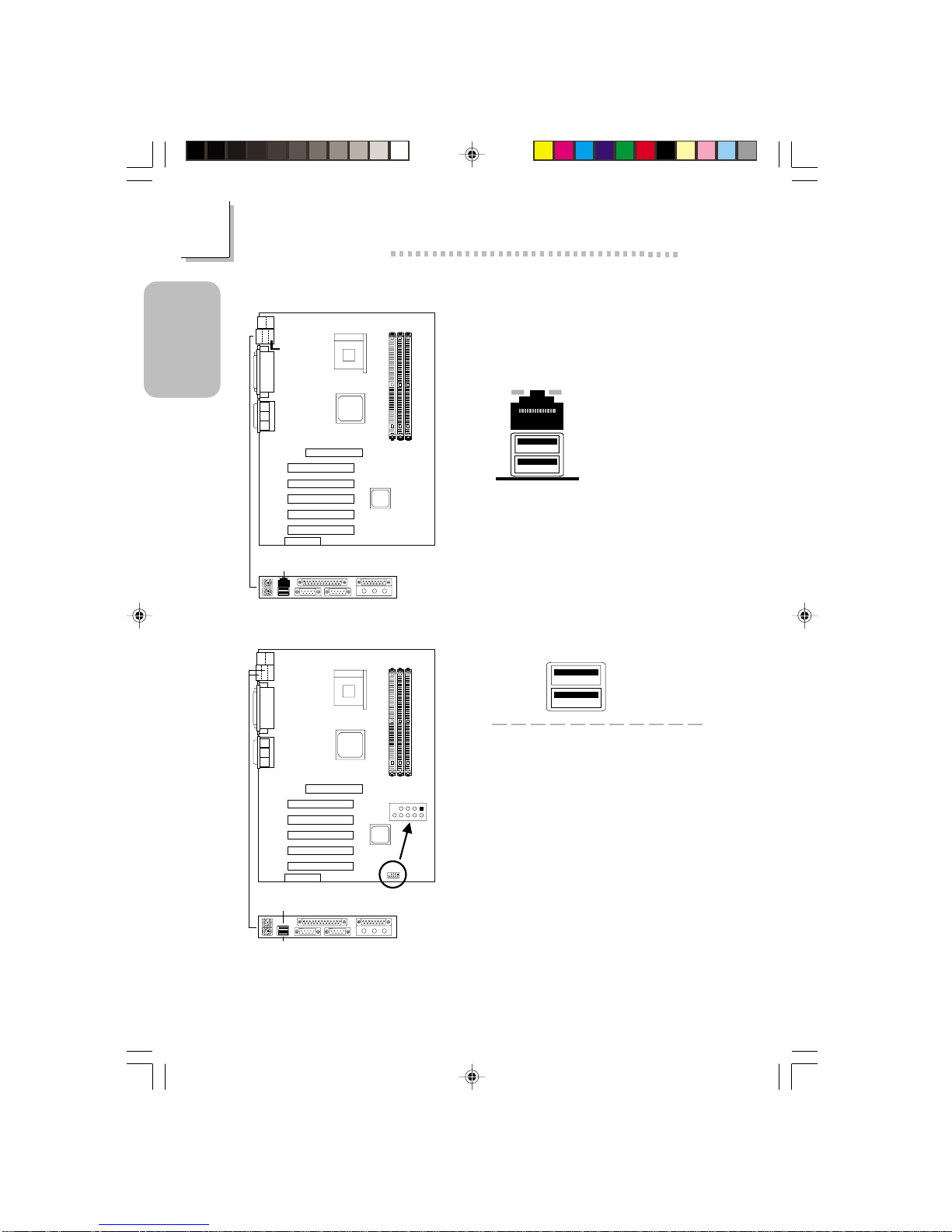

1.3.4 Universal Serial Bus Ports
The Wake-On-USB function, when
enabled, allows a USB keyboard to
wake up a system from the S3/S4/
S5 state.
1 VCC
2 -Data
3 +Data
4 Ground
5 Key
6 VCC
7 -Data
8 +Data
9 Ground
10 N. C.
Onboard USB Ports (USB 1 & 2)
Additional USB Ports (USB 3 and 4)
1.3.3 RJ45 Fast-Ethernet Port (NS70-EL only)
RJ45 LAN
RJ45
LAN
LAN-USB1
LAN-USB1
USB 2
(Black)
USB 1
(Black)
USB3&4
(J9)
10
91
2
9
10
1
2

11
1
Quick Setup Guide
Quick Setup
Guide
1.3.5 Serial Ports
COM 1
Serial Port COM 2
Serial Port
1.3.6 Game/MIDI Port and Audio Jacks
Game/MIDI Port
Audio Jacks
Line-out
Line-in
Mic-in
Front Audio (J5)
1 Mic+
2 Ground
3N.C.
4 AuD_Vcc (Avcc)
5 AuD_R-Out
6N.C.
7N.C.
8 Key
9 AuD_L_Out
10 N. C.
Onboard Game/MIDI / Audio
COM 1 COM 2
(Teal/Turquoise)
CN2
CN1
Line-in
(Light Blue)
Line-out
(Lime)
Mic-in (Pink)
Line-out
Line-in
Mic-in
2
1
9
10
Front
audio
(J5)
9
10
1
2

12
Quick Setup Guide
1
Quick Setup
Guide
1.3.7 Internal Audio Connectors
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
CD-in / AUX-in
1.3.8 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD
IDE
AUX-in (J4)
1
2
3
4
1
2
3
4
CD-in
(J3)
2
1
34
33
Primary IDE
(IDE 1)
Secondary
IDE (IDE 2)
Floppy
40 39
21

13
1
Quick Setup Guide
Quick Setup
Guide
1.3.10 Fan Connectors
1.3.9 IrDA Connector
1 VCC
2 Key
3 IRRX
4 Ground
5 IRTX
The sequence of the pin
functions on some IrDA cable
may be reversed from the pin
function defined on the system
board. Make sure to connect the
cable to the IrDA connector
according to their pin functions.
1 Ground
2 +12V
3 Sense
CPU Fan
1 Ground
2 +12V
3 Sense
1 Ground
2 +12V
3N.C.
System Fan 1
(red connector)
System Fan 2
(white connector)
System
fan 1 (J8)
21 3
System
fan 2 (J1)
213
CPU fan
(J10)
321
IrDA
(J14)
12345

14
Quick Setup Guide
1
Quick Setup
Guide
1.3.12 Wake-On-Ring Connector
1 Ground
2 RI#
If you are using a modem add-in
card, the 5VSB power source of
your power supply must support
≥720mA.
1.3.11 Wake-On-LAN Connector
The 5VSB power source of your
power supply must support
≥720mA.
1 +5VSB
2 Ground
3 WOL
123
Wake-On-
LAN (J7)
21
Wake-On-
Ring (J6)

15
1
Quick Setup Guide
Quick Setup
Guide
1.3.13 Power Connector
1 3.3V
2 3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +12V
11 3.3V
12 -12V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
20 +5V
ATX Main Power
1 Ground
2 Ground
3 +12V
4 +12V
+12V Power
We recommend that you use a power supply that complies with the
ATX12V Power Supply Design Guide Version 1.1. Connect the
ATX12V power supply’s 20-pin ATX main power connector and 4-
pin +12V power connector to J8 and ATXP1 respectively.
The 4-pin +12V power connector enables the delivery of more
+12VDC current to the processor’s Voltage Regulator Module
(VRM).
The mainboard requires a minimum of 250 Watt power supply to
operate.Your system configuration (amount of memory, add-in cards,
peripherals, etc.) may exceed the minimum power requirement.To
ensure that adequate power is provided, use a 300 Watt (or
greater) power supply.
3
4
1
2
ATX powe r
(ATXPWR2)
1
10
11
20
2
1
3
4
+12V power
(ATXPWR1)

16
Quick Setup Guide
1
Quick Setup
Guide
1.3.14 Front Panel Connectors
If a system did not boot-up and the
Power/Standby LED did not light
after it was powered-on, it may
indicate that the CPU or memory
module was not installed properly.
Please make sure they are properly
inserted into their corresponding
socket.
Front panel
connectors (J11)
SP-LED
HD-LED
G-LED
SPEAKER
SP-SW
G-SW
RESET
P-LED
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
SP-LED
(ATX 5VSB Standby LED)
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
SPEAKER
(Speaker connector)
SP-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
P-LED
Power/Standby LED
Pin Assignment
5VSB
Ground
N. C.
Ground
HDD LED Signal
N. C.
Green Signal
Green LED Power
N. C.
Speaker Signal
N. C.
Ground
Speaker Power
PWRBT Signal
Ground
N. C.
SMI Signal
Ground
N. C.
N. C.
H/W Reset
Ground
N. C.
LED Power
N.C.
Ground

17
1
Quick Setup Guide
Quick Setup
Guide
1.4 Award BIOS Setup Utility
1.4.1 Main Menu
1.4.2 Standard CMOS Features
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc
F10 : Quit : Save & Exit Setup ↑↓→← : Select Item
Time, Date, Hard Disk Type...
The settings on the screen are for reference only.Your version may not be
identical to this one.
↑↓→← :Move
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
F6:Fail-Safe Defaults F7:Optimized Defaults
F1:General Help
Fri, Mar 1 2002
4 : 35 : 5
Press Enter None
Press Enter None
Press Enter None
Press Enter None
1.44M, 3.5 in.
None
EGA/VGA
All, But Keyboard
640K
129024K
130048K
Item Help
Menu Level
Change the day, month,
year and century
Enter:Select
F5:Previous Values +/-/PU/PD:Value F10:Save ESC:Exit
!
!
!
!

18
Quick Setup Guide
1
Quick Setup
Guide
1.4.3 Advanced BIOS Features
1.4.4 Advanced Chipset Features
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Item Help
Menu Level
Allows you to choose
the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled and
someone attempt to
write data into this
area, BIOS will show a
warning message on
screen and alarm beep
↑↓→← Move F1:General HelpEnter:Select +/-/PU/PD:Value F10:Save ESC:Exit
X
X
F6:Fail-Safe Defaults F7:Optimized DefaultsF5:Previous Values
The settings on the screen are for reference only.Your version may not be
identical to this one.
Virus Warning
CPU L1 & L2 Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
First Boot Device
Second Boot Device
Third Boot Device
Boot Other Device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
APIC Mode
MPS Version Control for OS
OS Select For DRAM > 64MB
HDD S.M.A.R.T. Capability
Small Logo(EPA) Show
Onboard LAN Boot ROM
Disabled
Enabled
Enabled
Fast
Floppy
HDD-0
LS120
Enabled
Disabled
Disabled
On
Disabled
6
250
Setup
Enabled
1.4
Non-OS2
Disabled
Enabled
Enabled
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
The settings on the screen are for reference only.Your version may not be
identical to this one.
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
DRAM Clock/Drive Control
Prefetch Caching
Memory Hole at 15M-16M
AGP Aperture Size
Graphic Window WR Combin
AGP Fast Write
AGP SideBand Address
AGP Capability
Press Enter
Enabled
Enabled
128MB
Enabled
Enabled
Enabled
Auto
!

19
1
Quick Setup Guide
Quick Setup
Guide
1.4.6 Power Management Setup
1.4.5 Integrated Peripherals
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
SIS OnChip IDE Device
SIS OnChip PCI Device
Onboard Super IO Device
USB Controller
USB Keyboard Support
IDE HDD Block Mode
Init Display First
AGP Auto Calibration
IDE Access Interface
USB1 Access Interface
USB0 Access Interface
Audio Access Interface
Press Enter
Press Enter
Press Enter
Enabled
Disabled
Enabled
AGP
Enabled
Embedded Bus
Embedded Bus
Embedded Bus
Embedded Bus
!
!
!
The settings on the screen are for reference only.Your version may not be
identical to this one.
The settings on the screen are for reference only.Your version may not be
identical to this one.
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
ACPI Function
ACPI Suspend Type
Power Management
Suspned Mode
Video Off Option
Video Off Method
MODEM Use IRQ
PS2KB Function As
PS2KB Setting
HDD Power Down
Soft-Off By PWRBTN
PWR Lost Resume State
PM Wake Up Events
Enabled
S3(STR)
User Define
Disabled
Suspend -> Off
V/H SYNC+Blank
Auto
Disable
Any Key
Disable
Instant-off
Keep Off
Press Enter
Item Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
!

20
Quick Setup Guide
1
Quick Setup
Guide
1.4.7 PnP/PCI Configurations
The settings on the screen are for reference only.Your version may not be
identical to this one.
X
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Reset Configuration Data
Resources Controlled By
IRQ Resources
PCI/VGA Palette Snoop
* PCI IRQ Assignment *
Slot 1,5
Slot 2
Slot 3
Onboard USB/Slot 4
Disabled
Auto(ESCD)
Press Enter
Disabled
Auto
Auto
Auto
Auto
Item Help
Menu Level
Default is Disabled.
Select Enabled to
reset Extended System
Configuration Data
(ESCD) when you exit
Setup if you have
installed a new add-on
and the system
reconfiguration has
caused such a serious
conflict that the OS
cannot boot.
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
1.4.8 PC Health Status
The settings on the screen are for reference only.Your version may not be
identical to this one.
Phoenix - AwardBIOS CMOS Setup Utility
PC Health Status
Shutdown Temperature
CPU(V)
VCCVID(V)
+3.3 V
+5 V
+12 V
+3V SB
-12
+5V SB
Voltage Battery
Current CPU Temp.
Current System Temp.
CPU Power Temp.
Current CPU FAN Speed
Current System FAN 1 Speed
70oC/158oFItem Help
Menu Level
↑↓→← Move F6:Fail-Safe Defaults F7:Optimized Defaults F1:General HelpEnter:Select
F5:Previous Values
+/-/PU/PD:Value F10:Save ESC:Exit
1.75 V
1.18 V
3.35 V
4.90 V
11.85 V
3.24V
-11.45 V
-5.14 V
5.37 V
27C/80F
37C/98F
41C/105F
0 RPM
0 RPM
V
